Tele Radio T29-12 User manual

safe smart strong
T29
IM-PN-TX108-CERT-v01pre8
Language: English (original)
INSTALLATION
INSTRUCTIONS
Transmitters: T29-12

©Tele Radio AB
Datavägen 21
SE-436 32 Askim
Sweden
Phone: [phone]

CHAPTER 1: INTRODUCTION 5
1.1About this document 7
1.2About T29 transmitters 8
CHAPTER 2: SAFETY 9
2.1Warnings & restrictions 9
2.2Safety features 11
CHAPTER 3: FUNCTIONAL SAFETY 12
3.1Safety function 12
3.2Applicable products 12
3.3Installation 12
3.4Configuration 12
3.5Interface 14
CHAPTER 4: TECHNICAL DATA 15
4.1Transmitter specifications 15
4.2Radio frequency band 15
CHAPTER 5: PRODUCT GENERAL DESCRIPTION 17
5.1Transmitter front 17
5.2Transmitter back 18
5.3Top LED 18
CHAPTER 6: STATUS AND ERROR INDICATIONS 19
6.1Top LED status indication 19
6.2Stop button error indications 19
6.3Error indications and code messages 20
CHAPTER 7: OPERATION 25
7.1General information 25
7.2Radio mode 25
7.3Functionality test 26
7.4Start a session 27
7.5Log the transmitter out from a receiver 28
CHAPTER 8: CONFIGURATION MENU 29
8.1Register the transmitter in a receiver 29
8.2Menu mode and standard settings 31
8.3Enter menu mode 32
8.4Replace a transmitter 33

8.5Show current radio frequency channel 35
8.6Set the radio inactivity timeout (automatic shutdown) 36
8.7Load select mode 37
8.8Logout from Menu mode 41
8.9Select a radio frequency channel 42
8.10Load at start-up 44
CHAPTER 9: BATTERY 45
9.1Battery precautions 45
9.2Battery information 47
CHAPTER 10: WARRANTY, SERVICE, REPAIRS, AND MAINTENANCE 50
CHAPTER 11: REGULATORY INFORMATION 51
11.1Europe 51
11.2North America 51
ANNEX 12: GLOSSARY 53
ANNEX 13: INDEX 54

Installation instructions│T29│Chapter 1: Introduction
CHAPTER 1: INTRODUCTION
Thank you for purchasing a Tele Radio AB product
READ ALL INSTRUCTIONS AND WARNINGS CAREFULLY BEFORE MOUNTING,
INSTALLING, CONFIGURING ANDOPERATING THE PRODUCTS.
These Installation instructions have been published by Tele Radio AB and are not
subject to any guarantees. The Installation instructions may be withdrawn or
revised by Tele Radio AB at any time and without further notice. Corrections and
updates will be added to the latest version of the manual. Always download the
Installation instructions from our website, www.tele-radio.com, for the latest
available version. Keep the safety instructions for future reference.
IMPORTANT! These instructions are intended for installers and authorized service
and distribution centers. The instructions containing information about the
installation and configuration of the radio remote control unit on the machine are
NOT intended to be passed on to the end user. Only information that is needed to
operate the machine correctly by radio remote control may be passed on to the end
user.
Tele Radio AB remote controls are often built into wider applications. This
documentation is not intended to replace the determination of suitability or
reliability of the product for specific user applications and should not be used for
this purpose. It is the responsibility of any such users or integrators to perform the
appropriate and complete risk analysis, evaluation and testing of the products with
respect to the relevant specific application or use. Tele Radio AB shall not be
responsible or liable for misuse of the information contained herein.
Always refer to the applicable local regulations for installation and safety
requirements relating to cranes, hoists, material handling applications, lifting
equipment, industrial machinery, and/or mobile hydraulic applications using Tele
Radio AB products, e.g.:
lapplicable local and industrial standards and requirements,
lapplicable occupational health and safety regulations,
lapplicable safety rules and procedures for the factory where the equipment
is being used,
luser and safety manuals or instructions of the manufacturer of the
equipment where Tele Radio AB remote control systems are installed.
IM-PN-TX108-CERT-v01pre8 5

Installation instructions│T29│Chapter 1: Introduction
Tele Radio AB Installation instructions do not include or address the specific
instructions and safety warnings of the end product manufacturer.
For battery precautions, see "9.1 Battery precautions".
Tele Radio AB products are covered by a warranty against material, construction, or
manufacturing faults. See "Chapter 10: Warranty, service, repairs, and maintenance".
6 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 1: Introduction
1.1About this document
Before installing or operating the product, read the corresponding documentation
carefully.
Tele Radio AB's product range is composed of transmitters, receivers, and
accessories intended for use together as a system.
These Installation instructions cover general safety issues, main technical
specifications, standard installation, configuration and operating instructions,
general troubleshooting and battery information. Images shown in this document
are for illustrative purposes only.
Please report any error or omission in this document, as well as any improvement
or amendment suggestion to [e-mail].
1.1.1COPYRIGHT
Information in this document is subject to change without notice. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, electronic, photographic, mechanical (including
photocopying), recording or otherwise for any purpose other than the purchaser's
personal use without the written permission of Tele Radio AB.
1.1.2TERM AND SYMBOL DEFINITIONS
The capitalized terms and symbol used herein shall have the following meaning:
lWARNING: indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
lCAUTION: indicates a hazardous situation which, if not avoided, will result in
minor or moderate injury.
lIMPORTANT: is used for information that requires special consideration.
lNOTE: is used to address practices not related to physical injury.
This symbol is used to call attention to safety messages that would be
assigned the signal words "WARNING"or "CAUTION".
IM-PN-TX108-CERT-v01pre8 7

Installation instructions│T29│Chapter 1: Introduction
1.2About T29 transmitters
T29 transmitters have simplex communication with support for duplex.
T29 transmitters are compatible with all Panther receivers within the same
frequency range.
1.2.1OVERVIEW OF THE AVAILABLE MODEL
Model
Step buttons transmitters
Number of buttons Display Frequency
12 2.4 Ghz
T29-12 ●–●
●Standard – Not available
8 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 2: Safety
CHAPTER 2: SAFETY
2.1Warnings & restrictions
Carefully read through the following safety instructions before
proceeding with the installation, configuration, operation, or
maintenance of the product. Failure to follow these warnings could
result in death or serious injury.
This product must not be operated without having read and understood the
Installation instructions and having received the appropriate training. The
purchaser of this product has been instructed how to handle the system safely. The
following information is intended for use as a complement to applicable local
regulations and standards.
IMPORTANT! Tele Radio AB remote controls are often built into wider
applications. These systems should be equipped with:
• a wired emergency stop where necessary
• a brake
• an audible or visual warning signal
2.1.1INSTALLATION AND COMMISSIONING
IMPORTANT! Only licensed or qualified personnel should be permitted to install
the product.
This radio system must not be used in areas where there is a risk of
explosion.
Always switch off all electrical power from the equipment before
installation procedure.
RISK OF UNINTENDED EQUIPMENT OPERATION
Only transmitters that are intended for use should be registered in the
receiver.
Failure to follow these instructions could result in death, serious injury,
or equipment damage.
IM-PN-TX108-CERT-v01pre8 9

Installation instructions│T29│Chapter 2: Safety
2.1.2OPERATION
Only qualified personnel should be permitted to access the transmitter
and operate the equipment.
This equipment is not suitable for use in locations where children are
likely to be present.
lMake sure that the user satisfies the age requirements in your
country for operating the equipment.
lMake sure that the user is not under the influence of drugs,
alcohol and medications.
lMake sure that the user knows and follows operating and
maintenance instructions as well as all applicable safety
procedures and requirements.
The user should:
lAlways test the transmitter stop button before operating it.This
test should be done on each shift, without a load. See "2.2.1 Stop
button".
lNever use a transmitter if the stop button is mechanically
damaged.Contact your supervisor or representative for service
immediately.
lNever leave the transmitter unattended.
lAlways switch the transmitter off when not in use. Store in a safe
place.
lKeep a clear view of the work area at all times.
2.1.3MAINTENANCE
Before maintenance intervention on any remote controlled equipments:
• always remove all electrical power from the equipment.
• always follow lockout procedures.
lKeep the safety information for future reference. Always download the
Installation instructions from our website, www.tele-radio.com, for the latest
available version.
10 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 2: Safety
lIf error messages are shown, it is very important to find out what caused
them. Contact your representative for help.
lThe functionality of the stop button should be tested at least after every 200
hours’ use (see "2.2.1 Stop button").
lIf the stop button is mechanically damaged, do not use the transmitter.
Contact your supervisor or representative for service immediately.
lKeep the product in a clean, dry place.
lKeep contacts and antennas clean.
lWipe off dust using a clean, slightly damp cloth.
lNever use cleaning solutions.
lCheck the encapsulation, foils and cable for damages. If the encapsulation or
foil is damaged, moisture can cause serious damage to the electronics.
2.2Safety features
2.2.1STOP BUTTON
Tele Radio AB transmitters are equipped with a stop
button.
When the Stop button is pressed, the stop relays on the
receiver deactivate.
IMPORTANT! The Stop button should always be tested before operating the
transmitter. This test should be done on each shift, without a load.
To test the stop button:
1. Press the Stop button.
2. Twist and release the Stop button.
IM-PN-TX108-CERT-v01pre8 11

Installation instructions│T29│Chapter 3: Functional safety
CHAPTER 3: FUNCTIONAL SAFETY
NOTE: The information in this section applies only to the products specified
below.

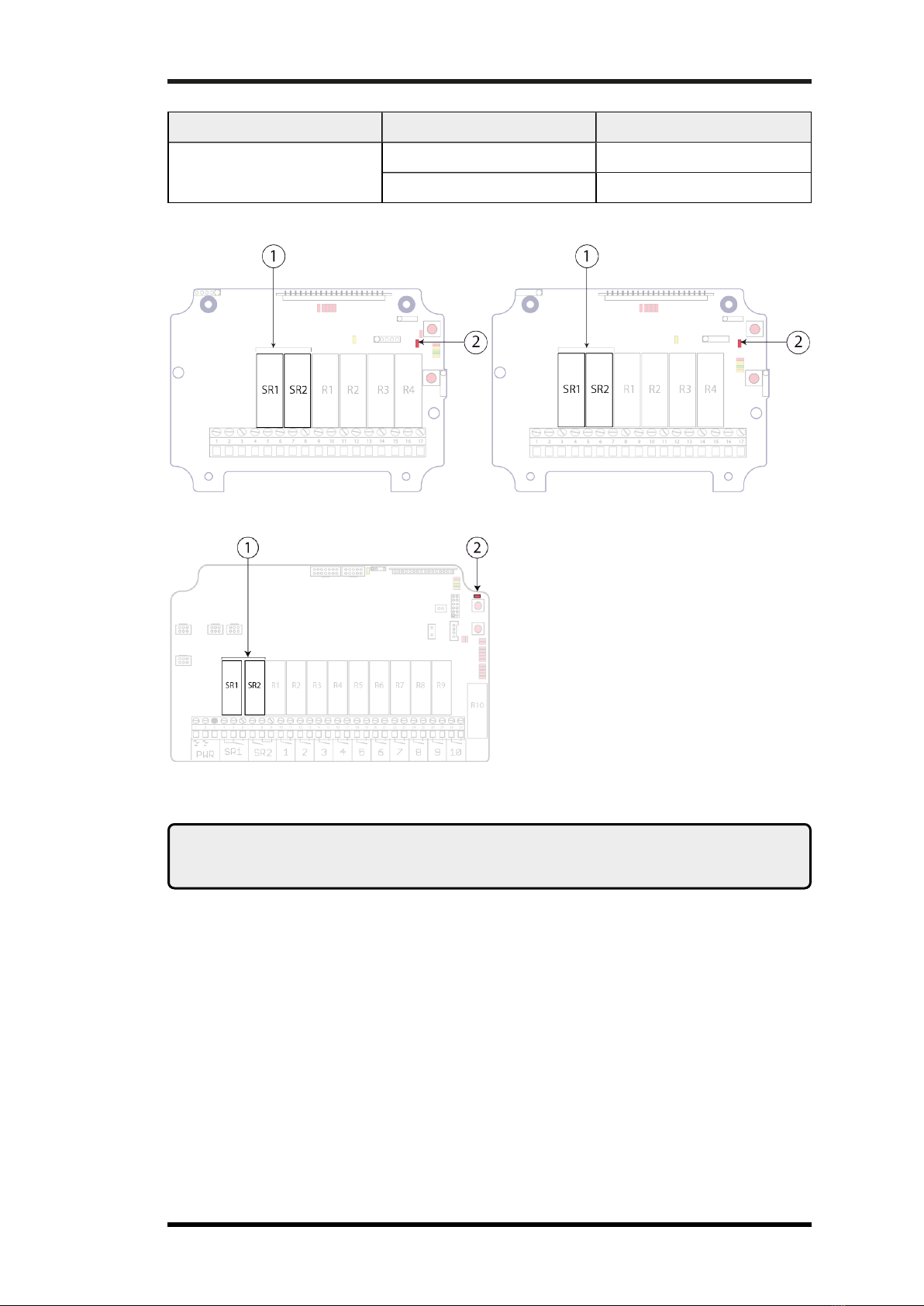

3.1Safety function
The safety-related stop function in the radio system complies with EN 13849-1:2015
PLd category 3. The stop relays on the receiver unit are controlled by the stop
button on the transmitter unit. When the stop button is pressed, the stop relays
interrupt the power to the safety-related application. The complete end-user
system, including the radio system, enters a safe state. The maximum response time
for the safety-related stop function is 500ms.
Safety function Mission time MTTFd DCavg PFHDCategory Achieved PL
Stop function 20 years 100 years 99 % 4,29 x 10-08 3 d
3.2Applicable products
The following receivers are designed to comply with the appointed safety
requirements when used together with a T29 transmitter:
lR15, R23
NOTE: Both the receiver and the transmitter used in the specific end-user system
must be compliant.
3.3Installation
The two stop relays on the receiver unit shall be correctly installed/integrated to
the end-user system requirements.
NOTE: The safety level of the stop function on the complete end-user system
depends on other sub system(s) and needs to be calculated by the manufacturer
of the complete system.
3.4Configuration
The default configuration of the receiver unit complies with the appointed safety
requirements. Any reconfiguration that breaches the safety requirements will be
indicated by a LED on the main board of the receiver unit. Before commissioning
the radio system, the installer must check the LED indication.
12 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 3: Functional safety
Function LED Status Indicates
PLd status LED (red) ON Not compliant with PLd
OFF Compliant with PLd
R15-01, R15-02, R15-07, R15-08 R15-13, R15-14
R23
1. Stop relays SR1–2 2. PLd status LED (red)
IMPORTANT! All safety-related parameters must be configured as follows in
order to comply with the appointed safety requirements:
nThe system must be configured in continuous radio mode.
nThe stop relays must be switched off when the radio link is down.
nThe radio link timeout must be set to a maximum of 500ms.
nThe login/logout function must be activated.
nThe Custom ID setting must be deactivated, i.e. the receiver must always use
the unique transmitter ID code.
nThe parameter 'START status in Gen1 packet for session' must
be activated. See "3.4.1 'START status'/'START bit' parameters" for more
IM-PN-TX108-CERT-v01pre8 13

Installation instructions│T29│Chapter 3: Functional safety
details.
nThe parameter 'START bit in Gen2 packet for session' must be
activated. See "3.4.1 'START status'/'START bit' parameters" for more details.
3.4.1'START STATUS'/'START BIT' PARAMETERS
When the transmitter is started it will send start commands for 200ms.
lIf both ‘START status’ and 'START bit' parameters are activated, the
receiver is PLd compliant.
The receiver will not activate the stop relays until it receives a start command
from the transmitter. This is to make sure that the stop relays will not
activate immediately if the receiver is restarted after a temporary loss of
power and the transmitter is still active.
If the receiver has received a start command and the transmitter goes out of
range for more than six minutes, a new start packet will be required (i.e. the
transmitter will have to be restarted).
lIf one or both ‘START status’ or 'START bit' parameters are not
checked, the receiver is NOT PLd compliant.
The stop relays are activated as soon as the receiver receives packets without
pressing any button on the transmitter.
3.5Interface
The radio system comprises one SRP/CS (as defined in EN13849-1:2015), including
the stop button (input), the stop relays (output) and the safety-related logic
maintening the stop function (logic).
The interfaces to the SRP/CS are the stop button (as controlled by the
operator)and the stop relays.
INPUT LOGIC OUTPUT
Transmitter's stop button ¢Safety-related logic ¢Receiver's stop relays
¢: Interconnection
14 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 4: Technical data
CHAPTER 4: TECHNICAL DATA
4.1Transmitter specifications
T29-12
Number of buttons 12 x 2-step buttons
I/Oswitch No
Power supply Replaceable, rechargeable lithium-ion battery
Operating time (with
continuous usage)
Approximately 30 h. //info from T17-8/12, waiting for
final info
Radio communication Simplex (default), support for duplex
Radio frequency band 2405 – 2480MHz
Frequency management Direct Sequence Spread Spectrum (DSSS)
Number of channels 16 (channel 11–26)
Radio frequency output
power
CE EIRP1: < 12 dBm (15.8 mW)
FCC+IC Max EIRP1: 21.73dBm
IP code IP65
Operating temperature -20…+55°C / -4…+130°F
Storage temperature -30…+70°C / -22…+158°F (without battery)2
Charging temperature +10…+35°C / +50…+95°F
Safety levels EN ISO 13849-1,CAT3 PLd (Stop function , see "Chapter 3:
Functional safety")
Dimensions 210 x 76 x 37 mm / 8.2 x 3 x 1.4in
Weight 400 g / 0.9 lbs
4.2Radio frequency band
For radio systems operating on frequency band 2.4 GHz, the frequency band is
divided into 16 channels (11 to 26). Once the channel has been selected on the
transmitter, the receiver will automatically detect and switch to the same channel.
Channel Frequency (MHz) Channel Frequency (MHz)
11 2405 19 2445
12 2410 20 2450
1Equivalent isotropic radiated power
2For storage temperature of battery pack M245060 (D4-02), see "9.2 Battery information".
IM-PN-TX108-CERT-v01pre8 15

Installation instructions│T29│Chapter 4: Technical data
Channel Frequency (MHz) Channel Frequency (MHz)
13 2415 21 2455
14 2420 22 2460
15 2425 23 2465
16 2430 24 2470
17 2435 25 2475
18 2440 26 2480
16 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 5: Product general description
CHAPTER 5: PRODUCT GENERAL DESCRIPTION
The pictures shown in this chapter are for illustrative purposes only.
5.1Transmitter front
T29-12
1. Rubber
cover
2. Top LED
3. Button 1
4. Button 2
5. Button 3
6. Button 4
7. Button 5
8. Button 6
9. Button 11
/Left
Start
button
10. Button 12 /
Right Start
button
11. Button LEDs
12. Stop button
13. Button 7
14. Button 8
15. Button 9
16. Button 10
5.1.1SHIFT BUTTON
In some cases, the right Start button is used as a shift button to access some
menus and/or channels.
To activate the shift function, press the shift button and keep it pressed. Press the
button corresponding to the desired channel/ menu. Release it, then release the
shift button.
IM-PN-TX108-CERT-v01pre8 17

Installation instructions│T29│Chapter 5: Product general description
5.2Transmitter back
T29-12
1. Rubber cover
2. Clip
3. Stop button
4. Product label1
5. Battery charger
socket
6. Battery compartment
7. Replaceable battery
5.3Top LED
The transmitter is equipped with one bi-color LED (top
LED) for battery indication and radio link information. For
more details, see "Chapter 6: Status and error indications"
1*The product label is placed inside the battery compartment.
18 IM-PN-TX108-CERT-v01pre8

Installation instructions│T29│Chapter 6: Status and error indications
CHAPTER 6: STATUS AND ERROR INDICATIONS
6.1Top LED status indication
The top LED lights or flashes green when the battery capacity is good and red when
the battery capacity is poor. When the top LED lights/flashes red, battery should be
charged or changed at the next convenient opportunity (see "9.2.1 Charge the
battery").
6.2Stop button error indications
If the top LED is flashing red + green (orange), LEDs 1+2 are lit and all other red
LEDs are off, the transmitter has detected a problem with the stop button (FATAL_
ERROR_STOP_BUTTON_FAILED).
If the top LED is flashing red + green (orange), LEDs 3+4 are lit and the other red
LEDs are off, the transmitter has detected a problem with the stop button (FATAL_
ERROR_STOP_BUTTON_CPU1_ADC_VALUE_INVALID, means the stop button is
returning a medium value of 1 or 0)
A test of the stop button is required in both the pulled out position and in the
pressed in position.
1. Press the stop button
If the transmitter turns off If the transmitter doesn't turn off
The test succeeded. The test failed.
Proceed to next step. a. Disassemble the transmitter
b. Check the stop button and
replace if necessary.
c. Check the cables from the stop
button to the transmitter board.
d. Proceed to next step.
2. Twist and release the Stop button.
If the transmitter turns on. If the transmitter doesn't turn on
The test succeeded. The test failed.
The transmitter can be used. Go back to step 1 and try again.
IM-PN-TX108-CERT-v01pre8 19

Installation instructions│T29│Chapter 6: Status and error indications
6.3Error indications and code messages
Each error is identified by a code indicated by a LED combination including the top
LED (LED0) and button LEDs 1–5.
: LED is lit (red). : LED is off
: LED is blinking green/red.
LED0
green/red
LED1
red
LED2
red
LED3
red
LED4
red
LED5
red
Error code Indicates
      FATAL_ERROR_
NO_
PRODUCTION_
DATA_
RECEIVED_CPU1
'No production data
received from CPU1'
For this error code,
contact technical
support
20 IM-PN-TX108-CERT-v01pre8
