Tele Radio T70 Jaguar User manual

Tele Radio Jaguar
MANUAL
Rev. IM-T70-003-A1

CONTENTS

TELE RADIO
SETTINGS DOCUMENT
Download for print at: www.tele-radio.com
TRANSMITTER(S)
TRANSMITTER 1
Article no:_______________________________Series no: _______________________________
ID code (T70TX-08ERB): ________________________
Automatic shutoff: ______________________________
Operating Mode: _______________________________
Function Selection: 1 2
TRANSMITTER 2
Article no:_______________________________Series no: _______________________________
ID code (T70TX-08ERB): ________________________
Automatic shutoff: ______________________________
Operating Mode: _______________________________
Function Selection: 1 2
TRANSMITTER 3
Article no:_______________________________Series no: _______________________________
ID code (T70TX-08ERB): ________________________
Automatic shutoff: _______________________________
Operating Mode: ________________________________
Function Selection: 1 2
RECEIVER(S)
RECEIVER 1
Article no:_______________________________Series no: _______________________________
Latching relays: __________________________________________________________________
Interlocking relays: _______________________________________________________________
Stored transmitter(s). Series no for T70TX-06TTB/ ID code for T70TX-08ERB:
1. _________________________2. _________________________3. _______________________
RECEIVER 2
Article no:_______________________________Series no: _______________________________
Latching relays: __________________________________________________________________
Interlocking relays: _______________________________________________________________
Stored transmitter(s). Series no for T70TX-06TTB/ ID code for T70TX-08ERB:
1. _________________________2. _________________________3. _______________________

CHANNEL FREQ.BANK 1 OPTION
1 433.075 111
2 433.175 112
3 433.275 113
4 433.375 114
5 433.475 115
6 433.575 116
7 433.675 117
8 433.775 118
9 433.875 121
10 433.975 122
11 434.075 123
12 434.175 124
13 434.275 125
14 434.375 126
15 434.075 127
16 434.075 128
CHANNEL FREQ.BANK 2 OPTION
1 433.100 211
2 433.200 212
3 433.300 213
4 433.400 214
5 433.500 215
6 433.600 216
7 433.700 217
8 433.800 218
9 433.900 221
10 434.000 222
11 434.100 223
12 434.200 224
13 434.300 225
14 434.400 226
15 434.500 227
16 434.600 228
CHANNEL FREQ.BANK 3 OPTION
1 433.125 311
2 433.225 312
3 433.325 313
4 433.425 314
5 433.525 315
6 433.625 316
7 433.725 317
8 433.825 318
9 433.925 321
10 434.025 322
11 434.125 323
12 434.225 324
13 434.325 325
14 434.425 326
15 434.525 327
16 434.625 328
CHANNEL FREQ.BANK 4 OPTION
1 433.150 411
2 433.250 412
3 433.350 413
4 433.450 414
5 433.550 415
6 433.650 416
7 433.750 417
8 433.850 418
9 433.950 421
10 434.050 422
11 434.150 423
12 434.250 424
13 434.350 425
14 434.450 426
15 434.550 427
16 434.650 428
FREQUENCY BANK

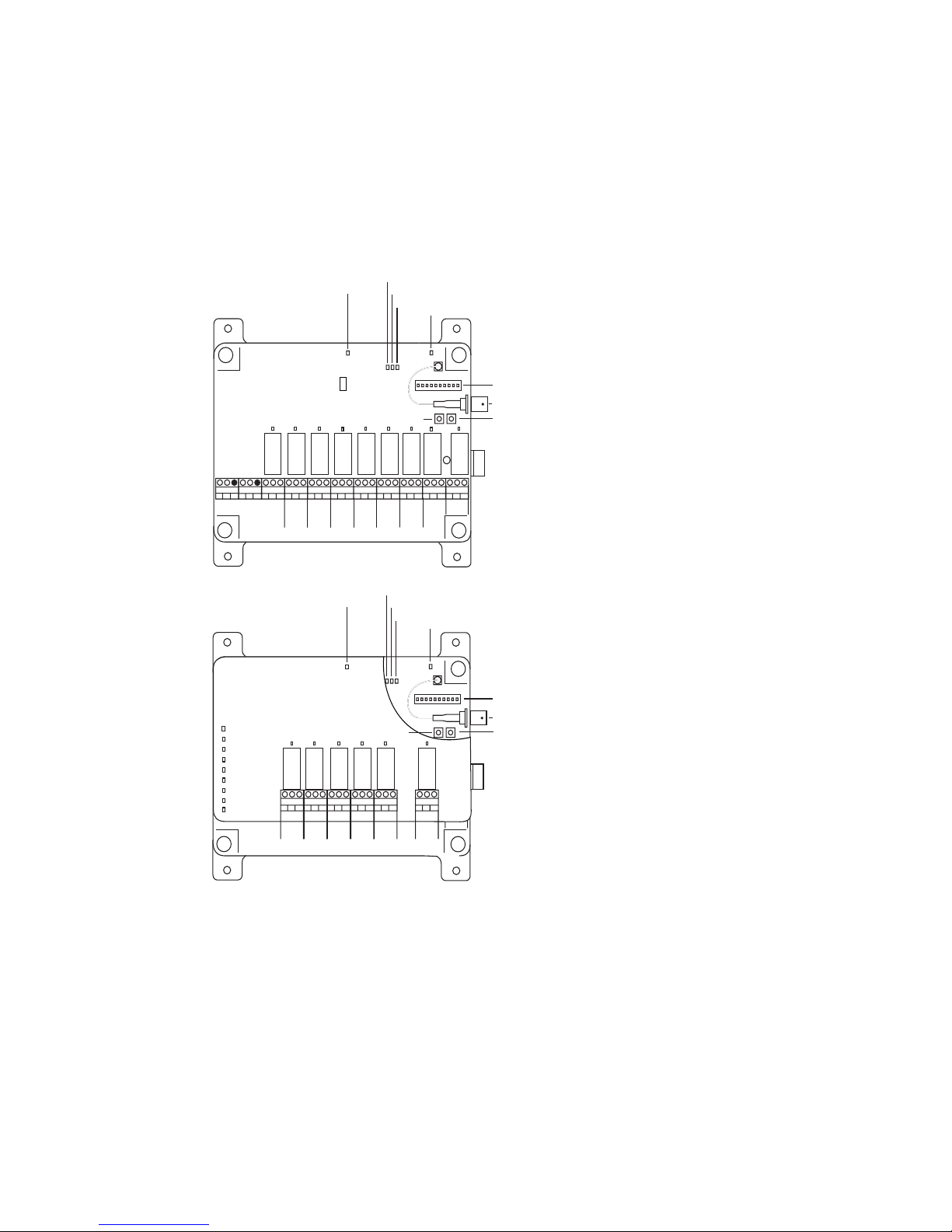

T70RX-09SB
the yellow power supply LED1.
the red CODE STORING LED2.
the yellow LATCH LED3.
the green INTERLOCKING LED4.
LOGOUT LED5.
Receiver switch6.
Antenna connector7.
FUNCTION button8.
SELECT button9.
321 456789
48-230
VAC
12-24
VAC/DC
RELAY 1
RELAY 2
RELAY 3
RELAY 4
RELAY 5
RELAY 6
RELAY 7
RELAY 9
RELAY 8
11 15
10 12 13 14
1
2
3
45
6
7
9
8
321 456789
48-230
VAC
12-24
VAC/DC
1
2
3
45
6
7
9
8
T70RX-15SB
the yellow power supply LED1.
the red CODE STORING LED2.
the yellow LATCH LED3.
the green INTERLOCKING LED4.
LOGOUT LED5.
Receiver switch6.
Antenna connector7.
FUNCTION button8.
SELECT button9.
RECEIVER

TRANSMITTER
T70TX-06TTB
1. red LED
2. ON button
3. OFF button
T70TX-08ERB
1. rubber cover
2. STOP button
3. yellow LED1
4. red/ green LED
5. yellow LED 2
6. button 7- START button
7. button 8- START button
7
12
3
7
START
8
START
6
5
4
3.
2.
4.
1.
5.
6.
7.
ON OFF

1. GET STARTED
READTHE INSTRUCTIONS CAREFULLY BEFORE
ASSEMBLING, INSTALLING, PROGRAMMING AND USING
TELE RADIO PRODUCTS.
Tele Radio cannot be held responsible for any damage or other fault caused by a failure
to follow the instructions. Doing so may invalidate the warranty.
IT ISYOUR RESPONSIBILITYTO FIND OUT ABOUT
THE LAWS AND REGULATIONS
THAT APPLY INYOUR COUNTRY/REGION!
1.2 SAFETY INSTRUCTIONS
This product should only be installed by qualified personnel.s
Switch off the power supply to the receiver before connecting the equipment.s
Turn off the transmitter when not in use.s
Keep a good overview of the work area.s
Use undamaged cables. Make sure that cables do not hang loose.s
Avoid installing the product in areas affected by strong vibrations.s
Only qualified personnel should have access to the transmitter.s
Do not leave the transmitter unsupervised.s
Contact your dealer for repair and maintenance work on the product.s
Retain the instructions for future reference and re-programming of the system.s
If the manual does not cover all your needs, visit our website for FAQ & the latest information:
www.tele-radio.com

1.3TECHNICAL DATA
THE SYSTEM
OPERATING FREQUENCY: 433.075-434.650 MHz.
CHANNEL: 64 (divided into 4 banks)
CHANNEL SEPARATION: 25 kHz.
RECEIVER
T70RX-09SB 9 relays
T70RX-15SB 15 relays (with expansion board)
WEIGHT: 700 grams (15 relays)
TRANSMITTER T70TX-08ERB
SIZE: 95 x 185 mm. (incl. rubber cover)
WEIGHT: 300 grams (incl. batteries)
TRANSMITTER T70TX-06TTB
SIZE: 113 x 66 x 35 mm.
WEIGHT: 120 grams (incl. batteries)
1.4 RECEIVER POWER SUPPLY
POWER SUPPLY CURRENT CONSUMPTION CURRENT CONSUMPTION
7
ON OFF
12 V DC 30mA 300 mA
24 V AC 12 mA 150 mA
24 V DC 15 mA 200 mA
48 V AC 7 mA 100 mA
(MIN.) (MAX.)
115 V AC 7 mA 50 mA
230 V AC 7 mA 30 mA

1.5 CHECKTHE CONTENTS
Check that you have got the product that you ordered. If anything is missing, please
contact your dealer immediately.The delivery also contains:
3 alkaline batteries for the transmitters
1 connection combs
1 installation and programming instruction manuals
1.6 CONNECTTHE RECEIVER
Check that you have connected the power supply to the correct connections
terminal.
Note that all relays are potential-free, which means that you need to supply voltage ifs
you want power out of a relay (e.g. via a connection comb).
1.7 INSTALL RECEIVER AND ANTENNA

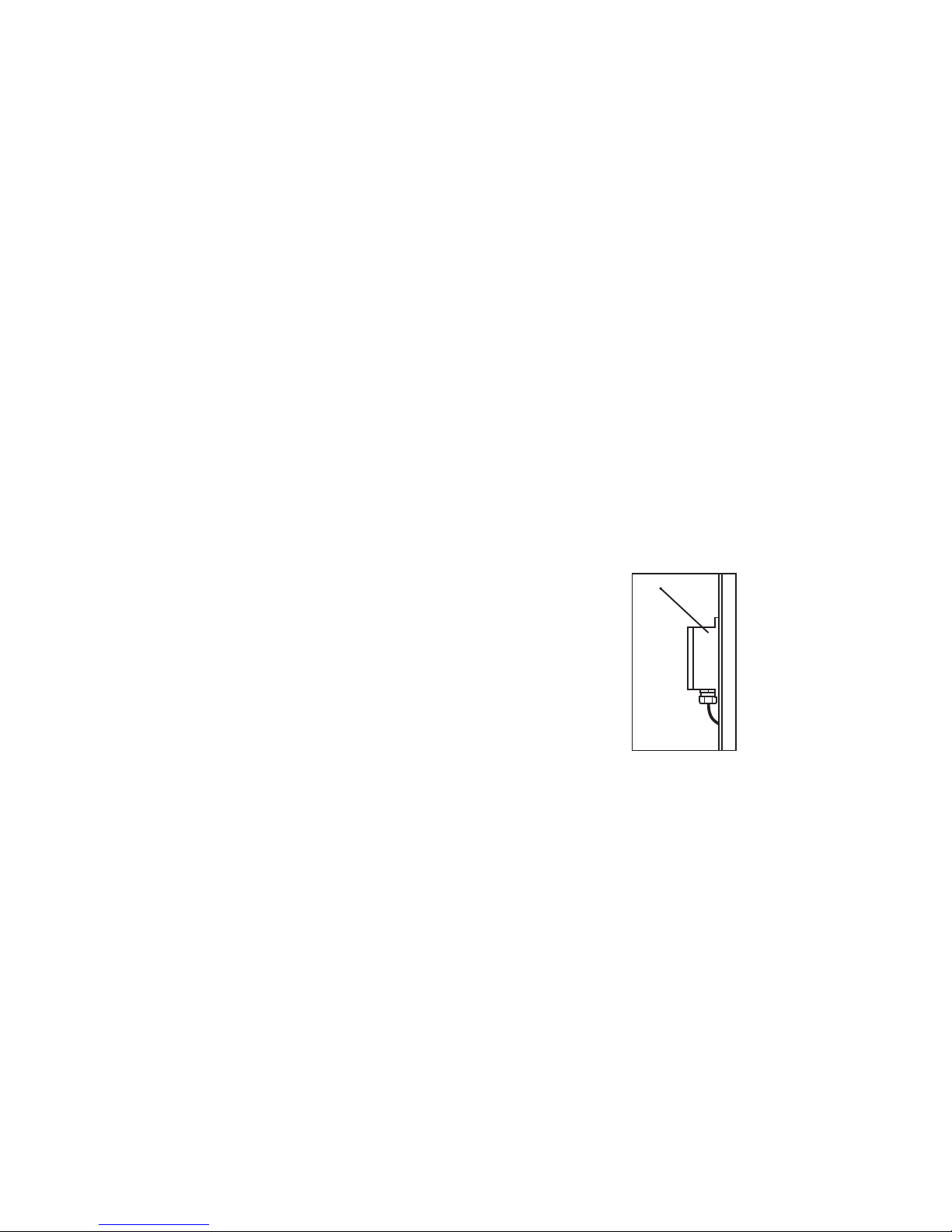

1.7.1 Place the receiver
Well protected from wind, damp and water.s
With cable holders and vent plugs face down to prevents
water from seeping in (see picture).
If the receiver is to be placed in a a hard-to-reach place, its
is advisable to complete the settings in the receiver before
mounting it.
1.7.2 Place the antenna
As high above the ground as possible.s
In as free position as possible.s
Well away from metal objects, such as metal girders, high-voltage cables and others
antennas.
Check that there is a good connection between the antenna and the material ons
which it has been installed, e.g. after repainting of the chassis.
Check that the antenna aerial and any coaxial cables are undamaged.s
Check that the antenna is directed upwards at a 45° angle.s

1.8 INSTALL BATTERIES IN THETRANSMITTER
1.8.1 On theT70TX-06TTB transmitter
Remove the clip.1.
Remove the battery cover.2.
Put the batteries in.3.
Put back the battery cover (2 screws).4.
Put back the clip (2 screws).5.
For optimum performance, use alkaline batteries.
NOTE! If you need to change the frequency bank, we
recommend doing this before putting back the battery cover and clip.
1.8.2 On theT70TX-08ERB transmitter
Remove the battery cover.1.
Put the batteries in.2.
Put back the battery cover (2 screws).3.
For optimum performance use alkaline batteries.
1.9 RECYCLING OF BATTERIES
Used batteries should always be recycled. Contact your local
authority or dealer for more information on proper recycling of
batteries in your area.
1.10TRANSMITTER ID CODE
On theT70TX-08ERB transmitter
Write down the transmitter ID code in the Settings document. See picture above for
label position. Label is placed under the rubber cover.
ID code
#
"
5
5
&
3
:
#
"
5
5
&
3
:

2TRANSMITTER SETTINGS
2.1 Starting/ turning the transmitter off

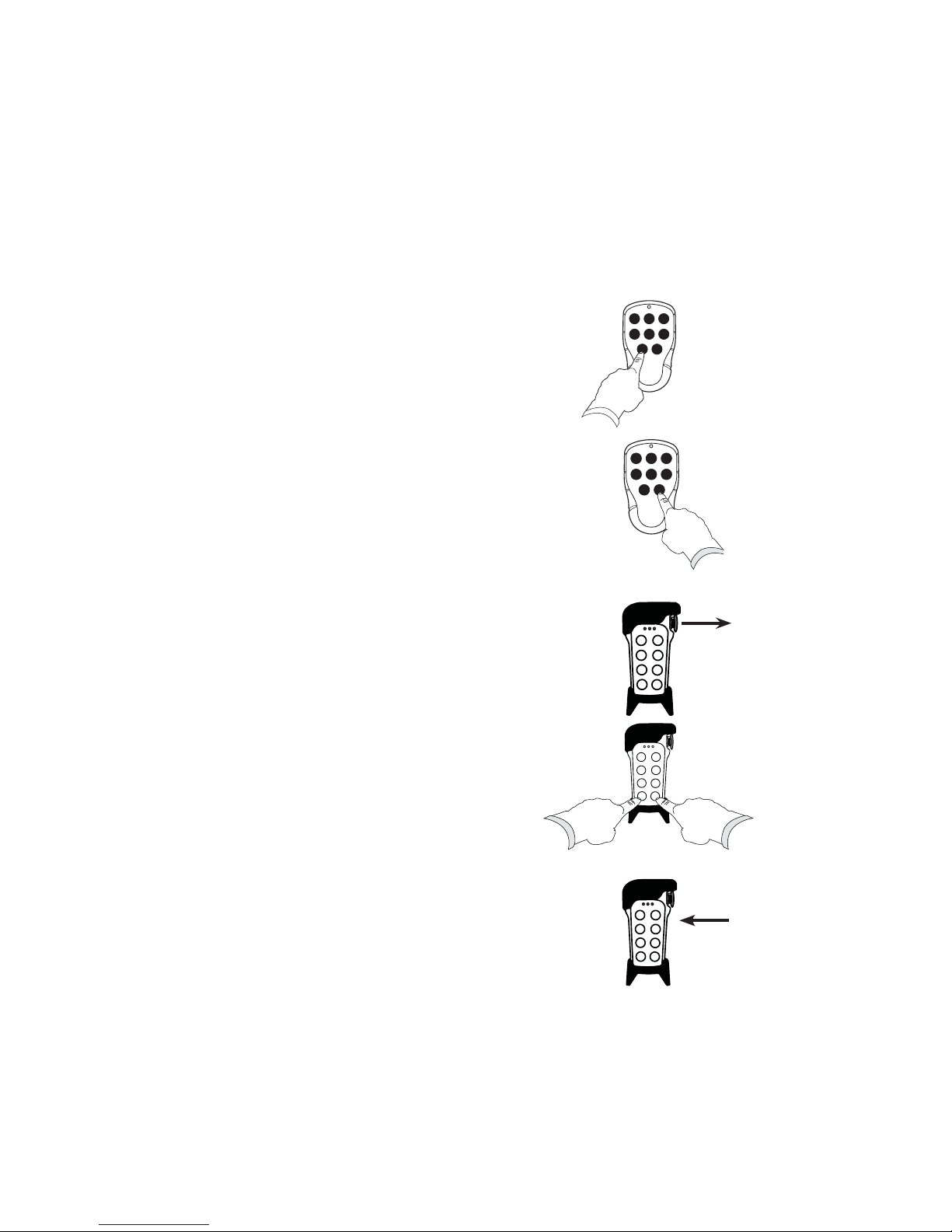

2.1.1 StartingT70TX-06TTB
1. Press the ON button for at least 1 second.
When the transmitter is active, the transmitter LED flashes red.When transmitting,
the transmitter LED lights red continuously.
2.1.2Turning offT70TX-06TTB
Press the OFF button.1.
The transmitter LED goes out.

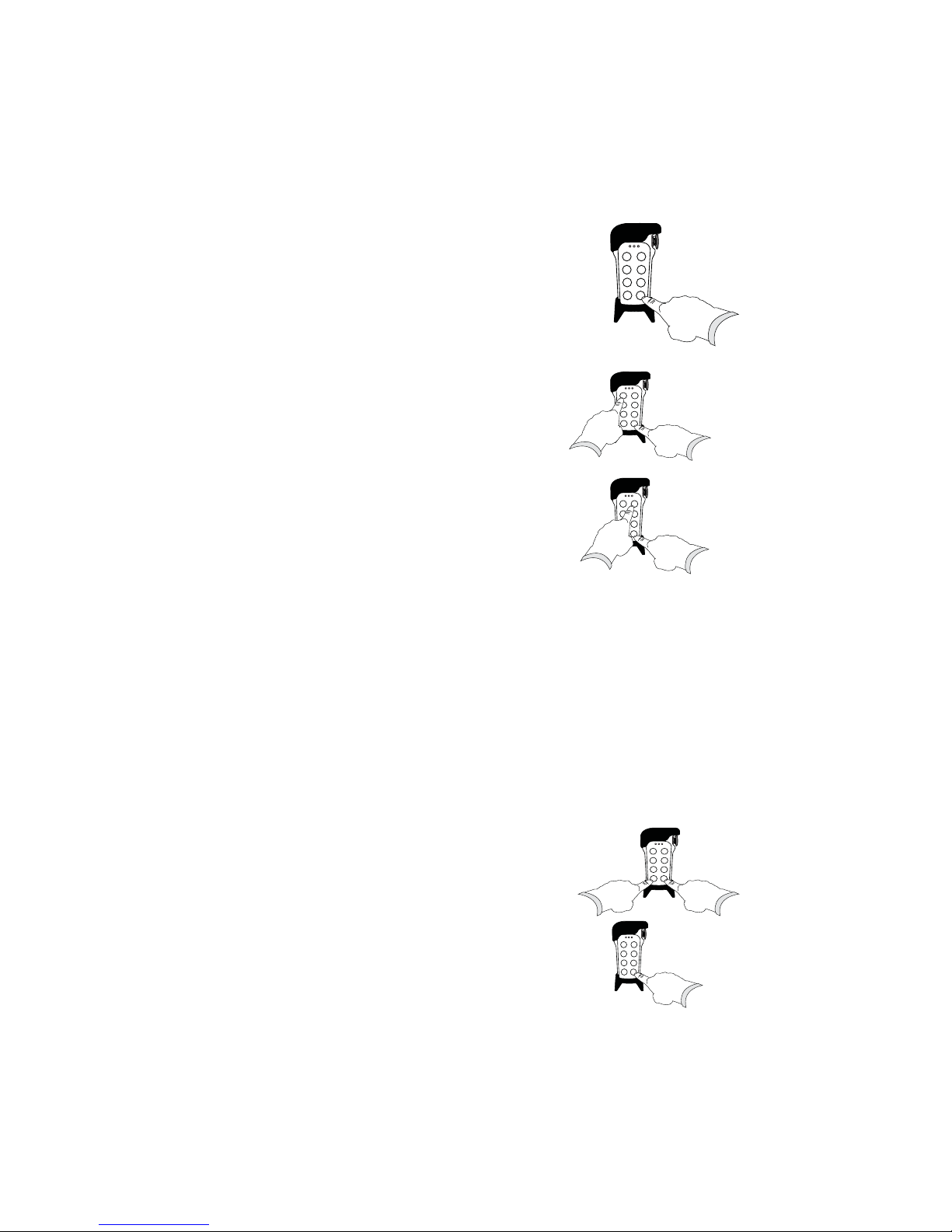

2.1.3 StartingT70TX-08ERB
1. Pull out the STOP button.
2. Press the START buttons 7 and 8 for at least
1 second.
If the transmitter LED is flashing red, the STOP button has not been pulled
out.
When the transmitter is active, the transmitter LED is flashing green.
When the transmitter is transmitting, the transmitter LED lights green
continuously.
NOTE! If the transmitter LED is lighting or flashing red instead of green,
the battery power may be low. Check the batteries.
2.1.4Turning offT70TX-08ERB
1. Press the STOP button.The transmitter is now turned off.
7
ON
OFF
778
7

2.2 AUTOMATIC SHUTDOWN SETTINGS
2.2.1T70TX-06TTB transmitter
The transmitter will turn off after1 minute idle.This cannot be adjusted.
2.2.2T70TX-08ERB transmitter
Automatic shutdown means that the transmitter will switch itself off, if you do not press
a button for 1 minute (you can adjust this time according to the table below).
The transmitter does not log off from the receiver when it is automatically shut down.
2.2.3 Change Automatic Shutdown time

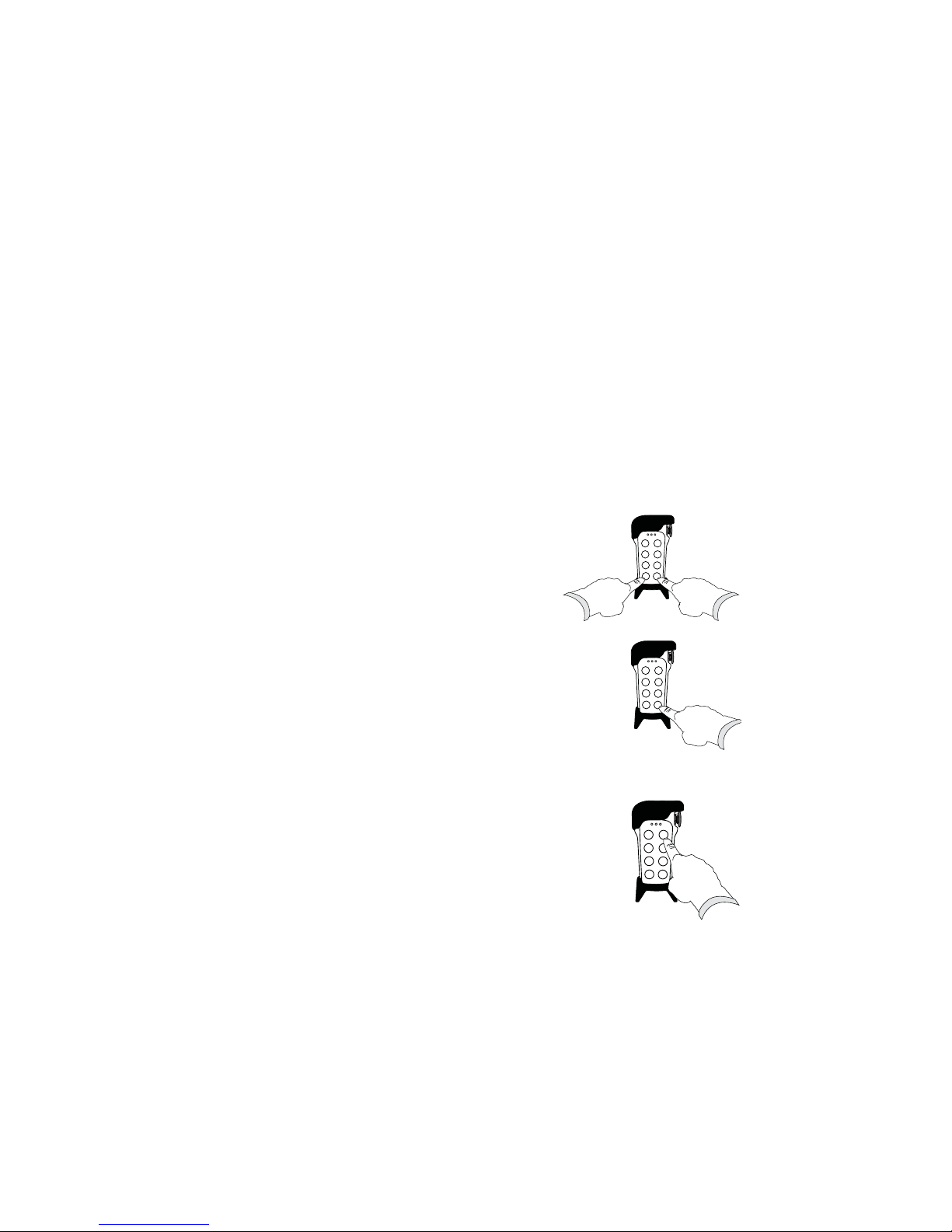

1. Start the transmitter by pressing the START
buttons 7 and 8
for at least 1 second.
.
2. Keep button 8 pressed. Release button 7.
3. Release button 8.
Within 0.3 seconds: Press button 3.
Yellow transmitter LED 2 lights up and the green transmitter LED
begins to flash.
If you exceed the 0.3 second interval, the transmitter will exit the
programming mode and will
start up instead.
77
8
3
7
1 No automatic shutdown
2 1 minute
3 3 minutes
4 6 minutes
5 12 minutes
OPTION TIME
7
8

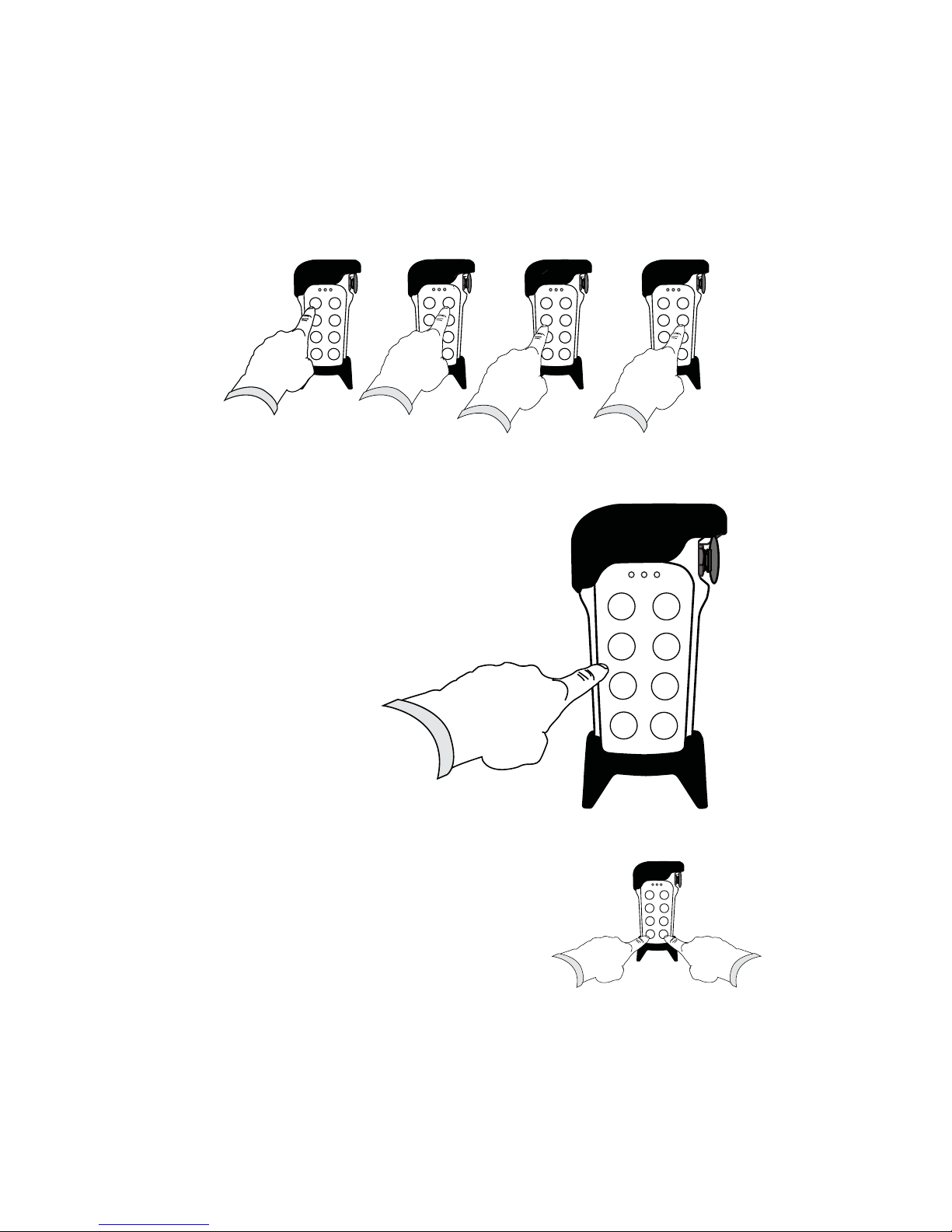

4. Enter the security code 1, 2, 3, 4 (up to 4 seconds between each number).
The transmitter LED starts to flash green and yellow transmitter LED 2 goes out.
5. Enter your choice 1-5:
______________________
1= no automatic shutdown
2= 1 minute
3= 3 minutes
4= 6 minutes
5= 12 minutes
Yellow transmitter LED 1 flashes 3
times when the time setting has been
changed.
6. Make sure to write down the new time for automatic
shutdown in the Settings document.
6. Re-start the transmitter by pressing the START
buttons 7 and 8 for at least 1 second.
7
12
777
3 4
7
1 min.
0 min.
3 min.
6 min.
12 min.
778

2.3 FREQUENCY SETTINGS
If your product will be used in an area with very little risk of interference from other
radio-controlled equipment, skip this section. If necessary, you can switch the frequency
at a later date. (See the first pages of the manual for frequency table).

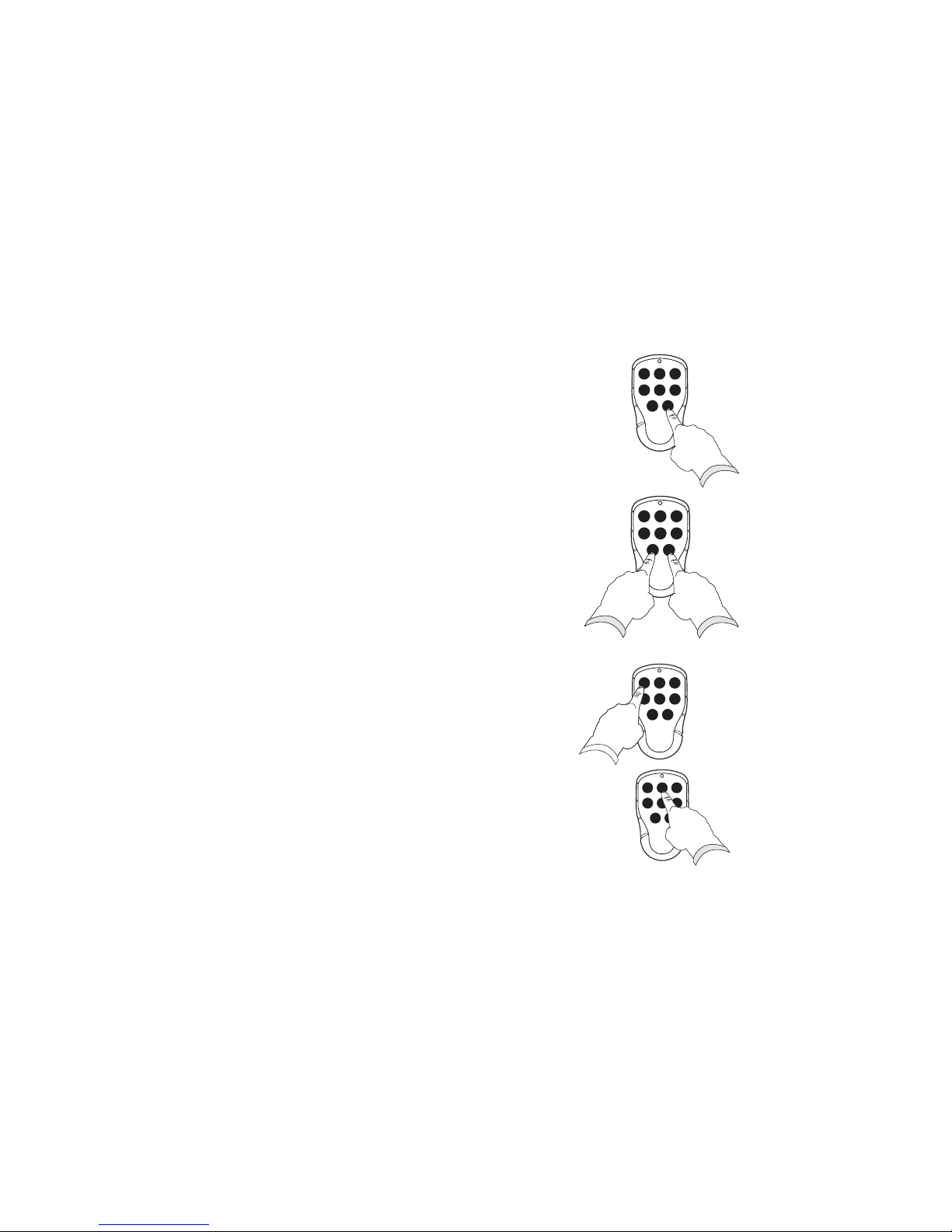

2.3.1 Switch frequency bank onT70TX-06TTB
NOTE! IFYOU NEED TO SWITCH FREQUENCY BANK,WE RECOMMEND DOINGTHIS
BEFORE REPLACING THE BATTERY COVER AND CLIP. MAKE FREQUENCY BANK
SETTINGS BEFORE STORING THETRANSMITTER INTHE RECEIVER. IFYOU WANT TO
SWITCH FREQUENCY BANK AFTER STORINGTHETRANSMITTER IN THE RECEIVER,YOU
WILL HAVE TO ERASE THETRANSMITTER FROMTHE RECEIVER, SWITCH FREQUENCY
BANK AND THEN RE-STORETHE TRANSMITTER IN RECEIVER.
1. Remove the clip and battery cover on the back of the
transmitter using a screw-driver. Remove any batteries
that have been installed.Take off the transmitter’s black
casing.
2. Select frequency bank (see table below) on the two
switches on the circuit board behind the batteries.The
default setting is channel 1 in frequency bank 1.
3. Make sure to write down the new frequency bank in
the Settings document.
SWITCH 1 SWITCH 2 FREQUENCY BANK
OFF OFF 1
ON OFF 2
OFF ON 3
ON ON 4
ON
1
ON
1
ONON
OFFOFF
ON
1
ON
1
ONON
OFFOFF
switch 1
switch 2

2.3.2 Moving up and down within a frequency bank on
T70TX-06TTB
The user can move up and down within a frequency bank while using the transmitter.
This can be useful if there is a major risk of interference within the work area.The default
setting is channel 1 in frequency bank 1.
The transmitter must be on.
1. Press the OFF button and keep it pressed.
2. Within 3 seconds:
Press ON without releasing OFF.
Transmitter LED flashes for 5 seconds.
3. Release ON and OFF.
4.To move DOWN in frequency, press button 1.
(1 press = 1 step in the table).
To move UP in frequency, press button 2.
(1 press = 1 step in the table).
The transmitter LED flashes 3 times.
The transmitter turns off.The next time you start the transmitter, it will start in the new
frequency.
NOTE! The next time that you activate the receiver by pressing a button on the transmitter,
it can take up to 3 seconds for the receiver to connect to the transmitter.
OFF
ON OFF
1
2

2.3.3 Move more than one step on theT70TX-06TTB
If you want to move several steps in frequency, you will need to restart the transmitter
after every step. In this case you don´t have to wait until the receiver connects to the
transmitter.
If you move all the way to the bottom of the frequency table, the next step will be back to the top. If you move
all the way to the top of the frequency table, the next step will be right at the bottom.
2.4 Switch frequency bank on theT70TX-08ERB
NOTE! MAKE FREQUENCY BANK SETTINGS BEFORE STORING THE TRANSMITTER IN
THE RECEIVER. IFYOU WANTTO SWITCH FREQUENCY BANK AFTER STORINGTHE
TRANSMITTER INTHE RECEIVER,YOU WILL HAVETO ERASETHE TRANSMITTER FROM
THE RECEIVER, SWITCH FREQUENCY BANK ANDTHEN RE-STORETHE TRANSMITTER IN
THE RECEIVER.
1. Start the transmitter by pressing the START
buttons 7 and 8 for at least 1 second.
2. Keep button 8 pressed. Release button 7.
3. Release button 8.
Within 0.3 seconds: Press button 2.
Yellow LED 2 lights up and the green LED flashes.
If you exceed the 0.3 second interval, the transmitter exits programming mode and
starts up.
778
7
8
2
7

4. Enter the security code 1, 2, 3, 4 (up to 4 seconds between each number).
The green LED flashes and yellow LED 2 goes out.
5. Press the 3-digit number for OPTION
(See the first pages of the manual for
frequency table).
Yellow transmitter LED 1 flashes 3 times when the setting
has been made.
6. Make sure to write down the new frequency bank in the Settings document.
7. Re-start the transmitter by pressing the START buttons
7 and 8 for at least 1 second.
7
12
777
3 4
CHANNEL FREQ.BANK 1 OPTION
1 433.075 111
2 433.175 112
3 433.275 113
4 433.375 114
5 433.475 115
778

2.4.1 Settings to move up and down within a frequency
bank onT70TX-08ERB
Decide how to move up and down within a frequency bank. Skip this section if you do
not want to change the default settings.
1. SAVE NEW FREQUENCY (default setting).When a user moves up or down within
a frequency bank, the transmitter saves the new frequency and uses it the next time it is
started up.
2.TEMPORARY MOVE When a user moves up or down within a frequency bank,
the transmitter will not save the new frequency.The new frequency is only used until the
transmitter is restarted.
3. OFF Users are not able to move up or down within a frequency bank.
1.
Start the transmitter by pressing the START buttons 7
and 8 for at least 1 second.
2. Release button 7.
Keep button 8 pressed.
3. Release button 8.
Within 0.3 seconds:
Press button 2.
Yellow transmitter LED 2 lights and the transmitter LED begins to flash green.
If you exceed the 0.3 second interval, the transmitter will exit the programming mode
and starts up.
778
7
8
2
7

4. Enter the security code 4, 6, 3, 5 (up to 4 seconds between each number).
The transmitter LED flashes green. Yellow transmitter LED 2 lights up.
5. Enter your choice:
1. SAVE NEW FREQUENCY
2.TEMPORARY MOVE
3. OFF
The transmitter turns off.
Yellow transmitter LED 2 goes out.
6. Re-start the transmitter by pressing the START buttons
7 and 8 for at least 1 second.
2.4.2 Move up and down within a frequency bank
onT70TX-08ERB
Allowing users to move up and down within a frequency bank when using the transmitter
can be useful, if there is a major risk of interference within the work area (see previous
section).
1.
Start the transmitter by pressing the START buttons 7 and
8 for at least 1 second.
7
6
7
4
77
5
3
7
1
2
3
778
7
78

2. Release button 7. Keep button 8 pressed.
1a. Keep button 8 pressed. Press 1 to move DOWN within
the frequency.
Yellow transmitter LED 1 lights up.
1b. Keep button 8 pressed. Press 2 to move UP within the
frequency.
Yellow transmitter LED 2 lights up.
NOTE! If you move all the way to the bottom of the frequency table, the next step will be back to the top. If you
move all the way to the top of the frequency table, the next step will be right at the bottom.
2. Release all buttons.
The frequency setting is now changed. Depending on the settings, this may apply until you turn off the transmitter
or until the frequency is being switched again.
2.4.3 Check the current frequency of the transmitter
onT70TX-08ERB
You can use the transmitter to find out what frequency it is currently set to send within.
1.
Start the transmitter by pressing the START buttons 7
and 8 for at least 1 second.
2. Release button 7.
Keep button 8 pressed.
7
78
78
7
1
8
a.
7
2
8
b.
7
8
