Ref. Ref. 149281
Working
band
Banda de
trabajo MHz 470 - 698
CH 14 - 51
Gain Ganancia dBi 13
F/B ratio Relación D/A dB > 23
Wind load Carga al
viento N93 (1)
128 (2)
(1) 80 miles/h - 130 Km/h (2) 93 miles/h - 150 Km/h
ANSI/CEA-2028-A
Safety Instructions:
LIGHTNING PROTECTION
If installed outdoors, be sure the antenna system is
grounded so as to provide protection against voltage
surges and built-up static charges. Section 810 of the
National Electrical Code ANSI/NFPA70, or CSA C22.1
sections 10, 16, and 54, of the Canadian Electrical Code,
provide information with respect to proper grounding
of the mast and supporting structure, grounding of
the antenna lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode (see
gure and instructions).
Mount the lightning arrestor or 75 ohm coaxial
grounding block as close as possible to where the 75
ohm coaxial cable downlead enters the house.
The ground wires for both the mast and the downlead
should be copper or aluminum wire, number eight (8)
or larger.
The downlead wire from the antenna to the lightning
arrestor and the mast ground wire should be secured
to the house, spaced from four (4) to six (6) feet apart.
In the case of a “ground up” antenna installation it
may not be necessary to ground the mast if the mast
extends four or more feet in the earth. Consult a TV
serviceman for the proper depth in your location.
WARNINGS
To prevent re or shock hazard, do not expose the
included power supply to rain or moisture.
Antenna Lead
in Wire
Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
NEC - National Electrical Code
Ground
clamp
Electric Service
Equipment
Ground clamps
Power service Grounding Electrode System
(NEC Art 250, Part H)
Antenna Discharge Unit
(NEC Section 810-20)
(May substitute a 75 ohm
Coax Grounding Block)
Grounding Conductors
(NEC Section 810-21)
Installation of o-air antennas near power lines is
dangerous. For your safety, follow the installation
instructions.
Any alteration or modication to the product or usage
not in accordance with product instructions voids the
warranty.

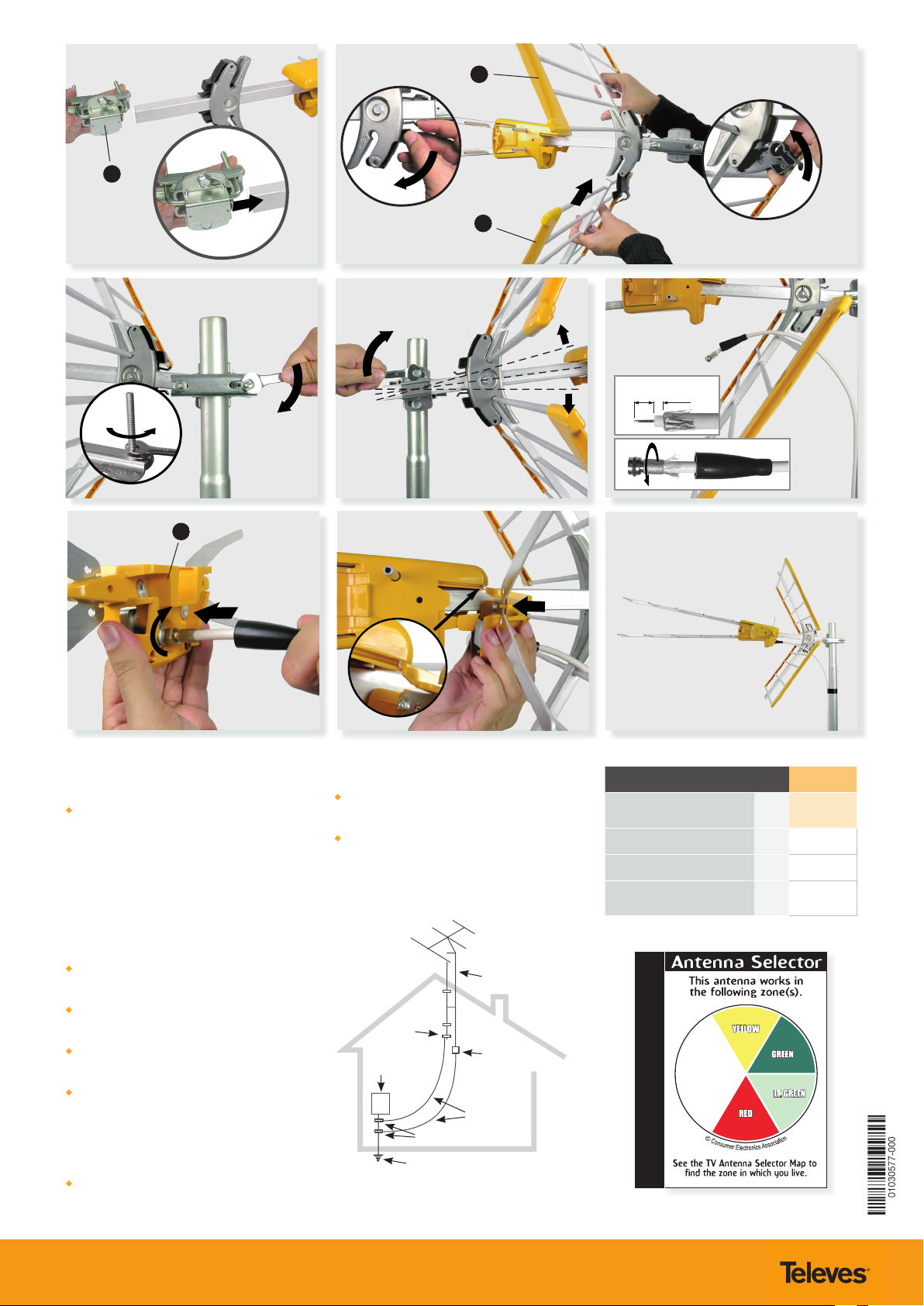

8
11
9
13 14
10
12 CLICK!
CLICK!
F
F
L
7
K
