TESmart HSW0401A1U User manual

S/PDIF

Preface
It's our great honor that you have chosen the HDMI Switch produced by our company, Tesla Elec Technology
Co.,Ltd. In this user manual, you will learn how to operate and use this product. Please read this user manual
comprehensively before use. If you have any questions, comments or suggestions, please contact us via the
following email:
[email protected].
Copyright Notice
The user manual, compiled by Tesla Elec Technology, shall not be duplicated or translated by any person or
organizations without written permission. This user manual shall not be used for commodity transaction in any
form or by any means (electronically, mechanicall y, photocop ying or recording, etc.) or be used for any business
practices or profitable activities. The ownership of the trade names and brand names adopted in this user manual
belongs to their companies.
Address of Manufacture
Tesla Elec Technology Co.,Ltd
2F, Building C, Xingzhisheng Industrial P ark, No.12,
Xiawei Industrial Zone , Zhangkengjing Road,
Guanlan Street,
Longhua District, Shenzhen City ,
Guangdong Province, China

Contents
1. Safety Tips and Warnings················ ··························································································· ··············01
2. Battery Description························ ····································································································· ···02
3. Warranty Information······························ ······························································································ ·03
4. Preface············································································································································ ···04
5. Features································································································································· ·············05
6. Packing List········································· ····································································································06
7. Panel Description···· ························································································································· ·····07
8. Connection Description················································································································· ·········09
8.1 Connection Diagr am
8.2 Connection Steps
9. Switch Modes Description··········································································································· ············12
9.1 Manual Switch Mode
9.2 Auto Switch Mode
10. Audio Modes Description············································································································ ···········13
11. CEC Function Description··········································································································· ············14
12. IR Remote Control································································································································15

1. Safety Tips and Warnings
Tips: Read the safety tips and warnings for HDMI Switch comprehensively before use. Use this produce in
accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product
and potential dangers to users.
Keep the product away from water.
Do not expose this product and its battery to open fire or overheating environment. Dispose the waste
battery in accor dance with instructions.
Unplug the power supply of this product in thunderstorm days or when it has been not used for a long
time.
Do not touch the product and the power cord with wet hands so as to lower the risk of electric shock
and damage to the pr oduct. Do not let the pr oduct get wet or become damp .
Keep the product away from ignition sources, such as heat sinks, heat accumulators, stovepipe and
other heat pr oduction settings (including audio amplifiers).
Use the product in accor dance with its instructions and do not block its v ents.
Users shall not remove and repair the pr oduct without authorization.
Clean the product with dry cloth.
1. Safety Tips and Warnings
01
EN

2. Battery Description
Caution: Improper disposal of the lithium battery may
cause an explosion. Do not throw the
battery into fire. Keep the battery away from
children. Dispose the waste battery in
accordance with local r egulations.
02
EN
Tips: By default, the remote control is not equipped
with batteries, due to the safety requirements of
some express companies. Install AAA dry cells
before use.
2. Battery Description

We warrant this product as free of defects in material and workmanship for a period of one (1)
year from the date of shipment. If during the period of warranty this product proves defective
under normal use, we will repair or replace this product, provided that this product has not been
subjected to mechanical, electrical, or other abuse or modifications. If it fails under conditions
other than those covered will be repaired at the current price of parts and labor in effect at the
time of repair. Such repairs are warranted for six (6) months from the day of reshipment to the
buyer.
3. Warranty Information
03
EN
3. Warranty Information

Dear Users:
HDMI Switch can greatly facilitate your management of audio and video devices. If you have a
home theater or entertainment setup with multiple sources and display devices like game
consoles, streaming boxes, and set-top boxes, it can be hard to manage in terms of cables and
switching devices. Our HDMI Switch can help you add more inputs to your TV or AV receiver if
you have too many devices to manage. With this HDMI Switch, you can also get original digital
audio through S/PDIF optical audio port.
4. Preface
4. Preface
Tips: If you need to contr ol more devices or conduct mor e complex and pr ofessional switching, y ou can
also choose other products of our company. For more details, please visit our official website:
www.tesmart.com.
04
EN

5. Features
ŸWith 4 HDMI inputs and 1 HDMI output
ŸSupport resolution up to 4 K@60Hz 4:4:4
ŸHDCP 2.2 compliant
ŸSupport auto input detection
ŸSupport audio output via S/PDIF optical and L/R AUX interface
ŸSupport 3 modes of audio output
ŸSupport Dolby TrueHD, DTS-HD Master Audio, Dolby Digital and AC-3 audio tr ansmission
ŸEasy to switch input sour ce with IR remote contr ol and panel button
ŸSupport HDR 10 and Dolby Vision
5. Features
05
EN

6. Packing List
Ÿ1 * 4x1 HDMI Switch
Ÿ1 * IR Remote Control
Ÿ1 * DC 5V Power Adapter
Ÿ1 * User Manual
6. Packing List
06
EN
Tips: After receipt of the product, please check the packing list carefully to make sure that no components have
been lost and no damage to the product has been caused during transportation. If you have any
problem, please contact us at any time.

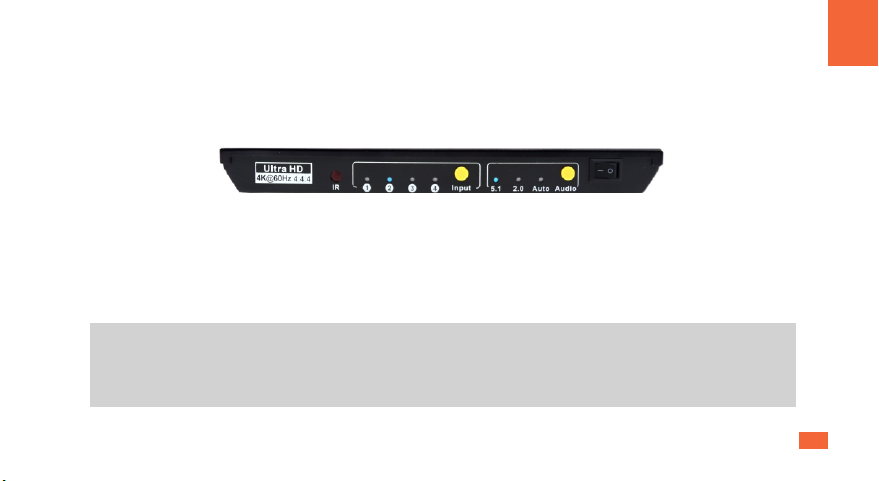

7. Panel Description
07

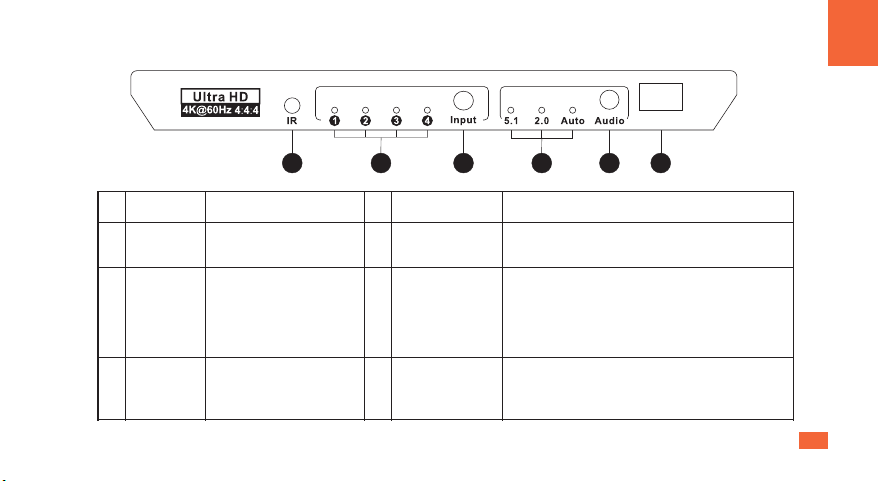

7. Panel Description
EN
ID Name Description ID Name Description
1IR
receiver Receive IR signal. 4Audio mode
selection status Indicates the currently selected audio mode.
2
Input
selection
status
The LED will be lit if the
corresponding input source
is selected.
5Audio mode
selection button Select audio output mode.
3
Input
selection
button
Select input port. 6 Power switch Turn on or o ffpower supply.
1 3
2456

08
EN

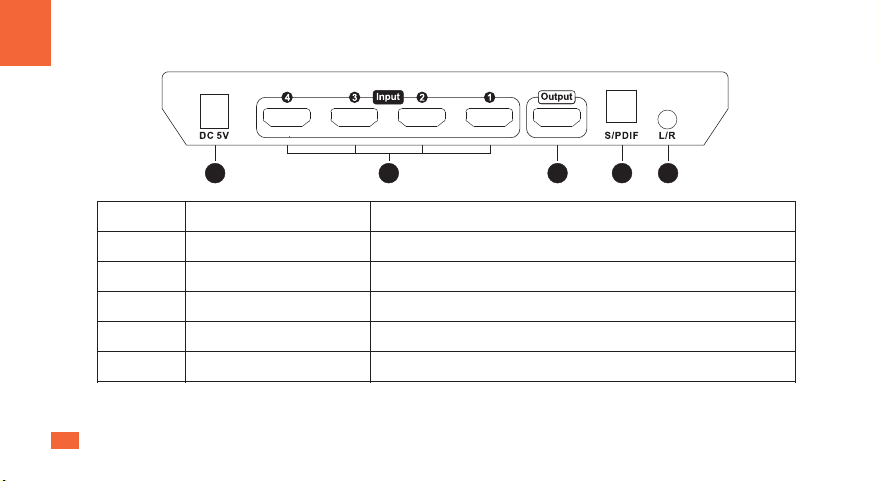

7. Panel Description
ID Name Description
7 DC 5V DC 5V power suppl y.
8HDMI input por ts Connect to HDMI source devices.
9 HDMI output por t Connect to HDMI display.
10 S/PDIF optical audio output Connect to amplifier , soundbars by a Toslink cable.
11 AUX L/R audio output Connect to analog L/R audio speak er.
9
7 8 10 11

8.1 Connection Diagram
8. Connection Description
09
EN
8. Connection Description
Speaker
PC PS4/5 DVD
AMP
UHD TV
STB

8.2 Connection Steps
1. Connect the input devices to the input ports
using 4 HDMI cables.
2. Connect the output port to the display
device using 1 HDMI cable .
3. Connect the amplifier or soundbar to the
S/PDIF port using Toslink cable.
4.Connect speaker to the AUX L/R audio
output.
10
EN
8. Connection Description
Tips: You can choose S/PDIF audio output or L/R audio
output depending on y our needs.

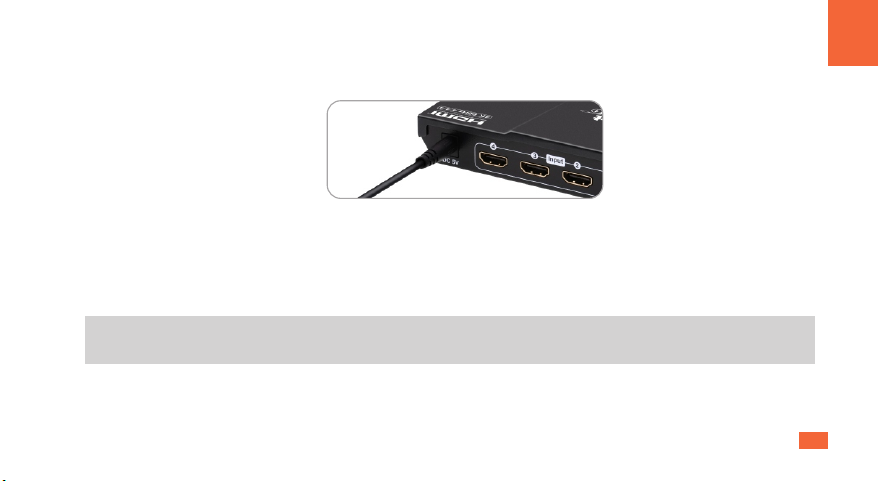

5. Connect the power cable to the HDMI S witch's DC 5V port and plug it to a power sock et.
6. By now, the connection has been completed. Turn on the power supply and the HDMI
Switch will begin to work.
11
EN
8. Connection Description
Tips: If you get no sound from L/R audio out, please change the audio format to ‘‘2.0’’(refer to Chapter 10),
as the L/R audio out onl y support 2.0 channel and the switch would not con vert the audio f ormat.

9.1 Manual Switch Mode
In this mode, use panel button or IR remote contr ol to switch input por t.
9. Switch Modes Description
9.2 Auto Switch Mode
In this mode:
1. When attaching a new input device to the switch, the HDMI switch will switch to this just
plugged in sour ce automaticall y.
2. When removing a connected input sour ce, the HDMI switch will switch to the first v alid
input sour ce automaticall y.
12
EN
Tips: Also you can use panel button or IR r emote contr ol to switch input por t.
9. Switch Modes Description
Press the button ' Input' until all of the indicators flash once , the switch enters
Auto Switch mode or Manual Switch mode . The default is Manual Switch mode .

10. Audio Modes Description
The Switch supports the high channel audio mode. You can select the audio output of the
corresponding channels by pressing the audio mode selection button 'Audio' on the front
panel or the k ey 'P' on the remote contr ol.
13
EN
10.Audio Modes Description
5.1 : In this mode, the input device can select up to 5.1 Channel audio regardless of whether
the displa y supports 5.1 Channel or not.
2.0 : In this mode, the input device can select up to 2.0 Channel audio regardless of whether
the displa y supports 2.0 Channel or not.
Auto: In this mode , the suppor ted audio f ormat is depended on the connected displa y.
Tips: 1. The L/R audio output port cannot support more than 2.0 Channels audio. If Multi channels is
played, the L/R audio will not output corr ectly.
2. Change audio mode on switch will not convert the audio format from input source, but may
change the pr eferred audio setting of the input sour ce device.

11. CEC Function Description
Consumer Electronics Control (CEC) is a feature of HDMI designed to control HDMI connected
devices by using only one remote controller; So, individual CEC enabled devices can
command and contr ol each other without user interv ention, for up to 15 devices.
If your input devices and output device suppor t CEC command, you can use below function:
One Touch Play:
Allows devices to switch the TV to use it as the activ e source when pla yback starts.
System Standby:
Enables users to switch multiple devices to standb y mode with the pr ess of one button.
Remote Contr ol Pass Through:
Allows remote contr ol commands to be passed thr ough to other devices within the s ystem.
Tips: The function on this switch acts like: when you turn o ffthe TV which is connected to the switch, all
the input devices will be turned off.
11. CEC Function Description
14
EN

Tips: Unspecified buttons at abo ve are non-functional.
— Switch to next input port
— Switch audio mode
— Switch to input 1
— Switch to input 2
— Switch to input 3
— Switch to input 4
12. IR Remote Contr ol
12. IR Remote Control
15
EN
31.00.0042-V008

To Enjoy Smart
Tesla Elec Technology Co.,Ltd
WEEK-Reg.-Nr. DE 66784279
HSW0401A1U
