TESTO Saveris 0572 2800 User manual

testo Saveris Inbound Cold Chain data logger
0572 2800
Instruction manual

Content
Content
1About this document............................................................................ 3
1.1 Use.........................................................................................................3
1.2 Icons ......................................................................................................3
2Safety and waste disposal ................................................................... 4
2.1 Intended purpose...................................................................................4
2.2 Safety instructions..................................................................................4
2.3 Warning notices .....................................................................................4
2.4 Waste disposal.......................................................................................5
3Description of the instrument ............................................................... 5
3.1 Scope of delivery ...................................................................................5
3.2 Configuration..........................................................................................5
3.3 Operating elements of the product ........................................................6
4Product use ......................................................................................... 6
4.1 Commissioning ......................................................................................6
4.2 Reading out data....................................................................................9
4.3 LED status display ...............................................................................10
4.4 Displaying measurement data..............................................................11
4.5 Alarms ..................................................................................................11
5Technical data ................................................................................... 12
6Authorizations.................................................................................... 13

1 About this document
3
1 About this document
Please read this instruction manual through carefully and spelling yourself
with the product before use.
1.1 Use
The instruction manual is an integral part of the instrument.
Pay particular attention to the safety instructions and warning notices in
order to prevent injuries and damage to the product.
Keep this documentation on hand so that you can refer to it when
necessary.
Always use the complete original instruction manual.
Ensure all users of the product throughly read this documentation.
In order to be able to use certain functions of this instrument (in
particular the measurement data management), you need to accept the
testo Cloud terms and conditions of use, which you will find under the
login of the respective testo solution at www.testo.com/login.
Other Testo components are required for functions such as readout,
evaluation, inspection and analysis of the measurement data of the
data logger described here. These are not included in this
documentation, however they can be viewed at
www.testo.com/login/hilfe.
1.2 Icons
Display Explanation
Note: basic or further information
1
2
…
Action: several steps, the sequence must be followed.
Result of an action
Requirements

2Safety and waste disposal
4
2Safety and waste disposal
2.1 Intended purpose
The testo Saveris Food Logistics Inbound data logger is used to store and
read out series of measurements during the transportation of products that
are subject to cold chain requirements. .
Configuration is customer-specific and is carried out during production at
Testo. No subsequent modification of the configuration is possible.
The data logger is designed for single use only. Therefore it must not be
used more than once.
Data loggers with an expired use-by date must not be used.
Operation is manual, with no additional auxiliary devices.
The data logger should be placed as close to the products as possible.
However, the goods must not impair the logger.
When positioning the data logger, make sure that the surrounding goods do
not press on the button of the data logger.
This logger requires the associated readout unit (order no. 0572 2802) and
the testo Saveris Food Logistics Inbound software.
2.2 Safety instructions
Only operate this instrument in the proper manner, for its intended purpose
and within the parameters specified in the technical data.
Do not operate the instrument if there are signs of damage on the housing.
Always comply with the locally valid safety regulations when carrying out
measurements. Dangers may also arise from objects to be measured or the
measuring environment.
Do not store the product together with solvents.
2.3 Warning notices
Always pay attention to any information denoted by the following warnings.
Implement the precautionary measures specified!
Display Explanation
CAUTION
Indicates possible damage to equipment.

3 Description of the instrument
5
2.4 Waste disposal
Dispose of faulty rechargeable batteries and spent batteries in accordance
with the valid legal specifications.
At the end of its useful life, dispose of the instrument via separate collection
for electrical and electronic devices. Please observe local regulations
regarding waste disposal, or alternatively return the product to Testo for
disposal.
WEEE Reg. No. DE 75334352
3 Description of the instrument
3.1 Scope of delivery
Inbound Cold Chain data logger (40 pcs per PU)
Optional: location sticker, location aid
Short instructions
3.2 Configuration
The data logger is supplied ex-works with a specific configuration, which is
defined by the customer. This configuration cannot subsequently be changed.
Configurable parameters are:
Measuring cycle (1 min – 24 h)
Upper and lower alarm threshold (within the measuring range -30 °C to
+50 °C / -22 °F to +122 °F)
Alarm behavior (immediate alarm in the event of a limit value violation or
cumulative alarm after x limit value violations)
Start delay (0 mins to 60 mins, a 15-minute delay is recommended based
on the sensor’s acclimatization time)
Optional accessories: location tape and location sticker

4Product use
6
3.3 Operating elements of the product
Element Element
1 Serial number/barcode
(removable)
2 Start/Check button
3 LED (red) 4 LED (green)
5 Serial number/barcode
(integrated)
6 Order number and configuration
7 Refer to instruction manual
4Product use
4.1 Commissioning
1 Switch the logger on.

4 Product use
7
2 The logger’s green and red LEDs
flash briefly to acknowledge
successful activation.
3 LED flashes green: system test
successful

Data logger starts recording readin
g
LED flashes red: system test
unsuccessful

Data logger must not be used.
Each time the Start/Check button is pressed again, this produces a
status display.
LED lights up green: measurement data is within the limit values
LED lights up red: measurement data is outside the limit values
4 Optional: stick barcode label onto
the delivery note.

4Product use
8

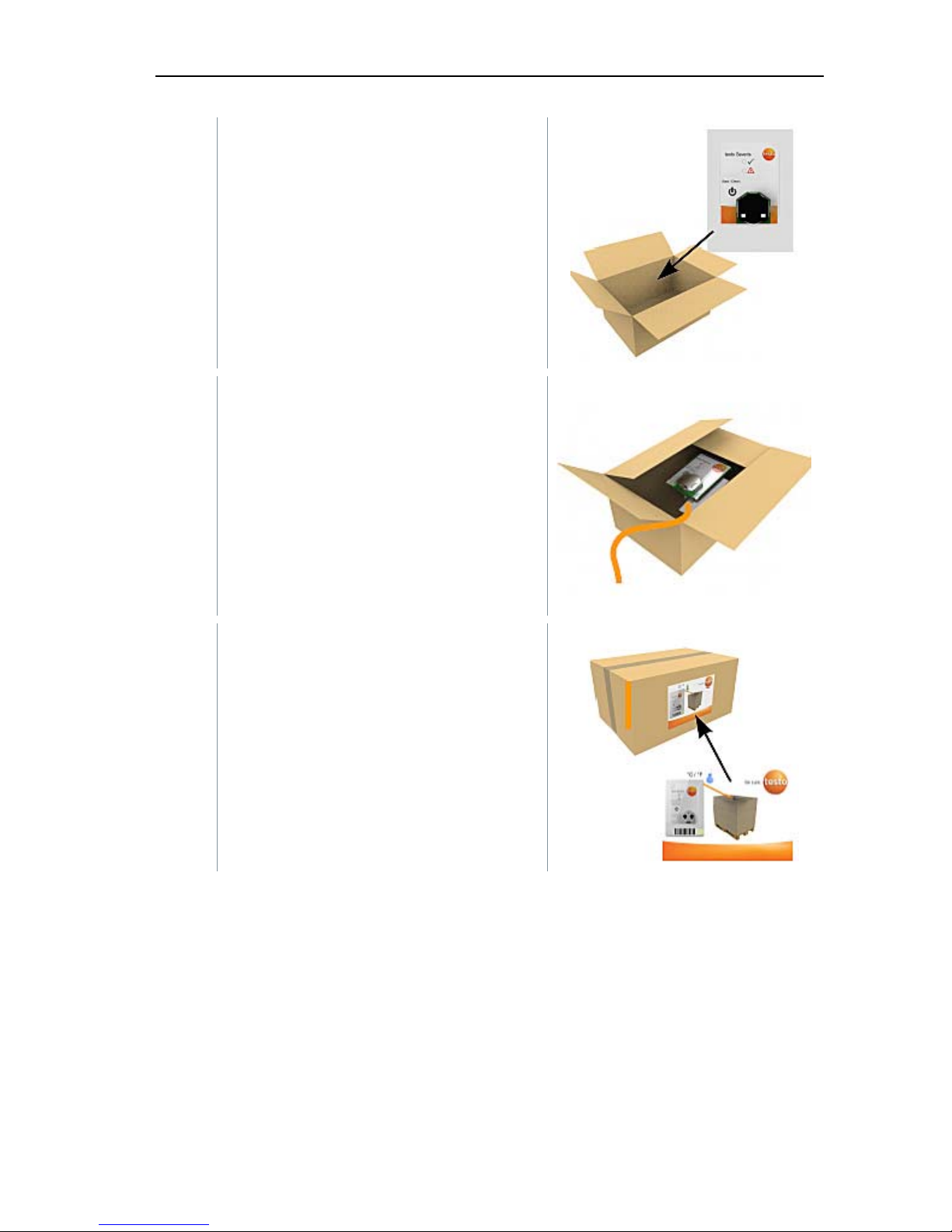

5 Enclose data logger with the
shipment.
6 Optional: attach location tape to the
outside of the packaging.
7 Optional: attach location sticker to
the packaging so that it is clearly
visible from the outside.

4 Product use
9
4.2 Reading out data
1 Remove the data logger and
immediately press the Start/Check
button. While the button is pressed,
the data logger indicates whether the
limit values were adhered to/violated.
- LED lights up green:
limit values adhered to
- LED lights up red:
limit values violated
CAUTION
If too much time elapses between
removing the data logger and
pressing the button, this can lead
to a limit value violation due to a
deviating ambient temperature.
2 Pressing the button establishes a
connection to the readout unit (order
no. 0572 2802). The measurement
data is transmitted to the database
via the readout unit.
CAUTION
If no connection can be
established, the data logger
spends 60 seconds attempting to
set up the connection. If no data
transfer can be carried out within
this time, the data logger resumes
its measurement. If this happens,
please repeat the readout
process.
3 Following successful data transfer,
the LEDs flash red and green at one-
second intervals, continuously.

4Product use
10
If the connection for the data
transfer is interrupted, the red LED
flashes. The data logger attempts to
establish the connection again (step
8).
4 Any additional press of the button
indicates whether the limit values
were adhered to or violated.
5 The used data loggers can be
assembled in the box provided and
returned to Testo. Please clean the
loggers before assembling them in
the box.
4.3 LED status display
The following statuses are indicated via the LEDs:
Status LED Cause
After being switched on, the data
logger flashes green and red once.
Activation was successful.
After being switched on, the data
logger flashes green at one-second
intervals for a duration of 10
seconds
System test was carried out
successfully.

4 Product use
11
Status LED Cause
After being switched on, the data
logger flashes red at one-second
intervals for a total of 10 seconds.
An error occurred during the system test.
Data logger must not be used!
The LED lights up green while the
button is pressed.
The data logger limit values have thus far
been adhered to.
The LED lights up red while the
button is pressed.
The data logger limit values were
violated.
The data logger flashes red for 10
seconds during/after the data
transfer.
Data transfer was not successful. The
data logger will make another attempt to
transfer its data when the button is
pressed again.
Green and red LEDs flash
simultaneously at one-second
intervals after removal and
pressing the Start/Check button.
The measurement data was transferred
successfully.
4.4 Displaying measurement data
The data logger does not have an integrated temperature display. Once the
measurement data is transferred, it can be viewed in the database. For more
detailed information, please consult the documentation for the testo Saveris
Food Logistics Inbound software.
4.5 Alarms
The LEDs on the data logger provide an indication as to whether the limit
values were adhered to or violated. After a data logger is switched on, if the
Start/Check button is pressed again, one of the two LEDs lights up while it is
pressed.
LED lights up green: the measurement data is within the limit values.
LED lights up red: the limit values were violated. There is an alarm.
Even after the data transfer, you can check whether alarms were
triggered over the measuring period by pressing the Start/Check
button.

5Technical data
12
5Technical data
Feature Value
Measuring range -30 °C to +50 °C / -22 °F to +122 °F
Accuracy ± 0.5°C/°F
Resolution 0.1 °C/°F
Sensor type Digital temperature sensor (semi-conductor
basis)
Measurement channels 1 (internal)
Measurement parameters Temperature (°C, °F)
Storage temperature -40 °C to +85 °C /-40 °F to +185 °F
Operating temperature -40 °C to +70 °C /-40 °F to +158 °C
Storage time Up to 1 year before activation (see activation
note on the instrument)
Battery type (cannot be
replaced)
CR2032
Battery life (CR 2032) 24 days with 15 min. measuring cycle across
the entire measuring range
Protection class IP 67
Measuring interval 1 min – 24 h
Memory 4096 readings
Dimensions 95 mm x 65 mm x 6.7 mm
Weight 30 g
Transmission Bluetooth Low Energy (BLE) 4.0 specification
(2.4 GHz)
Bluetooth range Up to 30m with no obstructions
Directives, standards,
certificates
EMC 2014/30/EU
RED 2014/53/EU
Regulation 1935/2004

6 Authorizations
13
6Authorizations
The use of the wireless module is subject to the regulations and
stipulations of the respective country of use, and the module may only
be used in each case in countries for which a country certification has
been granted.
The user and every owner undertake to adhere to these regulations and
prerequisites for use, and acknowledge that the re-sale, export, import,
etc. in particular in, to or from countries without wireless permits, is
their responsibility.
Product Inbound Cold Chain Datenlogger
Mat.-No. 0572 2800
0572 2801
Date 06.12.2017
Country Comments
Australia
E 1561
Canada Product IC: 6127B-0572280X
See IC Warnings

6Authorizations
14
Europa + EFTA
The EU Declaration of Conformity
can be found on the testo
homepage www.testo.com under
the product specific downloads.
EU countries:
Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE),
Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland
(IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU),
Malta (MT), Netherlands (NL), Austria (AT), Poland (PL),
Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK),
Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary
(HU), United Kingdom (GB), Republic of Cyprus (CY).
EFTA countries:
Iceland, Liechtenstein, Norway, Switzerland
Japan
See Japan information
USA Product FCC ID: WAF-0572280X
See FCC Warnings
Bluetooth®
Information Feature Values
Bluetooth® range typical 30 m
radio class Bluetooth® Low Energy
(BLE) 4.0
RF Band BT LE: 2402 – 2480MHz
power output [E.I.R.P] BT LE: 5dBm
Bluetooth® SIG Listing Feature Values
QD ID 100951
Declaration ID D036414
member company Testo SE & Co. KGaA

6 Authorizations
15
IC Warning
RSS-Gen & RSS-247 statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Caution: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment and meets the IC radio frequency (RF) Exposure Guidelines. This equipment
should be installed and operated keeping the radiator at least 12 cm or more away from
person´s body in normal use position.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
Attention : exposition au rayonnement de radiofréquences
Cet équipement est conforme aux limites d'exposition aux radiofréquences IC fixées pour
un environnement non contrôlé et aux Lignes directrices relatives à l'exposition aux
radiofréquences (RF). Cet équipement devrait être installé et utilisé à une distance d'au
moins 12 cm d'un radiateur ou à une distance plus grande du corps humain en position
normale d'utilisation.
Co-location
Ce transmetteur ne peut pas être installé en colocation ou être utilisé avec une autre
antenne ou transmetteur, quel qu'en soit le type.
Japan Information
当該機器には電波法に基づく、技術基準適合証明等を受けた特定無線設備を装着している
FCC Statement
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This is to ensure continued
protection against radio frequency interference.

6Authorizations
16
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. Shielded interface
cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Caution: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines. This
equipment should be installed and operated keeping the radiator at least 20 cm or more
away from person´s body in normal use position.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.

Testo SE & Co. KGaA
Testo-Strasse 1, D-79853 Lenzkirch, Germany
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Website: www.testo.com
0970 2800 en 02a
