Texecom Premier Elite Odyssey-W Series User manual

Installation Manual
Premier Elite Odyssey-W Series
INS595-4

INS595-4 2/20
Content
1.0 Introduction 3 ............................................................................................................................
1.1 System Compatibility 3 ..........................................................................................................
1.2 Battery Compartment 3 ..........................................................................................................
1.3 PCB Layout 7 ..........................................................................................................................
1.4 Learning the Sounder 9 ..........................................................................................................
1.5 LED Indications 10 ..................................................................................................................
1.6 Hold Off Mode 11 ....................................................................................................................
1.7 Mounting the Unit 11 ..............................................................................................................
1.8 Rear Tamper 12 ......................................................................................................................
1.9 Installing The Cover 15 ...........................................................................................................
1.10 Commissioning 16 ................................................................................................................
1.11 Technical Specification 17 ....................................................................................................
1.12 Standards 18 ........................................................................................................................
1.13 Warranty 19 .........................................................................................................................

INS595-4 3/20
1.0 Introduction
The Premier Elite Odyssey-W sounders are currently available in as; Premier
Elite Odyssey 1-W,2-W,3-W,4-W & 5-W. With Ricochet® mesh technology it is
now even easier to add a wireless sounder to your security system. As the device
is self powered the only limit on the number of units you can put on a system is
determined by how many free Ricochet enabled zones you have available.
1.1 System Compatibility
The Premier Elite Odyssey-W's are compatible with all Premier Elite control
panels V2.11 and later, and Premier Elite 8XP-W & Premier Elite 32XP-W.
Ricochet Monitor V2.18.2 or later should also be used.
1.2 Battery Compartment

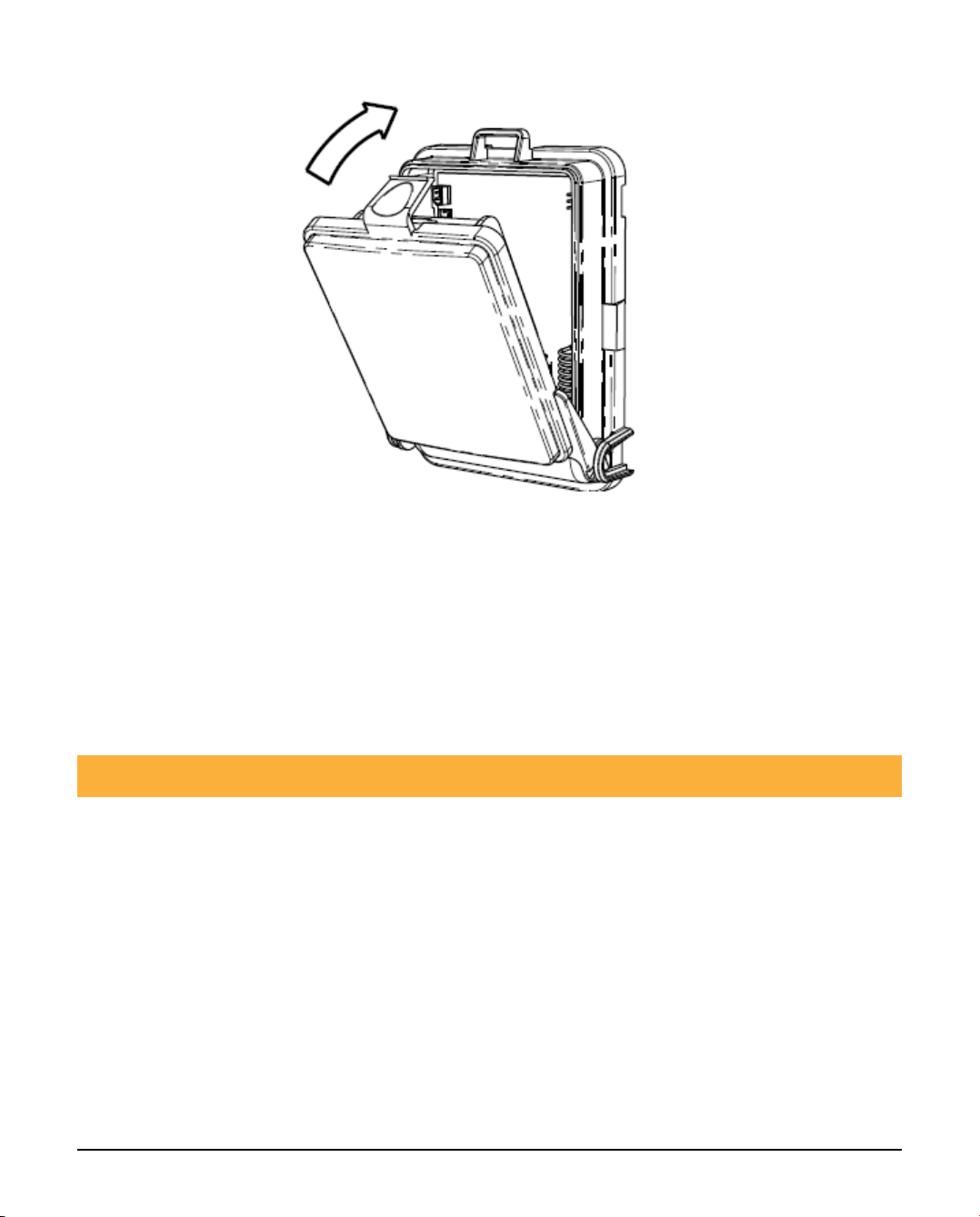

1. Open the Battery Compartment
2. Removing the lid completely (if required)

INS595-4 4/20

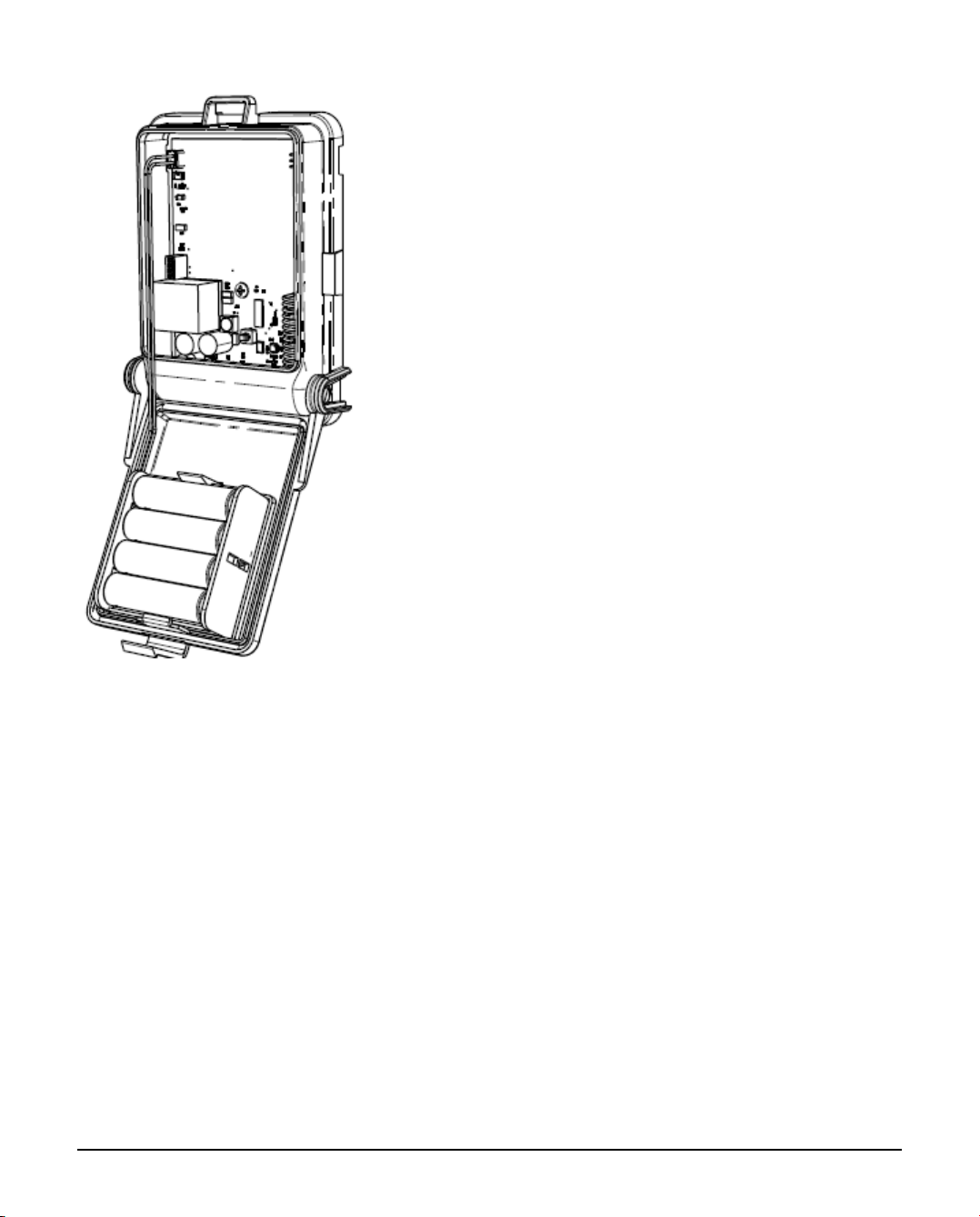

3. Install Batteries into Holder

INS595-4 5/20
4. Clip Holder (bottom first) back into place & connect battery pack to
PCB

INS595-4 6/20
5. Learn sounder to panel

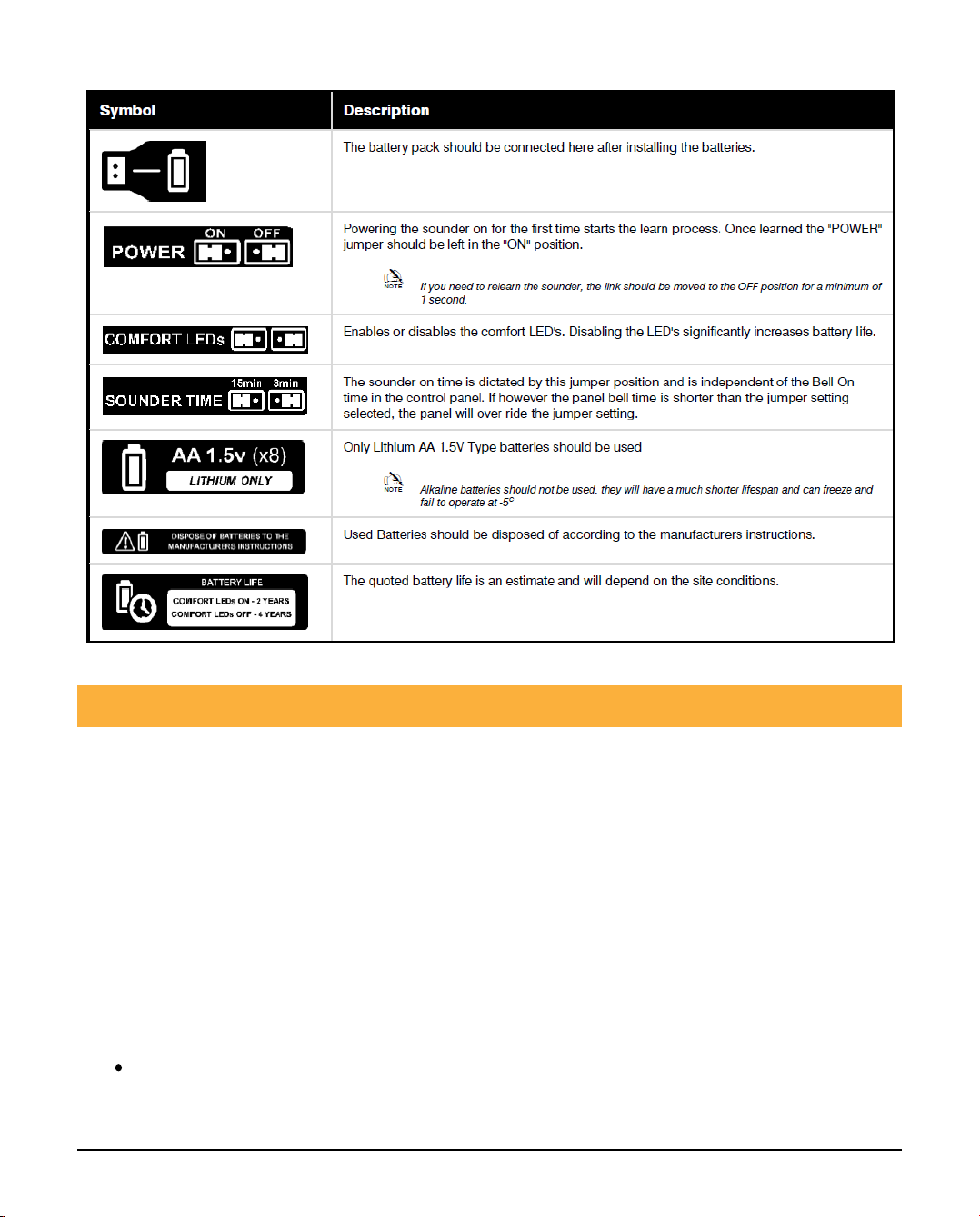

6. Make Jumper selection for LED ON/OFF
7. Make Jumper Selection for Sounder Time
8. Close the Battery Compartment

INS595-4 7/20
N All eight batteries (supplied) must be installed with the correct polarity.
Failure to do so will result in the device reporting a battery fault. If 1-2 batteries
are incorrectly fitted the firmware will detect this on power up and flash both
comfort LED’s for approximately 10 minutes. While the unit is in this state it will
not learn to a panel. After approximately 10 minutes the unit will power off in order
to save energy.
1.3 PCB Layout

INS595-4 8/20

INS595-4 9/20
1.4 Learning the Sounder
As with all Ricochet enabled devices, the sounder should be learned to the control
panel along with all other devices BEFORE it is installed in it's final location.
The Premier Elite Odyssey-W's are learned to a Zone on the control panel in the
same way that Ricochet enabled detection devices are. The Zone type and
Ricochet Device Mode is automatically assigned based on the type of device
being learned. In the case of the sounder the Zone Type is set to "Custom" and the
Ricochet Device Mode is set to Device Specific. These should not be changed.
Zone attributes 1 & 2 and Chime options will be ignored for Ricochet enabled
Sounders.
You can learn the device from first power up following "Confirm Devices" or
from the dedicated Ricochet Learn menu.

INS595-4 10/20
The Odyssey-W has no Learn Switch, learning is initiated by connecting the
batteries via the Power Jumper

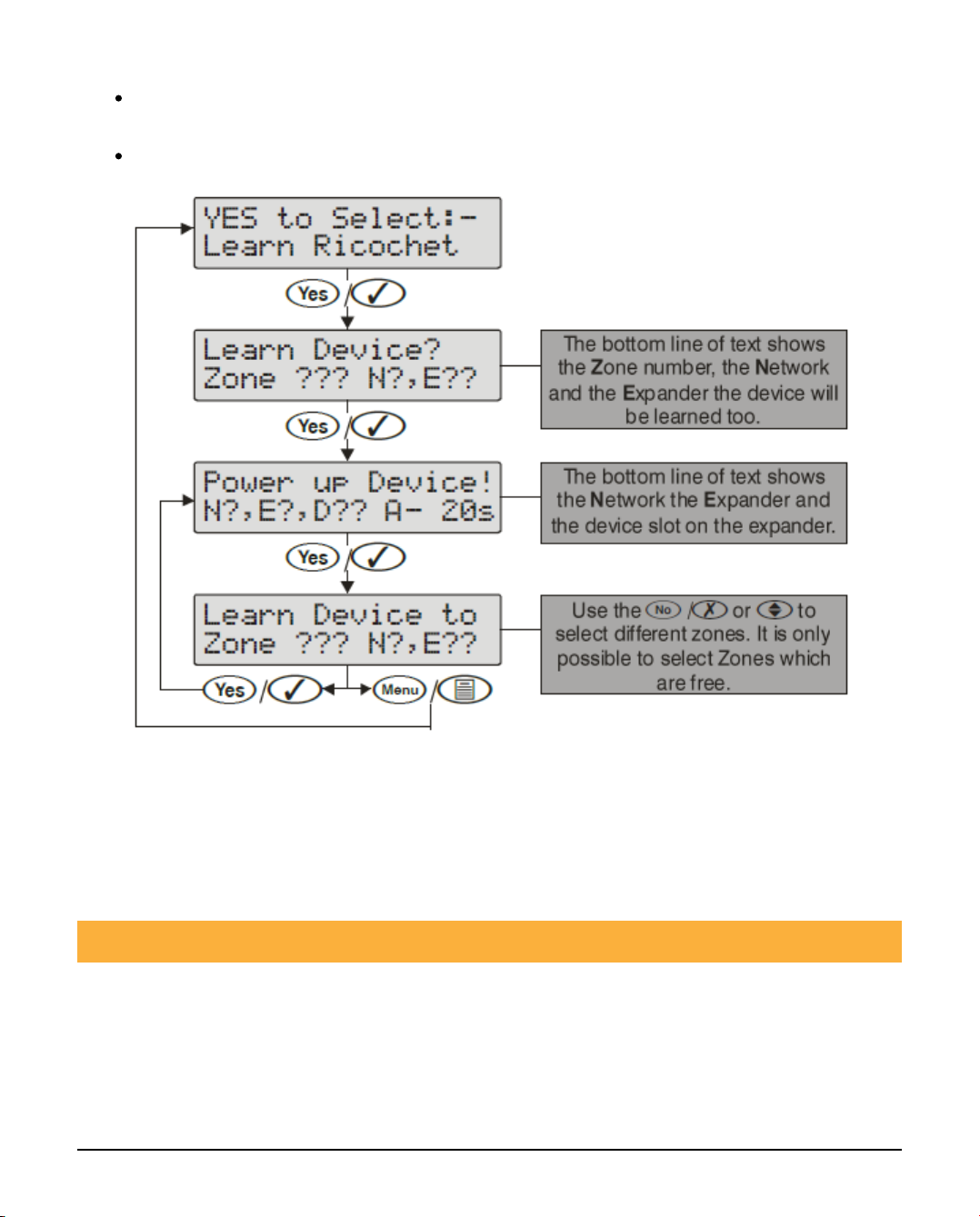

To learn the Odyssey-W to the system follow the diagram below.
N If you need to delete the device from the system you should first put it into
"hold off " mode and remove the batteries.
N If the device will not learn to the system check that all batteries are installed
correctly.
1.5 LED Indications
The Odyssey-W LED,s aid in the installation of the device and act as status
indicators. The table below details the status of each LED indicator.
N The LED jumper has no effect on the status described below.

INS595-4 11/20
1.6 Hold Off Mode
For safety reasons, each Texecom sounder and strobe unit incorporates a unique
patented engineer Hold‑Off mode. This mode prevents the unit from self-activating
during installation and maintenance, thereby allowing only bona fide engineers
access to the unit without any loss of tamper protection. The sounder can be put in
hold-off mode by flashing the strobe 3 times, or by pressing the Omit key when in
Bell Test menu.
When the outer cover is replaced and the tamper circuit is closed, the LEDs will
alternate rapidly, confirming that the tamper circuit is secure and signalling that
self activation on tamper will be re-enabled within 2 minutes, after which the LEDs
will alternate slowly to signal normal operation. If the tamper circuit is re-opened
within the 2 minute period, then Hold-Off mode will be restored.
N The LED's will only flash after hold of mode has stopped IF the LED
jumper is in the "ON" position.
N The strobe is disabled during Hold-Off mode. Hold-Off mode is
immediately cancelled when the sounder is activated from the control panel if the
tamper is closed..
1.7 Mounting the Unit
Select a suitable position to mount the unit, which satisfies the following criteria:

INS595-4 12/20
Good wireless signal
N The wireless signal may be checked before final installation by depressing the
tamper switch briefly. The Right LED will flash to indicate communication and will
the go solid for 3 seconds to indicate a successful connection.
Highly prominent for maximum deterrence
Additional shelter (e.g. under the eaves) is an advantage
High enough to be out of normal reach to deter tampering
Safe ladder access
In addition to the corner screw fixing points, the unit also has a central keyhole to
simplify mounting and aid levelling.
Four screws and wall plugs are required for mounting the backplate to an even
surface.
N An additional screw is required to provide "Removal from Mounting" tamper
and is required in installations complying with the requirements PD6662 and/or
EN50131. In doing so, care must be taken to leave the screw head slightly proud to
ensure that the microswitch remains level and closes correctly when the outer
cover is fitted.
N For maximum weatherproofing the unit should be flat to the wall.

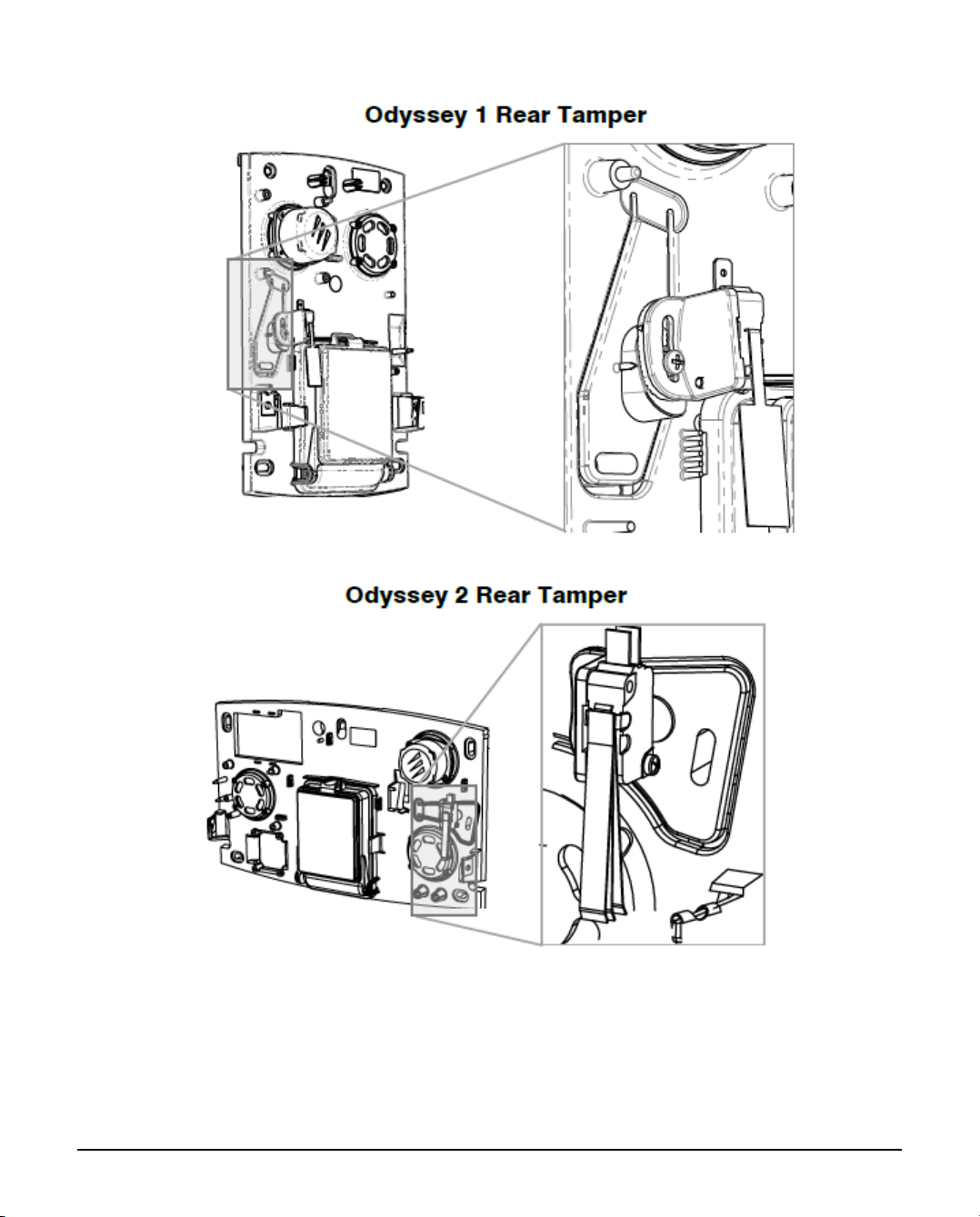

1.8 Rear Tamper

INS595-4 13/20

INS595-4 14/20

INS595-4 15/20
Adjusting Tamper Sensitivity
If greater wall/lid tamper sensitivity is required, the microswitch position can be
adjusted by loosening the locking screw and altering the orientation of the
microswitch as shown.

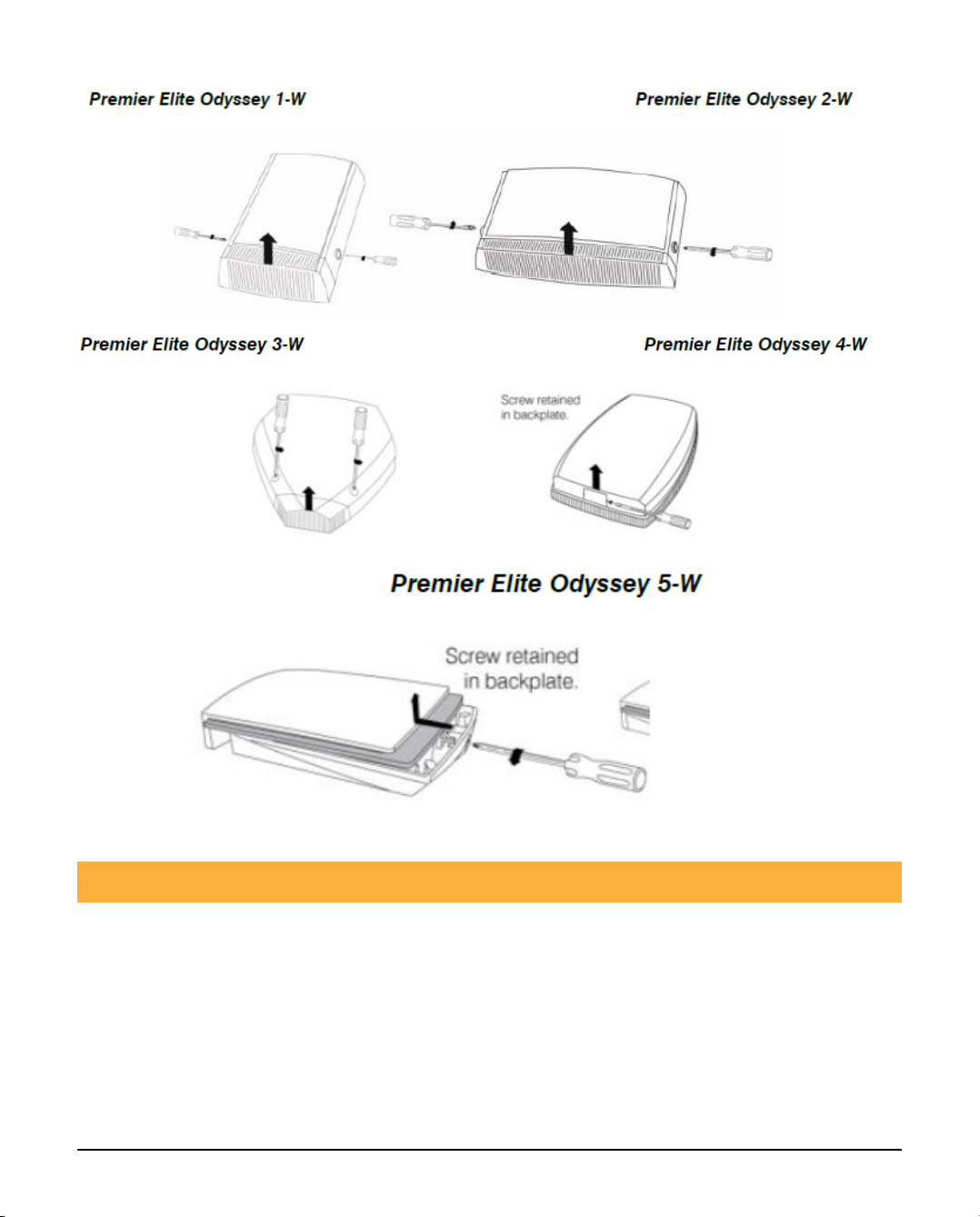

1.9 Installing The Cover

INS595-4 16/20
1.10 Commissioning
Once the installation is complete the sounder should be tested to confirm correct
operation. This can be achieved by utilising the Bell/Strobe test facility in the
"Engineer Utilities" menu.

INS595-4 17/20
1.11 Technical Specification
Environmental Electrical
Volume 105dB Peak at 1m
(A Weighting, 90°)
Supply
Voltage:
12V DC
Battery
Type:
8 x Lithium type AA
1.5V
High Power
LED Strobe:
320lm
Acoustic
Output
Varying Sound
Output
Flash Rate: 1Hz (typical)*
Cut-Off Time: 15 minutes or 3
minutes(selectable)
Waterproof
Coating:
Conformal Comfort
LEDs:
Environmental
Protection
IP65 Brightness: 100mcd (typical)
Flash Rate
(tamper
secure):
1/4 sec flash at 5 sec
intervals alternating
(typical)
Wireless
Frequency:
868.0MHz – 868.6MHz
Operating
Temperature:
-25°C (-13°F) to
+55°C (+131°F)**
Storage
Temperature:
-25°C (-13°F) to
+60°C (+140°F)
EMC
Environment:
Residential /
Commercial /Light
Industrial /
Industrial
* The flash rate will reduce to 0.125Hz after flashing for 20 minutes (1 flash every
8 seconds). This is a software feature to reduce power consumption and cannot be
disabled. After 10 days the strobe is cancelled completely. Turning the strobe off
then on again will resume normal operation.

INS595-4 18/20
** In extreme conditions where the temperature is likely to exceed the stated
maximum avoid direct sunlight.
Physical
Material 3mm polycarbonate Packed Weight
Tamper
Detection
Wall & Lid Premier Elite
Odyssey 1-W
840g approx
Dimensions (h x
w x d)
Premier Elite
Odyssey 2-W
980g approx
Premier Elite
Odyssey 1-W
318mm x 201mm x
66.5mm
Premier Elite
Odyssey 3-W
890g approx
Premier Elite
Odyssey 2-W
242mm x 382mm x
76mm
Premier Elite
Odyssey 4-W
730g approx
Premier Elite
Odyssey 3-W
315mm x 306mm x
78mm
Premier Elite
Odyssey 5-W
920g approx
Premier Elite
Odyssey 4-W
310mm x 196mm x
58.5mm
Premier Elite
Odyssey 5-W
284 mm x 256 mm x
68 mm
1.12 Standards
Texecom declares that this product complies with the requirements of the
following directives:

INS595-4 19/20
1999/5/EC R&TTE Directive
2004/108/EC EMC Directive
2006/95/EC LVD Directive
2011/65/EU RoHS Directive
The product therefore meets all the requirements to enable it to be CE marked.
Weee Directive: 2012/19/EU (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European Union. For
proper recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
This product is a Type B Moveable device and is suitable for use in systems
designed to comply with EN 50131-1, EN50131-3, EN50131-5-3 and PD6662 at
Grade 2 and Environmental Class IV.
1.13 Warranty
All Texecom products are designed for reliable, trouble-free operation. Quality is
carefully monitored by extensive computerised testing. As a result the Premier
Elite Odyssey -W are covered by a two year warranty against defects in material or
workmanship (details on request).

INS595-4 20/20
Batteries are NOT covered by the warranty.
Because the Premier Elite Odyssey -W Series are not complete alarm systems but
only a part thereof, Texecom cannot accept responsibility or liability for any
damages whatsoever based on a claim that a unit failed to function correctly. Due
to our policy of continuous improvement Texecom reserve the right to change
specification without prior notice.
Odyssey is a trademark of Texecom Ltd. Premier & Premier Elite are trademarks of
Texecom Ltd
