OVE SHELBY GP 60 User manual

12800 Etienne Lenoir, Laval
Quebec H7R 0A3 Canada
Purchase date: _________________________ Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
SHELBY GP 60
CSA Markings

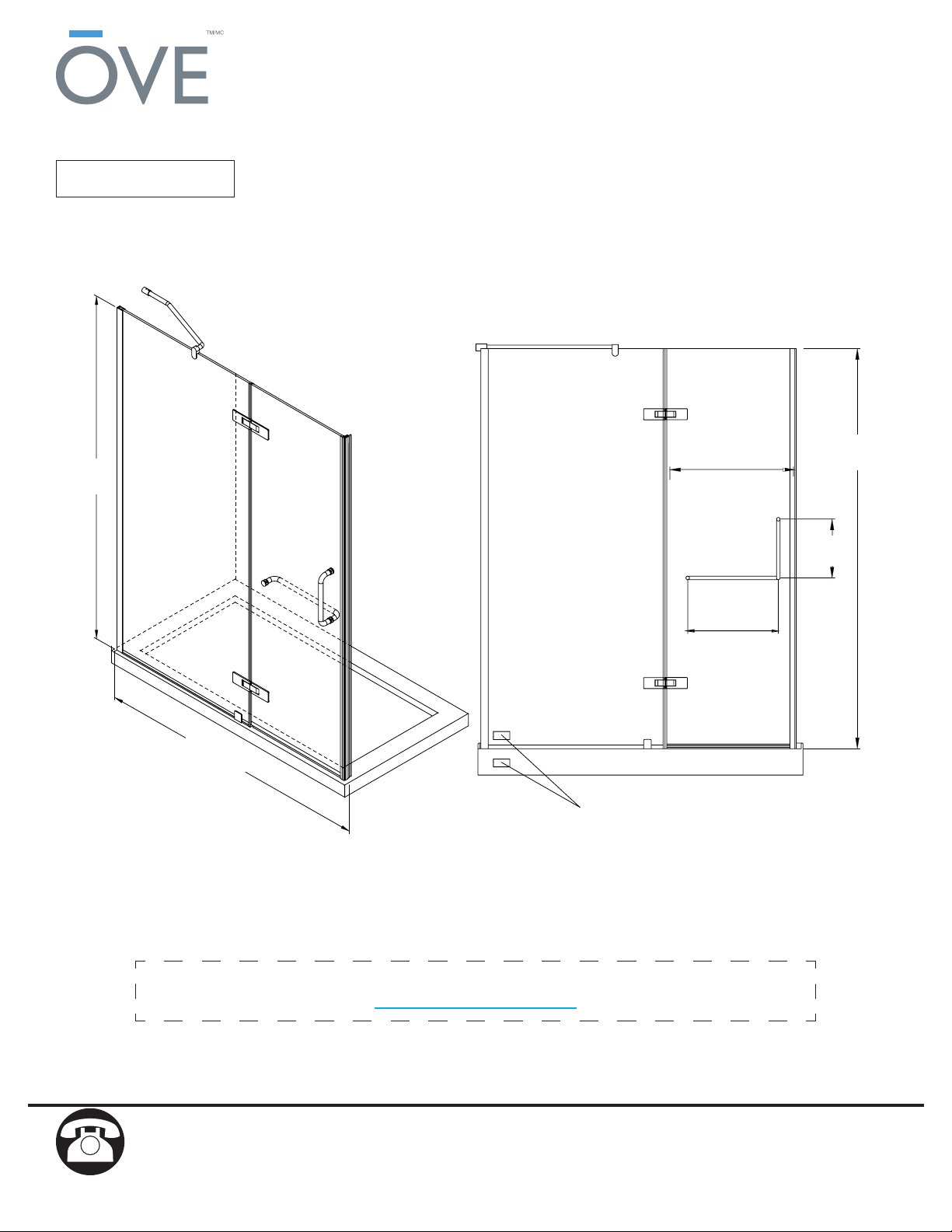

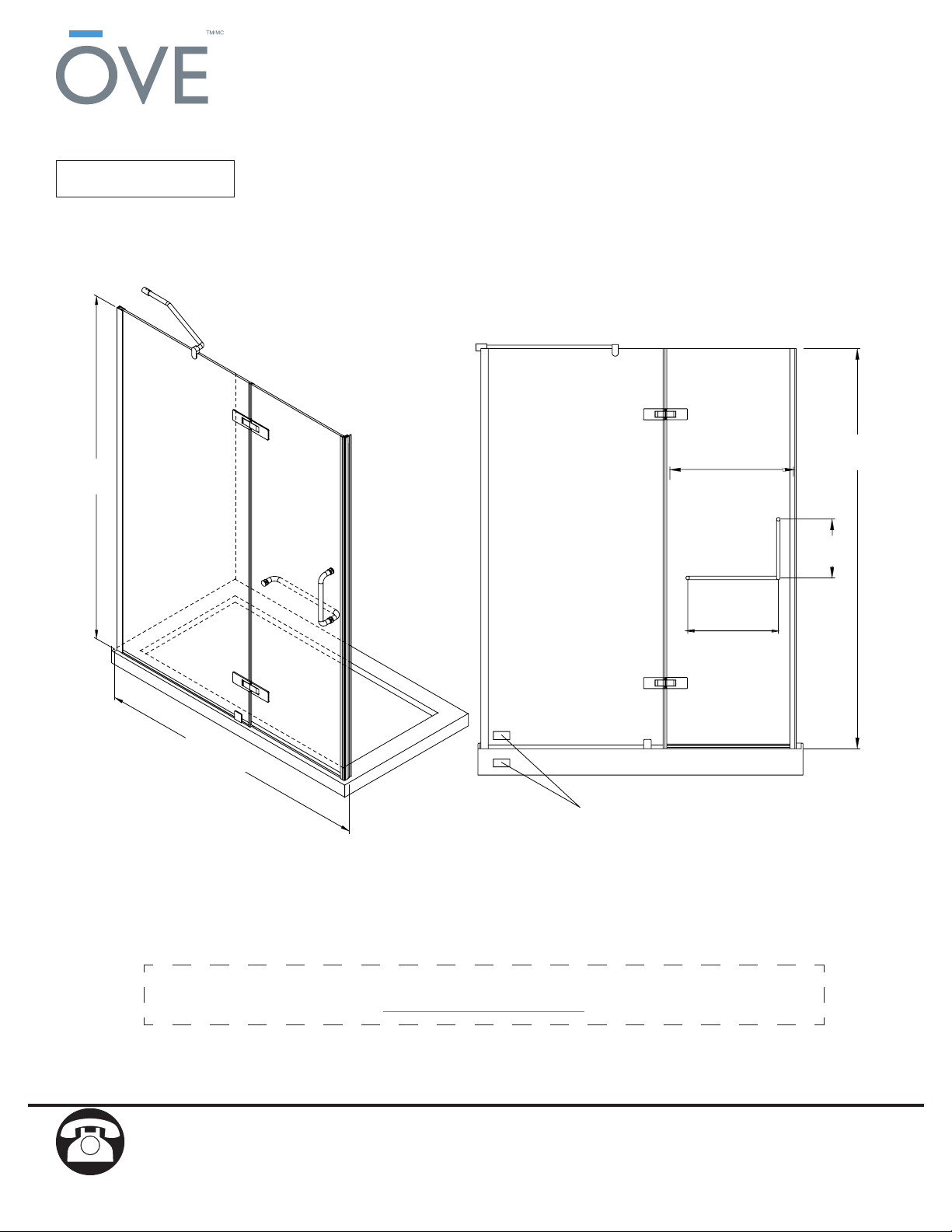

Opening
560
[22 1/32]
425
[16 3/4]
275
[10 13/16]
1877
[73 27/32]
1524
[60]
1877
[73 27/32]
Measures: millimeter [inch]
An installation video guide can be found on our Youtube channel.
http://youtu.be/7Udslr_4rNw
2016-04-05

2
CAUTION
Please carefully read the following important safety information before handling or installing this shower. There
is a risk of serious injury while handling this product. To minimize these risks, please note:
• Always wear safety glasses and gloves while handling.
• Always read and follow all the steps in the installation instructions.
• Inspect all contents and glass for damage before installation.
• Extreme caution should be taken while handling the glass during installation as the tempered glass may
shatter if in contact with a hard surface.
• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in
small pieces (never in pointed fragments).
• Always take all precautions not to touch the tempered glass with any tools during the installation, or after
installed.
• Do not cut or modify the tempered glass as it will shatter if cut.
• Carefully remove product from packaging and keep packaging until installation is complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer
service at the number provided in this guide.
• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightoftheunitandanoccupant.
• Consult local building codes and compliance standards prior to installation and ensure conformity.
• Afterinstallation,andfromtimetotime,checktheglassfortandnishtoensurethatnothinghascome
loose since installation.
• Keep this installation manual for future reference.
NOTICE
• Anymodicationoralterationfromwhatisspeciedinthisinstructionmanualwillvoidanyandallwarranty
on this product.
• The distributor is not responsible for any damage to the unit or personal property caused by improper
installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water
damage.
• Consult www.ovedecors.com for any additional information or question on this product’s installation.
PREPARATION
You will need at least two people to install this unit properly.
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: Shower (60 min).
SAFETY INFORMATION

3
TABLE OF CONTENT
PACKAGE CONTENT.......................................................................................................................................... 5
HARDWARE CONTENT...................................................................................................................................... 6
TOOLS REQUIRED............................................................................................................................................. 6
SHOWER REVERSIBILITY.................................................................................................................................. 7
WALL TO WALL MEASURES............................................................................................................................. 7
BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8
WALL TRACK INSTALLATION........................................................................................................................... 9
FIXED PANEL INSTALLATION.......................................................................................................................... 10
DOOR PANEL INSTALLATION.......................................................................................................................... 11
SUPPORT BAR INSTALLATION....................................................................................................................... 13
HANDLE INSTALLATION & SEALING.............................................................................................................. 14
LIMITED PRODUCT WARRANTY......................................................................................................................15
CARE AND MAINTENANCE..............................................................................................................................15

4

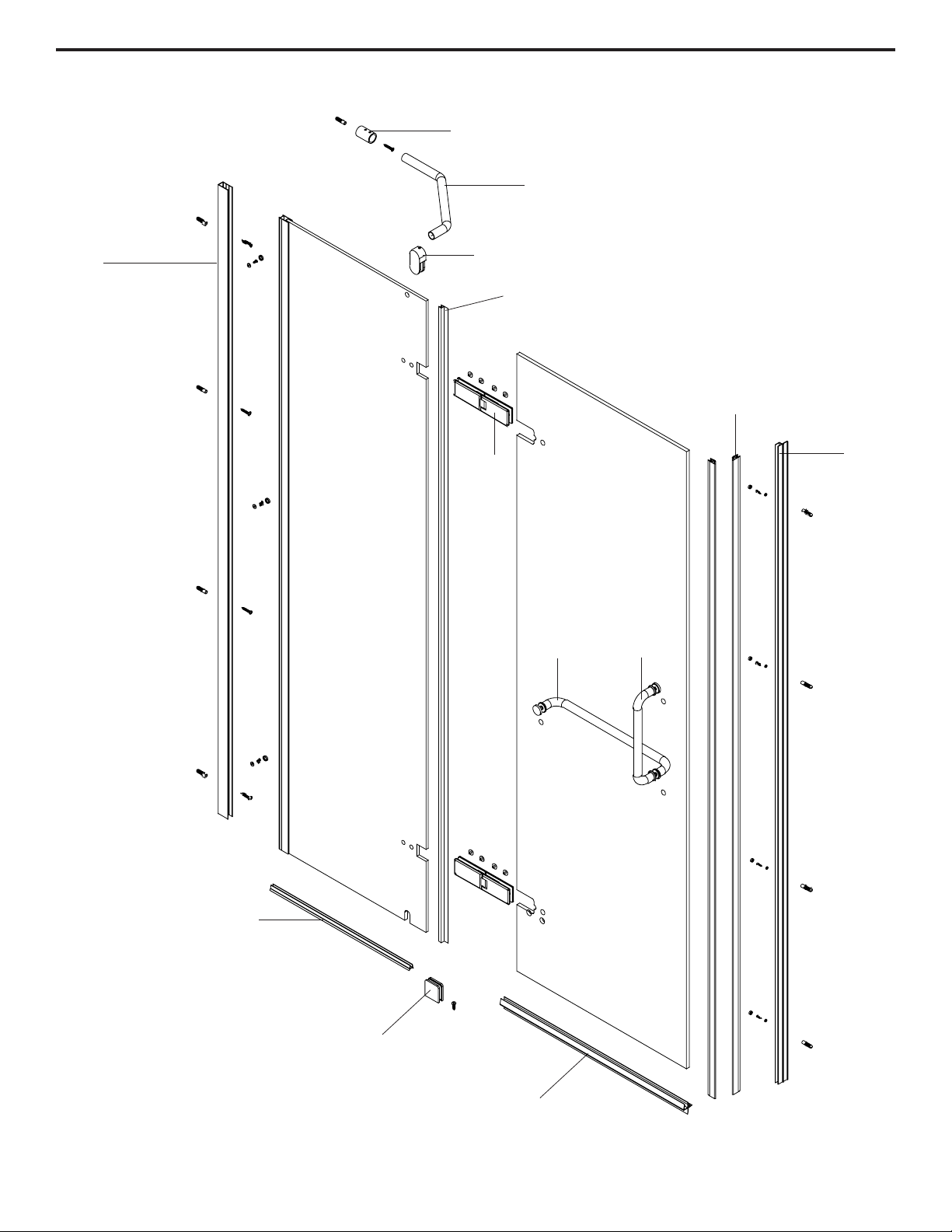

PACKAGE CONTENT
B
C
Z
F
G
H
I
J
K
L
M
N1
X
Y
O

5
PACKAGE CONTENT
PART# DESCRIPTION QTY CODE
BWall track 199STR1009-WM
CBottom door rubber strip 199SRU0009
FMagnetic door seal strips 299SRU0021
GShower door 199SGD0014-WM
HExternal handle for the shower door 199SHA1005-WM
IInternal handle for the shower door 1
JFixed panel vertical seal strip 199SRU0006
KShower door hinges 299SHI0005
LFixed glass panel 199SG10315-WM
MSupport bar’s anchor 199SGC0010-WM
N1 Short support bar 199SGS0012-WM
OGlass panel’s bracket 199SGC0009-WM
XGlass panel clamp 199SGC0008-WM
YFixed panel’s bottom seal strip (Long) 199SRU0033
ZWall track 199STR1016-WM

6

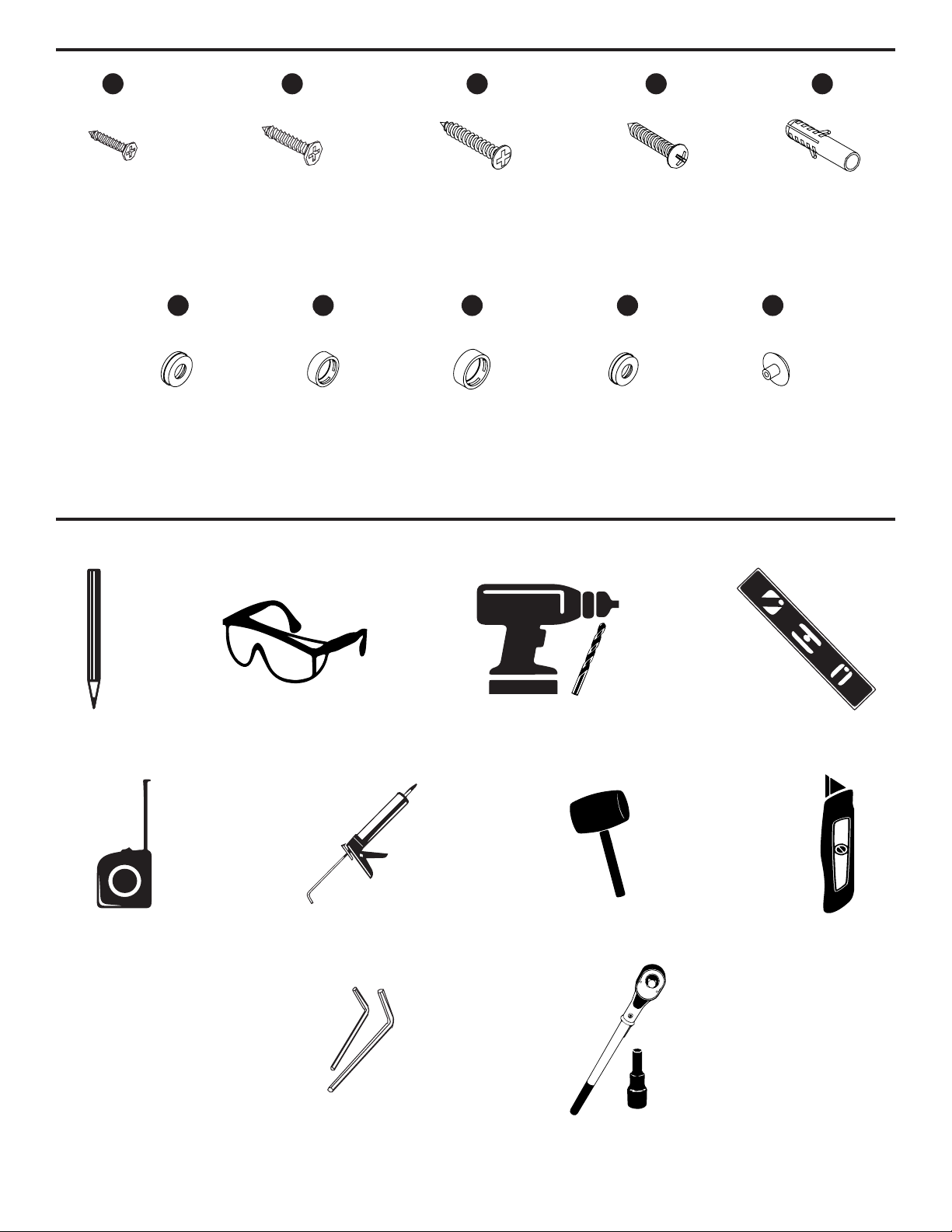

HARDWARE CONTENT
TOOLS REQUIRED
Pencil Level
Measuring Tape Silicone Rubber mallet Cutter
Safety glasses
Allen key
2.5mm & 4mm
Drill with ceramic tile bits
ø3mm (1/8in) & ø6mm (1/4in)
Ratchet
5mm Bit socket
GG HH
FFBB
Wall Anchor
ø6x30mm
9+2
Cap
x3
Fitting
x3
DD
Screw
ST4x30mm
5+1
Screw
ST4x12mm
3+1
Screw
ST4x20mm
1+1
AA EE
Screw
ST4x30mm
4+1
II JJ
Fitting
4+1
Cap
4+1
KK
Cap
x8

7
SHOWER REVERSIBILITY
BA
• This instruction is drawn up for an opening from right to left (see illustration A).
• For an installation from left to right (see illustration B), use the same instructions, but switch around the
panels: mirror effect.

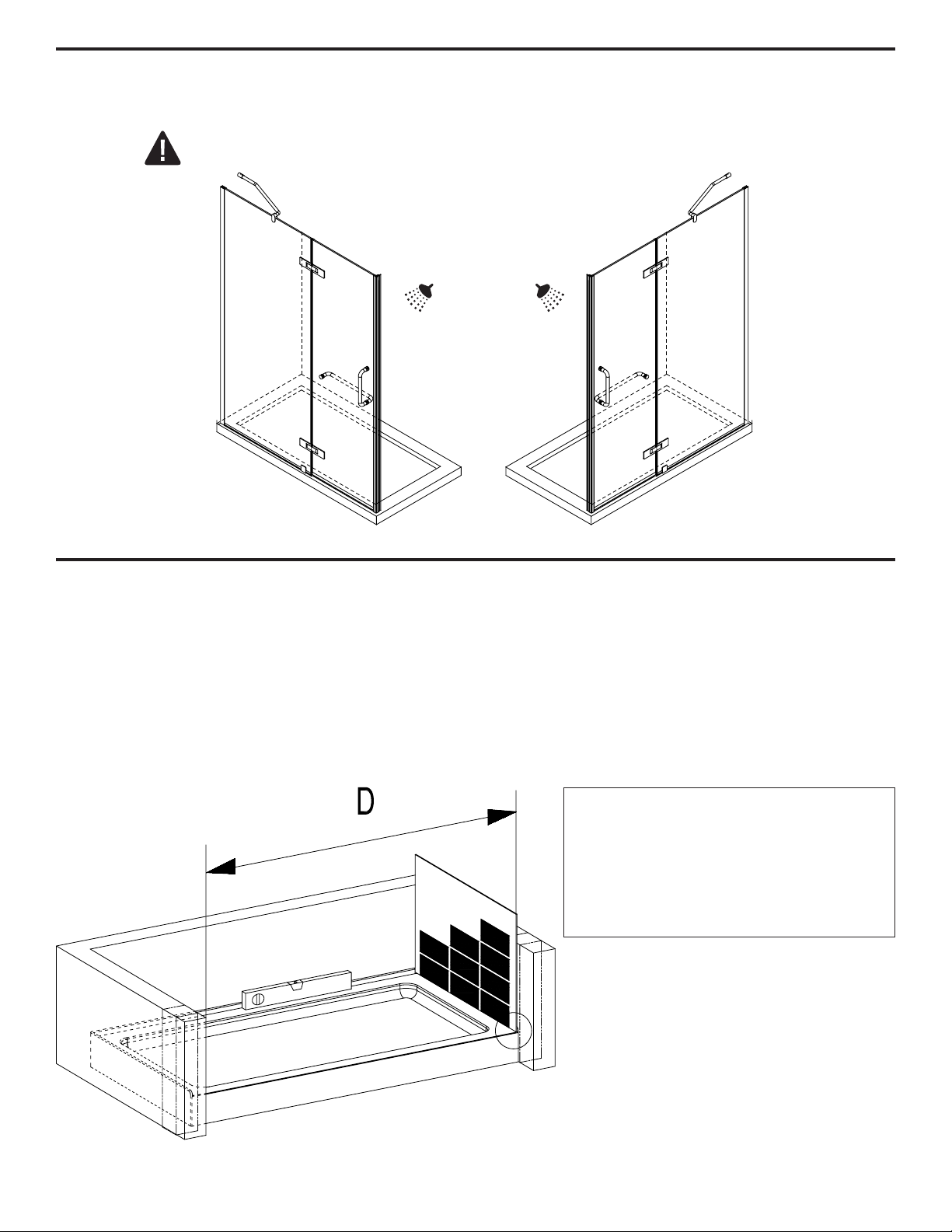

WALL TO WALL MEASURES
• Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit
your space to install the shower panels.
• Make sure to have a tile to tile distance (D) between 1480mm (58 1/4 in) min. and 1508mm (59 3/8 in) max.
(see image).
Make sure to have a distance (D) from the left side tile
to the right side tile:
D Min: 1480mm (58 1/4 in)
D Max: 1508mm (59 3/8 in)
Install the shower head on the door’s side! This will reduce the risk of leaking.

8

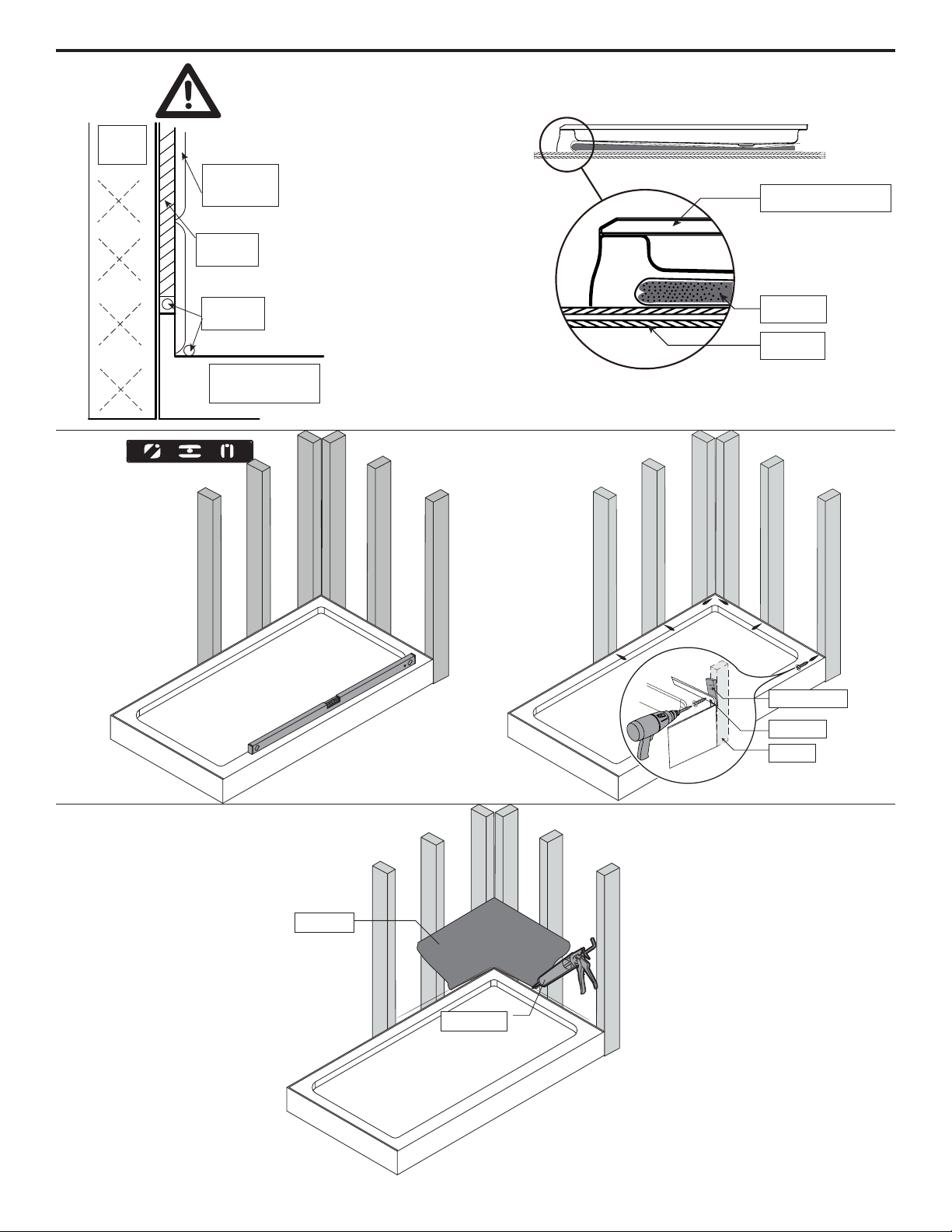

BASE INSTALLATION GUIDELINES (OPTIONAL)
1 2
4
Tile Wall
Studs
Drywall
Silicone
5
Shower Base
3
Shower Base
Cement
Floor
Wood shim
Flange
Stud
Drywall
Silicone
Flange

9

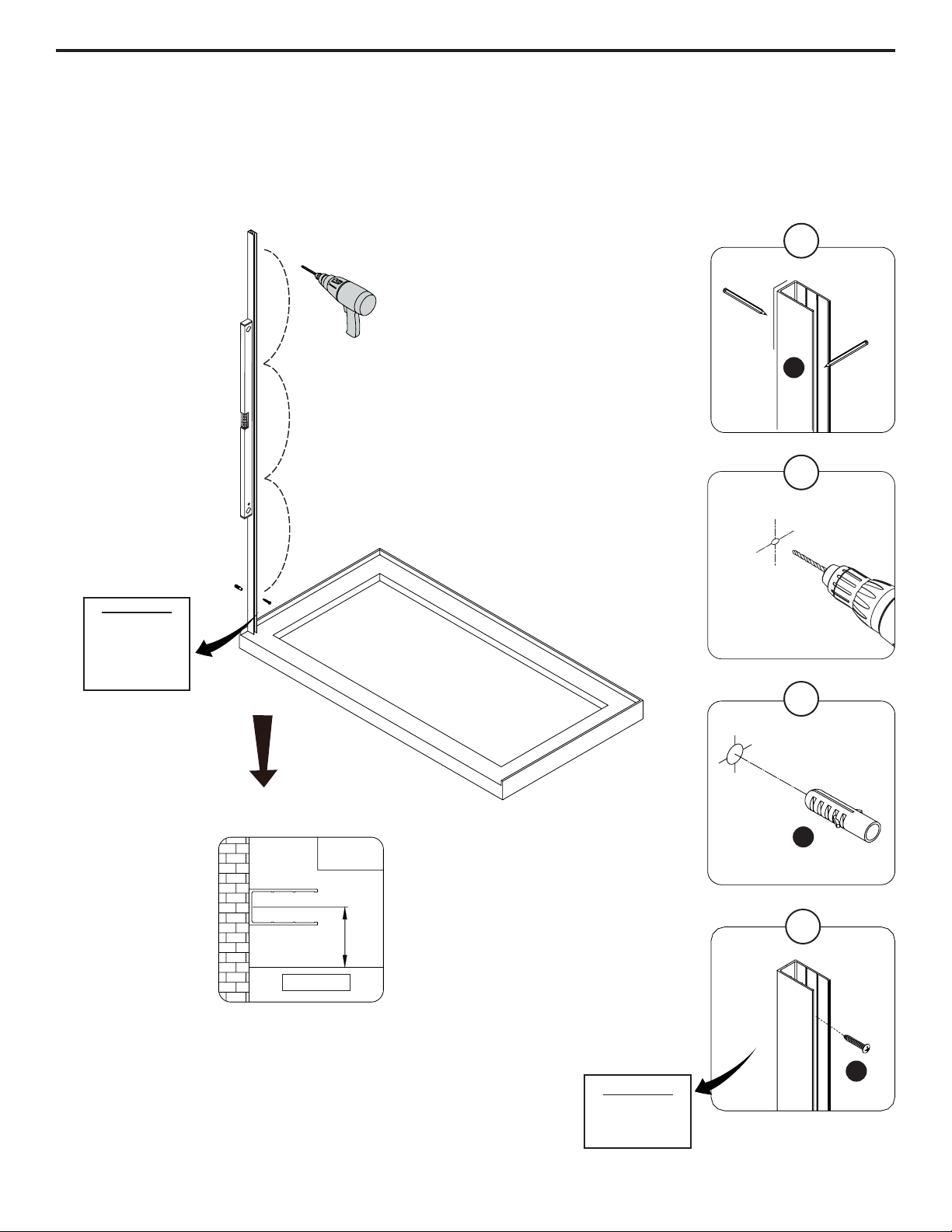

1. Level the track (B) and mark the track holes’ positions.
2. RemovethetrackanddrillpilotholesinthemarkedlocationswithaΦ6mm(1/4in)drillbit.
3. Insertthewallanchors(FF)usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Replace and secure the track (B) with screws (EE). Do not overtighten.
WALL TRACK INSTALLATION
Φ6mm
1/4in
FF
EE
2
B
4
30mm
1 3/16in
1
3
Base edge
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
Helpful Hint
Do not overtighten!
This may crack the
acrylic or tile walls.

10

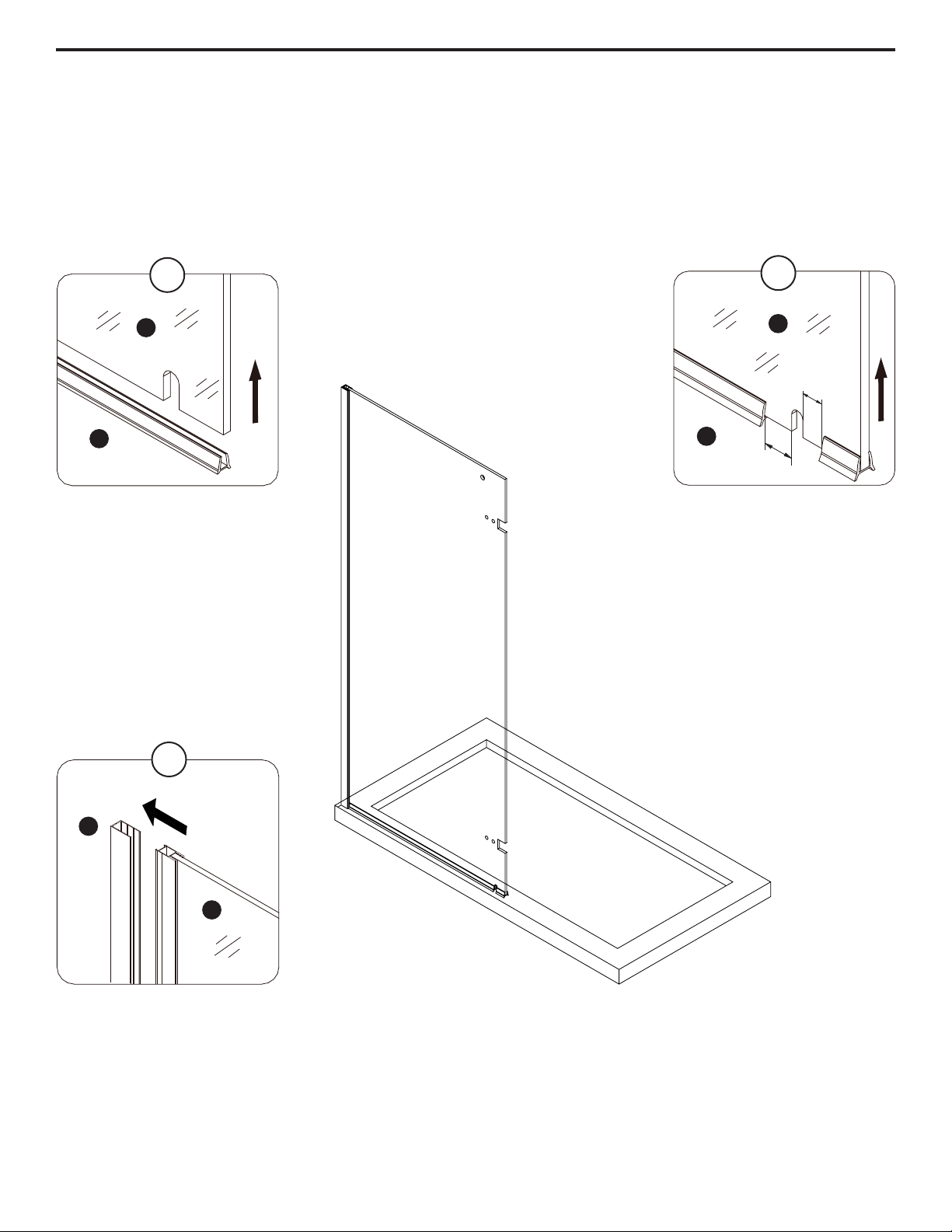

1-2. Insertthexedpanel’sbottomsealstrip(Y)atthebaseofthexedglasspanel(L).Cutthesurpluspart
for the clamp.
3. Insertthexedpanel(L)intothemetaltrack(B).Donotfullytightenitasfurtheradjustmentsmaybe
required.
FIXED PANEL INSTALLATION
13mm
1/2in
13mm
1/2in
2
1
L
L
YY
B
L
3

11
1. Installxedglasspanel(L)anddoorpanel(G)withthe2hinges(K).Usearatchettostronglytightenthe
bolts.
2. Insert the door panel’s bottom seal strip (C) into the door panel (G).
3. Insert the 2 magnetic door seal strips (F) on the door panel (G) and the track (Z).
Note: The wall tracks (B) allow you to adjust the position of the xed glass panel (L). Adjusting the
depth and/or giving the xed panel a slight angle allows for precise alignment with the door.
4-6. Markthepositionandtheholesofthetrack(Z).DrilltheholeswithΦ6mm(1/4in)drillbit.
7-8. Insertthewallanthors(FF)tothewallandsecurethetrackwithttings(JJ),screws(DD)andcaps(II).
DOOR PANEL INSTALLATION
2
3
G
L
K
C
G
GZ
FGZ
K
L
KK
4
5 6
78
Φ6mm
1/4in
Z
II
DD
FF F
G
Z
JJ
1
KK

12
1. Placetheglasspanelclamp(X)intothexedglasspanel(L),markthehole’splaceandmakeaholeinthe
base using ø3mm (1/8in) drill bit.
2. Secure the glass panel clamp (X) using screw (BB).
3. Completely install the glass panel clamp (X) using 4mm Allen key.
4. Insertthexedpanelverticalsealstrip(J)intothexedpanel(L).Cutthesurpluspartforthehinges.
5. Drillthexedpanel(L)withΦ3mm(1/8in)in3places.
6. Securethexedpanel(L)withttings(GG),screws(AA)andcaps(HH).
DOOR PANEL INSTALLATION
XBB
Φ3mm
1/8in
X
X
L
12
3
L
J
Helpful Hint
Add a drop of
silicone in the
holes before
inserting the
screws
4
56
L
AA
HH
GG
L
Φ3mm
1/8in

13
1-2. Install the glass panel’s bracket (O) and the support bar’s anchor (M) onto the support bar (N1).
3. Mark the outline of the support bar’s anchor (M).
4. Completely remove the support bar (N1). Place the support bar’s anchor (M) back on it’s wall mark, and
mark the position of it’s center hole.
5. Drill a hole on the center marks with a ø6mm (1/4in) drill bit.
6-7.Insertthewallanchors(FF)usingarubbermallet.Fixthecenterttingonthesupportbar’sanchor(M)
using the screw (DD).
8-9.Installagainthesupportbar(N1)ontothexedglasspanel(L)andsupportbaranchor(M).Strongly
tighten the bolts using Allen key.
SUPPORT BAR INSTALLATION
2
3
N1
N1
M
4
56
79
Φ6mm
1/4in
FF
DD
1
O
N1
O
8
L
M
L

14
HANDLE INSTALLATION & SEALING
1. Install the door handle (H & I) using an Allen key.
2. Ensure that the door closes and opens smoothly, and that there is a tight connection between the side glass
panels and the frame as well as the support bar.
Applyaclearsiliconewatersealantaroundtheoutsideperimeterofanyxedshowercomponents(horizontally
betweenbottomofxedglasspanelandthebase,aswellasverticallybetweenthewall,glassframes,and
any side glass panel).
Allow 24 hours for silicone to dry.
Improper application of silicone sealant may cause your shower to leak.
1
I
H
2

15
OVE Decors ULC
LIMITED Product Warranty
OVE is a distributor of the following Products:
• Shower Doors (warranty period 5 years).
• Acrylic Surfaces (warranty period 5 years against blistering, cracking or chipping in the acrylic surface).
• AcrylicShellStructure(warrantyperiod5yearsagainstlossofwaterthroughberglasslaminateoftheacrylicbody).
• Shower Hardware (handles, hinges, rubber support clips, metal support bars and wall tracks) (warranty period 1 year against defects in materials
or workmanship).
LimitedWarranty:OVEwarrantstotheoriginalretailpurchaserthatwithinareasonabletimeafternoticationfrompurchaser,OVEwillrepairor
replace the Product, or any part or component of the covered Product, distributed by OVE which is proven to the satisfaction of OVE to be defective in
workmanship or materials, and which has failed during normal use and within the warranty period. This Limited Warranty does not apply to Products
that have been damaged, or which fail, as a result of causes other than manufacturing defects (such as but not limited to improper installation; lack
of or improper care or maintenance; exposure to elements including corrosive products, environments or water; alteration; abuse or misuse). This
warrantydoesnotcoverdamagetonishes.ThewarrantycommencesontherstdateaProductispurchasedbythecustomer.Thiswarranty
applies exclusively to products purchased and used in non-commercial applications.
Warranty Claim Procedure: To make a claim please call 1-866-839-2888 to trouble-shoot the issue and start the claim process, or email info@
ovedecors.com. Products may be inspected or evaluated by OVE and any Product or component found to meet the above warranty criteria will be
repaired or replaced at OVE’s option. Replacement or repaired parts will be shipped at no cost to customer via ground freight only. Any expedited
methods of shipments are customer’s expense.
DISCLAIMER AND EXCLUSION OF WARRANTIES: This warranty is meant to be a complete and exclusive statement of
the terms of all limited warranties offered by OVE.
To the fullest extent permitted by law, other than the express warranty set forth in this instrument there are NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE EXTENDED BY OVE.
Thiswarrantygivesyouspeciclegalrights.Youmayalsohaverights,whichmayvaryunderapplicablestate,provinces,ornationallegislation,
whichcannotbedisclaimedormodiedbytheaboveDisclaimer.Exceptaspermitted,theDisclaimerisnotintendedtowaive,modify,releaseorlimit
the applicability of preemptive state, province, or national legislation inconsistent with the terms of this Limited Warranty and Disclaimer. However, to
theextentpermittedbylaw,noimpliedwarrantiesofmerchantabilityortnessareintendedorextendedhereunder.NotwithstandingtheDisclaimer
if any implied warranty is imposed by operation of law, to the extent permitted, the duration of such implied warranties is limited to the shorter of the
term of the express warranty or the applicable statute of limitations.
The Products listed above are intended to be installed and used for personal, consumer residential use. Use of Products for any other purpose such
as commercial purposes voids this warranty. The Limited Warranty is applicable only to the Products listed herein, and no warranty is extended to
productsnotdistributedbyOVE.Thewarrantyisapplicableonlytotherstretailpurchaser.
Transferability: This warranty is not transferrable.
LIMITATION AND EXCLUSION OF REMEDIES AND DAMAGES: OVE’s sole responsibility under this Limited Warranty shall
be to repair or replace, at its option, any defective Product or component. Purchaser agrees that this is the sole and
exclusive remedy under this Limited Warranty. OVE will not be responsible for any incidental, consequential, special or
indirect damages, including loss of use as a result of any manufacturing defect in a Product. OVE will not be responsible
for labor, or any other fees associated with removal or installation of warranted parts. Some states, provinces, or
national legislation do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
may not apply to you.
Productmodication:OVEreservestherighttochange,modifyorimprovetheProductswithoutobligationtoincorporatesuchchangesinProducts
previously sold or installed.
AuthorityandModication:TheretailsellerisnottheagentofOVEandisnotauthorizedtovaryormodifythetermsoftheLimitedWarranty.In
addition, the retail seller cannot bind OVE or make any representations or promises about the Product that are binding on OVE.
CARE AND MAINTENANCE
For the daily maintenance, use a wet cloth and a soft liquid cleaner.
Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which
can graze or tarnish surfaces.
Usearatchettostronglytightenanyboltsusedtosupportthexedglasspanelsordoorspanel(supportboltscanwithstandupto250lbf*inof
torque).
Check these bolts every 4 months and re-tighten them if necessary.

16 2800 Etienne Lenoir, Laval
Québec H7R 0A3 Canada
Date de l’achat: _______________________ Numéro de référence du produit: ______________________
Questions, problèmes ou pièces manquantes?
Avant de retourner le produit à votre détaillant, contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Marques CSA
Ouverture
560
[22 1/32]
Mesures: millimètres [pouces]
425
[16 3/4]
275
[10 13/16]
1877
[73 27/32]
1524
[60]
1877
[73 27/32]
Un guide d’installation video est disponible sur notre chaîne Youtube.
http://youtu.be/7Udslr_4rNw
SHELBY GP 60
2016-04-05

17
AVERTISSEMENT
Veuillez lire attentivement les importantes consignes de sécurité suivantes avant la manutention et l’installation
de cette douche. La manipulation de ce produit présente un risque de blessure grave. Pour minimiser ces
risques, veuillez prendre note de ce qui suit:
• Toujours porter des lunettes et des gants de sécurité pendant la manutention.
• Toujours lire et suivre toutes les étapes indiquées dans les instructions d’installation.
• Avant l’installation, inspecter tout le contenu et le verre pour détecter toute forme de dommages.
• Pendant l’installation, faire très attention lorsque vous manipulez les pièces en verre, car le verre trempé peut
se fracasser s’il entre en contact avec une surface dure.
• Manipulez le verre trempé avec précaution sinon il pourrait se briser en petits morceaux (jamais en fragments
pointus).
• Prendre toujours toutes les précautions nécessaires pour que, pendant l’installation ou après, les outils que
vous utilisez n’entrent pas en contact avec le verre trempé.
• Nepascoupernimodierleverretrempé,carilpourraitsebriserenéclats’ilestcoupé.
• Sortir le produit de son emballage avec soin et le conserver jusqu’à ce que l’installation soit complétée.
• Inspectez toutes les pièces. S’il y a des dommages sur le produit avant l’installation, veuillez communiquer
avec le service à la clientèle au numéro indiqué dans ce guide.
• Installez la douche sur un plancher au niveau et capable de supporter le produit et son utilisateur.
• Veuillez consulter le code du batiment et les normes de conformité avant l’installation du produit.
• Après l’installation, et périodiquement, vérier l’assemblage et la nition des pièces en verre, pour vous
assurer qu’aucun élément ne s’est desserré depuis l’installation.
• Conserver le présent manuel d’instruction pour consultation future.
AVIS
• Toute modication ou altération apportée aux indications données dans le présent manuel d’instructions
annule toute garantie associée à ce produit.
• Le distributeur n’est pas responsable pour les dommages sur le produit ou sur la personne causés par une
installation inadéquate. Si vous ne tenez pas compte des indications du manuel d’instruction, vous annulerez
votre garantie et vous vous exposerez à des dommages causés par les fuites d’eau.
• Pour de plus amples renseignements sur l’installation du produit ou si vous avez des questions, veuillez
consulter le site www.ovedecors.com.
PRÉPARATION
2 personnes sont requises pour installer le produit correctement et sécuritairement.
Avant de commencer l’installation du produit, soyez assuré d’avoir toutes les pièces. Comparez les pièces
avec les listes fournies. S’il y a des pièces manquantes ou endommagées, ne tentez pas d’assembler le
produit.
Temps de montage estimé: douche (60 min).
INFORMATION SUR LA SÉCURITÉ

18
CONTENU DE L’EMBALLAGE ......................................................................................................................... 20
QUINCAILLERIE FOURNIE .............................................................................................................................. 21
OUTILS REQUIS ............................................................................................................................................... 21
CETTE DOUCHE EST RÉVERSIBLE ............................................................................................................... 22
MESURES MUR À MUR.................................................................................................................................... 22
GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL) ................................................................................... 23
INSTALLATION DES RAILS MURAUX ............................................................................................................. 24
INSTALLATION DU PANNEAU FIXE ................................................................................................................ 25
INSTALLATION DE LA PORTE ........................................................................................................................ 26
INSTALLATION DE LA BARRE DE SUPPORT ................................................................................................ 28
INSTALLATION DE LA POIGNÉE ET SCELLAGE ........................................................................................... 29
GARANTIE LIMITÉE DU PRODUIT...................................................................................................................30
TRAITEMENT ET ENTRETIEN.......................................................................................................................... 30
TABLE DES MATIÈRES

19
CONTENU DE L’EMBALLAGE
B
C
Z
F
G
H
I
J
K
L
M
N1
X
Y
O

20
# DE PIÈCE DESCRIPTION QUANTITÉ CODE
BRail d’aluminium 199STR1009-WM
CJoint d’étanchéité du bas de la porte 199SRU0009
FJoint d’étanchéité magnétique pour la porte 299SRU0021
GPorte de douche 199SGD0014-WM
HPoignée extérieure pour la porte de douche 199SHA1005-WM
IPoignée intérieure pour la porte de douche 1
JJoint d’étanchéité pour panneau vertical 199SRU0006
KCharnières de la porte de douche 299SHI0005
LPanneaudeverrexe 199SG10315-WM
MAncrages pour barre de support 199SGC0010-WM
N1 Barre de support courte 199SGS0012-WM
ORaccordspourpanneauxe 199SGC0009-WM
XAttache de soutien des panneaux de verre 199SGC0008-WM
YJointd’étanchéitédubasdupanneauxe(long) 199SRU0033
ZRail d’aluminium 199STR1016-WM
CONTENU DE L’EMBALLAGE
