Thermo Scientific F1-ClipTip User manual

1
Thermo Scientific F1-ClipTip
Single Channel
Multichannel
Instructions for Use
User Manual

2
This product complies with the European Union Directive 98/79/EC, and it is marked with
a CE marking.
When the product is used in applications related to the Directive 98/79/EC, read the
additional information enclosed in the product package or contact the manufacturer at
info.pipettes@thermofisher.com to ensure correct and safe use.
The CE mark covers the system containing the CE marked F1-ClipTip pipette and the CE
marked ClipTip pipette tips.
Product specifications are subject to change without prior notice. ClipTip is a registered
trademark of Thermo Fisher Scientific Inc. and its subsidiaries.

3
CONTENTS
1. INTRODUCTION 4
2. PACKAGE 5
3. MAIN ILLUSTRATION 5
4. SAFETY 6
5. OPERATION 7
6. CALIBRATION AND ADJUSTMENT 9
7. MAINTENANCE 11
8. STERILIZATION 16
9. TROUBLESHOOTING 17
10. APPENDICES 18

4
1. Introduction
Congratulations on your purchase of a Thermo Scientific®F1-ClipTip®pipette!
The F1-ClipTip is a general purpose air displacement micropipette. Its intended use is for aspirating
and dispensing liquids.
The F1-ClipTip features an innovative interlocking tip interface technology that locks the tip in place
ensuring secure tip attachment and preventing tips from being displaced in the middle of pipetting.
F1-ClipTip operates only with ClipTip®tips. For improved ergonomics, tips are attached and ejected
using minimal application pressure. 0.1-2 µl and 10 µl based pipette models use ‘Snap and Lip’ seal
tips.
The F1-ClipTip product offering covers a volume range from 0.1 µl to 1000 µl and includes variable and
fixed volume single channel pipettes as well as multichannel pipettes. The convenient color coding*
system facilitates to identify the correct ClipTip by volume for use.
F1-ClipTip Variable Volume Single Channel
Cat. no. Description Volume range Increment Color Compatible
code ClipTip
4641310N F1-ClipTip 0.1-2 µl 0.1–2 µl 0.002 µl pink ClipTip 12.5 Ext
4641320N F1-ClipTip 1-10 µl 1–10 µl 0.02 µl pink ClipTip 12.5 Ext
4641180N F1-ClipTip 2-20 µl 2–20 µl 0.02 µl pink ClipTip 20
4641190N F1-ClipTip 5-50 µl 5–50 µl 0.1 µl violet ClipTip 50
4641200N F1-ClipTip 10-100 µl 10–100 µl 0.2 µl yellow ClipTip 200
4641210N F1-ClipTip 20-200 µl 20–200 µl 0.2 µl yellow ClipTip 200
4641220N F1-ClipTip 30-300 µl 30–300 µl 1 µl orange ClipTip 300
4641230N F1-ClipTip 100-1000 µl 100–1000 µl 1 µl blue ClipTip 1000
F1-ClipTip Fixed Volume Single Channel
Cat. no. Description Volume range Color code*Compatible ClipTip
4651280N F1-ClipTip 10 µl 10 µl dark blue ClipTip 12.5 Ext
4651200N F1-ClipTip 20 µl 20 µl dark blue ClipTip 20
4651210N F1-ClipTip 25 µl 25 µl dark blue ClipTip 50
4651220N F1-ClipTip 50 µl 50 µl dark blue ClipTip 50
4651230N F1-ClipTip 100 µl 100 µl dark blue ClipTip 200
4651240N F1-ClipTip 200 µl 200 µl dark blue ClipTip 200
4651250N F1-ClipTip 250 µl 250 µl dark blue ClipTip 300
4651260N F1-ClipTip 500 µl 500 µl dark blue ClipTip 1000
4651270N F1-ClipTip 1000 µl 1000 µl dark blue ClipTip 1000
* color coding does not apply to fixed models
F1-ClipTip Multichannel
Cat. no. Description Channels Volume Increment Color Compatible
range code ClipTip
4661210N F1-ClipTip 8-ch 1–10 µl 8 1–10 µl 0.02 µl pink ClipTip 12.5 Ext
4661120N F1-ClipTip 8-ch 5–50 µl 8 5–50 µl 0.1 µl violet ClipTip 50
4661130N F1-ClipTip 8-ch 10–100 µl 8 10–100 µl 0.2 µl yellow ClipTip 200
4661140N F1-ClipTip 8-ch 30–300 µl 8 30–300 µl 1 µl orange ClipTip 300
4661220N F1-ClipTip 12-ch 1–10 µl 12 1–10 µl 0.02 µl pink ClipTip 12.5 Ext
4661160N F1-ClipTip 12-ch 5–50 µl 12 5–50 µl 0.1 µl violet ClipTip 50
4661170N F1-ClipTip 12-ch 10–100 µl 12 10–100 µl 0.2 µl yellow ClipTip 200
4661180N F1-ClipTip 12-ch 30–300 µl 12 30–300 µl 1 µl orange ClipTip 300

5
1Pipetting and volume adjustment button
2Adjustable finger rest
3Tip ejector
4Volume display
5Space for personal ID tag
6Tip fitting
7Tip sealing O-ring
8Color coding
2. Package
The F1-ClipTip package contains the following items:
1. F1-ClipTip pipette
2. Service tool
3. Multichannel service tool
4. Tip fitting tool
5. Bag of grease 1g (Order No. 3300200)
6. Instructions for Use
7. Calibration certificate / Warranty Certificate
8. O-ring Order No. 2214930 Single Channel Pipette (Scp) 300 (3 pcs)
Order No. 2215540 Scp 1000 (3 pcs)
Order No. 2214920 Multichannel Pipette (Mcp) (12 pcs)
3. Main Illustration
F1-ClipTip
F1-ClipTip
F1-ClipTip
1
23
6
1
2
7
7
5
3
4
88
88
4
6
18
8
4
6

6
3.1. Materials
The F1-ClipTip is made of mechanically durable and chemically resistant materials.
For waste disposal instructions, contact your local environmental agency. For more information,
contact us at info.pipettes@thermofisher.com.
Aggressive substances can damage the pipette or pipette parts. Check for material
compatibility before using organic solvents and aggressive chemicals.
ClipTip pipette tips are made of natural color virgin polypropolyene. The tips feature a hydrophobic
surface, which effectively prevents liquid retention. ClipTips pipette tips come in multiple packaging
options including racks and reload packs, in sterile and non-sterile versions. ClipTip tips are also available
with a filter and are certified free of human DNA, RNase, DNase, ATP and endotoxin contamination.
The material used in F1-ClipTip pipettes and ClipTip tips are as follows:
F1-CLIPTIP PIPETTES
Material
External surfaces of the upper parts:
ABS/PC acrylonitrilebutadienstyrene/polycarbonate
PA polyamide
PEI polyetherimide
Foil
Exterior and interior of lower parts:
PEI polyetherimide
PA polyamide
PVDF polyvinyldenfluoride
EPDM ethylene-propylene-diene rubber
FVM fluorosilicone rubber
Steel stainless steel
PPSU Polyphenylsulfone
CLIPTIP TIPS
Tip PP polypropylene
Filters PE polyethylene
4. Safety
Cautions are marked with this symbol .
4.1. Intended use
The intended use of the device is to transfer liquids in the volume range of 0.1 µl to 1000 µl.
The F1-ClipTip pipette and ClipTip tip are designed as a component of an analyzing system for an end
user, who is responsible for validating the system to ensure reliable and safe results.
Damage to health
Follow general procedures for hazard prevention and safety instructions; e.g. wear
protective clothing, eye protection and gloves.
For use and waste disposal of hazardous (e.g. radioactive and potentially infectious) material,
follow the safety instructions and general laboratory practice.
The pipette and tips are not intended for in vivo use. Do not use the pipette for pipetting any liquid
to be injected into a human body.
Do not eject the tip towards anybody.
The F1-ClipTip is to be used by trained personnel with required laboratory skills. The instructions for
use must be read prior to and during the use of the device (pipette and tip). The F1-ClipTip pipette can
be used between +4°C and +40°C.

7
Incorrect dispensing results
Performance may vary due to:
a. pipetting method (forward pipetting technique recommended)
b. temperature (air, liquid, vessel, pipette, and tip)
c. pressure
d. humidity
e. operator, e.g. thumb movement, pipetting angle
f. liquid density, viscosity and vapor pressure
g. type of tip
If the pipetting performance is critical to the outcome of a specific application, the result has to
be assured with an alternative test, and if this is not an option, by duplicate testing.
The possibility of an incorrect volume delivery during pipetting cannot be entirely mitigated.
To avoid inaccurate dispensing and/or leakage, check that the tip is properly attached to
the pipette.
When rotating the volume adjustment button, do not exceed the volume range of the pipette.
Otherwise the pipette may be damaged or affect pipetting performance.
Pipetting performance cannot be guaranteed if the tip is reused.
Choose only a tip and pipette with matching color coding.
Disposal of the Materials
Follow laboratory and country-specific procedures for the disposal of biohazardous or radioactive
waste. Refer to local regulations for the disposal of infectious material.
Warning The tips can be potentially infectious. Dispose of all used disposable tips as biohazardous
waste.
Warning Decontaminate the pipette before disposal.
For waste disposal instructions, contact your local environmental agency. For more information,
please contact us at info.pipettes@thermofisher.com
Regarding the original packaging and packing materials, use the recycling operators known to you.
For more information, contact your local Thermo Fisher Scientific representative.
5. Operation
Cautions for incorrect operation
For optimum performance, make sure that the tips, pipette and solution are at the same
temperature.
Before you begin your actual pipetting, fill and empty the tip three to five times with the
solution that you will be pipetting.
Push and release the pipetting button slowly at all times particularly when working with high
viscosity liquids. Never allow the pipetting button to snap back.
Do not hold the pipette horizontally or upside down when there is liquid inside the tip. Sample
liquid may enter the pipette, which will affect the pipetting performance and may damage
the pipette.
Operate the pipetting button gently. If it is quickly released, sample liquid may enter the pipette,
which will affect the pipetting performance and may damage the pipette.
Follow the guidance in the “Thermo Scientific Good Laboratory Pipetting Practices” brochure to
minimize the risk of repetitive strain injury (RSI).
5.1 ID-tag
You can mark the pipette ID-tag with your initials, pipetting
application or calibration date. Remove the pipette’s module to
replace the tag. Mark the label and slide the tag together with
the holder back to its slot (Picture 1).
Picture 1

8
5.2 Adjusting the finger rest
The finger rest supports the position of the pipette on the
index finger, enhancing ergonomics. The finger rest can be
adjusted by rotating it 60 degrees in both directions from the
center position (Picture 2). Usually right-handed operators
turn it left (counter clockwise) to achieve the best possible
position for the thumb to eject the tip.
5.3 Setting the delivery volume
1. Set the delivery volume using the volume adjustment
button on the top of the pipette (Picture 3). Pull the
button to activate the volume setting.
2. To increase the delivery volume, turn the button
counterclockwise. To decrease the delivery volume,
turn it clockwise.
3. Lock the volume by pushing the button down.
4. Check the volume on the display.
NOTE! Do not set volumes outside the pipette´s specified
volume range. Using excessive force to turn the volume
adjustment button outside the range may jam the
mechanism and eventually damage the pipette.
5.4 Tip attachment
0.1-10µl models
0.1-2 μl and 10 μl pipette models use ‘Snap and Lip’ seal tips. The tip has small
incorporated protrusions that snap on the tip fitting flange, ensuring secure tip
attachment with little force. The flexible plastic lip design seals the tip against
the tip fitting.
1. To attach the tip, guide the pipette into a ClipTip in a rack and press until
the tip is attached. The tip is attached when it snaps over the tip fitting
flange. Do not use excessive force when attaching the tips as thedevice
requires minimum attachment force. (Picture 4a)
2. Lift the pipette.
3. If the tip is not attached, repeat Steps 1 and 2.
20-1000µl modes
1. To attach the tip, guide the pipette into a ClipTip in a rack and
press with light force until the tip is attached. A delicate click sound
will indicate that the tip is attached. The tip is attached when the
clips* (Picture 4b) are locked to the tip fitting.
Do not use excessive force when attaching the tips as the device
requires minimum attachment force.
2. Lift the pipette.
3. If the tip is not attached, repeat Steps 1 and 2.

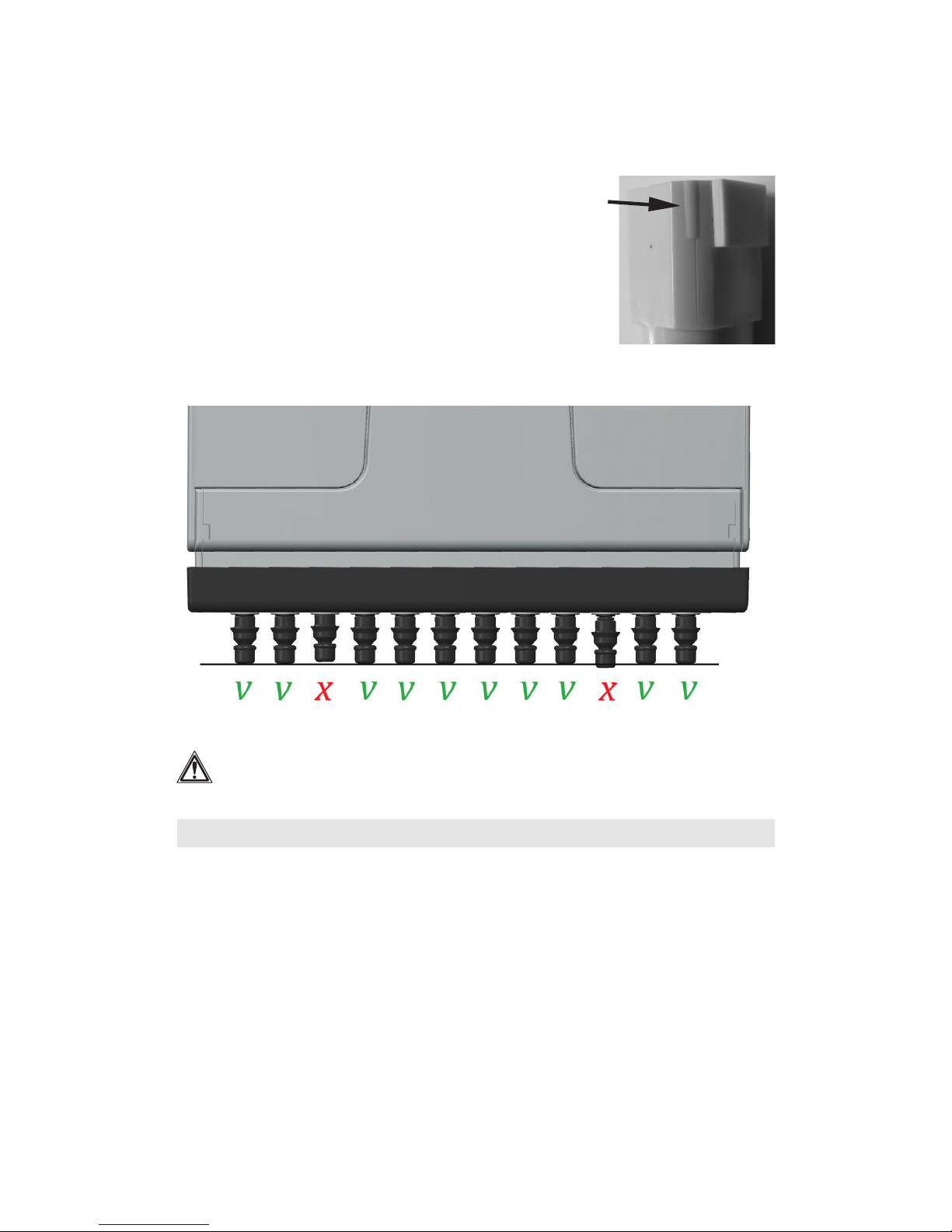

Incorrect use of tips
Use only ClipTip tips with an F1-ClipTip pipette.
Check that all clips are locked to ensure tip sealing.
ClipTip tips are designed for single use only.
To ensure sterility and purity of tips check that the package is unbroken.
Check that the tip is complete and unbroken. Check for foreign particles in the tip.
Check that the filter tips have filters in place and that each filter is unbroken and not tilted.
5.5 Aspirating and dispensing liquid
1. Fill a suitable vessel with the liquid to be dispensed.
2. Depress the pipetting button to the first stop (Picture 5).
3. Dip the tip under the surface of the liquid in the reservoir to a depth of about 1 cm
and slowly release the button.
Picture 4b
*
Picture 2
+
1
2
Picture 3
Picture 4a

9
Withdraw the tip from the liquid by moving
it against the edge of the reservoir to
remove excess liquid.
4. Deliver the liquid by gently depressing the
button to the first stop. After a delay of
about one second, continue to depress the
button all the way to the second stop. This action
will empty the tip.
5. Withdraw the tip by moving it against the edge of
the target container.

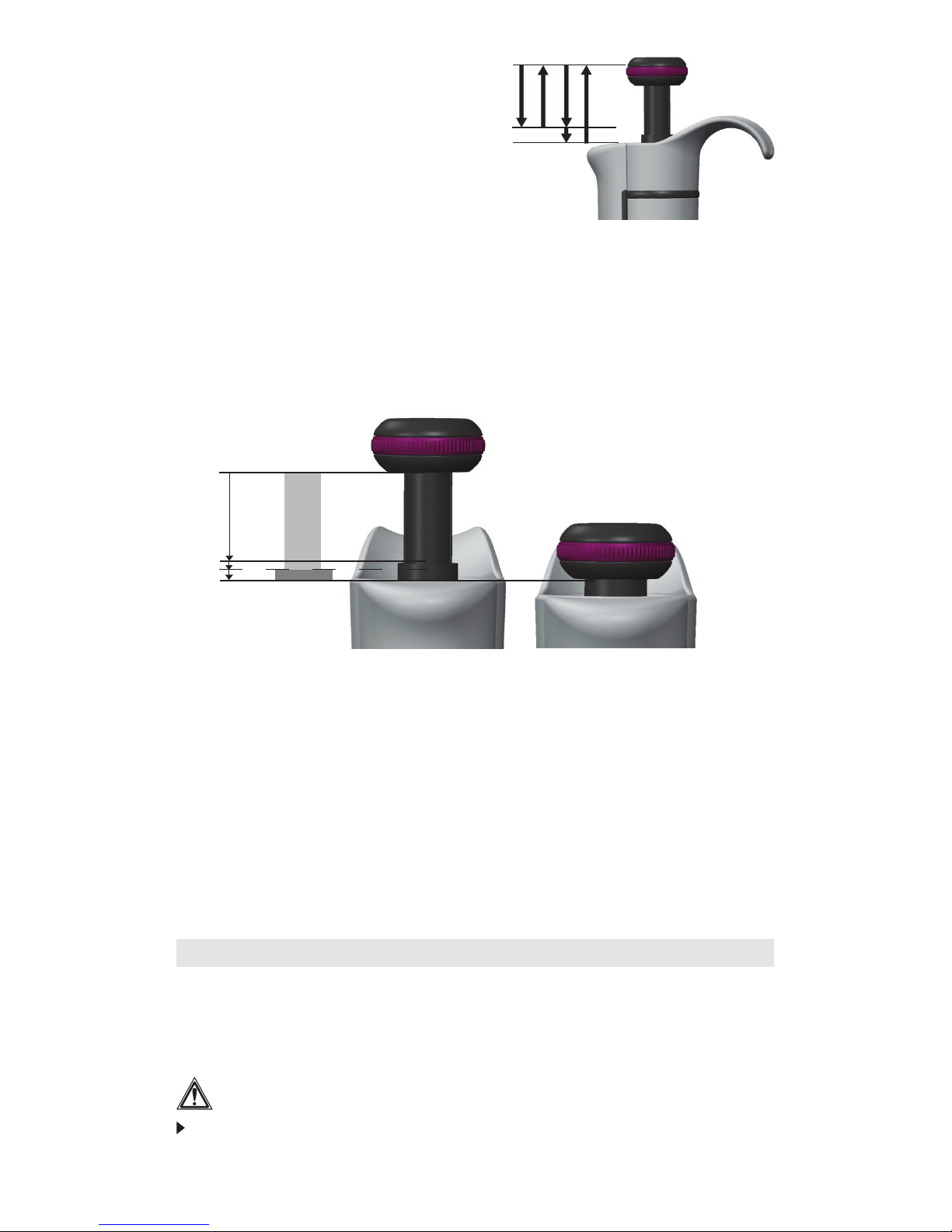

Ensure proper functioning of 2-20µl single channel and 5-50µl pipettes
The F1-ClipTip 2-20µl single channel pipette and 5-50µl pipettes utilize an innovative super blow-out
piston technology to ensure efficient liquid delivery with small volumes. In pipettes with the super
blow-out piston three separate movements are observed (Picture 6) when the plunger is pressed
down to dispense liquid:
1. Primary plunger movement – delivers the set volume amount
2. Blow-out – additional phase to dispense residual liquid
3. Super blow-out – enhances the effectiveness of blow-out
When the pipette is not used for a period of time, the plunger movement may become stiff due to
hardening of grease. In rare cases this can affect the functionality of the super blow-out piston,
which can become temporarily jammed. To ensure proper functionality it is recommended to press
the plunger several times to the final stop (step 3 in picture) before dosing the sample liquid. This
releases the piston and re-distributes the lubricant.
NOTE! If the super blow-out piston is jammed, increased force might be required to release it. Ensure
that plunger moves to the down position (Picture 6).
For more information about different pipetting techniques, check the Good Laboratory Pipetting
Guide online.
5.6 Tip ejection
To release the tip, point the pipette at a suitable waste receptacle and press the tip ejector with
your thumb.
6. Calibration and Adjustment
6.1 Factory calibration limits
F1-ClipTip pipettes are factory calibrated and adjusted to give the volumes as specified with distilled
or deionized water using the forward pipetting technique. Manufacturer specifications are shown on
the pipette calibration certificate and in Appendix 2. The pipette should be recalibrated for use with
any tip type not named on the Calibration Certificate.
Cautions for calibration and pipette adjustment
It should be noted that the use of different pipetting techniques may affect the calibration
results. The pipettes are constructed to permit re-adjustment for other pipetting techniques,
types of tips, or liquids of a different temperature or viscosity.
1 2 3 4
Picture 5
Plunger in down position
Plunger in up position
Picture 6
1
2
3

10
The performance of a new and serviced pipette must be checked and documented.
The manufacturer’s specifications should be used as guidelines and the user should establish
acceptable imprecision and inaccuracy performance limits (ISO 8655).
The user determines the performance and applicability of the pipette and tip combination
for a particular application and determine the required interval for performance checking.
Before starting the actual dosing, pre-rinse the tip with the liquid by filling and emptying the
tip three to five times to improve accuracy and precision.
6.2 Test conditions and equipment
An analytical balance must be used. The scale graduation value of the balance should be chosen
according to the selected test volume of the pipette:
Volume range Readable graduation
under 10 µl 0.001 mg
10–100 µl 0.01 mg
above 100 µl 0.1 mg
The test liquid is deionized distilled “grade 3” water in compliance with ISO 3696. Tests are done in a
draft-free room at a constant (±0.5°C) temperature between 15°C to 30°C. The relative humidity must
be above 50%. Especially with volumes under 50 µl, air humidity should be as high as possible to reduce
the effect of evaporation loss. Special accessories, such as an evaporation trap, are recommended.
6.3 Procedure to check calibration
The pipette is checked at maximum volume (nominal volume) and minimum volume (or 10% of the
maximum volume). A new tip is first pre-wetted three to five times and a series of ten pipettings
is done at both volumes. A pipette is always adjusted according to the delivery of the selected
volume. Use of the forward pipetting technique is recommended. The maximum permissible errors
are valid for the forward pipetting method. It is recommended to use the ISO8655 calibration limits in
Appendix 3 or user-defined specifications.
Procedure:
1. Do 10 pipettings at the minimum volume (or 10% of the maximum volume).
2. Do 10 pipettings at the maximum volume.
3. Calculate the inaccuracy (A) and imprecision (CV) of both series.
4. Compare the results to the limits.
If the calculated results are within the selected limits, the adjustment of the pipette is correct.
Pipette adjustment
Adjustment is done only for one volume. The recommended adjustment volume is the minimum
volume or 10% of the maximum volume.
1. Fit the service tool (Picture 7) into the openings of the
calibration nut at the top of the handle.
2. Turn the service tool clockwise to increase, or
counterclockwise to decrease the volume.
3. After adjustment, check the calibration according to
the instructions above.
Formulas for calculating results
Conversion of mass to volume
V = (w + e) x Z V = volume (µl)
w = weight (mg)
e = evaporation loss (mg)
Z = conversion factor for µl/mg conversion
Evaporation loss can be significant at low volumes. To determine mass loss, dispense water into the
weighing vessel, note the reading and start a stopwatch. Check and note down how much the reading
decreases during 30 seconds (e.g. 6 mg = 0.2 mg/s).
Compare this to the pipetting time from taring to reading. Typically , the pipetting time might be 10
seconds and the mass loss is then 2 mg (10 s x 0.2 mg/s in this example). If an evaporation trap or lid
on the vessel is used, the correction of evaporation is usually unnecessary.
Picture 7

11
The factor Z is for converting the weight of the water to volume at the test temperature and pressure.
A typical value is 1.0032 µl/mg at 22°C and 95 kPa. See the conversion table in Appendix 1.
Inaccuracy (systematic error)
Inaccuracy is the difference between the dispensed volume and the selected volume of a pipette.
A = V - V0A = inaccuracy
V = mean volume
V0= nominal volume
Inaccuracy can be expressed as a relative value: A% = 100% x A / V0

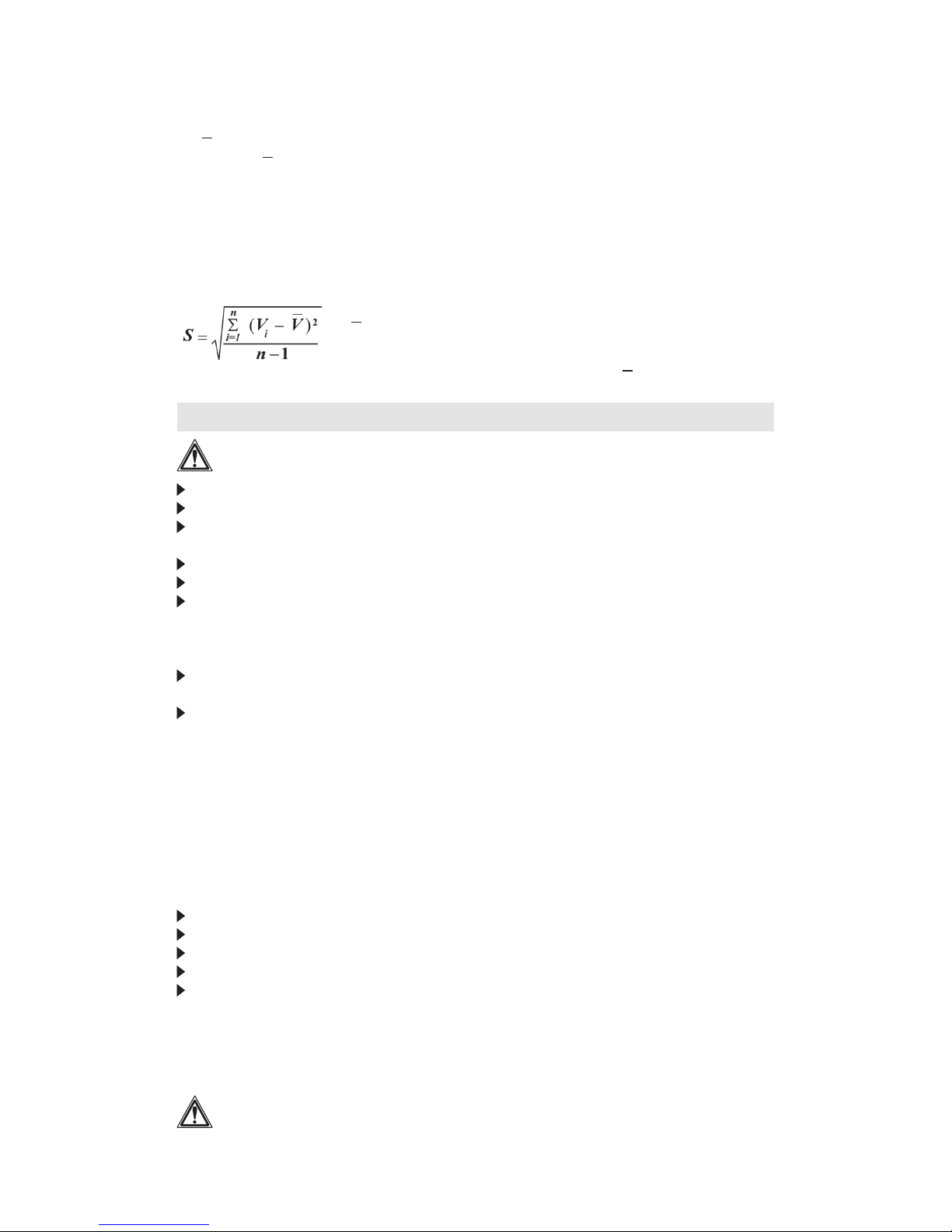

Imprecision (random error)
Imprecision refers to the repeatability of the pipettings. It is expressed as standard deviation (S) or
coefficient of variation (CV)
S = standards deviation
V = mean volume
n = number of measurements
Standard deviation can be expressed as a relative value: CV = 100% x S / V
7. Maintenance
Cautions for incorrect maintenance
The pipette should be regularly serviced according to the instructions for use.
The pipette performance and functioning must be checked after maintenance.
Aggressive substances can damage the pipette or pipette parts. Check for material
compatibility before using organic solvents and aggressive chemicals.
Use only original Thermo Scientific spare parts and ClipTip tips.
Avoid excess grease. Use only the grease provided with the pipette.
Annual pipette usage varies significantly among laboratories, and the types of substances being
aspirated and dispensed also vary tremendously among laboratories. In order to maintain proper
care of the pipette, it is the laboratory’s responsibility to develop a proper maintenance program
that meets its specific needs and requirements.
When the F1-ClipTip is not in use, make sure it is stored in an upright position. We recommend
a pipette stand for this purpose.
When shipping the device for service or inspection, make sure that it is completely free of
chemical, biological, or radioactive contamination.
7.1 Daily maintenance
The pipette should be checked at the beginning of each day for dust and dirt on its outside surfaces.
Particular attention should be paid to the tip cone. To clean the pipette, we recommend wiping it with
a napless cloth wetted with 70% ethanol.
Leakage test
A leakage test can be performed at any time. It is recommended to be carried out after maintenance
or autoclaving.
Pre-wet the tip three to five times with water.
Aspirate a nominal volume of water into the tip.
Place the pipette on a stand or keep it firmly in your hand.
Wait for 20 seconds.
If a drop falls within 20 s, the pipette is leaking.
If the pipette leaks, see Chapter 9: “Troubleshooting” for possible reasons and solutions.
7.2 Periodic maintenance
The maintenance procedure starts with the disassembly of the pipette.
F1-ClipTip O-rings 5.1 are wearing parts. It is recommended to replace O-rings regularly to
ensure proper sealing. Always replace the O-rings if they are worn or damaged.

12
7.2.1 Disassembly of 1000ul single channel pipettes

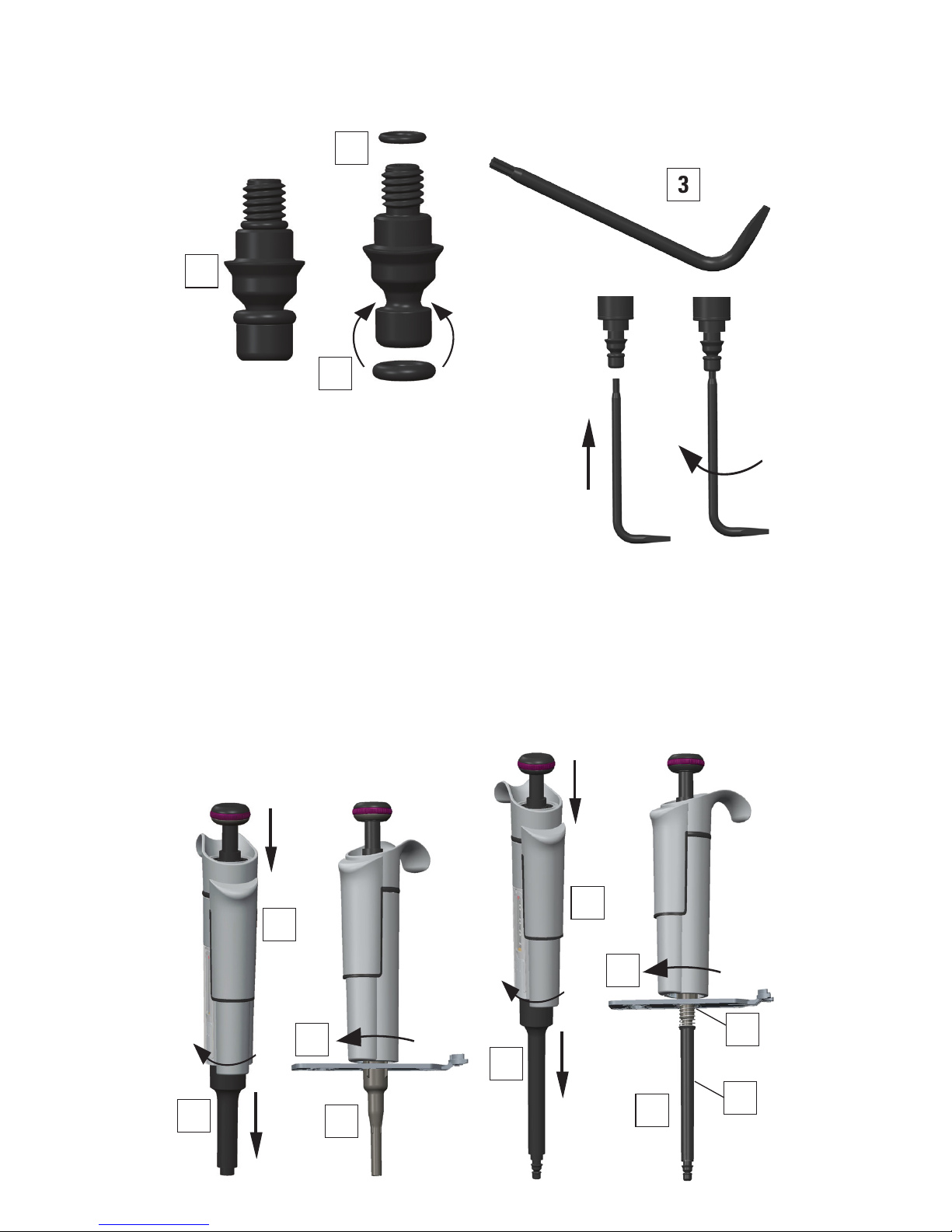

1. Remove the tip fitting 5 (Picture 8).
To remove the tip fitting place the star-shaped end of tool 3 (picture 9) into the end of the tip
fitting. Turn the tool counterclockwise to unscrew the tip fitting (picture 10).
2. Press the tip ejector 4.1. Rotate the tip ejector 10
counterclockwise and pull it out (Picture 11).
3. Turn the tip cone 11 counterclockwise with the service tool 1.
There are two slots in the service tool: the smaller one for
pipettes under 300 μl and the bigger one for pipettes over 300 μl.
4. Pull out the piston assembly and other parts from the handle
with the tip cone 11.
Then turn the tip cone upside down and tap all parts from it.
7.2.2 Disassembly of single channel pipettes 300ul and smaller
1. Press the tip ejector 4.1. Rotate the tip ejector 10 counterclockwise and pull it out (Picture 12).
NOTE! If you want to service only parts inside cylinder go to step 4. But then use the bigger slot in
service tool.
2. Remove the tip fitting 5 (Picture 8).
To remove the tip fitting place the star-shaped end of tool 3 (picture 9) into the end of the tip
fitting (tip fitting is removable by hand in models 0.1-2µl and 1-10 µl). Pull the Clip trigger 8
backwards slightly with the other hand.
Turn the tool counterclockwise to unscrew the
tip fitting (picture 10).
Picture 10
4.1
11
1
10
Picture 11
4.1
10
11
1
Picture 12
9
8
5
5.1
5.2
Picture 8
3
Picture 9

13
3. Remove the Clip trigger 8 and Clip trigger spring 9.
4. Turn the tip cone 11 counterclockwise with the service tool 1.
There are two slots in the service tool: the smaller one for pipettes under 300 μl and the bigger
one for pipettes over 300 μl.
5. Pull out the piston assembly and other parts from the handle with the tip cone 11.
Then turn the tip cone upside down and tap all parts from it.
You can check the parts of each specific pipette from the pictures starting on page 23.
Remember to keep all parts in order on the table for reassembly.
7.2.3 Cleaning and reassembling single channel pipettes
- General maintenance instructions can be found on page 11.
- Clean the piston, the piston spring and the O-rings with a dry napless cloth.
- Check the tip cone for foreign particles or dirt. Immerse it in a suitable cleaning solution.
Dry before assembly.
- Grease the cleaned parts with the lubricant that comes with the pipette.
- The pipette is assembled in the reverse order to disassembling. Check the volume-specific
reassembling of the piston assemblies starting on page 23.
Piston reassembly procedures
0.1-2μl
- First slide spring support 16 into tip cone 11.
- Slide spring 13 over piston 12.
- Carefully place the piston assembly in the tip cone.
- Very carefully place the tip cone assembly in the handle. When tightening the assembly, make
sure that the head of the piston comes out of the head of the tip cone.
- Place the piston through piston seal 20. Note that there is beveling at the other end of the seal,
to help in assembly.
- Slide excess air remover tube 27 over the piston.
- Slide the tip fitting over the piston assembly, and screw it into place
1-10μl, 10μl Fixed
- First slide spring support 16 into tip cone 11.
- Slide spring 13 over piston 12.
- Carefully place the piston assembly in the tip cone.
- Very carefully place the tip cone assembly in the handle so that the head of the piston comes out
of the head of the tip cone.
- Place the piston through O-ring seal 18.
- Slide the tip fitting over the piston assembly, and screw it into place.
2-20μl, 20μl Fixed, 5-50μl 25 / 50μl Fixed
- Slide the spring 13, spring support 16 and tube 17 back onto the piston 12.
- Compress the spring 13 with your fingers by pressing the piston 12 and the spring support 16
against each other, and then slide the bigger O-ring 18, the smaller O-ring 19, the spring support
20 and spring 21 (smaller diameter against spring support 20) onto the piston.
- Hold the spring 13 compressed and carefully slide the entire assembly into the tip cone 11,
and then release the spring.
- Put the spring 15 and support 14 on top of the tip cone and carefully insert the tip cone assembly
to the handle. Attach the tip cone by turning it first clockwise tight by hand, then do the final
tightening with the service tool.
- Reassemble the Clip trigger spring 9 and Clip trigger 8. Assemble the tip fitting according to
instruction in 7.2.4.
Reassemble the tip ejector 10.
10-100μl, 20-200μl, 100 / 200μl Fixed, 30-300μl, 250μl Fixed
- Slide the spring 13, spring support 16 and O-ring 17 back onto the piston 12.
- Slide the entire assembly into the tip cone 11.
- Put the spring 15 and support 14 on top of the tip cone and carefully insert the tip cone assembly
to the handle. Attach the tip cone by turning it first clockwise tight by hand, then do the final
tightening with the service tool.

14
- Reassemble the Clip trigger spring 9 and Clip trigger 8. Assemble the tip fitting according to
instruction in 7.2.4.
Reassemble the tip ejector 10.
100-1000μl, 500 / 1000μl Fixed
- Put the O-ring 17 and support ring 16 onto the tip cone 11.
- Slide the spring 13 onto the piston 12 and slide the entire assembly into the tip cone 11.
- Put the spring 15 and support 14 on top of the tip cone and carefully insert the tip cone assembly
to the handle. Attach the tip cone by turning it first clockwise tight by hand, then do the final
tightening with the service tool.
- Reassemble the tip ejector 11. Assemble the tip fitting according to instruction in 7.2.4.

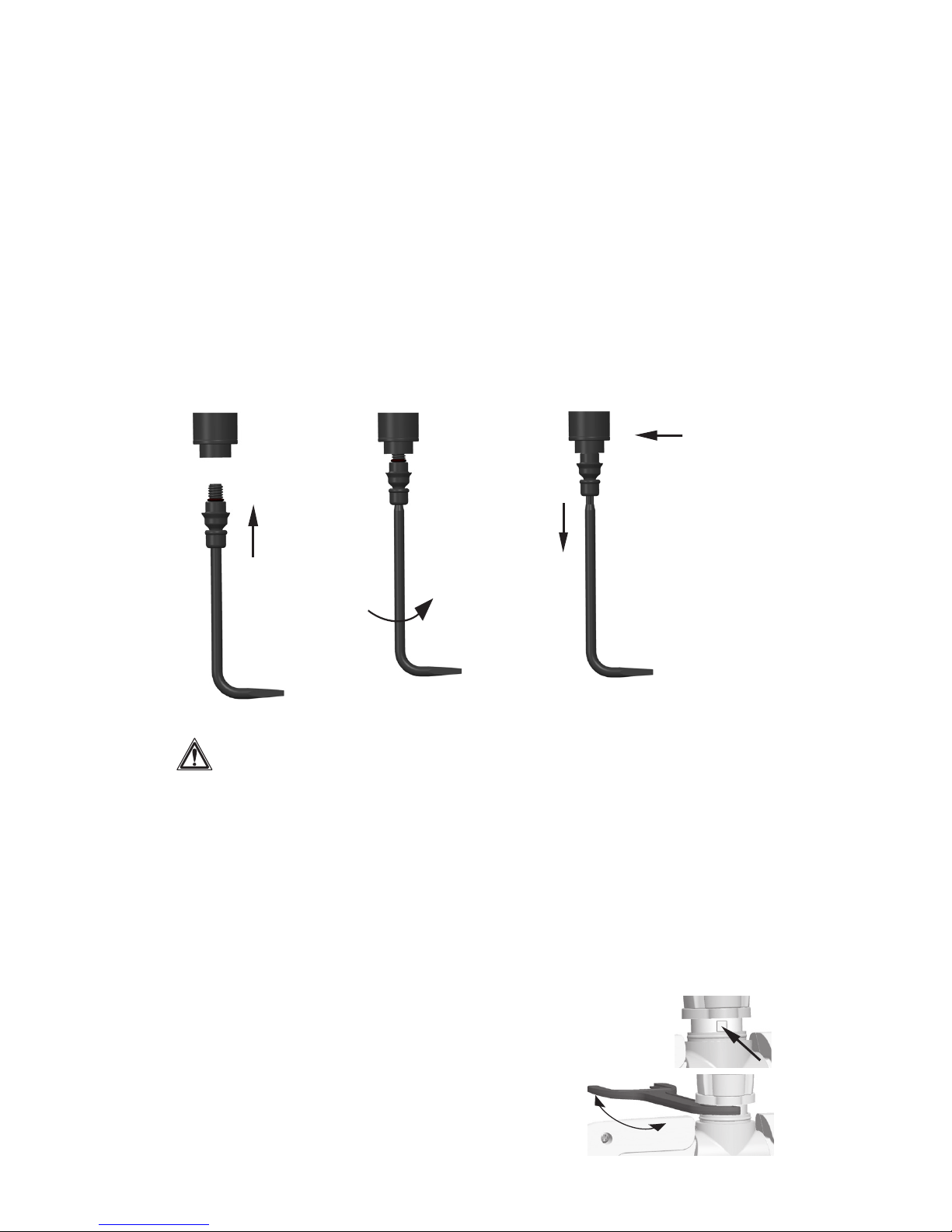

7.2.4 Reassembly of tip fitting 5 and O-rings 5.1 and 5.2
- Make sure that the tip fitting has both o-rings 5.1 and 5.2 in place (Picture 8). Change o-rings
during maintenance if needed. Place the tip fitting onto the star-shaped end of tool 3 so that the
screw end is facing upwards. (Single channel pipettes 300 µl and smaller: Pull slightly the Clip
trigger 8 backwards with the other hand). Insert the screw end into the cylinder and carefully
screw in the tip fitting by turning the tool clockwise. Rotate the tool and tighten the tip fitting.
Check that there is no gap between tip fitting and cylinder (Picture 13).
Be careful not to overtighten the tip fitting. This may damage the thread in the pipette.

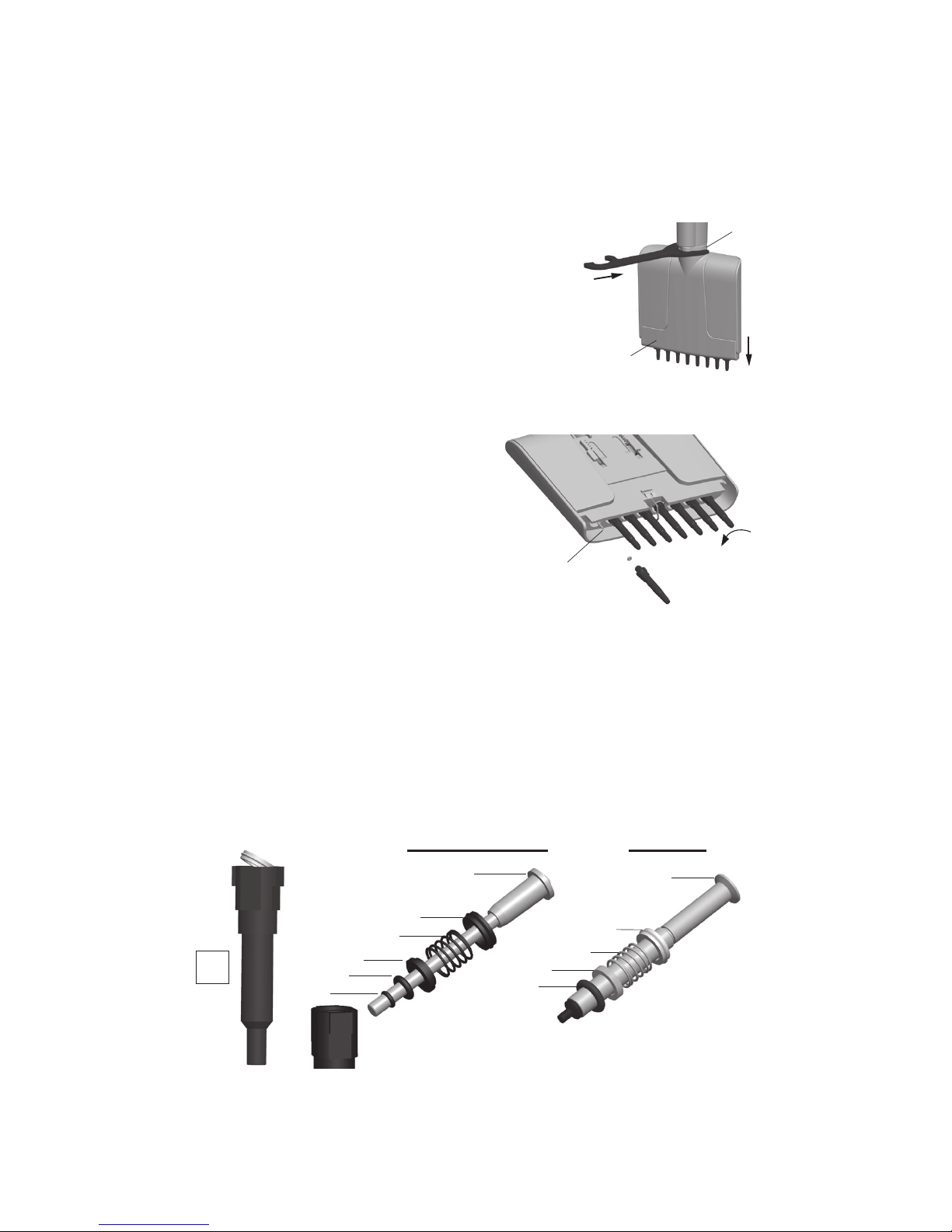

7.2.5 Disassembly of multichannel pipettes
1. Remove the tip fittings (Picture 8).
To remove the tip fitting place the star-shaped end of tool 3 (picture 9) into the end of the fitting.
Turn the tool counterclockwise to unscrew the tip fitting (picture 10).
Change tip fitting o-rings during maintenance if needed.
2. Press tip ejector 4.1 down (Picture 11), so that it presses tip ejector 23 down at the same time.
Manually hold the ejector cover in the down position, and let the tip ejector rise to its normal
position, so that the parts snap apart revealing a square slot. If necessary, manipulate them
gently by hand.
3. Keep the handle 42 still and insert the second end of the service tool 2 into the slot and turn
clockwise to separate the handle and the module 50. from each other. Loosen
until you can pull the parts apart.
4. Pull the holder spring 13 downwards and remove the two locking
pieces 12. Finally, remove the holder spring carefully ensuring that
the spring does not fly off.
5. Remove the two MCP adapter claws and pull the MCP adapter
46 away. Remove the MCP spring base 43 by pulling upwards.
6. Remove the two screws 19 and pull the tip ejector 23 into the
down position as shown in the picture on page 26 .
Picture 14
No gap
Picture 13

15
7. While the tip ejector 23 is in the down position, open its upper end slightly on both sides and
pull downwards. Remove the fastening spring 22. Remove the ejector link 24. Press the piston bar
16 beam into the down position. Finally unfasten the four screws 20/21 and the tip ejector.
The ejector slide 25 and two springs 26 can be removed for maintenance. This does not belong to
the regular long-term service, however.
8. Disengage the housing bottom 17 and piston bar 16 from each other. You can
disengage the tip cone assembly 42 by pulling it away from the piston
assembly 31. Disengage the piston assembly by pulling it out sideways from
the piston bar as shown in the picture on page 26. Remove the piston spring 33.
1-10µl
1. Place service tool head #1 between ring 15 and ejector 23
(Picture 15).
2. Push the tool until the parts snap away from each other ( I ).
3. Check that the ejector lever is in the up position, and pull down
and remove the tip ejector part of the module ( II ).
7.2.6 Service instructions for multichannel pipette tip
cones / cylinders
Volume: 1–10 µl
1. Unscrew the tip fittings ( I) (Picture 16).
2. Remove O-rings 37.
3. Clean pistons 31 and the O-rings with a dry,
nap-free cloth.
4. If necessary, change O-rings 37.
5. Grease the O-rings with the lubricant provided in
the pipette package.
6. Screw the tip fittings back into the tip cones.
7. Reassemble the tip ejector.
8. Push the tip ejector lever down until you hear a click.
Volumes: 5–50 µl, 10–100 µl, and 30–300 µl
Disengage the tip cone cover 32 from the tip cone B (Picture 17) by easing it off with a flat-head
screwdriver. The tip cone cover and the interior parts of the tip cone, the O-ring spring 34, the
supporter ring 35, and the O-ring 36 ( 5–50µl/10–100µl: also O-ring 37 ), can all be removed in order
by using the piston assembly 31 as shown in the picture. If some parts remain in the tip cone, they
can be removed by turning the tip cone upside down and tapping it.
32
31
32
34
35
31
32
34
35
36
36
30–300µl5-50µl/ 10–100µl
37
B
Picture 17
Picture 16
Picture 15
30
31 37
I
23
15
II
I

16
7.2.7 Cleaning and reassembling multichannel pipettes
See the cleaning instructions in Section 7.2.2 “Single channel pipettes”. Check the volume-specific
reassembling of the piston assemblies starting on page 23. The pipette is assembled in the reverse
order to disassembling. Note that the ejector link 24 must be in the down position simultaneously
with the tip ejector 23 (page 26). Clean and lubricate the holder spring 13 before assembling.
NOTE!
To ensure even performance between all channels in a multichannel
pipette, all tip cones have to be changed at the same time, if any of
them needs to be changed. Don’t mix tip cones of different packages,
because one bag contains a matched set of tip cones. Place aligning
studs to the same side when assembling the module (Picture 18).
Make sure that the tip fittings are aligned in same level, adjust if necessary.
8. Sterilization
Before autoclaving, disassemble the tip fitting from the tip cone and autoclave them separately. After
autoclaving, the tip cone and tip fitting must be cooled to room temperature for at least two hours.
When reassembling, make sure that the tip cone and tip fitting are dry. We recommend checking
the calibration after every sterilization cycle. The effectiveness of the autoclaving must be verified
by the user.
8.1 Autoclavable parts:
Single and multichannel pipettes:
- Tip fitting 5 and 30
- Tip fitting O-ring (5.1)
Single channel pipettes:
- Tip cone assembly (42)
Parts can be repeatedly autoclaved at 121°C (252°F) (2 ata) for 20 minutes.
Picture 18
Picture 19

17
9.Troubleshooting
The table below lists possible problems and their solutions.
Defect
Leakage
Inaccurate
dispensing
Tip not ejecting
Piston jammed
Broken tip fitting
Dispensing knob
jammed to semi
down position
Possible reason
•Tip fitting incorrectly attached or
loose
•ClipTip clips are bent
•Tip fitting o-ring damaged
•Tip incorrectly attached
•Foreign particles between the tip
and the tip cone
•Foreign particles between the
piston, the O-ring and the cylinder
•Insufficient amount of grease on the
cylinder and the O-ring
•O-ring damaged
•Incorrect operation
•Tip incorrectly attached
•Calibration altered; caused by
misuse, for example
•Wrong tip
•Unsuitable calibration: a list of
factors is presented in Section 4.1
“Calibration and adjustment“
•Tip cone loose
•Pipette not serviced
•Tip fitting not properly attached
•Uneven tip ejecting with the
multichannel
•Pipette has been unused for a long
period
•Grease is removed while pipetting a
highly volatile solvent repeatedly
•Pipette dropped on the floor etc
•One sided force applied to the knob
when adjusting the volume with
one hand
Possible action
►Re-attach/tighten the tip fitting
or replace with new tip fitting(s)
using the tool.
►Discard the tip.
►Change the O-ring.
►Attach firmly.
►Clean the tip cones and attach
new tips.
►Clean and grease the O-ring and
cylinder.
►Grease accordingly.
►Change the O-ring.
►Follow the instructions carefully.
►Attach firmly.
►Recalibrate according to the
instructions.
►Use the correct tip.
►Readjust the pipette.
►Tighten the tip cone with the
service tool.
►Perform pipette service.
►Tighten the tip fitting.
►Tighten the tip fitting with the
tool or replace the tip fitting set.
►Remove the tip if attached.
Press the plunger to the second
stop and release several times
to re-apply the grease.
►Use the tip fitting tool to remove
the remaining part of the tip
fitting. Place the flat head end
of the tool 3 (picture 9) into the
remaining part of the tip fitting
and rotate counterclockwise
to unscrew the remaining part.
Assemble a new tip fitting.
►Pull up the knob and press down
again to locked position

18
10. Appendices
Appendix 1. Conversion table
Value of the conversion factor Z (µl/mg), as a function of temperature and pressure, for distilled
water.
Temperature Air pressure
°C kPa
80 85 90 95 100 101.3 105
15.0 1.0017 1.0018 1.0019 1.0019 1.0020 1.0020 1.0020
15.5 1.0018 1.0019 1.0019 1.0020 1.0020 1.0020 1.0021
16.0 1.0019 1.0020 1.0020 1.0021 1.0021 1.0021 1.0022
16.5 1.0020 1.0020 1.0021 1.0021 1.0022 1.0022 1.0022
17.0 1.0021 1.0021 1.0022 1.0022 1.0023 1.0023 1.0023
17.5 1.0022 1.0022 1.0023 1.0023 1.0024 1.0024 1.0024
18.0 1.0022 1.0023 1.0023 1.0024 1.0025 1.0025 1.0025
18.5 1.0023 1.0024 1.0024 1.0025 1.0025 1.0026 1.0026
19.0 1.0024 1.0025 1.0025 1.0026 1.0026 1.0027 1.0027
19.5 1.0025 1.0026 1.0026 1.0027 1.0027 1.0028 1.0028
20.0 1.0026 1.0027 1.0027 1.0028 1.0028 1.0029 1.0029
20.5 1.0027 1.0028 1.0028 1.0029 1.0029 1.0030 1.0030
21.0 1.0028 1.0029 1.0029 1.0030 1.0031 1.0031 1.0031
21.5 1.0030 1.0030 1.0031 1.0031 1.0032 1.0032 1.0032
22.0 1.0031 1.0031 1.0032 1.0032 1.0033 1.0033 1.0033
22.5 1.0032 1.0032 1.0033 1.0033 1.0034 1.0034 1.0034
23.0 1.0033 1.0033 1.0034 1.0034 1.0035 1.0035 1.0036
23.5 1.0034 1.0035 1.0035 1.0036 1.0036 1.0036 1.0037
24.0 1.0035 1.0036 1.0036 1.0037 1.0037 1.0038 1.0038
24.5 1.0037 1.0037 1.0038 1.0038 1.0039 1.0039 1.0039
25.0 1.0038 1.0038 1.0039 1.0039 1.0040 1.0040 1.0040
25.5 1.0039 1.0040 1.0040 1.0041 1.0041 1.0041 1.0042
26.0 1.0040 1.0041 1.0041 1.0042 1.0042 1.0043 1.0043
26.5 1.0042 1.0042 1.0043 1.0043 1.0044 1.0044 1.0044
27.0 1.0043 1.0044 1.0044 1.0045 1.0045 1.0045 1.0046
27.5 1.0045 1.0045 1.0046 1.0046 1.0047 1.0047 1.0047
28.0 1.0046 1.0046 1.0047 1.0047 1.0048 1.0048 1.0048
28.5 1.0047 1.0048 1.0048 1.0049 1.0049 1.0050 1.0050
29.0 1.0049 1.0049 1.0050 1.0050 1.0051 1.0051 1.0051
29.5 1.0050 1.0051 1.0051 1.0052 1.0052 1.0052 1.0053
30.0 1.0052 1.0052 1.0053 1.0053 1.0054 1.0054 1.0054

19
Appendix 2. Manufacturer specification limits
Thermo Scientific F1-ClipTip Variable Volume Single Channel
Thermo Scientific F1-ClipTip Fixed Volume Single Channel
Order No. Volume Inaccuracy Imprecision Compatible
µl µl % SD µl CV% ClipTip
4651280N 10 ±0.090 ±0.90 0.080 0.80 12.5 Ext
4651200N 20 ±0.14 ±0.70 0.100 0.50 20
4651210N 25 ±0.15 ±0.60 0.125 0.50 50
4651220N 50 ±0.30 ±0.60 0.20 0.40 50
4651230N 100 ±0.40 ±0.40 0.30 0.30 200
4651240N 200 ±0.80 ±0.40 0.600 0.30 200
4651250N 250 ±1.0 ±0.40 0.75 0.30 300
4651260N 500 ±1.5 ±0.30 1.5 0.30 1000
4651270N 1000 ±3.0 ±0.30 3.0 0.30 1000
Order No. Range Volume Inaccuracy Imprecision Compatible
µl µl % SD µl CV% ClipTip
4641310N 0.1–2 µl 2 ±0.050 ±2.50 0.040 2.00 12.5 Ext
0.2 ±0.024 ±12.00 0.020 10.00
0.1 ±0.033 ±33.00 0.025 25.00
4641320N 1–10 µl 10 ±0.100 ±1.00 0.050 0.50 12.5 Ext
1 ±0.025 ±2.50 0.020 2.00
4641180N 2–20 µl 20 ±0.20 ±1.00 0.08 0.40 20
2 ±0.06 ±3.00 0.05 2.50
4641190N 5–50 µl 50 ±0.30 ±0.60 0.15 0.30 50
5 ±0.15 ±3.00 0.125 2.50
4641200N 10–100 µl 100 ±0.80 ±0.80 0.20 0.20 200
10 ±0.30 ±3.00 0.10 1.00
4641210N 20–200 µl 200 ±1.2 ±0.60 0.4 0.20 200
20 ±0.36 ±1.80 0.14 0.70
4641220N 30–300 µl 300 ±1.8 ±0.60 0.6 0.20 300
30 ±0.45 ±1.50 0.18 0.60
4641230N 100–1000 µl 1000 ±6.0 ±0.60 2.0 0.20 1000
100 ±1.0 ±1.00 0.6 0.60

20
Thermo Scientific F1-ClipTip Variable Volume Multichannel
Order No. Range Channel Volume Inaccuracy Imprecision Compatible
µl µl % SD µl CV% ClipTip
4661210N 1–10 µl 8 10 ±0.240 ±2.40 0.160 1.60 12.5 Ext
1 ±0.120 ±12.00 0.080 8.00
4661120N 5–50 µl 8 50 ±0.75 ±1.50 0.35 0.70 50
5 ±0.25 ±5.00 0.10 2.00
4661130N 10–100 µl 8 100 ±1.30 ±1.30 0.50 0.50 200
10 ±0.50 ±5.00 0.20 2.00
4661140N 30–300 µl 8 300 ±3.0 ±1.00 0.9 0.30 300
30 ±1.5 ±5.00 0.6 2.00
4661220N 1–10 µl 12 10 ±0.240 ±2.40 0.160 1.60 12.5 Ext
1 ±0.120 ±12.00 0.080 8.00
4661160N 5–50 µl 12 50 ±0.75 ±1.50 0.35 0.70 50
5 ±0.25 ±5.00 0.10 2.00
4661170N 10–100 µl 12 100 ±1.30 ±1.30 0.50 0.50 200
10 ±0.50 ±5.00 0.20 2.00
4661180N 30–300 µl 12 300 ±3.0 ±1.00 0.9 0.30 300
30 ±1.5 ±5.00 0.6 2.00
