Thermo Scientific SHKE6000 (4359) User manual

Visit us online to register your warranty
www.thermoscientific.com/labwarranty
User Manual
MaxQ 6000
Stackable Incubated and efrigerated Shakers
Operating Manual and Parts List LT2120X1 (7004352) Rev. 11

Thermo Scientific
MANUAL NUMBE LT2120X1 (7004352)
11 41343 5/2/17 Added F-Gas statement, removed Declaration of conformity bpg
10 40139 4/15/15 Updated warranty information ccs
9 30954 4/10/14 Updated Setting Timer for Continuous Shaking Step 3 - pg 5-5 ccs
8 29319/SI-11742 2/21/13 Removed warranty card from page 4-1 and expanded clearance on page 4-2 ccs
7 29101/OS-567 11/30/12 ew fuses, connector power entry and fuse drawer for UL (pgs 8-2, 9-1 & 9-2 list) ccs
6 29034 9/10/12 Added note to hyperterminal information on pg 5-5 ccs
5 28449 3/26/12 Clarified defrost cycle time on pg 5-7 ccs
Preface
MaxQ 6000 Shaker i
Models covered in this manual
Model number Voltage
SHKE6000 (4359) 120V
SHKE6000-1CE (4352) 240V
SHKE6000-7 (4353) 120V
SHKE6000-8CE (4360) 240V

Thermo Scientificii MaxQ 6000 Shaker
Preface
Contains Parts and Assemblies
Susceptible to Damage by
Electrostatic Discharge (ESD)
CAUTION
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject
to change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. n no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to
the use of this manual.
©2010 Thermo Fisher Scientific. All rights reserved.
Contains Parts and Assemblies
Susceptible to Damage by
Electrostatic Discharge (ESD)
CAUTION

Thermo Scientific MaxQ 6000 Shaker iii
Preface
mportant operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
Marking of electrical and electronic equipment, which applies to electrical and electronic equipment
falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market
after 13 August 2005.
This product is required to comply with the European Union’s Waste Electrical & Electronic
Equipment (WEEE) Directive 2002/96/EC. t is marked with the WEEE symbol. Thermo Fisher
Scientific has contracted with one or more recycling/disposal companies in each EU Member State
European Country, and this product should be disposed of or recycled through them. Further
information on Thermo’s compliance with this directive, the recyclers in your country and
information on Thermo Scientific products will be available at www.thermoscientific.com.
4Always use the proper protective equipment (clothing, gloves, goggles, etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.

Thermo Scientificiv MaxQ 6000 Shaker
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermofisher.com Internet Worldwide Web Home Page
[e-mail] Tech Support Email Address
Certified Service Web Pagewww.unitylabservices.com
Our staff can provide information on pricing and give you quotations. We canSales Support
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation orService Support
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
Thermo Fisher Scientific (Asheville) LLC
401 Millcreek Road, Box 649
Marietta, OH 45750
International customers, please contact your local Thermo Scientific distributor.

MaxQ 6000 Shaker vThermo Scientific
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

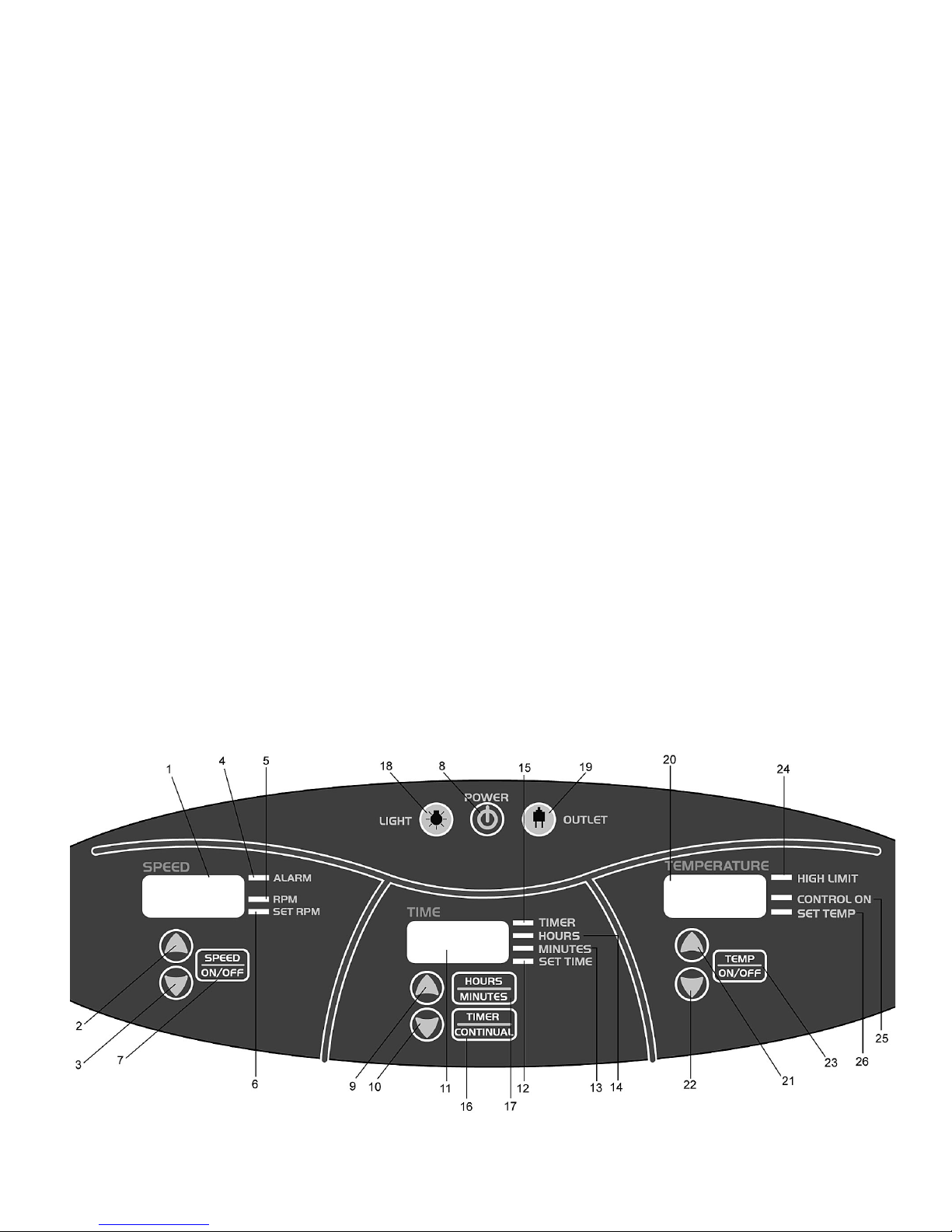

Control Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Unpacking and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Platform nstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Test Tube Rack nstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Flask Clamp nstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Setting Shaking Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Turning Shaker On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Leveling the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Over-Temperature Protection (OTP) . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Setting Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Temperature Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
AC Power Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Setting Timer for Timed Shaking . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Shaking Speed Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
RS232 Communication Configuration . . . . . . . . . . . . . . . . . . . . . . . 5-5
RS232 nterface Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Setting Timer for Continuous Shaking . . . . . . . . . . . . . . . . . . . . . . . 5-5
Setting Low Level Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Defrost Cycle Alteration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Optional Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
nterior 1 Amp Chamber Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
nterior Chamber Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Model Alteration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Section 1
Section 2
Section 3
Section 4
Section 5

vi MaxQ 6000 Shaker Thermo Scientific
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Replacing Platform Mounting Plate . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Cleaning Condenser Filter / Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Platform Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Heating Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
General Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Shaking Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
eplacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Table of Contents
Section 6
Section 8
Section 9
Section 7

MaxQ 6000 Shaker 1-1Thermo Scientific
Section 1 Safety Information
Your Thermo Scientific MaxQ 6000 Shaker has been designed with
function, reliability, and safety in mind. t is the user’s responsibility to
install it in conformance with local electrical codes. For safe operation, pay
attention to Notes, Cautions, and Warnings throughout the manual.
This manual contains important operating and safety information. The
user must carefully read and understand the contents of this manual prior
to the use of this equipment.
Warnings
To avoid electrical shock, always:
1. Use a properly grounded electrical outlet of correct voltage and current
handling capacity.
2. Disconnect from the power supply prior to maintenance and servicing.
To avoid personal injury:
1. Do not use in the presence of flammable or combustible materials; fire
or explosion may result. This device contains components which may
ignite such materials. Not rated for use in hazardous atmospheres.
2. Wear appropriate eye and hand protection when handling hazardous
chemicals.
3. Refer servicing to qualified personnel.
4. Do not modify construction and/or assembly of equipment.
5. Do not remove tags, labels, decals, or other information from the unit.
6. Stand clear of equipment when it is operating.
7. f shaking action will result in the evolution of gases or fumes, carry
out the operation in a well-ventilated laboratory hood.

1-2 MaxQ 6000 Shaker Thermo Scientific
Section 1
Safety Information
To avoid personal injury (continued)
8. Use equipment only for its intended purpose. Use only the accessories
and attachments that are shipped with the equipment or are specified
for it. Substituting other attachments or accessories can produce
hazards or make the unit inoperative.
9. Perform regular maintenance service as specified in this manual and
keep unit in good repair. Do not operate with known defects.
10. Do not use the shaker to mix flammable materials or where the
transfer of mechanical energy to glass could cause glass breakage.

MaxQ 6000 Shaker 2-1Thermo Scientific
Section 2 Specifications
Dimensions (L x W x H)
. . . . . . . . . .33 x 27.5 x 40.5 inches (83.8 x 69.8 x 102.8 cm)
Optional Universal Platform (30110): . . .18 x 18 inches (45.7 x 45.7
cm)
nner Chamber: . . . 22 x 21 x 27 inches (55.9 x 53.3 x 68.6 cm)
Temperature Range and Accuracy
SHKE6000: . . . . 10°C above ambient to 80°C, ±0.1°C at 37°C in flask
SHKE6000-1CE:. 10°C above ambient to 80°C, ±0.1°C at 37°C in flask
SHKE6000-7: . . .15°C below ambient to 80°C, ±0.1°C at 37°C in flask
(Minimum setpoint is 4°C on refrigerated model.)
SHKE6000-8CE:. 15°C below ambient to 80°C, ±0.1°C at 37°C in flask
(Minimum setpoint is 4°C on refrigerated model.)
Over-Temp Protection: . . . . . . 5°C above setpoint
Temperature Uni ormity
. . . . . . . . . . . . . . . . . . . . ±0.5°C at 37°C in flask:
Over-Temp Protection: . . . . . . . . . . . . . . 0-115°C
Speed Range
. . . . . . . . . 15 to 500 ±1 rpm (unstacked); 15 to 300 ±1 rpm (stacked)
Orbit Diameter . . . . . . . . . . . . .0.75 inches (1.9 cm)
Shipping Weight
SHKE6000-7 and SHKE6000-8CE: . . . . .430 lbs. (195 kg)
SHKE6000 and SHKE6000-1CE: . . . . . . 330 lbs. (150 kg)

2-2 MaxQ 6000 Shaker Thermo Scientific
Section 2
Specifications
Electrical
SHKE6000: . . . . . . . .120V, 60Hz, 8.0 amps, 1100 watts
SHKE6000-1CE: . . . .240V, 50/60Hz, 5.0 amps, 1200 watts
SHKE6000-7: . . . . . 120V, 60Hz, 11 amps, 1300 watts
SHKE6000-8CE: . . . 240V, 50Hz, 6.3 amps, 1500 watts
Max Load
Shelf: . . . . . . . . . . . . . . . . . . . . .20 lbs. (9.1 kg) each
Platform: . . . . . . . . . . . . . . . . . . . . .35 lbs. (15.9 kg)
Environmental Operating Conditions
Pollution Degree** . . . . . . . . . . . . . . . . . . . . . . . . . 2
nstallation Category** . . . . . . . . . . . . . . . . . . . . . .
Altitude . . . . . . 2000 meters MSL (Mean Sea Level)
Relative Humidity . . . .20% to 80% maximum, non-condensing
Electrical Supply . . . . . . . . . . 120 VAC or 240 VAC
Voltage Tolerance . . . . . . +10% of normal rated line
Temperature . . . . . . . . . . . . . . . . . . . . 15°C to 32°C
Product Usage . . . . . . . . . . . . . . . . . ndoor use only
**Refer to IEC 664-1
Caution Operating this shaker in a CO2 enriched atmosphere is not
recommended. The formation of carbonic acid could cause electrical
failures. s
Fluorinated Greenhouse Gases
Compliant with REGULATION (EU) No 517/2014 OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL on fluorinate greenhouse gases.
This pro uct contains fluorinate greenhouse gases in a hermetically seale
system. If a leak in the seale system is etecte , the operator shall repair
without un ue elay.
The following mo el is esigne for use with the following amounts of flu-
orinate greenhouse gases:
Model Refrigerant Amount (kg) GWP
SHKE6000-8CE R-134a 0.326 1430

MaxQ 6000 Shaker 2-3Thermo Scientific
Section 2
Specifications
Intended Use
Orbital shakers are designed to provide increased aeration in a stable
temperature environment.
Unintended Use
1) Not intended for use in Class or applications as defined in 21 CFR
2) Not intended for mixtures of flammable materials
Declaration o Con ormity
Copies of the Declaration of Conformity are available upon request.

MaxQ 6000 Shaker 3-1Thermo Scientific
Section 3 Features
• Two units can be stacked vertically with a stacking kit accessory.
• Continuous or timed operation, 0.1-999 hours or 0.1-999 minutes
• Three individual LED displays indicate temperature, time and speed
simultaneously. 3 characters height 1/2 inch (1.27 cm).
• Solid state brushless DC motor.
• Soft Start Feature: Software algorithms prevent sudden start/stops.
• RS232 nterface: Monitor speed, temperature in °C and time with a
computer. nterface cables not to exceed 9.8 ft. (3 m)
• 10 mv/°C output monitors temperature with external chart recorder.
• Maximum shelf load: 20 lbs. Maximum platform load 35 lbs.
• All models control temperature, time and speed by a
Proportional/ ntegral/Derivative (P D) microprocessor-based controller
that is adjustable on a keypad in 1 rpm increments. Refrigerated units
feature environmentally safe CFC free insulation and coolant.
• Flashing display indicates power interruption. Pressing any key will
clear display. Non-volatile memory maintains temperature, speed and
time set points in the event of a power interruption. Speed and time
set points are automatically reactivated after power is restored.
• Shaking action is halted while door is open.
• User settable over-temperature control monitors the chamber
temperature and unit’s temperature deviation if main control fails.
• 6 permanently lubricated ball bearings.
• UL, cUL and CE certification.

3-2 MaxQ 6000 Shaker Thermo Scientific
Section 3
Features
Alarms • Audible portion of the alarm can be silenced for a period of 1 hour, by
depressing any key, without deactivating the actual alarm condition.
• Audible alarm with flashing LED can be set to indicate when speed
deviates more than 10% of set point.
• When speed deviates 10% of set point, unit can be set to shut down
immediately.
• Alarm beeps three times when time has expired. Shaking motion stops.
• f the unit is running in an unbalanced condition, an alarm will sound
and the shaker will stop until the end user corrects the condition. The
speed display will flash “bAL” on speed panel LED.
• When chamber temperature deviates more than 1°C from setpoint, an
alarm will sound and the display will indicate an error.
1. Speed Display: 3 digit LED indicates actual or set point speed
2. Up Arrow Key: ncreases platform rotation speed
3. Down Arrow Key: Decreases platform rotation speed
4. Alarm Light: Red light lluminates when a locked platform or over-
speed condition exists
5. RPM Light: lluminates to indicate actual speed
6. Set RPM Light: lluminates when speed is being set
7. Speed ON/OFF Switch: Starts and stops platform rotation
8. Power Switch: Turns power on and off to shaker
9. Up Arrow Key: ncreases shaking time
10. Down Arrow Key: Decreases shaking time
11. Time(r) Display: 3 digit LED indicates time remaining or continual
time
12. Set time: lluminates when time is being set
Control Panel
Features

MaxQ 6000 Shaker 3-3Thermo Scientific
Section 3
Features
13. Minutes: Timer indicates minutes
14. Hours: Timer indicates hours
15. Timer Light: ndicates timed operation
16. Timer/Continual Allows the user to choose continual time operation,
or timed operation.
17. Hours/Minutes Key: Allows user to choose timing operation in either
hours or minutes
18. Lightbulb con: Allows user to turn on interior chamber light.
19. Plug con: Allows user to utilize interior electrical outlet.
20. Temperature Display: 3 digit LED indicates chamber temperature
21. Up Arrow Key: ncreases temperature
22. Down Arrow Key: Decreases temperature
23. Temp ON/OFF Switch: Turns heat on and off
24. High-Limit Light: ndicates high-limit control has been activated
25. Control ON Light: ndicates heaters are energized
26. Set temp Light: ndicates temperature can be set
Control Panel
Features (cont.)

MaxQ 6000 Shaker 4-1Thermo Scientific
Section 4 Unpacking and Installation
The shipping carton should be inspected upon delivery. When received,
carefully examine for any shipping damage before unpacking. f damage is
discovered, the delivering carrier should specify and sign for the damage on
your copy of the delivery receipt.
Open the carton carefully making certain that all parts are accounted for
before packaging materials are discarded. After unpacking, if damage is
found, promptly report it to the carrier and request a damage inspection
properly.
Important Failure to request an inspection of damage within a few days
after receipt of shipment absolves the carrier from any liability for damage.
Call for a damage inspection promptly.
Use the packing list below when unpacking to verify that the complete
unit has been received. Do not discard packing materials until all is
accounted for.
The following items are included in the shipment:
nspection Tag- 528-028-00
Mounting Plate Mat- 790-316-11
Thumbscrew Knob (4) - 562-184-10
Shelves (2) - 319565
Shelf Clips (4) - 315642
Cord
Male Connector
f any items are missing, contact Technical Services.
Unpacking

4-2 MaxQ 6000 Shaker Thermo Scientific
Section 4
Unpacking and Installation
Location Place the shaker on the floor near an electrical outlet that matches the unit
nameplate requirements. Allow approximately 4” (10 cm) of clearance
around the unit for free air convection, accessory attachments and user
convenience.
SHKE6000 Series shakers require a 120VAC, 60 Hz power source. They
are supplied with a 3-wire line cord and should be plugged into an outlet
designed for 3-prong plugs. f an extension cord is used, it also should be
the 3-wire grounded type. For an outlet designed to accept 2-prong plugs
(ungrounded), it is required that a qualified electrician replaces the outlet
with a new, grounded type.
SHKE6000-1CE series shakers require a 220-240VAC, 50/60 Hz power
source. They are supplied with a Schuko cordset. f a plug must be
installed, use only the 3-prong grounded type, rated for the unit load
requirements and matching the power outlet. Make sure the green ground
wire is secured to the plug ground terminal.
Warning Do not operate shaker with a damaged electrical cord. s
To eliminate hazard of electrical shock, make sure floor around shaker is
dry. n the event of accidental spilling or splashing of liquids, clean up
and/or neutralize the spilled liquids before continuing.
Disconnect the shaker from the power source when not in use.
1. Select the appropriate platform for the vessels to be shaken. A wide
variety of platforms and accessories are available:
• Dedicated platforms have the maximum number of flask clamps
attached for safe operation.
• Combination platforms allow the user to shake a wide variety of
different sized vessels on the same platform.
2. Carefully position the platform horizontally over the shaker’s mounting
plate, aligning the 4 mounting holes.
3. Position one of the thumbscrews provided through each of the 4-
platform mounting holes and tighten securely.
Caution Do not operate shaker with an unbalanced load. Platforms should
be loaded for optimum stability and operation. Do not lift shaker by the
platform. s
Electrical
equirements
Platform Installation

MaxQ 6000 Shaker 4-3Thermo Scientific
Section 4
Unpacking and Installation
Each flask clamp contains a support spring located at the narrow top of
the clamp.
Depending on the size of the clamp, the clamp base may contain one or
several screws necessary to secure the clamp to the platform. All screws
provided with the clamp must be properly attached to the platform.
1. Carefully place the desired vessel in the clamp by first pulling the
clamp spring far enough apart to enable the flask base to be positioned
inside the clamp. Gently slide the flask into its proper position
securing it to the wider bottom of the clamp. The spring will hold the
neck of the flask securely in place and provide security during shaking.
2. Make sure all vessels are securely clamped before turning on unit.
Wherever possible, vessels should contain a stopper to prevent hazardous
substances being thrown out during the mixing action.
Warning Do not operate the shaker at speeds that will cause the contents
of vessels to be thrown out. s
1. Position the test tube rack on the platform so that the rack leg clamps
are aligned with corresponding mounting holes on the platform. There
are four feet on each unwire test tube rack clamp that need to be
secured to the platform.
2. Secure the rack to the platform with mounting screws provided.
Flask Clamp
Installation
Test Tube ack
Installation

MaxQ 6000 Shaker 5-1Thermo Scientific
Section 5 Operation
1. Place an average load onto the shaker platform. Set shaking speed to
250 rpm. Press START/STOP to activate platform rotation.
2. Set torpedo level onto top of MaxQ 6000 unit. Loosen the locking nut
on the shaker feet using a 3/4” wrench.
3. Adjust the feet on both the front-to-back and right-to-left axis until the
unit is level.
4. Tighten the locking nut on all feet using a 3/4” wrench and ensure the
unit is still level. Press START/STOP to deactivate platform rotation.
1. Press power switch on the front panel to turn shaker on.
2. Press power switch a second time to turn shaker off.
1. Hold down appropriate arrow key in the speed module of the control
panel, up or down, until desired speed is set, up to 500 rpm. SET
RPM light will illuminate.
2. Press SPEED ON/OFF key to begin shaking. RPM light will
illuminate.
3. Press SPEED ON/OFF key to end shaking. SET RPM light will
illuminate.
Caution t is recommended that shaking action be started at a low speed in
order to check that all vessels are secure and that no spilling of contents
will occur. s
Note Speed can be changed without pressing the START/STOP key.
Simply press the appropriate up or down arrow until desired rpm is
reached. There will be an audible beep before the display lights.
Leveling the Unit
Turning Shaker On
Setting Shaking
Speed

5-2 MaxQ 6000 Shaker Thermo Scientific
Section 5
Operation
1. See up and down arrows on the right side of the control panel. Press
and hold up arrow key to increase temperature, release key when
desired set point is obtained.
2. Press and hold down arrow key to decrease temperature, release key
when desired set point is obtained.
3. Once set, temperature control is initiated by pressing the TEMP
ON/OFF key; the heater will react and start increasing the temperature
to reach the set point.
4. During operation, both the up and down arrow keys can be used to
adjust the temperature to a new set point.
MaxQ 6000 units come equipped with an over-temperature protection
(OTP) control. This control is independent of the main temperature
control and serves as a safety limit for the chamber temperature.
1. The over-temperature set point can be adjusted using a small straight-
blade screwdriver to rotate the OTP shaft located on the right side of
the unit.
2. Allow unit to stabilize at setpoint temperature before adjusting OTP.
3. Once setpoint is stable, rotate screwdriver counterclockwise until OSP
appears in the Speed Display, the Temp Display wil register your OTP
termperature setting. Adjust OTP to displayed temperature setting.
During over-temperature setpoint adjustment, the unit will display the set
point in 1° increments on the front display. The over-temperature setpoint
is generally adjustable between 0°C and 115°C. To avoid unnecessary
cycling of over-temperature control, the main control will limit itself to
5°C above the temperature setpoint. For example, with a temperature set
point of 37°C, the OTP can be adjusted down to 42°C. Note that the
over-temperature setpoint is designed to limit the chamber temperature;
components within may exceed this setting.
Note When adjusting OTP, E06 appears on Temp Display when you have
exceeded the 5°C window. f the E06 mode continues for more than 5
seconds without adjusting OTP, the setpoint will need to be reset to
original settings.
Setting Operating
Temperature
Over-Temperature
Protection (OTP)
