Thermo Scientific SSRZ
Sample Holder
Instruction Notice
AA83858 - A • June 2019

Contents
1Revision Table...................................................................................................3
2Introduction.......................................................................................................4
3Safety.................................................................................................................6
3.1 General Safety Guidelines...................................................................................6
3.2 Hazard Statements and Symbols.........................................................................7
4The Sample Holder Description.......................................................................8
5Installation.......................................................................................................10
5.1 Install SSRZ Sample Holder in the ARL EQUINOX............................................10
5.2 Connect the Sample Holder to the Power Supply ..............................................10
5.3 Set the Incidence Angle.....................................................................................11
6Sample Preparation Procedure......................................................................12
6.1 Powder Sample Preparation..............................................................................12
6.2 Insert the Sample Cup in the SSRZ...................................................................13
6.3 Bulk Sample Preparation...................................................................................15
7Maintenance and Cleaning.............................................................................17
8Troubleshooting..............................................................................................18
9Appendix 1: Conformity Certificate...............................................................19
10 Index ................................................................................................................20

Chapter | Revision Table
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 3
1 Revision Table
Revision
Date
ECO number
Description of Changes
A
29-MAY-2019
Initial Release
Note This document is the original manual.
The information in this document is subject to change without notice.
We assume no responsibility for any errors that may appear in this document.

Chapter | Introduction
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 4
2 Introduction
ARL EQUINOX X-Ray diffractometers are designed for measuring of crystalline samples
(powder, bulk, metals, thin layers, etc...), phase identification, nanoscale structural analysis,
non-destructive quality control, as well as for many other applications.
Thermo Fisher Scientific develops and sells many sample holders that can be plugged in
Thermo Fisher Scientific diffractometers in order to analyze the samples. The sample holders
sometimes consist of moving parts and electronics which are needed for more complex
devices to control sample's movement.
All ARL EQUINOX instruments are shipped with a basic non-spinning sample holder suited for
powder measurement in reflection mode. This sample holder is necessary for adjustment and
alignment and can be used for measurement of samples as well.
This instrument is intended for professionals. The user is advised to read the following
instructions and any other additional information supplied by Thermo Fisher Scientific before
operating the instrument.
Thermo Fisher Scientific declines all responsibilities for improper use by unauthorized
personnel or non-authorized operation of the instrument.
For any additional information, contact Thermo Fisher Scientific.
Supplied Items
Before the shipment, the sample holders are tested and packed carefully. However damage
can occur during the transport.
If the sample holder or any additional supplied item has been damaged during transport, or if
you notice any signs of a possible damage, please contact both the transport company
representative and the Thermo Fisher Scientific representative as soon as possible.
Furthermore, if you notice that any part is missing or you have any questions about
the delivered items, contact the Thermo Fisher Scientific representative.
Storage
The storage where the instrument is stored has to meet following ambient specifications:
Temperature: 0 –50°C, relative humidity: < 95% (without condensation).
Assistance
The Thermo Fisher Scientific worldwide technical support network consists of highly trained
field service engineers, technical support specialists and service coordinators who are ready
to quickly assist the customers with answers and solutions to service needs and application
questions. If you need any help, please contact the local Thermo Fisher Scientific
representative.

Chapter | Introduction
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 5
Manufacturer
THERMO FISHER SCIENTIFIC INEL SAS
71 rue d’Orléans
45410 ARTENAY, FRANCE
Tel : [phone]

Chapter | Safety
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 6
3 Safety
3.1 General Safety Guidelines
•Before using your sample holder, read its instruction manual completely and understand it.
Please take notice of all warnings, cautions and notes to ensure the correct and safe
functioning of the instrument.
•Never place the sample holder near an open flame or in an excessively hot environment.
It must not be installed in an ATEX explosive hazard area.
•Never place the sample holder in locations where excessive moisture or corrosive
materials are present.
•The sample holder construction provides protection against the risk of electrical shock by
grounding the appropriate metal parts. The protection may not work properly unless the
ARL EQUINOX power cord is connected to a properly grounded socket. It is customer's
responsibility to assure that a proper ground connection is provided.
•Never use flammable or corrosive fluids with this unit.
•If the sample holder is used in a manner not specified by the Thermo Fisher Scientific,
the protection provided by the sample holder may be impaired.
•Only accessories that comply with Thermo Fisher Scientific specifications are allowed to
be used with ARL EQUINOX X-Ray diffractometers.
•Transport of the sample holder should be done with extreme care.
•Never operate a damaged sample holder.
•Never operate the sample holder with a damaged power cord.

Chapter | Safety
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 7
3.2 Hazard Statements and Symbols
The following messages are used throughout the manuals to highlight information.
Note A Note message indicates the information in it requires special attention.
CAUTION!
A Caution message indicates a potentially hazardous situation that, if not avoided,
may result in moderate or minor injury. It may also be used to alert against unsafe
practices.
SERVICE!
A Service message indicates that the described procedure should be performed by
qualified personnel only.

Chapter | The Sample Holder Description
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 8
4 The Sample Holder Description
This sample holder can be used to analyse powder or a bulk sample in the Reflection mode.
The picture below shows a configuration with a powder sample cup.

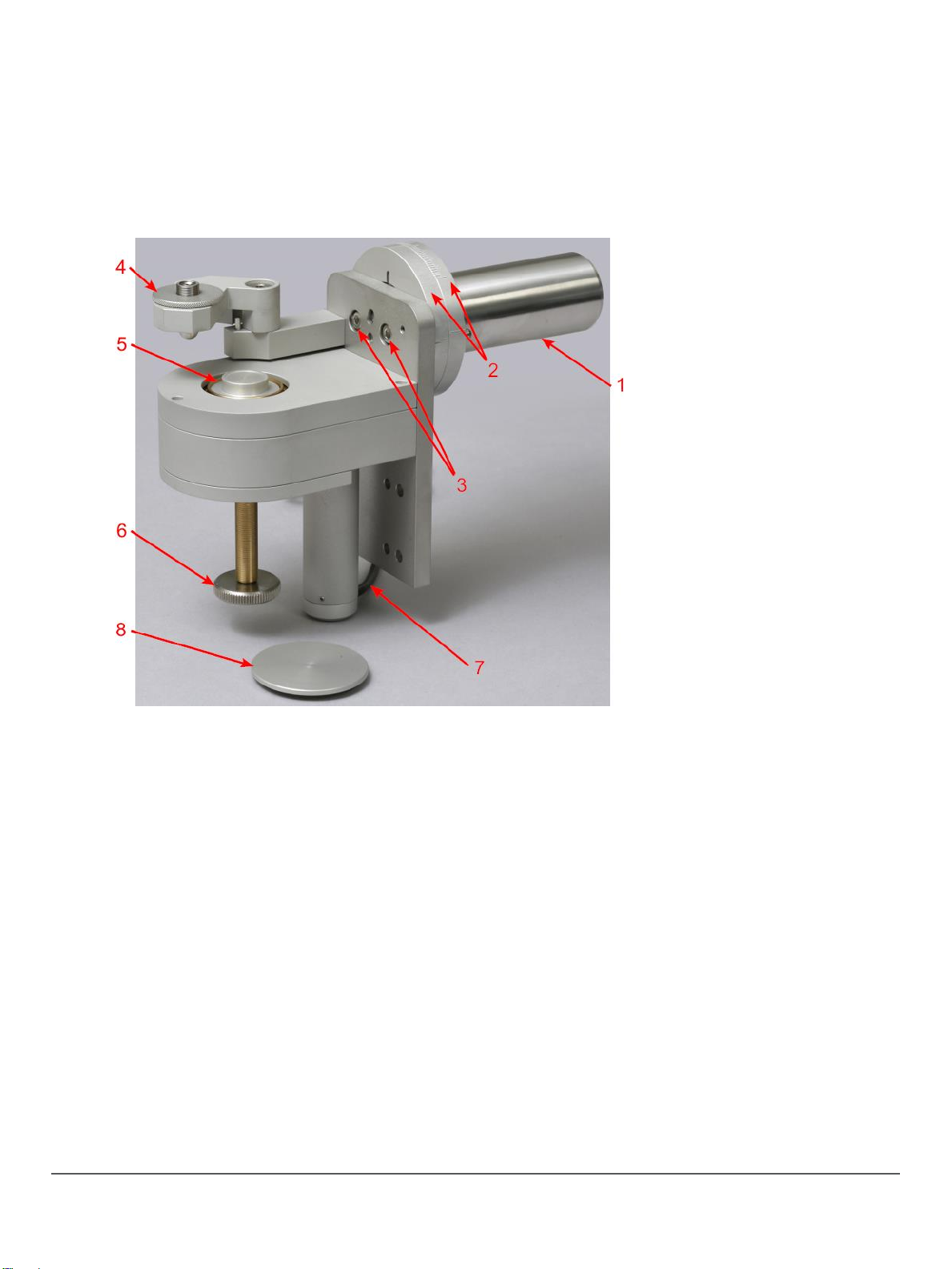

1 - 30mm diameter axis.
2 - Incidence angle indicator.
3 - Factory clamping screws.
4 - Level indicator.
5 - Sample cup for analysis.
6 - Height adjustment screw.
7 - Power cord (12V).
8 - Platform for bulk sample

Chapter | The Sample Holder Description
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 9
8 - Platform for bulk sample
SERVICE!
Do not touch the clamping screws (3). This operation has to be done by service
personnel only.

Chapter | Installation
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 10
5 Installation
5.1 Install SSRZ Sample Holder in the ARL EQUINOX
Insert the sample holder in the sample holder mounting hole of the instrument, do not use any
unnecessary force. The sample holder and the mounting hole (Ø 30 mm) are designed to
avoid any mechanical clearance resulting in irreproducible results. The pin of the sample
holder has to be inserted in the reference hole.
For more detailed information refer to the ARL EQUINOX instruction notice.
5.2 Connect the Sample Holder to the Power Supply
The power supply plug for the spinning sample holder is located below the sample area.
Refer to the ARL EQUINOX reference manual for more details.

Chapter | Installation
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 11
5.3 Set the Incidence Angle
The incidence angle indicator consists of two rings. One ring is fixed while the second one is
free. This allows the sample holder to rotate in order to change the incidence angle. This
second ring can be tightened to avoid changes of the incidence angle. The way of reading
the incidence angle indicator is described in the picture below. The longest line represents the
incidence angle equal to 0° (2). Each short line represents 2° of incidence angle (4).
The medium long lines represent 10° of incidence angle (3). Then, the indicator (1) serves to
read the total incidence angle.
The sample holder is equipped with a positioning pin to avoid any position mistake and
an incidence angle indicator to read the incidence angle.

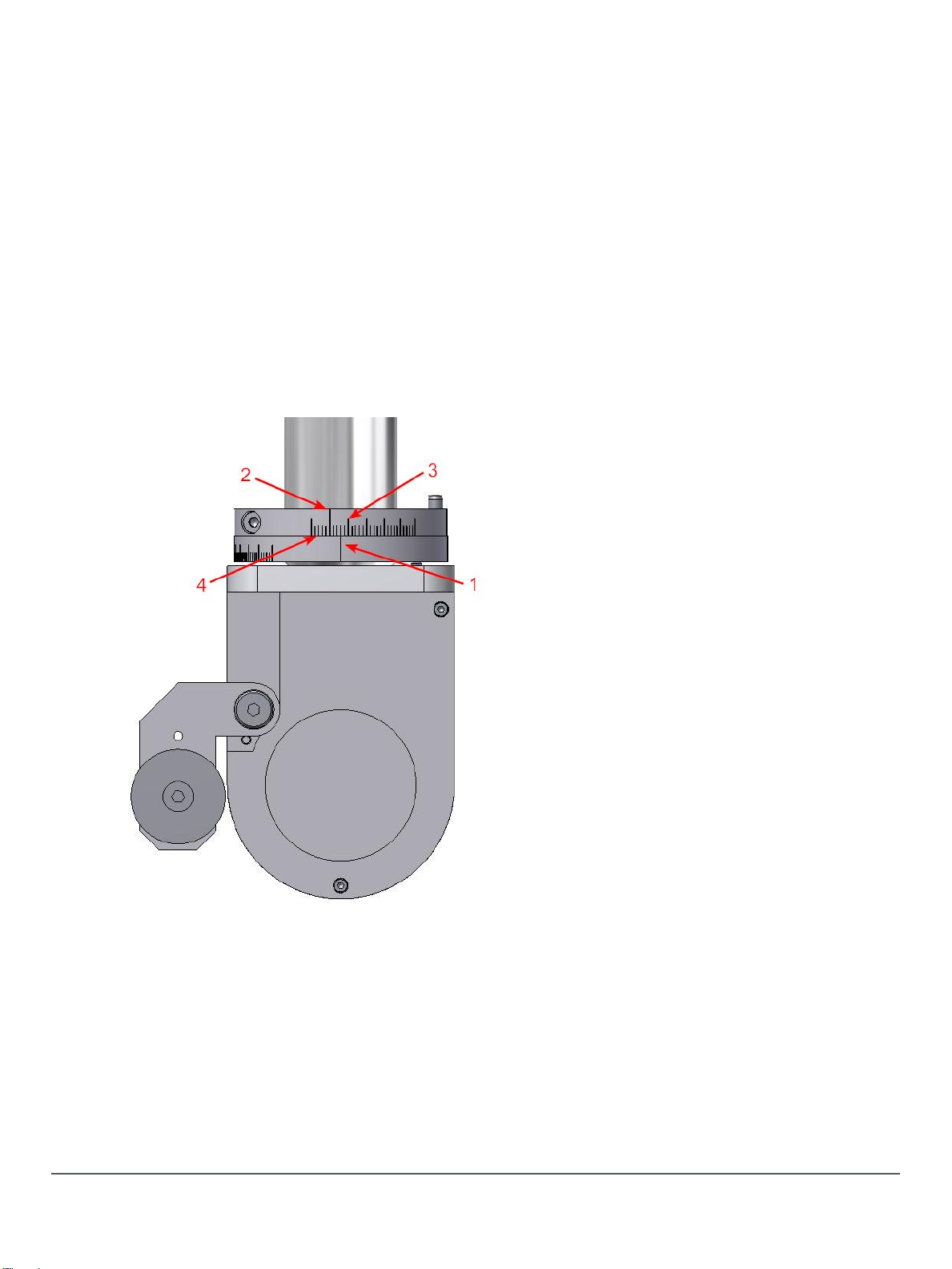

1 - Reading indicator
2 - Incidence angle equal to 0°
3 - Medium line 10° of incidence angle
4 - Short line 2° of incidence angle

Chapter | Sample Preparation Procedure
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 12
6 Sample Preparation Procedure
6.1 Powder Sample Preparation
In order to prepare your sample, you will need a powder mount, a
spatula, a glass slide (as used for microscopes) and a sample cup.
If the powder to be measured is too coarse, it is necessary to grind
it a bit using a small mortar.
Fill the sample powder cup with the powder.
Use a glass slide to make the surface flat and homogeneous.
The surface of the powder must not exceed the level of the
surface of the powder mount, in order to avoid line displacement
error due to the height error.

Chapter | Sample Preparation Procedure
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 13
6.2 Insert the Sample Cup in the SSRZ
Use the height adjusting screw (6) to set the right
alignment for the beam.

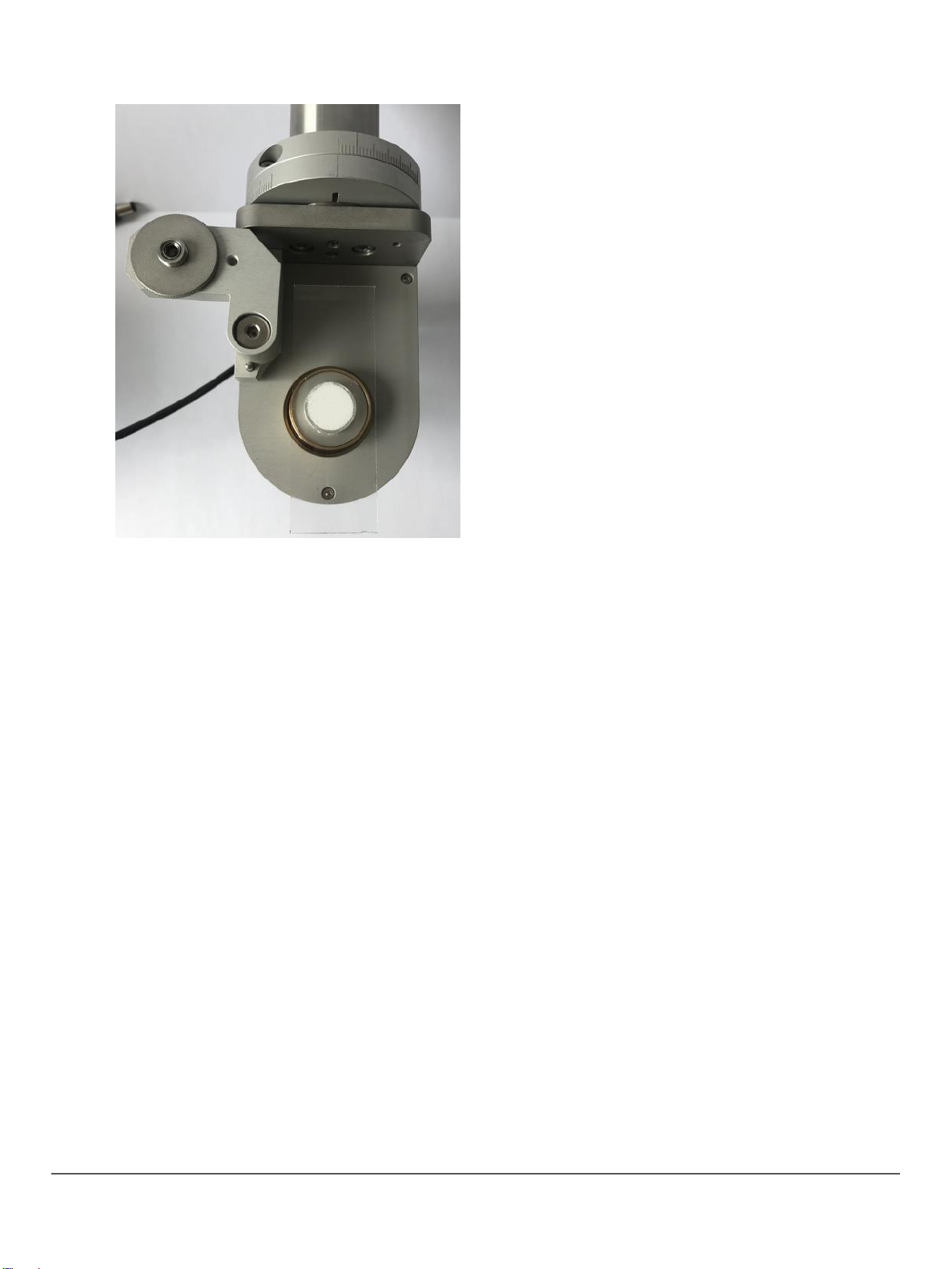

Use a glass slide to protect your sample as shown on
pictures beside.

Chapter | Sample Preparation Procedure
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 14
When the level is reached, rotate the
Level indicator.
Remove slowly the glass slide.

Chapter | Sample Preparation Procedure
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 15
6.3 Bulk Sample Preparation
Your sample must have two parallel faces. According to your bulk sample dimensions, you
can choose three different heights (2) which are indicated in the picture below.
1 - Screws for the level set up.
2 - Three different positions.
To change the sample height, unscrew the two screws
(1), move the sample support to the right level and
secure it using the screws.
Set up in the highest position.

Chapter | Sample Preparation Procedure
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 16
Use the adjusting screw and the level indicator in order
to move the sample to the right level.
When the level of the sample is reached, rotate the
level indicator.
Remove slowly the glass slide.

Chapter | Maintenance and Cleaning
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 17
7 Maintenance and Cleaning
Sample holder can be cleaned with a soft and dry brush.

Chapter | Troubleshooting
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 18
8 Troubleshooting
The spinner does not start:
•Check the state of the power supply cord, be sure it is properly plugged in.
•Check if the OFF-ON switch is in “ON” position.
•If the problem persists, contact Thermo Fisher Scientific.
You observe peak shift:
•Check your sample preparation, make sure that you have right amount of powder in
the cup.
•Check the alignment of the sample holder.

Chapter | Appendix 1: Conformity Certificate
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 19
9 Appendix 1: Conformity Certificate
Thermo Fisher Scientific has certified by internal assessment that the SSRZ sample holders
comply with the CE mark according to the following standards and directives:
•EN 61010-1 (2010): Safety requirements for electrical equipment for measurement,
control, and laboratory use - Part 1: General requirements,
•2011/65/EC: restriction of the use of certain hazardous substances in electrical and
electronic equipment, RoHS2.

Chapter | Index
Confidential, limited rights
PN AA83858 | Revision A | 13-Jun-2019
Instruction Notice, Sample Holder SSRZ
Page 20
10 Index
A
Appendix 1
Conformity Certificate • 18
B
Bulk Sample Preparation • 15
C
Connect the Sample Holder to the Power Supply •
10
G
General Safety Guidelines • 6
H
Hazard Statements and Symbols • 7
I
Insert the Sample Cup in the SSRZ • 13
Install SSRZ Sample Holder in the ARL EQUINOX
• 10
Installation • 10
Introduction • 4
M
Maintenance and Cleaning • 16
P
Powder Sample Preparation • 12
R
Revision Table • 3
S
Safety • 6
Sample Preparation Procedure • 12
Set the Incidence Angle • 11
T
The Sample Holder Description • 8
Troubleshooting • 17
