Thermo Scientific 1300 Series User manual

1300 Series A2
Class II, Type A2 Biological Safety Cabinet
Operating anual 7001344 Rev. 5
User Manual
Visit us online to egiste you wa anty
www.the moscientific.com/labwa anty
Chinese translation starts on page 70 of this document

Thermo Scientific
MANUAL NUMBER 7001344
5 ECN -001017 06/24/2020 Added aintenance Notes in page 6-1. TFI
4 31573 10/2/14 Added FP in Testing Information (pg 8-10) ccs
3 28381 3/2/12 Updated to current production ccs
2 27594 10/20/11 Revised per B Bruker/George Hou ccs
1 27058/HD-1722 2/10/11 Titled General Notes--Safety, added intended use info, noise db to 65 from 63 ccs
0 -- 2/16/10 Original ccs
REV ECR/ECN DATE DESCRIPTI N By
Preface
1300 Series A2 i
This manual covers the models shown below:
Dear User,
Congratulations on your purchase of a Thermo Scientific 1300 Series Class II, Type A2
biological safety cabinet. Your six-foot 1300 Series A2 biological safety cabinet has been
certified in accordance to YY 0569-2005, and your four-foot 1300 Series A2 biological
safety cabinet has been designed in accordance to S DA standards. These cabinets were
all designed to protect the user, the environment, and your research from harmful
substances and cross-contamination. This user manual provides instructions on how to
use the 1300 Series A2 most effectively and safely.
The 1300 Series A2 offers a unique range of product features that will enhance your
safety and improve overall operating efficiency. Should you have any questions on using
this product, or need further explanation of any of it’s features, contact your local
distributor.
1344 1.2 m 230 V, China
1349 1.8 m 230 V, China
1374* 1.2 m 230 V, China
1379* 1.8 m 230 V, China
* Includes cabinet, adjustable height stand, UV light and armrest.
Registr tion Number: SFDA(I)20113543141
Registr tion St nd rd Number: YZB/USA 3532/2011

Thermo Scientificii 1300 Series A2
Preface
Contains Parts and Assemblies
Susceptible to Damage by
Electrostatic Discharge (ESD)
CAUTION
Important Read this instruction manual. ailure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject
to change without notice. Thermo isher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to
the use of this manual.
© 2020 Thermo isher Scientific. All rights reserved.

Thermo Scientific 1300 Series A2 iii
Preface
Important operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
The agents used and/or work performed in this cabinet may be hazardous to your health and the
health of others. (The cabinet must be used properly. You must read the operators manual before
using.)
Marking of electrical and electronic equipment, which applies to electrical and electronic equipment
falling under the Directive 2012/19/EU (WEEE) and the equipment that has been put on the market
after 13 August 2005.
This product is required to comply with the European Union’s Waste Electrical & Electronic
Equipment (WEEE) Directive 2012/19/EU. It is marked with the WEEE symbol. Thermo isher
Scientific has contracted with one or more recycling/disposal companies in each EU Member State
European Country, and this product should be disposed of or recycled through them. urther
information on Thermo’s compliance with this directive, the recyclers in your country and
information on Thermo Scientific products will be available at www.thermofisher.com.
4Always use the proper protective equipment (clothing, gloves, goggles, etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.
General Notes Safety

Thermo Scientificiv 1300 Series A2
General Notes
Safety
Intended use:
The 1300 series Class II, Ttype A2 biological safety cabinet can be used in clinical laboratories, is designed to
protect the user, the sample and the environment, for users to operate the sample inside the chamber through
the front operation window.
Depending on the hazard level of the agents involved, the operator must prepare in writing appropriate decont-
amination procedures for the device and the accessories used in the sample chamber.
Unintended use:
The unit must not be operated as a Class II safety cabinet, if:
- no repeat test is performed after changes to the installation conditions or after modifications to the technical
system,
- the alarm system of the device has issued a failure message and the cause for the failure has not been repaired.
The alarm system must not be tampered with or disabled. If alarm system components have been removed or
disabled for service or repairs, the unit must only be released for operation if all alarm system components are
functioning again properly.
The filters installed in the device are not capable of separating gaseous substances. Therefore, do not work or
store substances in the device:
- which in quantity or concentration are toxic,
- if a reaction with other substances may result in hazardous toxic concentrations or formation of toxic gases,
- that may form combustible or explosive mixtures in combination with air.

1300 Series A2 vThermo Scientific
Table of Contents
General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Safety Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
HEPA ilters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Paper Catch Grids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Use of the Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Unit Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Chamber Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
UV Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Optional Exhaust Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Exhaust System Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Moving the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Service Valve Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Unit w/wo Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Unlock Counterweight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
peration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Unit Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Loading the Chamber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Working Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
Procedure Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Unit Shut-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Unit Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Section 1
Section 2
Section 3
Section 4

vi 1300 Series A2 Thermo Scientific
Cleaning / Decontamination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Wipe/Spray Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Pre-disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
inal Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
UV Disinfection after Wipe/Spray Disinfection . . . . . . . . . . . . . . .5-3
Disinfection with ormaldehyde . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Clean Exterior Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Clean Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Clean the Drain Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Clean the Paper Catch Grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Sample Chamber Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Optional UV Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Replacements and Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Unit Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Certification Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Data Log/Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
Table of Contents
Section 5
Section 6
Section 8
Section 7
Section 9

1300 Series A2 1-1Thermo Scientific
Section 1 Description
The plenum assembly consists of a plenum for the downflow blower and a
plenum for the exhaust air blower. Each blower includes a filter. The
exhaust air is discharged through an opening in the top of the cabinet.
Chamber lighting includes two fluorescent bulbs.
The optional, factory-installed UV light is installed in the ceiling at the
front of the sample chamber.
Three service valve access ports are located on each side panel. When
installing service valves, remove the center of the port plugs at the
perforations.
Figure 1-1. Unit Components
Plenum
Power cord
Electrical enclosure
Light dome
Control panel
Handle
Front window
Service valve
access ports
Stand (optional)
Service
valve
Exhaust
test hose
Work
tray
Armrest
Supply
test hose
Accessory
outlets
Plenum
access panel
Downflow blower
Exhaust blower
RS-232
Connection
Fuseholders (2)
Exhaust opening
Smart Port

1-2 1300 Series A2 Thermo Scientific
Section 1
Description
Safety Systems
The optional stand is may be ordered in two configurations; a manually
adjustable from 750 mm to 950 mm working height, and a fixed 864 mm
working height with attached casters..
A stainless steel one-piece work surface is standard. Optional armrests
ensure a comfortable working position for the user and minimize blockage
of airflow at the front grille.
Internal outlets, provided as the power source for accessories, are provided
standard, a single outlet on each side.
Test hoses (aerosol challenge ports) are located under the work tray.
The supply plenum hose is located on the left and the exhaust plenum hose
on the right.
Note Do not remove the caps of the two test hoses to check for supply and
exhaust airflow. s
Neg tive pressure ir system
A negative pressure air system combines with HEPA filters in the supply
and exhaust airflow for personal and product protection.
Personnel protection
Inflow air along the entire working opening at a constant high velocity
prevents leakage from the work opening of the chamber.
Exterior air pressure being higher than the internal air pressure creates
negative pressure, ensuring containment in case of cabinet leakage.
Product protection
Steady airflow within the air system ensures constant downflow, allowing
the HEPA filters to remove contaminants so that the samples are always
surrounded by ultra-pure air. Harmful particles are not carried over the
sample chamber (protection from cross-contamination).
HEPA filters
The downflow air within the chamber and the exhaust air are cleaned by
HEPA filters.
S fety lockout
To protect from UV radiation, the optional UV light will not turn on if
the front window is open. While the UV light is on, the front window is
closed and locked. The closed window blocks out the UV rays. Opening
the window will cause the UV light to turn off.

1300 Series A2 1-3Thermo Scientific
Section 1
Description
Digit l Airflow Verific tion (DAVe)
Independent monitoring of inflow and downflow air velocities
guarantees that product and personnel protection remain
uncompromised. Airflow monitoring determines the velocity of the
airflow in the sample chamber as well as the inflow velocity of air
through the exhaust opening. As soon as airflow velocities rise above or
fall below a specified safety value, an audible and a visual alarm is
activated.
Window position monitoring
The position sensors detect the size of the front window opening and
indicate whether the window is open to the specified work position,
closed (energy saving) or in an unsafe intermediate position.
Thermo Perform nce F ctor
The Thermo Performance actor (PER) is a value that indicates the
safety status of the cabinet. This value is calculated from data
determined by HEPA filter loading, airflow status and values captured
during certification. This data is entered into a parameter list of the
control software and interconnected. The result is indicated on the
display by LEDs.
On certification by qualified personnel with a new HEPA filter, the
performance factor of the unit is indicated by green-green LEDs. As the
unit ages with use, the colors change. Red-red is unacceptable and the
unit should not be used. Any questions as to the safety of the unit
should be resolved before use.
Safety Systems
(continued)

The filter system consists of two HEPA filters for downflow (supply) and
exhaust air.
Room air is drawn into the sample chamber through the work position
window opening. The room air is drawn into the negative pressure drain
pan air duct, then
pulled into the air
plenum in the top
portion of the cabinet.
The room air is mixed
with recirculating
HEPA filtered air from
the chamber, and
filtered proportionally
by the downflow and
exhaust filters. The
filtered air is then
supplied as ultra-pure
air into the sample
chamber of the unit,
and exhausted as ultra-
pure air into the room
environment, or into
an external exhaust
system via an exhaust
transition.
Sectional paper catch grids are installed beneath the work tray in the air
duct between the inner and outer back wall of the unit. These grids
prevent large items such as paper towels and tissues from entering the
plenum where they may impair the function of the blowers or the filters.
The grids can be easily removed for cleaning.
1-4 1300 Series A2 Thermo Scientific
Section 1
Description
HEPA Filters
Ultrapure air
Exhaust air filter
Exhaust blower
Supply blower
Supply filter
Ultrapure air
Downflow
in chamber
Blended air
Paper catch
screens
Room air
Figure 1-2. Airflow Filtering System
Paper Catch Grids

1300 Series A2 1-5Thermo Scientific
Section 1
Description
The control panel is located on the front of the cabinet and consists of
keys, status indicators and a numerical display.
The display with its 5-digit panel shows the following information,
regardless of the activated operating function:
• operating hours of the device
• downflow and inflow air velocities
• remaining time of the UV disinfection routine
The keys turn functions on or off.
Status indicators show:
• window work position
• airflow
• reduced blower speed
• Thermo Performance actor
Control Panel
Display On/Off
Hours/
Air velocities Light
On/Off
Outlets
On/Off
UV Light
On/Off Silence
Reduced
blower speed
Airflow
NOT
steady
(red)
Airflow
steady
green)
Window
NOT in
work
position
(red)
Window
in work
position
(green)
Red
Red
Yellow
Yellow
Green
Green
m/s
Figure 1-3. Control Panel

The sample chamber is accessible through various positions of the front
window. The working position of the window is a 250 mm opening. or
loading the chamber, the window opens fully. or decontamination and
energy saving, enter into Night-Set-Back mode by closing the window.
When the window is closed, the blower speed is reduced, minimizing
energy consumption and noise emittance without compromising
particulate containment inside the work chamber.
Note The working and loading window positions are indicated on the user
interface, as controlled by micro switches and displayed by status
indicators on the control panel. s
Use of the Window
1-6 1300 Series A2 Thermo Scientific
Section 1
Description
Window
Window
Pillar dress
panel
Opening height
for cleaning window
Pillar dress
panel
Closed position
Work
position
Max opening for
loading samples
1300 SERIES A2
1300 SERIES A2
Figure 1-4. Window Openings

To position the window at the operating height (250 mm opening), move
it to the area of the top ‘dimple’ ( ig. 1-5) and watch for the GREEN sash
position height indicator to illuminate ( ig. 1-6). If the window is moved
from the operating height, the sash height indicator will turn RED.
To place the window in the closed or reduced mode position, move it to
the area of the lower ‘dimple’ ( ig. 1-7) and watch for the BLUE reduced
mode indicator to illuminate ( ig. 1-8). If the window is not positioned
correctly, or is moved from the closed position, the BLUE indicator will
be extinguished. When the BLUE reduced mode indicator is not
illuminated, the unit will not operate in reduced mode, and the optional
UV light will not function.
1300 Series A2 1-7Thermo Scientific
Section 1
Description
Use of the Window
(continued)
Figure 1-5. 250mm Opening (Work Position) Figure 1-6. Lighted Green LED
Figure 1-7. Fully Closed Position (UV, if applicable) Figure 1-8. Lighted Blue LED
dimple
dimple

1-8 1300 Series A2 Thermo Scientific
Section 1
Description
Our patented-pending SmartClean™ window design easily lowers below
the work position for replacing the sample chamber light bulbs.
Caution If the front window jams or is sluggish to move, do not use force!
Contact your local distributor immediately. Do not attempt to repair this
problem. s
The standard unit includes accessory outlets, service valve access ports, an
RS-232 connection and a remote alarm connection.
The power cord to be connected to the power source is located on the
upper back of the cabinet.
The accessory outlets (max 5A) are located on the interior chamber back
wall.
On top of the cabinet are the two fuseholders for the 5A circuit breaker
fuses and an RS-232 connection (signal source, not customer interface).
Service valve access ports are located on each side of the cabinet. To use
these ports, remove the center perforation. Service valves are available as
optional accessories.
The remote alarm accessory can be used for external exhaust air system
controls, or a failure reporting system.
Warning If a gas burner is to be operated in the sample chamber, an
appropriate shut-off valve for the gas supply must be installed. Use only
laboratory safe burners in the sample chamber. s
Use of the Window
(continued)
Unit Interface

1300 Series A2 1-9Thermo Scientific
Section 1
Description
The Thermo Scientific 1300 Series A2 offers a bright workspace for a
more comfortable working environment. Models with coated rear and
side walls resist glare and make it easier for the user to work safely.
Lighting for the sample chamber includes two fluorescent bulbs. The
bulbs are installed behind the light canopy.
Service
valve
Access
ports
Power cord
RS-232
Fuses
N
L
Accessory outlet
(1 of 2 shown)
Figure 1-9. Interfaces (2 of the 4 access ports on this side are shown)
Chamber Lighting
Unit Interface
(continued)

1-10 1300 Series A2 Thermo Scientific
Section 1
Description
The optional, factory-
installed UV light is
installed at the top of the
front section of the sample
chamber.
The operating time of the
UV light is preset for 1
hour. The UV disinfection
procedure can be started by
pressing and holding the
“UV” key on the control
panel, with the window in
the closed position. If the
window is opened, the
procedure is immediately
cancelled.
Note To protect from UV radiation, the UV light can only be turned on
when the window is completely closed. s
The single piece work tray is provided with the cabinet. It is placed onto
the frame above the sample chamber drain pan. It can be removed by
lifting up, using the large holes in the work tray.
The working area for optimal product protection extends over the entire
width and depth of the work tray. The two optional armrests are
positioned in the center of the working area 200 mm from each other. To
attach the armrests, insert into the first perforated track of the work tray.
Warning Work safety is assured only if the armrests are used correctly! s
Work Area
UV Lights
UV light
Chamber light
Canopy

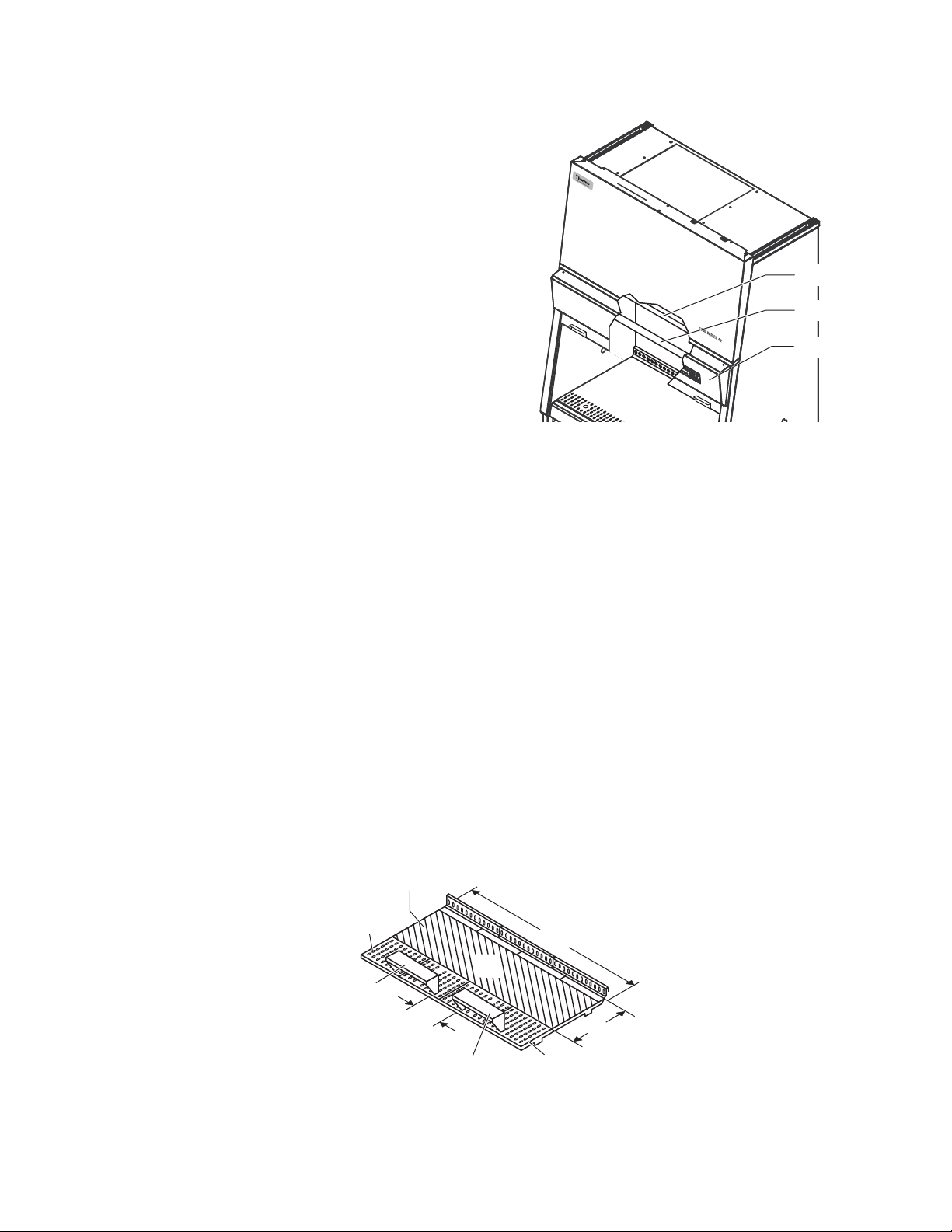

Figure 1-10. Lights
Width
Depth
Perforation
track
Armrest
Armrest
Separation
distance
Perforation
track
Work tray
Figure 1-11. Work tray

1300 Series A2 2-1Thermo Scientific
Section 2 Installation
The operational safety and proper function of the unit depend on the
location where it is to be operated. The cabinet should be operated only in
the ambient conditions listed below.
•Up to 2000 m above sea level.
•Power outlet accessible to authorized personnel only. Ideally, the outlet
should be installed above the biological safety cabinet. The power cord
is the mains disconnect.
•Location capable of supporting the weight of the device and non-
flammable.
•If the factory-approved stand is not purchased, the holding device must
be rated for twice the cabinet weight.
•Drain valve protrudes beneath the unit on the left side. Allow room for
this when placing unit on anything other than factory-approved stand.
•Adequate room height. or devices that are not connected to an
exhaust system, the distance between the exhaust air opening at the
device and the room ceiling must be at least 21.6 cm.
•Equipped with an appropriate ventilation system.
•Room temperature between 10°C and 40°C.
•Relative humidity must not exceed 80%, up to 31°C and decreasing
linearly to 50% at 40°C.
•or indoor use only.
Room ventilation should preferably be a ventilation system that complies
with the national requirements for the application.
The inlet air and exhaust air openings of the room ventilation must be
located so that drafts do not impair the function of the biological safety
cabinet air system.
When positioning the cabinet, make sure the counterweight on the back of
the unit can move freely. The minimal distance to the wall or adjacent
objects should be 8.0 cm, unless upper wall brackets are used.
Note or installation, location and space requirements of type A2, Class II
cabinets, refer to Annex A of YY0569-2005. s

The test conditions according to YY 0569-2005 were performed with the
standard version of the safety cabinet, without exhaust system accessories.
An available accessory for the biological safety cabinet exhaust system is an
exhaust thimble connection for the connection to an on-site exhaust
system with blower.
The exhaust system components are installed to the exhaust opening on
top of the cabinet. The threaded inserts for the retaining screws are
pre-installed in the unit. The gap on the exhaust transition should be
nominally set at 50 mm (2 in.).
Installation on a 1.2 m model:
1. Turn the unit off and disconnect it from the power source.
2. Thoroughly clean the surfaces around the exhaust opening and of the
accessory to be installed, to
ensure that they are free of debris.
3. Apply sealant to the contact
surfaces.
4. Secure the accessory by tightening
the supplied retaining screws
(M5) wrench-tight.
5. Using the adjustment nuts on the
sliding panel, set the gap height
to an opening of 2 inches.
6. Remove any excess sealant.
2-2 1300 Series A2 Thermo Scientific
Section 2
Installation
ptional Exhaust
Transition
Exhaust System
Accessories
Thimble
Retaining
screws
Exhaust
opening
Threaded
inserts
Figure 2-1. 1.2 m Thimble

The exhaust thimble connection is installed to the top of the cabinet using
an additional adapter. The threaded inserts for the retaining screws of the
adapter are pre-installed to the top of the cabinet.
Installation on a 1.8 m model:
1. Turn the unit off and disconnect it from the power source.
2. Clean the contact surfaces around the exhaust opening, and the upper
and lower contact surfaces of the adapter thoroughly to ensure that all
grease and dust residue are removed.
3. Secure the adapter to the pre-installed threaded inserts on top of the
cabinet using the supplied four retaining screws. Tighten the screws
hand-tight.
4. Secure the accessory by tightening the supplied retaining screws (M5)
wrench-tight.
5. Using the adjustment nuts on
the sliding panel, set the gap
height to an opening of
2 inches.
1. Place the connecting sleeve
onto the connecting opening
of the accessory and secure it
with the screws.
2. it the connecting pipe
(200 mm) of the on-site
exhaust air system to the
connecting sleeve and seal
with sealant.
3. Seal the unused connecting
opening with the cover. Apply
sealant to the cover, place the
cover onto the connecting
opening at the housing and
secure it with the screws.
1300 Series A2 2-3Thermo Scientific
Section 2
Installation
Connecting Sleeve
Exhaust System
Accessories (continued)
Thimble
Retaining
screws
Exhaust
opening
Threaded
inserts
Pipe
Sleeve
Cover
Sleeve
Opening
Adapter
Figure 2-2. 1.8 m Thimble and Sleeve
