TIMEX®WATCHES
Congratulations on purchasing your TIMEX®
watch. Please read these instructions carefully to
understand how to operate your Timex timepiece.
Your watch may not have all of the features
described in this booklet.
For more information, please visit:
Timex.com
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page ENii

TABLE OF CONTENTS
2How to Start Your Watch
3Water and Shock Resistance
4Indiglo®Night-Light
5Analog/Digital Models
18 Multi-Function Models
20 Day/Date/AM/PM/Sun/Moon Models
22 Chronograph Models
39 Elapsed Time Ring
40 Tachymeter Ring
41 Compass Ring
42 How to Adjust Bracelet
44 Bracelet Link Removal
45 Battery
46 Warranty
ENGLISH
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page ENiv

WATER AND SHOCK RESISTANCE
If your watch is water-resistant, meter marking
(WR_M) is indicated.
*pounds per square inch absolute
WARNING: TO MAINTAIN WATER-RESISTANCE,
DO NOT PRESS ANY BUTTONS OR PULL OUT
THE CROWN UNDER WATER UNLESS YOUR
WATCH IS INDICATED AS 200 METER WATER-
RESISTANT.
1. Watch is water-resistant only as long as crystal,
crown and case remain intact.
3
ENGLISH

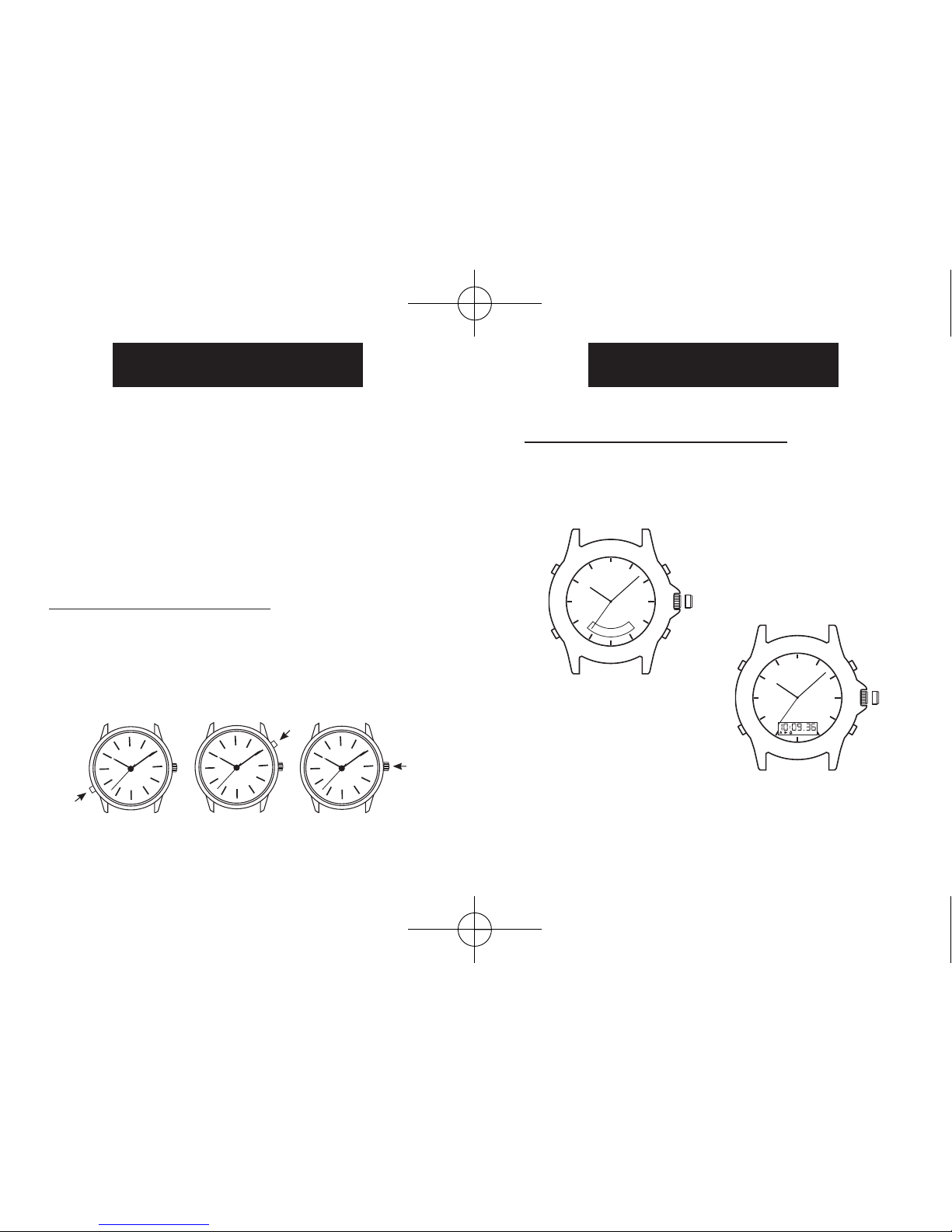

HOW TO START YOUR WATCH
To start your watch remove the plastic guard from
under the crown, then press the crown in against the
case. The second hand will begin advancing in one-
second intervals.
Some deep-depth water-resistant watches require
the setting crown to be screwed in to secure water-
resistance. If your watch case has a protrusion with
screw threads, the crown must be screwed in after
setting the watch.
To screw in, push the crown firmly against the
threaded protrusion and hold in while turning the
crown clockwise. Continue to screw in the crown
until it is tight. You will need to unscrew the crown
(counter-clockwise) before pulling it out the next time
you want to set your watch.
2
ENGLISH
Water-Resistance Depth p.s.i.a. * Water pressure
Below Surface
30m/98ft 60
50m/164ft 86
100m/328ft 160
200m/656ft 284
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 2

ANALOG/DIGITAL MODELS
4-PUSHER ANALOG/DIGITAL MODEL WITH
INDIGLO®NIGHT-LIGHT & NIGHT-MODE®
FEATURE
5
ENGLISH
2. Watch is not a diver watch and should not be
used for diving.
3. Rinse watch with fresh water after exposure to
salt water.
4. Shock-resistance will be indicated on the watch
face or caseback. Watches are designed to pass
ISO test for shock-resistance. However, care
should be taken to avoid damaging the crystal.
INDIGLO®NIGHT-LIGHT
Press button or crown to activate light.
Electrolumines-
cent technology used in the INDIGLO®night-light
illuminates entire watch face at night and in low light
conditions.
4

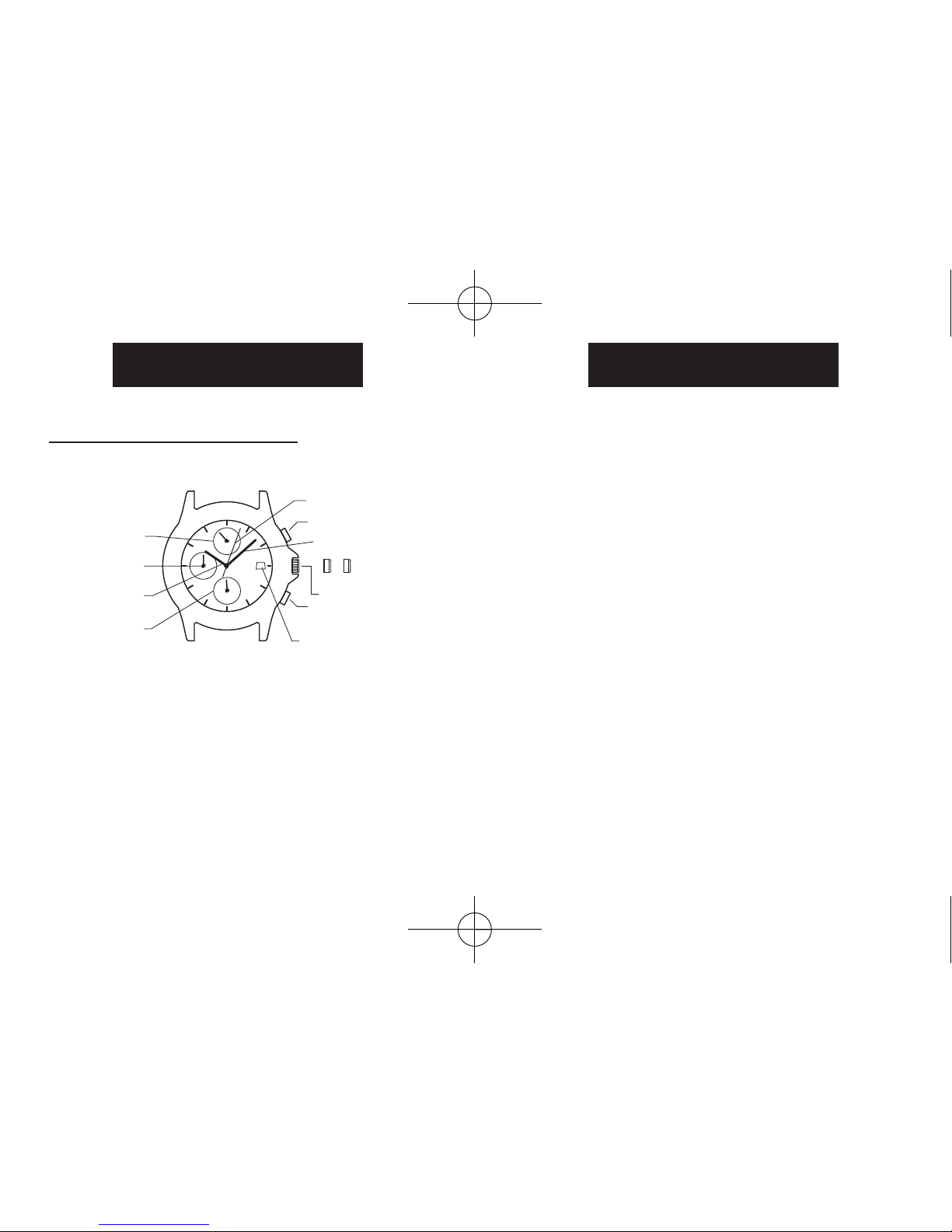

ENGLISH
“B” PUSHER
“C”
CROWN
POSITION
PUSHER
“D”
A B
PUSHER
“B”
PUSHER
“A ”
PUSHER
“C”
CROWN
POSITION
PUSHER
“D”
A B
PUSHER
PUSHER
“A”
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 4

DIGITAL DISPLAY
1) The Digital display changes to each function every
time you PRESS pusher “A”. (As illustrated below):
TIME / CALENDAR
DAILY ALARM
COUNTDOWN TIMER
CHRONOGRAPH
DUAL TIME
7
ENGLISH
TO USE INDIGLO®NIGHT-LIGHT
1) PRESS pusher “B” to illuminate the entire dial
(Both analog and digital).
TO USE NIGHT-MODE®FEATURE
1) PRESS and HOLD pusher “B” for 3 seconds until
you hear a beep.
2) Pressing any pusher will cause the INDIGLO®
night-light to illuminate and stay on for 3 seconds.
3) NIGHT-MODE®feature will last for 3 hours.
4) To deactivate NIGHT-MODE®feature PRESS and
HOLD pusher “B” for 3 seconds.
ANALOG TIME
TO SET ANALOG TIME
1) PULL the crown out to the “B” position.
2) TURN the crown either way to the correct time.
3) PUSH in the crown to the “A” position.
6
ENGLISH
START
Press and release MODE
button once.
DUAL TIME CHRONOGRAPH
COUNTDOWN
TIME/
CALENDAR
DAILY
ALARM TIMER
CALENDAR
HOUR MINUTE SECOND MONTH DATE DAY
Press and release MODE
button once.
Press and release MODE
button once.
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 6

• To view or change the display to TIME, repeat the
steps above.
NOTE: “A” or “P” will appear when the 12-Hour
format is selected.
• Set this time to coordinate with the Analog time
or another time zone.
• PRESS and HOLD pusher “C” for 2 seconds in
setting mode, to activate fast advance.
9
ENGLISH
TO SET TIME / CALENDAR
1) PRESS pusher “A” to bring up TIME / CALENDAR
display.
2) PRESS and HOLD pusher “D”. HOLD will display
until second flashes.
3) PRESS pusher “C” to reset to second to “00”.
4) PRESS pusher “A” to let hour flash.
5) PRESS pusher “C” to advance hour.
6) PRESS pusher “A” and “C” as above to adjust tens
of minutes, minute, year, month, date, day and
12/24 hour format.
7) PRESS pusher “D” to complete setting.
8) View or select the TIME or CALENDAR to appear
in your digital display.
• PRESS pusher “C” to view the CALENDAR for 2
seconds.
• PRESS and HOLD pusher “C” for 3 seconds until
the watch beeps to change the display to
CALENDAR.
8
ENGLISH
W223_Analog2_NA_EN.qxd 6/9/09 9:02 AM Page 8

NOTE:
• When the alarm sounds, it will beep for 20
seconds.
• To stop the alarm beep, PRESS any pusher.
• PRESS and HOLD pusher “C” for 2 seconds in
setting mode, to activate fast advance.
11
ENGLISH

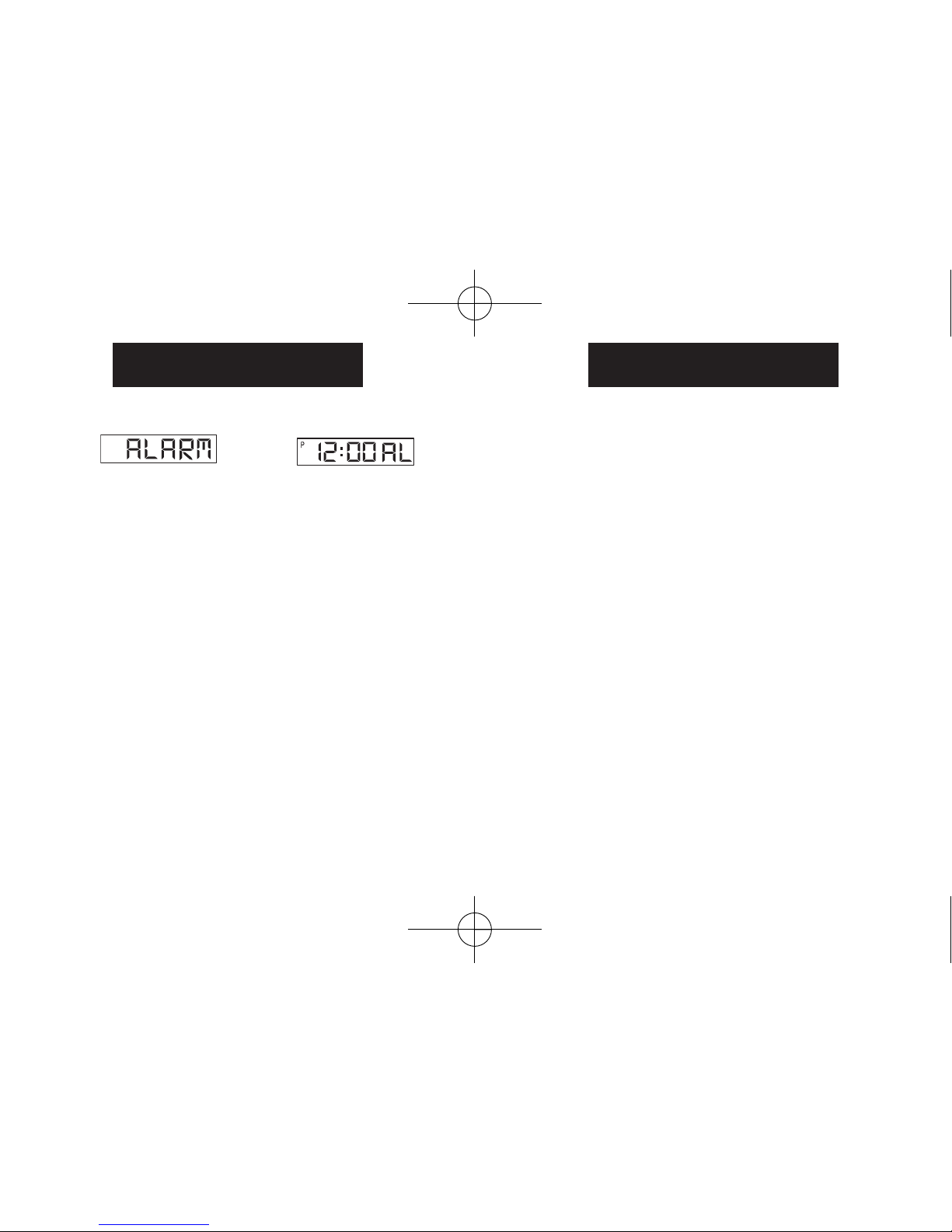

TO SET DAILY ALARM
1) PRESS pusher “A” to bring up DAILY ALARM dis-
play: “ALARM” will appear for 3 seconds followed
by the current alarm setting time and time zone.
The ALARM mode symbol “AL” and the applicable
time zone symbol “T1” or “T2” alternate to give
complete information.
2) PRESS pusher “D” to let time zone flash.
3) PRESS pusher “C” to select time zone.
4) PRESS pusher “A” to let hour flash.
5) PRESS pusher “C” to advance hour.
6) PRESS pusher “A” and “C” as above to adjust tens
of minutes and minute.
7) PRESS pusher “D” to complete setting.
8) Alarm is automatically activated after setting
Sis displayed.
10
ENGLISH
FOLLOWED BY
THE CURRENT
ALARM SETTING
TIME AND TIME
ZONE.
WILL
APPEAR
FOR 3
SECONDS
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 10

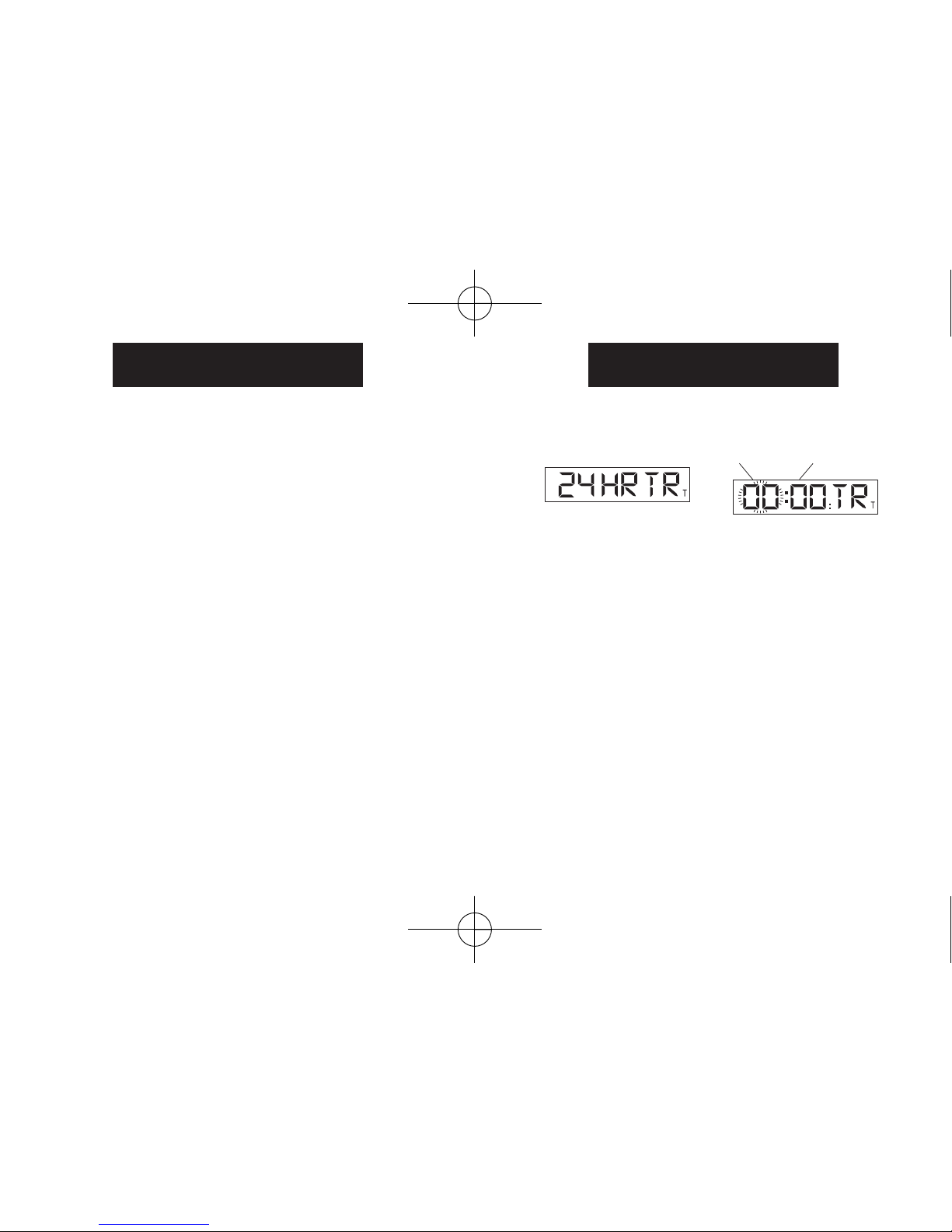

TO USE COUNTDOWN TIMER
1) PRESS pusher “A” to bring up COUNTDOWN TIMER
display. “24 HR TR” will appear.
2) PRESS pusher “D” to let hour flash.
3) PRESS pusher “C” to advance hour.
4) PRESS pusher “A” to set tens of minutes.
5) PRESS pusher “C” to advance tens of minutes.
6) PRESS pusher “A” and “C” as above to adjust
minute.
7) PRESS pusher “D” to complete setting.
8) PRESS pusher “C” to start the timer.
9) PRESS pusher “D” to stop the timer.
10) PRESS pusher “D” again to resume timer to the
preset time.
13
ENGLISH
TO SET DAILY ALARM OR CHIME ON/OFF
1) PRESS pusher “A” to bring up DAILY ALARM
display.
2) PRESS pusher “C” to activate or deactivate daily
alarm and chime accordingly.
NOTE:
•aor Cwill appear or disappear according to daily
alarm activation or deactivation.
•Nor Bwill appear or disappear according to
chime activation or deactivation.
• The alarm coordinates with the digital time not
analog time.
• The alarm will sound only if the digital time zone
(T1 or T2) selected in the Alarm set mode is
currently displayed, as confirmed by the alarm
symbol aor C.
12
ENGLISH

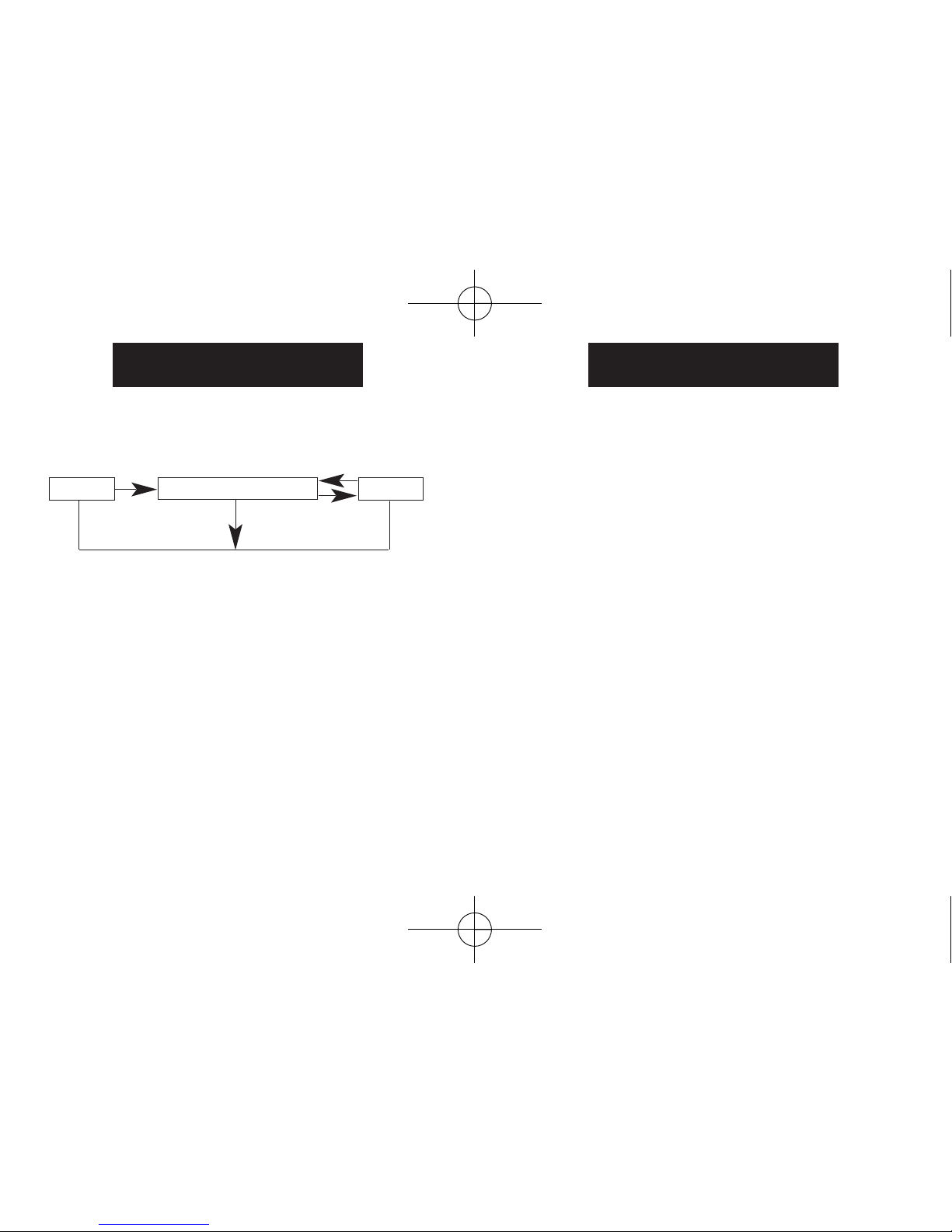

SETTING MODE
HOUR MINUTE
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 12
