Tiso CENTURION-M TWIN User manual

“TiSO-PRODUCTION” LTD
SERVO-OPERATED TRIPOD TURNSTILE
CENTURION-M TWIN
BASTION-M TWIN
TWIX-M TWIN
OPERATION MANUAL
2019

2
CONTENTS
INTRODUCTION.........................................................................................................................................3
WARNINGS TO THE CUSTOMER ...........................................................................................................4
ON SAFE OPERATION OF THE TURNSTILE.........................................................................................4
1. DESCRIPTION AND OPERATION........................................................................................................5
1.1. General Information and Purpose..............................................................................................5
1.2 Specifications...................................................................................................................................6
1.3 Configuration and Scope of Delivery ..............................................................................................6
1.4 Design and operation ......................................................................................................................9
1.5 Instrumentation, tools and accessories...........................................................................................12
1.6 Description and operation of controllers as components of the turnstile.......................................13
2 INTENDED USE.....................................................................................................................................22
2.1 Operation limitations .....................................................................................................................22
2.2 Layout and installation...................................................................................................................22
2.3 Preparation for use.........................................................................................................................28
2.4 Contingency actions.......................................................................................................................29
3 MAINTENANCE ....................................................................................................................................29
3.1 General guidelines .........................................................................................................................29
3.2 Safety Measures............................................................................................................................30
3.3 Maintenance procedure.................................................................................................................30
4 ROUTINE MAINTENANCE..................................................................................................................31
4.1 General guidelines ........................................................................................................................31
4.2 Possible malfunctions ....................................................................................................................31
4.3 Post repair checkout.......................................................................................................................33
5 TRANSPORTATION AND STORAGE.................................................................................................33
5.1 Turnstile storage.............................................................................................................................33
5.2 Turnstile transportation..................................................................................................................33
6 DISPOSAL...............................................................................................................................................34
7 MANUFACTURER'S WARRANTY AND TERMS OF WARRANTY MEAINTENANCE...............34
Annex А Design, overall and installation dimensions of the " СENTURION-М TWIN " type turnstile...36
Continued Annex А Design, overall and installation dimensions of the turnstile «BASTION-M TWIN»
.....................................................................................................................................................................37
Continued Annex А Design, overall and installation dimensions of the turnstile «TWIX-M TWIN».......38
Annex B Control panel and connection diagram ........................................................................................39
Annex C Servo-operated tripod turnstile wiring diagram...........................................................................41
Annex D.1 Wiring diagram of the turnstile connection to access control system (ACS) in pulse mode....42
Annex D.2 Wiring diagram of the turnstile connection to access control system (ACS) in hold mode.....43
Annex D.3 Wiring diagram of the turnstile connection to fire alarm system (FAS) ..................................44
Annex D.4 Wiring diagram of the turnstile connection to fire alarm system (FAS) ..................................45
Annex D.5 Wiring diagram of the turnstile connection to control panel....................................................46

3
INTRODUCTION
This Operation Manual (hereinafter referred to as OM) covers the servo-operated
turnstile (hereinafter referred to as the "turnstile"). The Operation Manual contains information
about design, specifications, installation for proper operation and maintenance of the turnstile.
This Operation Manual is prepared in compliance with the specification requirements ТУ
У 28.9-32421280-005:2018.
The turnstile shall be serviced only by the qualified staff having the relevant class of
permit to work with electrical facilities with voltage up to 1000 V and scrutinizing this Operation
Manual, obtaining safety instructions and trained for operation and maintenance of the turnstile.
Reliability and durability of the turnstile operation is provided with observation of modes
and conditions of transportation, storage, installation and operation. So, fulfillment of all
requirements specified in this document is mandatory.
Due to regular improvement of the product its design can be modified without
degradation of the product features and quality not covered by this Operation Manual.
Depending on the turnstile purpose and design features, the following pattern of reference
designation is accepted:
T3. XXX. X X. X
турникет полуростовой
Т3
1
Single
2
Double -
TCC
Servo-operated
О
without antipanic device
solid body tripod
Е
with mechanical antipanic
device
(3 barrier rods)
М
with electromechanical
antipanic device
TCY
Servo-operated
one-piece elongated body
tripod (3 barrier rods)
S
Brushed stainless steel
P
Polished stainless steel
K
Painted body
TCG
Servo-operated
head body tripod
(3 barrier rods)
TYK
Servo-operated
corner body tripod
(3 barrier rods)
The tripod type turnstile reference designation is given in Table 1.
Table 1
Name
Code
Designation
CENTURION-М TWIN
T3.TCC.ХE.2
AUIA.095-10-X2 OM
BASTION-М TWIN
T3.TCY.ХE.2
AUIA.097-10- X2 OM
TWIX-М TWIN
T3.TYK.ХE.2
AUIA.137-10-X2 OM
Example of reference designation of the servo-operated turnstile with solid body of
brushed stainless steel when the turnstile T3.ТСC.SE.2 ТY Y 31.6-32421280-005:2018 is
ordered

4
WARNINGS TO THE CUSTOMER
ON SAFE OPERATION OF THE TURNSTILE
These warnings are designed for ensuring of safety during operation of the turnstile to
prevent violation of safety characteristics by improper installation or operation. These warnings
are aimed at drawing attention of the customer to safety problems.
GENERAL WARNINGS
The Operation Manual is an integral part of the product and it shall be handed over to the
customer. The OM shall be kept for future use and consulted for clarifications if required. If the
turnstile is resold, handed over to another owner or transported to another place, make sure that
the OM is enclosed to the turnstile to be used by new owner and/or maintenance staff during
installation and/or operation.
Safety measures and requirements specified in this OM must be observed:
−the turnstile must be connected to ground loop prior to operation;
–the turnstile to be connected to AC network with parameters specified in paragraph 1.2
"Specifications";
–inspection, adjustment and repair should be performed only after the turnstile is
deenergized.
After purchasing of the turnstile it should be unpacked and its integrity should be checked.
In case of doubt in integrity of the turnstile it should not be used and the customer should refer to
the supplier or to the manufacturer.
Packing accessories (wooden pallet, nails, clips, polyethylene bags, cardboard etc.) as
potential sources of hazard must be removed to unacceptable place prior to proper use of the
turnstile.
As electric shock protection device the turnstile is related to 01 protection class according
to GOST (State Standard) 12.2.007.0-75 and is not intended for operation in explosive and fire-
hazardous areas by the "Rules for design of electrical installations". Using of the turnstile for
unintended purpose, improper installation, nonobservance of conditions of transportation,
storage, installation and operation, specified by this OM, may result in damage to people,
animals or property for which the manufacturer is not responsible.

5
1. DESCRIPTION AND OPERATION
1.1. General Information and Purpose.
1.1.1 Turnstile purpose:
The turnstile is designed for arrangement of individual pedestrian access at access points of
industrial enterprises, banks, stadiums, administrative facilities etc. driven by control signals of
access control system (from keypad, proximity card readers) or manually (from wire control
panel).
The turnstile traffic flow capacity without personal identification is at least 25 persons per
minute.
1.1.2 The turnstile dimensions and weight correspond to the values specified in Table 2.
Table 2
Designation of
modification
Dimensions, mm
Pedestal size,
(LxW)mm
Maximum
weight, kg
Н
L
В
T3.TCC.XE.2
1000
793
1580
324х550
50*
T3.TCY.ХE.2
1000
793
1530
524х500
55*
T3.TYK.ХE.2
1000
1000
1520
1004х490
84*
1.1.3 The operation condition parameters according to GOST 15150-69 are specified in
Table 3.
Table 3
Operation conditions
For climatic
modification
Parameter value
Ambient temperature
NF4
+1°С to +40°С
Relative humidity
80 % at 20 ºС
Ambient temperature allowable
pressure
84 to 106,7kPa
Transportation temperature range
- 40°С to + 50°С
Storage temperature range
+ 5°С to + 40°С
Group of mechanical application
L3
Altitude above sea level
up to 2000 m
Environment
Explosion-proof, does not contain
current-conducting dust, aggressive
gases and vapours in concentration
destroying isolation and metals,
disturbing normal operation of the
equipment installed in turnstiles
Installation site
In enclosed spaces in the absence of
direct impact of precipitations and
solar radiation
Operating position
Vertical, deviation from vertical
position no more than 1º to any side
is tolerated

6
Fig.1. –Tripod turnstile scope of delivery
1.1.4 Reliability indices:
mean time to repair (without delivery time of spare parts, tools and accessories) – at
most 6 hours;
mean time to failure – at least 1 500 000 accesses;
mean service life between overhauls – at least 10 years
1.2 Specifications
Key parameters of the turnstile are specified in Table 4 Table 4
Parameter name
Measurement
units
Parameter value
Throughput in a single pass mode,
not less than
person./min.
25
Aisle width, no more than
mm
600
Power supply voltage:
- AC mains (primary)
- DC power supply (secondary)
V
Hz
100 240
~ 50/60
V
12
Consumed power, no more than
W
110*
Degree of protection according to EN 60529
- for outdoor* turnstile
- for an internal turnstile
–
IP54*
IP41
*Is not included in the turnstile scope of delivery - to be equipped by the customer, if appropriate
1.3 Configuration and Scope of Delivery
1.3.1 The servo-
operated waist-high turnstile
design includes the following
key devices and components:
Design, overall and
installation dimensions of the
turnstile are shown in Annex
А.
The turnstile
modifications are
manufactured from:
– polished stainless steel
(reference designation
T3.TCC.PE.X).
– brushed stainless steel
(reference designation
T3.TCC.SE.X).
– carbon steel painted in
any colour according to RAL
(reference designation

7
T3.TCC.КE.X); The turnstile basic modification is made of brushed stainless steel

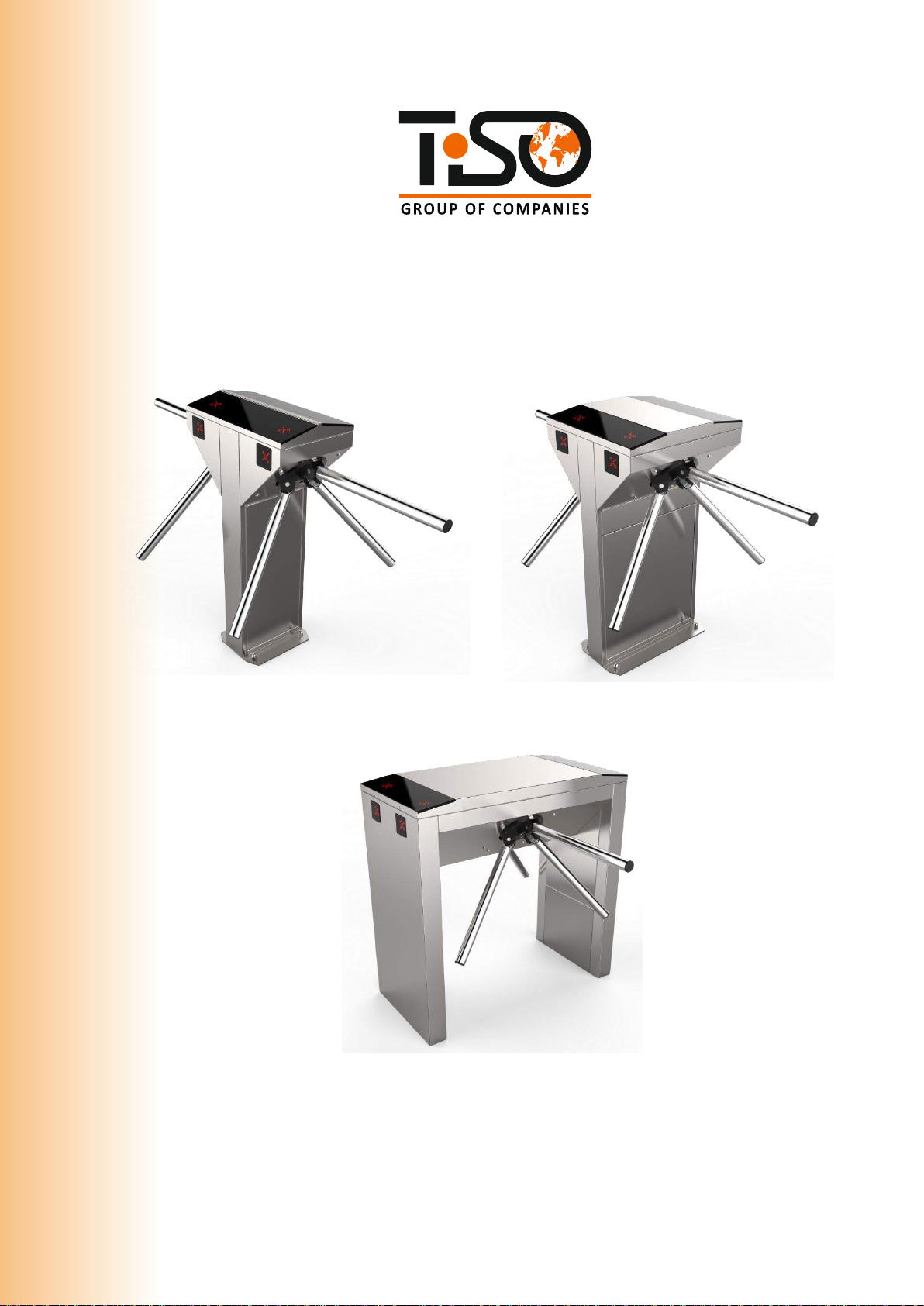

Fig. 2 – Turnstile general appearance
1.3.2 Turnstile scope of delivery (standard):
Tripod turnstile
Control panel
Anchors (6 pcs./ 4 pcs.)
Data sheet
CENTURION-M TWIN BASTION-M TWIN

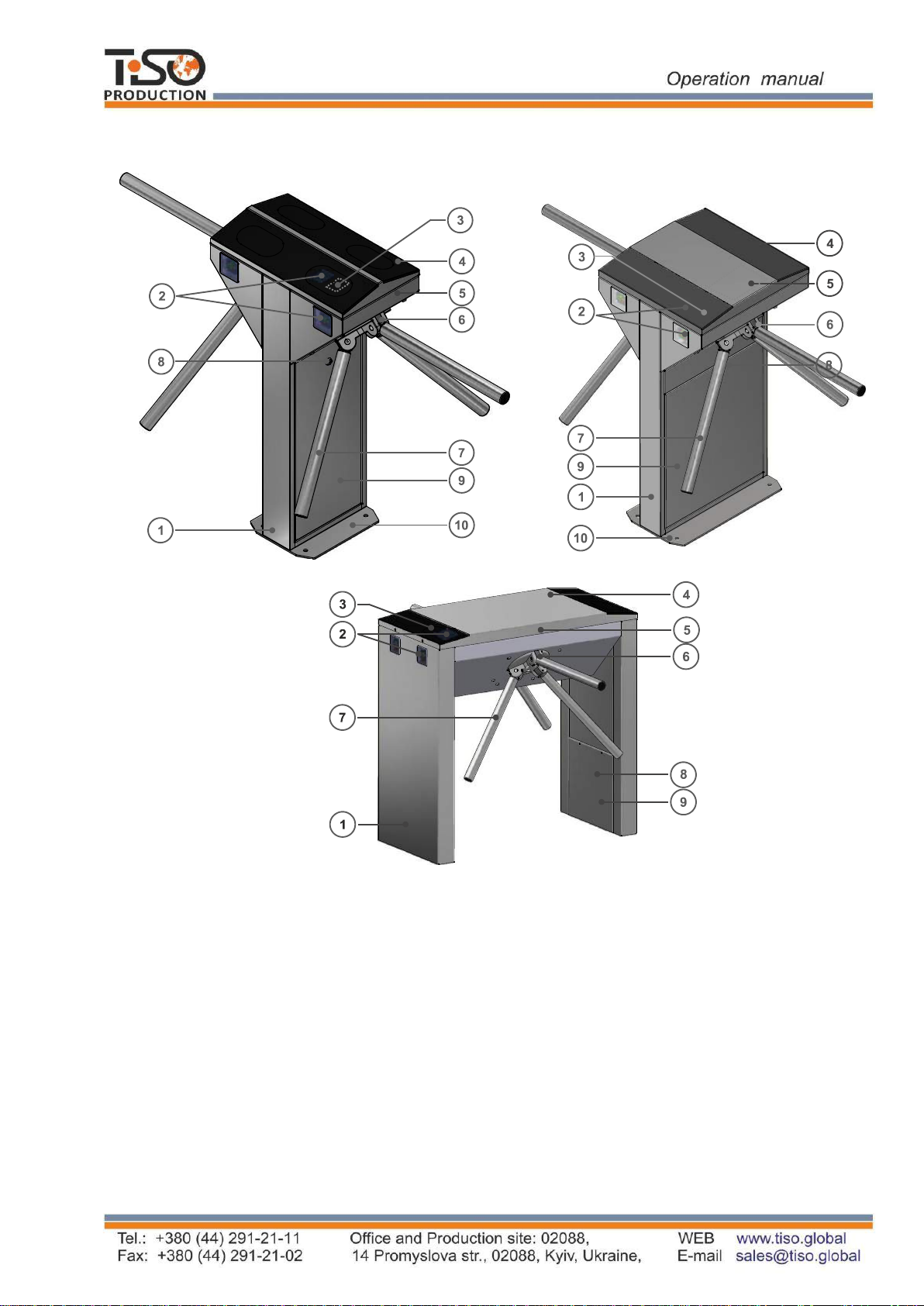

1 - turnstile rack;
2 - LED display;
3 - card reader location;
4 - upper lid;
5 - control mechanism;
6 - hub;
7 - barrier rod;
8 - lock door;
9 - control panel;
10 - footing.
TWIX-M TWIN

8
Battery (capacity 4 Ah)
1
.
For convenience of delivery the turnstile is supplied ready-to-install with dismounted
barrier rods. (fig.2).

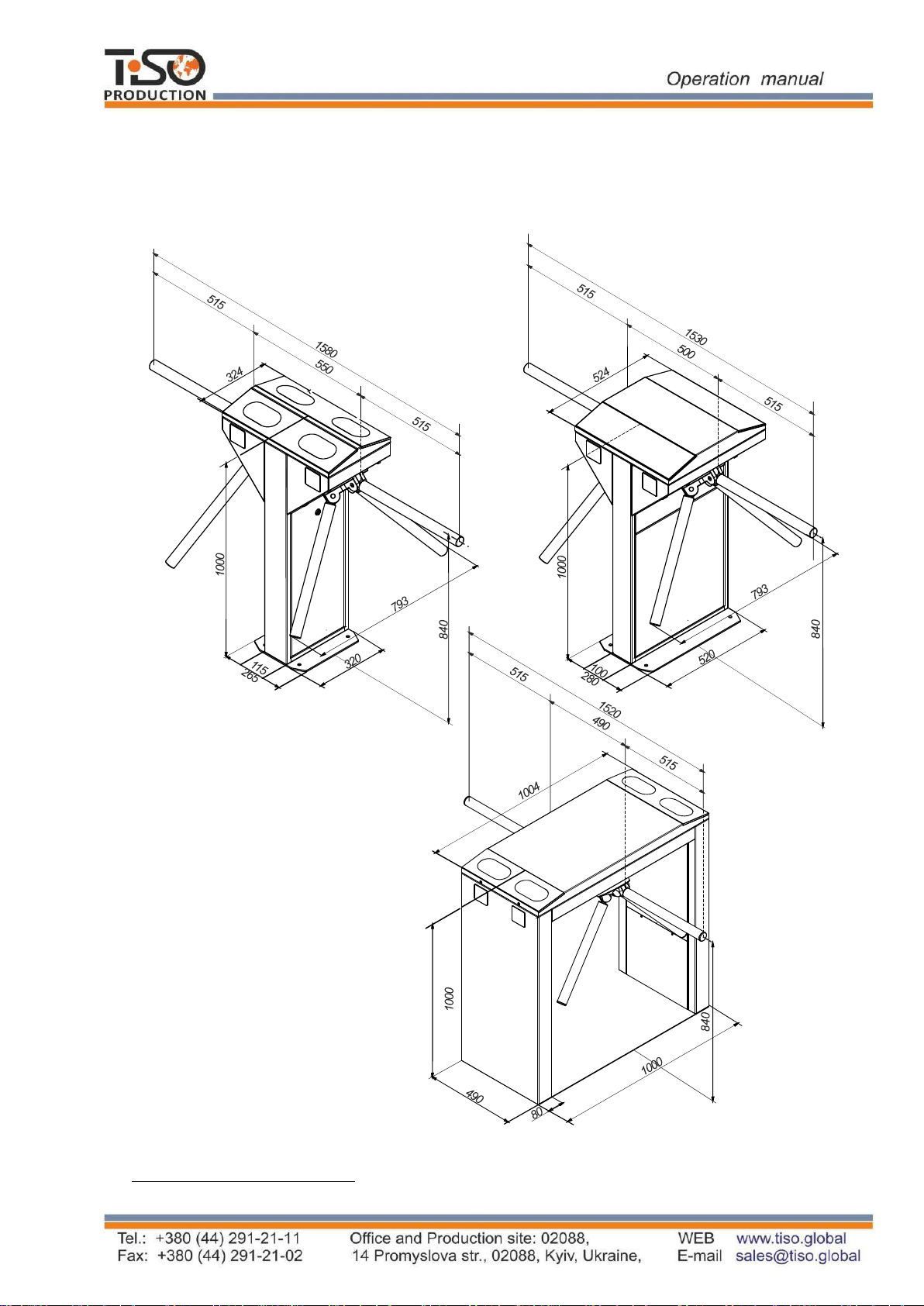

1.3.3 The turnstile design, overall and installation dimensions (Fig.3)
Fig. 3 - Tripod turnstile dimensions
1
Is not included in the turnstile scope of delivery - to be equipped by the customer, if appropriate

9
1.4 Design and operation
1.4.1 Turnstile design
1.4.1.1 The turnstile body is a metal ware, which footing 10 (See Fig.1) is installed on an
even surface by means of Redibolt anchors. The turnstile status is displayed by LED display
boards 2, built in the turnstile body. The turnstile initial state is indicated by constantly lit red
LED (See Fig.4): the turnstile access is locked in both directions.

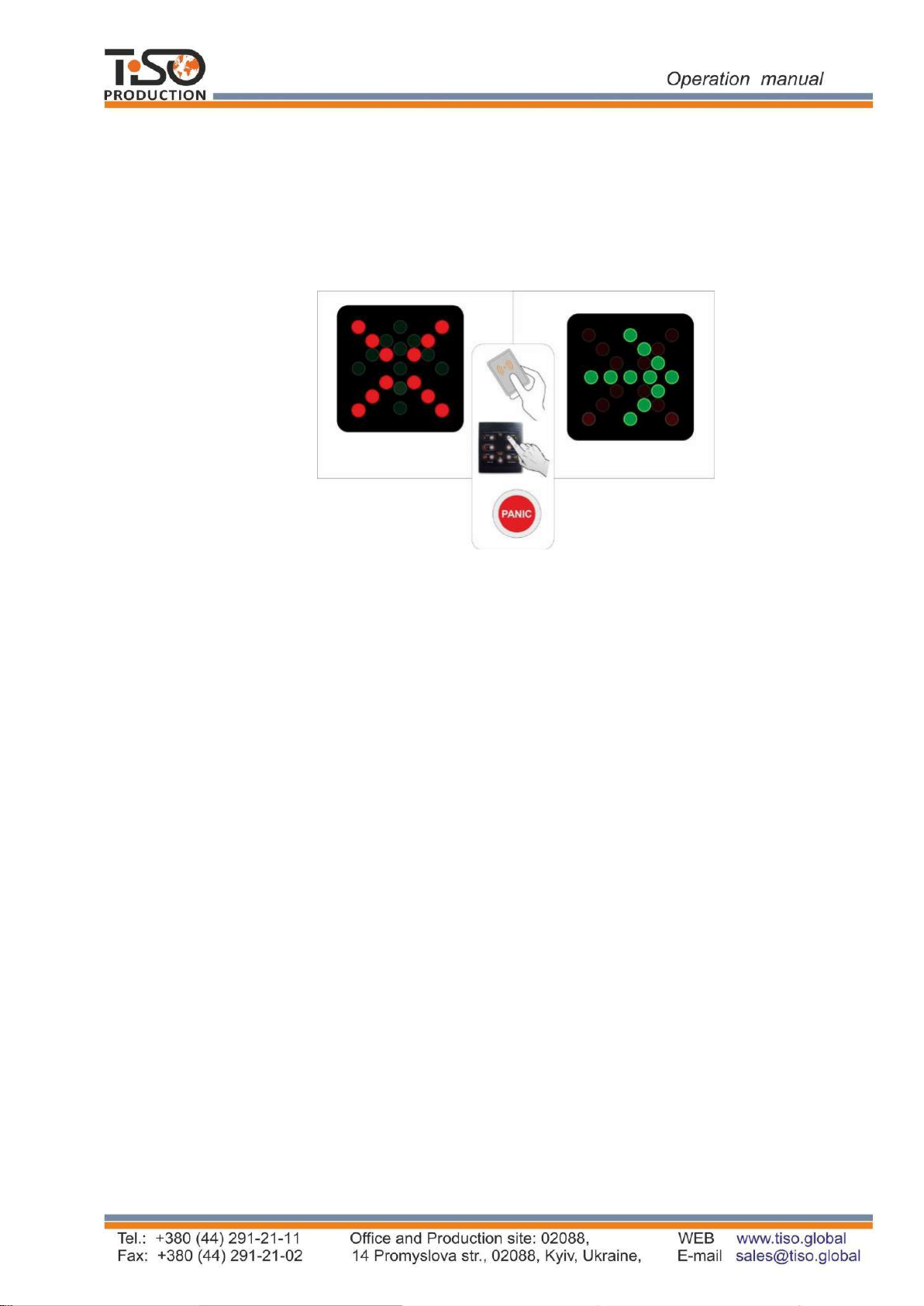

Fig. 4 - Turnstile status LED display
1.4.1.2 The control mechanism 5 (See Fig.1) is installed at the top of the body. The hub 6
with barrier rods 7, securely fixed to its levers by crimping method, is installed on the control
mechanism shaft. One of three barrier rods is positioned horizontally barring the turnstile access.
1.4.1.3 The plates, on which power supply unit, controllers, terminal blocks for connection
to 230 V network and control panel are mounted, are fixed inside the turnstile post 1 (See Fig.1)
under the removable door 8 (for the turnstiles CENTURION-M TWIN and BASTION-M TWIN)
or removable lid 4 (for the turnstiles TWIX-M TWIN). Controller controls the turnstile motor
analyzing signals from speed and position sensors as well as provides the motor protection
against overloads. Receiving control commands from peripherals (control panel, ACS etc.) the
controller controls LED displays and generates feedback signals for ACS (Access Control
System)
1.4.1.4 The external control panel (See Annex B) has the following functions: single entry
access, single exit access; entry locking, exit locking; free entry access, free exit access, panic.

10
1.4.1.3 The tripod turnstile control mechanism design is shown in Figure 5.
1 –gear motor;
6 –hub shaft;;
2 –position sensor;
7 –mechanism body;
3 –antipanic device;
8 –hub with barrier rods;
4 –locking solenoid;
9 –stop catches;
5 –driving belt;
10 –mechanism connectors;
Fig. 5 –Turnstile actuating mechanism
1.4.3 Turnstile principle of operation
1.4.3.1 Turnstile operation modes:
1) single access in the direction “A” or “B”;
2) locking;

11
3) free access in the direction “A” or “B”;
4) "PANIC" mode;
1.4.3.2 In the initial state, when the turnstile is deenergized, barrier rods are locked from
rotation and access is barred.
1.4.3.3 Green arrow in the intended direction is lit on LED display and barrier rods are
unlocked when access permission command in the direction “A” or “B” comes to controller.
Servomotor is actuated and turns barrier rods in the appropriate direction when a barrier rod is
manually gently pushed in the intended direction. After the turnstile pedestrian access barrier
rods continue to smoothly turn forward (turn additionally) gradually slowing down and when
the relevant angle is reached they are locked by means of two stop catches of the actuating
mechanism.
The mechanism powerful controllable ratchet system does not allow to return a barrier rod
in the opposite direction (against the movement in which the access was started) after rotation to
30 º, 60 º, 90 º, 120º.
In case of need for emergency human evacuation from building rooms, the turnstile goes to
"PANIC" mode and provides free access in both directions by means of antipanic device. The
antipanic device (See Fig. 6) is automatically activated when the turnstile is deenergized
(Failsafe), and in this case a barrier rod can't be returned to its initial position during the active
panic mode.
Barrier rod is dropped and access way is cleared when the "PANIC" button is pushed on
control panel and hold for more than 7 seconds or when signal is sent to the relevant input (in1)
of the turnstile controller.

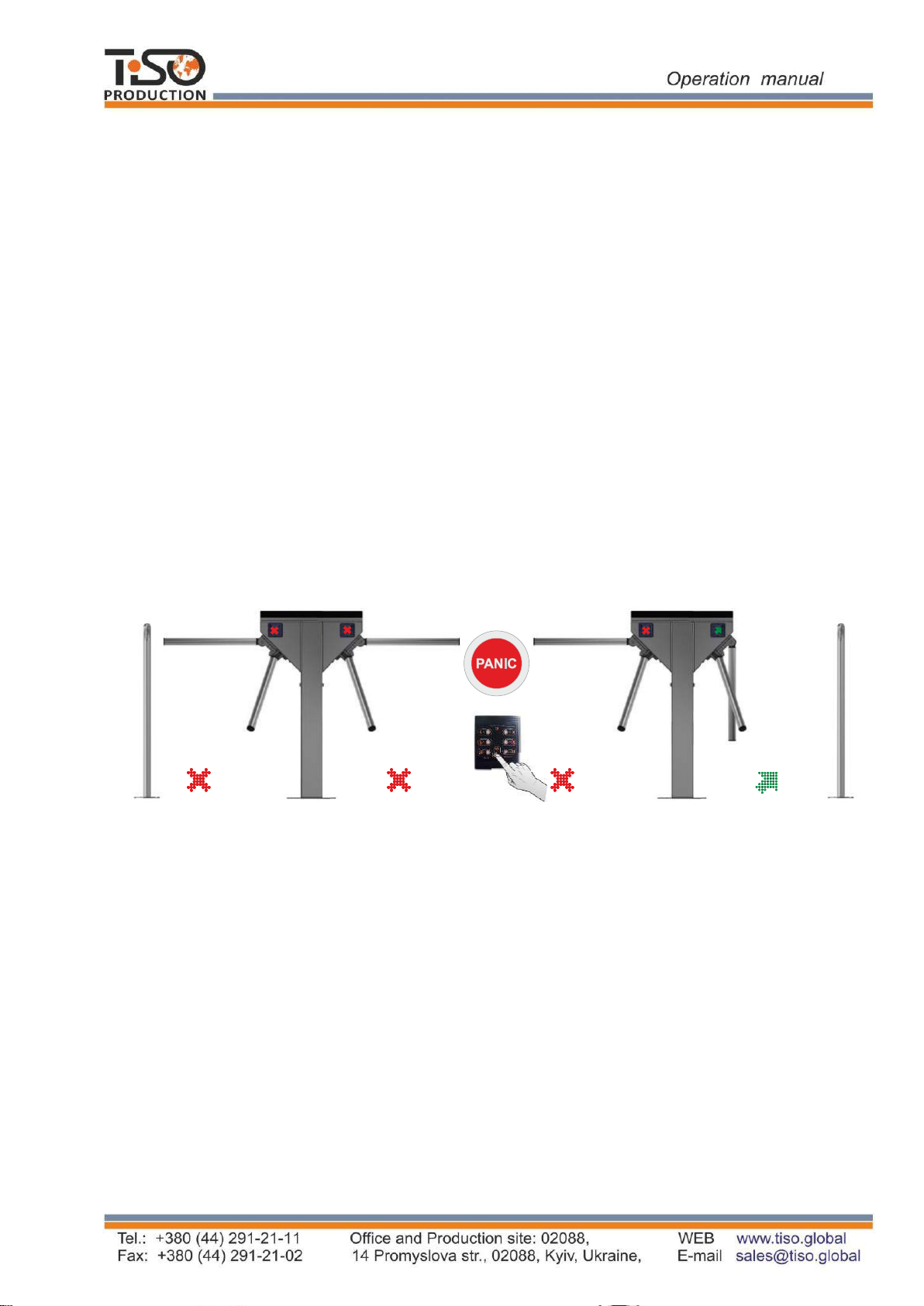

А) "Standby" mode B) "Panic" mode
Fig.6 –Turnstile operation in "PANIC" mode
After the signal is deactivated from the input (in1) or deactivation of the panic mode from
control panel, a barrier rod is automatically reset to its initial position.
Before turning on the power and turning off the panic, you need to manually check the
verticality of the barrier rod (if necessary, lower the leash manually to the stop). After full
recovery - check the blocking of all three barrier rods.

12
Fig.8- Tools and accessories for installation
а) The positions of the rod in the b) The positions of the restored rod
"PANIC" mode before restoring in the "Standby"mode
Fig.7 - Deactivation of the "PANICA" mode and restoration of the leash to the starting
position
More detailed description of the turnstile operation modes is given in section 1.8
"Description and operation of controller as a component of the turnstile”».
1.4.3.4 The turnstile 12V DC power voltage is provided by power supply unit.
1.4.3.5 The turnstile wiring diagram is shown in Annex C.
1.5 Instrumentation, tools and accessories
Dedicated tools are not required for installation of the turnstile (multi-purpose
measurement instrumentation and installation tools are sufficient (See Fig. 8).
puncher;
 concrete drills (according to diameter of anchors included in the turnstile scope of
delivery);
extension cord;
kit of end and pin
wrenches;
kit of hexagons;
kit of screwdrivers;
hammer;
multimeter (tester);
measuring tape
marker;
pliers, side cutters;
builder's level.

13
1.6 Description and operation of controllers as components of the turnstile
1.6.1 Motorized mechanism controller РСВ.201.01.00.00
The controller is designed for acquisition of commands from external control devices
(control panel, access control system etc.) and generation of control signals for swing gate
motorized mechanism
1.6.1.1 The controller is assembled on the (85 х 70mm) board, on which electronic
components and connectors for external connections are mounted.
13 LEDs are installed on the controller board. Their purpose is as follows:.
•8 LEDs indicate condition of inputs «IN1»  «IN8».
•«POWER» LED indicates availability of supply voltage 5V;
•4 LEDs indicate condition of outputs for motor connection.
24 terminals are installed on board: 2 of them are designed for external connections, the
rest are designed for connection to the turnstile units or are standby.
1.6.1.2 The controller technical features are shown in Table 5.
Table 5
Parameter description
Parameter value
1
2
Number of inputs
2
Number of outputs
4
Type of input
logical
Type of output «GRN1», «RED1», «GRN2», «RED2»
open collector
Logical «1» voltage
(3,7  5) V
Logical «0» voltage
(0  1,7) V
Peak voltage applied to inputs «IN1»÷« IN8»
15 V
Peak voltage switched by outputs «GRN1», «RED1», «GRN2»,
«RED2»
30 В
Peak current switched by outputs «GRN1», «RED1», «GRN2»,
«RED2»
2 А
Peak voltage switched by outputs «-MG1», «-MG2»
50 В
Peak current switched by outputs «-MG1», «-MG2»
5 A
Peak voltage switched by outputs «MOT1», «MOT2»
27 V
Peak current switched by outputs «MOT1», «MOT2»
≤ 4 А
Controller supply voltage
(10  27) V
Consumption current when outputs «MOT1» and «МОТ2» are OFF
≤0,15 А
Climatic modification and location category according to GOST
15150-69
NF4
The controller appearance is shown in Figure 5.

14
Fig. 7– Appearance of the motorized mechanism controller PCB.201.00.00
1.6.1.3 Description of controller operation
The controller controls the turnstile DC motor and the turnstile mechanism locking
solenoids according to the logic entered into program depending on incoming commands, rotor
position, rotation speed and motor current. It provides rotor locking in initial state, maintaining
rotor rotation speed in access mode as well as motor protection in emergency situations. Control
commands are issued from the turnstile controller PCB.112.21.20.00 via communication port
"Х3". ».
The purpose of the controller contacts, designed for connection to peripherals, is specified
in Table 6.

15
Table 6
Connector
/ contact
No
Designati
on
Direction
Purpose
Signal parameters and
description
X1/1
IN1
ENTRY
Not applicable
1) logical «0» (0  1,7) V;
2) logical «1» (3,7  5)
V;
3) active level of signal –
logical «0»;
4) voltage on open input ≤
5 V
X1/2
IN2
ENTRY
Not applicable
X1/3
IN3
ENTRY
Selection of turnstile type
X1/4
IN4
ENTRY
Not applicable
X1/5
IN5
ENTRY
Connection of rotor position sensor
X1/6
IN6
ENTRY
X1/7
IN7
ENTRY
X1/8
IN8
ENTRY
X1/9
GND
«-» power supply (common wire)
X1/10
GND
X1/11
GND
X1/12
+5 В
EXIT
Not applicable
X2/1
GRN1
EXIT
Not applicable
X2/2
RED1
EXIT
Not applicable
X2/3
GRN2
EXIT
Not applicable
X2/4
RED2
EXIT
Not applicable
X2/5
-MG1
EXIT
Connection of locking solenoid
winding
1) type of output –open
collector;
2) peak voltage on
privacy key –50 V;;
3) peak current of public
key –5 A
X2/6
+MG1
EXIT
Connection of locking solenoid
winding (cathode of protective
diode )
X2/7
-MG2
EXIT
Not applicable
X2/8
+MG2
EXIT
Not applicable
X2/9
MOT1
EXIT
Motor connection
1) voltage (10 ÷ 27) V;
2) current ≤ 4 А
X2/10
MOT2
EXIT
X2/11
GND
«-» power supply
(common wire)
X2/12
+24 В
ENTRY
«+» power supply
(controller energization)
1) voltage (10 ÷ 27) V;
2) current ≤ 4 А
Х3
Х3
ENTRY /
EXIT
Communication port
1) logical «0»
(0  1) V;
2) logical «1»
(3,5  5) V

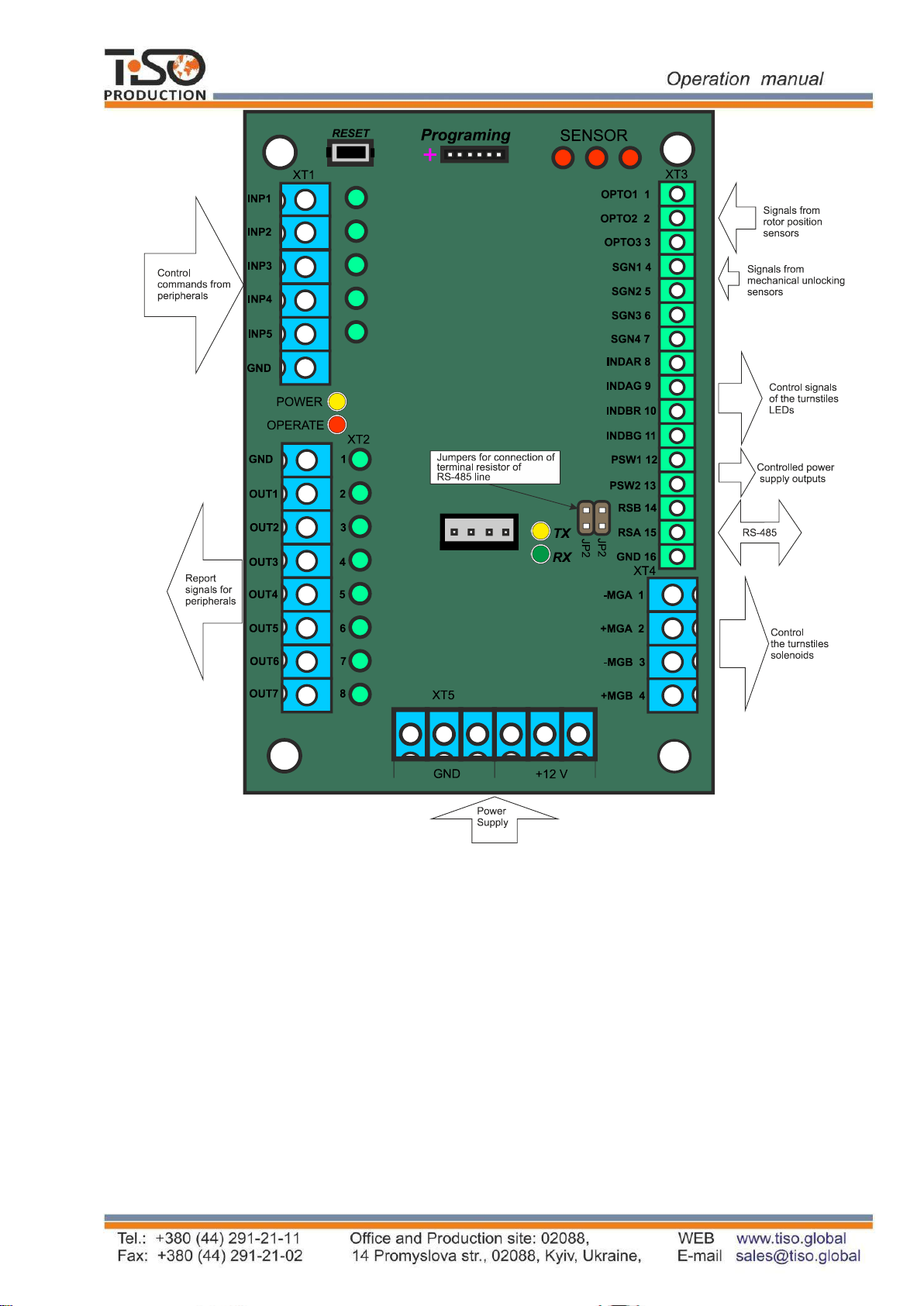

1.6.2 Turnstile controller РСВ.112.21.20.00
The controller is designed for acquisition of control commands from peripherals (control
panel, access control system etc.), generation of feedback signals, turnstile LED display control
and motorized mechanism controller control.
1.6.2.1 The controller is assembled on board (104х68) and designed for installation
inside the turnstile body or power supply box. The controller appearance is shown in Figure 6.
19 LEDs are installed on the controller board. Their purpose is as follows:
•LED “POWER” initiates availability of power supply voltage 5V;
•LED “OPERATE” initiates operability of microprocessor;
•7 LEDs initiate state of outputs for peripheral connections “OUT1» ÷ «OUT7”;
•3 LEDs “SENSOR” initiate state of rotor position sensor;

16
•LEDs «RX» and «TX» initiate respectively reception and transmittance in serial port.
40 terminals are installed on the board: 14 of them are designed for external connections,
the rest are designed for connection to the turnstile units or are standby
1.6.2.2 Technical features
The controller technical features are shown in Table 7.
Table 7
Parameter description
Parameter value
Number of inputs for acquisition of control commands
5
Number of signal outputs
7
Type of inputs
logical
Type of outputs
open collector
Logical «1» voltage
(3 5) V
Logical «0» voltage
(0 2,2) V
Maximum peak voltage applied to inputs «IN1»÷« IN8»
15 V
Peak voltage switched by signal output transistors
50 V
Peak current switched via signal outputs
0,1 А
Controller supply voltage
(9 15) V
Maximum consumption current
0,15 А
Number of serial ports of signal reception and transmission (RS-485)
1
Climatic modification and location category according to GOST 15150-69
NF4
1.6.2.3 Description of operation
The controller operates according to the program entered into microprocessor memory.
The turnstile mechanism and LED displays are controlled according to control commands and
status of rotor position sensors based on the logic downloaded into program. Control commands
can be transmitted via RS485 (from control panel) or logical inputs (by closing and opening of
inputs “INP1” ÷ “INP5” on “GND”).
The controller (along with the turnstile) can be in the INITIAL STATE (closed for access)
or in the following access modes:
SINGLE ACCESS IN ONE DIRECTION;
FREE ACCESS IN ONE DIRECTION;
LOCKING OF ACCESS
Other operating modes are combinations of various or similar modes in different
directions:
Single access in one direction and any mode in opposite direction;
Free access in one direction and any mode in opposite direction;
Locking of access in one direction and any mode in opposite direction;
“PANIC” function.
1.6.2.3.1 « INITIAL STATE »
The controller is in this mode, if there are no commands “TO BE OPENED А/В" and the
turnstile's rotor is set to the point 0º, 120º or 240º.
In this mode solenoids lock rotor: Denied red LED is lit in both directions.

17
Fig. 8 – Appearance of the turnstile controller РСВ.112.21.20.00
1.6.2.3.2 «SINGLE ACCESS IN ONE DIRECTION»
In this mode the controller unlocks rotor through solenoid in one direction with the
possibility of revolving to 120º. It enables access of one pedestrian through the turnstile.
The controller is switched to “SINGLE ACCESS IN ONE DIRECTION”, if in the
INITIAL STATE it receives “TO BE OPENED А/В" command (i.e. active level of signal is sent
to the input “INP4” or “INP5”). In this case the turnstile is open within action period of signal.
The command can also be sent delay of WAITING FOR START OF ACCESS.
Sequence of controller operations after reception of "TO BE OPENED А/В"command is as
follows:
Delay of WAITING FOR START OF ACCESS is initiated (Factory setting 5
sec.).
Controller deenergizes solenoid and rotor is unlocked in the relevant direction.
LEDs are switched from red to green according to the authorized access.

18
Then two alternatives of events are possible.
1) First alternative: If within active status of "TO BE OPENED /В" (“INP4”/“INP5”) or
during delay of WAITING FOR START OF ACCESS rotation of rotor is not started,
then controller is reset to ”INITIAL STATE”;
2) Second alternative: If in the above mentioned cases rotation of rotor is started, then
further behavior of controller depends on angle of rotor rotation.
When rotor is rotated to 6º, LEDs are switched from green to red, indicating that
access is occupied. Output signal START OF ACCESS "А/В" (“OUT1” or “OUT2”)
becomes active.
When rotor is rotated to 54º the output signal “START OF ACCESS "А/В”
(“OUT1”or “OUT2”) is removed. Delay of WAITING FOR START OF ACCESS is
reset;
When rotor is rotated to 64º, ACCESS DETECTION (OUT3 or OUT4) signal is
generated.
When rotor is rotated to 120º, OCCUPIED ACCESS А/В and ACCESS
DETECTION(OUT3 or OUT4) signals are reset and then availability of "TO BE
OPENED А/В" (INP4 or INP5) command, conforming to the current, is checked. If
by this moment the command remains active, the controller switches to FREE
ACCESS mode and if not, then it is reset.
1.6.2.3.3 «FREE ACCESS IN ONE DIRECTION»
In this mode rotor can easily rotate in free access direction . In the FREE ACCESS mode
green LED of the relevant direction is blinking. In this mode the controller transition is occurred
in two cases:
In this mode the controller transition is occurred in two cases:
First: when "TO BE OPENED А/В" (input INP4 or INP5) command is maintained
inactive status at the moment of rotor crossing the point 120º upon termination of
SINGLE ACCESS.
Second: after reception of FREE ACCESS command in the relevant direction via
RS 485.
After the controller is switched to FREE ACCESS mode, output signals of “OCCUPIED
ACCESS”, “ACCESS DETECTION” of the relevant direction are generated as described in
Table 8.
Exit of this mode into INITIAL STATE is taken place after cancellation of "TO BE
OPENED А/В" command or reception of FREE ACCESS CANCELATION command via
RS485. But it will happen not instantly and only when rotor reaches one of the starting points 0º,
120º or 240º, i.e. if free access cancellation arises during started access it will be completed as
free.
1.6.2.3.4 «AUTHORIZATION OF SINGLE ACCESS IN TWO DIRECTIONS»
Since the turnstile having one rotor can't rotate in two directions simultaneously, the
controller can only unlock rotor in two directions and after access in one of directions is started,
the reverse direction will be closed.The controller is switched to this mode if in the INITIAL
STATUS it simultaneously acquires "TO BE OPENED A" and "TO BE OPENED B"
commands. The second signal also can come during the time when the first signal is already
active, but rotation of rotor did not start yet.
In this case:
1)The controller unlocks rotor in two directions via electromagnets.
2)Switches both LEDs from red to green.

19
3)Initiates two delays of "WAITING FOR START OF ACCESS А and В" for each access
individually, which are counted from the moment of acquisition of commands.
4) The controller is waiting for start of access.
5) After rotor is revolved to 6º in any side, opposite direction will be locked LED is
switched to red.
Then the controller is operating as described in section "SINGLE ACCESS IN ONE
DIRECTION". If during active status of the "TO BE OPENED A" and "TO BE OPENED B"
signals or during WAITING FOR START OF ACCESS rotor has not been revolved in any side
to the angle more than 6º, the controller is switched to the INITIAL STATE.
1.6.2.3.5 “PANIC” FUNCTION
The turnstile is switched to "PANIC" state:
After the active state is held on input (“INP5” "PANIC") for more than 1 sec;
After "PANIC" command is sent by control panel (the command is sent after
"PANIC" button is held for more than 7 sec.).
After activation of "PANIC" function the barrier rod, which is in horizontal position, will
be dropped, the output (“OUT7” "PANIC") will be switched to active state during the function
action.
The "PANIC" function is canceled:
After active state is released on input “INP5” "PANIC");
After command “CANCELATION of PANIC” is sent from control panel (repeated
pushing of "PANIC" button);
In each case the appropriate command will be issued to the motorized mechanism
controller resulting in rotor rotation and the dropped barrier rod will come to its operating
position and will be fixed (barrier rod locking to be checked manually).
1.6.2.3.6 «LOCKING OF ACCESS»
The locking function can be activated by means of control panel only. After activation of
“LOCKING OF ACCESS A or B” the turnstile rotor is locked in the relevant direction and
access authorization commands will be ignored in the locked direction;
The locked direction is indicated by blinking red color.
The purpose of controller contacts, designed for connection to peripherals, is specified in
Table 8.
Table 8
Connecto
r /
contact
No.
Description
Direction
Purpose
Signal parameters
and description
ХТ1/1
INP1 («PANIC»)
ENTRY
«SWITCHING TO PANIC
STATE» command
1) logic «0»
(0 2,2) V;
2) Logic «1»
(3 5) V;
3) Active level of
signal (Factory
setting) – Logic
«0»;
4) Voltage on open
input < 5 V
ХТ1/2
INP2
(«TO BE OPENED
A»)
ENTRY
"TO BE OPENED FOR
SINGLE ACCESS" in
pulse mode command.
When this command is
issued entry is activated
within 5 sec.
ХТ1/3
INP3
(«TO BE OPENED
В»)
ENTRY

20
Continued Table 8
1
2
3
4
5
ХТ1/4
INP4
(«TO BE OPENED
A»)
ENTRY
"TO BE OPENED FOR
SINGLE/FREE ACCESS"
command. Input is activated
within the time of holding in
active state. Free access is
occurred when entry is kept
in active state after rotor
reaches the angle 120º.
ХТ1/5
INP5
(«TO BE OPENED
B»)
ENTRY
ХТ1/6
GND (common)
«-» power supply
(common wire)
ХТ2/1
GND (common)
ХТ2/2
OUT1
(«START OF
ACCESS А»)
EXIT
Signal is generated by
controller when rotor
revolves from 6º to 54º in
the relevant direction
1) Type of output -
open collector.
2) Peak voltage on
public key 55 V
3) Peak current of
public key 100 mA
4) Resistance of
public key (5 ÷ 7)
Ohm
5) Active level of
signal (Factory
setting) - Logical
«0»
ХТ2/3
OUT2
(«START OF
ACCESS В»)
EXIT
ХТ2/4
OUT3
(«DETECTION OF
ACCESS А»)
EXIT
Signal is generated by
controller when rotor
revolves from 64º to 120º in
the relevant direction
ХТ2/5
OUT4
(«DETECTION OF
ACCESS В»)
EXIT
ХТ2/6
OUT5 («ACCESS IS
OCUPIED»)
EXIT
Signal is generated by
controller when rotor
revolves from 6º to 120º in
any direction
ХТ2/7
OUT6
(«ERROR »)
EXIT
Signal is generated by
controller when violation of
operation logic is detected
ХТ2/8
OUT7
(«PANIC »)
EXIT
Signal is generated by
controller when “PANIC”
function is activated
ХТ3/1
OPTO1
ENTRY
It is used for acquisition of
data about the turnstile
rotor position
1) 1) Logical «0»
(0 ÷ 2,2) V
2) Logical «1»
(3 ÷5) V
3)Active level of
signal (Factory
setting) - Logical
«0»
4) Voltage on open
input < 5 V
ХТ3/2
OPTO2
ENTRY
ХТ3/3
OPTO3
ENTRY
ХТ3/4
SGN1
ENTRY
Not applicable
ХТ3/5
SGN2
ENTRY
Selection of turnstile
modification
ХТ3/6
SGN3
ENTRY
Not applicable
ХТ3/7
SGN4
ENTRY
Not applicable
