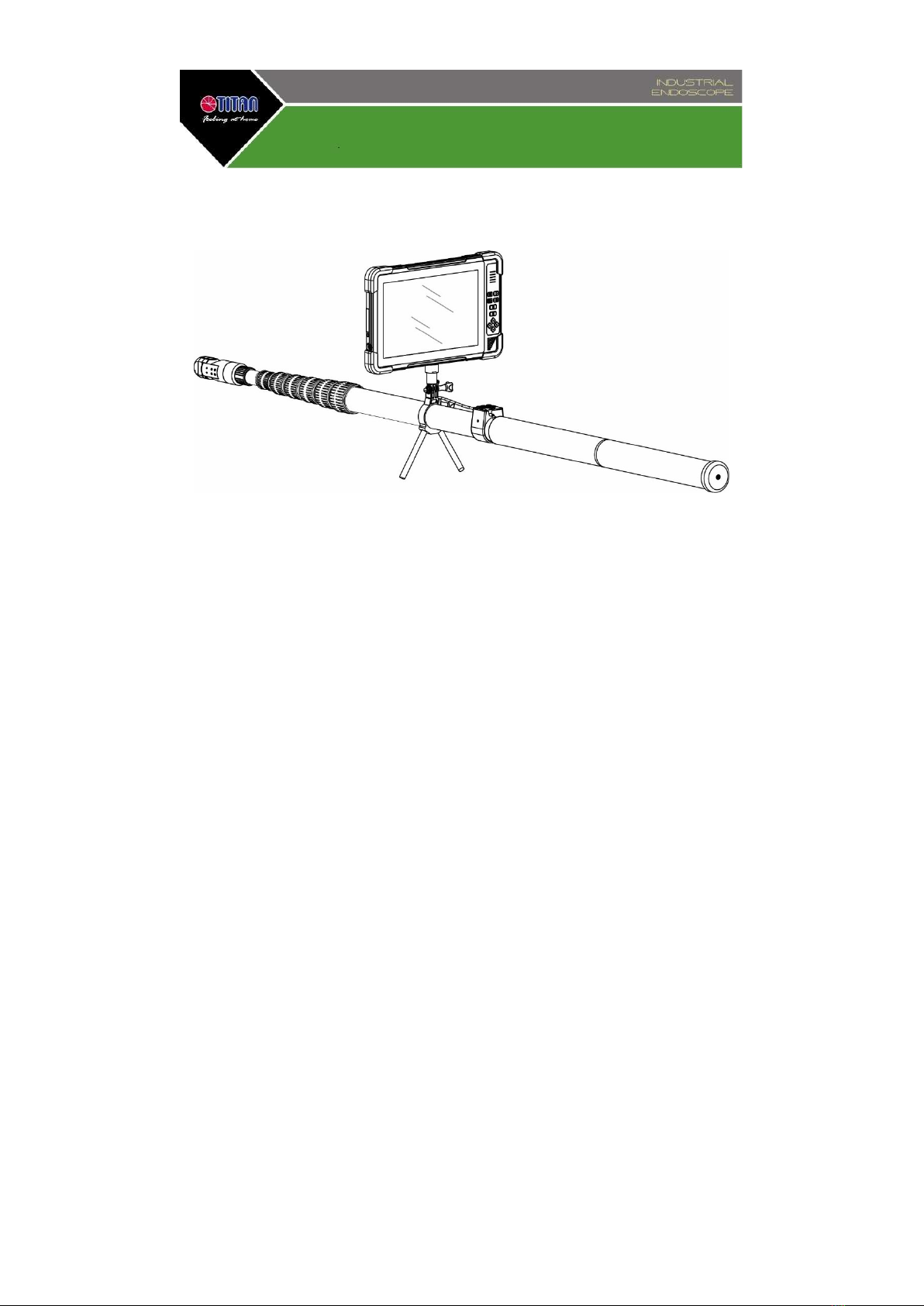

Titan TTS-S14 User manual

TTS-S14(WIFI)
4K Life Detector
Operation Manual

-
2
-
Menu
Product Overview .......................................................................... 3
4K Tablet Monitor ............................................................................ 3-4
360° Intercom Camera(Optional) .............................................. 5
Hose Intercom Camera(Optional) .............................................. 6
Infrared Thermal Imaging Camera(Optional) ........................ 7
Carbon Fiber Rod ............................................................................. 8
Installation & Use ............................................................................ 9
Button Operation ............................................................................. 10-11
Touchscreen ....................................................................................... 11-13
System Setting .................................................................................. 14-15
RoadCam App ................................................................................... 16
APP Monitoring Interface ............................................................. 17
Charge/ Firmware upgrade/Attention ...................................... 18
Specifications .................................................................................... 19-21
RoadCam App Download .............................................................. 21

-
3
-
Product Overview
This 4K life detector can take up to 4K videos and 12 MP photos.
Functions of photographing, recording and controlling, like 360 °
camera rotation, can be completed through screen touch,
buttons both on monitor & rod. This detector uses a 10.1 HD
touch screen, a 5 megapixels 360° intercom camera (optional),
a 5 megapixels hose intercom camera(optional), an infrared
thermal imaging camera(optional ) and a telescopic carbon fiber
rod combination. Multiple combinations, simple assembly,
convenient carrying, widely applicable to life rescue, disaster
rescue, anti-terrorism and explosion-proof, scientific
investigation and other fields.

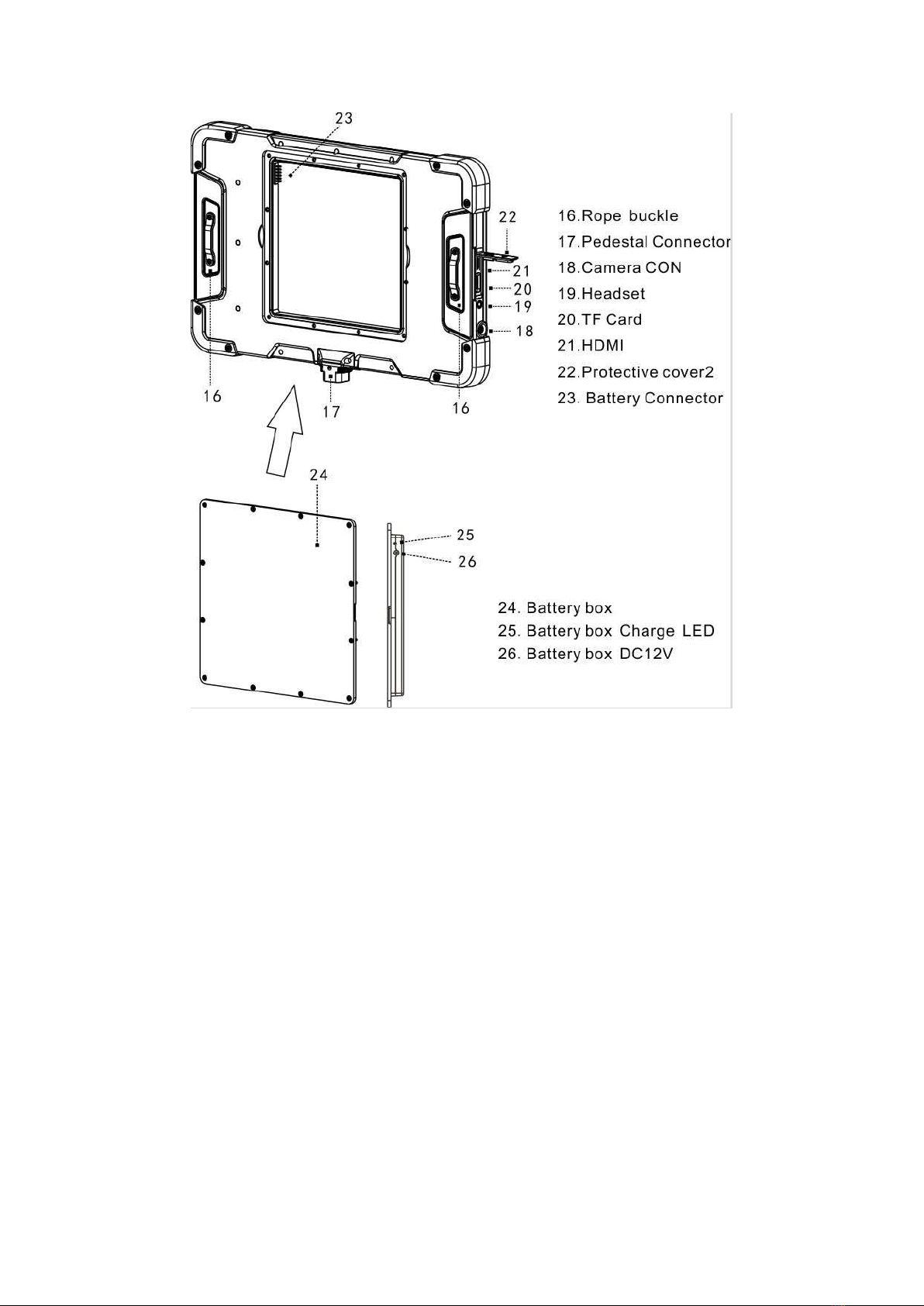

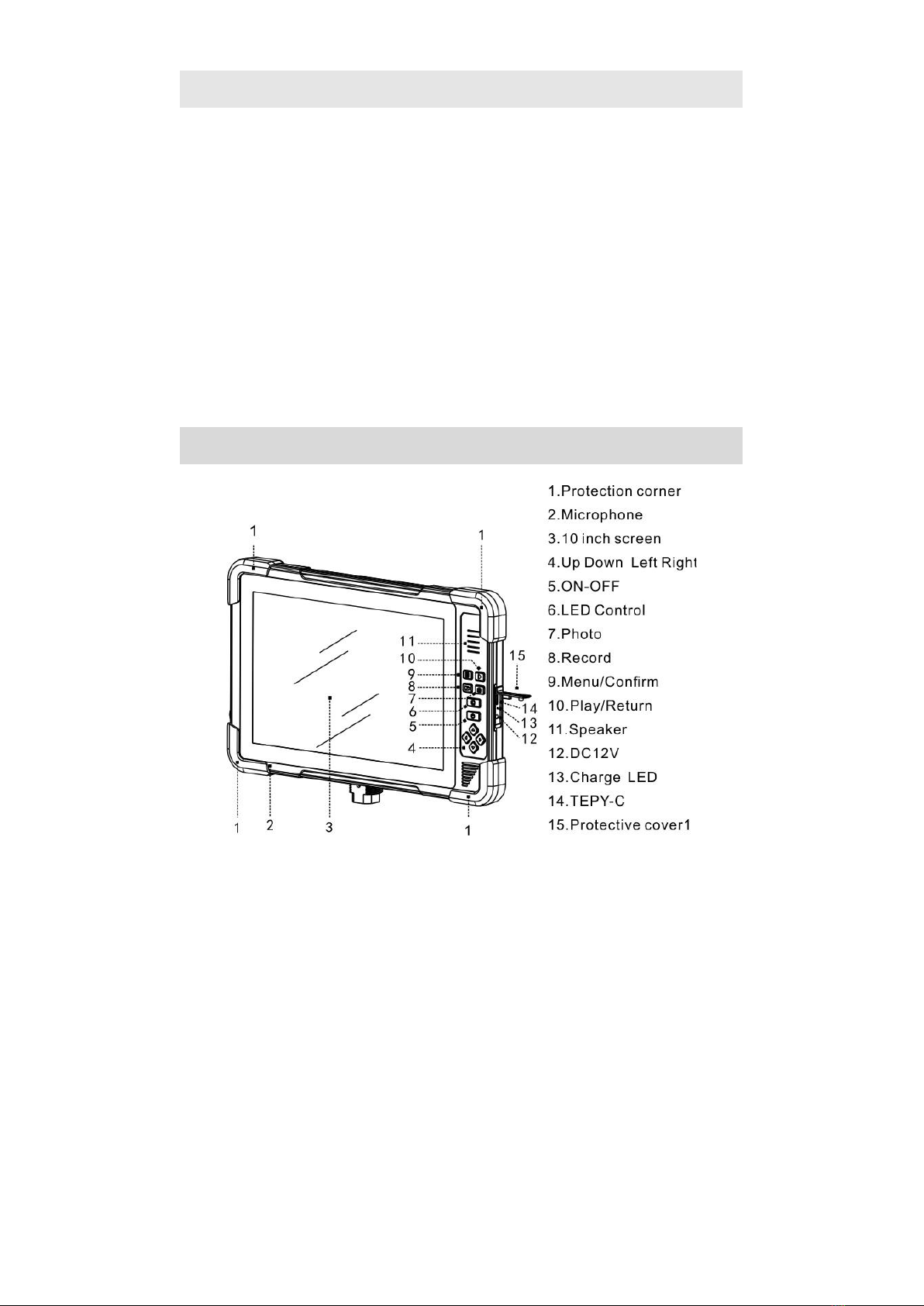

4K Tablet Monitor

-
4
-

-
5
-

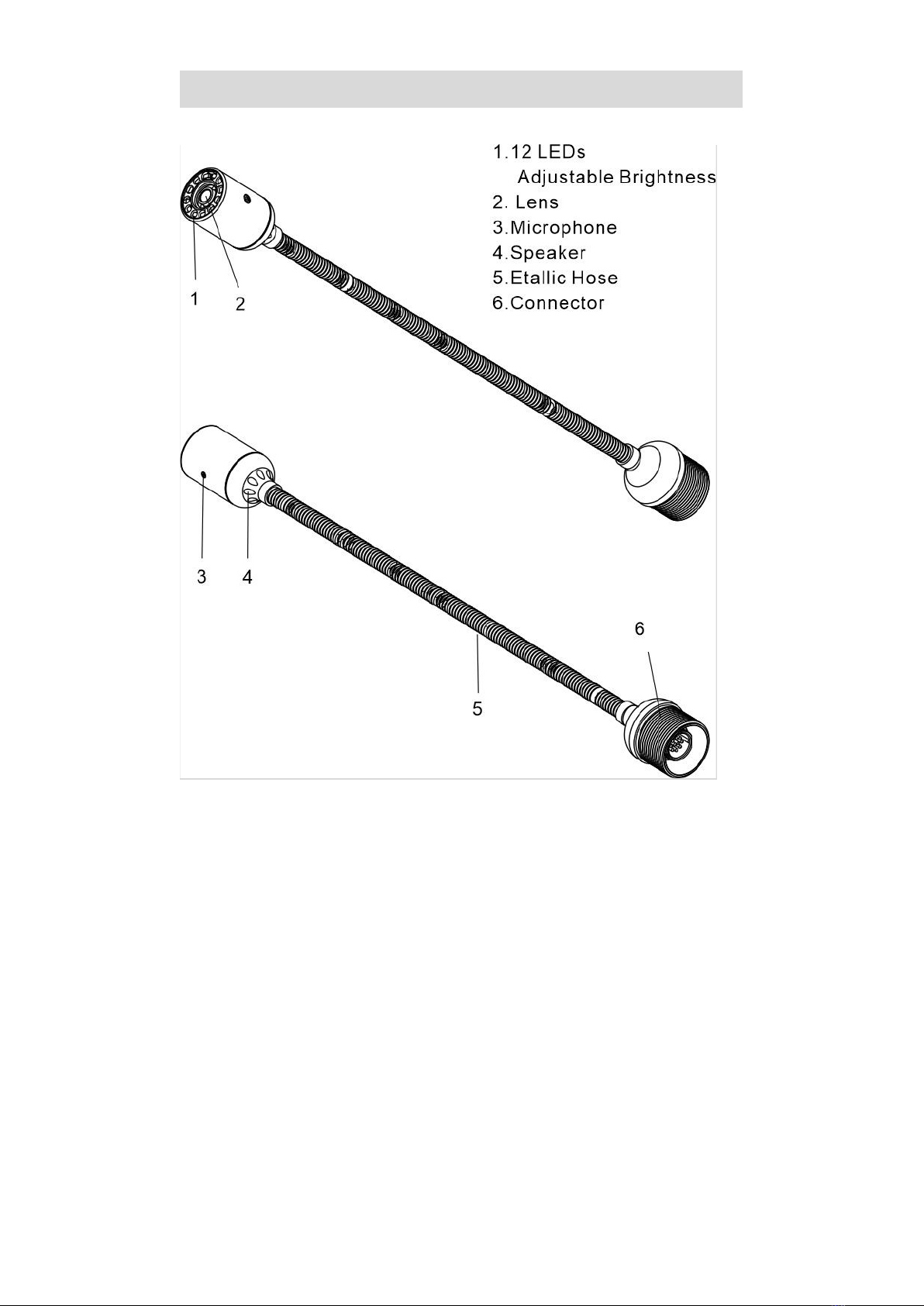

360° Audio & Video Camera （Optional）

-
6
-
Audio and Video Camera (Optional)

-
7
-
Infrared Thermal Imaging Detector (Optional)

-
8
-
Carbon Fiber Rod

-
9
-

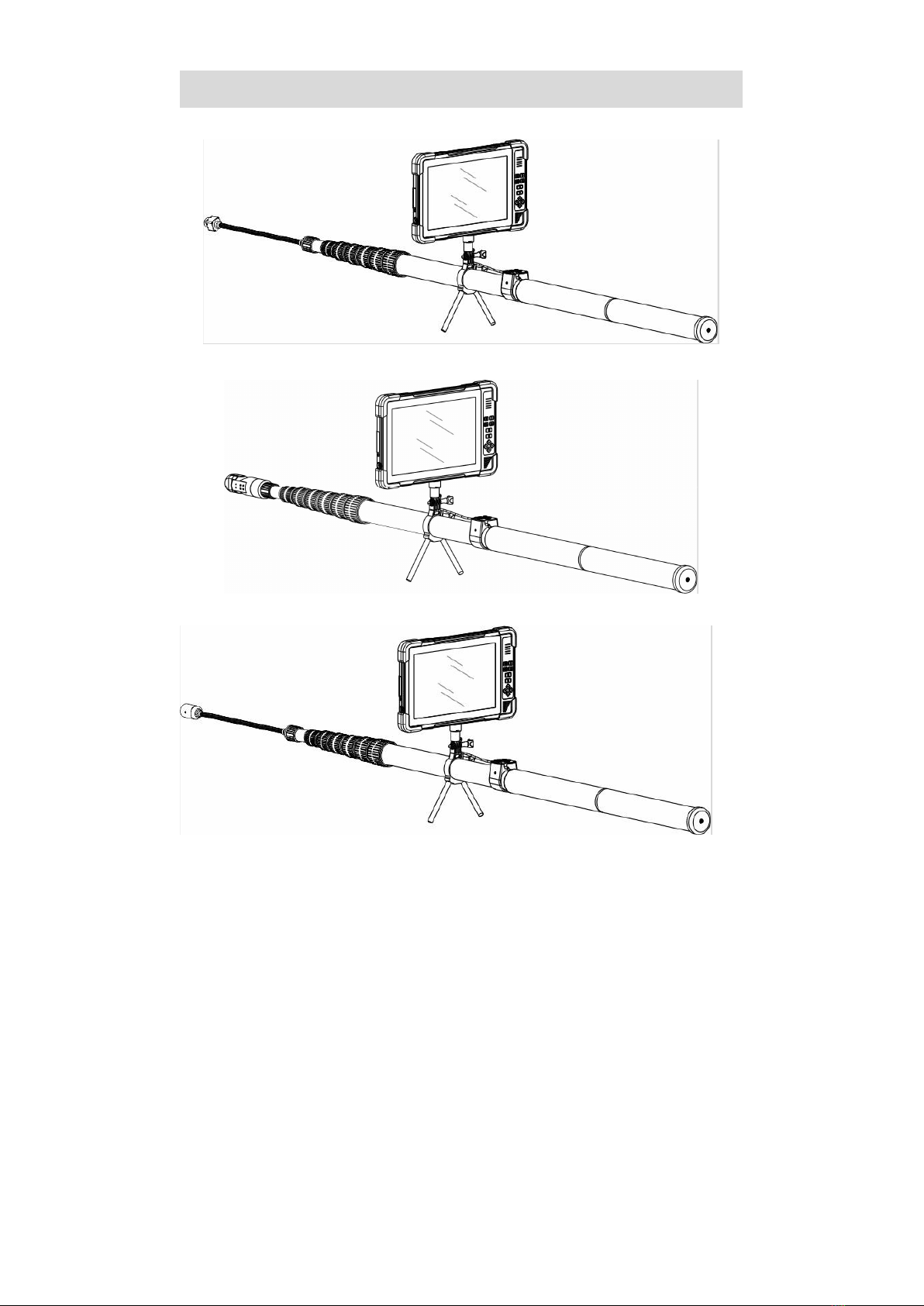

Installation & Use
1. Infrared Thermal Imaging Life Detector（Optional）
2. 360 ° Audio and Video Life Detector（Optional）
3.Audio and Video Life Detector（Optional）

-
10
Button Operation
 ON-OFF
Press briefly to power on. Press it for 3s to power off. If crash,
press it for 10s to power off and reset.
 Photo
Press briefly, flashes once and get a photo.
 Record
Press briefly to record, and the icon turns blue。The video
timer can time. Press again to end.
Play/Return
Press briefly to enter. Press Up-Down-Left-Right to select.
Press to confirm. Press Play again to exit.
 LED Control
Press it briefly to select On-7 brightness cycle-OFF.
 Menu/Confirm
Press it briefly to enter. Press Up-Down-Left-Right to select.
Press to confirm. Press Play to exit.
 UP
Press to turn camera upward. Release to stop.
 Down
Press to turn camera downward. Release to stop.
