Introduction
Thank you for purchasing the TLV free float steam trap.
This product has been thoroughly inspected before being shipped from the factory.
When the product is delivered, before doing anything else, check the specifications and
external appearance to make sure nothing is out of the ordinary. Also be sure to read
this manual carefully before use and follow the instructions to be sure of using the
product properly.
This free float steam trap uses a two-bolt flange, an X-element air vent and three-point
seating for a precision-ground float, increasing heating efficiency and reducing
manpower requirements for maintenance.
The two-bolt flange allows the trap to be installed in either horizontal or vertical piping.
This flexibility greatly reduces the time required for installation, removal, repair and
maintenance. The three-point seating supports the precision-ground float securely and
ensures a high degree of sealing for even minute quantities of condensate. The X-
element is very sensitive to changes in temperature, and responds with great accuracy,
quickly discharging air and the large quantities of condensate created immediately after
operation startup, thereby greatly reducing start-up time. It also reacts with great
sensitivity to the inflow of large quantities of condensate and hot air during operation,
preventing air binding.
If detailed instructions for special order specifications or options not contained in this
manual are required, please contact TLV for full details.
This instruction manual is intended for use with the model(s) listed on the front cover. It
is necessary not only for installation, but for subsequent maintenance,
disassembly/reassembly and troubleshooting. Please keep it in a safe place for future
reference.

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result of
erroneous handling, three different types of cautionary items are used to indicate
the degree of urgency and the scale of potential damage and danger: DANGER,
WARNING and CAUTION.
The three types of cautionary items above are very important for safety: be sure to
observe all of them as they relate to installation, use, maintenance and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage occurring
as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or serious
injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment/product
damage
NEVER apply direct heat to the float.
The float mayexplode dueto increased internal pressure, causing
accidents leading toserious injuryor damageto propertyand equipment.
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
DO NOT use this product in excess of the maximum operating
pressure differential.
Such use could make discharge impossible (blocked).
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the discharge
of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the surface
of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other injuries
or damage.
Continued on the next page
DANGER
WARNING
CAUTION
WARNING
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
3
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the product
in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the discharge
of fluids.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which
may cause burns or other injury.
Use only under conditions in which no water hammer will occur.
The impact of water hammer may damage the product, leading to fluid
discharge, which may cause burns or other injury.
Always wear eye protection and heat-resistant gloves when
operating the blowdown valve.
Failure to do so may result in burns or other injury.
When operating the blowdown valve, stand to the side well clear
of the outlet to avoid contact with internal fluids that will be
discharged. Operate the valve slowly and surely, taking care to
avoid the area from which internal fluids are discharged and any
fluids deflected off piping or the ground etc.
Failure to do so may result in burns or other injury.
Do not tighten the BD2 valve or the BD2 valve seat in excess of
the appropriate tightening torque.
Over-tightening may cause breakage to threaded portions, which
may cause burns, other injuries or damage.
Do not excessively loosen the BD2 valve when opening the
blowdown valve.
The valve stopper pin installed to prevent the BD2 valve from being
removed may break and internal pressure may result in the BD2
valve being blown off, leading to injuries, damage and fluid
discharge, causing burns.
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
4
Checking the Piping
Use only under conditions in which no water hammer will occur.
The impact of water hammer may damage the product, leading to fluid
discharge, which may cause burns or other injury.
Check to make sure that the pipes to be connected to the product have been installed
properly.
1. Is the pipe diameter suitable?
2. Is the trap unit installed horizontally?
3. Has sufficient space been secured for maintenance?
4. Have isolation valves been installed at the inlet and outlet? If the outlet is subject to
back pressure, has a check valve (TLV-CK) been installed?
5. Is the inlet pipe as short as possible, with as few bends as possible, and installed
so the liquid will flow naturally down into the product?
6. Has the piping work been done correctly, as shown in the figures below?
7. Using the appropriate tools, have the screws been tightened enough?
Requirement
Correct
Incorrect
Install catchpot with the
proper diameter.
Diameter is too small.
Make sure the flow of
condensate is not
obstructed.
Diameter is too small and inlet
protrudes into pipe interior.
To prevent rust and scale
from flowing into the trap,
the inlet pipe should be
connected 25 to 50 mm (1
to 2 in) above the base of
the T-pipe.
Rust and scale flow into the
trap with the condensate.
When installing on the
blind end, make sure the
flow of condensate is not
obstructed.
Condensate collects in the
pipe.
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
5
Operation
Principles of air and condensate discharge:
1.
Air and Cold Condensate Discharge at Startup
At startup, before steam is supplied, the trap is
cold, the X-element is contracted and the air
vent valve seat (A) is open. This allows for the
rapid discharge of air through the air vent valve
(A) and cold condensate through the orifice (B)
opening, when steam is first supplied to the
system.
2.
Condensate Discharge
After the discharge of initial air and cold
condensate, the heat of the inflowing steam and
condensate causes the X-element to expand,
closing the air vent valve (A). The rising
condensate level causes the float to rise due to
buoyancy, opening the orifice (B) and allowing
condensate to be discharged.
3.
Hot Air Discharge
Should hot air flow into the trap with the steam
during normal operation, the temperature of the
X-element drops, causing it to momentarily
contract and open the air vent valve (A), which
allows for the rapid discharge of the air. After
the air is discharged and steam contacts the
X-element, the temperature will increase
causing the air vent valve (A) to close.
4.
Closed Position
When the condensate flow rate decreases, the
float falls as condensate is discharged, closing
the orifice (B). A water seal is maintained at all
times over the orifice (B) to prevent steam loss.
Air
Steam
Condensate

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
6
Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or malfunctions
that may lead to serious accidents. Local regulations may restrict the use of this
product to below the conditions quoted.
DO NOT use this product in excess of the maximum operating pressure
differential. Such use could make discharge impossible (blocked).
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which may cause burns
or other injury.
Refer to the product nameplate for detailed specifications.
The specifications displayed on each nameplate apply only to the unit on which it is
mounted. When a trap unit is installed on a connector unit and the PMA/TMA and/or
PMO/TMO values displayed on the two nameplates differ, the specifications for the
assembled products are restricted to the lower values.
Trap Unit
Connector Unit (mounted only on F46)
A
Model
B
Nominal Diameter
C
Maximum Allowable Pressure (PMA)*
D
Maximum Allowable Temperature (TMA)*
E
Maximum Differential Pressure (PMX)
F
Maximum Operating Temperature (TMO)
G
Production Lot No.
H
Valve No.**
*Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
**Valve No. is displayed for products with options. This item is omitted from the nameplate
when there are no options.
Compatibility
The FJ32-X QuickTrap employs connector unit F46 and is not compatible with
QuickTrap models using connector unit F46J. The J32-X trap unit is compatible with
trap stations (V1/V2/V1P/V2P Series) and Quick Station QS10, and can also be
installed on connector unit F32.
The unit name is embossed on the connector body.
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
7

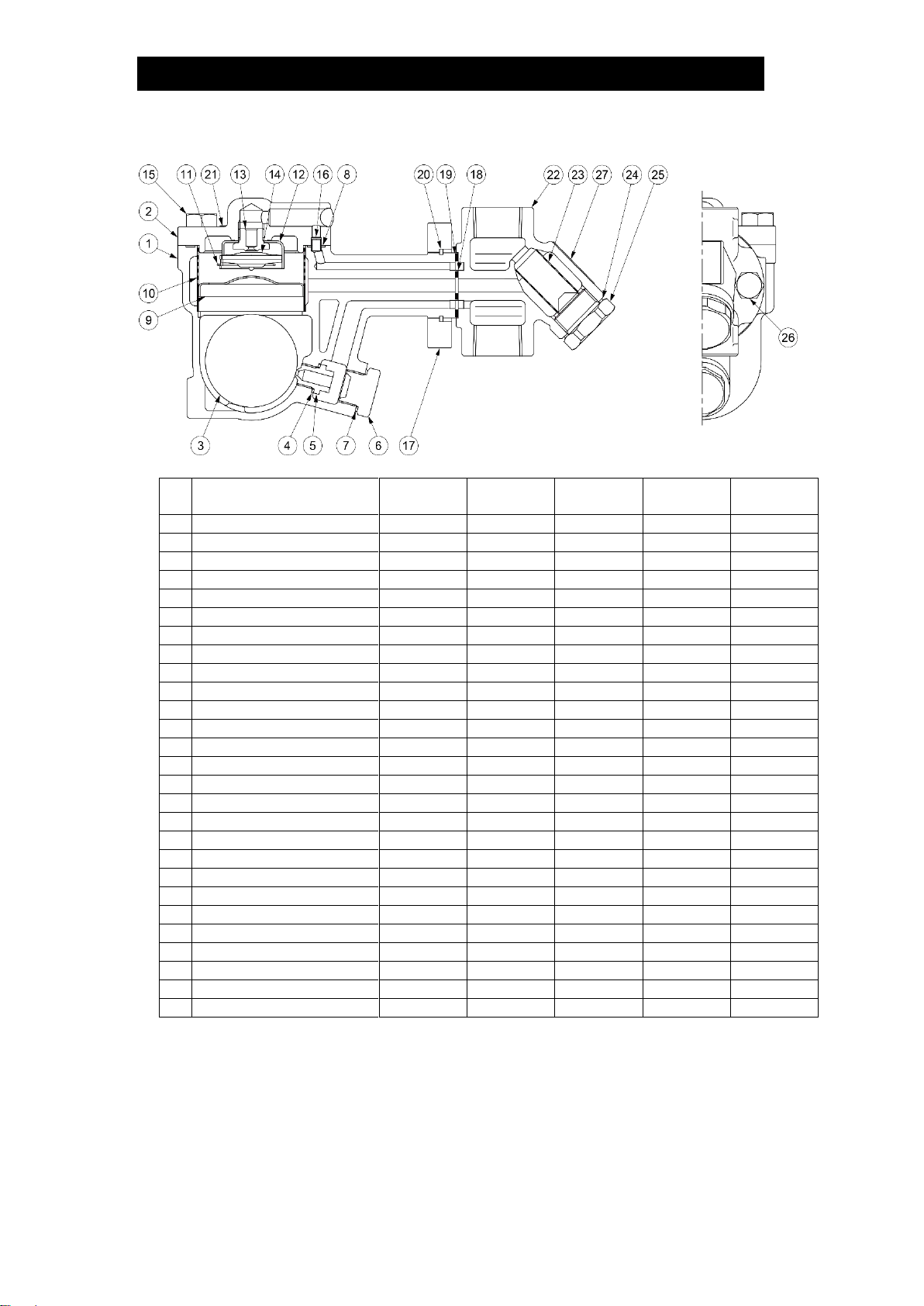

Configuration
No
Part Name
Trap Unit*
Connector
Unit**
Maintenance
Kit
Repair Kit
Float
1
Trap Body

2
Cover

3
Float


4
Orifice Gasket



5
Orifice


6
Orifice Plug

7
Orifice Plug Gasket



8
Cover Gasket



9
Float Cover


10
Screen


11
Spring Clip


12
X-element Guide


13
Air Vent Valve Seat


14
X-element


15
Cover Bolt

16
Connector

17
Connector Flange

18
Inner Connector Gasket



19
Outer Connector Gasket



20
Connector Ring

21
Nameplate

22
Connector Body

23
Screen

24
Screen Holder Gasket



25
Screen Holder

26
Connector Bolt

27
Nameplate

* J32-X
**F46

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
8
Installation
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or malfunctions
that may lead to serious accidents. Local regulations may restrict the use of this
product to below the conditions quoted.
Take measures to prevent people from coming into direct contact with product
outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, blow out the inlet piping to remove any piping scraps,
dirt and oil. Close the inlet valve after blowdown.
3. Install the connector body so that the arrow is pointing in the direction of flow.
4. The connector body has no restrictions on installation orientation except for the
following conditions: the flange face (for connecting to the trap unit) must be in the
vertical plane, and the trap unit must be installed with the nameplate facing upwards.
5. The trap unit must be inclined no more than 5° horizontally and front-to-back.
6. Install a condensate outlet valve and outlet piping.
7. Open the inlet and outlet valves and ensure that the product functions properly.
If there is a problem, determine the cause using the “Troubleshooting” section in this
manual.
Tolerance Angle for Installation: 5°
Install with the arrow on the connector body pointing in the direction
of flow, with the flange (for connecting to the trap unit) in the vertical
plane and the trap unit with the nameplate facing upwards.
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
9

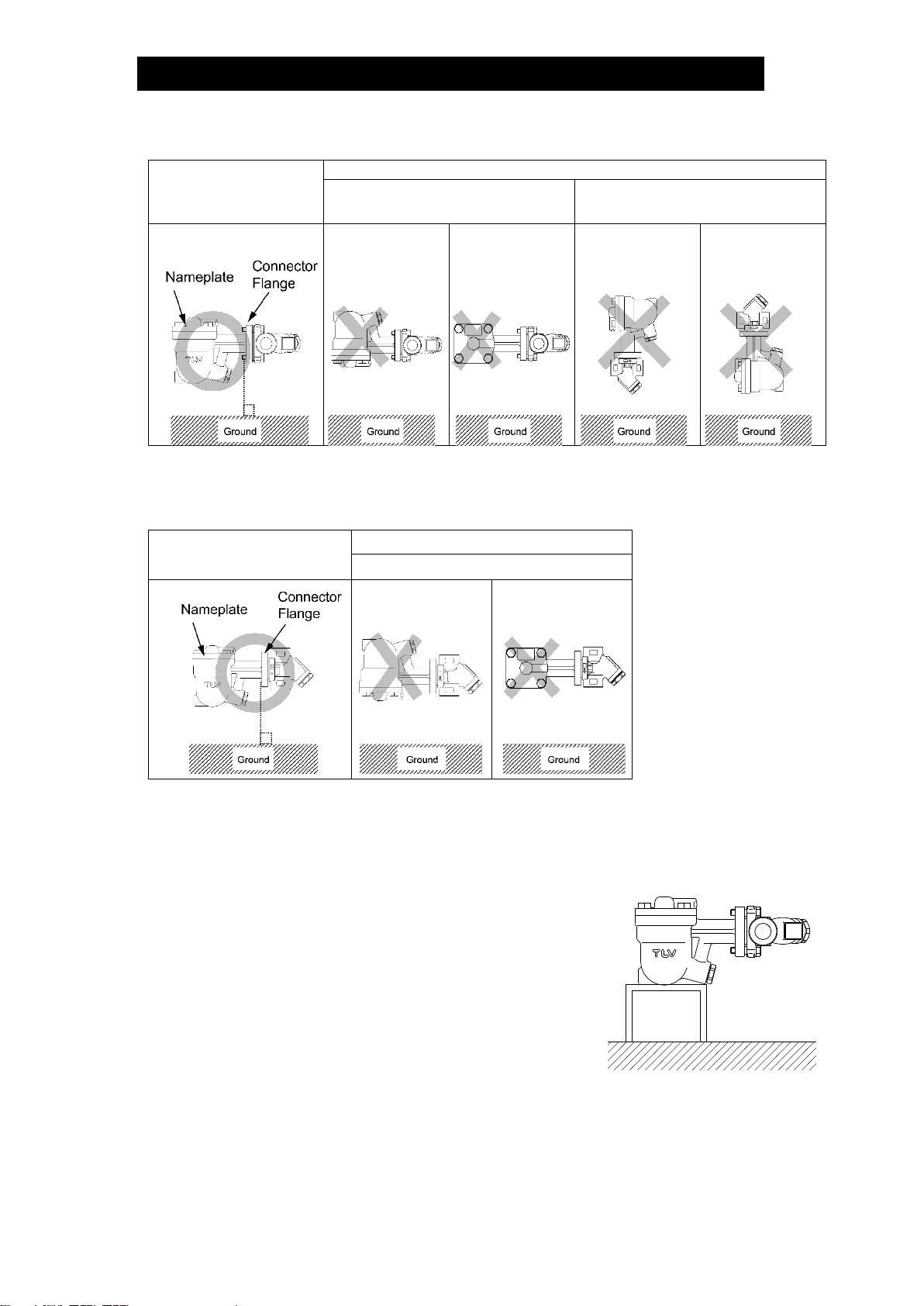

Installation Examples: Horizontal Piping
Correct
Incorrect
Nameplate is not facing upwards
Connector Flange is not in the
vertical plane
Note: If the product is installed incorrectly, it may not be possible to obtain the specified
performance. There is also a risk of serious accidents on the outlet (secondary) side. The
examples shown here are only a selection, and are exclusively for explanation purposes.
Installation Examples: Vertical Piping
Correct
Incorrect
Nameplate is not facing upwards.
Note: If the product is installed incorrectly, it may not be possible to obtain the specified
performance. There is also a risk of serious accidents on the outlet (secondary) side. The
examples shown here are only a selection, and are exclusively for explanation purposes.
Note for Screwed Connection:
When products with screwed connections are installed
on horizontal piping, there is a danger that the weight of
the trap unit will cause the connector body to rotate on
the pipe, putting the trap mechanism out of the
horizontal plane. To prevent this, tighten the screws
securely. In cases where the product is affected by
vibrations or by external contact, it is recommended that
the trap unit should be supported to prevent rotation
(sample support shown to the right).

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
10
Maintenance
Take measures to prevent people from coming into direct contact with product
outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way.
Failure to observe these precautions may result in damage to the product and
burns or other injury due to malfunction or the discharge of fluids.
Operational Check
A visual inspection of the following items should be done on a daily basis to determine
whether the product is operating properly or has failed. Periodically (at least biannually)
the operation should also be checked by using diagnostic equipment such as a
stethoscope, thermometer, TLV Pocket TrapMan or TrapMan.
If the product should fail, it may cause damage to piping and equipment, resulting in
faulty or low quality products or losses due to steam leakage.

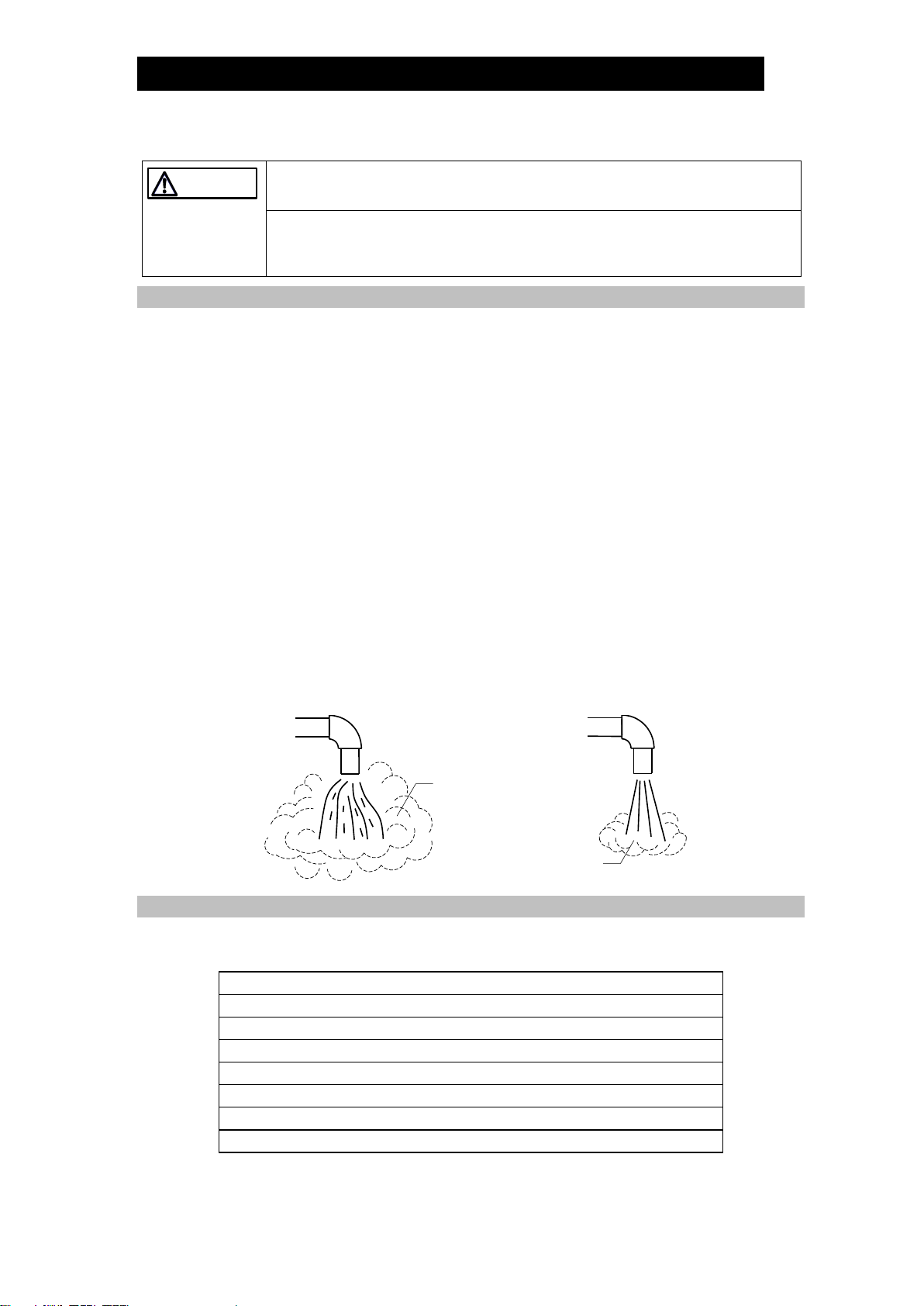

Normal:
Condensate is discharged continuously, together with flash steam,
and the sound of flow can be heard. If there is very little
condensate, there is almost no sound of flow.
Blocked:
(Discharge Impossible)
No condensate is discharged. The product is quiet and makes no
noise, and the surface temperature of the product is low.
Blowing:
Live steam continually flows from the outlet and there is a
continuous metallic sound.
Steam Leakage:
Live steam is discharged through the product outlet together with
condensate, accompanied by a high-pitched sound.
(When conducting a visual inspection, flash steam is sometimes mistaken for steam leakage. For this
reason, the use of a steam trap diagnostic instrument - such as TLV TrapMan - in conjunction with
the visual inspection is highly recommended.)
Flash Steam
Live Steam Leakage
Parts Inspection
When parts have been removed, or during periodic inspections, use the following table
to inspect the parts and replace any that are found to be defective.
Procedure
Gaskets:
Check for warping or scratches
Screens:
Check for clogging or corrosion
X-element:
Check for scratches
Air Vent Valve Seat:
Check for scratches
Float:
Check for scratches or dents
Body Interior:
Check for build-up
Orifice Opening:
Check for dirt, oil film, wear or scratches
CAUTION
White jet containing
water droplets
Clear, slightly bluish jet

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
11
Disassembly/Reassembly
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble. (Installation, inspection, maintenance, repairs, disassembly,
adjustment and valve opening/closing should be carried out only by trained
maintenance personnel.)
Detaching/Reattaching the Trap Unit and Connector Body
Part
During Disassembly
During Reassembly
Connector
Bolts 23
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Trap Unit 1
Remove the trap unit
Follow the special instructions below
(see fig. A)
Connector
Gaskets 18,
19
Remove with a scraper without
scratching the seating surface
of the trap body.
Make sure there are no pieces of the old gasket
left on the sealing surfaces of the body and then
reattach; Be careful not to drop the new gasket

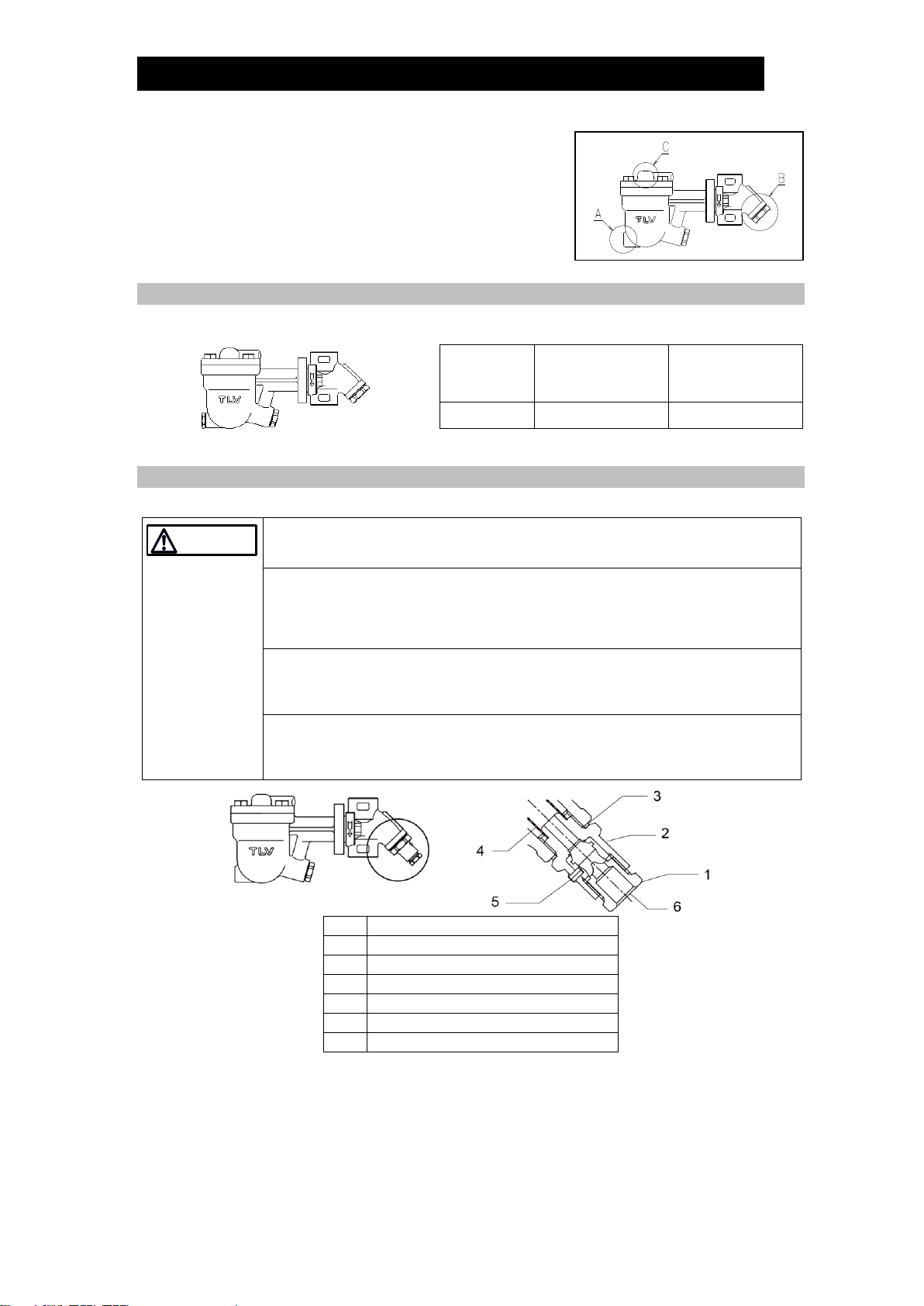

Attaching the Trap Unit to the Connector Body (Figure A)
1. If attaching a new trap unit, be sure to remove the
protective cap from the connector flange. Be careful not to
drop the gaskets when removing the cap.
2. Grasp the end of the trap unit and align its gasket housing
with the indentation on the connector body.
3. Once aligned, insert and finger tighten the connector bolts.
Verify that the trap unit is within the allowable inclination.
Figure A
Detaching/Reattaching the Cover
Part
During Disassembly
During Reassembly
Cover Bolt 15
Remove with a socket wrench
Consult the table of tightening torques and
tighten to the proper torque
Cover 2
Remove by lifting up and off
Make sure there are no pieces of the old
gasket on the sealing surfaces, align the cover
with the body and connector and reattach
Connector 16
Remove the connector
Reinsert it into hole in body
Cover Gasket
8
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Disassembly/Reassembly of Components Inside the Cover
Part
During Disassembly
During Reassembly
Figure B
Spring Clip 11
Pinch the insides together and
remove from the X-element guide
Insert securely into the groove
in the guide
X-element 14
Remove from the
X-element guide
Insert and ensure correct
orientation (Figure B)
Air Vent Valve
Seat 13
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the
proper torque
X-element
Guide 12
Remove without bending
Insert the X-element gently
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing accidents leading to
serious injury or damage to property and equipment.
When disassembling or removing the product, wait until the internal pressure
equals atmospheric pressure and the surface of the product has cooled to
room temperature.
Disassembling or removing the product when it is hot or under pressure may lead to
discharge of fluids, causing burns, other injuries or damage.
WARNING
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
12
Disassembly/Reassembly of Components Inside the Trap Body
Part
During Disassembly
During Reassembly
Float Cover &
Screen 9, 10
Lift straight up and out while rocking
slowly
Align the arrows on the float
cover/screen and the body, insert with
the tab* on the bottom fitting into the
slot in the body; make sure the screen
does not stick out out of the body
(Figure C)
Float 3
Remove, being careful not to scratch
the polished surface
Insert, being careful not to scratch the
polished surface
Orifice Plug 6
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Orifice Plug
Gasket 7
Remove the gasket and clean sealing
surfaces
Replace with a new gasket; coat
surfaces with anti-seize
Orifice 4
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Orifice Gasket
5
Remove the gasket and clean sealing
surfaces
Replace with a new gasket; coat
surfaces with anti-seize
Figure C
Disassembly/Reassembly of Components Inside the Connector Body
Part
During Disassembly
During Reassembly
Screen Holder
22
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Screen Holder
Gasket 21
Remove the gasket and clean sealing
surfaces
Replace with new gasket; coat surfaces
with anti-seize
Screen 20
Remove with needle-nose pliers
Insert securely into the connector body
Table of Tightening Torques
Part Name
Torque
Distance Across Flats
Nm
(lbf·ft)
Nm
(in)
Orifice 4
30
(22)
10
(3/8)
Orifice Plug 6
80
(59)
24
(15/16)
Air Vent Valve Seat 13
35
(26)
19
(3/4)
Cover Bolt 15
50
(37)
17
(21/32)
Screen Holder 22
150
(110)
38
(11/2)
Bolt 23 (Trap Body 1/Connector
Body 19)
39
(28)
14
(9/16)
NOTE:
-Coat all threaded portions with anti-seize.
-If drawings or other special documentation were supplied for the
product, any torque given there takes precedence over values
shown here.
(1 Nm 10 kgcm)

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
13
Exploded View
No
Name
No
Name
1
Trap Body
13
Air Vent Valve Seat
2
Cover
14
X-element
3
Float
15
Cover Bolt
4
Orifice
16
Connector
5
Orifice Gasket
17
Inner Connector Gasket
6
Orifice Plug
18
Outer Connector Gasket
7
Orifice Plug Gasket
19
Connector Body
8
Cover Gasket
20
Screen
9
Float Cover
21
Screen Holder Gasket
10
Screen
22
Screen Holder
11
Spring Clip
23
Connector Bolt
12
X-element Guide
No. 1 –18, 23: Trap Unit
No. 19 –22: Connector Unit

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
14
Instructions for Plug/Holder Disassemblyand Reassembly
The seal on the threaded plugs/holders found on TLV products is formed by a flat metal
gasket. There are various installation orientations for the gaskets, such as horizontal,
diagonal and downward, and the gasket may be pinched in the thread recesses during
assembly.
Instructions for Disassembly and Reassembly
1. Remove the plug/holder using a tool of the specified size (distance across flats).
2. The gasket should not be reused. Be sure to replace it with a new gasket.
3. Clean the gasket surfaces of the plug/holder and the product bodyusing a rag and/or
cleaning agents, then check to make
sure the surfaces are not scratched or
deformed.
4. Coat both the gasket surface of the
plug/holder and the threads of the
plug/holder with anti-seize, then press
the gasket onto the center of the
gasket surface of the plug/holder,
making sure the anti-seize affixes the
gasket tightly to the plug/holder.
Check to make sure the gasket is not
caught in the recesses of the threads.
5. Hold the plug/holder upside down to
make sure that the anti-seize makes
the gasket stick to the plug/holder
even when the plug/holder is held
upside down.
6. Screw the plug/holder by hand into
the product body while making sure
that the gasket remains tightly affixed
to the center of the gasket surface of
the plug/holder. Make sure the entire
gasket is making contact with the
gasket surface of the product body. It
is important at this point to make sure the gasket is not pinched in the thread
recesses of the plug/holder.
7. Tighten the plug/holder to the proper torque.
8. Next, begin the supply of steam and check to make sure there is no leakage from
the part just tightened. If there is leakage, immediately close the inlet valve and, if
there is a bypass valve, take the necessary steps to release any residual pressure.
After the surface of the product cools to room temperature, repeat the procedure
beginning from step 1.
Gasket
Do not pinch gasket in
threaded recesses
Coat with
anti-seize Gasket Surface
3.
4.
5.
6.

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
15
Troubleshooting
When disassembling or removing the product, wait until the internal pressure
equals atmospheric pressure and the surface of the product has cooled to
room temperature.
Disassembling or removing the product when it is hot or under pressure may lead
to discharge of fluids, causing burns, other injuries or damage.
If the product fails to operate properly, use the following table to locate the cause and
remedy.
Problem
Cause
Remedy
No condensate is
discharged
(blocked) or
discharge is poor
The float is damaged or filled with
condensate
Replace with a new float
The orifice opening, screen or piping
are clogged with rust and scale
Clean parts
The X-element is scratched or
damaged
Replace with a new X-element
The product operating pressure
exceeds the maximum specified
pressure or there is insufficient
pressure differential between the
product inlet and outlet
Compare specifications and actual
operating conditions
Steam locking has occurred
Perform a bypass blowdown or
close the trap inlet valve and allow
the trap to cool
Steam is
discharged or
leaks from the
outlet
(blowing)
(steam leakage)
Build-up on the seating surface of
the orifice or rust and scale build-up
beneath the float
Clean parts
Scratches on the orifice
Replace with a new orifice
The float is misshapen or has
surface
build-up
Clean or replace with a new float
Improper installation
Correct the installation
The X-element air vent valve seating
and/or air vent valve seat are
scratched or have surface build-up
Clean or replace with a new X-
element/air vent valve seat
Trap vibration
Lengthen the inlet piping and fasten
it securely
Steam is leaking
from a place other
than the outlet
Gasket deterioration or damage
Replace with a new gasket
Improper tightening torques were
used
Tighten to the proper torque
Float frequently
becomes
damaged
Water hammer has occurred
Study and correct the piping
NOTE: When replacing parts with new, use the parts list for reference, and replace with parts
from the maintenance kit, repair kit, etc. Please note that replacement parts are only
available as part of a replacement parts kit.
CAUTION

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
16
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation (“TLV”),
warrants that products which are sold by it, TLV International Inc. (“TII”) or one of its group
companies excluding TLV Corporation (a corporation of the United States of America),
(hereinafter the “Products”) are designed and manufactured by TLV, conform to the
specifications published by TLV for the corresponding part numbers (the “Specifications”)
and are free from defective workmanship and materials. The party from whom the Products
were purchased shall be known hereinafter as the “Seller”. With regard to products or
components manufactured by unrelated third parties (the “Components”), TLV provides no
warranty other than the warranty from the third party manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV, TII
or TLV group company personnel, or service representatives authorized by TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and maintenance
by persons other than TLV or TLV group company personnel, or service
representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV, TII
or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon and
radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty must
be brought within three (3) years after the date of delivery to the initial buyer if not sold
initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY OPERATION
OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT NEGATED
HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN DURATION
TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS WARRANTY
OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY (INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), IS
REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS REPORTED TO THE SELLER IN
WRITING WITHIN THE WARRANTY PERIOD, INCLUDING A DETAILED WRITTEN
DESCRIPTION OF THE CLAIMED DEFECT AND HOW ANDWHEN THE CLAIMED

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
17
DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE PRODUCT AND A
COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER, FREIGHT AND
TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL AUTHORIZATION AND
TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR COSTS, SHIPPING COSTS, AND
TRANSPORTATION COSTS ASSOCIATED WITH THE RETURN OR REPLACEMENT OF THE
CLAIMED DEFECTIVE PRODUCT ARE SOLELY THE RESPONSIBILITY OF BUYER OR THE
FIRST END USER. THE SELLER RESERVES THE RIGHT TO INSPECT ON THE FIRST END
USER’S SITE ANY PRODUCTS CLAIMED TO BE DEFECTIVE BEFORE ISSUING A RETURN
MATERIAL AUTHORIZATION. SHOULD SUCH INSPECTION REVEAL, IN THE SELLER’S
REASONABLE DISCRETION, THAT THE CLAIMED DEFECT IS NOT COVERED BY THIS
WARRANTY, THE PARTY ASSERTING THIS WARRANTY SHALL PAY THE SELLER FOR THE
TIME AND EXPENSES RELATED TO SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV
GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW, CONSEQUENTIAL
AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED WARRANTY NOT NEGATED
HEREBY (INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE) CANNOT BE EXCLUDED, SUCH DAMAGES ARE
EXPRESSLY LIMITED IN AMOUNT TO THE PURCHASE PRICE OF THE DEFECTIVE
PRODUCT. THIS EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES, AND THE
PROVISION OF THIS WARRANTY LIMITING REMEDIES HEREUNDER TO REPLACEMENT,
ARE INDEPENDENT PROVISIONS, AND ANY DETERMINATION THAT THE LIMITATION OF
REMEDIES FAILS OF ITS ESSENTIAL PURPOSE OR ANY OTHER DETERMINATION THAT
EITHER OF THE ABOVE REMEDIES IS UNENFORCEABLE, SHALL NOT BE CONSTRUED TO
MAKE THE OTHER PROVISIONS UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND
ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY
DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof, and
any such invalidity, prohibition or unenforceability in any such jurisdiction shall not
invalidate or render unenforceable such provision in any other jurisdiction.

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
18
Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
[33]–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, PO Box 371684, Dubai Airport Free Zone, Dubai, UAE
Email:
[email protected]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112

172-65720MA-00 (FJ32-X+BD2) 22 Dec 2021
19
Options
The options shown below are available for this product on
request. Please compare with the product you received.
Options for Area A (standard: without drain plug)
With Drain Plug
Part Name
Torque
Distance Across
Flats
Nm
(lbf·ft)
mm
(in)
Drain Plug
35
(26)
21
(13/16)
(1 Nm 10 kgcm)
Options for Area B (screen holder)
With Blowdown Valve (TLV-BD2)
Always wear eye protection and heat-resistant gloves when operating the
blowdown valve.
Failure to do so may result in burns or other injury.
When operating the blowdown valve, stand to the side well clear of the outlet
to avoid contact with internal fluids that will be discharged. Operate the valve
slowly and surely, taking care to avoid the area from which internal fluids are
discharged and any fluids deflected off piping or the ground etc.
Failure to do so may result in burns or other injury.
Do not tighten the BD2 valve or the BD2 valve seat in excess of the
appropriate tightening torque.
Over-tightening may cause breakage to threaded portions, which may cause burns,
other injuries or damage.
Do not excessively loosen the BD2 valve when opening the blowdown valve.
The valve stopper pin installed to prevent the BD2 valve from being removed may
break and internal pressure may result in the BD2 valve being blown off, leading to
injuries, damage and fluid discharge, causing burns.
No.
Part Name
1
BD2 Valve
2
BD2 Valve Seat (Screen Holder)
3
Screen Holder Gasket
4
Screen
5
Valve Stopper Pin
6
Discharge Hole
TLV Blowdown Valve: BD2
The BD2 blowdown valve, installed in the screen area of the connector body, uses the
trap’s internal pressure to blow any condensate, steam, dirt or scale accumulated
around the screen area out to atmosphere.
CAUTION
