Acorp 4S845AL User manual

The information presented in this publication has been
made carefully for reliability; however, no responsibility
is assumed for inaccuracies. Specifications are subject
to change without notice.
IBM, PC/AT, and PC/XT are trademarks of
International Business Machines Corporation.
Socket478 is a trademark of Intel Corporation
AWARD is a registered trademark of Phoenix
Software Inc.
MS-DOS and WINDOWS NT are registered
trademarks of Microsoft Corporation.
Trademarks and/or registered trademarks are the
properties of their respective owners.
User's Manual Version 1.0
4S845AL
i

Table of Contents
IntrnctctinnIntrnctctinn
IntrnctctinnIntrnctctinn
Intrnctctinn
1. Mnthdranarc Ddrcriotinn1. Mnthdranarc Ddrcriotinn
1. Mnthdranarc Ddrcriotinn1. Mnthdranarc Ddrcriotinn
1. Mnthdranarc Ddrcriotinn
1.1 Fdattrdr
1.1.1 Harcward 1-1
1.1.1Snetward 1-4
1.1.3 Attachmdntr1-4
1.1Mnthdranarc Inrtallatinn
1.1.1 Mnthdranarc Mao1-5
1.1.1Mnthdranarc Layntt1-6
1.3 Mnthdranarc Cnnndctnrr
1.3.1 Frnnt Pandl Cnnndctnr(PANEL(1-8
1.3.1Flnooy Dirk Cnnndctnr(FDC(1-9
1.3.3 Harc Dirk Cnnndctnrr(IDE1.IDE1( 1-9
1.3.4 ATX 4-oin.1/-oin Pnwdr Cnnn.(J8.CN9.ATX(1-1/
1.3.5 Inerardc Cnnndctnr1-11
1.4 Back Pandl Cnnndctnrr
1.4.1 PS.1 Mntrd.Kdyanarc CNNN. 1-11
1.4.1USB Cnnndctnrr1-11
1.5 Sdrial anc Paralldl Intdreacd onrtr1-13
1.6 CPU Inrtallatinn
1.6.1 CPU Inrtallatinn Prncdctrd(Snckdt 468(1-15
1.6.1CPU Clnck Frdqtdncy Sdtting(J9(1-16
1.6Jtmodr Sdtting
1.6.1 CPU Fan Cnnndctnrr(FAN1.1.3(1-16
1.6.1Wakd-Nn-LAN Hdacdr(WNL(1-18
1.6.3 USB1 Pnwdr Sdldct(JP11( 1-18
1.6.4 AC'96CNDEC Sdldctinn(J1( 1-19
1.6.5 AGP Vnltagd Acjtrt(JP-G(1-19
1.6.6 DIMM Vnltagd Acjtrt(JP-V(1-19
1.6.6CMNS Ftnctinn Sdtting(JP6( 1-1/
1.8 DRAM Inrtallatinn
1.8.1 DIMM 1-11
1.8.1Hnw tninrtall aDIMM Mnctld 1-11
ii

Table of Contents
1.9 AtcinStaryrtdm
1.9.1 CD-Atcin-IN Cnnndctnr(CDIN1.CDIN1( 1-11
1.9.1 Tdldohnnd in Cnnndctnr(TAD((notinnal(1-13
1.1/ Smart Pandl Nnanarc Cnnndctnr
1.1/.1 Pnrt 8/ Ddatg Ftnctinn(SP-J6(1-14
1.1/.1Sdcnnc BINS Cnnndctnr(SP-J1(1-14
1.1/.3 AUX LINE Cnnndctnr(SP-J5(1-14
1.1/.4 Frnnt CNM1Hdacdr Cnnndctnr(SP-J6( 1-15
1.1/.5 Frnnt USB3,4 Hdacdr Cnnndctnr(SP-J8(1-15
1. BINS Sdtto1. BINS Sdtto
1. BINS Sdtto1. BINS Sdtto
1. BINS Sdtto
1.1 Main Mdnt1-4
1.1Stancarc CMNS Fdattrdr1-6
1.3 Acuancdc BINS Fdattrdr1-1/
1.4 Acuancdc Chiordt Fdattrdr1-14
1.5 Intdgratdc Pdriohdralr1-18
1.6 Pnwdr Managdmdnt Sdtto1-14
1.6PnP.PCI Cnneigtratinnr1-18
1.8 PC Hdalth Stattr 1-31
1.9 Frdqtdncy.Vnltagd Cnntrnl1-34
1.1/ Lnac Fail-Saed Ddeatltr1-35
1.11 Lnac Notimizdc Ddeatltr1-36
1.11Sdt Stodruirnr.trdr Parrwnrc 1-36
1.13 Saud & Exit Sdtto1-39
1.14 Exit Withntt Sauing 1-4/
3. Driudr Inrtallatinn3. Driudr Inrtallatinn
3. Driudr Inrtallatinn3. Driudr Inrtallatinn
3. Driudr Inrtallatinn
3.1 Attn-rtn Mdnt3-1
3.1Inrtalling Intdl INF Driudr 3-1
3.3 Inrtalling Intdl Aoolicatinn Accdldratnr Driudr 3-4
3.4 Inrtalling AtcinDriudr 3-8
a. Aoodncixa. Aoodncix
a. Aoodncixa. Aoodncix
a. Aoodncix
iii

Before you proceed:
Take note of the following precautions before you install device
on motherboard:
First: before you boot
i. Please check up Power supply on page 1-10.
ii. Check up DRAM Memory module on page 1-2.
iii. Check up AGP card is 1.5V/4X device on page 1-2.
Second: Boot your system
i. Check up CPU Frequency on page 2-34.
Third: Using PS/2 Sound Card & Game Port device
i. Please see detail content on page 1-19.
Fourth: Running test software under DOS mode
i. Please check up APIC Mode on page 2-13.
Fifth: Using wheel device of Mouse under S3(STR) mode
i. Please check up ACPI Suspend Type on page 2-25.

1-11-1
1-11-1
1-1
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn
Introduction
System Overview
This manual was written to help you start using this product
as quickly and smoothly as possbile. Inside, you will find
the answers to solve most problems. In order for this
reference material to be of greatest use, refer to the
“expanded table of contents” to find relevant topics.
This board provides a total PC solution by incorporating the
System , I/O , and PCI IDE. The mainboard support single
Intel P4 processors base PC ATX system, PCI Local Bus,
and AGP Bus to upgrades your system performance.
It is ideal for multi-tasking and fully supports MS-DOS,
Windows, Windows NT , Windows ME, Windows 2000,
Novell, OS/2, Windows95/98, Windows 98SE, Windows XP,
Liunx, UNIX, SCO UNIX etc.
This manual also explains how to install the mainboard for
operation, and how to setup your CMOS configuration with
the BIOS setup program.

1-11-1
1-11-1
1-1
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn
1.Motherboard Description
1.1 Features
1.1.1 Hardware
CPU
-400MHz System Interface speed.
-Single Socket 478 for Intel P4TM up to 2.2GHz or higher(Northwood
Processor).
-Support Intel NetburstTM Micro-architecture.
AGP Speed
-Supports 33MHz PCI Bus speed.
-Only support AGP 66 MHz/1.5V for 4X device.
DRAM Memory
-Supports 8/16/32/64....MB DIMM module socket.
-Supports Synchronous DRAM(3.3V)
-Supports a maximum memory size of 3GB with SDRAM.
-Main support for PC-133 Module W/SPD EEPROM, but not ensure
support for PC-100 RAM Module .
Note 1:
When you plug or unplug DIMM module, you must
check your power suppply is off.
Chipset
-Intel 82845 North Bridge.
-Intel 82801BA South Bridge.
Bus Slots
-Provide one AGP slot.
-Six 32-bit PCI bus.
BIOS
-The mainboard BIOS provides “Plug & Play” BIOS which detects
the peripheral devices and expansion cards of the board
automatically.
-The mainboard provides a Desktop Management Interface (DMI)
function which records your mainboard specifications.
-BIOS support CD-ROM, SCSI, LAN BOOT, Temperature sensor,
LAN, Alarm Bus CLK setup with BIOS.
3.3V3.3V
3.3V3.3V
3.3V
AGPAGP
AGPAGP
AGP
Warning

1-31-3
1-31-3
1-3
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn
Universal Serial Bus
-Supports two back Universal Serial Bus(USB)Ports and two front
Universal serial Bus(USB)Ports.
Hardware Monitor Function
-CPU Fan Speed Monitor.
-CPU Temperature Monitor.
-System Voltage Monitor.
Miscellaneous Control
-Support CPU frequency / voltage control.
-Support SDRAM VDIMM voltage select.
-Support AGP VDDQ voltage select.
Flash Memory
-Support 2MB flash memory.
-Support ESCD Function.
IDE Built-in On Board
-Supports four IDE devices.
-Supports PIO Mode 5, Master Mode, high performance hard disk
drives.
-Support Ultra DMA 33/66/100 Bus Master Mode.
-Supports IDE interface with CD-ROM.
-Supports high capacity hard disk drives.
-Support LBA mode.
Audio
-AC 97 2.1 interface.
-16 channels of high-quality sample rate conversion.
-16x8 channel digital mixer.
-Stereo 10 band graphic equalizer.
-Sound Blaster and Sound Blaster Pro emulation.
WOL (Wake On LAN)
Supports system power up from LAN ring up .
Smart Panel
Supports BIOS Port 80H POST Code output to debug LED.

1-41-4
1-41-4
1-4
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn
I/O Built-in On Board
-Supports one multi-mode Parallel Port.
(1)Standard & Bidirection Parallel Port
(2)Enhanced Parallel Port (EPP)
(3)Extended Capabilities Port
-Supports two serial ports, 16550 UART.
-Support one Infrared transmission (IR).
-Supports PS/2 mouse and PS/2 Keyboard.
-Support ATX 4 pin power connector +12V in.
-Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk
drivers.
1.1.2 Software
BIOS
-AWARD legal BIOS.
-Supports APM 1.2.
-Supports USB Function.
-Supports ACPI
Operation System
-Supporting the highest performance for MS-DOS,Windows,
Windows NT, Windows 2000, Windows ME, Novell, OS/2,
Windows 95/98, Windows 98 SE, Windows XP, UNIX,
Liunx, SCO UNIX etc.
1.1.3 Attachments
-HDD UDMA66/100 Cable.
-FDD Cable.
-Flash Memory written for BIOS update.
-USB2 Cable (Optional).
-Fully Setup CD Driver built in utility(Ghost, Anitivirus,
Adobe Acrobat).
-This Manual.

1-51-5
1-51-5
1-5
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn
1.2 Motherboard Installation

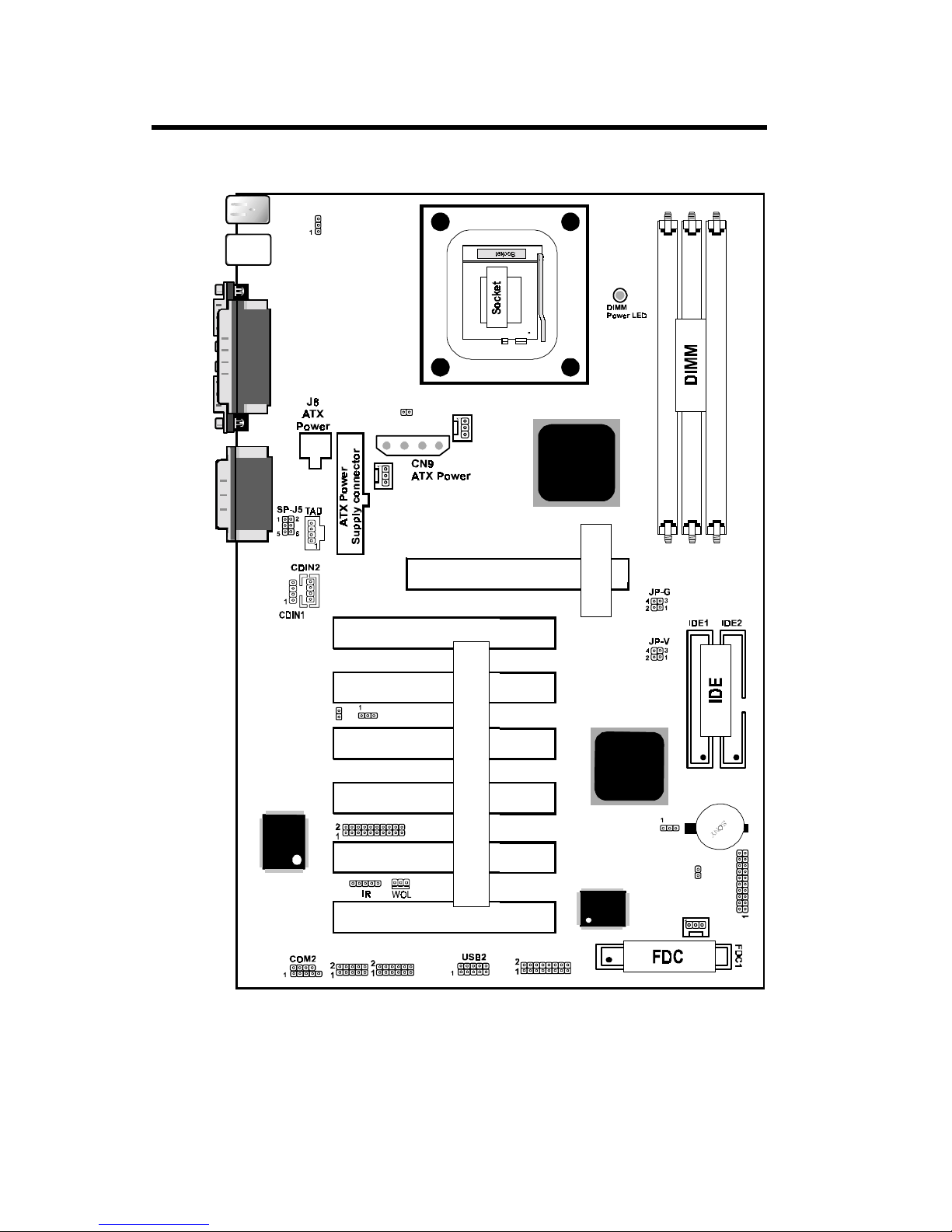

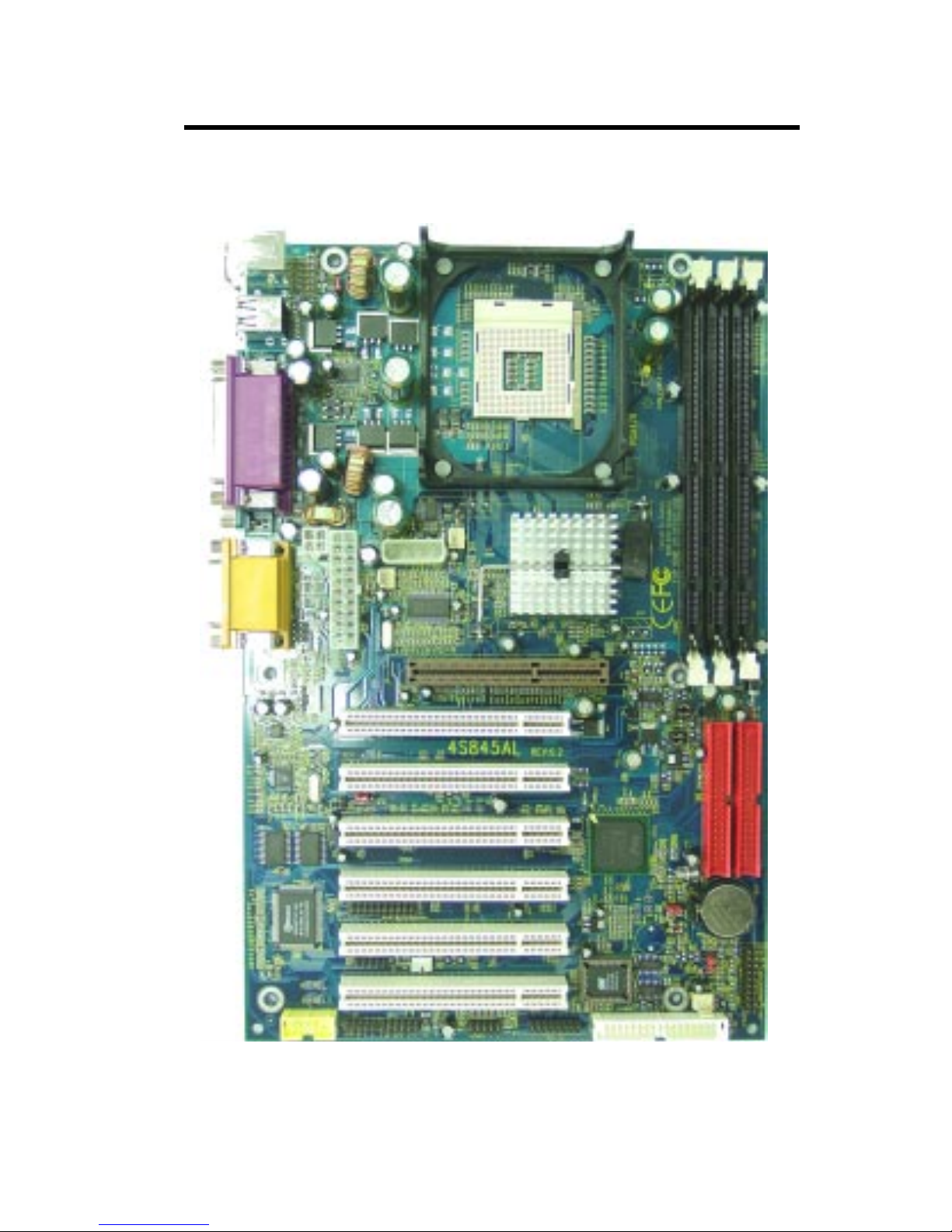

1.2.1 Motherboard Map

1-61-6
1-61-6
1-6
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn
Chaosdr 1 Mnshdranarc Cdrbrhoshnn

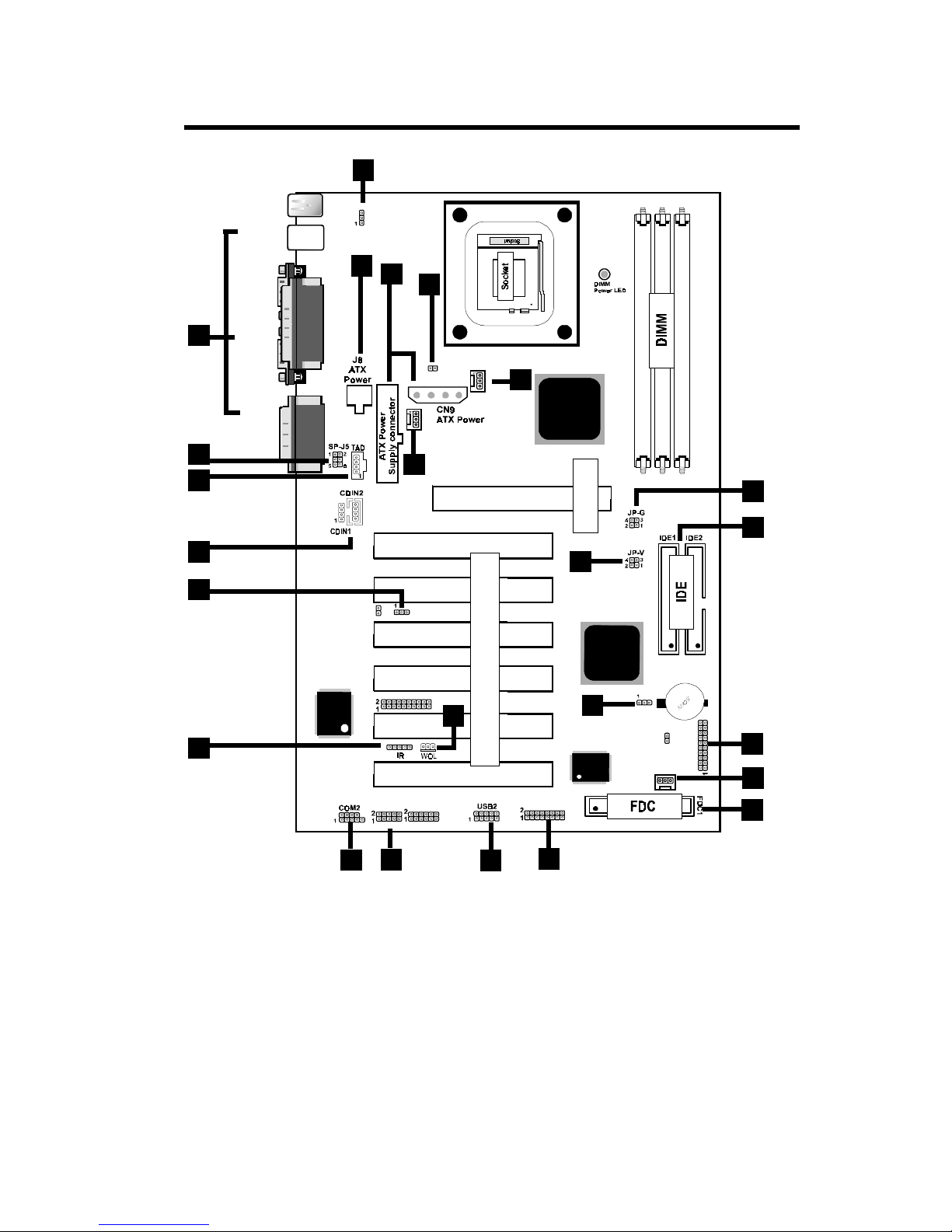

1.2.2 Motherboard Layout
GAME1
Intel
Intel
FAN1
AGP SLOT
1
DIMM2
DIMM1
DIMM3
JP7
SP-J6
PCI2
PCI3
PCI4
PCI5
I/O CHIP
BIOS
JP3
J2
J9
(Only 4X/1.5V Card)
S1
FAN3
478
SP-J1
T:Mouse
B:KB
PCI0
PCI1
PCI Slot
AGP Slot
JP12
SP-J10
SP-J8
FAN2
USB1
Speak out
Line in
MIC in
COM1
COM2
Printer
PAN EL
