TMG TMG-GH2060 User manual

W W W . T M G I N D U S T R I A L . C O M P 0 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Main Specifications:

W W W . T M G I N D U S T R I A L . C O M P 1 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Main Specifications :
- Assembly size : W6 x L18 x H3 (m) / W20 x L60 x H10 (ft)
- Shoulder wall clearance height : 1.25 m / 4.1ft
- Front roll up door : W1.1 x H2 (m) / W3.6 x H6.6 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is important to follow your
local safety regulations and industry standards during installation. Regulations may include
but are not limited to :
- Safety helmets, protective eyewear, and clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make
any alterations to the structure. Do not hang any weights on the frame during installation,
including parts. We are not responsible for any damages or injuries caused by
inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and
where it touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all parts
are included prior to setup.
Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Choose a solid flat level ground area to set up the building. Do not install the building on
soft ground, wetland, uneven surfaces, sloped surfaces, or on top of structures that are not
rated to hold its weight.
We strongly recommend that you build the structure on a solid foundation such as cement
and use anchor bolts on all baseplates.
Be aware of the surrounding area. Do not set up the building near snowdrifts, open
flames or exposed electrical wires. Do not keep heat sources near the fabric cover.
Keep the building surroundings clear at all times.

W W W . T M G I N D U S T R I A L . C O M P 2 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

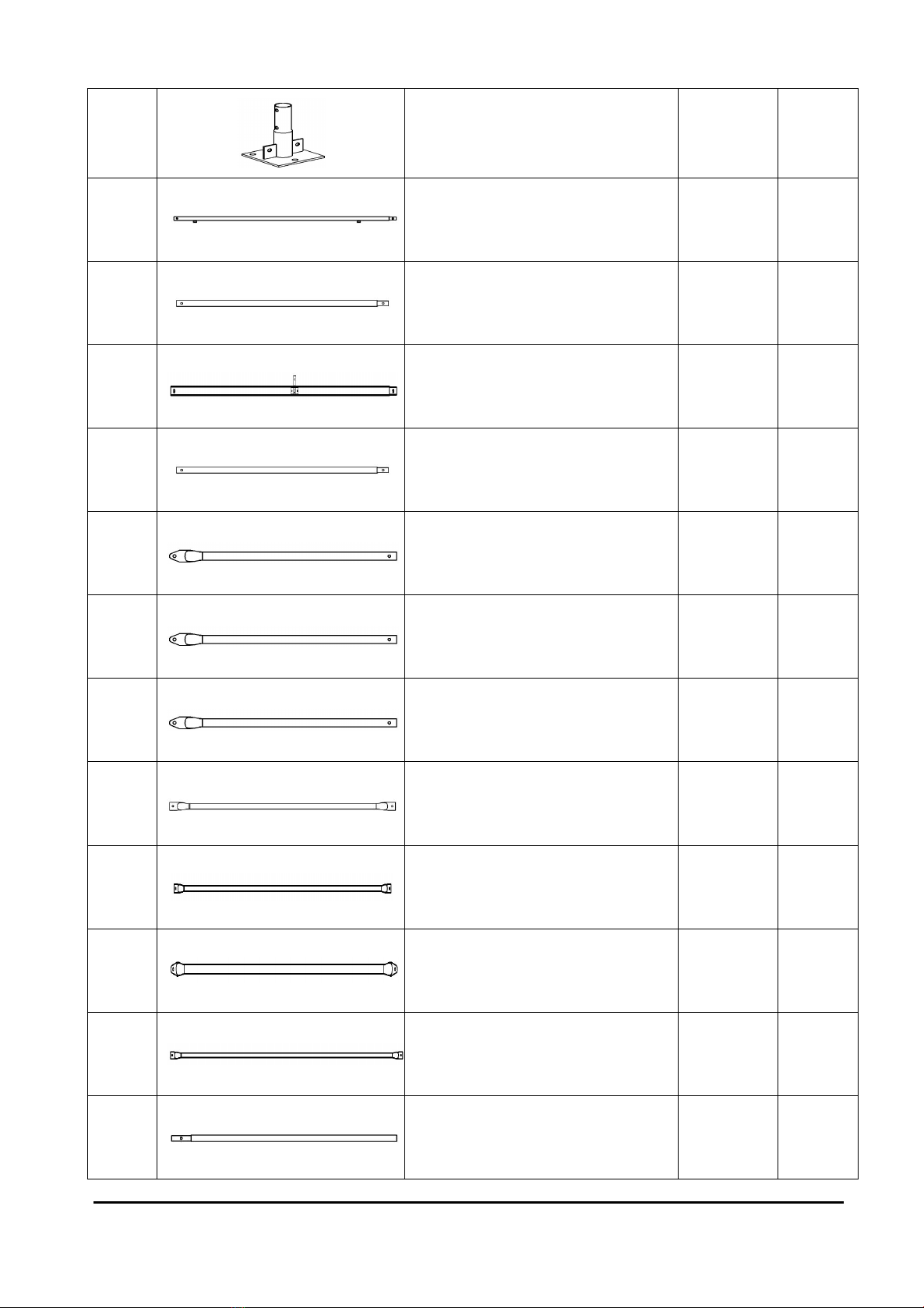

TMG-GH2060 Part List
Parts
code
Graphical
Description
Qty
BOX
1
Peak arch tube
13
1/1
2
Upper rafter tube
(middle and rear truss)
24
1/1
2A
Upper rafter tube
(front truss)
2
1/1
3
Shoulder tube
(middle truss)
26
1/1
4
Lower rafter tube
(front and rear truss)
26
1/1
5
Roof purlin
(horizontal tube)
60
1/1
5A
Roof purlin
(horizontal tube)
24
1/1
5L
Left corner baseplate
(front and rear truss)
2
1/1
5R
Right corner baseplate
(front and rear truss)
2
1/1
6
Baseplate
(front truss)
2
1/1
6A
Baseplate
(rear truss)
2
1/1

W W W . T M G I N D U S T R I A L . C O M P 3 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
7
Baseplate
(middle truss)
22
1/1
8
Door frame lower tube
(front truss)
1
1/1
8A
Door frame lower tube
(front and rear truss)
2
1/1
8B
Door frame lower tube
(front truss)
1
1/1
8C
Door frame lower tube
(front truss)
2
1/1
9
Door frame upper tube
(front truss)
2
1/1
9A
Door frame upper tube
(rear truss)
2
1/1
9B
Door frame upper tube
(front truss)
2
1/1
10
Door frame upper horizontal
tube (front truss)
4
1/1
10A
Door frame horizontal tube
(rear truss)
3
1/1
11
Ceiling cross bar
(middle and rear truss)
12
1/1
11A
Door frame cross pull tube
(front truss)
1
1/1
12
Bottom tension bar
(front cover)
2
1/1

W W W . T M G I N D U S T R I A L . C O M P 4 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
12A
Bottom tension bar
(front cover)
2
1/1
12B
Bottom tension bar
(rear cover)
3
1/1
13
Diagonal bracing bar
(1st and last span)
4
1/1
13A
Tube clamp
12
1/1
13B
Tube clamp
2
1/1
14
Door frame column tube
1
1/1
14A
Door frame column tube
1
1/1
15
Door horizontal tube
4
1/1
16
Expansion bolt M12x100mm
(head diameter 14)
86
1/1
17
Hex bolt
M10x60mm
204
1/1
18
Mushroom head hexagon
socket head bolt M6x60mm
65
1/1
18A
Mushroom head hexagon
socket head bolt M6x50mm
8
1/1
19
Hex bolt
M8x20mm
86
1/1

W W W . T M G I N D U S T R I A L . C O M P 5 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
19A
Hex bolt
M8x80mm
4
1/1
19B
Hex bolt
M8x50mm
10
1/1
19C
Hex bolt
M6x80mm
2
1/1
20
Door cover
1
1/1
21
Water plug
2
1/1
21A
Water plug
4
1/1
21B
Water plug
10
1/1
22
Top cover
1
1/1
23
Front cover panel
1
1/1
23A
Rear cover panel
1
1/1
24
Braided rope
1 bundle
1/1
25
Allen key
1
1/1
26
Scratch resistant tape
3
1/1

W W W . T M G I N D U S T R I A L . C O M P 6 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

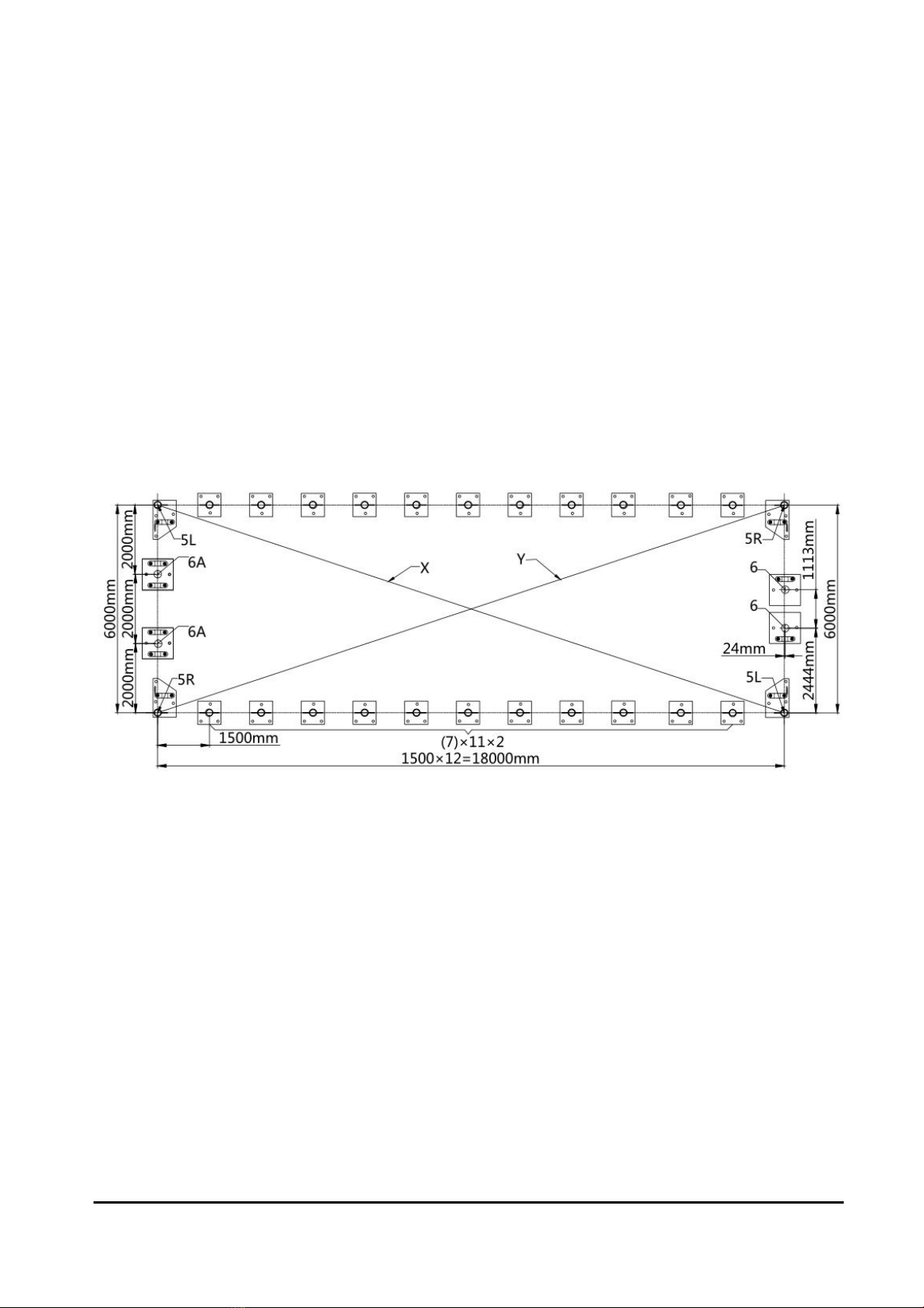

Mark the ground in the final building location with a line showing the positions of
base plates, front, and rear doors. All lines should be drawn from center to center
of all baseplate tubes. Diagonal line X must be equal to Y.
Baseplates: all baseplates must be installed firmly with expansion bolts (#16) on
this step (refer to Figure 1).
Parts used in this step :
- (4) Baseplate (#5L,#5R)
- (22) Baseplate (#7)
- (2) Baseplate (#6)
- (86) Expansion bolt (#16)
- (2) Baseplate (#6A)
Figure 1
Step 2 : Assemble all trusses
The building includes 13 trusses : (1) front truss, (1) rear truss, and (11) middle
trusses. The front and the rear truss are to install with the fabric panel (#23 and
#23A).

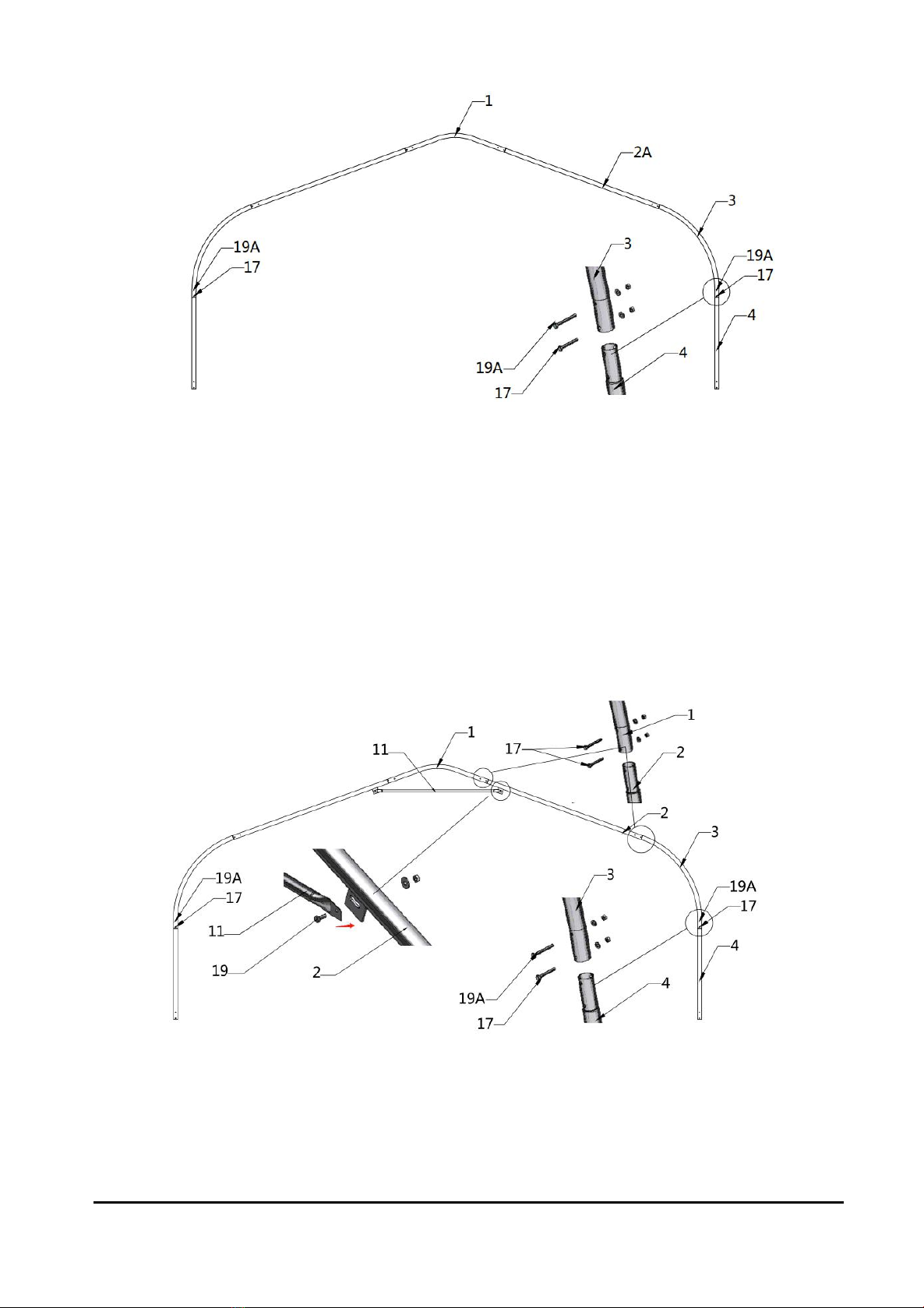

Parts used to install the front truss in this step (refer to Figure 2) :
- (1) Peak arch tube (#1)
- (2) Upper rafter tube (#2A)
- (2) Shoulder tube (#3)
- (2) Lower rafter tube (#4)
- (10) Hex bolt (#17)
- (2) Hex bolt (#19A)

W W W . T M G I N D U S T R I A L . C O M P 7 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 2
Parts used to install the rear truss in this step (refer to Figure 3) :
- (1) Peak arch tube (#1)
- (2) Upper rafter tube (#2)
- (2) Shoulder tube (#3)
- (2) Lower rafter tube (#4)
- (1) Ceiling cross bar (#11)
- (10) Hex bolt (#17)
- (2) Hex bolt (#19)
- (2) Hex bolt (#19A)
Figure 3

W W W . T M G I N D U S T R I A L . C O M P 8 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Parts used to install (11) middle trusses in this step (refer to Figure 4).
- (1x11) Peak arch tube (#1)
- (2x11) Upper rafter tube (#2)
- (2x11) Shoulder tube (#3)
- (2x11) Lower rafter tube (#4)
- (1x11) Ceiling cross bar (#11)
- (12x11) Hex bolt (#17)
- (2x11) Hex bolt (#19)
Figure 4
 Lay down all (13) trusses on the ground as figure 5 when the assembly is all
completed and before moving to next step (refer to Figure 5).
Figure 5

W W W . T M G I N D U S T R I A L . C O M P 9 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

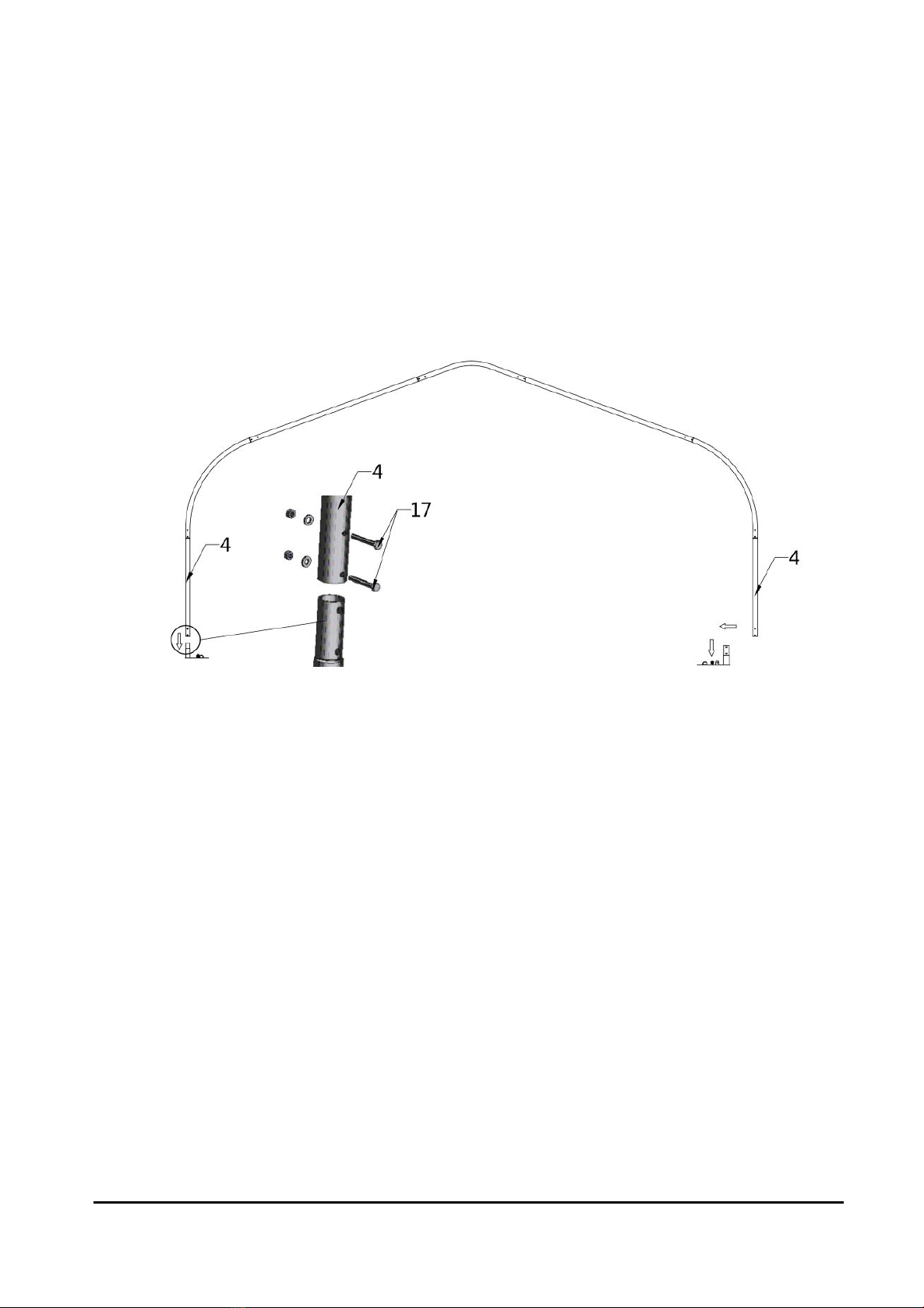

Step 3 : Put up the front (1st) truss
 Use of a crane or forklift is recommended, otherwise a team can use ropes to
lift the trusses, but you have to make sure it is safe, and have enough
manpower. We recommend 3 to 5 people to pull the truss up from different
directions. When the truss is up, tie the ropes to the heavy objects to make
sure the truss will stay upright and use bolt (#17) to connect the truss to the
baseplate on both sides (refer to Figure 6)
 Parts used in this step : (4) Hex bolt (#17)
Figure 6
Step 4 : Put up the rest trusses

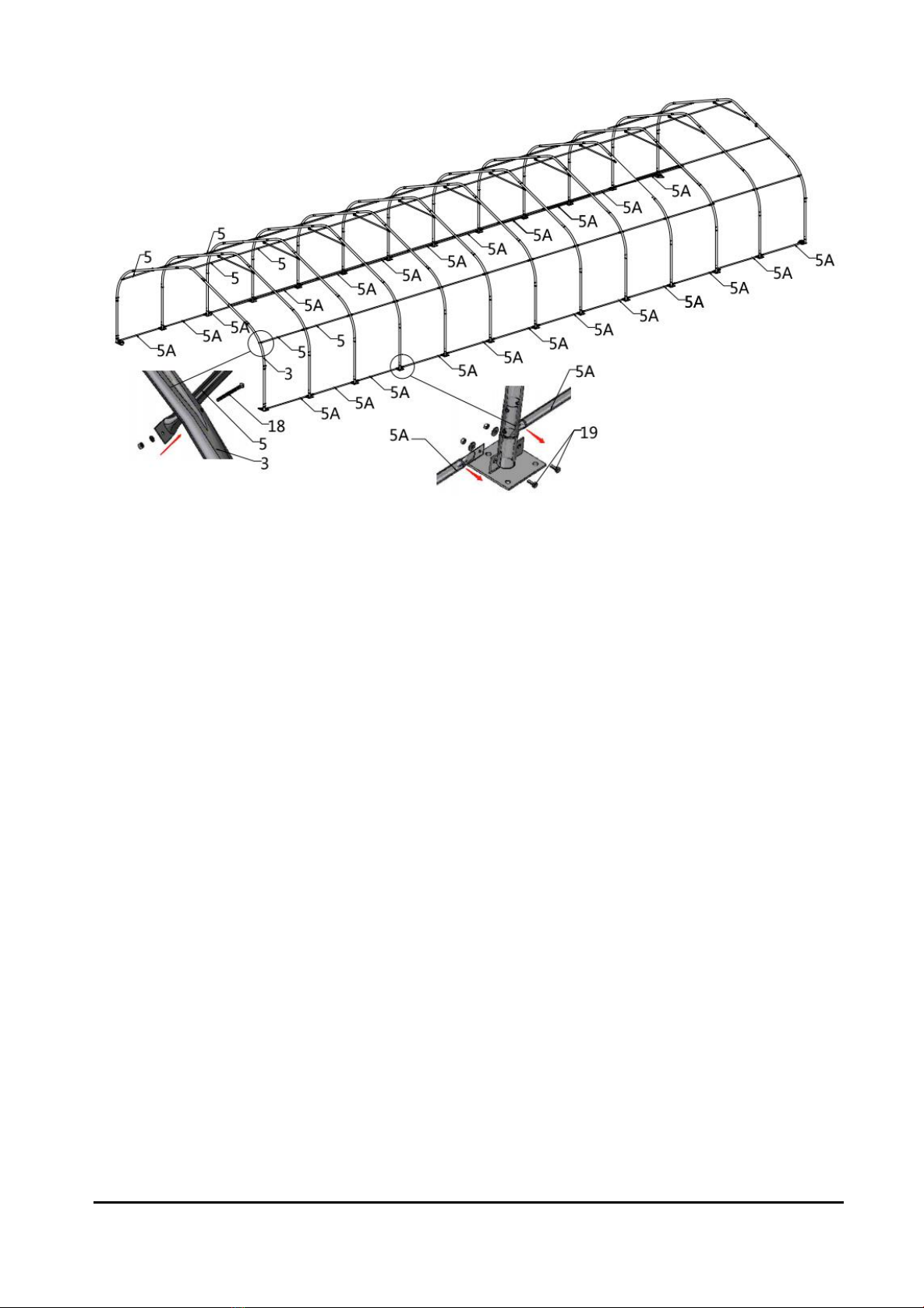

 Refer to Step 3 to put up the rest trusses, connect all purlins (#5) and (#5A)
with bolt (#18) and bolt (#19) secure all bolts firmly on each span before
going to next truss (refer to Figure7).
Parts used in this step:
- (5x12) Roof purlin (#5)
- (2x12) Roof purlin (#5A)
- (4x12) Hex bolt (#17)
- (5x13) Mushroom head hexagon socket head bolt (#18)
- (48) Hex bolt (#19)

W W W . T M G I N D U S T R I A L . C O M P 10 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 7
Step 5 : Install the diagonal bracing bars (#13)
 Connect diagonal bracing bar (#13) on the first and last span between the
shoulder tube and lower rafter tube (#3 and #4) with tube clamp (#13A), use
bolt (#19) (refer to Figure 8).
Parts used in this step:
- (4) Diagonal bracing bar (#13)
- (8) Tube clamp (#13A)
- (8) Hex bolt (#19)

W W W . T M G I N D U S T R I A L . C O M P 11 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 8

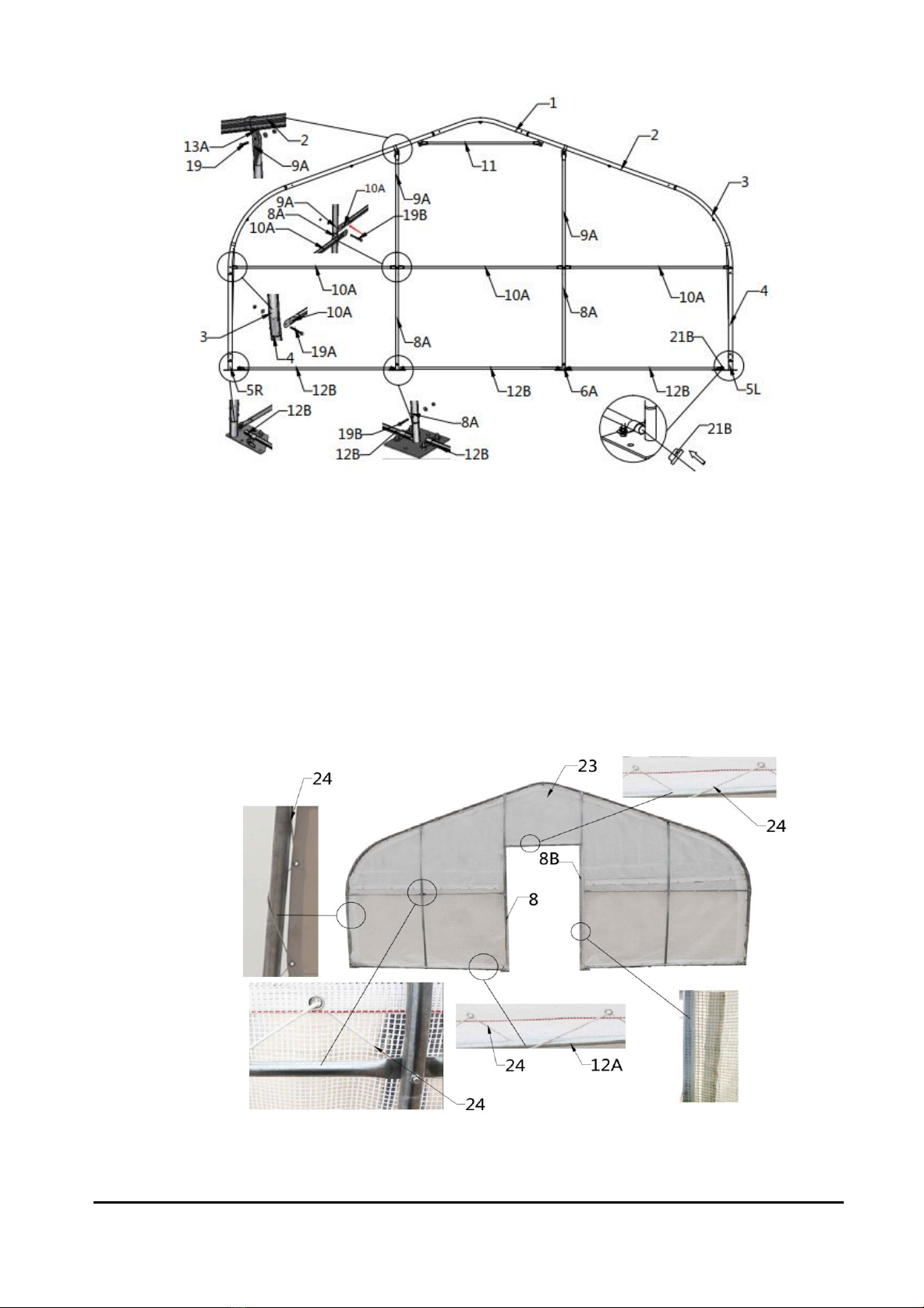

Step 6 : Install the remaining parts on the front truss (refer to Figure 9)
 Parts used in this step :
- (1) Door frame lower tube (#8)
- (1) Door frame lower tube (#8B)
- (2) Door frame lower tube (#8C)
- (2) Door frame upper tube (#9)
- (2) Door frame upper tube (#9B)
- (4) Door frame horizontal tube (#10)
- (1) Door frame cross pull tube (#11A)
- (2) Bottom tension bar (#12)
- (2) Bottom tension bar (#12A)
- (2) Tube clamp (#13A)
- (2) Tube clamp (#13B)
- (4) Hex bolt (#19)
- (6) Hex bolt (#19B)
- (2) Hex bolt (#19C)
- (2) Water plug (#21)
- (4) Water plug (#21B)

W W W . T M G I N D U S T R I A L . C O M P 12 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 9

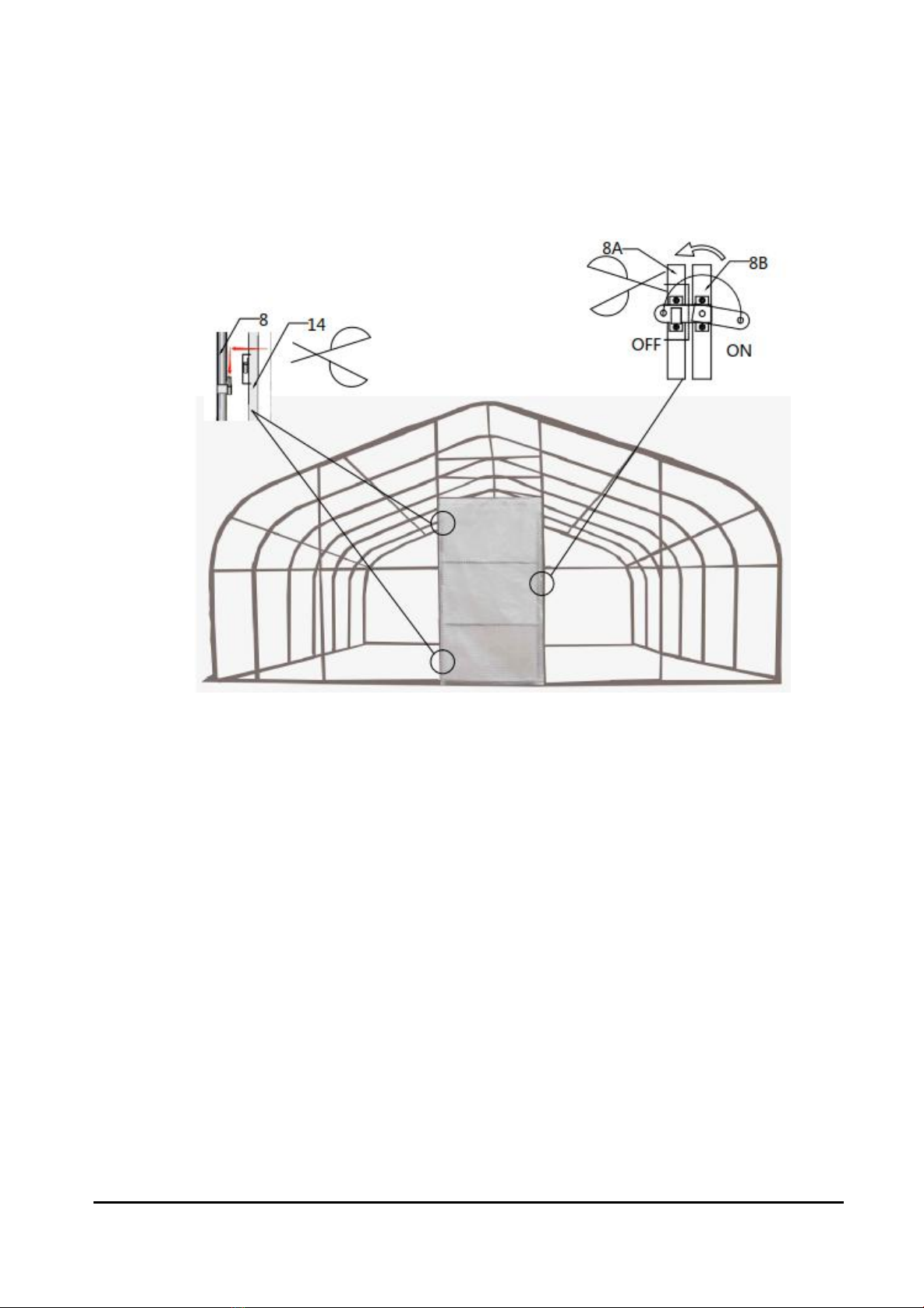

Assemble the sliding door. Fix the door column (#14) and (#14A) on the cross
pull tube (#15) with bolts (#18A)( refer to Figure 10).
Parts used in this step :
- (1) Door frame column tube (#14)
- (1) Door frame column tube (#14A)
- (4) Door horizontal tube (#15)
- (8) Mushroom head hexagon socket head bolt (#18A)
- (4) Water plug (#21A)
Figure 10

W W W . T M G I N D U S T R I A L . C O M P 13 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Sliding door installation. The assembled door cover cloth (#20) of the sliding door
cover is fixed on the door frame of the front truss through the hinge. (refer to Figure
11)
Figure 11
Step 7 : Install the remaining parts on the rear truss
 Parts used in this step :
- (2) Door frame lower tube (#8A)
- (2) Door frame middle tube (9A)
- (3) Door frame horizontal tube (#10A)
- (3) Bottom tension bar (#12B)
- (2) Tube clamp (#13A)
- (2) Hex bolt (#19)
- (4) Hex bolt (#19B)
- (6) Water plug (#21B)

W W W . T M G I N D U S T R I A L . C O M P 14 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 12
Step 8 : Install front cover panel and sliding door
Note: Figure 13 is the inside view!
Lift the fabric panel (#23), starting from the center point (the highest ridge point) of
the frame, tie the panel firmly to the truss with a rope (#24) through the grommet,
and then tie one end of (#24) to the truss. The woven fabric at the posts (#8) and
(#8A) of the door frame is tension with velcro.
Figure 13

W W W . T M G I N D U S T R I A L . C O M P 15 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 9 : Install rear cover panel
Use rope (#24) to lift up the rear cover (#23A) from the center grommet and tie it
firmly to the truss tube and spread toward both sides through each grommet along
the tube (refer to Figure 14).
Figure 14
Step 10 : Install the top cover (#22)
Do not install the cover during windy weather!

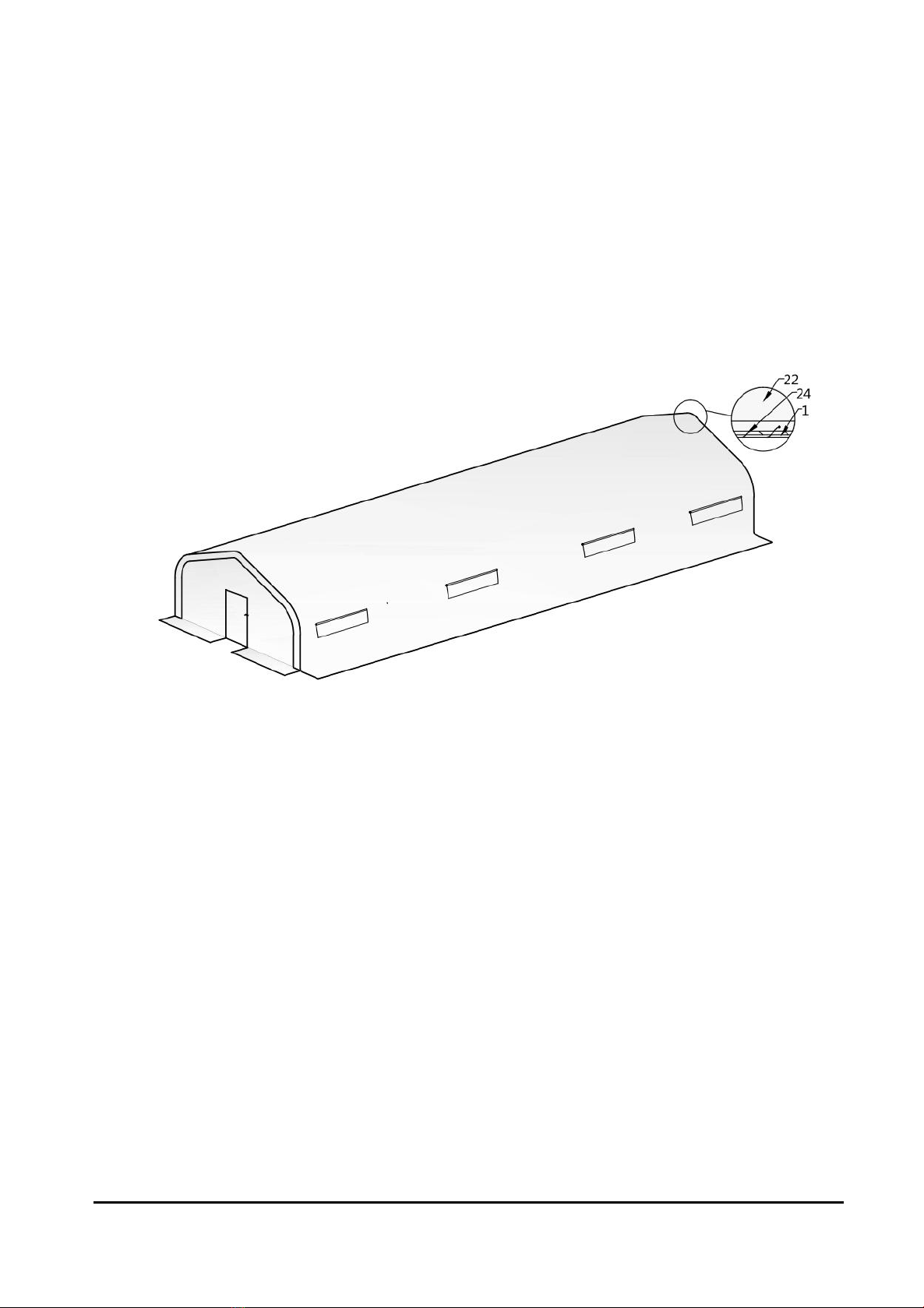

 Unpack the top cover and place it along one of the long sides of the structure.
 Use 3 to 5 ropes (#24) to pull the cover over the top of the structure, 2 or 3
people standing inside on ladders to push upwards will help to move the
cover smooth without any damage (refer to Figure 15).
Figure 15

W W W . T M G I N D U S T R I A L . C O M P 16 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 11 : Stretch and tighten top cover
 The roof cover must be stretched and tied to the front and rear truss by rope
going through the flap grommets on the cover. Start from the top center and
go toward both side on each end. Add or cut the rope as needed.
 Pull and stretch the cover enough only to take wrinkles out. Repeat for the
rear truss. Do not over stretch as it could rip off the grommets (refer to Figure
16)
Figure 16
After the Installation
Inspect the building periodically to make sure the parts are firmly fixed and the whole
building is well supported. Check all bolts and hardware connectors to make sure they are
in place and tightened. Check the base plates, adjust the ropes if necessary and clean the
cover regularly.
Snow accumulating on the fabric cover must be removed as soon as possible. If the snow
had become the solid ice on the cover, it would increase theburden of the roof and collapse
the building eventually or reduce the life span.
Keep the building on a dry ground condition most of the time. Do not keep the fabric dirt
skirt under water all the time, otherwise the fabric will deteriorate easily.
We strongly recommend you remove any snow from the roof immediately. Do not leave
any snow load on the roof overnight. Keep 3 feet of clearance from both sides and two
ends of the ground all the time. Do not allow snow to accumulate and pile up on both sides
of the building. Otherwise the pressure from both sides will push toward the building and

W W W . T M G I N D U S T R I A L . C O M P 17 / 16 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
make it collapse eventually.
