MAIN SPECIFICATIONS :
Overall assembled size : W2.4 x L4 x H2.3 (m) / 7.87 x 13.12 x 7.54 (ft)
Shoulder height : 1.5 m / 5.18 ft
Ridge peak height : 2.3m / 7.54 ft
The front and back doors : 1.1 x 1.8 (m) / 3.6 x 5.9 (ft)
PRIOR TO ASSEMBLY
Please read the instructions carefully before installation. It is important to follow your local safety regulations and
industry standards during installation. Regulations may include but are not limited to :
Safety helmets, protective eyewear, and clothing.
Safety harnesses for all elevated workers.
Proper ladder, cage, and safety operation.
Check all components and parts before installation. All parts are marked with a part number, please refer to the
parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make any alterations to the
structure. Do not hang any weights on the frame during installation, including parts. We are not responsible for any
damages or injuries caused by inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and where it touches the cover.
This will help extend the life span of the cover.

►www.tmgindustrial.com 2/16 Toll Free:1-877-761-2819
TMG-GH813 PART LIST
PARTS
CODE
GRAPHICAL
DESCRIPTION
LENGTH
QTY
1
Truss upper eave beam
pipe
L1398mm
6
1A
Front and rear door truss
upper eave beam pipe
L1398mm
4
2
Lower straight pipe of
middle truss
L1555mm
6
2A
Lower straight pipe of
front and rear doors
L1555mm
4
3
Anchor connection pipe
L1012mm
4
3A
Anchor connection pipe
L996mm
4
4
Cross pull tube assembly
L970mm
12
4A
Front and rear door pillar
support pipe
L1864mm
4
5
Horizontal pull pipe on
front and rear doors
L1130mm
2
6
Front and rear door side
cross pull pipe
L610mm
4
7
Anchor connecting pipe of
front and rear doors
L604mm
4
8
Anchor connecting pipe of
front and rear doors
L1158mm
2
9
Door frame column pipe
L1750mm
8
10
Door frame cross pull pipe
L490mm
12
11
T-shaped connecting plate
L122mm
20
12
Arc connecting plate
L120mm
6
13
L-shaped connecting plate
L90mm
4

►www.tmgindustrial.com 3/16 Toll Free:1-877-761-2819
13A
Triangular fixing plate
L150mm
16
14
Riding clip
L134mm
18
15
Expansion bolt
φ8x100mm
36
16
Mushroom head hexagon
socket bolt
M6x45mm
180
16A
Inner hexagon spanner
4mm
3
17
Hex Bolt
M10x30mm
4
18
Compression strip
L2000mm
46
19
Scratch resistant tape
10m
1
20
Cross round head drill tail
tapping screw
M5x15mm
994
21
Hinge
8
22
Door latch
L145mm
8
22A
Door handle
L150mm
4
23
Limit lever
L1216mm
2
23A
Connecting plate
L122mm
2
24
Front and rear baffle cloth
W2550xL2960mm
2
25
Roof cloth
W4420xL6400mm
1

►www.tmgindustrial.com 4/16 Toll Free:1-877-761-2819
INSTALLATION STEPS

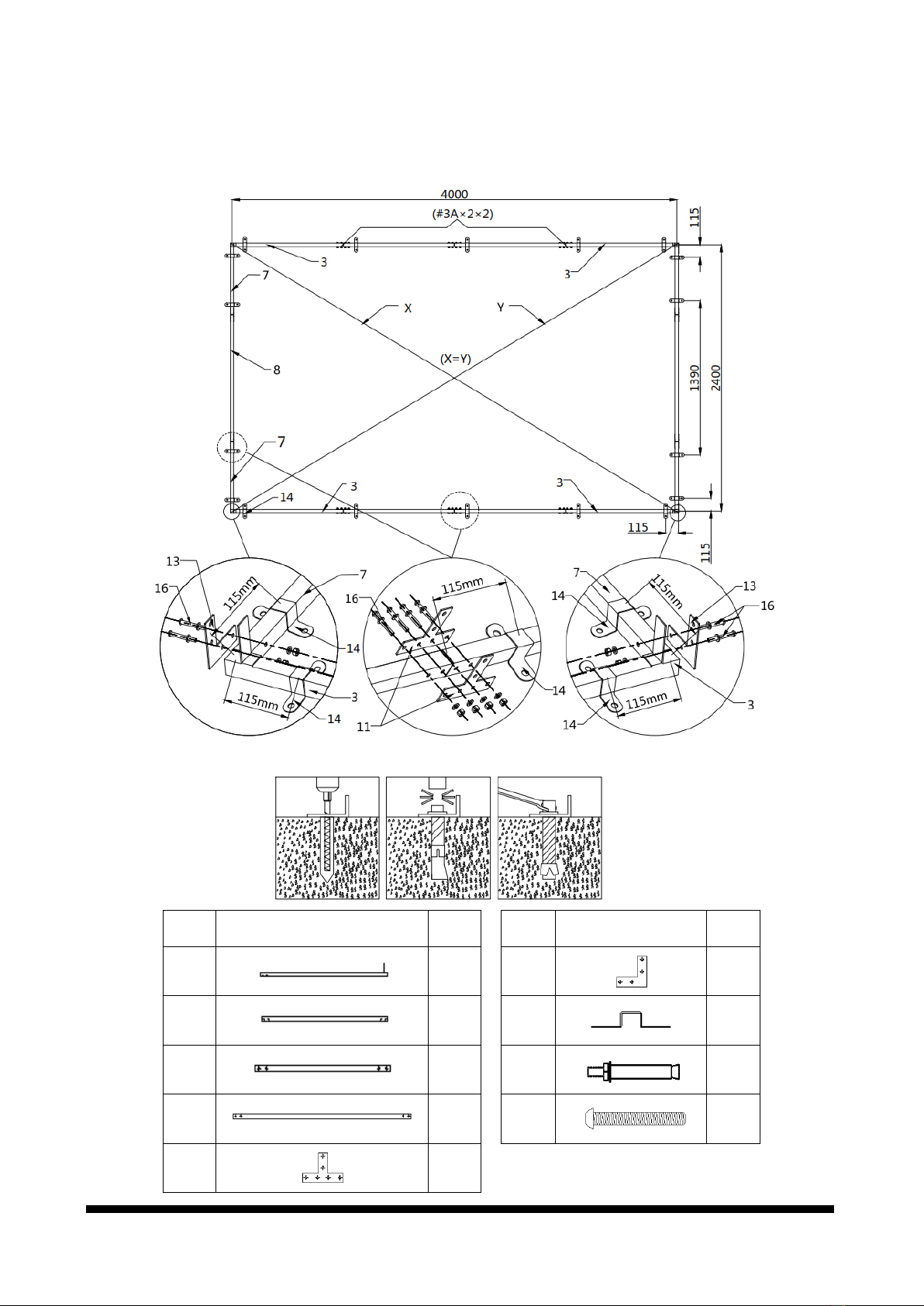

STEP 1 : FOUNDATION PIPE INSTALLATION.
Installation diagram of expansion bolt.
NO.
PART
QTY
NO.
PART
QTY
3
4
13
4
3A
4
14
18
7
4
15
36
8
2
16
48
11
20

►www.tmgindustrial.com 5/16 Toll Free:1-877-761-2819

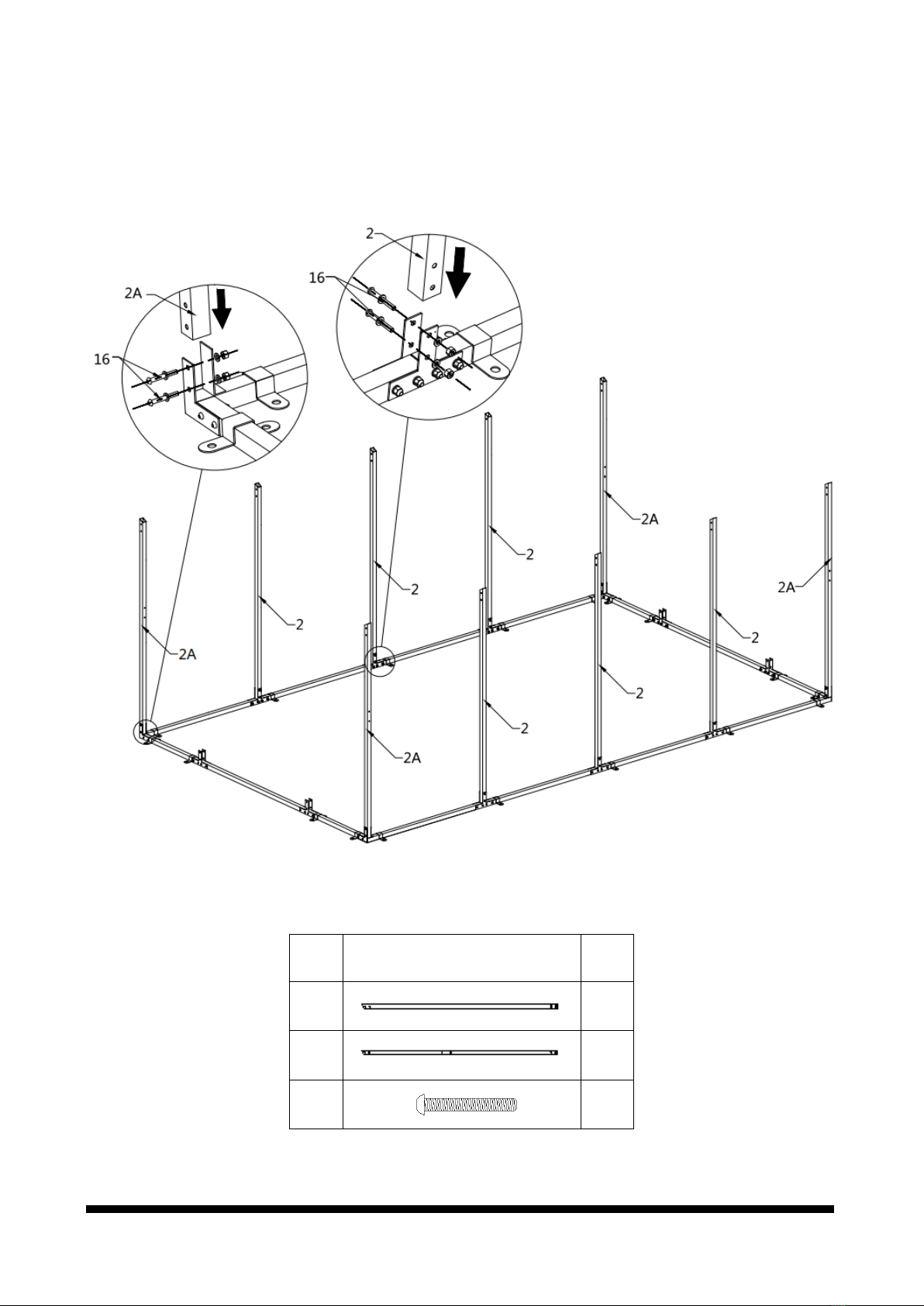

STEP 2 : INSTALL THE LOWER STRAIGHT PIPE.
In this step, do not tighten the screws, and then tighten them when positioning later!
NO.
PART
QTY
2
6
2A
4
16
20

►www.tmgindustrial.com 6/16 Toll Free:1-877-761-2819
STEP 3 : INSTALL THE UPPER EAVE BEAM PIPE (#1、#1A) AND CROSS PULL PIPE OF TRUSS(#4).
In this step, do not tighten the screws, and then tighten them when positioning later!
NO.
PART
QTY
NO.
PART
QTY
1
6
12
6
1A
4
16
60
4
12

►www.tmgindustrial.com 7/16 Toll Free:1-877-761-2819

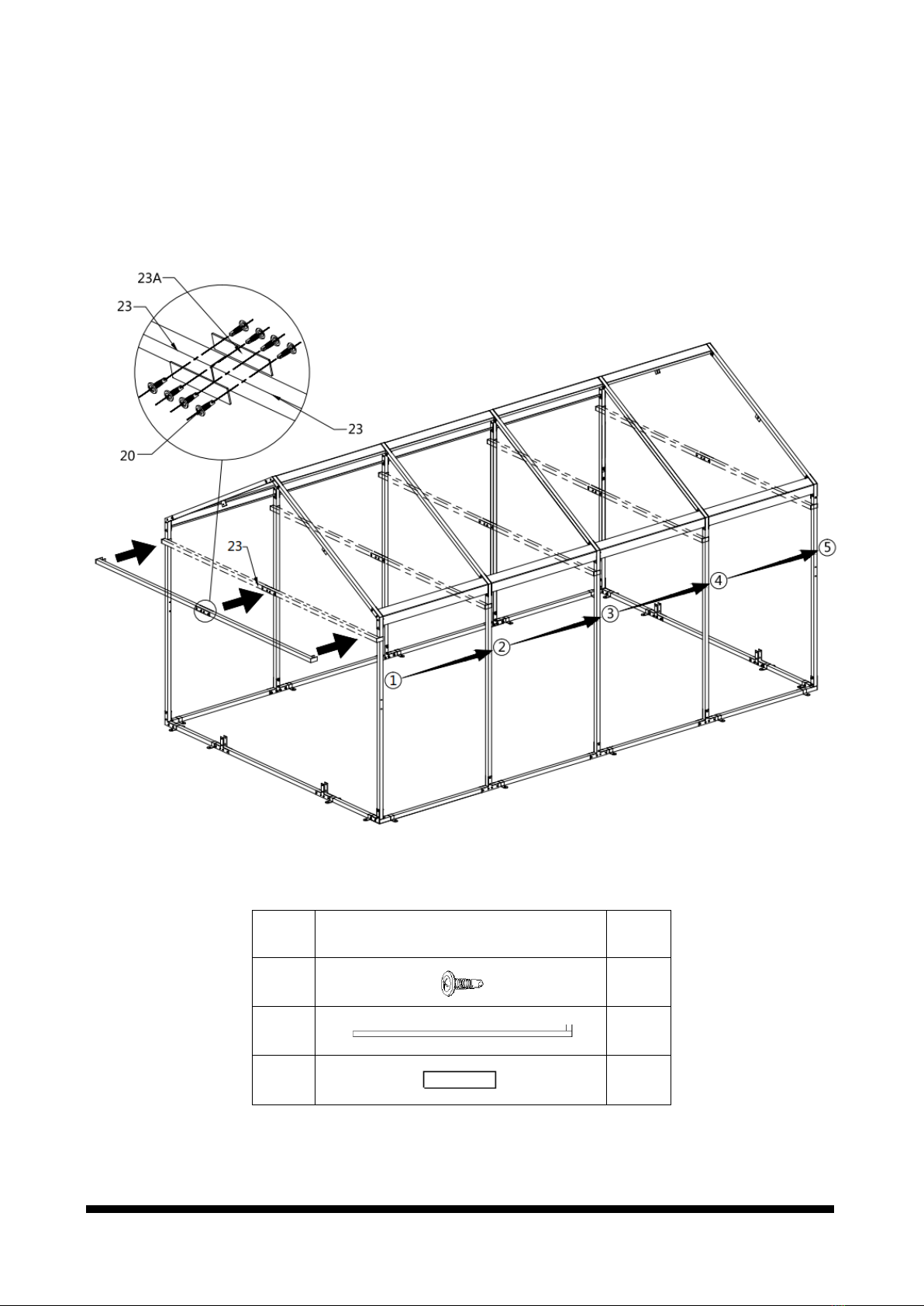

STEP 4 : ASSEMBLE THE LIMIT BAR(#23), AND USE THE LIMIT BAR TO FIX THE TRUSS POSITION AND
TIGHTEN THE BOLTS.
Assemble the limit rod (#23) with connecting plate (#23A) and self-tapping screw (#20).
Fix the truss position with the limit bar (#23) in sequence from one to five and tighten the bolts.
NO.
PART
QTY
20
8
23
2
23A
2

►www.tmgindustrial.com 8/16 Toll Free:1-877-761-2819

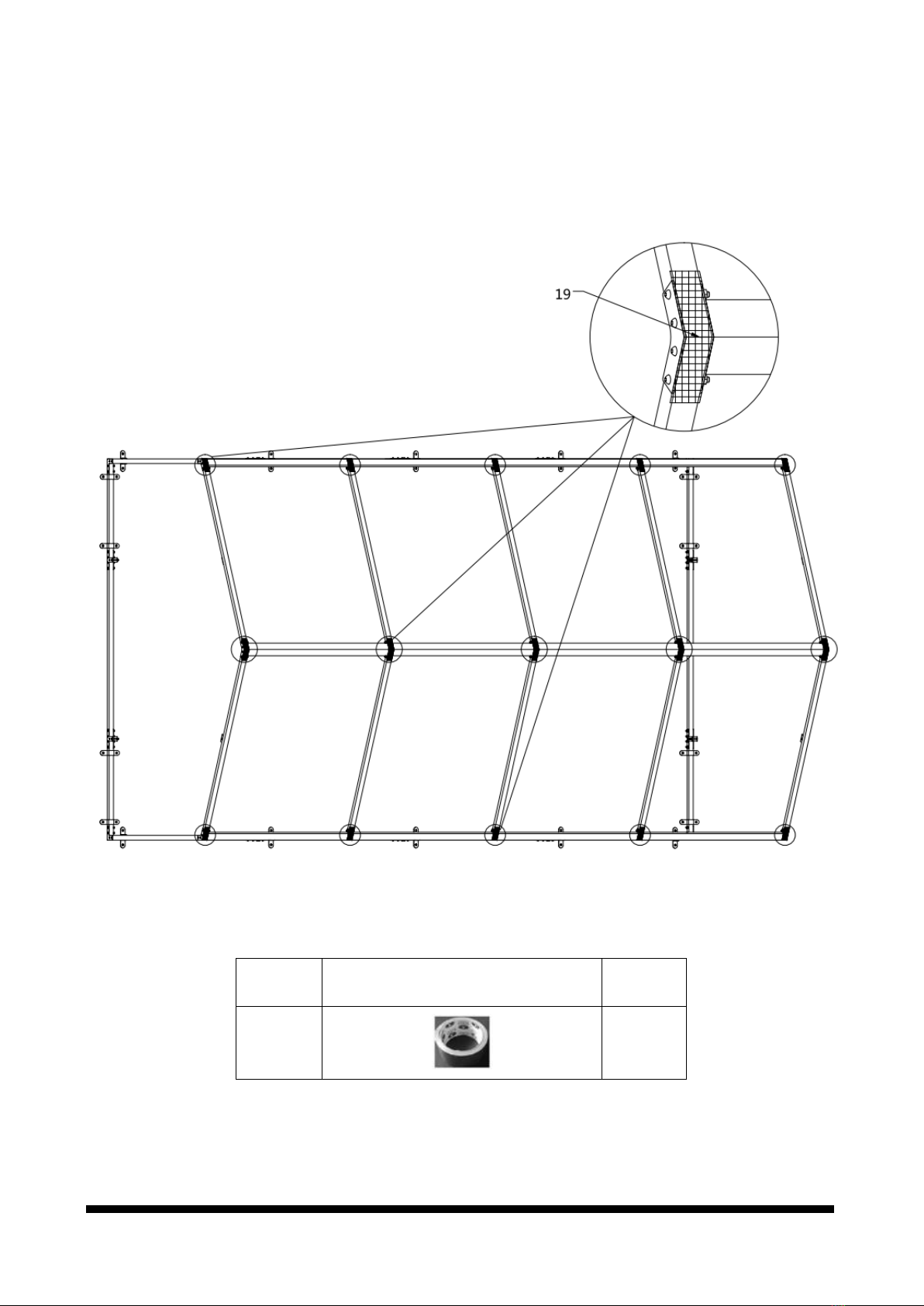

STEP 5 : WRAP (#19) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC
AND THE INTERFACE.
NO.
PART
QTY
19
1

►www.tmgindustrial.com 9/16 Toll Free:1-877-761-2819

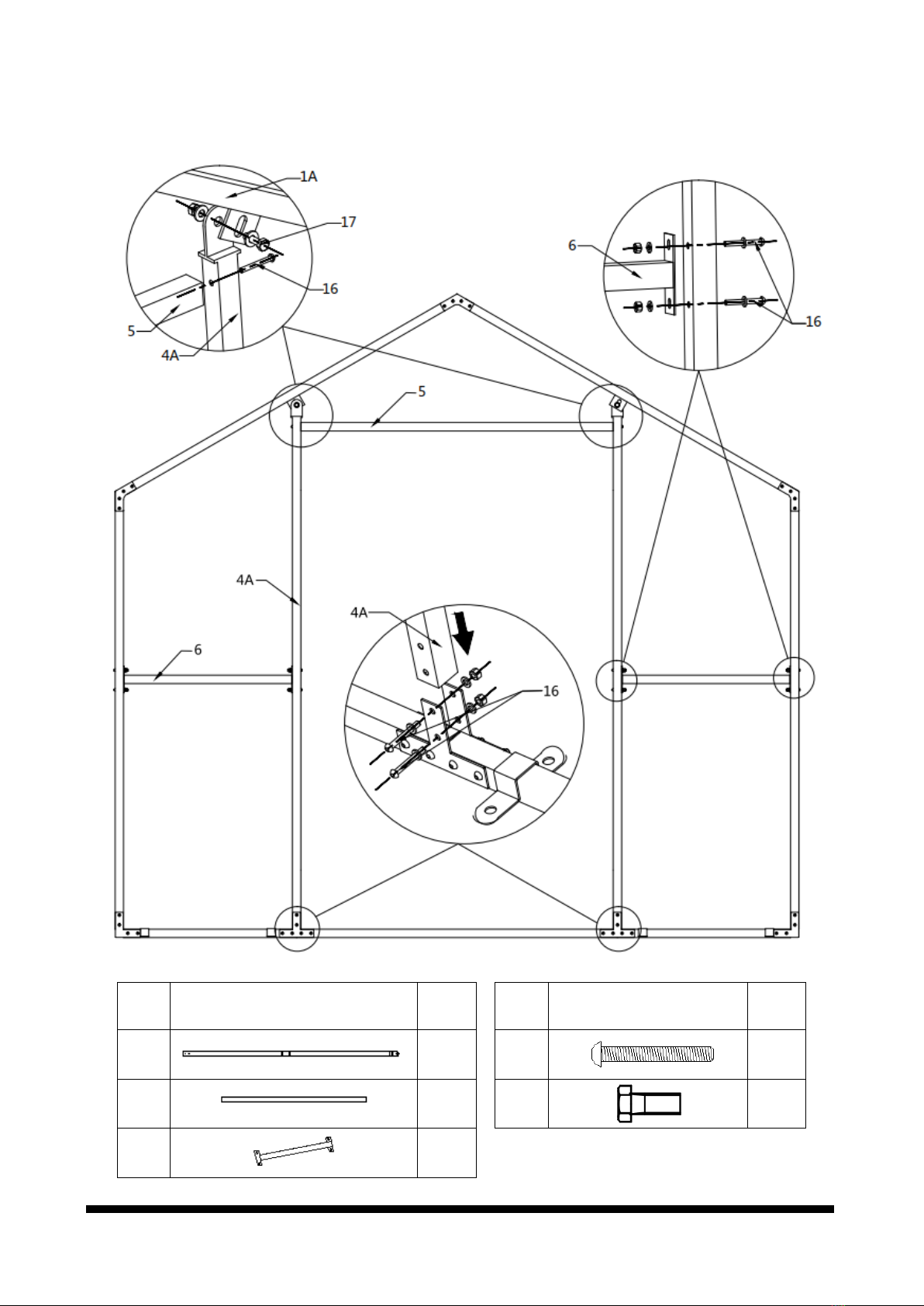

STEP 6 : INSTALL THE FRONT AND REAR TRUSSES.
NO.
PART
QTY
NO.
PART
QTY
4A
2x2
16
14x2
5
1x2
17
2x2
6
2x2

►www.tmgindustrial.com 10/16 Toll Free:1-877-761-2819

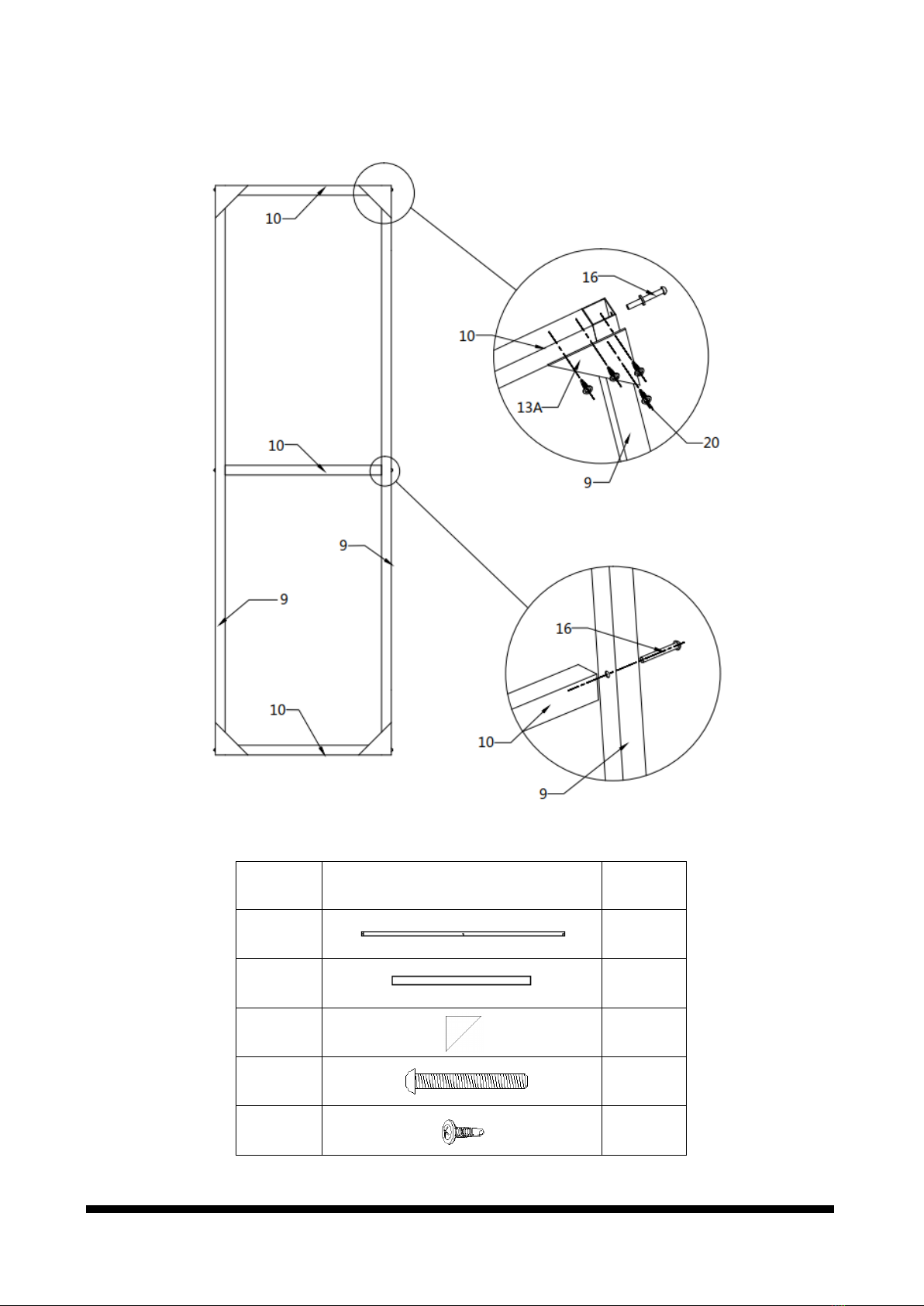

STEP 7 : ASSEMBLE 4 DOOR FRAMES.
NO.
PART
QTY
9
2x4
10
3x4
13A
4x4
16
6x4
20
16x4

►www.tmgindustrial.com 11/16 Toll Free:1-877-761-2819

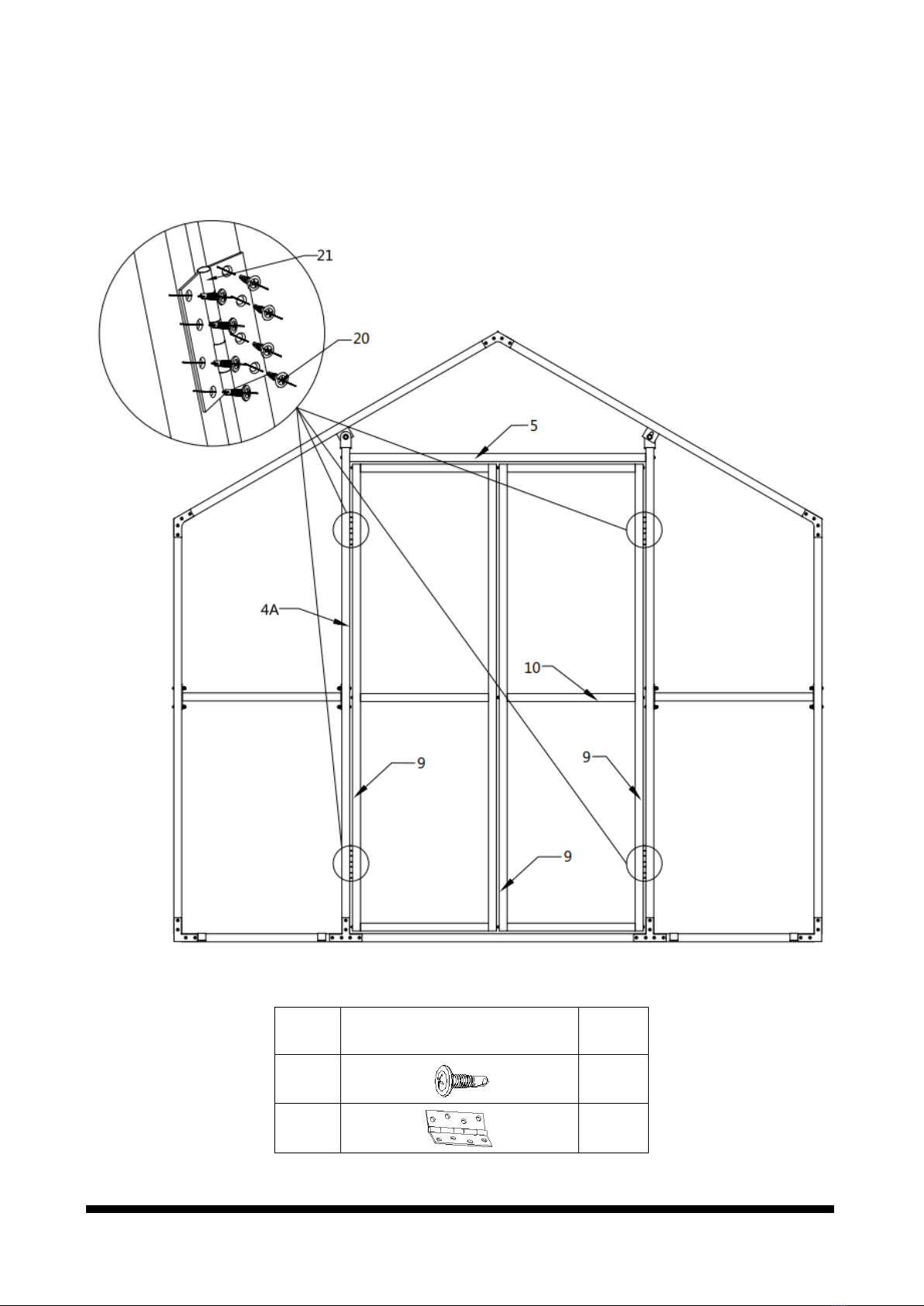

STEP 8 : FRONT AND REAR DOOR INSTALLATION.
Pay attention to the outward opening of the door during installation!
NO.
PART
QTY
20
32x2
21
4x2

►www.tmgindustrial.com 12/16 Toll Free:1-877-761-2819

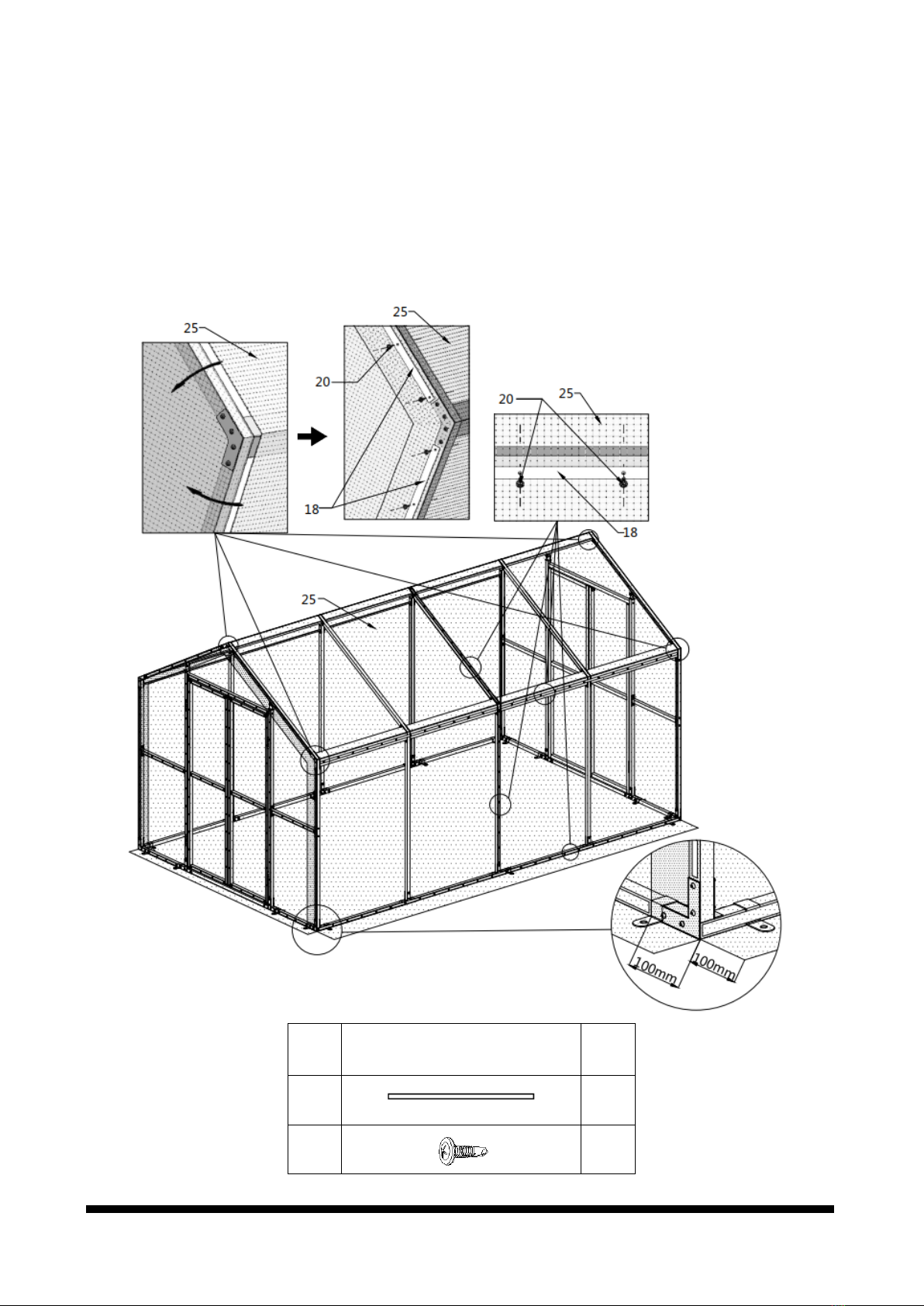

STEP 9 : INSTALL FRONT AND REAR COVER PANEL.
Trim the length of compression band (#18) according to the site requirements.
According to the sequence of steps, use the compression belt (#18) to fix the cover plate from ①to ⑥, first
fix the edge of the cover plate from the bottom to the top, and then gradually fix it inside. Extend 100mm from
the bottom.
In ②and ③, the cover plate needs to be folded inside the truss for tension and fixed with compression band
(#18).
NO.
PART
QTY
NO.
PART
QTY
18
13x2
24
1x2
20
221x2

►www.tmgindustrial.com 13/16 Toll Free:1-877-761-2819

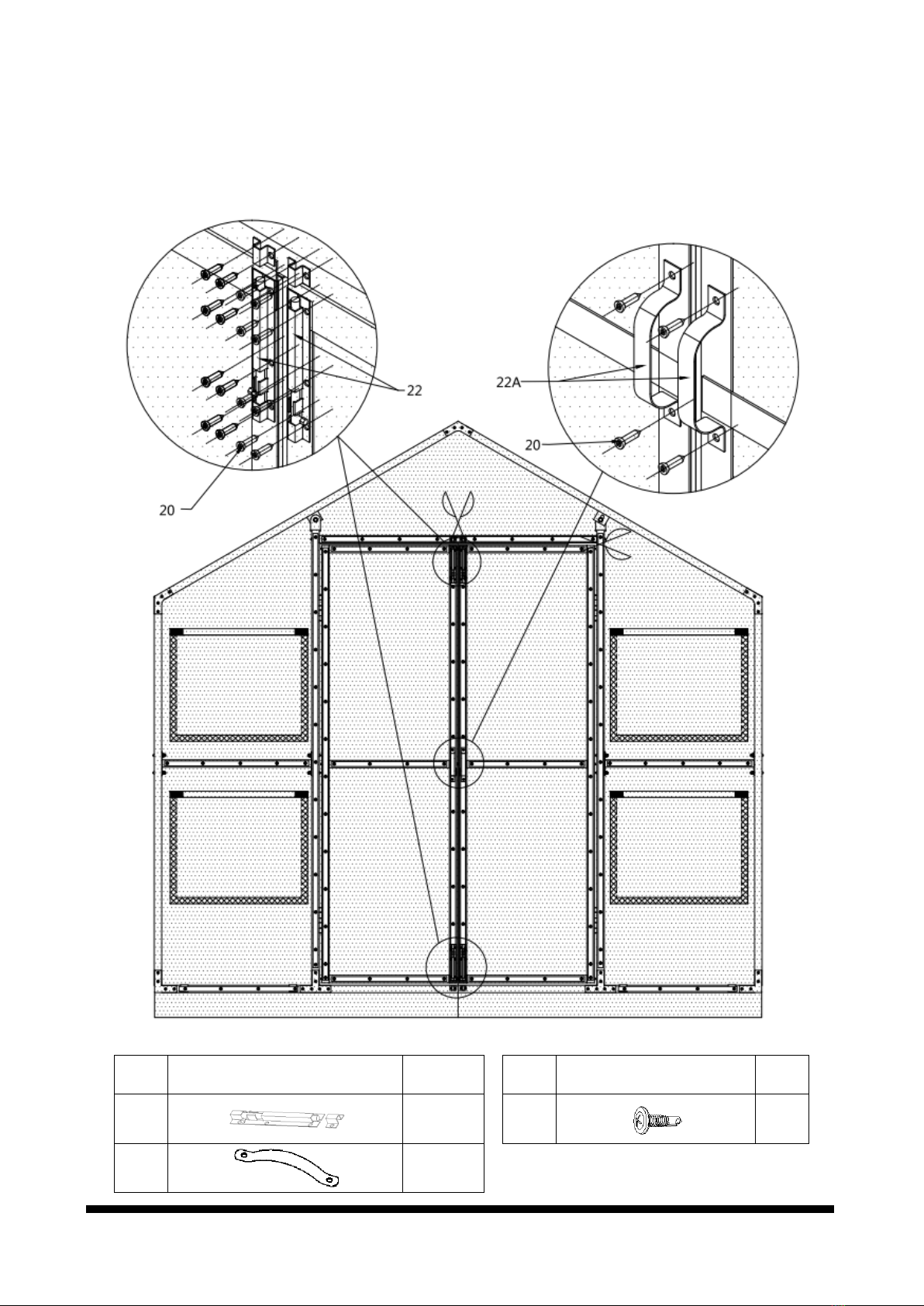

STEP 10 : INSTALL THE DOOR HANDLE AND DOOR LATCH.
Cut the door film as shown.
NO.
PART
QTY
NO.
PART
QTY
22
4x2
20
36x2
22A
2x2

►www.tmgindustrial.com 14/16 Toll Free:1-877-761-2819
STEP 11 : INSTALL THE TOP COVER (#25).
DO NOT INSTALL THE COVER DURING WINDY WEATHER!
Stretch and adjust the cover from back and forth, to make sure it is square and centered.
Unpack the top cover and place it along one of the long sides of the structure.
Pushing up from the inside with 2 or 3 people standing on the ladder will help move the cover without
causing any damage.
NO.
PART
QTY
25
1

►www.tmgindustrial.com 15/16 Toll Free:1-877-761-2819
STEP 12 : TIGHTEN AND FIX THE TOP CLOTH.
The Compression strip (#18) at the front and rear stops are nailed to the front of the front and rear crotch
cloth. The spacing of each self Cross round head drill tail tapping screw shall be kept within 150mm.
Nail a circle of Compression strip (#18) on the third truss.
Nail two rows of Compression strip (#18) on the left and right.
Trim the edge of the roof cloth, and it is recommended to leave at least 100mm.
NO.
PART
QTY
18
20
20
340

►www.tmgindustrial.com 16/16 Toll Free:1-877-761-2819
AFTER THE INSTALLATION
Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole
shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good
position.
Snow accumulating on the fabric cover must be removed as soon as possible. If snow becomes solid ice on the cover, it
will increase the weight on the roof and may collapse the shelter or reduce the life span.
Keep the shelter on a dry ground most of the time. Do not keep the fabric dirt skirt under water all the time, otherwise the
fabric will deteriorate.
We strongly recommend you remove any snow from the roof immediately. Do not leave any snow load on the roof
overnight. Keep 3 feet of clearance on all sides at all times. Do not allow snow to accumulate and pile up on the
sides of the building. Otherwise the pressure from the sides will push inwards and could lead to a collapse.
