PRODUCT MANUAL
v.2022.09.01
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: [email protected]
TOLL FREE: 1-877-761-2819
WARNING
www.tmgindustrial.com
TMG-AJA12/20MODEL
12/20 TON AIR HYDRAULIC
BOTTLE JACK

IMPORTANT
OWNER / USER RESPONSIBILITY
INTENDED USE
TECHNICAL SPECIFICATIONS
Before You Begin Register This Product.
For future reference, record the model name, model number, date of manufacture and purchase date of this
Model Name
Model Number
Date of Manufacture
Date of Purchase
DO NOT OPERATE OR REPAIR THIS PRODUCT WITHOUT READING THIS MANUAL.
Read and follow the safety instructions. Keep Instructions readily available for operators. Make certain all
operators are properly trained and understand how to safely and correctly operate the product. By proceeding
you agree that you fully understand and comprehend the full contents of this manual. Failure to operate this
product as intended may cause injury or death. The manufacturer is not responsible for any damages or injury
caused by improper use or neglect. Allow product operation only with all parts in place and operating safely.
Use only genuine replacement parts. Service and maintain the product only with authorized or approved
replacement parts; negligence will make the product unsafe for use and will void the warranty. Carefully
inspect the product on a regular basis and perform all maintenance as required. Store these instructions
in a protected dry location. Keep all decals on the product clean and visible. Do not modify and/or use for
any application other than that for which this product was designed. If you have any questions relative to a
determine if it can or should be performed on the product.
This Bottle Jack is designed for lifting. The jack can be used vertically or angled to 3 degrees from vertical
position. After lifting, loads must be immediately supported by jack stands. Each model is suitable for use in
lifting or positioning vehicles, machinery, houses and/or other building structures. These jacks comply with
ASME PASE Standards.
Ensure that the air source can dedicate 100-175 psi to each jack operated. A minimum of 110 psi air pressure
is required ro raise rated capacity load.
Item Capacity Lifting Range
Min. (Inch)
Lifting Range
Max. (Inch)
Lifting Range
Min. (cm)
Lifting Range
Max. (cm)
12 TON
20 TON
10-1/4
10-7/16
20-1/16
20-1/16
26
26.5
51
51
Item Capacity Adjust Height
(mm)
Air Pressure Range Base Size
(Inch)
12 TON
20 TON
82
82
100-125 PSI
100-125 PSI
5-1/4 x 7-3/4
6-1/2 x 8-7/8
____________________________
____________________________
____________________________
____________________________
www.tmgindustrial.com P1/12 TOLL FREE: 1-877-761-2819
TMG-AJA12
TMG-AJA20
TMG-AJA12
TMG-AJA20

GENERAL SAFETY RULES
JACK USE AND CARE
INSPECTION
GENERAL SAFETY RULES
IMPORTANT SAFETY CONSIDERATIONS
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may
result in serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions or situations that could occur. It must be understood by the operator
that common sense and caution are factors that cannot be built into this product, but must be supplied by
the operator.
CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual
and have developed a thorough understanding of how the jack works.
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.
To maintain the Service Jack and user safety, the responsibility of the owner is to read and follow these
instructions.
• Inspect the service jack for proper operation and function.
• Keep instructions readily available for equipment operators.
•Make certain all equipment operators are properly trained; understand how to safely and correctly operate
the unit.
•Allow unit operation only with all parts in place and operating properly.
• Use only genuine replacement parts.
•Service and maintain the unit only with authorized or approved replacement parts; negligence will make the
jack unsafe for use and void the warranty.
• Carefully inspect the unit on a regular basis and perform all maintenance as required.
• Store these instructions in the handle of your jack.
• Keep all decals on the unit clean and visible.
•Inspect the jack carefully before each use. Ensure the jack is not damaged, excessively worn, or missing
parts.
• Do not use the jack unless it is properly lubricated.
• Using a jack that is not in good clean working condition or properly lubricated may cause serious injury.
• Inspect the work area before each use. Make sure it is free and clear of any potential hazards.
• Do not modify the Jack in any way.
• Always check for damaged or worn out parts before using the Jack. Broken parts will affect the Jack
operation. Replace or repair damaged or worn parts immediately.
• Store idle Jack. When Jack is not in use, store it in a secure place out of the reach of children. Inspect it for
good working condition prior to storage and before re-use.
• Not for use by children or people with reduced mental capacity.
•
• Ensure children and other bystanders are kept at a safe distance when using product.
www.tmgindustrial.com P2/12 TOLL FREE: 1-877-761-2819

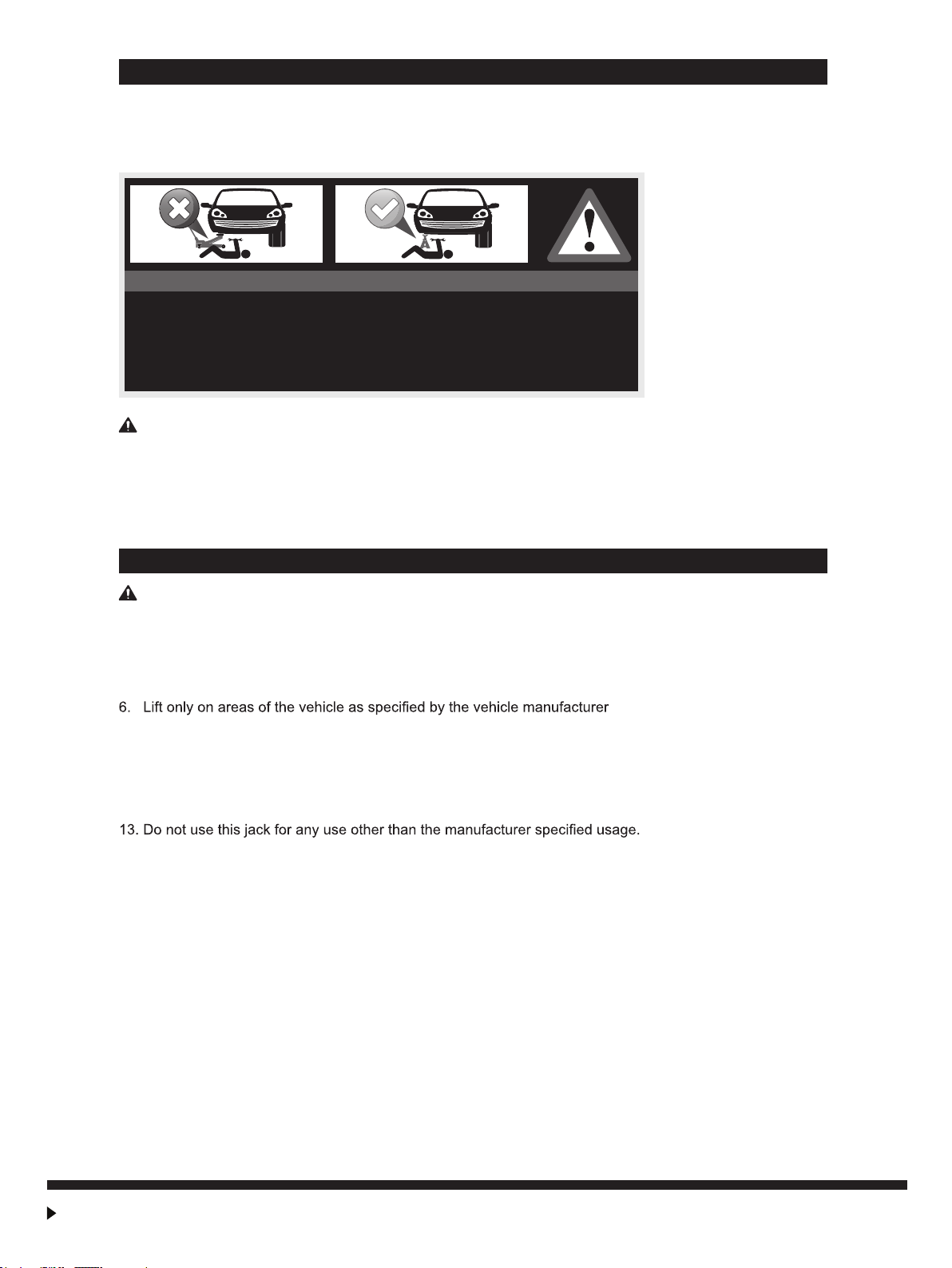

SAFETY
SAFETY MARKINGS
Always follow safety precautions when installing and operating this jack. Keep all decals on the unit clean and
visible. Before proceeding ensure that you fully understand and comprehend the full contents of this manual.
Failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for
any damages or injury caused by improper use or neglect.
Always use Jack Stands!
DO NOT USE wood blocks or any other non-approved load sustaining devices. The manufacturer only
warrants loads to be sustained by jack stands that meet current ASME standards.
DO NOT USE wood blocks or any other non-approved lifting devices for a means of lifting with the jack and or
load being raised. Failure to head these warnings may cause injury or death.
1. Study, understand, and follow all instructions before operating this device.
2. Do not exceed rated capacity.
3. Use only on hard, level surfaces, with less than 3 degrees of slope.
4. Lifting device only. Immediately after lifting, support the vehicle with appropriate means.
5. Do not move or dolly the vehicle while on the jack.
.
7. No alterations shall be made to this product.
8. Only attachments and/or adapters supplied by the manufacturer shall be used.
9. Do not get under or allow anyone under the vehicle until it has been supported by jack stands.
10. Center load on saddle prior to lifting.
11. Use wheel chocks or other blocking device on opposing wheels before using jack.
12. Never use on a lawn mower or lawn tractor.
14. Do not rock the vehicle while working on or around equipment.
15. The following are not recommended for supporting on this equipment: Foundations, Homes, Mobile
Homes, Trailers, RV’s, Campers, nor Fifth Wheels, etc...
16. Failure to heed these markings may result in personal injury and/or property damage.
THIS IS A LIFTING DEVICE ONLY!
•This jack is designed only for lifting part of the total vehicle.
• Do not move or dolly the vehicle while on the jack.
•The vehicle must be supported after lifting immediately by appropriately rated jack stands.
• NEVER go under a vehicle that is not supported with appropriately rated jacks stands.
• Use wheel chocks or other blocking device on opposing wheels before using jack stands.
WARNING!
WARNING!
www.tmgindustrial.com P3/12 TOLL FREE: 1-877-761-2819

GENERAL SAFETY INSTRUCTIONS
Position the Jack
.
Always Use Jack Stands
After lifting the vehicle always support the load with appropriately rated vehicle jack stands before working on
the vehicle.
Do Not Overload Jack
Do not overload this jack beyond its rated capacity. Overloading this jack beyond its rated capacity can cause
damage to or failure of the jack.
Always Use on Hard Level Surfaces
This jack is designed only for use on hard level surfaces capable of sustaining the load. Use on any surfaces
other than hard level surfaces can result in jack instability and possible loss of load.
Chock and Block (Stabilize)
Apply parking brake in vehicle before operating jack.
A chock is a wedge for steadying an object and holding it motionless, or for preventing the movement of a
wheel. Chock the wheel opposite the end being lifted.
When you block a load, you secure and support a load that is being lifted. The block(s) or stabilizer(s) should
have a weight capacity that is greater than the weight of the load which is being lifted.
Center Load on Jack Saddle
Center load on jack saddle before lifting vehicle.
Off-center loads and loads lifted when the jack is not level can cause loss of load or damage to the jack.
Do not raise or lower the vehicle unless tools, materials and people are clear.
When the lift is being lowered, make sure everyone is standing at least six feet away. Be sure there are no
tools or equipment left under or around the jack before lowering.
Always lower the jack slowly.
DO NOT USE THE JACK TO SUPPORT OR STABILIZE A LOAD.
Using the jack to support or stabilize a load may result in unexpected movement and result in serious injury,
being crushed and death. Always securely chock and block (stabilize) the load to be lifted. Never place any
part of the body under a raised load without properly chocking and supporting the load.
Never use the jack on curved or tubular vehicle Bumpers.
This will result in the vehicle slipping off the jack and falling, causing serious injury or death. Use a bumper lift
to lift most vehicles with curved bumpers or plastic bumpers.
Wear ANSI-approved safety glasses and heavy-duty work gloves during use.
Do not adjust the safety valve.
Do not move or dolly vehicle while jack is in use.
Stay alert. Use caution and common sense when operating jack. Do not use a jack when tired,
incoherent, dizzy, under the use of drugs or alcohol.
Training
Read this manual before use. Do not allow anyone who has not read this manual, and/or does not understand
the requirements, to use the jack.
Spectators
Do not allow bystanders around the jack of under the load supported only by the jack.
Do not allow anyone in the vehicle while the jack is in use. Keep all bystanders away from vehicle when in
use.
Inspection
Inspect the jack carefully before each use. Ensure the jack is not damaged, excessively worn, or missing
parts.
Do not use the jack unless it is properly lubricated. Using a jack that is not in good clean working condition or
properly lubricated may cause serious injury.
Additional Notes:
Save the receipt, warranty and these instructions.
Do not modify the jack in any way.
Always check for damaged or worn out parts before using the jack. Broken parts will affect the
equipment operation. Replace or repair damaged or worn parts immediately.
When jack is not in use, store it in a secure place out of the reach of children. Inspect it for good working
condition prior to storage and before reuse.
www.tmgindustrial.com P4/12 TOLL FREE: 1-877-761-2819

ASSEMBLY
SYSTEM AIR PURGE PROCEDURE
FIGURE 1 - Typical Air/Hydraulic Bottle Jack
Saddle
Release Valve
Lift Control Valve
2 Piece Handle
Carry Handle
IMPORTANT: BEFORE FIRST USE
Perform the following System Air Purge Procedure to
remove any air that may have been introduced into
the hydraulic system as a result of product shipment
and handling. This step is to be completed without
any weight on the jack.
Air motor
1. Familiarize yourself with the jack.
2. Attach the 2 handle pieces making sure to align
the holes on both sections.
3. Line up the handle to the handle socket located
on the side of the jack, then insert the handle
inside the handle socket.
4. Secure the handle in place inside the handle
socket. Without any vehicle on the jack, cycle
the lift up and down several times to insure the
hydraulic system is operating properly. (Perform
1. Turn release valve counterclockwise on full turn to
the open position.
www.tmgindustrial.com P5/12 TOLL FREE: 1-877-761-2819

1. Before using this product, read the owner's
manual completely and familiarize yourself
thoroughly with the product and the hazards
associated with its improper use.
2. Perform the system air purge procedure. (See
previous instructions for system air purge
procedure.)
3. Pour a teaspoon of good quality, air tool lubricant
into the air supply inlet of the lift control valve.
(See illustration) Connect to air supply and
operate for 3 seconds to evenly distribute
lubricant.
BEFORE USE

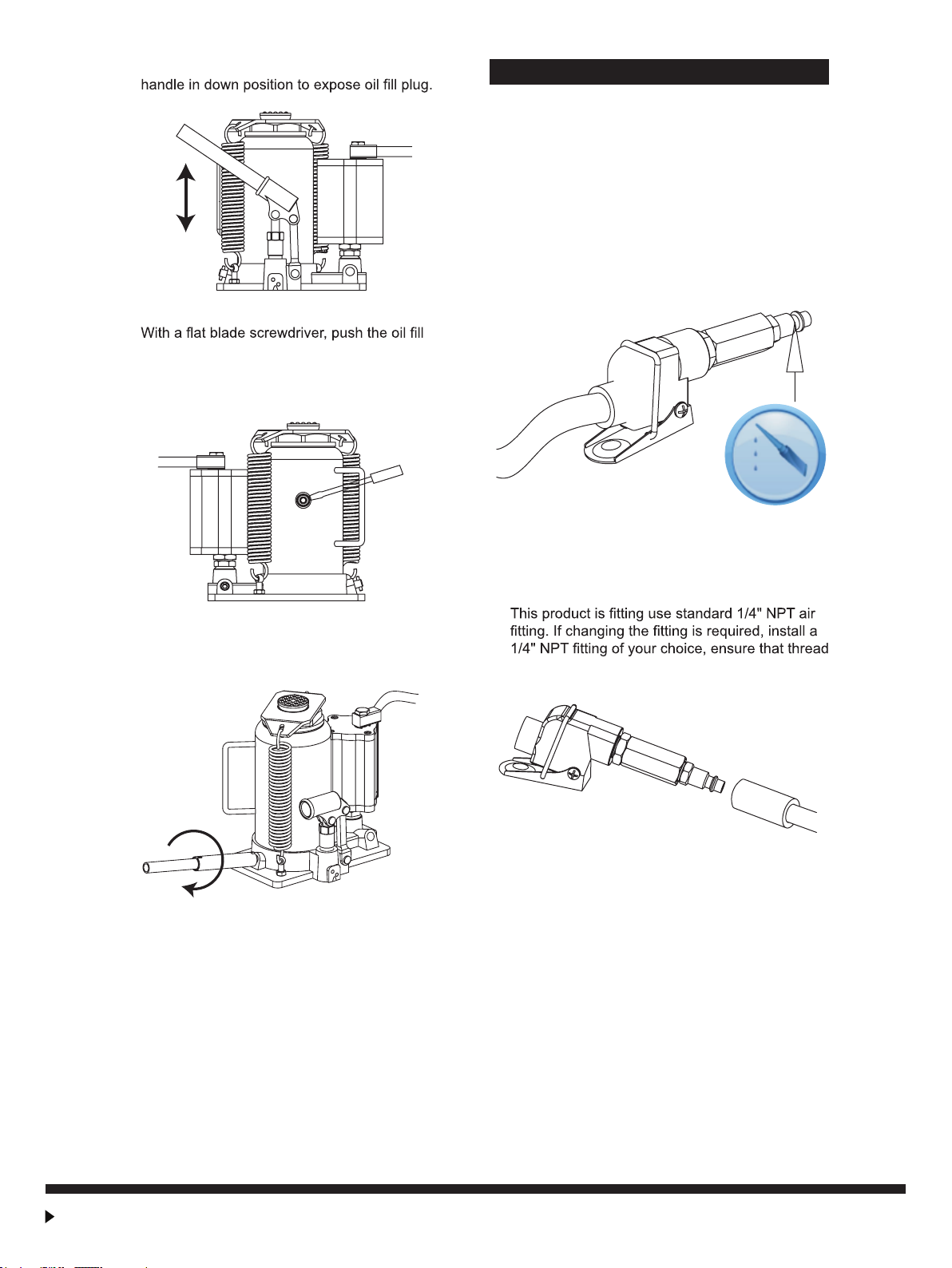

2. Rapidly pump the handle 6-8 times. Leave
3.
plug slightly to the side to purge trapped air from
system.
(Use caution not to tear or puncture the oil plug.)
4. Turn release valve clockwise to the closed
position.
5. Jack is now ready for use. Check for proper
pump action.
4. Check and that the pump operates smoothly
before putting into service.
5.
tape or compound is used to seal connection.
6. Inspect before each use. Do not use if bent,
broken or cracked components are noted.
www.tmgindustrial.com P6/12 TOLL FREE: 1-877-761-2819

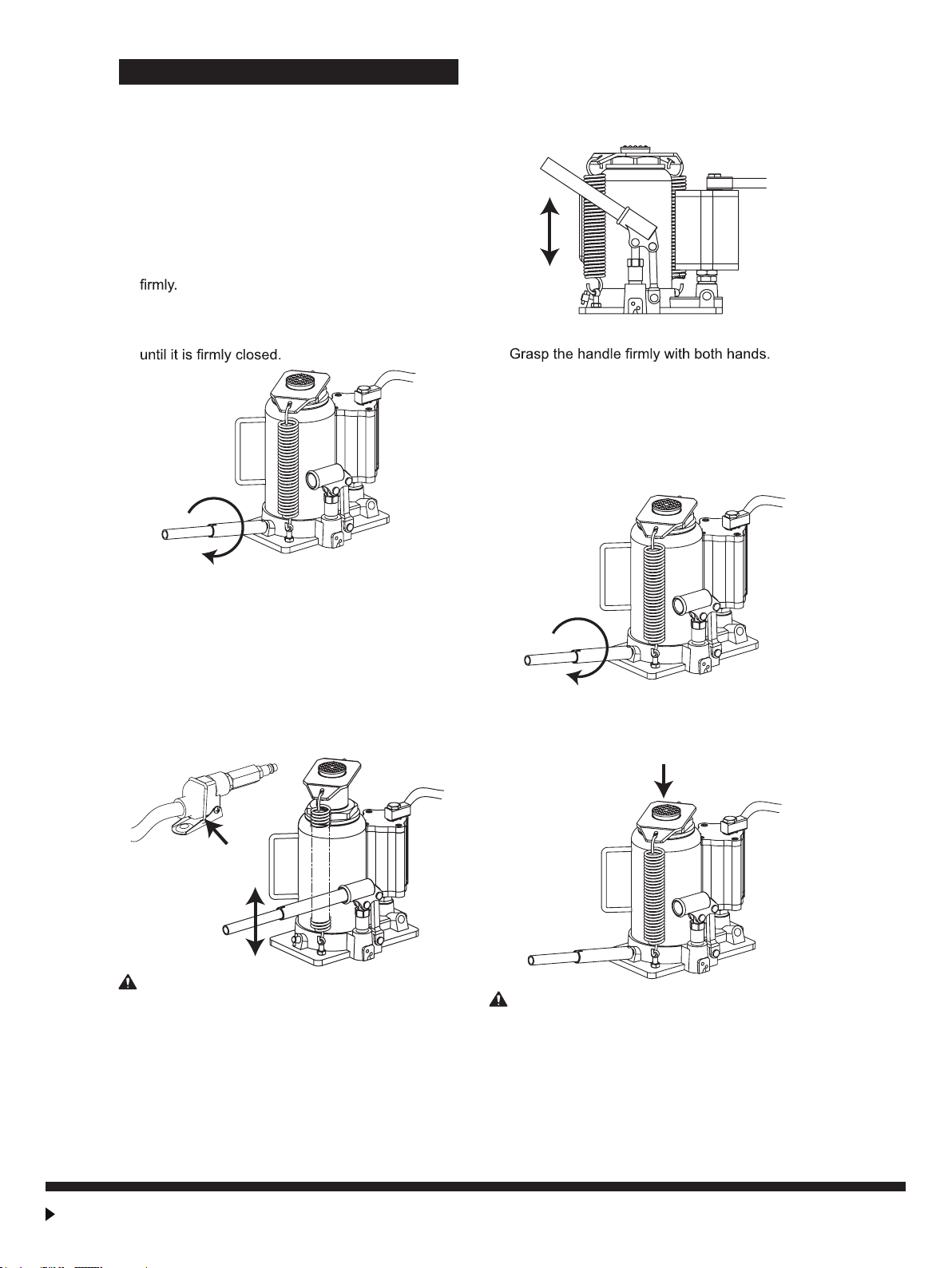

RAISING THE JACK
CAUTION: NEVER WIRE, CLAMP OR
OTHERWISE DISABLE THE LIFT CONTROL
VALVE TO FUNCTION BY ANY MEANS
OTHER THAN BY USING THE OPERATOR'S
HAND. USE THE HANDLE PROVIDED WITH
THIS PRODUCT OR AN AUTHORIZED
REPLACEMENT HANDLE TO ENSURE
PROPER RELEASE VALVE OPERATION. DO
NOT USE EXTENSIONS ON THE AIR HOSE
OR ON THE OPERATING HANDLE.
1. Block the vehicle’s wheels for lifting stability.
Secure the load to prevent inadvertent shifting
and movement
2. Position the jack near desired lift point.
3. Set the Parking Brake in the vehicle.
4. Refer to the vehicle manufacturer owner’s
manual to locate approved lifting points on the
vehicle. Position the jack so that the saddle is
centered and will contact the load lifting point
5. Assemble the handle, ensure that spring clips
align with slots.
6. Close the release valve by turning it clockwise
OPERATION
7. Before raising the vehicle double check and
verify the saddle is centered and also has full
contact with the lifting point.
8. Pump handle or squeeze air trigger to lift until
saddle contacts load. (To stop air operation,
simply release the grip on the lift control valve.)
Continue to pump the jack handle to lift the
vehicle to the desired height. After lifting, support
the load with appropriately rated vehicle support
stands before working on the vehicle.
LOWERING THE JACK
1. Raise load high enough to allow clearance for the
jack stands to be removed, then carefully remove
jack stands.
2. Remove support stands.
3.
Securely hold on to the jack handle so your
hands do not slip and ensure the release valve
does not rapidly lower.
4. Carefully open the Release Valve by slowly
turning the handle counterclockwise. (Do not
allow bystanders around the jack or under the
load when lowering the jack.
5. After removing jack from under the load, push
ram and handle sleeve down to reduce exposure
to rust and contamination.
WARNING: USE EXTREME CAUTION
WHEN LOWERING THE JACK. THE JACK
HANDLE MAY TURN RAPIDLY. OPENING THE
RELEASE VALVE TOO FAST CAN CAUSE
THE JACK TO LOWER RAPIDLY. FAILURE TO
HEAD THESE WARNINGS COULD CAUSE
SERIOUS INJURY OR DEATH.
www.tmgindustrial.com P7/12 TOLL FREE: 1-877-761-2819

MAINTENANCE INSTRUCTIONS
If you use and maintain your equipment properly, it will give you many years of service. Follow the
maintenance instructions carefully to keep your equipment in good working condition. Never perform any
maintenance on the equipment while it is under a load.
Inspection
You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components
function before each use. Follow lubrication and storage instructions for optimum product performance.
Binding
If the product binds while under a load, use equipment with equal or a larger load capacity to lower the load
safely to the ground. After unbinding; clean, lubricate and test that equipment is working properly. Rusty
components, dirt, or worn parts can be causes of binding. Clean and lubricate the equipment as indicated in
the lubrication section. Test the equipment by lifting without a load. If the binding continues contact Customer
Service.
Cleaning
If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to clean
the equipment. Remove any existing rust, with a penetrating lubricant.
Lubrication
This equipment will not operate safely without proper lubrication. Using the equipment without proper
lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not
self-lubricating. Inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the
equipment using light penetrating oil, lubricating spray.
• Use a good lubricant on all moving parts.
• For light duty use lubrication once a month.
• For heavy and constant use lubrication recommended every week.
• NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
Rust Prevention:
Check rams and pump plungers on the power unit assemblies daily for any signs of rust or corrosion.
Without a load, lift the equipment as high as it goes and look under and behind the lifting points. If signs of
rust are visible clean as needed.
Grease Fittings
How the Jack Operates
With release valve closed, an upward stroke of the jack handle draws oil from the reservoir tank into the
plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A
downward stroke of the jack handle releases oil into the cylinder, which forces the ram out. This raises the
saddle. When the ram reaches maximum extension, oil is bypassed back into the reservoir to prevent an over
reservoir. This releases hydraulic pressure on the ram, which results in lowering the saddle.
Storing the Jack
1. Lower the Lifting ram.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.
Note: If the jack is stored outdoors, be sure to lubricate all parts before and after use to ensure the jack stays
in good working condition. Always store jack in the fully retracted postion when stored in outdoor or caustic
enviroments that can cause corrosion and/or rust.
www.tmgindustrial.com P8/12 TOLL FREE: 1-877-761-2819

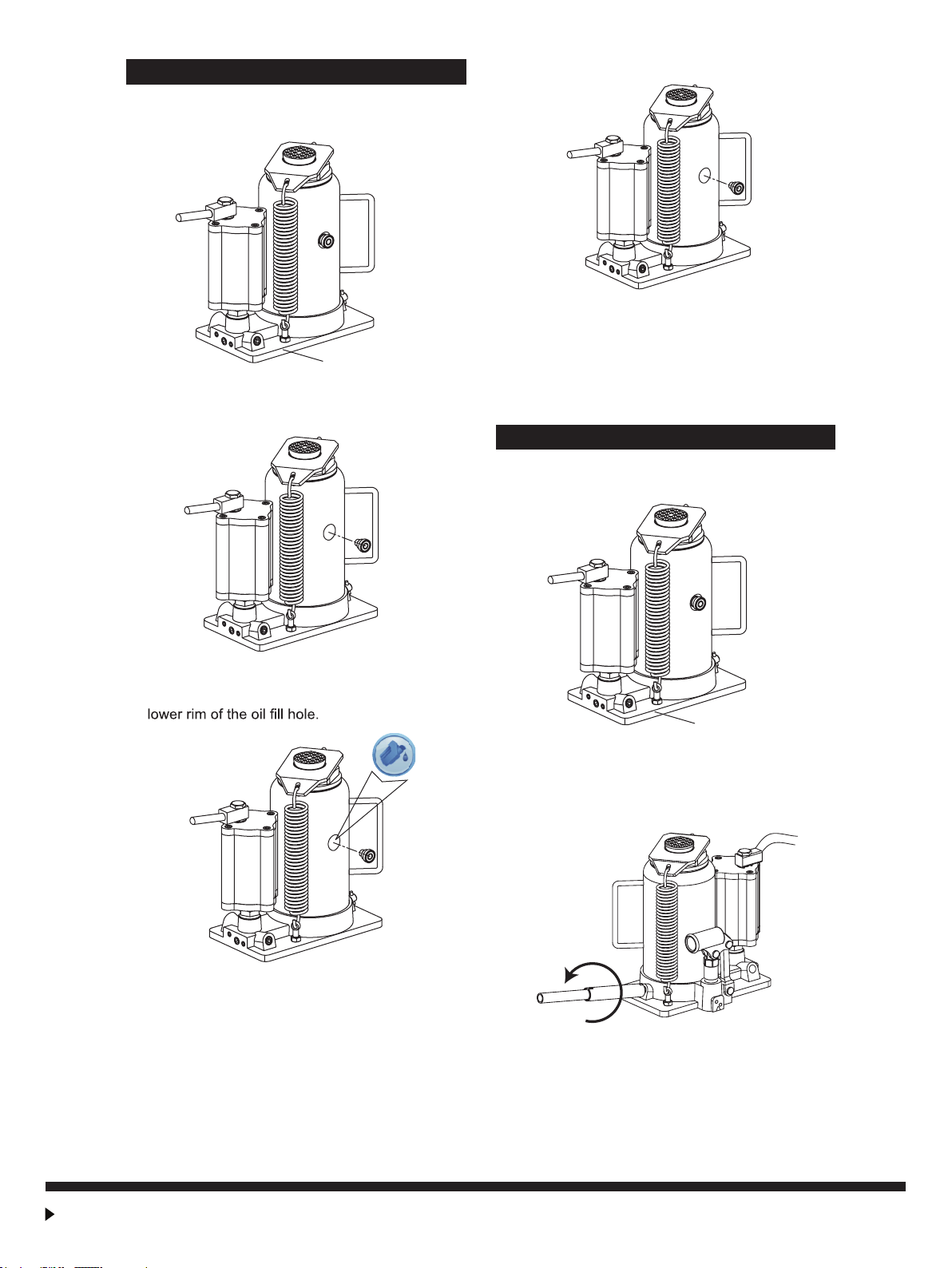

TO ADD JACK OIL
TO REPLACE JACK OIL
1. Position the jack on level ground and lower the
saddle.
2. Remove the oil plug.
3. Fill the oil case until oil level is just beneath the
4. Replace oil plug.
5. Perform the System Air Purge Procedure.
1. Position the jack on level ground and lower the
saddle.
2. Open release valve by turning handle counter-
clockwise (4 full turns).
on level ground
on level ground
www.tmgindustrial.com P9/12 TOLL FREE: 1-877-761-2819

•DO NOT USE MOTOR OIL IN THE JACK.
•ONLY USE ANTI-FOAMING JACK OIL.
•ALWAYS USE A GOOD GRADE HYDRAULIC
JACK OIL.
•DO NOT USE HYDRAULIC BRAKE FLUID,
ALCOHOL, GLYCERINE, DETERGENT, MOTOR
OIL OR DIRTY OIL.
•USE OF A NON-RECOMMENDED FLUID CAN
CAUSE DAMAGE TO A JACK.
•AVOID MIXING DIFFERENT TYPES OF FLUID
AND NEVER USE BRAKE FLUID, TURBINE
OIL, TRANSMISSION FLUID, MOTOR OIL OR
GLYCERIN. IMPROPER FLUID CAN CAUSE
PREMATURE FAILURE OF THE JACK AND THE
POTENTIAL FOR SUDDEN AND IMMEDIATE
LOSS OF LOAD.
•DISPOSE OF HYDRAULIC FLUID IN
ACCORDANCE WITH LOCAL REGULATIONS.

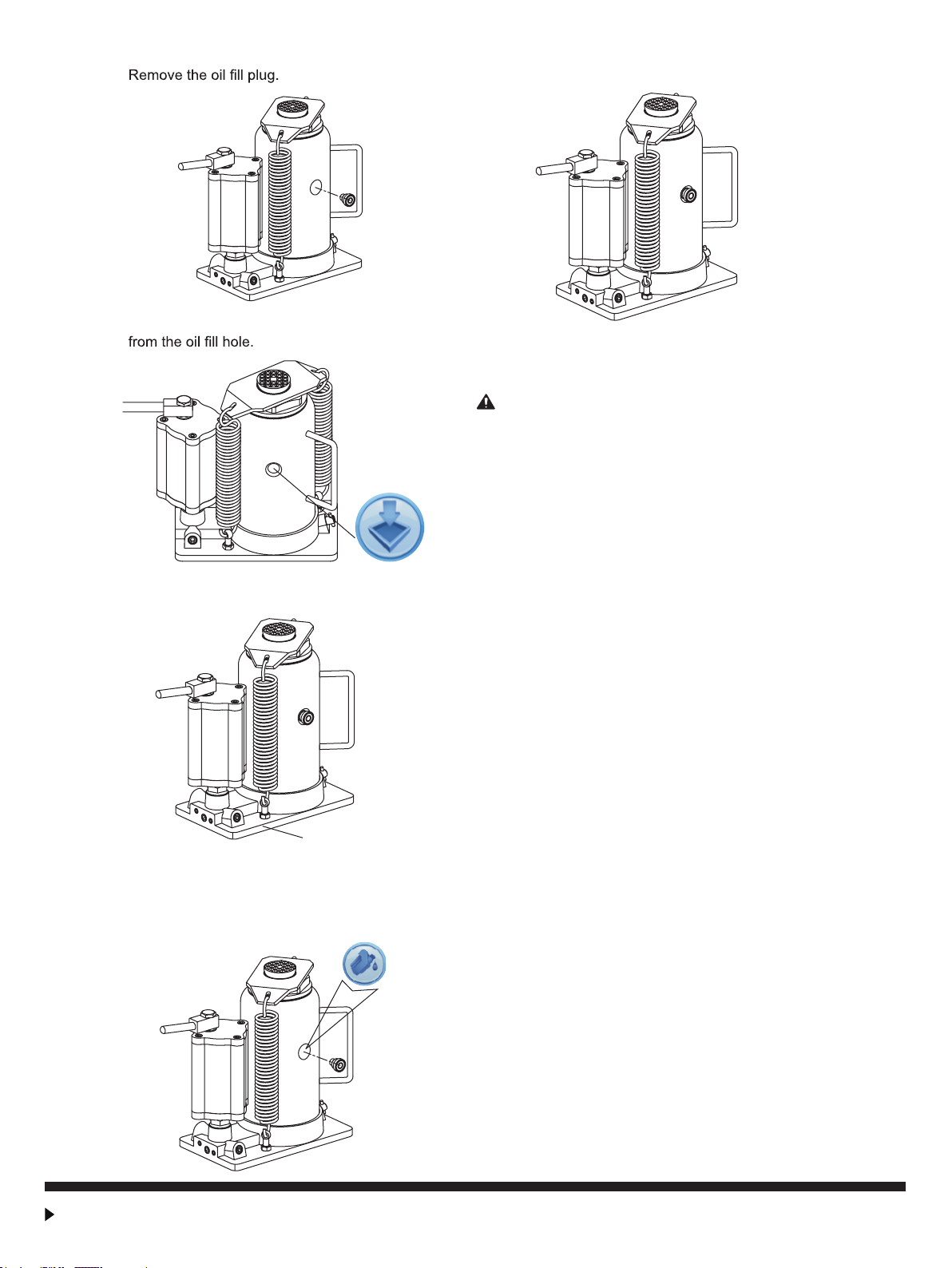

Additional Bottle Jack Notes:
•Periodically check the pump piston and ram for
signs of rust or corrosion. Clean as needed and
wipe with an oil cloth. NEVER USE SANDPAPER
OR ABRASIVE MATERIAL ON THESE
SURFACES!
•When not in use, store the jack with pump piston
and ram fully retracted.
ADDITIONAL WARNINGS:
3.
4. Turn the jack on its side so that old oil will drain
5. Position the jack on level ground and lower the
saddle.
8. Perform the System Air Purge Procedure.
6. Fill the oil case until oil level is just beneath the
lower rim.
KEEP DIRT AND OTHER MATERIAL CLEAR
WHEN POURING.
7. Replace oil plug.
on level ground
www.tmgindustrial.com P10/12 TOLL FREE: 1-877-761-2819

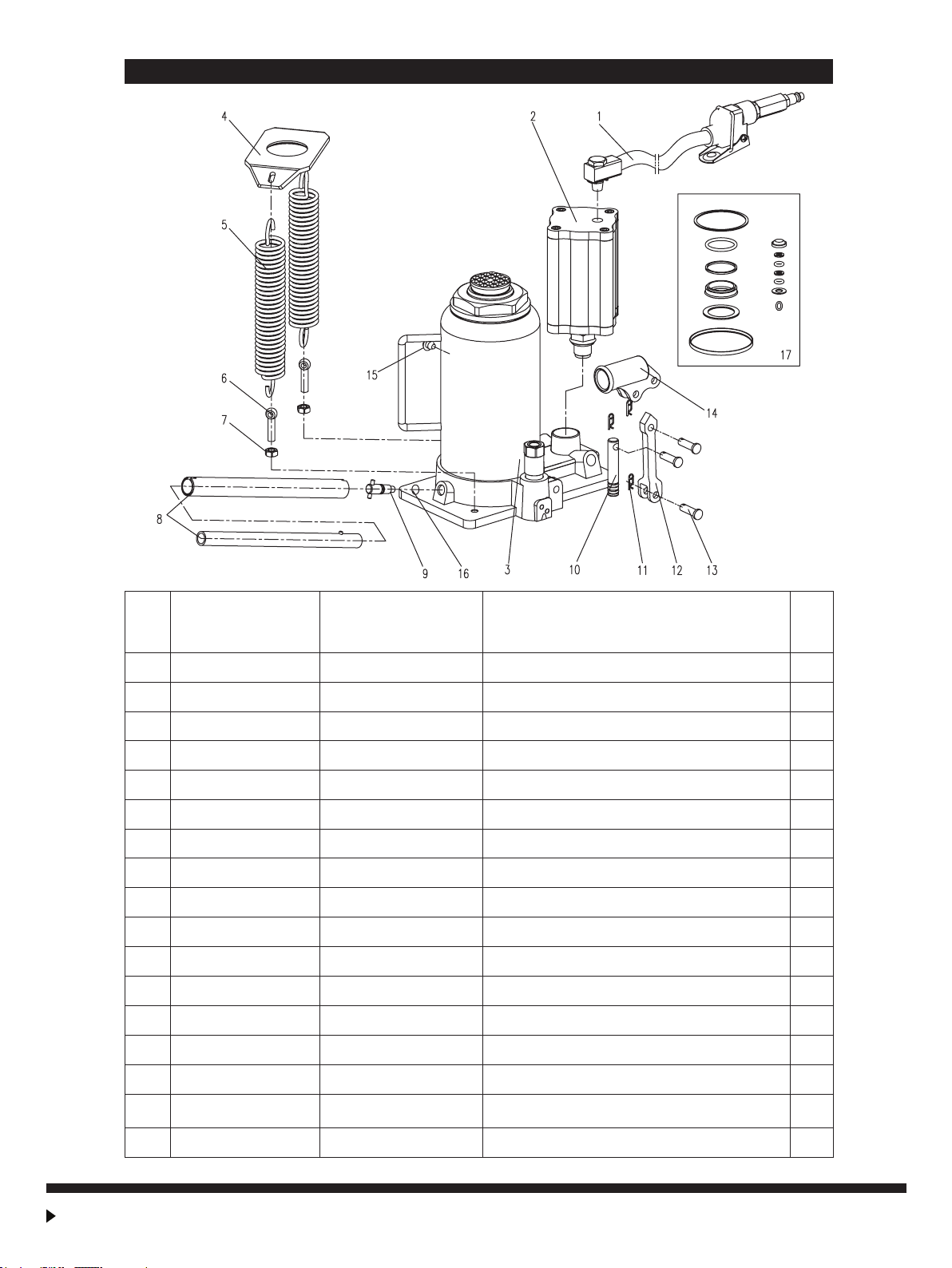

ASSEMBLY DIAGRAM
No. 20 TON
(TQ20002)
PART #
12 TON
(TQ12002)
PART#
DESCRIPTION QTY
1 TQ22001-07(ASM) TQ22001-07(ASM) High pressure hose part 1
2 TY20002.1.2 TY20002.1.2 Air pump 1
3 Power unit body 1
4 TQ20002-02 TQ12002-02 Spring plate 1
5 TQ20002-36a TQ20002-36a Spring 2
6 TQ20002-37 TQ20002-37 Spring screw M8X25-40mm 2
7 GB6170-M8 GB6170-M8 Nut M8 2
8 TQ20002-38(ASM) TQ20002-38(ASM) Handle assembly 1
9 QYL8-25A(ASM) QYL8-25A(ASM) Release valve Assembly 1
10 TQ12002-16(ASM) TQ12002-16(ASM) Pump plunger assembly 1
11 QLQD2B.2-5 QLQD2B.2-5 Roundwire snap ring Ø1.2x18mm 3
12 Connected bar 1
13 QYL8-19 QYL8-19 Pin Ø8x30mm 3
14 Handle socket 1
15 TF1201C-29 TF1201C-29 Oil plug 1
16 GB308-6 GB308-6 Steel ball Ø6mm 1
17 TQ20002.MF TQ12002.MF Seal kit 1
www.tmgindustrial.com P11/12 TOLL FREE: 1-877-761-2819

TROUBLESHOOTING
JACK
WILL
NOT
LIFT
LOAD
JACK
WILL
NOT
HOLD
LOAD
JACK
WILL
NOT
LOWER
POOR
JACK
LIFTING
WILL NOT
LIFT TO
FULL
EXTENSION
CAUSES AND SOLUTIONS
Release valve is not completely closed
(Turn handle clockwise).
Weight Capacity Exceeded.
Air is in the hydraulics.
Purge air from system.
Low oil level. Add oil as required.
Drain excessive oil.
Lubricate moving parts.
Jack is binding or foreign obstruction
Power unit malfunctioning.
Replace the power unit.
X XX
X
X X
X X XX
X X X
X
X
Safe Operating Temperature is between 40°F – 105°F (4°C - 41°C)
www.tmgindustrial.com P12/12 TOLL FREE: 1-877-761-2819
