TOORX ERX-9500 User manual

Ed : Rev : Cod :
INSTRUCTION
09/20 GRLDTOORXERX950000

4
Exploded drawing:
1
19
42
41
3132
647266
63
97
45
128
96
2120 10 34
4 5
4
7
9
10
8
11
12L
12R
13L
13R
14L
14R
15R
15L
17
18
18
20
20
21 22
22
21
90
24
57
59
58
25
49
27 26
28
29L
29R
30R
30L
34
35
35
34
36
37
39
38
40
43L
43R
44 46
4748
53 46
54 56 55
6
60
64
65
66
65
67
68L 68R
68L68R
73 69 70
16
71
74
7675 77 72
74
78 66
79
80
81 83 82
85
86
84
23
88
9193 89 92
94 95
96
97
97
97
97
33
99
100 101 102 103 104
105
106 107 108 109
111
6261
97
98 97
117
118
96
123
124
50
52
51
121122
96
96
97
125
51130 52
126127
129
50
97
96
96
5WR23J
131 133132 134
4
147
50
52
51
119
TAICO
Sealed Lead Acid Battery
TP12-2.6(12V 2.6Ah)
Constant Voltage Charge
Standby Use:13.5~13.8V
Cycle Use:14.4~15.0V
Max.lnitial Current:less
than0.78A
135
87
136
137
141 140
143
142
138139
73
7

5
Checking list:
1
30L&30R
2
19
63
38
118
39
x1
x1
x1
x1
x1
x2
x1
x2
13L&13R
64 & 65
40
x2
68L&68R
x1
x2
x1
x1
x1
x1
x1
14R 15R
&
14L 15L
&
&
12L&12R
11
x1
x1
44 & 45
x1
33
98 99
&
x1
x2
71
87
M12*1.75*70L 4PCS72 M12*1.75*12T 4PCS74
M6*1.0*15L 8PCS
128
(MM)
M8*1.25*120L 4PCS
3
M8*1.25*55L 2PCS
147
M8*1.25*70L 2PCS5
D15.4*D8.2*2T 8PCS
4
D18*D8.5*1.2T 4PCS
M8*1.25*25L 4PCS
119
4
KH-747G1
step1
step2
step3
step4
7
7
97
M8*1.25*20L 4PCS
6
D24*D13.5*D2.5T 8PCS73
M8*1.25*50L 6PCS
D22*D8.5*1.5T 6PCS
M8*1.25*8T 6PCS
8
9
10
step5
M5*0.8*12L 8PCS97
step6
ST4.2*15L 18PCS
96
M5*0.8*12L 10PCS97
step7

6
Part list:
Part no.
Description
Specification
Q'ty
1
Main frame
1
2
Front stabilizer
1
3
Bolt
M8*1.25*120L
4
4
Spring washer
D15.4xD8.2x2T
12
5
Bolt
M8*1.25*70L
2
6
Bolt
M8*1.25*20L
4
7
Flat washer
D16*D8.5*1.2T
8
8
Allen bolt
M8*1.25*50L
6
9
Curved washer
D22xD8.5x1.5T
6
10
Anti-loose nut
M8*1.25*8T
8
11
Handlebar post
1
12L
Left movable support welding set
1
12R
Right movable support welding
set
1
13L
Left moving handlebar
1
13R
Right moving handlebar
1
14L
Left pedal supporting tube
1
14R
Right pedal supporting tube
1
15L
Left pedal bracket welding set
1
15R
Right pedal bracket welding set
1
16
Universal joint
2
17
Foot tube cap
2
18
Crank welding set
2
19
Computer
1
20
Slide beam
2
21
Adjusting round wheel
6
22
Hex nut
M10*1.5*8T
6
23
Idle wheel fixing plate
1
24
Self-generator
1
25
Crank axle welding set
1
26
Belt wheel
1
27
Belt
520 PJ8
1
28
C flat key
8*7*20L
2
29L
Left chain cover
1
29R
Right chain cover
1
30L
Left front chain cover
1
30R
Right front chain cover
1
31
Front modified cover
1
32
Upper modified cover
1
33
Rear modified cover
1
34
Round disc
2
35
Side cover
2
36
Rear stabilizer cover
1
37
Rear stabilizer inside cover
1
38
Water bottle holder (front)
1
39
Water bottle holder (rear)
1
40
Water bottle
1
41
Hand pulse cable upper cover
2
42
Hand pulse cable lower cover
2
43L
Dip foam(left)
1

7
43R
Dip foam(right)
1
44
Pedals
2
45
Pedal pads
2
46
Bearing
#6205,2RS,SKF
2
47
Bolt
M10*1.5*65L
2
48
Hex nut
M10*1.5*8T
4
49
Spacer ring
D29.5*D25.2*9T
1
50
Bolt
M8*1.25*20L
6
51
Flat washer
D25xD8.5x2T
6
52
Buffer
D27*D8.2*2.5T
6
53
Sleeve
D30*D25.2*45L
1
54
Fixing nut
M25*1.5*32*6T
2
55
Bolt
M6*1.0*10L
2
56
Flat washer
D28*D6.5*2T
2
57
Screw
M6*1.0*15L
4
58
Flat washer
D13*D6.5*1.0T
4
59
Spring washer
D10.5*D6.1*1.3T
4
60
Swing axle
D25*180.5L
2
61
Roller wheel
D70*43
4
62
Bearing
6002 2RS,SKF
8
63
Roller wheel cover
162*136.2*87
2
64
Handlebar cover(front)
240.5*127.8*59
2
65
Handlebar cover (rear)
240.5*127.8*50
2
66
Bearing
#60042RS,SKF
12
67
Sleeve(二）
D25.4*D20.2*44L
2
68L
Front foot cover (left)
152.3*91.1*46.7
2
68R
Front foot cover (right)
152.3*91.1*60
2
69
Spacer bushing
D29*D12.1*9T
4
70
screened pipe
D25.4*D20.2*26L
2
71
Front pedal axle cover
182.4*95.7*67.6
2
72
Bolt
M12*1.75*70L
4
73
Flat washer
D24*D13.5*D2.5T
8
74
Anti-loose nut
M12*1.75*12T
4
75
Bearing
#2203-2RS
2
76
C ring
S-40(1.8T) D40
2
77
Space bushing
D19*D17*D12*20T
4
78
bushing
D25.4*D20.2*31L
2
79
Bolt
M6*1*15L
8
80
Screw
ST4.2*15L
8
81
C ring
S-17(1T)
1
82
Waved washer
D17*D22*0.3T
3
83
Bearing
6203-2RS ,SKF
2
84
Anti-loose nut
M8*1.25*8T
1
85
Flat washer
D28*D8.5*3T
1
86
Hex nut
M8*1.25*6T
1
87
Sliding beam welding set
1
88
Plastic flat washer
D50*D10*1.0T
1
89
Anti-loose nut
M6x1.0x6T
2
90
Bolt
M6*75L
1
91
Fixing sheet
20*27*4T
2
92
Bolt
M6x1.0x15L
2
93
Bolt
M6*1*5T
3
94
Bolt
M8x1.25x20L
4

8
95
Hex nut
M8*1.25*8T
4
96
Screw
ST4.2*15L
49
97
Bolt
M5*0.8*12L
38
98
Computer bracket(front)
1
99
Computer bracket(right)
1
100
Upper computer cable
300L
1
101
Middle computer cable
900L
1
102
Lower computer cable
650L
1
103
Connecting cable
1000L
1
104
sensor cable
500L
1
105
Round magnet
1
106
Upper cable for quick button（1）
400L
1
107
Upper cable for quick button（2）
400L
1
108
Lower cable for quick button（1）
850L
1
109
Lower cable for quick button（2）
850L
1
111
control board
1
117
Power cable
620L
1
118
Computer back cover
1
119
Bolt
M8*1.25*25L
4
120
Bolt
M8*1.25*40L
2
121
Roller wheel
2
122
Spacer bushing
D22.2*D8.2*7T
4
123
Screw
M3*0.5*30L
4
124
Screw
M3*0.5*12L
2
125
End cap
2
126
Buffer
D21*D8.2*2.5T
4
127
Spacer ring
D19*D15.2*25.5L
4
128
Bolt
M6*1*15L
8
129
End cap
4
130
Round cap
2
131
Battary connecting cable
1
132
Buffer
25*2T*80
2
133
Chargeable battery
1
134
Fixing plate(1)
1
135
Connecting cable(2)
1000L
1
136
Flat washer
D15*D5.2*1.0T
4
137
Flat washer
D34*D26*2T
1
138
Bolt
M8*1.25*20L
4
139
Flat washer
D18*D8.5*1.2T
4
140
Computer fixed base welding set
1
141
Bolt
M10*1.5*75L
1
142
Flat washer
D20*D11*2T
1
143
Hex nut
M10*1.5*10T
1
144
Pin
D6*26.5*7.7
2
145
Screw
ST4*1.41*12L
3
147
Bolt
M8*1.25*55L
2

9
Assembly drawing:
Step 1
1
147
4
3 4
step1
4D15.4*D8.2*2T
5x2
M8*1.25*120L x4
3
x8
M8*1.25*70L
D18xD8.5x1.2T x4
M8*1.25*55L x2
147
4 3
4
5
2
13 19
87
7
7
7
1) Assemble the front stabilizer (2) to the main frame (1) by bolt (3) and Flat washer (7), spring washer
(4) and bolt(5).
2) Assemble the sliding beam welding set (87) to the mian frame (1) by bolt (147), bolt (3)，flash
washer (7) and spring washer (4).

10
Step 2
1
4
7
11
119
4x4
D15.4*D8.2*2T
M8*1.25*25L
119 x4
7D18xD8.5x1.2T x4
97 x1
33
97
33
step2
M5*0.8*12L
97
101
102
1) Fix the middle computer cable (101) to the lower computer cable (102)
2) Assemble the handlebar post (11) to the main frame (1) by bolt (119) and spring washer (4), flash
washer (7).
3) Use the Bolt (97) to the fix the rear modified cover (33).

11
Step 3
6
12L
11
12L
12L 12R
11
6
step3
M8*1.25*20L x4
6
x2
ab
1) Assemble the left&right movable support welding set (12L&12R) to the handlebar post(11),by bolt(6)
shown as fig (a) (b).

12

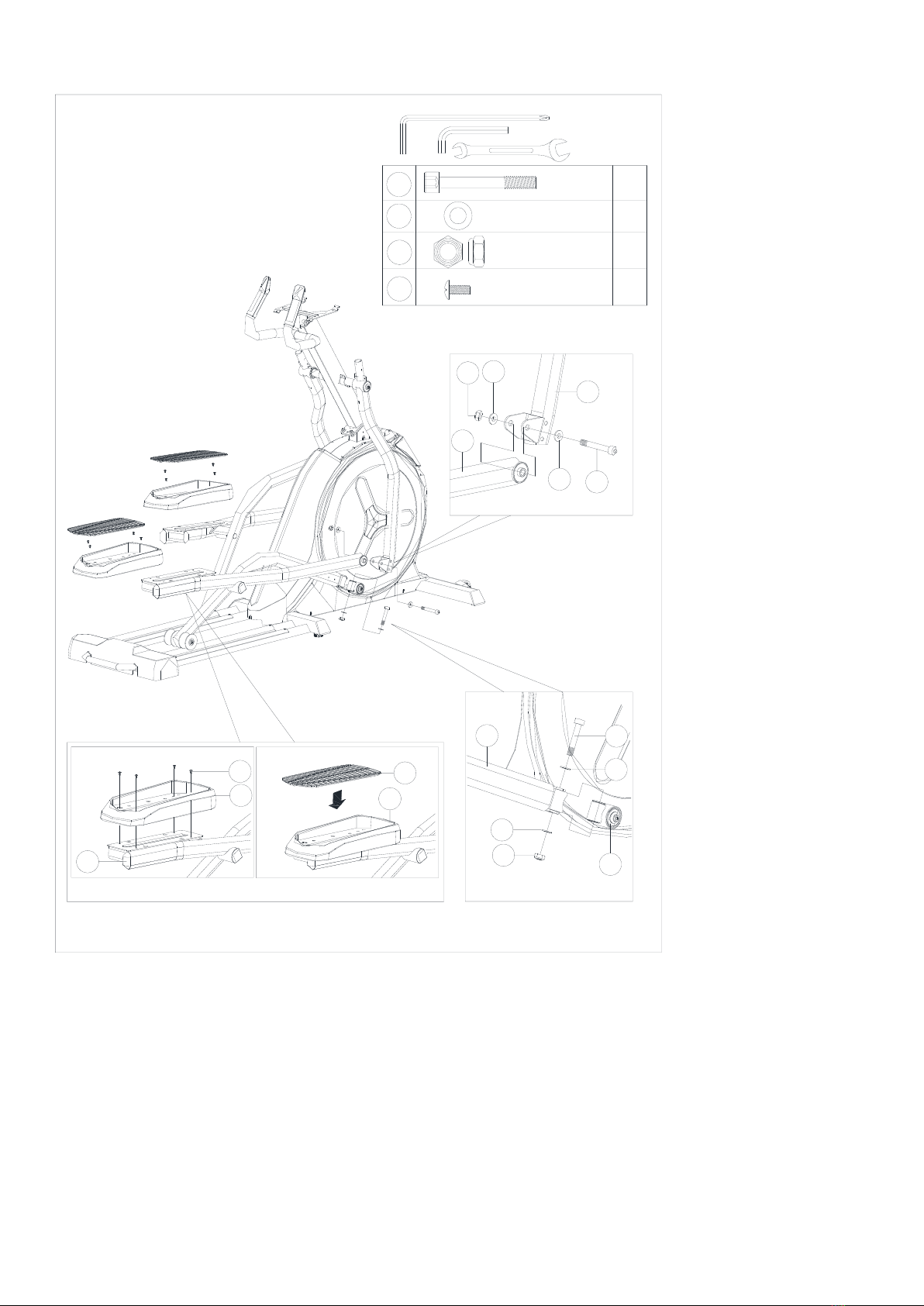

Step 4
1
14R
12R
72
15R
128
44
15R
73
73
74
72
73
73
74
45
44
step4
x4
x8
M12*1.75*70L x4
72
x8
128
D24*D13.5*D2.5T
M12*1.75*12T
M6*1.0*15L
13 19
73
74
4-1
4-2
4-3
ab
x2
x2
x2
1) Assemble the right pedal supporting tube (14R) to the mian frame (1),by the bolt (72) and flat
washer(73), anti-loose nu (74) shown as fig 4-1.
2) Assemble the right movable support welding set (12R) to the right pedal bracket welding set(15R) by
the bolt (72) and flat washer(73) , anti-loose nu (74)shown as fig 4-2.
3) Assemble the pedals (44) to the right pedal bracket welding set (15R), by cross bolt(128) shown as
fig 4-3(a).
4) Assemble the pedal pads(45) to pedals (44) shown as fig 4-3(b).

13
Step 5
10
13L
12L
9
8
13R
12R
8
9
10
5-2
5-1
10 x6
M8*1.25*8T
9x6
M8*1.25*50L x6
8
D22*D8.5*1.5T
step5
!
!
1) Assemble the right moving handlebar (13R) to the right movable support welding set (12R),by
the bolt (8) and curved washer (9), anti-loose nu (10)shown as fig 5-1.
2) Assemble the left moving handlebar (13L) to the left movable support welding set (12L),by the
bolt (8) and curved washer (9), anti-loose nu (10)shown as fig 5-2.

14
Step 6
97
97
118
19
11
97
11
19
11 97
118
step6
6-1
6-2 6-3
M5*0.8*12L
97 x8
1) Assemble the computer (19),fix the upper computer (100) to the middle computer (101), Upper cable
for quick button（1）(106) to the Lower cable for quick button（1）(108) , Upper cable for quick button
（2）（107）to the Lower cable for quick button（2）(109) shown as fig 6-1.
2) Assemble the Computer (19) to the handlebar post(11),by the bolt(97) shown as fig 6-2.
3) Assemble the computer back cover(118) to the handlebar post(11),by the bolt(97) shown as fig 6-3.

15
Step 7
1
96
39 38
11
65 96
96
64
96
97
30R
30L
97
97
63
7-2
7-3
7-6
x2
x2
step7
7-4
M5*0.8*12L
97 x10
ST4.2*15L
96 x18
96
7-5
x2
x2
7-7
71
7-1
96
98
99
11
97
1) Fix the computer bracket（front）(98) and the computer bracket(right)(99) to the handlebar post(11),by
the screw(96) shown as the fig 7-1.
2) Fix the water bottle holder（front）(39) and the water bottle holder(right)(38) to the handlebar
post(11),by the screw(96) shown as the fig 7-2.
3) Fix the handlebar cover（front）(64) to the handlebar cover rear(65),by the screw(96) shown as the fig
7-3.
4) Assemble the front chain cover (30L&30R) for the mian frame(1),by the screw(96) and bolt(97)

16
shown as the fig 7-4.
5) Fix the front foot cover left(68L) to the front cover right(68R),by the screw(96) shown as the fig 7-5.
6) Assemble the roller wheel cover(63) by the 2 pcs bolt(97) shown as the fig 7-6.
7) Fix the 2 pcs axle cover (71) ,by bolt(97) shown as the fig 7-7.

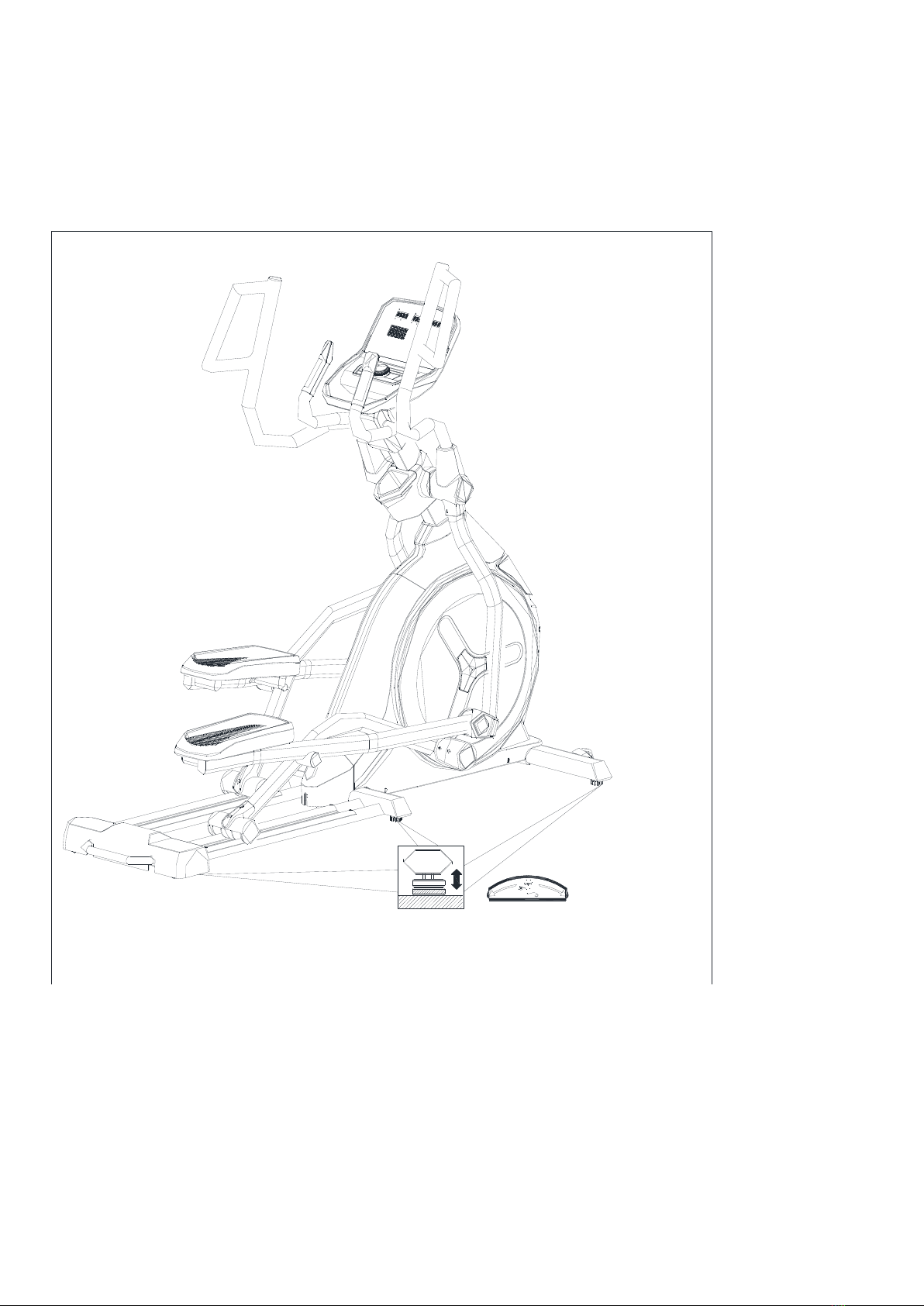

Step 8
step8
1) Insert the power cord.
2) Adjusting round whee at the same height.

INSTRUCTION MANUAL
【DISPLAY FUNCTIONS】
ITEMS
DESCRIPTION
TIME
Setting range: 0:00~99:00（±1 minute）
Display range: 0:00~99：59
DISTANCE
Setting range: 0.00~99.0（±1）
Display range: 0.00~99.99
CALORIES
Setting range: 0~9990（±10）
Display range: 0~9999
PULSE
Setting range: 0~30~230（±1）
Display range: 0~230
WATTS
Display range: 0~999
SPEED
Display current working speed , max to 99.9.
RPM
Display current RPM
Display range : 0~999
【BUTTON FUNCTIONS】
ITEMS
DESCRIPTION
“+ ”
Setting or increase the training resistance.
“- ”
Setting or decrease training resistance.
ROTARY BUTTON
To confirm all setting.
STAR/STOP
To start or stop workout.
RESET
In setting mode or in selection mode , press it back to initial training mode, if keep press this
button 2s , computer will re-start.
RECOVERY
To test heart rate recovery status.
BODY FAT
To test body fat % when press the BODY FAT button in standby mode .

【OPERATING PROCEDURE】
Power on & Power off
Power on :
1. LED will display all segments, such as wheel diameter, KM or ML, Eurasian gauge.(image1, image 2)
Image 1 Image 2
2. Enter into user selection mode,setting user’s private file U1-U4 (image 3), SEX (image 4) ,AGE(image 5), HEIGHT
（image 6), WEIGHT(image 7), after that will enter into function selection mode : MANUAL, PROGRAM, USER
PROGRAM, H.R.C, WATT.
Image 3 Image 4
Image 5 Image 6

Image 7
Power off :
If without RPM input in 4 minute, LED closed display, the computer in power off mode. But if detect RPM , the computer
will be woke up.
MANUAL FUNCTION:
By turning the button “+” or “-” , user may set up TIME →DISTANCE →CALORIES →PULSE(image 8~ image 10) .
Press START/STOP if without setting to start workout,and in working period user can adjust the RESISTANCE
LEVEL,LED display the working value. Then press START/STOP,computer will enter into break mode ,press button
“RESET” leave this mode.
Image 8 Image 9
Image 10

PROGRAM FUNCTION:
A. In this mode, there are 12 programs (P1~P12) for user to select (image 11). While user chose the PROGRAM and
turning the button “+” or “-” to setting the TIME (image 12), LED display the setting value by user adjustment ,if finished
setting press “START/STOP” to start work ( in break mode user can choose to adjust the “TIME” value ). In START status,
user can adjust RESISTANCE level . During working time , press “ START/STOP” ,computer will enter into break mode,
press button “RESET” leave this mode.
Image 11 Image 12
B. PROGRAM IMAGES AS BELOW :
P1 P2
P3 P4
P5 P6

P7 P8
P9 P10
P11 P12
USER PROGRAM FUNCTION：
By turning the button “+” or “-”, user can setting PROGRAM image, then press MODE/ENTER to confirm the setting
value of resistance (image 13 ), if user want to stop setting pls keep press MODE/ENTER button 2s, LED shows last setting
value. While press MODE/ENTER button 2s,user can setting the “TIME”(image14), if no setting value, press “START”
enter into working image. In START mode user can adjust the resistance .During the working time press “START” enter
into break mode, then press button “RESET” leave this mode.
Image 13 Image 14
H. R.C FUNCTION :
In H.R.C mode , LED screen will show heart rate percentage 55%, 75%, 90% and TARGET. User may select one of the
heart rate percentage by turning “+” or “-”button for training (image 15).

TARGET preset value is 100 , user can setting the pulse value by themselves, press the rotary button can setting TIME
value ( image 16), if do not need, press “START/ STOP “, it will start to work according the H.R.C function and show the
current pulse value .If not detect the pulse ,LED display as image 17.During the working time press “START” enter into
break mode, then press button “RESET” leave this mode.
Image 15 Image 16
Image 17
WATT FUNCTION：
The preset watt value 120 ( image 18 ), by turning “+” or “-”button to setting the WATT value
( setting range : 10~350 ). Finished setting, press the rotary button to set TIME ( image 19), if no need setting the Time
value, press “ START/STOP”, resistance value will adjust automatic according to the set target WATT value.During the
working time press “START/STOP” enter into break mode, then press button “RESET” it will leave this mode.
Image 18 Image 19
RECOVERY FUNCTION：
A. If no pulse input, it’s invalid press “RECOVERY” button.
B. If detected pulse input, press this button to “RECOVERY” function mode, time count down from 00:60
