TOORX ERX100 User manual

Edizione : Revisione : 00
INSTRUCTION
08/16 00

Dear Customers,
We want to thank you for having chosen an Elliptical Trainer and
wish you a lot of fun and success during training.
Please note and follow the enclosed safety and assembly instructions
carefully.
If you have questions please do not hesitate to contact us.
Table of Content as below:
1.) Safety Instruction
2.) Exploded Drawing
3.) Parts List
4.) Assembly Instruction
5.) Computer Instruction

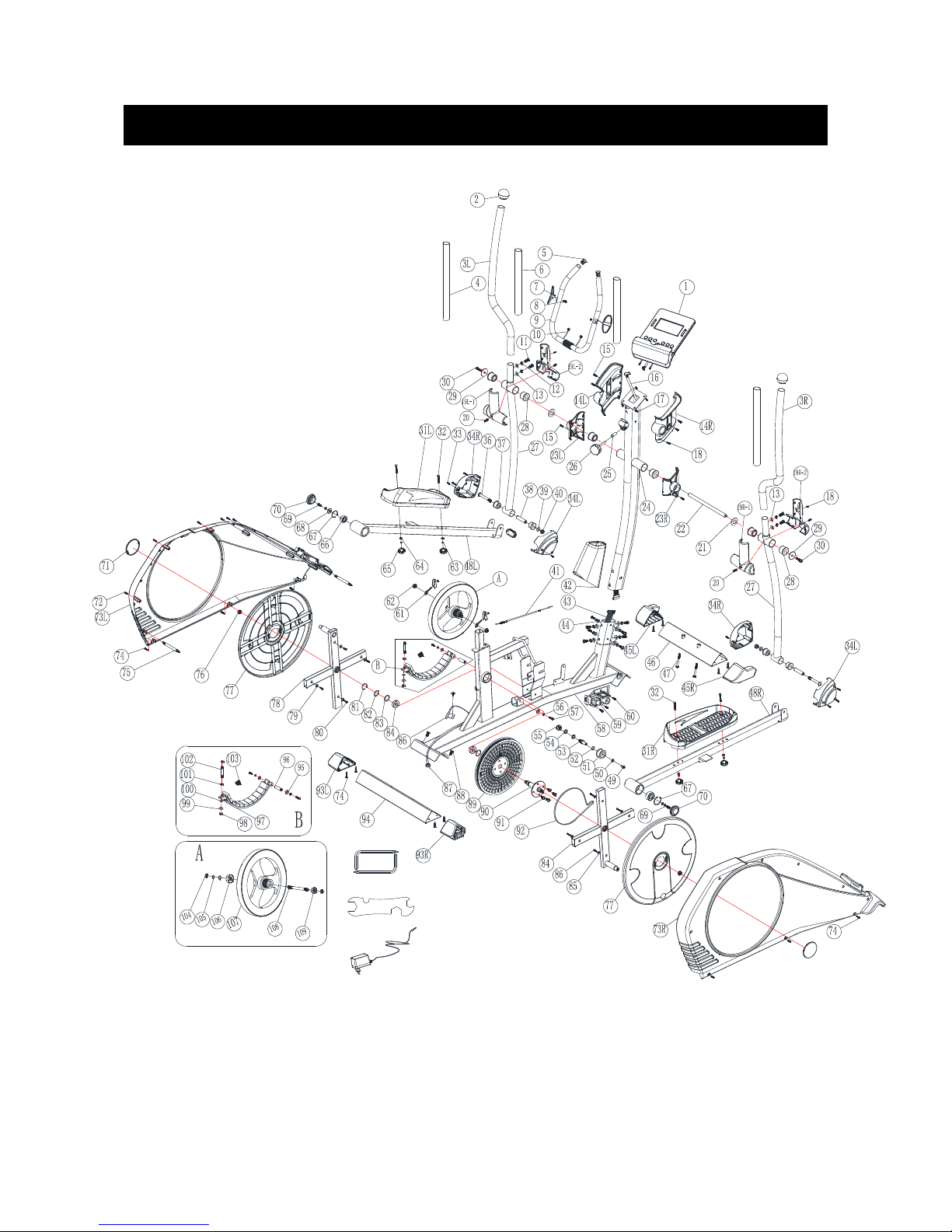

EXPLODED DRAWING
111
110
112

PART LIST
Part#
Description
Quantity
1
Computer
1
2
End cap for handlebar
2
3L
Handlebar (Left)
1
3R
Handlebar (Right)
1
4
handlebar foam
2
5
End cap for upper handlebar
2
6
Upper handlebar foam
5
7
Hand pulse pads
2
8
Self-tapping screw M3.2
2
9
Upper handleba
1
10
Hand Pulse cable
2
11
Allen screw M8*20
12
12
Spring washer φ8
16
13
Curved washer 8*19*1.5T
8
14L
Plastic cover (Left)
1
14R
Plastic cover (Right)
1
15
Screw M5*12
7
16
Upper computer cable
1
17
Screw M5*12mm
4
18
Self-tapping screw M4*15
5
19L-1
Plastic cover for left handlebar
1
19L-2
Plastic cover for left handlebar
1
19R-1
Plastic cover for right handlebar
1
19R-2
Plastic cover for right handlebar
1
20
Screw M5*8
4
21
Washerφ19.5*φ38*0.5
2
22
Rotation rod
1
23L
Plastic cover for rod (Left)
1
23R
Plastic cover for rod (Right)
1
24
Handlebar post
1
25
TuberΦ8*13*35
1
26
Round-shaped Knob
1
27
Lower handlebar
2
28
Tuber spacer
6

29
Washer 8.5*36*3T
2
30
Allen screw M8*20
2
31L
Footplate (Left)
1
31R
Footplate (Right)
1
32
Screw M6*50
4
33
Screw M4*15
7
34L
Plastic cover
2
34R
Plastic cover
2
36
Allen screw M10*78
2
37
Tuber spacerφ14*42.3MM
4
38
Handlebar pivot bushesφ14*42.3MM
2
39
Washer 10*19*2
2
40
Nut M10
2
41
cable
1
42
Front plastic cover
1
43
Lower computer cable
1
44
Washer 8*19*1.5T
4
45L
Front end cap (left)
1
45R
Front end cap (Right)
1
46
Front stabilizer
1
47
Allen screw M8*57
2
48L
Pedal connecting tube left
1
48R
Pedal connecting tube Right
1
49
Screw M6*12
1
50
Washer 6*13*1T
1
51
Idler
1
52
Curved washer
2
53
Axle for idler
1
54
Washer 10*19*1.5
2
55
Nut M10
1
56
Spring washerΦ6
2
57
Screw M6*16
2
58
Main frame
1
59
Motor
1
60
Screw M5*15
3
61
Adjuster
2
62
Hex nut M10*1.25*4T
2

63
Spring washerφ6
4
64
Washer 6*16*2
4
65
Knob M6
4
66
Bearing
2
67
C-shaped knob
2
68
Washer 8*21*2T
2
69
Allen screw M8*20
2
70
End cap
2
71
Plastic cover for round cover
2
72
Self-tapping screw
6
73L
Chain cover (Left)
1
73R
Chain cover (Right)
1
74
Screw M5*15
14
75
Joint lever for chain cover
2
76
Nut M10*1.25
2
77
Round cover
2
78
Crank
2
79
Washer 5*16*1
8
80
Self-tapping screw
8
81
C-shapped washer
1
82
Curved washer
1
83
Washer
2
84
Bearing 6004RS
2
86
Sensor
1
87
DC cable
1
88
Screw M8*20
2
89
Belt wheel
1
90
Pedal axle
1
91
Allen screw
4
92
Belt
1
93L
Rear end cap left
1
93R
Rear end cap right
1
94
Rear stabilizer
1
95
Washer 6*13*1.5T
1
96
Magnet fixed axleφ12
1
97
Magnet holder
1
98
Nut M6
2

99
Washer 6.5*19*1.5T
1
100
Plastic washer 6.5*22*1.5T
1
101
Nut M6
1
102
Headed screw M6*75
1
103
Spring
1
104
Hex nut
2
105
C-shaped washer
1
106
Bearing
1
107
Flywheel 6300RS
1
108
Flywheel axleφ10*110MM
1
109
Bearing 6000RS
1
110
Allen key wrench
2
111
Combination wrench
1
112
Adapter
1

ASSEMBLY INSTRUCTION
STEP 1
1. Fasten the Front stabilizer (46) with 2 x M8 x 57 Allen bolts (47).
2. Fasten the Rear stabilizer (94) with 2 x M8 x20 Flat-head inner hexagon screws (88).
STEP 2

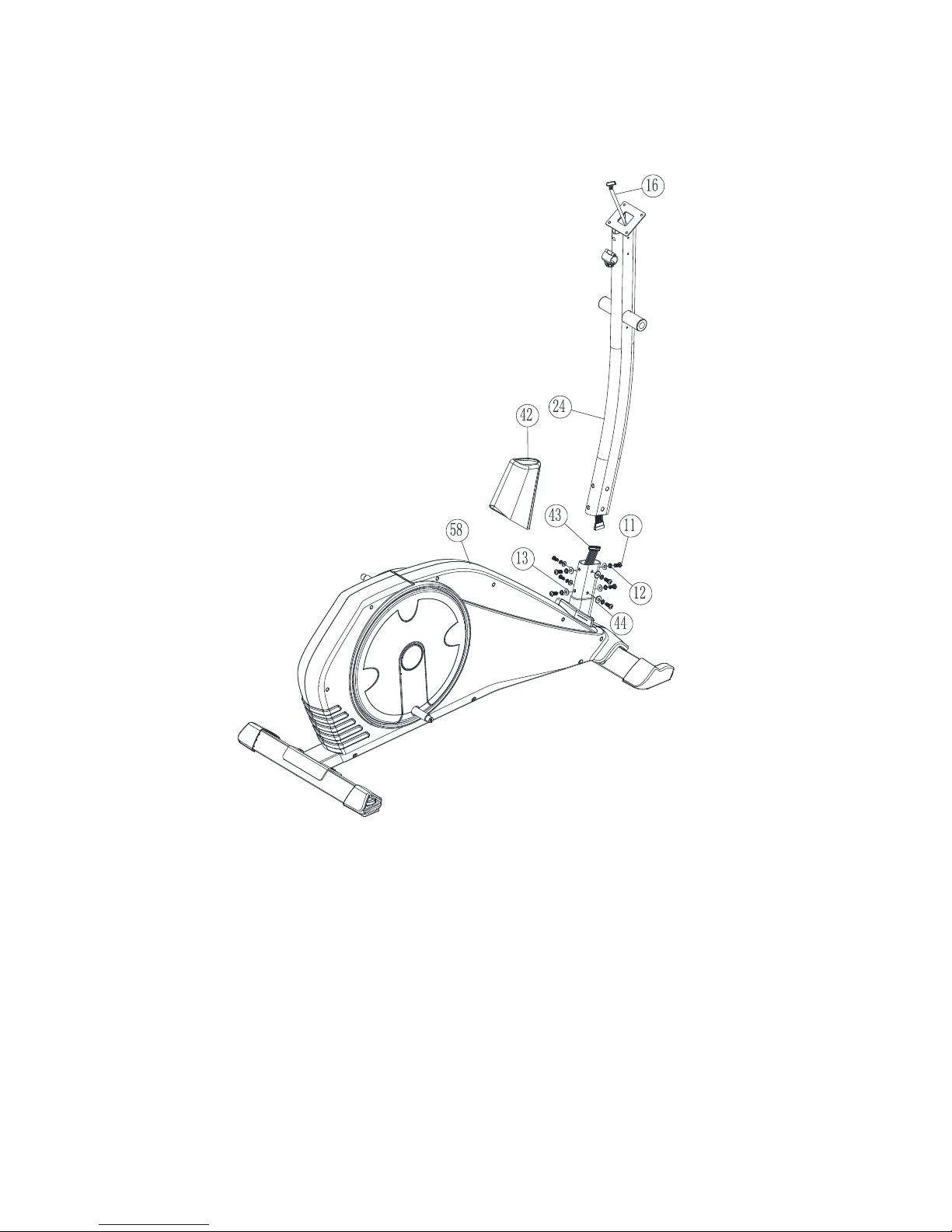

1. Carefully lift the Handlebar post (24) until it is vertical and slide onto the Plastic cover
(42).
2. Connect the Upper computer cable (16) and the Lower computer cable (43).
3. Then place the Handlebar post (24) onto the Main frame (58) and fix it using 8 ×
M8×20mm Allen bolts (11), 8 × M8 Spring washers (12), 4 × M8 Curved washers (13),
4 × M8 Flat washer (44).
STEP 3

1. Slide the Rotation rod (22) into the Handlebar post (24),
2. Slide the Lower handlebar left & right(27) onto Rotation rod and secure it using
Φ19.5×Φ38×0.5mm Flat washer (21), Screw caps (29),Spring washer(12), and
M8x20mm Anti-loose Allen bolt (30) for each side.
3. Put the Upper handlebar (3L+R) onto the Lower handlebar (27) and secure it with 2×
M8×20 Allen bolts (11), 2×Φ8 Spring washer (12) and 2×Φ8 Curved washers (13) for
each side
STEP 4

1. Fasten Left footplate bar (48L) to the Lower handlebar (27) with M10x78 Allen bolt (36)
and secure it with Φ10x19x2T Flat washer (39) and M10 Nylon lock nut (40). Do the
same for the Right footplate bar (48R). Next fit the Footplate bar cover set (23L+R) to
the Footplate bar (34L+R) using 4 x M4x15mm Self-tapping screw (18) and 4 x Screw
M5x15 (33).
2 Attach the Left footplate bar (48L) onto the Left crank and secure it with Φ8x21x2T
Washer (68), Φ8 Spring washer (12) and M8x20 Anti-loose Allen bolt (69). Put the Crank
end cap (70) onto the Footplate bar (48L). Do the same for the right pedal bar (48R).
3 Attach the Left footplate (31L) onto the Footplate bar (48L) and secure it with 2×M6
Carriage bolt (32), 2×Φ6 Washer (63), 2×Φ6 Spring washer (64) and 2×Φ6 Knob
(65). Do the same to the Right footplate (31R).
STEP 5

1 Hold the Handlebar (9) and make the Upper computer cable (16) coming out of the
Handlebar post (24) and Hand pulse cable (10) cross the Handle bar (9), then place the
Handlebar (9) onto the Handlebar post (24) and screw it with Tube spacer (25) T shape
knob (26) tightly.
2 Taking the Computer (1) and remove the 4 pre-fitted Screws （17） in the back of the
computer. Now connect the Upper computer cable (16) with the Computer and the Hand
pulse cable (10) with the Computer. Then sit the Computer (1) onto its bracket and
secure in place using the 4 Screws (17) previously removed.
3 Screw the Handlebar cover (14L+R) with Self-tapping screw (18), 4 Screws (15).
STEP 6

Assemble the Plastic cover(19L-1) and (19L-2) on the handlebar (27) with the screw (18)
and the screw (20), do the same to the right plastic (19R-1)and (19R-2)
Now, your machine is ready for us

COMPUTER INSTRUCTION
BUTTON FUNCTION:
MODE/ENTER
In stop mode, the mode is to confirm all exercise data setting, and enter into program.
RESET
In stop mode, press the button back to main menu.
START/STOP
To start or stop exercise.
RECOVERY
To test hear rate recovery status.
UP
To select training mode and adjust function value up.
DOWN
To select training mode and adjust function value down.
BODY FAT
For body fat measurement
DISPLAY EXERCISE DATA:
TIME
Display range 0:00~99:99 ; Setting range 0:00~99:00
DISTANCE
Display range 0.00~99.99 ; Setting range 0.00~99.90km
CALORIES
Display range 0~9999 ; Setting range 0~9990
PULSE
Display range P-30~230 ; Setting range 0-30~230
WATT
Display range 0~999 ; Setting range 10~350
SPEED
0.0~99.9km
RPM
0~999

1
OPERATION PROCEDURE

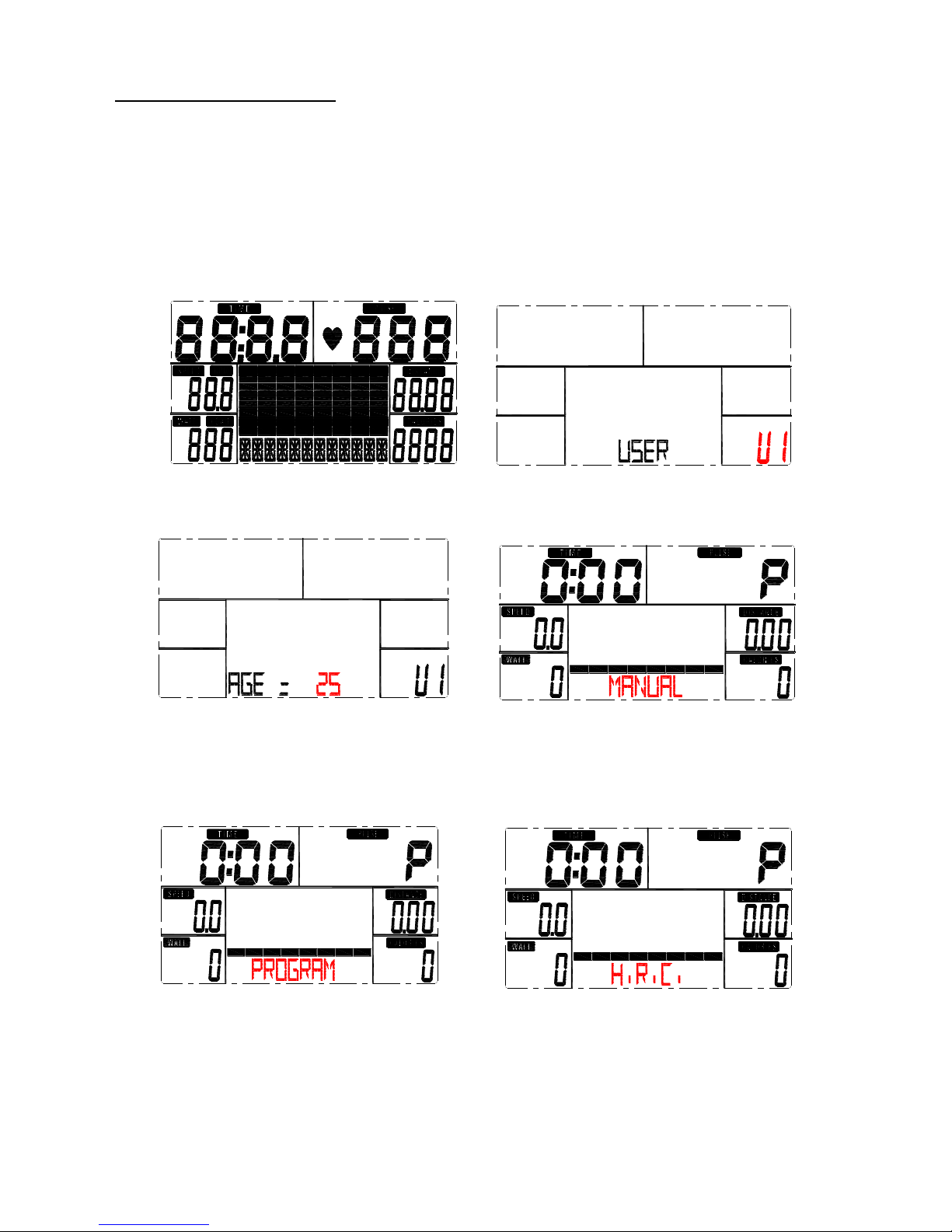

1. Connect power supply and computer will power on with a long beep sound, LCD display all
segments (drawing A) for 2 seconds and enter into personal data setting mode (gender, age, height
and weight) for U1~U4. (drawing B~C)
2. After user data set up, computer will display main menu (drawing D).
A B
C D
3. In main menu, first exercise program MANUAL will flash, user may press UP and DOWN button
to select MANUAL PROGRAM (12 profiles) (drawing E) USER PROGRAMHRC
(drawing F)WATT.
E F
4. Quick Start and Manual :
Before exercise in Manual mode, user my set up TIME, DISTANCE, CALORIES and PULSE
target.

2
After power on, user may press START/STOP button to start exercise in MANUAL immediately
without any setting.
Level can be adjusted during exercise by press UP or DOWN.
5. PROGRAM：
Before exercise in Program mode, user may set up TIME target.
Press UP and DOWN to select Program with 12 profiles and press ENTER/MODE to confirm.
Level can be adjusted during exercise by press UP or DOWN.
6. H.R.C.：
Select the H.R.C. mode and press the MODE key to enter into the setting mode. AGE
default value is 25 (years old). There will be 4 selections: H.R.C55, H.R.C.75, H.R.C.90
and H.R.C. TAG; use the UP/ DOWN key to select one program and press the MODE
key after selection is determined (FIGURE G & H). User’s selection and a sign of “55%”
will be displayed in the PULSE column according to the AGE user inserted. If user selects
H.R.C. TAG (press the MODE key to enter), preset PULSE value “100” will be shown in
flashing text and user can press the UP/ DOWN key to adjust target range from 30~230.
GH
7. USER PROGRAM：
User may press UP, DOWN and then press MODE to create his own profile. (from column 1 to
column 20) User may hold on pressing MODE button for 2 seconds to quit profile setting.
8. WATT :
The preset watt value 120 is flashing on screen in WATT setting mode. User may use UP,
DOWN button to set target value from 10 to 350. Press MODE button for confirm.
9. BODY FAT:
9-1 In STOP mode, press the BODY FAT button to start body fat measurement.
9-2 Then selected user (U1~U4) will blinking for 2 seconds. Then start measuring.
9-3 During measuring, user have to hold both hands on the handgrip. And the LCD will display “-
-” “--“ for 8 seconds until computer finish measuring.
9-4 LCD will display BODY FAT advice symbol, BODY FAT percentage, BMI for 30 seconds.

3
10. RECOVERY :
After exercising for a period of time, keep holding on handgrips and press “RECOVERY”
button. All function display will stop except “TIME”starts counting down from 00:60 to 00:00.
Screen will display your heart rate recovery status with the F1,F2….to F6. F1 is the best, F6
F6 is the worst. User may keep exercising to improve the heart rate recovery status.
(Press the RECOVERY button again to return the main display.)
NOTE:
1. This computer require 9V, 500mA adaptor.
2. When user stop pedaling for 4 minutes, computer will enter into power save mode, all setting and
exercise data will stored until user start exercise again.
3. When computer act abnormal, please plug out the adaptor and plug in again.

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.toorx.it - [e-mail]
