TOORX Rower Active User manual

Ed : 09/17 Rev : 00
INSTRUCTION

1

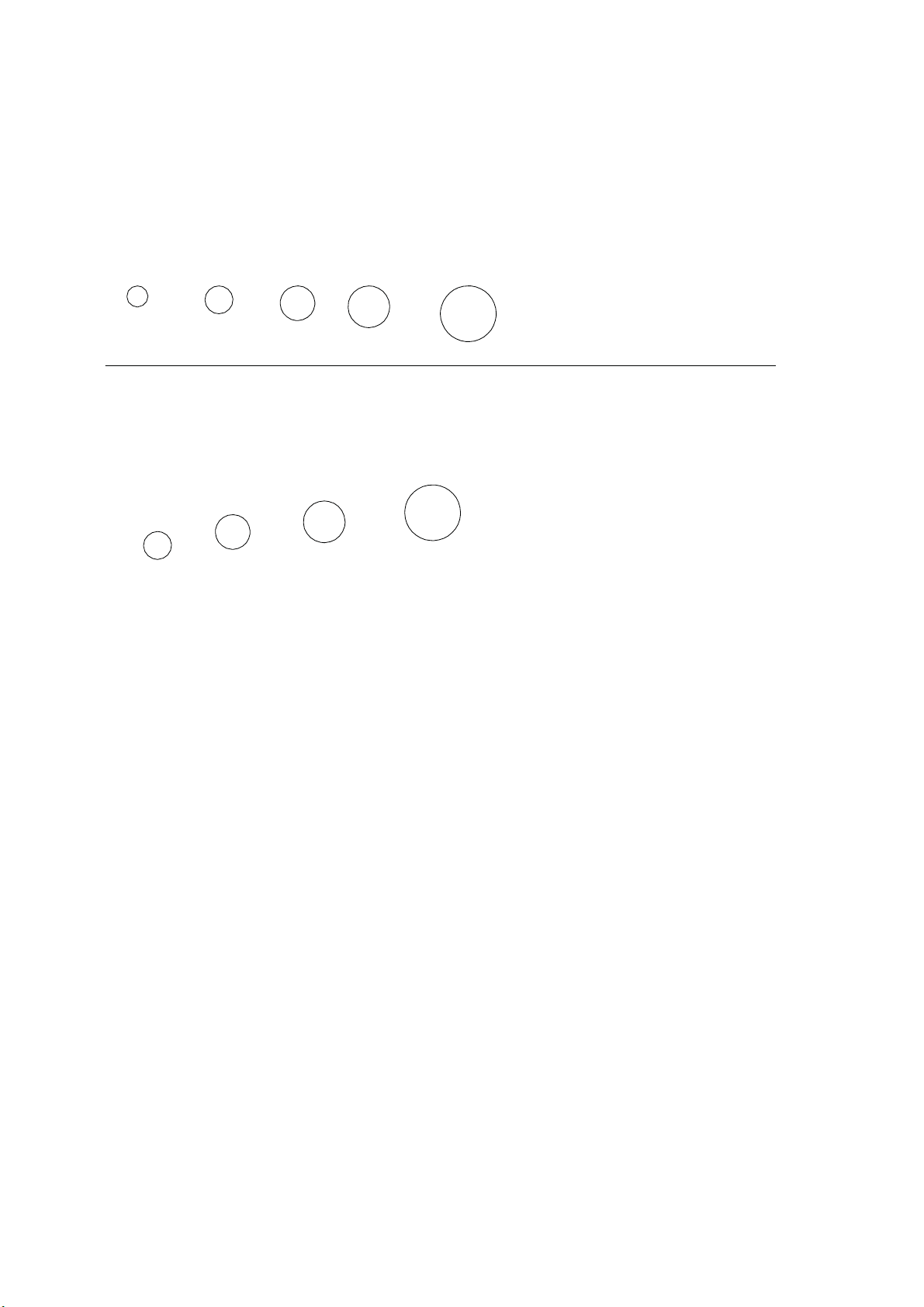

HARDWAREIDENTIFICATIONCHART
This chart is provided to help identify the hardware used in the assembly process. Place the
washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use
the small scale to check the length of the bolt sand screws.
3/16" 1/4" 5/16" 3/8" 1/2"
INCHES
0 1/2 1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140150
in.
mm.
MILLIMETERS
NOTICE: The length of all bolt sand screws, except those with flat heads, is measured from below the head
to the end of the bolt or screw. Flat head bolt sand screws are measured from the top of the head
to the end of the bolt or screw.

2

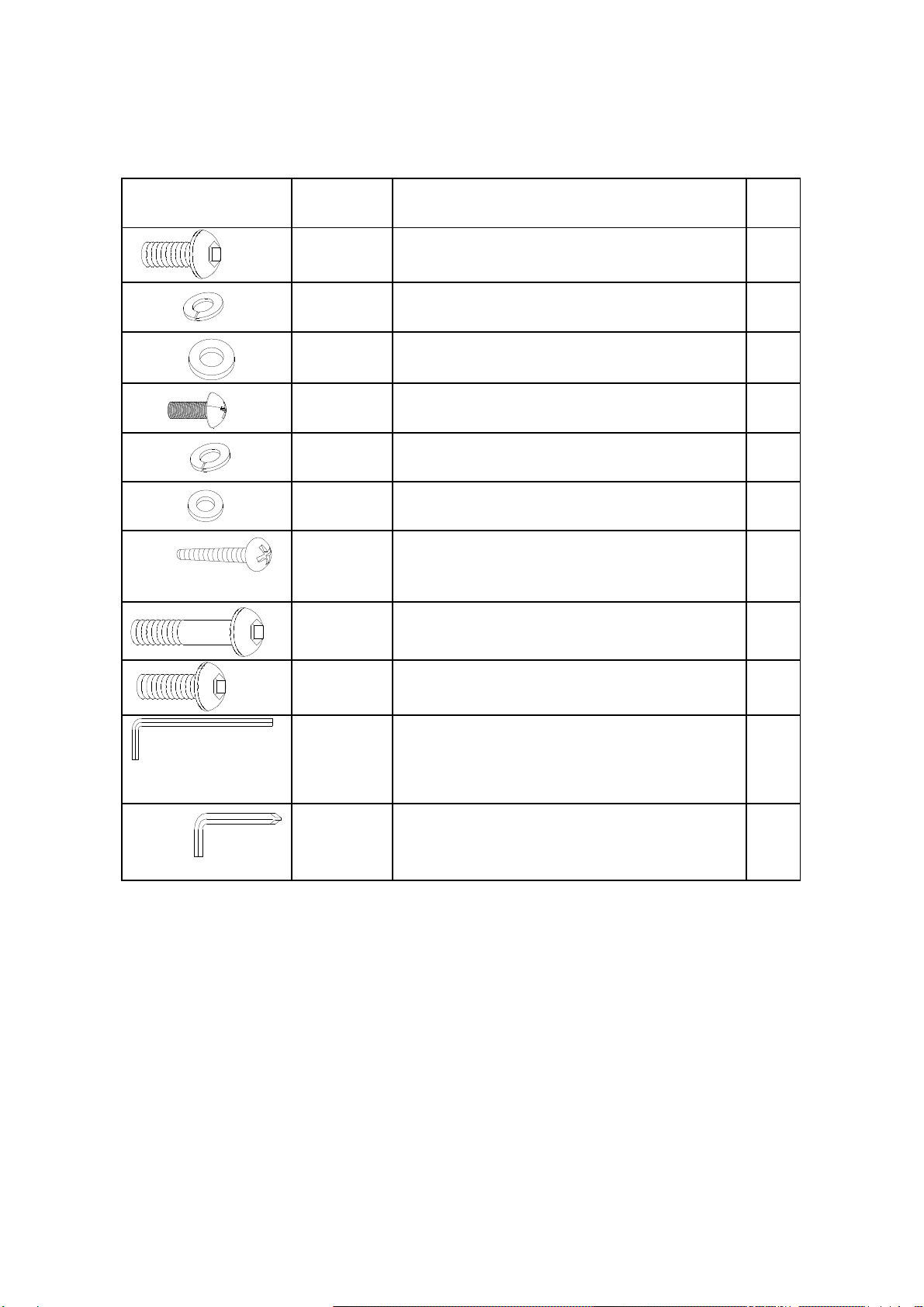

Part No. Description Qty
60 Bolt, Button Head (M8x15mm) 6
61 Lock Washer (M8) 4
62 Washer(M8) 8
63 Cross flat head screws (M6 x 15mm) 5
64 Washer (M6) 5
83 Large Washer(M8) 2
81 Tapping screw (ST4.2X45) 1
84 Bolt, Button Head (M8 x 40mm) 2
85 Bolt, Button Head (M8x20mm) 2
59 Allen Wrench(5mm) 1
69 Allen Wrench w/ Screwdriver 1

3

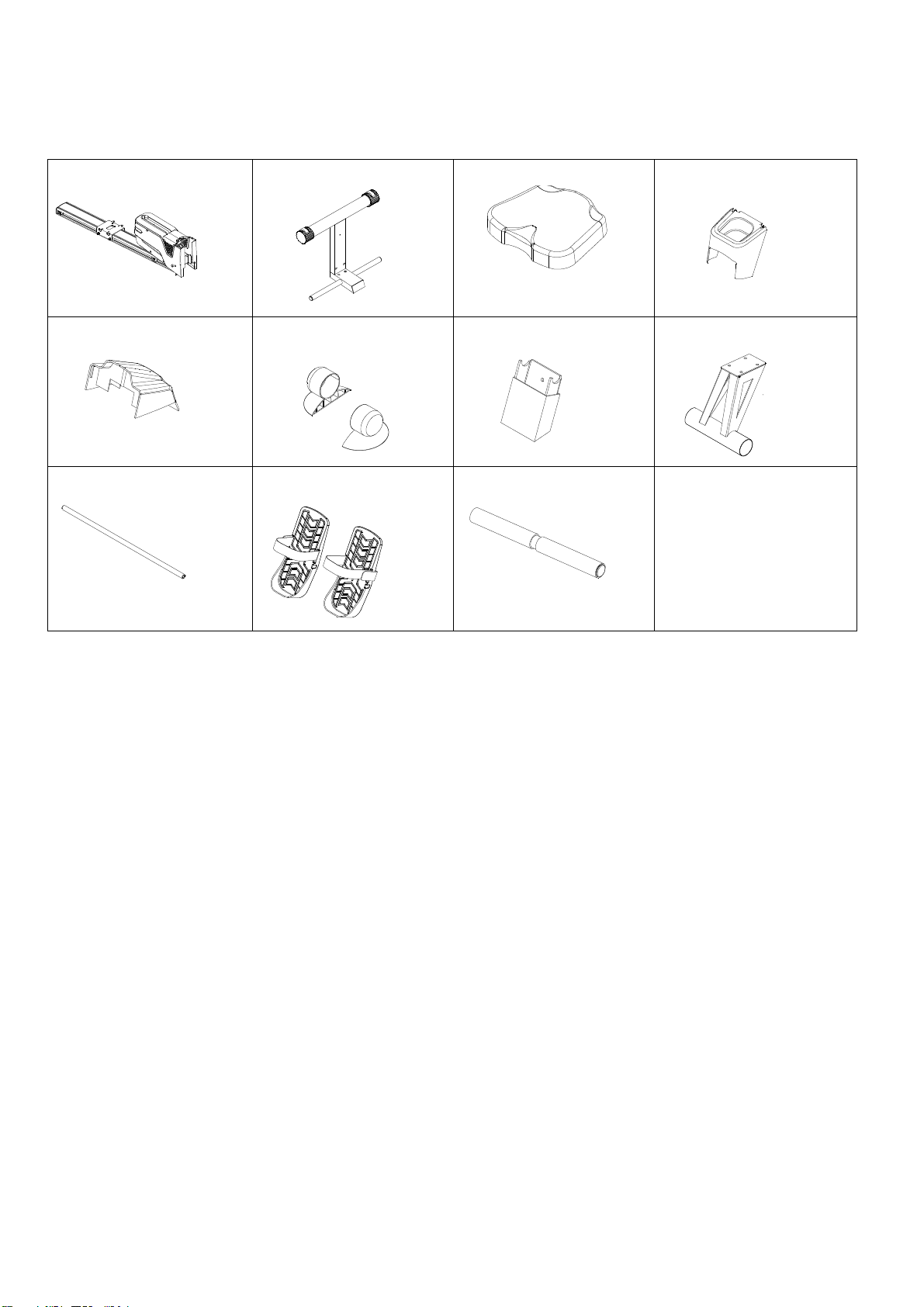

WHEN YOU OPEN THE CARTON, YOU WILL FIND THE
BELOW SPARE PARTS
1 Main Frame 1pc 3 Base Frame 1pc 21 Seat 1pc 27 Bottle Holder 1pc
28 Front cover 1pc 30 End cap (60mm)
2pcs
Rear Support 1pc 2 Rear Stand 1pc
6 Pedal Shaft 1pc 19 Pedal Cap 2pcs 1 Handlebar 1pc

4
ASSEMBLY INSTRUCTIONS
STEP1
Position the main assembly of the Rowing Machine as shown in illustration A.
Insert the REAR SUPPORT (5) into the BASE FRAME (3) and secure with BUTTON
HEAD BOLTS (M6x15mm)(63) and WASHERS (M6)(64).
Attach the BASE FRAME (3) to the CONNECTION BRACKET (11) with BUTTON HEAD
BOLTS (M8x40mm) (84) and WASHERS (M8)(62).
STEP2
Refer to illustration B. Turn the main assembly of the Rowing Machine upside down.
Attach the REAR STAND (2) to the RAIL (48) with BUTTON HEAD BOLTS (M8x15mm)
(60), LOCK WASHERS (M8)(61), and WASHERS (M8)(62).
48
23
11
62 84
60
61
62
60
61
62
63
64
5
A.
B.

5
STEP3
Refer to the illustration below.
Unfold the RAIL (48), and then attach the CONNECTION BRACKET (11) to the BASE
FRAME (3) with BUTTON HEAD BOLTS (M8x20mm)(85) and WASHERS (M8)(62).
STEP4
Attach the SEAT (21) to the SEAT CARRIAGE (10) with ROUND HEAD BOLTS
(M6x15mm) (63) and WASHERS (M6)(64).
64
63 10
21
64
48
48
85
62

6
STEP 5
Refer to detail view C. Insert the HANDLEBAR (15) through the HANDLEBAR SLEEVE (111).
Slide the FOAM GRIP (22) onto the protruding end of the HANDLEBAR (15). Press the ROUND
PLUG (23) into the end of the HANDLEBAR (15).
NOTE: Lubricate the HANDLEBAR (15) with a small amount of liquid soap or water for easier
installation of the FOAM GRIP (22).
STEP6
Put the End cap (60mm) (30) into Rear Stand (2).
STEP7
Slide the FRONT COVER (28) onto the LEFT and RIGHT COVERS (17, 18), then attach
to the BASE FRAME (3) with ROUND HEAD SCREW (M4.2x45mm)(81).
STEP 8
To help install the BOTTLE HOLDER (27), loosen the SCREW (M4.2x16mm)(67) on the RIGHT
COVER(18). Push the BOTTLE HOLDER (27) into the gap of the LEFT and RIGHT COVERS (17,
18). Tighten the SCREW (M4.2x20mm)(16) on the RIGHT COVER(18).
15
27
67
17 18 28
81
3
15
103
22
30
30
2
C
( Loosen to install the BOTTLE
HOLDER(27).
Tighten after the installation. )

7
STEP 9

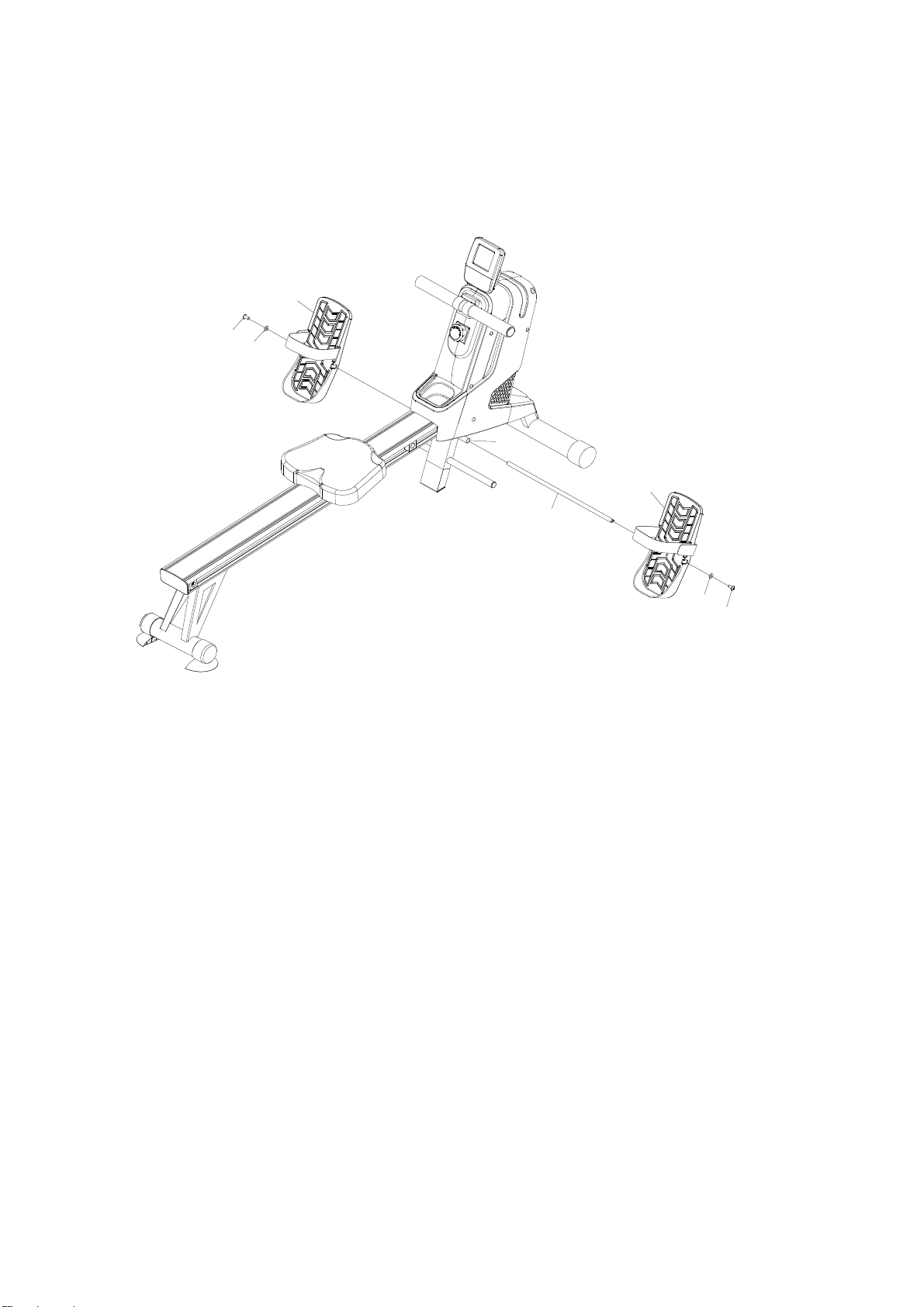

Insert the PEDAL SHAFT (6) through the tube located on the BASE FRAME (3). Slide a PEDAL
CAP (19)onto each end of the PEDAL SHAFT(6). Then secure the PEDAL CAPS (19) with
BUTTON HEADBOLTS (M8x15mm)(60) and LARGE WASHERS(M8)(83) at both ends of the
PEDAL SHAFT (6).You need to use two Allen Wrenches to tighten the BUTTON HEAD BOLTS
(M8x15mm)(60) at both ends of the PEDAL SHAFT (6) at the same time.
83 60
19
83
60
6
19
3

8
PEDAL STRAP ADJUSTMENT
If you feel it is more comfortable for your workout, you can attach the PEDAL STRAP (20) to the
lower position in the PEDAL CAP(19) as shown in illustration 1 below.
Run the PEDAL STRAP(20) through the opening from the bottom of the PEDAL CAP(19). Pull the
PEDAL STRAP(20) to make the Knot against the bottom of the PEDAL CAP(19).
Run the PEDAL STRAP(20) through the opening in the PEDAL CAP(19) on the other side from
the top as shown in the illustration 1, then make the end of the PEDAL STRAP(20) go up to attach
onto the upper part of the PEDAL STRAP(20) with the Hook & LoopPad.
Attach the end of the PEDAL STRAP(20) to different position with the Hook & Loop Pad to adjust
the length.Refer to illustration 2.

9
STORAGE
1. To store the Rowing Machine, simply keep it in a clean dry place.
2. Move the Rowing Machine with the moving wheels on the Front Stabilizer of the BASE FRAME (3). Lift
the REAR STAND (2) to move the Rowing Machine. Do not use the SEAT (21) to move the Rowing Machine.
The SEAT (21) will move and the SEAT CARRIAGE (10) may pinch your hand or fingers.
3. Refer to the illustration below. You can stand the Rowing Machine on end for storage.
MOVING INSTRUSTIONS
Rise up the rear stabilizer and push the rower machine when you want to move it.

10

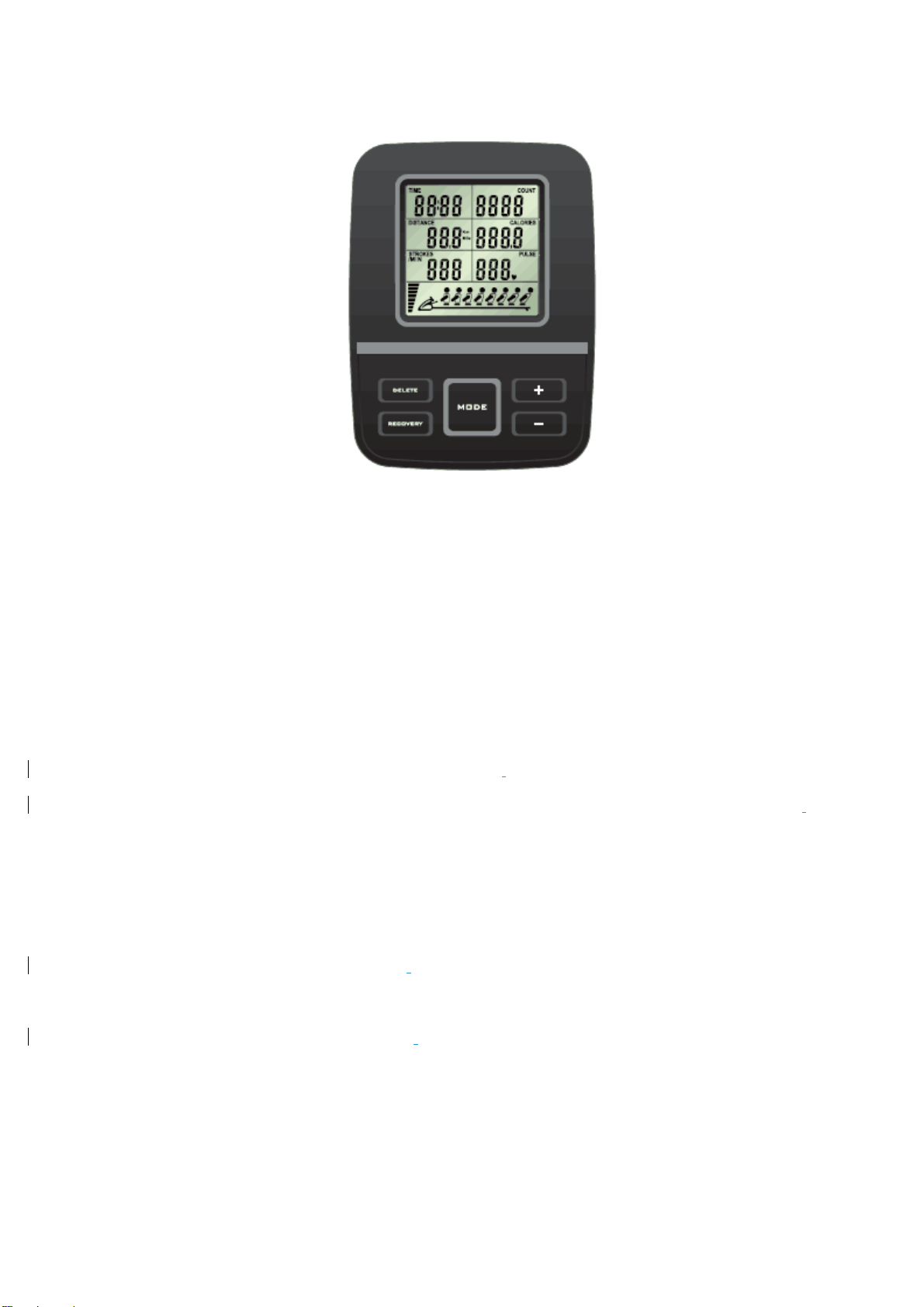

COMPUTER INSTRUCTIONS
BATTERY REPLACEMENT:
Quick release the lock on bottom of monitor, slide cover out carefully. Install two SIZE-AA or UM-3 batteries in the
battery case inside the monitor.
Ensure that the batteries are correctly fitted. Battery must be correctly positioned and make sure the battery spring is
properly contacted with battery.
IF the displays appear blank or display only partial segments, remove the batteries and wait 15 seconds then restore
them.
Whenever you remove the batteries, all the functional values will be reset to zero.
BUTTONS GUIDE:
MODE:
Select function to be preset from TIME, COUNT, DISTANCE, CALORIES, and PULSE.
PULSE RECOVERY:
** It is functional only whenever user wear of wireless chest belt ( not include ) **
The LCD has a Recovery Mode. This lets you monitor how quickly you recover from exercising. After your exercise
session press the Recovery button, the LCD console will then count down from 60 seconds to zero. After this , a
fitness score F1 to F6 will be displayed on console.
F1.0 = Excellent F2.0 = Good F3.0 = Fair F4.0 = below average
F5.0 = No Good F6.0 = Poor
DELETE:
Press this button to reset all of the value to Zero.
UP:
Increase the setting value of the following functions.
TIME, COUNT, DISTANCE, CALORIES, and PULSE.
DOWN:
Decrease the setting value of the following functions.
TIME, COUNT, DISTANCE, CALORIES, and PULSE.
FUNCTIONS:
TIME:
Accumulates total working time from 00:00 up to 99:59. Yon may also preset the target time before training by
pressing “UP” and “DOWN” buttons. Each setting is 1:00 minute.
As soon as the target time is achieved, time starts to count up immediately and the monitor starts to alarm for 8
seconds.
DISTANCE:

11
Accumulates training distance from 0.0 up to 99.9KM. Yon may also preset the target distance before training by
pressing “UP” and “DOWN” buttons. Each setting is 100 meter.
As soon as the target distance is achieved, value starts to count up immediately and the monitor starts to alarm for 8
seconds.
COUNT:
Accumulates total working count from 0 up to 9999. Yon may also preset the target count before training by pressing
“UP” and “DOWN” buttons. Each setting is 10 count.
As soon as the target count is achieved, value starts to count up immediately and the monitor starts to alarm for 8
seconds.
CALORIE:
Accumulates calories consumption during training from 0 up to 9999 kcal with each increment 0.1kcal. Yon may also
preset the target calorie before training by pressing “UP” and “DOWN” buttons. Each setting is 1 kcal increment.
As soon as the target calorie is achieved, value starts to count up immediately and the monitor starts to alarm for 8
seconds. ( This data is a rough guide for comparison of different exercise session which cannot be used as medical
treatment )
PULSE:
Your current pulse rate will be displayed on the LCD console whenever you wear of wireless chest belt (optional item ,
not include ) from 40 to 220.
If there no heart rate signals been detected for 16 seconds, the monitor will shows “ P “
You can also set a target heart rate before training by pressing “UP” and “DOWN” buttons within the rate zone 90 to
220. Each setting is 10 heart beats.
If you go above this setup heart rate, the LCD Pulse value will FLASH and Alarm to ask you reduce the intensity of
your exercise.
The picture indicates the travel distance on the roller machine during exercise.
NOTE: Without any signal been transmitted into console for 4 minutes, the LCD display will shut off automatically and
all function data will reset to Zero. You many press any button or start training to have the console power on again.

12

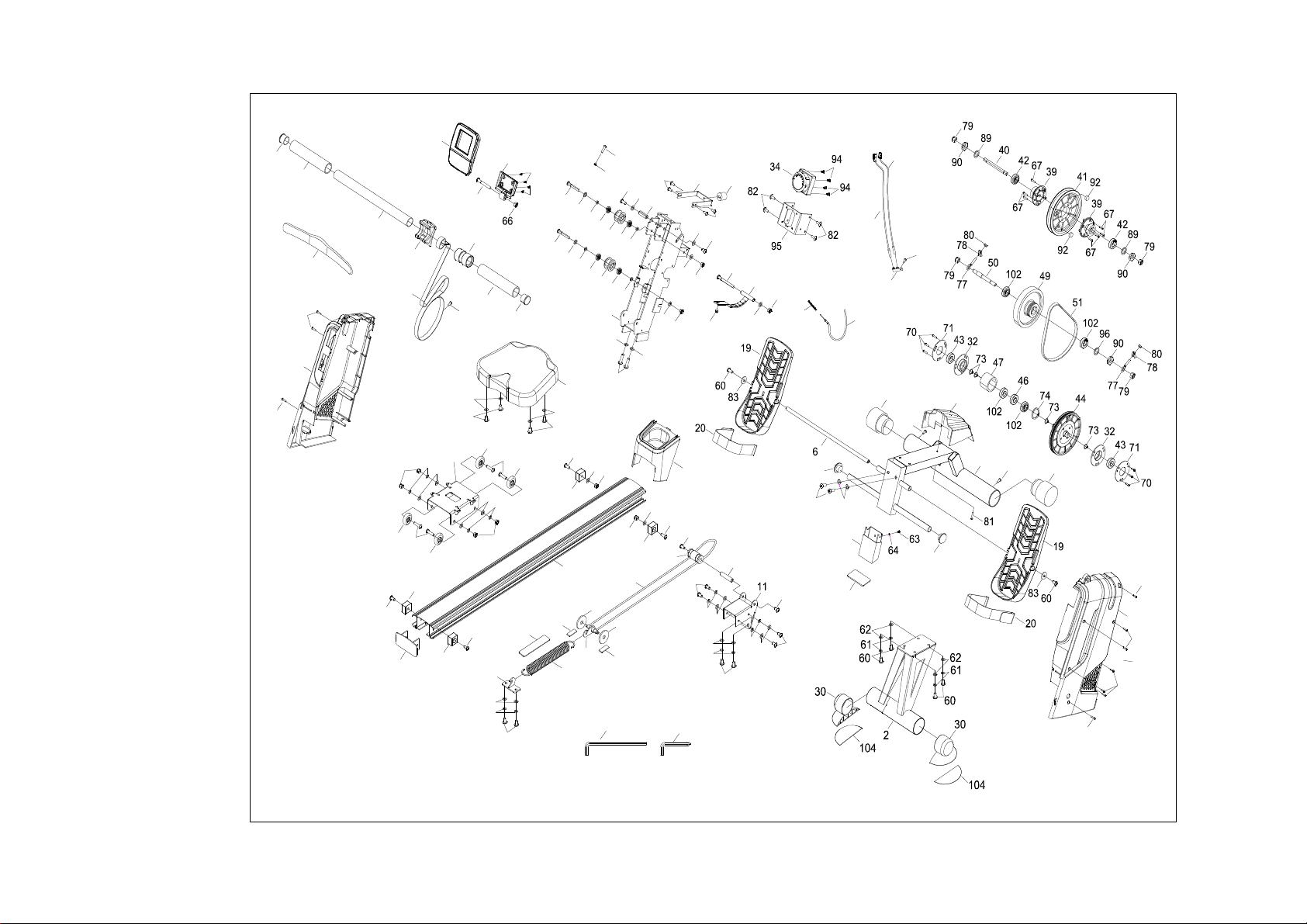

EXPLODED DRAWING
59 69
FRONT
BACK
67
16
67
67
16
16
16
17
18
60
6162
62
62
61 61
60
60
62
61
60
54
54
14
26
91
91
100 99
58 99
8
85
62
66 31
85
66
62
62
61
61
66
65
65
38
38
38
38
62
31
66
85
31
85
31
9
606213
62 60
87 62
5355 75
75
55
53
55
75
62
87
55
75
6266
6266
86
86
437
23
22
22
23
66
62
12
88
76
101
93
1
7
10
45
80
48
27
52
62
62
84
36
62
85
56
56
3
28
29
29
72
98
68
97
84
35
24
67
25
15
57
57
33
5
67
67
103
64
63
63
105
21
64

13
PARTS LIST
No.
Part name
Qty
1
Main Frame
1
2
Rear Stand
1
3
Base Frame
1
4
Foot Bracket
1
5
Rear Support
1
6
Pedal Shaft
1
7
Rear Spring Hook
1
8
Spring Hook
1
9
Rail Cap
1
10
Seat Carriage
1
11
Connection Bracket
1
12
Magnetic Bracke
t
1
13
Spacer (ø12.8 x 38.5mm)
1
14
Shaft Rod (ø12.8 x 58.5mm)
1
15
Handlebar
1
16
Screw, Round Head Self
-
Drill (M4.2 x 20mm)
6
17
Left Cover
1
18
Right Cover
1
19
Pedal Cap
2
20
Pedal Strap
2
21
Seat
1
22
Foam Grip
2
23
Round Plug (ø32mm)
2
24
Handlebar Holder
1
25
Strap (13x1.5x1950mm)
1
26
Return Strap (9x2x1700 mm)
1
27
Bottle Holder
1
28
Front Cover
1
29
Wheel Cap
2
30
End
cap
2
31
Seat Stopper
4
32
Bearing Housing
2
33
Foot Pad
1
34
8 section tension
1
35
Computer
1
36
Meter Plate
1
37
Foot Stand
1
38
PU Roller
4
39
Return Bearing Housing
2
40
Strap Pulley Shaft
1
41
Strap Pulley
1
42
Bearing (6000RS)
2
43
Bearing (6003zz)
2
44
Pulley
1
45
Bolt, Round Head (M6 x 25mm)
1
46
One
-
way Bearing (16003)
1
47
Collar
1
48
Rail
1
49
Magnetic Flywheel
1
50
Flywheel Shaft
1

14
51
V
-
Ribbed Belt (220 PJ3)
1
52
Idler Roller
1
53
Idler Wheel
2
54
Bolt, Button Head (M8 x 20mm)
2
55
Bearing (608zz)
4
56
Round Plug (ø19mm)
2
57
Screw, Round Head (M5 x 20mm)
4
58
Return Spring
1
59
Allen Wrench (5mm)
1
60
Bolt, Button Head (M8 x 15mm)
16
61
Lock Washer (M8)
16
62
Washer (M8)
29
63
Bolt, Round Head (M6 x 15mm)
5
64
Washer (M6)
5
65
Bolt, Flat Button Head (M8 x 32mm)
4
66
Nylock Nut (M8)
9
67
Screw, Round Head (ST4.2 x 16mm)
14
68
Sensor Clip
1
69
Allen Wrench (5mm) w/ Screwdriver
1
70
Bolt, Round Head (M6 x12mm)
6
71
Bearing Housing Cover
2
72
Screw, Round washer Head (M4 x 0.7 x 10mm)
1
73
C Ring (M17)
4
74
Inner
C Ring (M35)
1
75
Spacer (ø8 x ø10 x 7mm)
4
76
Retaining Plug
1
77
Eye Bolt (M6)
2
78
Tension Bracket
2
79
Nut (M10)
4
80
Nut (M6)
3
81
Screw, Round Head (ST4.2 x 45mm)
1
82
Screw, Round Head (M5 x 8mm)
4
83
Large Washer (M8)
2
84
Bolt, Button
Head (M8 x 40mm)
3
85
Bolt, Button Head (M8 x 20mm)
6
86
Screw, Round Head (M6 x 12mm)
4
87 Bolt, Button Head (M8 x 60mm) 2
88 Bolt, Button Head (M8 x 80mm) 1
89 Spacer (S10) 2
90 Thin Nut (M10 x 1.5, 5mm thick) 3
91 Guide Wheel 2
92 Magnet 2
93 Spring 1
94 Screw, Round Head (M3 x 12mm) 4
95 Tension Bracket 1
96 Washer S17 1
97 Female Sensor Wire 1
98 Male Sensor Wire 1
99 EVA Pad (180 x 30 x 1mm thick) 2
100 EVA Pad (65 x 15 x 1mm thick) 1
101 Tension Cable 1

15
102 Bearing (6003RS) 4
103 Handlebar Sleeve 1
104 Rubber Pad 2

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.toorx.it - [e-mail]
