Topcon CL-10 LTE EU User manual

CL10 User Manual
Part Number: 1033349-01
Rev Number: A
© Copyright Topcon Precision Agriculture
All contents in this manual are copyrighted by Topcon. All rights reserved. The information contained
herein may not be used, accessed, copied, stored, displayed, sold, modified, published or distributed,
or otherwise reproduced without express written consent from Topcon.

10333349-01 Rev A 2
Foreword
The CL10 adds cellular and Wi-Fi capability to the X-Family consoles. It allows access to the new
Topcon Agriculture Platform (TAP), which is a cloud based integrated agronomic management
platform. It also provides access to the XTEND feature in the Horizon console operating system.
General Information
Description
The CLOUDLYNK 10 is proposed as a USB-powered plug and play box hosted by a remote, LINUX
based, processor. It will provide 3G/LTE global, WiFi 802/11 b,g,n and BLE 4.2 communication
capability to the host processor, along with a multimode positioning system (a-GPS and telephone
cell geo-referencing) and an hardware based, highly secure encryption engine. Furthermore 2 high
speed USB ports will be made available to the user.
CL10 variants
The CL10 is available in different hardware versions with different MODEM characteristics:
•CL-10 3G
•CL-10 LTE EU
•CL-10 LTE JAP
•CL-10 LTE AUS
• CL-10 LTE VZW
Hardware
Mechanical characteristics
The Mechanical components of CLOUDLYNK 10 are:
•Back housing / aluminum carrier
•Plastic front cover with integrated LED-windows
•Mainboard
•Antennas (external & internal)
•Supporting parts (gasket, screws, M8-harness, venting membrane, Label, …)
Accessories:
•USB connecting cable M8 to USB-Type A

10333349-01 Rev A 3

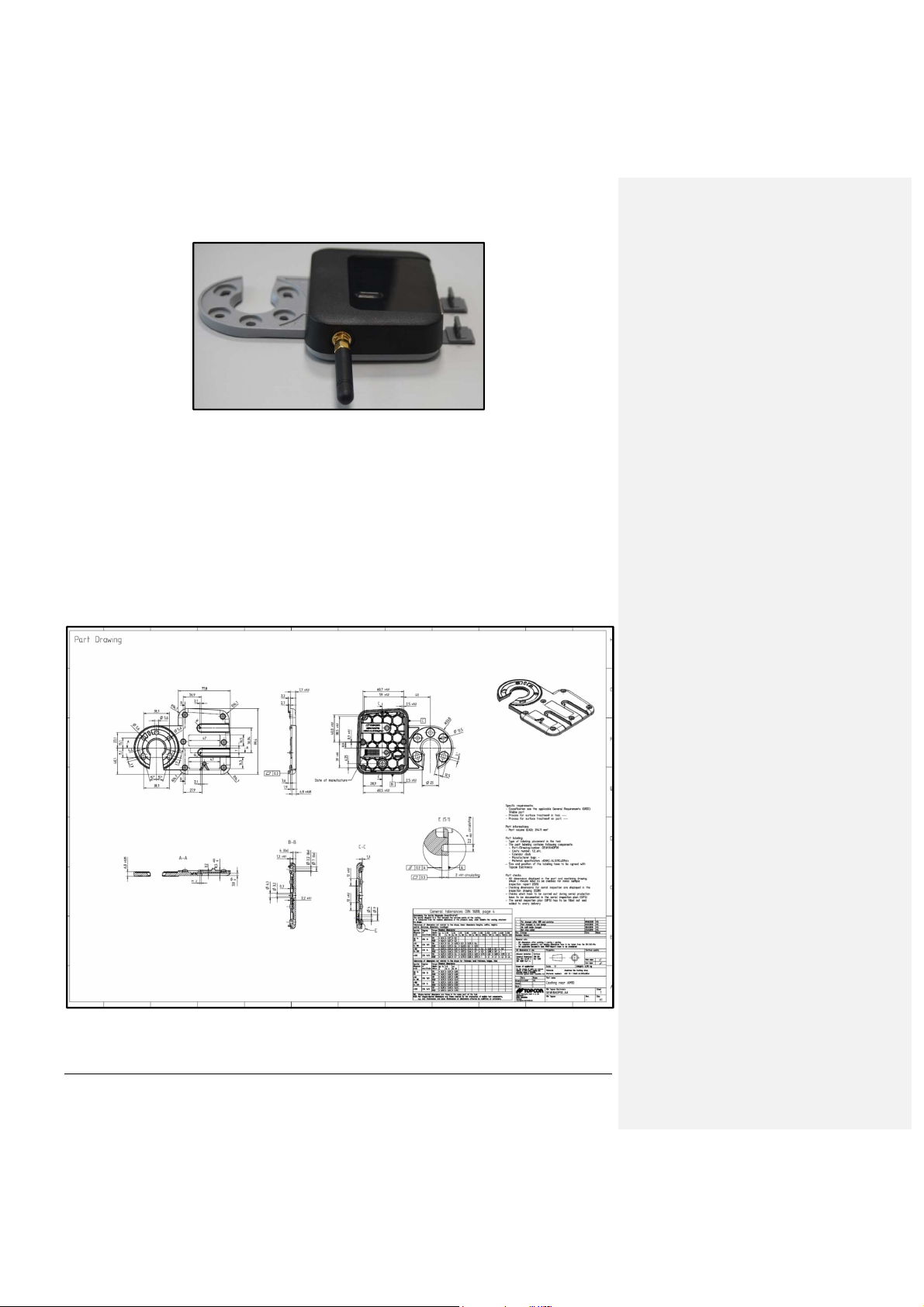

Figure 1
Figure 2

10333349-01 Rev A 4
Figure 3
Cover characteristics
Back housing / aluminum carrier
•Aluminum die cast
•Supporting the venting membrane and the label field
•Powder coating with structure, semi gloss, RAL 9006
Figure 4

10333349-01 Rev A 5
Plastic Front Cover
•Plastic molded part, visible surfaces etched & polished, no painting
•3 overmolded or assembled LED windows
•Supporting the mainboard with 2 sealed Amphenol USB-Type A slots with related rubber
plugs
•Supporting the internal antennas (self sticking)
•Supporting the external WiFi-Antenna
•Supporting the M8-USB Main connector
•Plastic material color 9005, black
Figure 5
Mass
The CLOUDLYNK 10 total mass is 0,15 kg max including the USB connection cable/plug and the
USB ports sealing caps.
Mechanical dimensions
The CLOUDLYNK 10 box board can be contained into a prism having the following dimensions:
122,3 x 82,7 x 26,5 mm.

10333349-01 Rev A 6
The length of the harness connection cable is 350 mm including the plug. The 2 USB ports rubber
protection caps are considered pugged.
Technical Specifications
Thermal characteristics
Operating temperature
The CLOUDLYNK 10 will be able to operate in accordance with the specification while exposed to
a still air environment at a temperature range of -25 °C < Top < +65 °C.
Storage temperature
The CLOUDLYNK 10, not connected to the host device, will withstand an indefinite storage period
in an environment at a temperature range of -40° C < Ts < +85 °C.
Altitude
The CLOUDLYNK 10 will meet the specification requirements if kept to an altitude up to 2500 m
a.s.l.
Humidity
The CLOUDLYNK 10 will be able to operate in accordance with the specification while kept in an
ambient of RH included in the range 5% - 85% non-condensing.
A proper moisture coating could protect the CLOUDLINK 10 PCB; the type and extent of the coating,
if any, will be defined after the prototype test.
General environmental characteristics
Protection degree
The CLOUDLYNK 10, properly installed and connected, will meet the IP65 protection level. The
M8 on CLOUDLYNK 10 side is specified with IP65 so in combination with appropriate host
connector this connection is sealed to IP65 (e.g. X25/X35)
If CLOUDLYNK 10 will work properly also in case of water drops or dust contamination (IP66
protection level), a proper PCB coating will be implemented.
Chemicals
The CLOUDLYNK 10 will meet the chemical exposure requirements specified in the Test Plan
specification, either in terms of atmosphere and fluids.
Weather and ageing
The CLOUDLYNK 10 will meet the requirements specified in the Test Plan specification in terms
of weather exposure and ageing.

10333349-01 Rev A 7
Vibration and shock
The CLOUDLYNK 10, properly mounted and connected, will be able to operate in accordance with
the specification while exposed to a 10 – 300 Hz 50 m/s2 24 hours 1 octave/min along each
geometrical axis.
Special care must be taken to protect the connection cable and the USB plug from vibration field.
The CLOUDLYNK 10 will survive the application of 3 impulses 300 m/s2 11mS along each
geometrical axis.
Electrical characteristics
Electrical architecture
The table 1 lists the CLOUDLYNK 10 functional blocks.

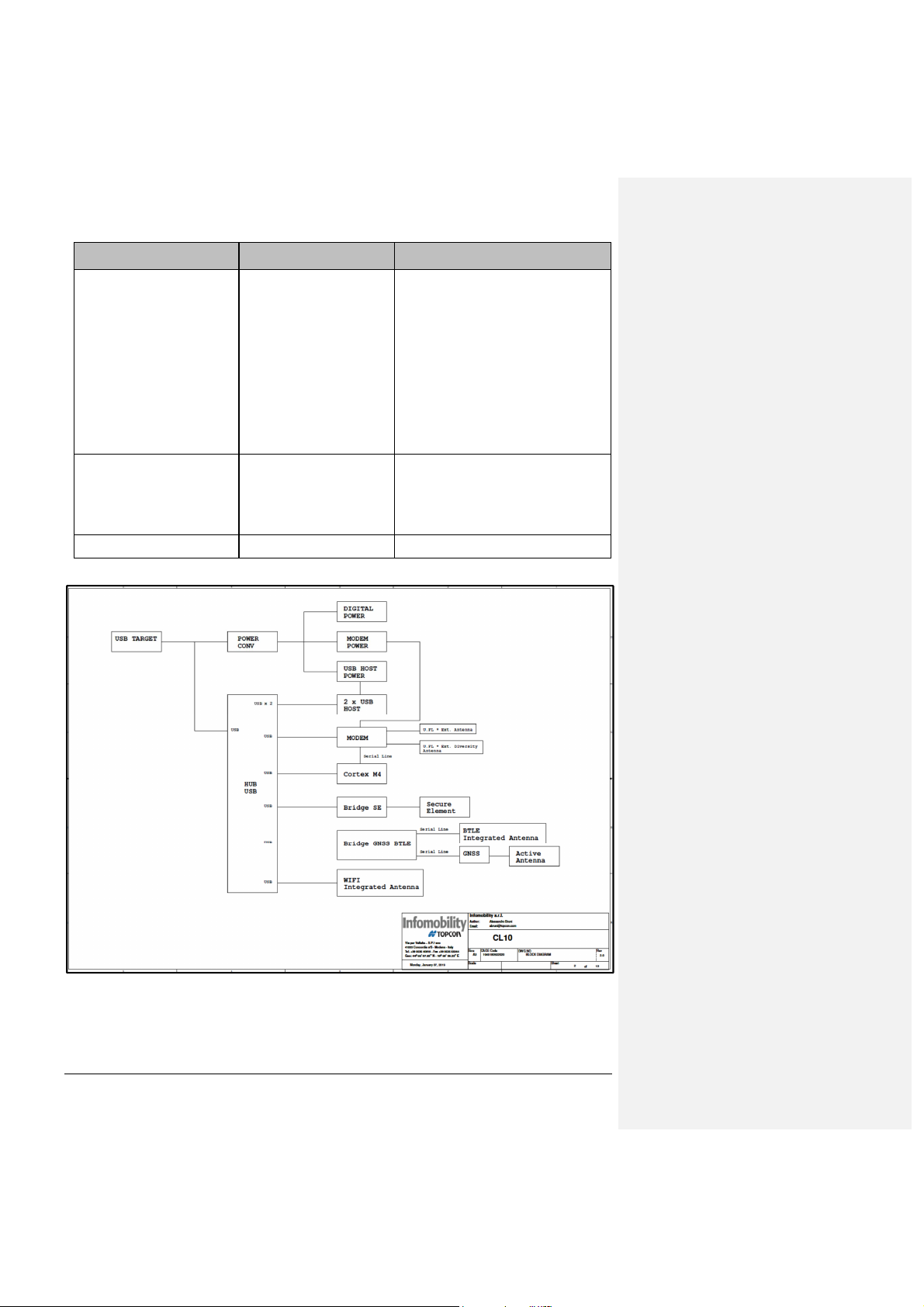

The table 2 shows the microprocessor block diagram.
OP Mode Mode Characteristics Current Consumption
Modem (3G version)
SARA-U201(U-Blox)
Global coverage
Approvals:
RED
GCF
CE
FCC
PTCRB
Anatel(Brazil)
AT&T and other local
approvals & provider
certifications
RCM(Australia)
CCC (China)
Bands:
Five Bands UMTS (WCDMA/FDD)
Bands: 800, 850, 900, 1900 and 2100
MHz
Quad-Band GSM Bands: 850, 900,
1800 and 1900 MHz
3GPP Rel.7 Compliant Protocol Stack
Data speed:
HSDPA Cat.8 / HSUPA Cat.6 data
rates DL: max. 7.2 Mbps, UL: max.
5.76 Mbps
EDGE Class 12 data rates DL: max.
237 kbps, UL: max. 237 kbps
GPRS Class 12 data rates DL: max.
85.6 kbps, UL: max. 85.6 kbps
•
LARA-R204-Verizon(U-
Blox)
LTE (FDD) 3GPP Rel.9 Compliant
Bands:
Bands 4,13 (1700 AWS, 700 MHz)
Data speed:
LTE Cat. 1 single layer DL-MIMO
DL/UL max: 10.3Mbps / 5.2 Mbps
Local coverage: US
Modem
(LTE Cat 1)
Approvals:
FCC
GCF
ISED
Verizon certification
RoHS

10333349-01 Rev A 8
OP Mode Mode Characteristics Current Consumption
Modem
(LTE Cat 1
Version)
LARA-R2
Local coverage: EU, US,
AUS,JAP
Approvals:
CE
RED
GCF
PTCRB
IC AT&T
LTE (FDD) 3GPP Rel.9 Compliant
Protocol Stack, RX-Diversity
Bands
Quad-Band LTE: Bands 2, 4, 5, 12
(700, 850, 1700/2100 (AWS) and 1900
MHz)
Tri-Band UMTS: Bands 5, 4, 2
(WCDMA/FDD 850, 1700/2100
(AWS) and 1900 MHz)
Data speed
LTE Cat.1 DL: max. 10.2 Mbps, UL:
max. 5.2 Mbps
HSPA+ Cat.8 (ELS61-US) data rates
DL: max. 7.2 Mbps, UL: max. 5.76
Mbps
GPRS Class 12 (ELS61-E) DL: max.
85.6 kbps, UL: max 85.6 kbps
SMS text and PDU mode support
SIM Global Coverage SIM on Chip
(KPN)
Verizon SIM on Chip for US
Lock on local provider possible
GPS
EVA – M8M(uBLOX)
72-channel u-blox M8 engine GPS/QZSS
L1C/A, GLONASS L1OF, BeiDou B1l,
Galileo E1B/C, SBAS L1C/A: WAAS,
EGNOS, MSAS, GAGAN
FA-GPS and SBAS compliant PPS
available
BLE Bluemod+S42
Generic GATT central with up to 3 parallel
connections
Terminal I/O peripheral
RSSI compliant
WiFi
LYLY-W132 (uBLOX)
Approval for US (FCC), Canada
(IC) and Japan (MIC)
802.11 b/g/n compliant
Output frequency: 2,4 GHz
Channels: 1 – 13
Station and micro access point operation (up to
8 clients)
802.11 PHY data rates up to 72 Mbps
LTE coexistence BAW filter included
Processor STM32F070CBT6TR (ST)
ARM Cortex M0 core (see below the STM32
family block diagram)
Flash memory 128 kBytes (TBR) Embedded in the uP
RAM memory 16 kBytes (TBR) Embedded in the uP

10333349-01 Rev A 9
OP Mode Mode Characteristics Current Consumption
Data security H/W
Secure element SE V1.3.1
(Gemalto-Cinterion) Asimmetric
Crypto Engine
DES, 3DES (ECB, CBC), AES up to 256 bits
RSA keys up to 2048 bits
Elliptic curves support from 224 bits to 384
bits
SHA-1, SHA-256, SHA-384 bits
RSA according to ISO 9796-2 or PKCS#1 v2.1
(PSS-OAEP)
On Board Key Generation
Updatable cryptographic profile
True RNG (random number generator)
according to AIS31
USB Hub (note 1) USB2517 (Microchip)
1 upstream to 7 downstream USB Hub
2 User available downstream ports
Full Speed compliant (480 Mb/s)
Port Speed autodetect capability
Power supply 5 Vdc from USB upstream port. 500 mA max
TABLE 1 – Functional blocks
Note: Due to limited power availability from the upstream port, the USB user available downstream
ports power lines DOES NOT COMPLY with USB standards in terms of current availability.

10333349-01 Rev A 10
TABLE 2 - Processor block diagram
Supply voltage
The CLOUDLYNK 10, properly connected, will be able to operate in accordance with the
specification when the supply voltage will be in the range of 4,5 – 5,5 Vdc.
The nominal supply voltage will be 5,0 Vdc (USB standard)
Being all USB connectors intrinsically polarized, the power lines are not protected against the
polarity inversion.
Installation – setup
CL10 installation

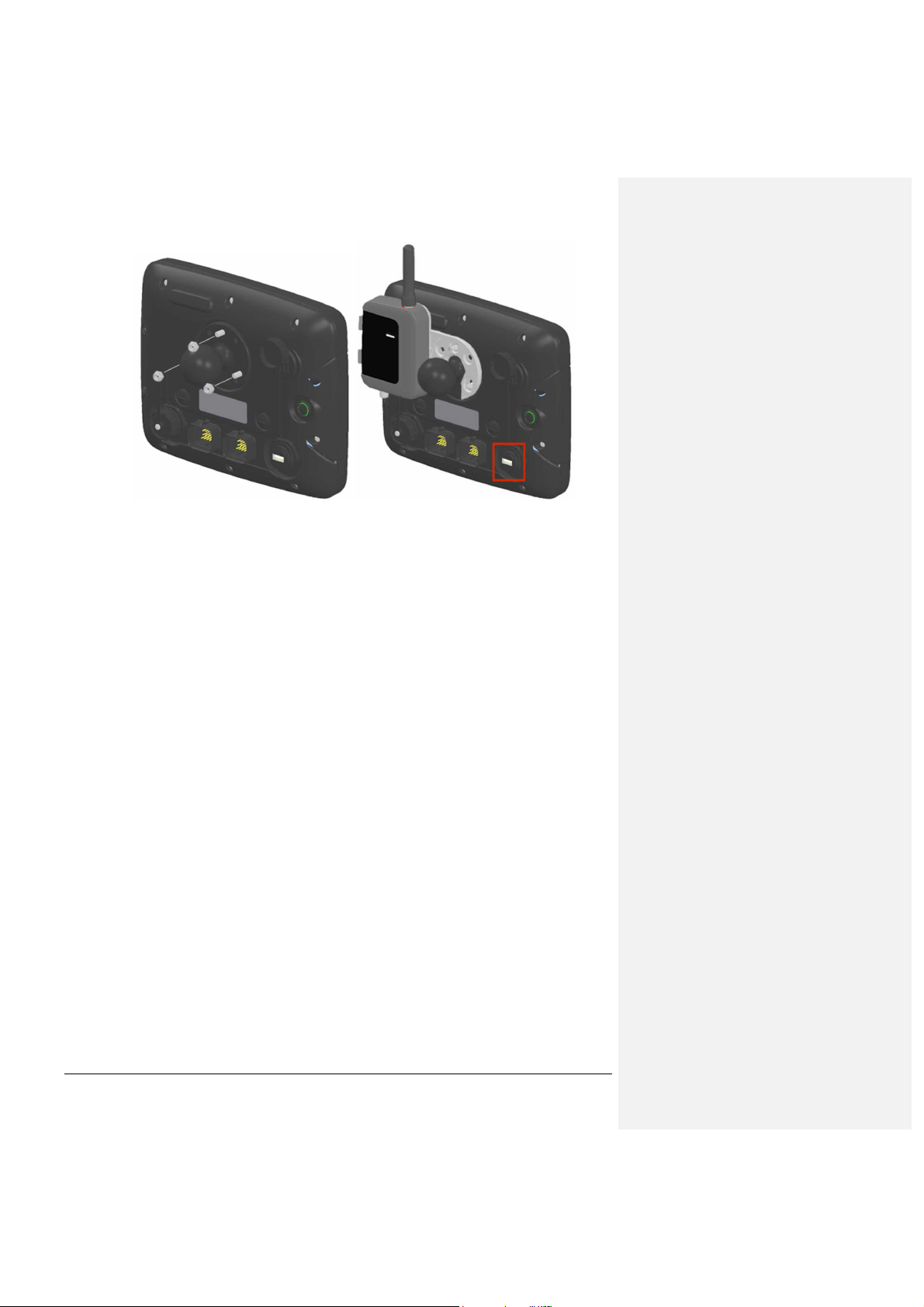

With mounting arm for RAM
1. Remove the nuts from the RAM mount.
2. Place the CL10 arm over the RAM mount, align with the screws and replace the nuts.
3. Plug the CL10 into the USB port on the rear of the console.

10333349-01 Rev A 11
User interface
LED status
The LEDs on the CL10 are currently not used.
Product Warranty
ELECTRONIC COMPONENTS -TPA warrants that the electronic components manufactured by
TPA shall be free of defects in materials and workmanship for a period of two years from the original
date of shipment to the dealer.

10333349-01 Rev A 12
Use restrictions and warnings (FCC / ISED)
1.Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
2.Device model CL-10 3G:
CONTAINS FCC ID: 2ASVE-CL10 IC: 24901-CL10
CONTAINS: FCC ID: XPY1CGM5NNN IC: 8595A-1CGM5NNN
CONTAINS: FCC ID: RFRMS42 IC:4957A-MS42
Device model CL-10 LTE VZW:
CONTAINS FCC ID: 2ASVE-CL10 IC: 24901-CL10
CONTAINS: FCC ID: XPY1EIQN2NN IC: 8595A-1EIQN2NN
CONTAINS: FCC ID: RFRMS42 IC:4957A-MS42
3.Responsible party’s contact located in the United States:
FERDINAND RIODIQUE
7400 NATIONAL DRIVE, LIVERMORE, CA, USA 94550
Phone no: 925-245- 516
Email address: friod[email protected]
4.This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
5. This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Commentato [MDA1]: Inserire tutto il capitolo

10333349-01 Rev A 13
6. Responsible party’s contact located in the Canada:
STEPHEN ROSENEGGER
106-7326-10
th
Street N.E., Calgary, AB T2E W1 Canada
Phone no: +1.403.450.4262
Email address: srosene[email protected]
7. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s license exempt RSS(s). Operation is subject to the
following two conditions: (1) This device may not cause interference. (2) This device must accept
any interference, including interference that may cause undesired operation of the device.
L’emetteur/recepteur exempt de licence contenu dans le present appareil est conforme aux CNR
d’Innovation, Sciences et Developpement economique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) L’appareil ne doit
pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioelectrique subi, meme si
le brouillage est susceptible d’en compromettre le fonctionnement.
8. ICES-003 Class B Notice -Avis NMB-003 Classe B :
This Class B digital device complies with Canadian ICES-003
Cet appareil numerique classe B est conforme à la norme Canadien NMB-003.
CAN ICES-3(B) /NMB-3(B)
RF Radiation Exposure statement
This product complies with FCC and ISED radiation exposure limits set forth for an uncontrolled
environment. The antenna should be installed and operated with minimum distance of 20 cm between
the radiator and your body.
Cet appareil est conforme aux limites d'exposition aux rayonnements de l’ISED pour un
environnement non contrôlé. L'antenne doit être installé de façon à garder une distance minimale de
20 centimètres entre la source de rayonnements et votre corps.
Commentato [MDA2]: Inserire tutto il capitolo
