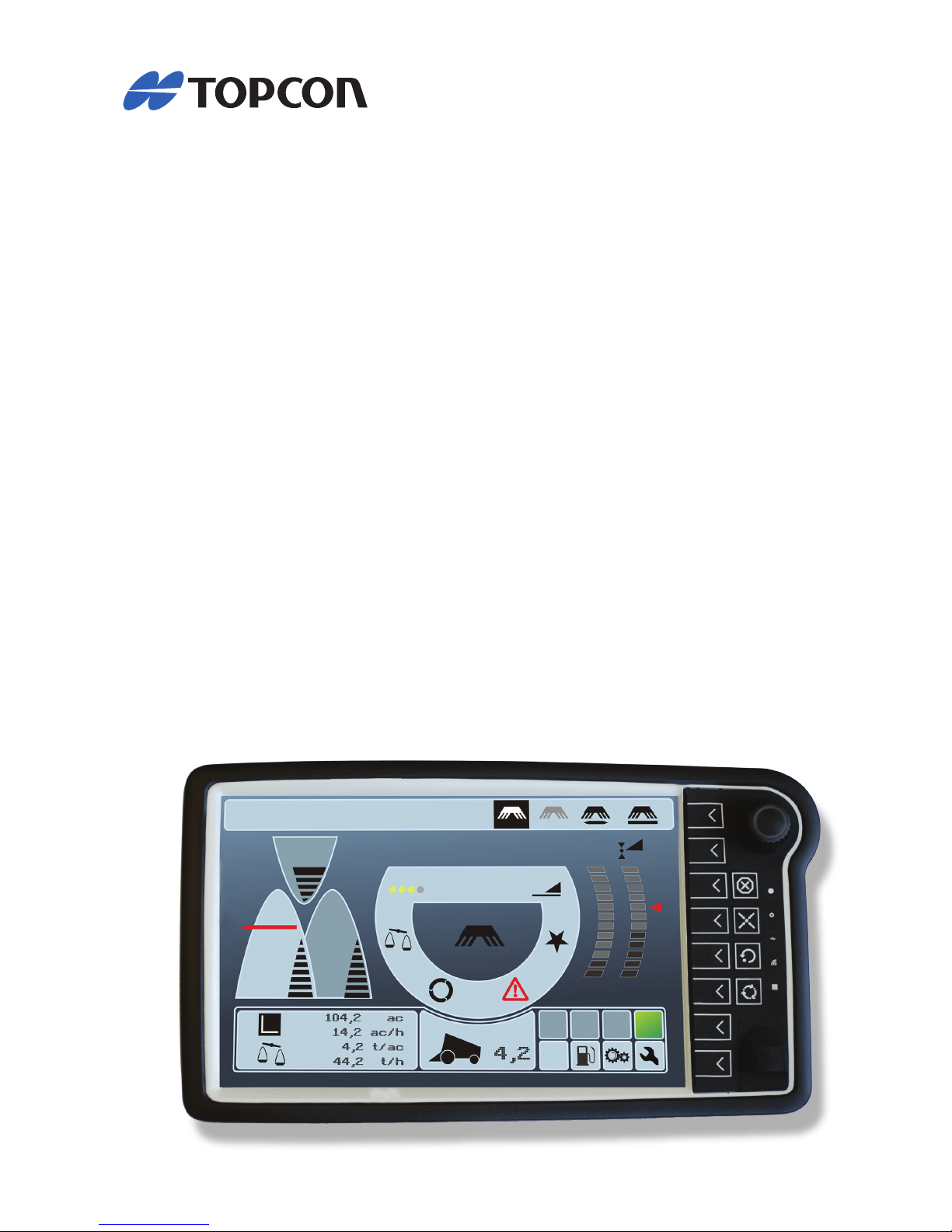

Topcon OPUS A8 STANDARD Basic Instruction Manual

Industriestraße 7 65366 Geisenheim Germany
Technical Data Sheet
OPUS A8 STANDARD Basic
29.05.19
Errors and technical changes excepted

Industriestraße 7 65366 Geisenheim Germany
1 Notes and Warnings
2 General Information
Attention!
This description is not a substitution for the con-
cerned product’s documentation. Please do read
the documentation including the manuals care-
fully before dealing with this product. If the safety
instructions in the documentation are not followed
dangerous situation can occur that can result in
damages, injuries and/or death by high voltage
or wrong handling. In case you do not have the
correct documentation you can order it by con-
tacting dl-[email protected]om. Only properly
trained personnel with the correct qualification are
allowed to handle the device.
Attention!
Do not open the housing to avoid danger to high
voltages. Before touching the electric assemblies
make sure that the electricity is switched off com-
pletely. If the front pane is broken the device needs
to be taken out of service due to risk of injury. If per-
ceivable damages on the device exist that can com-
promise the functionality, it must be taken out of
service due to the danger of malfunctions. These
particularly include damages to the LCD display,
damages to the keyboard, damages that compro-
mise the protection level and damages to the en-
coder knobs.
Please note:
All content is subject to change without notice.
Errors and omissions excepted.
Mounting and Handling
1. Do not use the cable as a handle to carry the
device.
2. Mounting in clean working environment only.
Dust and oil can harm the electric contacts and
compromise the functionality.
3. Do not mount the device under the use of vio-
lence because it can cause damage.
4. The device must be mounted by trained per-
sonnel only into especially designed and tested
systems.
5. The device must not be opened or disassembled.
6. The device is to be cleaned with a moist fuzz
free cotton cloth. If necessary a mild cleaning
agent can be used. Do not use acid or abrasive
cleaning agents.
7. The device is to be stored in a cool and dry
environment and to be protected against sun
shine.
8. If the environmental temperature is beneath
10°C the reaction time of the display increases.
Order Numbers
This documentation is valid for OPUS A8 order
numbers as follows:
OPUSA8SN1CANB000 OPUSA8SN1CDSB000 OPUSA8SN1ISOB000
OPUS Projektor
CoDeSys
ISO-VT

Industriestraße 7 65366 Geisenheim Germany

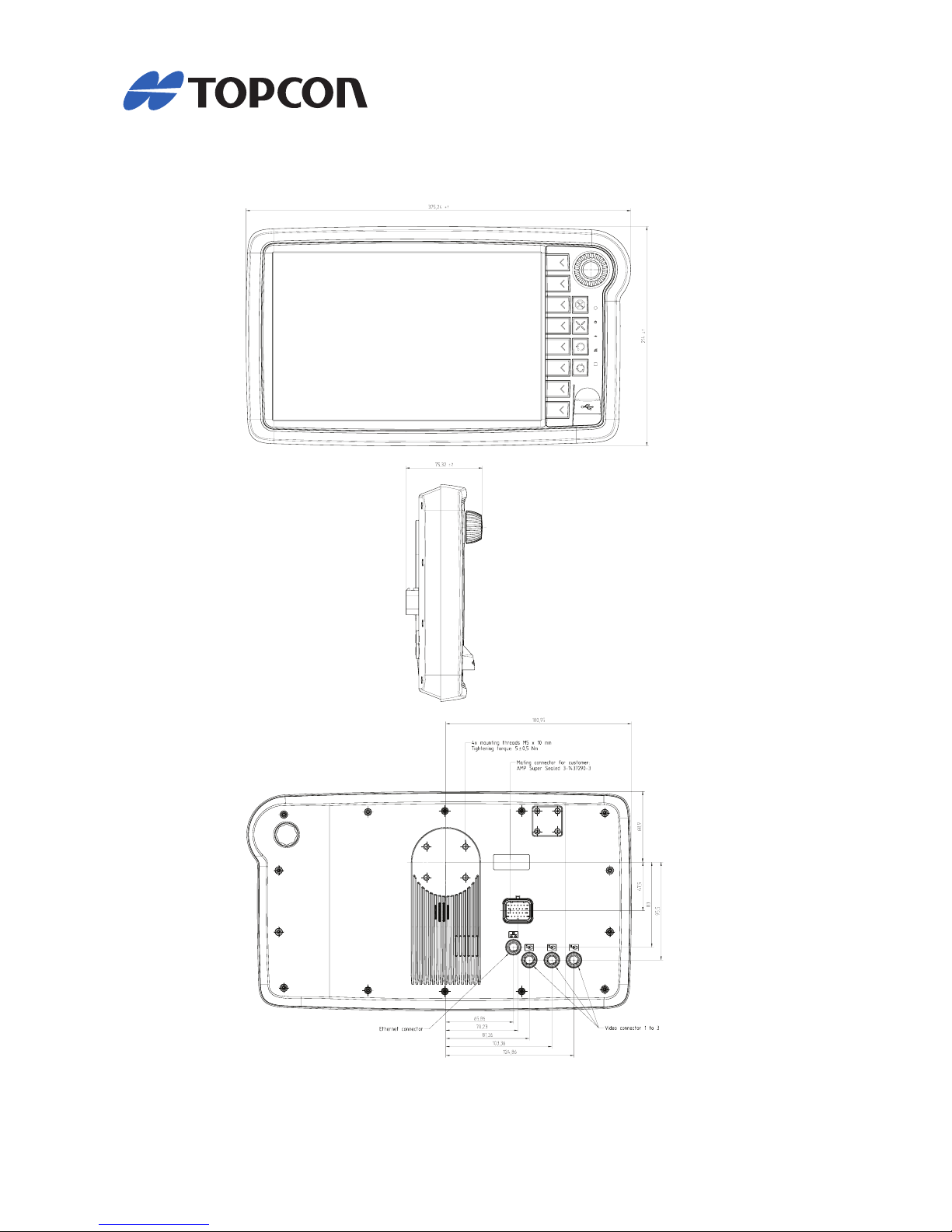

Dimensions
Housing
Aluminium back-housing, plastic front-housing,
colored light grey (RAL 7035) with black rubber frame.
Mounting
• Landscapeorportrait
• Standalone
• In-dash

Industriestraße 7 65366 Geisenheim Germany
3 Display
4 Input Devices
5 Electronics
Type: TFT Color Graphic LCD with LED
backlight
Size: 12.1“, 261 mm (W) x 163 mm (H)
Resolution: 1280 x 800 px (WXGA), 16:10
Colors: 16,7 Mio
Brightness: typ. 400 cd/m²
Contrast Ratio: typ. 1,000:1
Touch PCT
Right Keypad • 8+4keyswithtactilefeedback
• Multicolor-LEDbacklight
• Lifetime1.000.000actuations
Processor platform
CPU: Freescale I.MX6®, solo core, 800 MHz
Mass storage: 4 GByte
RAM: 512 MByte
RTC: Buffered by gold cap
Speaker •80dB(A)in1mdistance@1kHz
Power supply
Operating voltage range: 9 … 36 V DC
Protection: Short circuit protection
Overvoltage resistance: 48V for max. 5 minutes
Inverse polarity protection: Up to -48 V DC for
max. 5 minutes
Indicators and Sensors • Lightsensor
• 1Multicolor-LED
• 3Status-LED’s
Encoder • Opticalencoderwith
16 mechanical detents
and push function
• Lifetime:1millioncycles
Current consumption (without external load), max.
Power Mode
On
Low-power
Sleep
Off
Current
at 13,5 V DC
≤ 1,6 A
Depending on config
≤ 0,2 A
≤ 2 mA
Current
at 27 V
≤ 0,7 A
≤ 0,1 A
≤ 4 mA

Industriestraße 7 65366 Geisenheim Germany
Connectors
Main: Tyco-AMP 3-1437290-7
Video: M12 round connector, female, 5-pole,
B-coded acc. to EN 61076-2-101
Ethernet: M12 round connector, female, 4-pole,
D-coded acc. to EN 61076-2-101
7 Connectors
6 Interfaces
CAN Bus
• 2 x CAN-Interfaces
• ISO11898,CAN-specification2.0Bactive
• Upto1Mbit/s(default250Kbit/s,500Kbit/s,
750 Kbit/s and 1 Mbit/s)
RS232
1 x RS232-Interface
Type: EIA232 (only RxD, TxD, GND)
Speed: max. 115 Kbps
USB
Main connector: 1 x High speed
On front: 1 x USB slot High speed
Inputs
2 configurable analog/digital inputs
Input impedance: > 3k Ohm
Resolution: 10 bit (1024 digits,
1 digit = 11,7 mV)
Input range: 0 … 12 V, 4-20 mA, 0-20 mA
Max. protectable
input voltage: 36 VDC
Protection: Short circuit protection
Frequency: Max. signal frequency
50 Hz
Outputs
1 digital output
Short circuit protection: Up to 36 V
Imax 300 mA open drain at 12V
RDS,on < 1 Ohm
RDS,off > 100 kOhm
Audio
• 1 x Audio output (left, right, GND)
• AC97compatible
• Outputpower:approx.65mW@32Ohm
Video-Interface
Inputs: 1 x analog (1 live steam)
Vss : 1 V
Camera supply: 12 VDC
Max. current: 500 mA
Output: 1x camera control output
(open drain) for special
functionality
(mirror, shutter, heating
etc.)
Ampacity 300 mA
Ethernet-Interface
1 x 10/100 Mbit/s Base T

Industriestraße 7 65366 Geisenheim Germany
9 Testing and Verification
Operating System Linux Kernel 3.0.0 or higher
Application Programming • OPUSProjektor
• Codesys-Tools(3.X)
• ISO-VT
• C/C++
CE-Compliance
EU Directive 2014/30/EC (EMC) according to
• EN 13309: Construction machinery – Electro-
magnetic compatibility of machines with inter-
nal electrical power supply
• EN ISO 14982: Agricultural and forestry machi-
nery - Electromagnetic compatibility - Test
methods and acceptance criteria
E1 - Type approval
EU Directive ECE R10
Protection Level (IP Code)
IP 65 and IP 66 according to ISO 20653: Road Vehic-
les – Degrees of protection (IP-Code) – Protection
of electrical equipment against foreign objects,
water and access
Electrical
12 and 24V-Systems according to:
• ISO 16750-2: Road Vehicles – Environmental con-
ditions and testing for electrical and electronic
equipment – Electrical loads
• ISO 15003: Agricultural Engineering – Electrical
and electronic equipment – Testing resistance to
environmental conditions
8 Software
Mechanical
• AccordingtoISO 16750-3: Road Vehicles – Envi-
ronmental conditions and testing for electrical
and electronic equipment – Mechanical loads,
Code L
• ISO 15003: Agricultural Engineering – Electrical
and electronic equipment – Testing resistance to
environmental conditions
• MechanicalShock:Level2
• RandomVibration:Level2
• SinusoidalVibration:Level2
Climate
• ISO 16750-4: Road Vehicles – Environmental con-
ditions and testing for electrical and electronic
equipment – Climatic Loads
• OperatingTemperatureRange:-30…+65°C
• StorageTemperatureRange:-40…+85°C
• ISO 15003: Agricultural Engineering – Electrical
and electronic equipment – Testing resistance to
environmental conditions

Industriestraße 7 65366 Geisenheim Germany
10 Pinout
Main connector pinout
View on rear side of the A8
17
8
14 19
13
20 26
Pin. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Assignment
VCC
Ignition Input
GND
CarGND
NA
NA
NA
CAN1H
CAN1L
CAN2H
CAN2L
USB_VCC
USB_GND
USB_D-
USB_D+
RS232 RxD
RS232 TxD
RS232 GND
NA
A/DI1
A/DI2
NA
SERV_EN
NA
DO1
NA
Description
supplyvoltage+;terminal30
ignitioninput;terminal15
supplyvoltage-;terminal31
Car GND
NA
NA
NA
CAN 1 high
CAN 1 low
CAN 2 high
CAN 2 low
USB+5Vsupply
USB supply GND
USB Data -
USBData+
RS232 receive data
RS232 transmit data
RS232 GND
NA
analog/digital input 1, full frequency
analog/digital input 2
NA
service enable
NA
digital output 1
NA
OPUS displays in the industrial sector are only intended to use with cable length less than 30 meters

Industriestraße 7 65366 Geisenheim Germany
Video connector pinout Ethernet connector pinout
Video connector, M12, female, 5 pins, b-coded,
view on rear side of the A8
Ethernet connector, M12, female, 4 pins, d-coded,
view on rear side of the A8
1 2
34
5
1 2
34
1
2
3
4
5
Round Connector, 5 pins, M12
VidSig+
Mirror
Camera+
Camera -
VidSig GND
1
2
3
4
Round Connector, 4 pins, M12,
acc. To IEC 61076-2-101
TD+
RD+
TD-
RD-
