Topcon OPUS A3 STANDARD Full Instruction Manual

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
Technical Data Sheet
OPUS A3 STANDARD Full
29.05.2019
Errors and technical changes excepted

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
1 Notes and Warnings
2 General Information
Attention!
This description is not a substitution for the con-
cerned product’s documentation. Please do read
the documentation including the manuals care-
fully before dealing with this product. If the safety
instructions in the documentation are not followed
dangerous situation can occur that can result in
damages, injuries and/or death by high voltage
or wrong handling. In case you do not have the
correct documentation you can order it by con-
tacting dl-[email protected]om. Only properly
trained personnel with the correct qualification are
allowed to handle the device.
Attention!
Do not open the housing to avoid danger to high
voltages. Before touching the electric assemblies
make sure that the electricity is switched off com-
pletely. If the front pane is broken the device needs
to be taken out of service due to risk of injury. If per-
ceivable damages on the device exist that can com-
promise the functionality, it must be taken out of
service due to the danger of malfunctions. These
particularly include damages to the LCD display,
damages to the keyboard, damages that compro-
mise the protection level and damages to the en-
coder knobs.
Please note:
All content is subject to change without notice.
Errors and omissions excepted.
Mounting and Handling
1. Do not use the cable as a handle to carry the
device.
2. Mounting in clean working environment only.
Dust and oil can harm the electric contacts and
compromise the functionality.
3. Do not mount the device under the use of vio-
lence because it can cause damage.
4. The device must be mounted by trained per-
sonnel only into especially designed and tested
systems.
5. The device must not be opened or disassembled.
6. The device is to be cleaned with a moist fuzz
free cotton cloth. If necessary a mild cleaning
agent can be used. Do not use acid or abrasive
cleaning agents.
7. The device is to be stored in a cool and dry
environment and to be protected against sun
shine.
8. If the environmental temperature is beneath
10°C the reaction time of the display increases.
Order Numbers
This documentation is valid for OPUS A3 order
numbers as follows:
OPUS Projektor
CoDeSys
ISO-VT
OPUSA3SN1CANF000 OPUSA3SN1CDSF000 OPUSA3SN1ISOF000
The neutral versions (N) will substitute the portrait (P) and landscape (L) versions.

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]

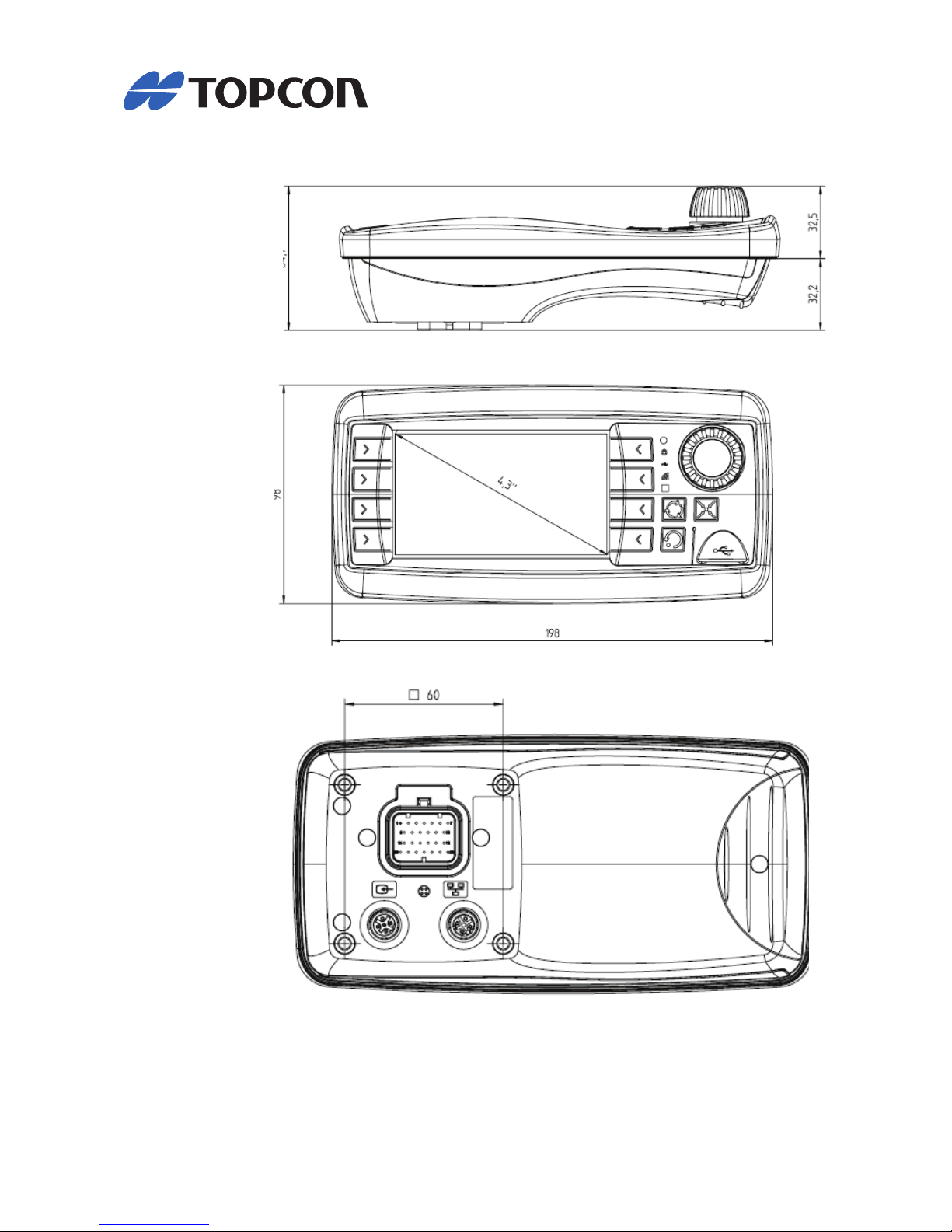

Dimensions
Housing
Plastic housing, colored light grey (RAL 7035)
with black rubber frame.
Mounting
• Landscapeorportrait
• Standalone
• In-dash

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
3 Display
4 Input Devices
5 Electronics
Type: TFT Color Graphic LCD with LED
backlight
Size: 4.3”, 95 mm (W) x 53 mm (H)
Resolution: 480 x 272 px (WQVGA), 15:9
Colors: 16.7 Mio.
Brightness: typ. 400 cd/m²
Contrast Ratio: typ. 400:1
Touch Analog resistive
Left Keypad • 4keyswithtactilefeedback
  • BlueLEDbacklight
  • Lifetime1.000.000actuations
Right Keypad • 4+3keyswithtactilefeedback
  • BlueLEDbacklight
  • Lifetime1.000.000actuations
Processor platform
CPU: Freescale I.MX35®, 532 MHz
Mass storage: 1 GByte (approx. 900 MB
for customer use)
RAM: 256 MByte
RTC: Buffered by gold cap
Buzzer • tap60dB(A)in30cmdistance
  • Lifetimemin.1000h
Indicators and Sensors • Lightsensor
    • 1Multicolor-LED
    • 3Status-LED’s
Encoder • Electromechanical
encoder with 16 mecha-
nical detents and push
function
    • Lifetime:1millioncycles
Current consumption (without external load), max.
Power supply
Systemsuppliedthroughterminal30(battery+,
see pinout) and 31 (battery -, see pinout).
Terminal 15 (ignition) to be used to switch on/off.
Operating voltage range: 9 … 36 V DC
Short circuit protection.
Over-voltage protection up to 48V for max. 2 minutes.
Inverse polarity protection up to -48 V DC.
Power Mode
On
Low-power
Sleep
Off
Current
at 13,5 V DC
430 mA
160 mA
90 mA
< 3 mA
Current
at 27 V
240 mA
90 mA
55 mA
< 3 mA

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
Connectors
Main: Tyco-AMP 1437288-6
Mating connector (customer)
Tyco-AMP 3-1437290-7
Mating crimp contact (customer)
Tyco-AMP 3-1447221-4
Dummy Plug (customer)
Tyco AMP 4-1437284-3
Video: M12 round connector, female, 5-pole,
B-coded, acc. to EN 61076-2-101
Recommended mating connector type according
to IEC 61076-2-10: MM 005-Gx1-B
x) A, C, I, P, R or S-type
7 Connectors
Ethernet: M12 round connector, female,
4-pole, D-coded
acc. to EN 61076-2-101
Recommended mating connector type according
to IEC 61076-2-10: MM 004-Gx1-D
x) A, C, I, P, R or S-type
6 Interfaces
CAN Bus
2 x CAN-Interfaces according to ISO 11898, CAN-
specification 2.0 B active, up to 1 Mbit/s (default
250 Kbit/s, 500 Kbit/s, 750 Kbit/s and 1 Mbit/s)
RS232
1 x RS232-Interface
Type: EIA232 (only RxD, TxD, GND)
Speed: max. 115 Kbps
USB
Host 2.0
Main connector: 1 x Full speed typ. 150 mA
On front: 1 x USB slot High speed
Inputs
4 configurable analog/digital inputs
Input impedance: > 3k Ohm
Resolution: 10 bit (1028 digits,
1 digit = 11,7 mV)
Voltage range: 0 … 12 V
Over-voltage protection: Up to 36 V DC
Short circuit protection: Up to 36 V DC
Frequency: Max. signal frequency
50 Hz
Outputs
3 digital outputs
Short circuit protection: Up to 36 V
Imax 300 mA open drain
RDS,on < 1 Ohm
RDS,off > 100 kOhm
Video-Interface
Inputs: 1x analog
Vss : 1 V
Camera supply: 12 VDC
Max. current: 500 mA
Ethernet-Interface
1 x 10/100 Mbit/s Base T

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
9 Testing and Verification
Operating System Linux Kernel 3.0.0 or higher
Application Programming • OPUSProjektor
       • Codesys-Tools(3.X)
       • ISO-VT
       • C/C++
CE-Compliance
EU Directive 2014/30/EU (EMC) according to
• EN 12895: Industrial Trucks – Electromagnetic
compatibility
• EN 13309: Construction machinery – Electro-
magnetic compatibility of machines with inter-
nal electrical power supply
• EN ISO 14982: Agricultural and forestry machi-
nery - Electromagnetic compatibility - Test
methods and acceptance criteria
E1 - Type approval
EU Directive ECE R 10.4
Protection Level (IP Code)
IP 65 and IP 66 according to ISO 20653: Road Vehic-
les – Degrees of protection (IP-Code) – Protection
of electrical equipment against foreign objects,
water and access
Electrical
12 and 24V-Systems according to ISO 16750-2:
Road Vehicles – Environmental conditions and
testing for electrical and electronic equipment –
Electrical loads
• ISO 15003: Agricultural Engineering – Electrical
and electronic equipment – Testing resistance to
environmental conditions
8 Software
Mechanical
• ISO 16750-3: Road Vehicles – Environmental
conditions and testing for electrical and electronic
equipment – Mechanical loads, Code L
• ISO 15003: Agricultural Engineering – Electrical
and electronic equipment – Testing resistance to
environmental conditions
 • MechanicalShock:Level2
 • RandomVibration:Level2
 • SinusoidalVibration:Level2
Climate
• ISO 16750-4: Road Vehicles – Environmental con-
ditions and testing for electrical and electronic
equipment – Climatic Loads
 • OperatingTemperatureRange:-30…+65°C
  • StorageTemperatureRange:-40…+85°C
• ISO 15003: Agricultural Engineering – Electrical
and electronic equipment – Testing resistance to
environmental conditions

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
10 Pinout
Main connector pinout
View on rear side of the A3
17
8
14 19
13
20 26
Pin. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Assignment
VCC
Ignition Input
GND
CarGND
n. c.
n. c.
n. c.
CAN1H
CAN1L
CAN2H
CAN2L
USB_VCC
USB_GND
USB_D-
USB_D+
RS232 RxD
RS232 TxD
RS232 GND
A/DI3
A/DI1
A/DI2
A/DI4
SERV_EN
DO3
DO1
DO2
Description
supplyvoltage+;terminal30
ignitioninput;terminal15
supplyvoltage-;terminal31
Car GND
Not connected
Not connected
Not connected
CAN 1 high
CAN 1 low
CAN 2 high
CAN 2 low
USB+5Vsupply
USB supply GND
USB Data -
USBData+
RS232 receive data
RS232 transmit data
RS232 GND
analog/digital input 3
analog/digital input 1
analog/digital input 2
analog/digital input 4
service enable
digital output 3
digital output 1
digital output 2
OPUS displays in the industrial sector are only intended to use with cable length less than 30 meters

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]

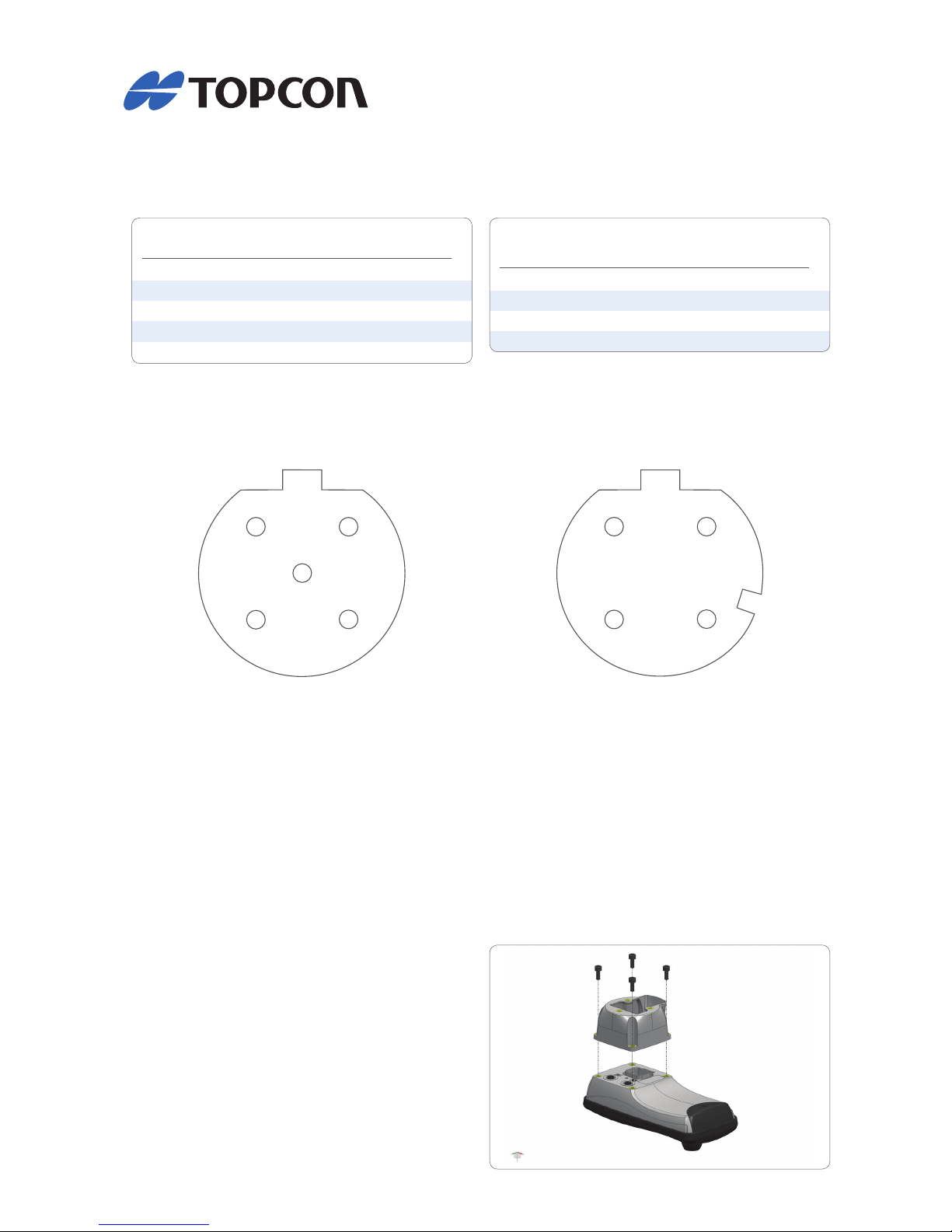

Video connector pinout Ethernet connector pinout
Video connector, M12, female, 5 pins, b-coded,
view on rear side of the A3
Ethernet connector, M12, female, 4 pins, d-coded,
view on rear side of the A3
Recommended mating connector type according
to IEC 61076-2-10:
MM 005-Gx1-B
x) A, C, I, P, R or S-type
Recommended mating connector type according
to IEC 61076-2-10:
MM 004-Gx1-D
x) A, C, I, P, R or S-type
1 2
34
5
1 2
34
1
2
3
4
5
Round Connector, 5 pins, M12
VidSig+
Mirror
Camera+
Camera -
VidSig GND
1
2
3
4
Round Connector, 4 pins, M12,
acc. To IEC 61076-2-101
TD+
RD+
TD-
RD-

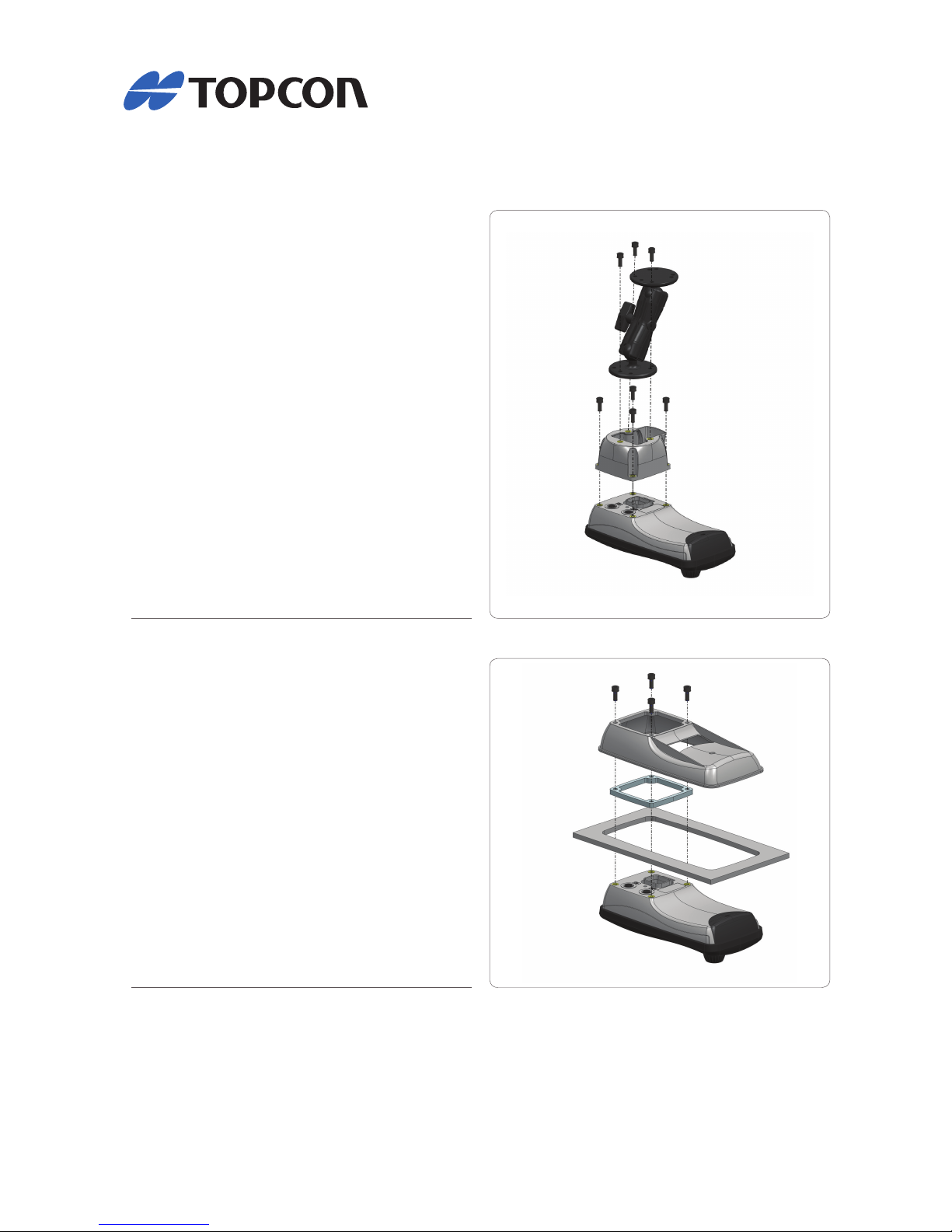

11 Mounting accessories (not included)
Standalone mounting adaptor for RAM® mounting
system (OPUSA3ZBAH001)
Material PC+ABS
Dimensions 74x84x42 mm (WxHxD)
OperatingTemperature -30…+75°C
StorageTemperature -40…+85°C
Max mounting torque 2.5 ± 0.2 Nm

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
Mounting kit (RAM® Mount 1,5‘‘, adapter cover)
(OPUSBERM004)
1x RAM® - 101 U
1x Adapter for RAM® mounting system
7x Cylinder head bolt M5x12 DIN 912
In-Dash mounting frame (OPUSA3ZBEB001)
Material PC+ABS
Dimensions 199x100x33 mm (WxHxD)
OperatingTemperature -30…+75°C
StorageTemperature -40…+85°C
Max mounting torque 2.5 ± 0.2 Nm
Delivery includes highlighted part only.
Please follow the instructions for in-dash mounting.

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  [email protected]
26 pin connector, contact pins, dummy plugs
(OPSVF26001)
