Topens MT9012 User manual

Dual Swing Gate Opener
User’s Manual
Model:
TOPENS Website
www.topens.com
Email: [e-mail]
MT9012
VER 22b
C030615
★Please read and follow all warnings, precautions and instructions before
installation and use.
★Never connect the solar panel to the control board directly to charge the battery.
★Periodic checks of the opener are required to ensure safe operation.
★Save this manual.

CONTACT US:
Visit: www.topens.com
Please record the product model, your email address etc.
in the spaces provided below. Refer to this list when contacting TOPENS
for technical service or assistance with your automatic gate opener.
Where did you purchase? (Amazon.com; Amazon.ca: Amazon.co.uk, Amazon.de; Other, Please
Specify)
Order#
Product Model
Purchase Date
Full Name
Phone#
Email Address (VERY
IMPORTANT)
Street Address, Apartment /Unit, City, State /Province, Zip Code
Country/Region
Approximate Gate Weight Per
Leaf (pounds; kg: Other.
Please Specify)
Approximate Gate Length Per
Leaf (feet meter; Other. Please
Specify)
Did you purchase any
accessories? (Please list
below)
Issue Details
Email Us: suppo[email protected]
Call: [phone] (Toll Free USA & Canada)

Table of Contents
Safety Installation Information........................................................................................................................................1
MT9012 Parts List............................................................................................................................................................ 3
Extra parts for rounded gate post...................................................................................................................................... 3
Accessories Parts (Included in some models, refers to the actual package).............................................................4
Optional Accessories Parts List (Available at TOPENS Store)..................................................................................... 4
Replacement Parts.............................................................................................................................................................. 4
Tools Needed:................................................................................................................................................................... 5
Technical Specifications & Features............................................................................................................................. 5
Dual Gate Overview.........................................................................................................................................................6
Preparation for Installation..............................................................................................................................................7
Install the Opener on the Gate – for Pull to Open...................................................................................................... 7
Install the Opener on the Gate – for Push to Open..................................................................................................10
Mounting the Control Box............................................................................................................................................. 13
Connection of the Power Supply................................................................................................................................. 14
Connecting of the Control Board................................................................................................................................. 15
How to Program or Erase the Remote....................................................................................................................... 17
How to Use the Remote to Operate Your Gate Opener.......................................................................................... 18
Wireless Keypad Programming................................................................................................................................... 18
Setting of the Control Board......................................................................................................................................... 19
Indicate Illustration on the Digital Display When Gate Opener is Running..........................................................22
Adjusting the Limit Switch.............................................................................................................................................22
Maintenance....................................................................................................................................................................23
Trouble Shooting............................................................................................................................................................ 23
Quick-Setting Guide.......................................................................................................................................................25

1
Safety Installation Information
1. READ and FOLLOW all instruction.
2. The gate opener is intended for use with Class I vehicular
swing gates.
Class I denotes a vehicular gate opener (or system) dwellings,
or a garage or parking area associated therewith.
Install the gate opener only when the opener is appropriate for
the construction and the usage class of the gate.
3. Gate opening system designers, installers and users must
take into account the possible hazards associated with each
individual application. Improperly designed, installed or
maintained systems can create risks for the user as well as the
bystander. Gate system design and installation must reduce
public exposure to potential hazards. All exposed pinch points
must be eliminated or guarded.
4. A gate opener can create high levels of force during
normal operation. Therefore, safety features must be
incorporated into every installation. Specific safety features
include safety sensors.
5. The gate must be properly installed and work freely in
both directions prior to the installation of the gate opener.
6. The gate must be installed in a location so that enough
clearance is provided between the gate and adjacent structure
when opening and closing to reduce the risk of entrapment.
Swinging gates shall not open into public access areas.
7. The opener is intended for use only on gates used for
vehicles. Pedestrians must be supplied with a separate access
opening. The pedestrian access opening shall be designed to
promote pedestrian usage. The pedestrian access shall be
located such that persons will not come in contact with the
moving vehicular gate.
8. Pedestrians should never cross the pathway of a moving
gate. The gate opener is not acceptable for use on any
pedestrian gate. Pedestrians must be supplied with a separate
pedestrian access.
9. For an installation utilizing non-contact sensors (safety
sensors), see product manual on the placement of non-contact
sensors (safety sensors) for each type of application.
a. Care shall be exercised to reduce the risk of nuisance
tripping, such as when a vehicle trips the safety sensor while
the gate is still moving.
b. One or more non-contact sensors (safety sensors) shall
be located where the risk of entrapment of obstruction exists,
such as the perimeter reachable by a moving gate or barrier.
10. Never mount any device that operates the gate opener
where the user can reach over, under, around or through the
gate to operate the controls. Controls are to be placed at least 6’
(1.8m) from any part of the moving gate.
11. Controls intended to be used to reset an operator after 2
sequential activations of the entrapment protection device or
devices must be located in the line of sight of the gate, or easily
accessible controls shall have a security feature to prevent
unauthorized use. Never allow anyone to hang on or ride the
gate during the entire travel of the gate.
12. Each gate opener is provided with two safety warning
placards. The placards are to be installed on the front and back
of the gate where they are plainly visible. The placards may be
mounted using cable ties through the four holes provided on
each placard.
All warning signs and placards must be installed where visible
in the area of the gate.
13. To AVOID damaging gas, power, or other underground
utility lines, contact underground utility locating companies
BEFORE digging.
14. Do not permit children to play on or around the gate and
keep all controls out of their reach.
15. SAVE INSTRUCTION.

2

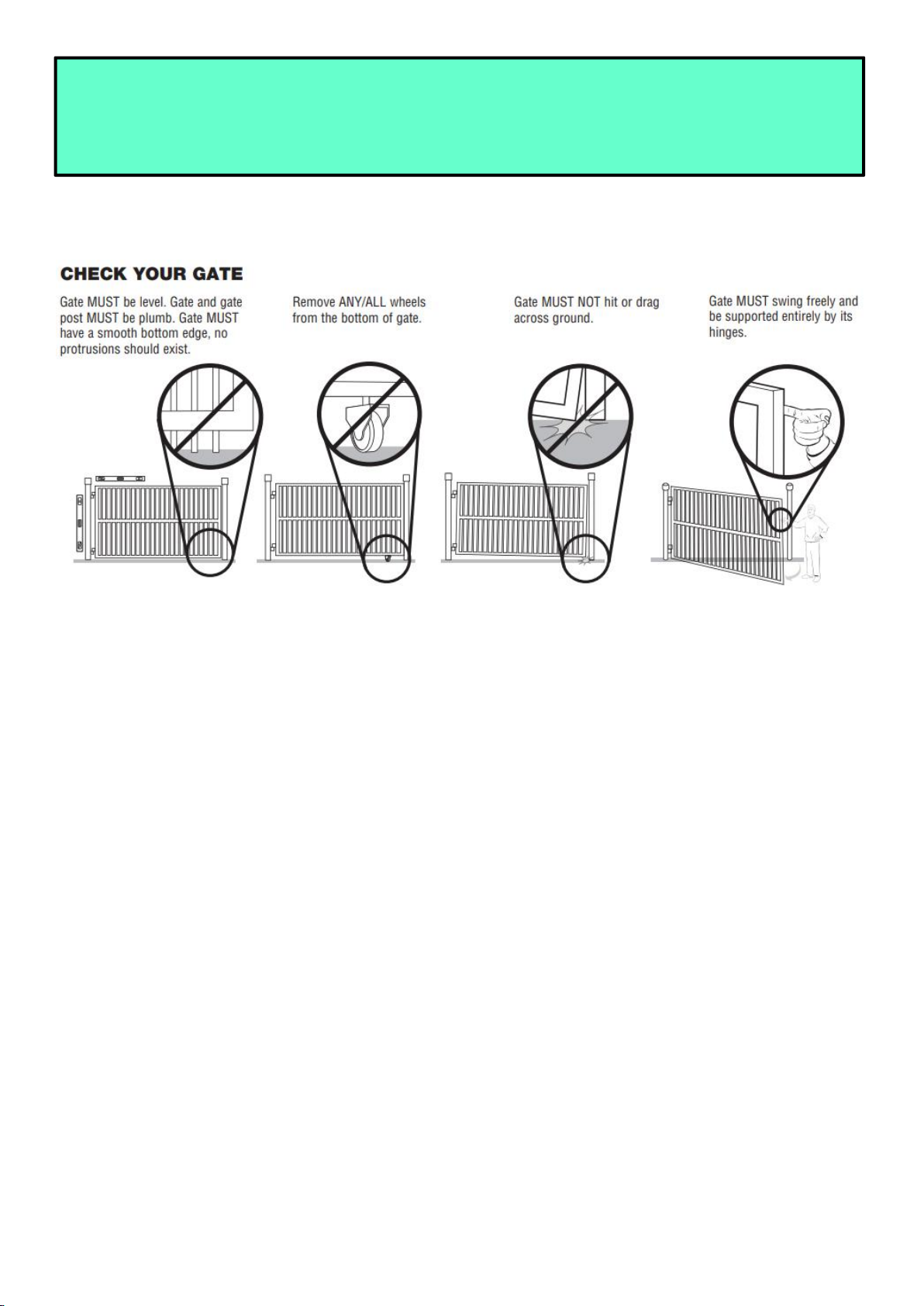

NOTE:
TOPENS Gate Operator can be used for driveway gates made by steel, wood, vinyl, and shaped as panel,
tube, and chain-link. While use on solid surface gates is NOT recommended. Solid surface gates have a high
resistance to the wind. If the wind is strong enough, the operator will obstruct and stop.

3

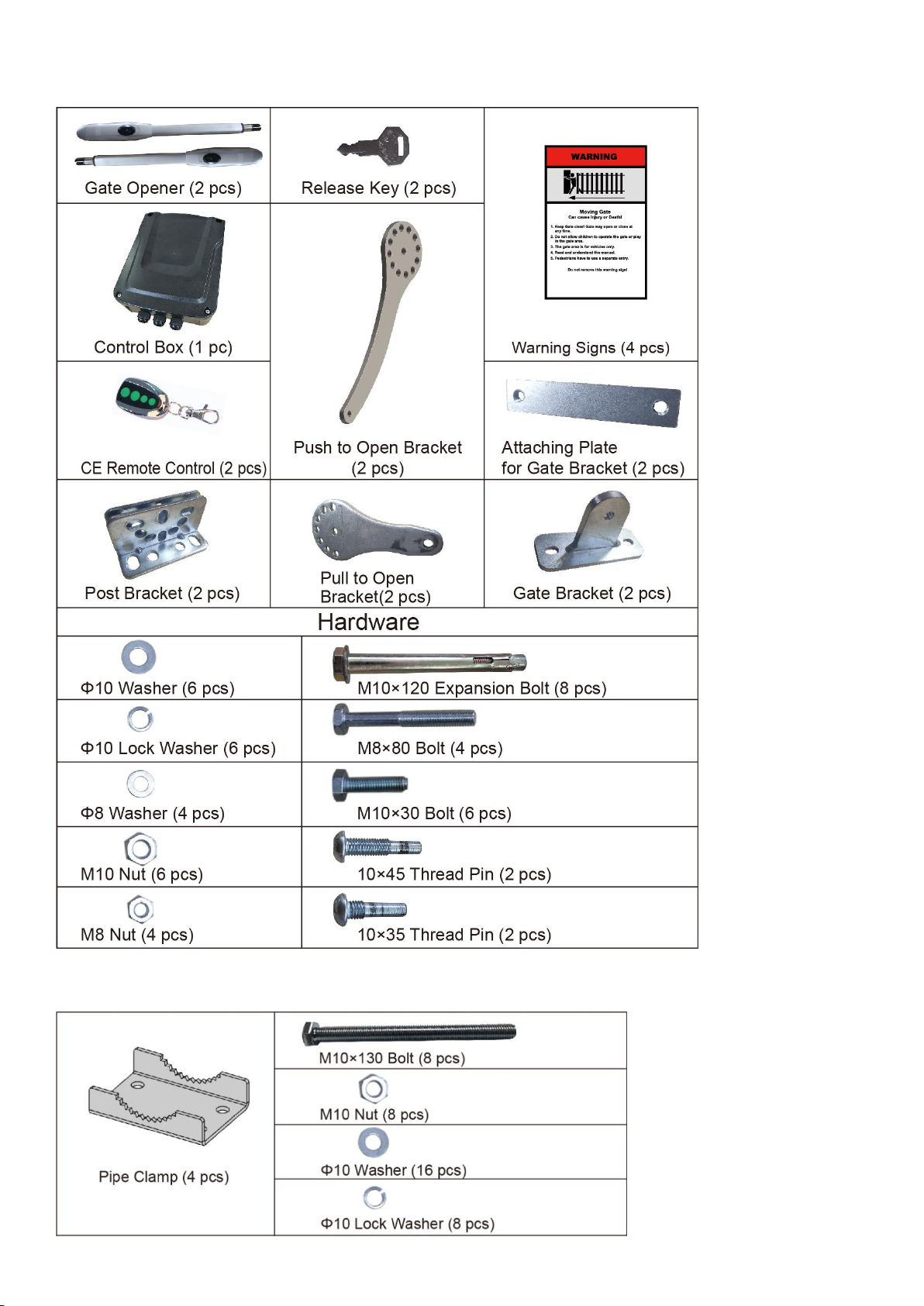

MT9012 Parts List
Extra parts for rounded gate post

4
Accessories Parts (Included in some models, refers to the actual package)
JD24VY 24V Warning
Light
TC102 Photo Eye
Beam Sensor
25FT Extension
5 Conductor Cable
Optional Accessories Parts List (Available at TOPENS Store)
M12 Remote Control
ERM12 External
Receiver
TC186-R WiFi
Smartphone Remote
Control with Camera
TC186 WiFi
Smartphone Remote
Control with Camera
TKP3 Wireless Keypad
TC175P Wired Keypad
TEW3 Vehicle Sensor
Exit Wand
HLR01 HomeLink
Remote Control Kit
TC173 Wireless Push
Button
TC147 Wired Push
Button
ET24 Electric Gate
Lock
TRF3 Reflection
Photocell Sensor
TC102 Photo Eye Beam
Sensor
JD24VY 24V Warning
Light
TSP30W 30W Solar
Panel Charging Kit
TSQ20W 20W
Solar Panel Kit
TCS3 Solar Charge
Controller
25FT Extension
5 Conductor Cable
Replacement Parts
PKMJ2A Control Board

5
Tools Needed:
·Power Drill
·Tape Measure
·Open End Wrenches - 14# &17# or Adjustable Wrenches
·Wire Strippers
·C-Clamps - small, medium, and large
·Level
·Hacksaw or Heavy Duty Bolt Cutters
·Phillips Screwdriver
Technical Specifications & Features
Specifications
MT9012
Input:
110V~120V/60Hz or 220~240V/50Hz
Motor Voltage:
24VDC
Power:
90W Each Actuator
Current:
3.5A
Actuator Speed:
16mm/s (0.6 in/s)
Max. Actuator Travel:
380mm (15 in)
Ambient Temperature:
-20℃~ +50℃(0°F to 120°F)
Protection Class:
IP44
NOTE: “NR" indicates this size and weight combination is NOT recommended for one arm actuator.
NOTE: Ball bearing hinges should be used on all gates weighing over 140kg (300 lbs).
550 kg (1200 lbs)
√
NR
NR
NR
NR
NR
NR
450 kg (990 lbs)
√
√
NR
NR
NR
NR
NR
350 kg (770 lbs)
√
√
√
NR
NR
NR
NR
250 kg (550 lbs)
√
√
√
√
NR
NR
NR
200 kg (440 lbs)
√
√
√
√
√
NR
NR
150 kg (330 lbs)
√
√
√
√
√
√
NR
100 kg (220 lbs)
√
√
√
√
√
√
√
1.2-1.8 m
(4-6’)
2.4 m
(8’)
3 m
(10’)
3.6 m
(12’)
4.3 m
(14’)
5 m
(16’)
6 m
(20’)
These specifications are subject to change without notice.
Gate Capacity of MT9012 for Each Actuator
Gate Length
WARNING: Changes or modifications not expressly specified by this user manual, TOPENS could void
the warranty of this equipment.

6
Features:
·Soft start and soft stop
·Emergency release key in case of power failure
·Dual/Single gate running mode
·Adjustable opening/closing interval between
master and slave gate
·Stop in case of obstruction during gate opening.
·Reverse in case of obstruction during gate closing.
·Built in adjustable auto-close (0-99 seconds)
·Built in max. Motor running time (MRT) adjustable
for multiple safety protection (1-50 seconds)
·Digital display indicates the running situation and
setting menu
·Reliable electromagnetism limit for easy
adjustment
·Can be equipped with a wide range of accessories
·Easy to install, and minimum maintenance
requirement

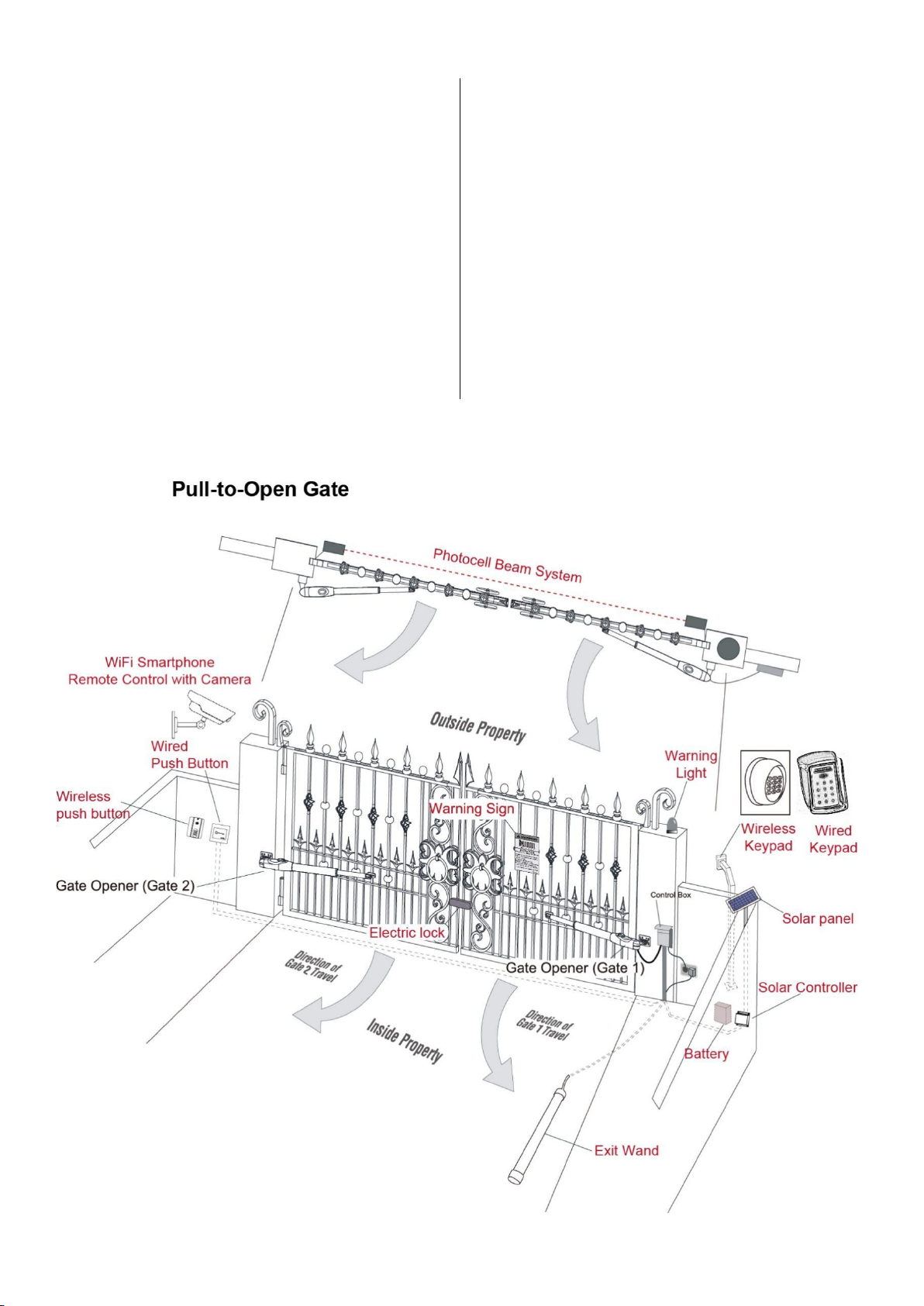

Dual Gate Overview

7
Preparation for Installation
There are two installation types for the gate opener, Pull-to-Open and Push-to-Open.
In the Push-to-Open installation, gate opens out from the property. A Push-To-Open Bracket is required to be
used for each gate.
The gate opener can be either installed on square gate post or
rounded gate post.
when the gate post is square, the width of the gate post should
be at least 120 mm.
When the gate post is rounded, connect post bracket to the
gate post via pipe clamps, requires the diameter of the gate
post should be less than or equal to 80mm.
Install the Opener on the Gate – for Pull to Open

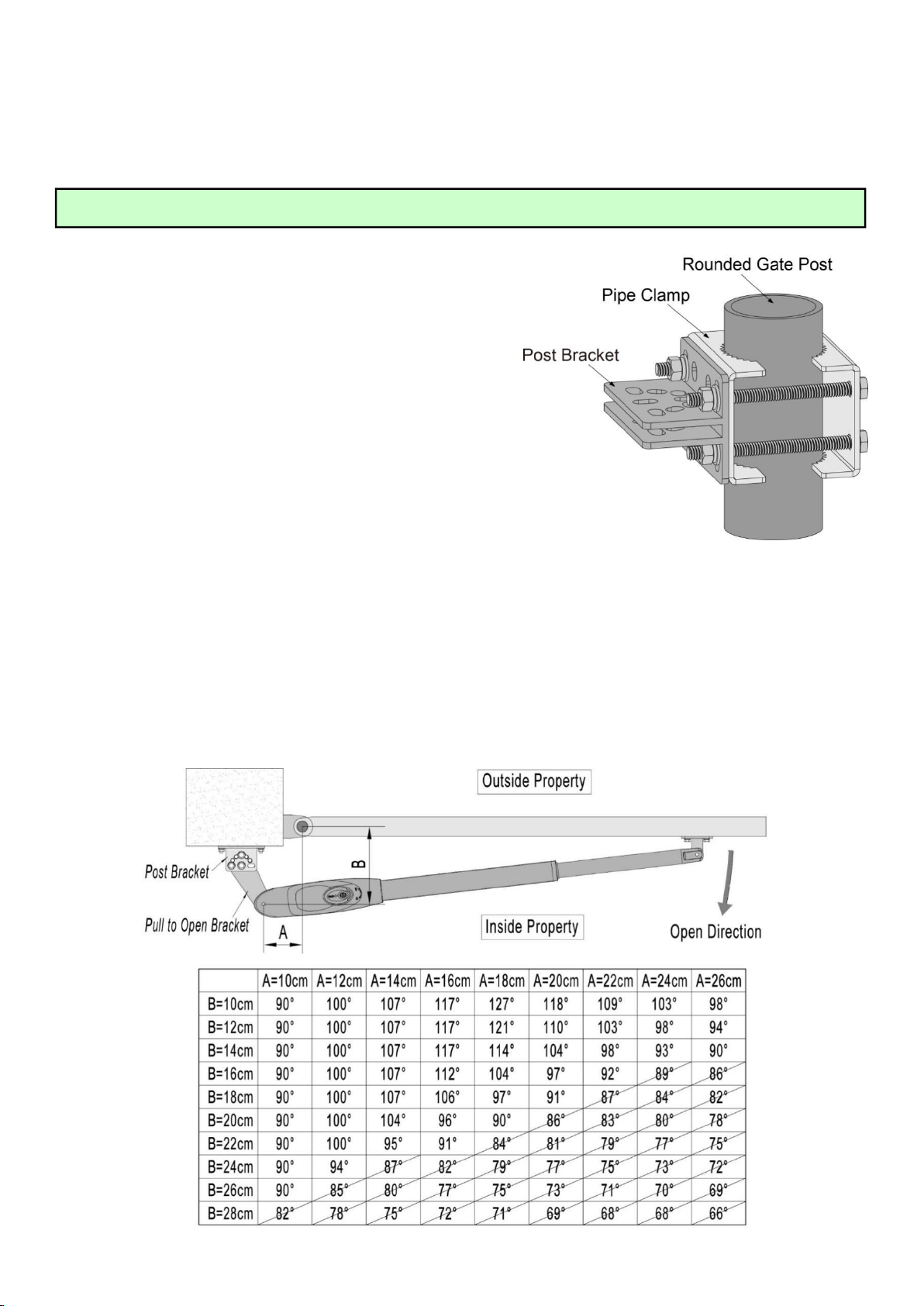

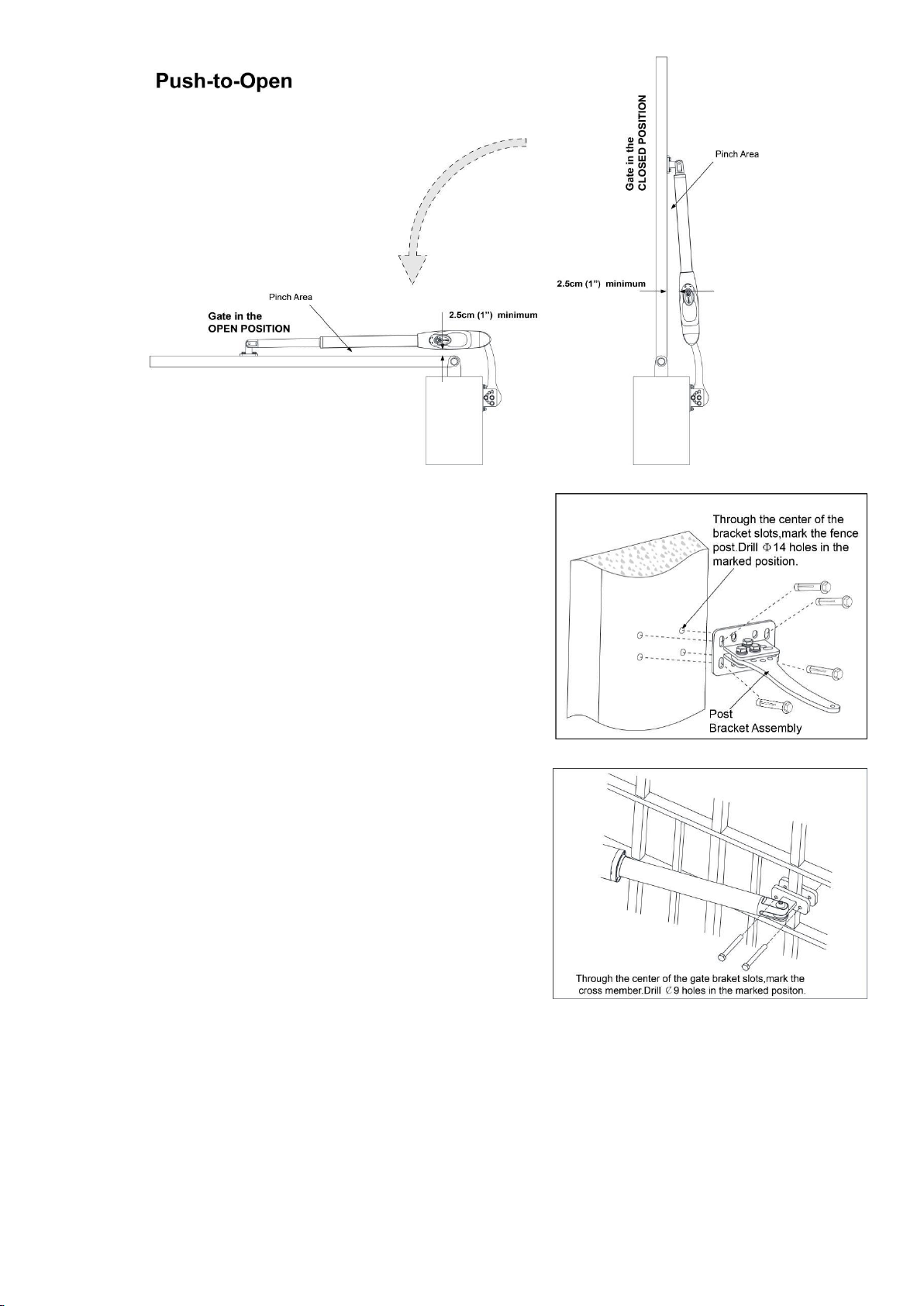

The position of Post Bracket is very important. The following illustrations and tables are required to determine
the proper mounting position for the Post Bracket. The tables show the maximum opening angle of the gate for
a given A and B. For example, if A is 18cm and B is 16cm, the maximum opening angle of the gate is 104°
Pull-to-Open Installation — Gate in Closed position (Moving-Rod is extended)
NOTE: Ensure the gate does not open into public areas. One more person will help when installing.

8

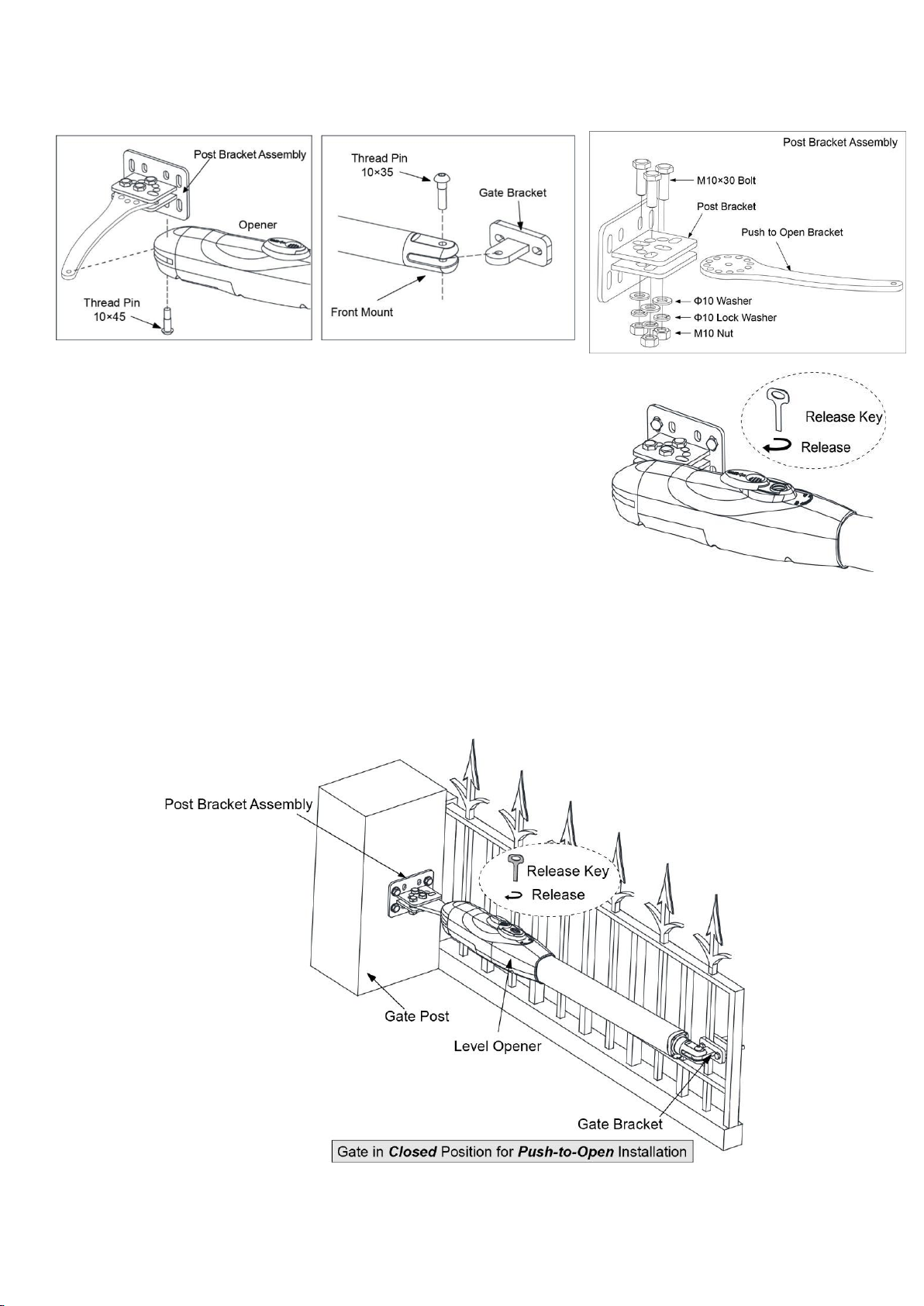

1. Insert the M10 x 30 bolts through the center holes of the post bracket and Pull to Open Bracket as shown.
Place ￠10 washers , ￠10 lock washers and M10 nuts on the bottom of the bolts and hand tighten.
2. Attach the gate bracket and post bracket assembly to the opener by inserting a thread pin.
3. Open the release hole plug on the top of the gate opener, insert the
release key and turn the key 90° clockwise. This releases the motor and
allows the push-pull rod to be manually extended and retracted. To restore
normal operation, turn the key 90° counterclockwise.
4. With the opener fully retracted and with the gate in the fully open
position (for Pull-to-Open installation), place the opener with the Post
Bracket Assy. and Gate Bracket on the gate post and the gate. While
holding the gate opener in the level position, temporarily secure it with two
C-clamps.
5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener
and the Pull to Open Bracket are not binding in both the gate-open and gate-closed positions. If there is not at
least 2.5cm of clearance or if the opener and the Pull to Open Bracket are binding, rotate the Pull to Open
Bracket and/or move the Post Bracket Assy. to obtain the minimum clearance and eliminate the binding.

9
6. Sign the bolt-hole point on the gate post and gate. Do this by placing
a punch or a sign in the middle of each bolt slot on the post bracket
assemblies and the gate bracket. It allows slight adjustments to the
post bracket. Then remove the post bracket and gate bracket by taking
off the C-clamps.
7. Drill 14mm diameter holes on the gate post and drill 9mm diameter
holes on the gate at the marked locations.
8. Attach the post bracket assemblies to the gate posts by using four
expansion bolts.
9. Attach the gate brackets to each gate by inserting two M8x80 bolts
through the gate brackets and the drilled holes in the gates. Fasten
each bolt with one ￠8 lock washer, and one ￠8 nut.
10. With the opener fully retracted and with the gate in the fully open
position (for Pull-to-Open installation), attach the gate opener to the
Post Bracket Assembly and the Gate Bracket by inserting a thread pin
through the gate opener and the Pull to Open Bracket and another
thread pin through the gate opener and the Gate Bracket.

10
11. Open the release hole plug on the top of the gate opener, insert the release key, and turn the key 90°
counterclockwise. This restores normal operation.
NOTE: The setting of the PULL/PUSH TO OPEN of the control board should be in accordance with the
installation.

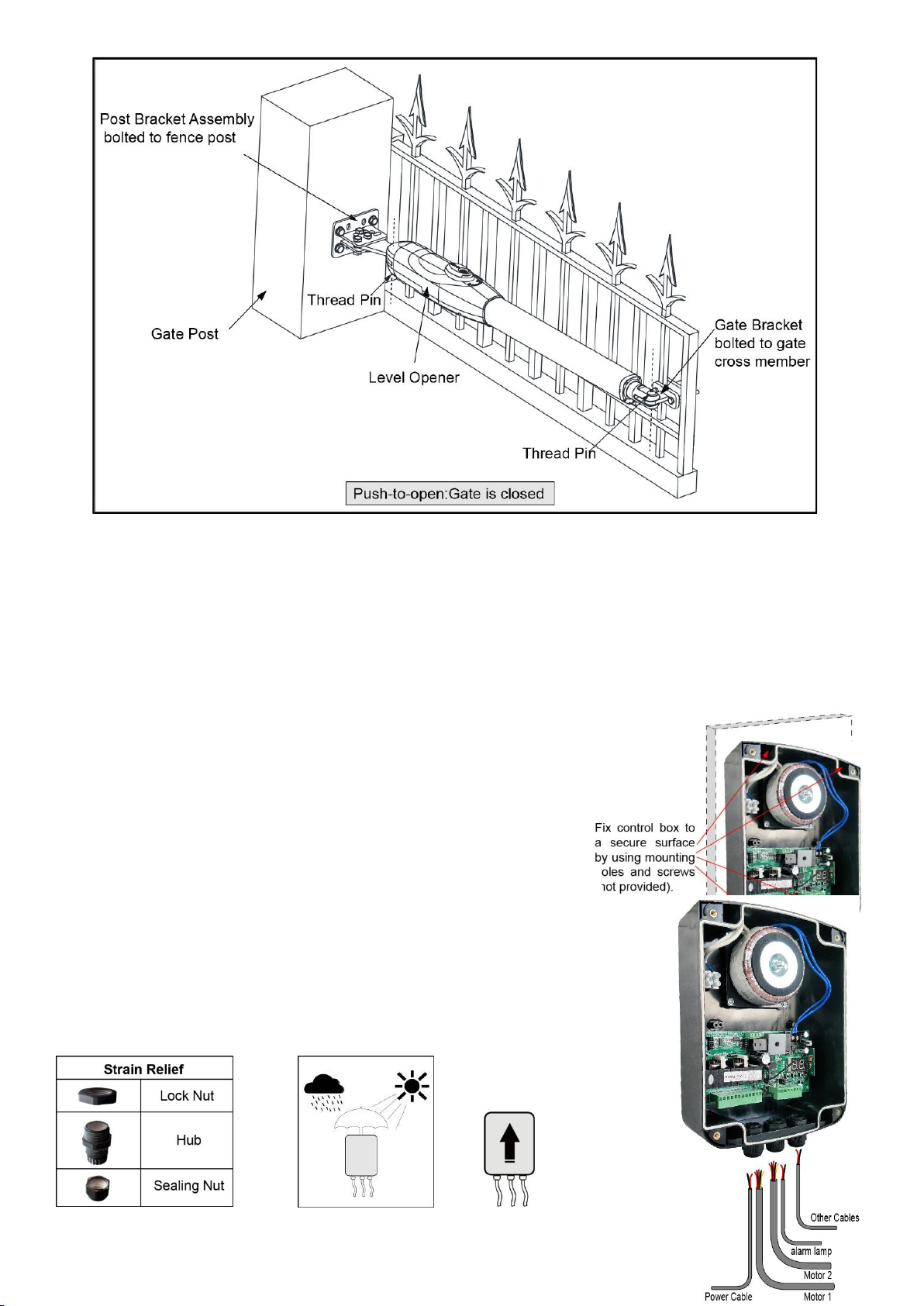

Install the Opener on the Gate – for Push to Open
The position of Post Bracket is very important. The following illustrations and tables are required to determine
the proper mounting position for the Post Bracket. The tables show the maximum opening angle of the gate for
a given A and B. For example, if A is 15cm and B is 12cm, the maximum opening angle of the gate is 110°
Push-to-Open Installation — Gate in Closed position (Moving-Rod is retracted)

11
1. Insert the M10 x 30 bolts through the center holes of the post bracket and Push to Open Bracket as shown.
Place ￠10 washers , ￠10 lock washers and M10 nuts on the bottom of the bolts and hand tighten.
2. Attach the gate bracket and post bracket assembly to the opener by inserting a thread pin.
3. Open the release hole plug on the top of the gate opener, insert the
release key and turn the key 90° clockwise. This releases the motor and
allows the push-pull rod to be manually extended and retracted. To restore
normal operation, turn the key 90° counterclockwise.
4. With the opener fully retracted and with the gate in the fully closed
position (for Push-to-Open installation), place the opener with the Post
Bracket Assy. and Gate Bracket on the gate post and the gate. While
holding the gate opener in the level position, temporarily secure it with two
C-clamps.
5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener
and the Push to Open Bracket are not binding in both the gate-open and gate-closed positions. If there is not at
least 2.5cm of clearance or if the opener and the Push to Open Bracket are binding, rotate the Push to Open
Bracket and/or move the Post Bracket Assy. to obtain the minimum clearance and eliminate the binding.

12
6. Sign the bolt-hole point on the gate post and gate. Do this by
placing a punch or a sign in the middle of each bolt slot on the post
bracket assemblies and the gate bracket. It allows slight
adjustments to the post bracket. Then remove the post bracket and
gate bracket by taking off the C-clamps.
7. Drill 14mm diameter holes on the gate post and drill 9mm
diameter holes on the gate at the marked locations.
8. Attach the post bracket assemblies to the gate posts by using
four expansion bolts.
9. Attach the gate brackets to each gate by inserting two M8x80
bolts through the gate brackets and the drilled holes in the gates.
Fasten each bolt with one ￠8 lock washer, and one ￠8 nut.
10. With the opener fully retracted and with the gate in the fully
closed position (for Push-to-Open installation), attach the gate
opener to the Post Bracket Assembly and the Gate Bracket by
inserting a thread pin through the gate opener and the Push to
Open Bracket and another thread pin through the gate opener and
the Gate Bracket.

13
11. Open the release hole plug on the top of the gate opener, insert the release key, and turn the key 90°
counterclockwise. This restores normal operation.
NOTE: The setting of the PULL/PUSH TO OPEN of the control board should be in accordance with the
installation.
Mounting the Control Box
CAUTION: Install the Control Box in a well ventilated place protected against rain
Step 1
To install the control box use the deck screws (not provided).
Even though the control box is waterproof designed, for safety reason
and a longer service life, it is recommended to install the control box
inside a secure surface and at least 100 cm (40 inches) above the
ground to avoid being flooded or buried under snow.
Step 2
Insert the power cable and cable of the first gate opener through the front
strain relief and into the control box by loosening the strain relief screw
located in the leftmost of outside bottom of the control box and feeding the
cables into the control box. Check the length of cables is long enough to
their respective terminal block in control box.
Retighten the sealing nut so that cables are well locked.

14
and sunlight.
CAUTION: Make sure the cable outlet hole in the Control Box is always down during installation so as to drain
off the water.
Step 3
Insert the cable of the second gate opener and alarm lamp cables into the control box through middle strain
relief. Then repeat step 2.
Step 4
Insert other cables into the control box through rightmost strain relief. Then repeat step 2.
NOTE: Only motor cables (1.5m length) are provided. Other cables are subject to site installation requirement
and not provided.
Connection of the Power Supply
WARNING: NEVER connect the gate opener to the power outlet before all the installations have
been done.
The live line and the neutral line should be connected to the power input terminals as the below photo. No
matter the polarity. The wire (not provided) size should be at least 0.75mm2 (18AWG) which is intended to
connect the power supply.

15
Connecting of the Control Board

16

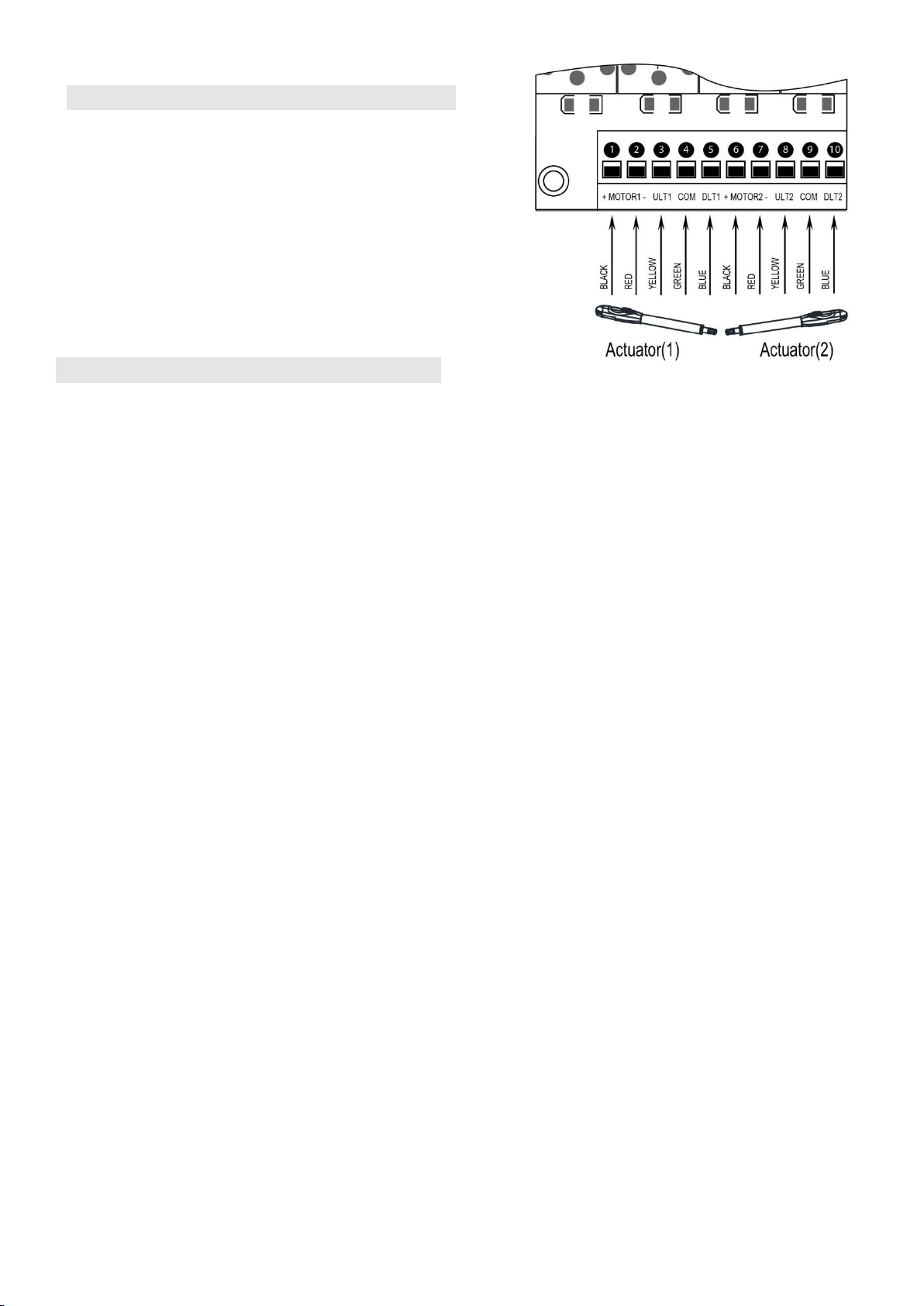

Motor connection for PULL-TO-OPEN
Actuator 1 (for PULL-TO-OPEN)
Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire
should be inserted into the “MOTOR1+” terminal, the black wire into “MOTOR1-“, the blue wire into ULT1, the
green wire into COM, and the yellow wire into DLT1 terminal.
Actuator 2 (for PULL-TO-OPEN)
Similar as the connection of Actuator 1, insert the stripped cable wires into the appropriate terminals on the
opener terminals block. The red wire should be inserted into the MOTOR2+ terminal, the black wire into
MOTOR2-, the blue wire into ULT2, the green wire into COM, and the yellow wire into DLT2 terminal.
NOTE: It is recommended that Gate Opener 1 is installed in the Master Gate, and Gate Opener 2 is installed in
the Slave Gate.
Warning Light (Included in some models, refers to the actual package)
The red wire of the warning light should be inserted into +LAMP (#11) terminal, the white wire into the LAMP-
(#12).
Back-up Battery & Solar Panel & Solar Controller (optional)
If there is no solar panel to be used for charging the battery, then the “24V+” of the battery should be wired to
the BAT+ (#13) terminal. “24V-” should be wired to “BAT-” (#14) terminal.
The battery could also be charged by the solar panel & solar controller. Please refer to the manual instruction of
solar panel and controller separated for wire connection.
Photocell Beam System (PBS)
(Included in some models, refers to the actual package)
Use a 2-core cable to connect the “- ~” terminal of the photocell’s emitter to the “14” terminal, the “+ ~” terminal
to the “9” terminal. Also the “- ~” and “+ ~” terminals of the photocell’s receiver should be connected to the “14
and “9” terminals in parallel.
Use another 2-core cable to connect the “COM” terminal of the receiver to the “17” terminal, the “NC” terminal
to the “18” terminal.
Push Button (optional)
The push button should be wired to the “19” and “20” terminals. The gate operator works alternately by pushing
Motor connection for PUSH-TO-OPEN
The motors’ power wires and limit wires connection by
“Push to Open” is different from the connection by “Pull
to Open”. So motor 1 and motor 2 wires should be
connected to the control box as the instruction on the right.
The black wire should be inserted into the Motor+ terminal,
the red wire should be inserted into the Motor- terminal, the
yellow wire into ULT1 terminal, the blue wire into DLT1
terminal and the green wire is still into COM terminal.

17
the button (open-stop-close-stop-open).
Exit Wand (optional)
Please note that the adapter board of the exit wand should be inserted into the main control board of
the gate opener before using.
The BLACK and the BLUE wire of the exit wand should be connected into the “LOOP” terminal, no matter the
polarity.
The RED wire of the exit wand should be connected into the COM (9#) terminal.
The GREEN wire of the exit wand should be connected into the BAT- (14#) terminal.
The sensitivity adjustment board should be wired to the GREEN wire and the YELLOW wire of the wand. No
matter the polarity.
Electric Lock (optional)
The electric lock should be wired to the “LOCK” terminal, no matter the polarity of the wires. The E-Plus board
is not needed to use with this model of gate opener. Please remove the board from the lock before using.
External Receiver (optional)
The BROWN wire of the external receiver should be connected into the “19” terminal.
The BLACK wire of the external receiver should be connected into the “20” terminal.
The RED wire of the external receiver should be connected into the “9” terminal.
Wired Keypad (24VDC) (optional)
The RED wire of the wired keypad should be connected into the “9” terminal.
The BLACK wire of the wired keypad should be connected into the “14” terminal.
The PURPLE wire of the wired keypad should be connected into the “19” terminal.
The BLUE wire of the wired keypad should be connected into the “20” terminal.
How to Program or Erase the Remote
The remote MUST be programed to the opener BEFORE OPERATING. Please follow the steps to
program the remote.
Activate the opener only when gate is in full view, free of obstruction and properly adjusted. No one
should enter or leave gate area while gate is in motion. DO NOT ALLOW CHILDREN to operate push
button or remote. DO NOT ALLOW CHILDREN TO PLAY NEAR THE GATE.
If you purchase additional remote controls, the gate opener must be programmed to accept the new
remote code.
If you lose one of any remote control, please erase and reprogram all other remote controls to have a
new code for safety.
