TOPP S200 User manual

1
INSTRUCTIONS FOR
INSTALLATION AND USE
S200
STANDARD INSTALLATION
ORIGINAL INSTRUCTION
COD. 0P5701
VER. 00 REV.03.20
instructions for installation

2
INDEX
instructions for installation
S200
TECHNICAL DATA
PAG 3
GENERAL INFORMATION and
SAFETY
PAG 4
PRELIMINARY OPERATIONS PAG 5 ARTICULATED ARM INSTALLATION
PAG 6
SLIDING ARM INSTALLATION
PAG 8
SLIDING ELBOW ARM INSTALLATION
PAG 10

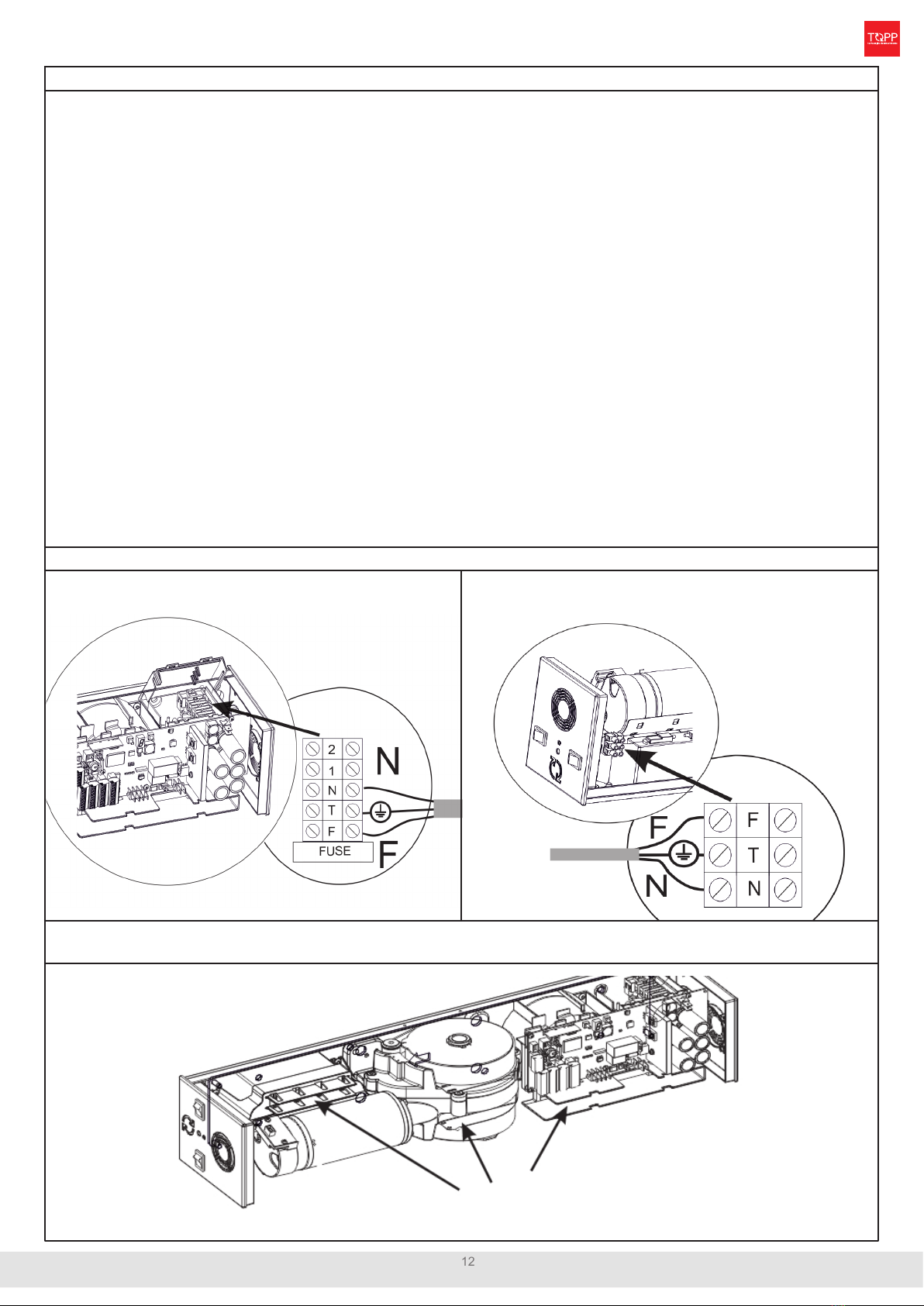

ELECTRICAL CONNECTIONS
PAG 12

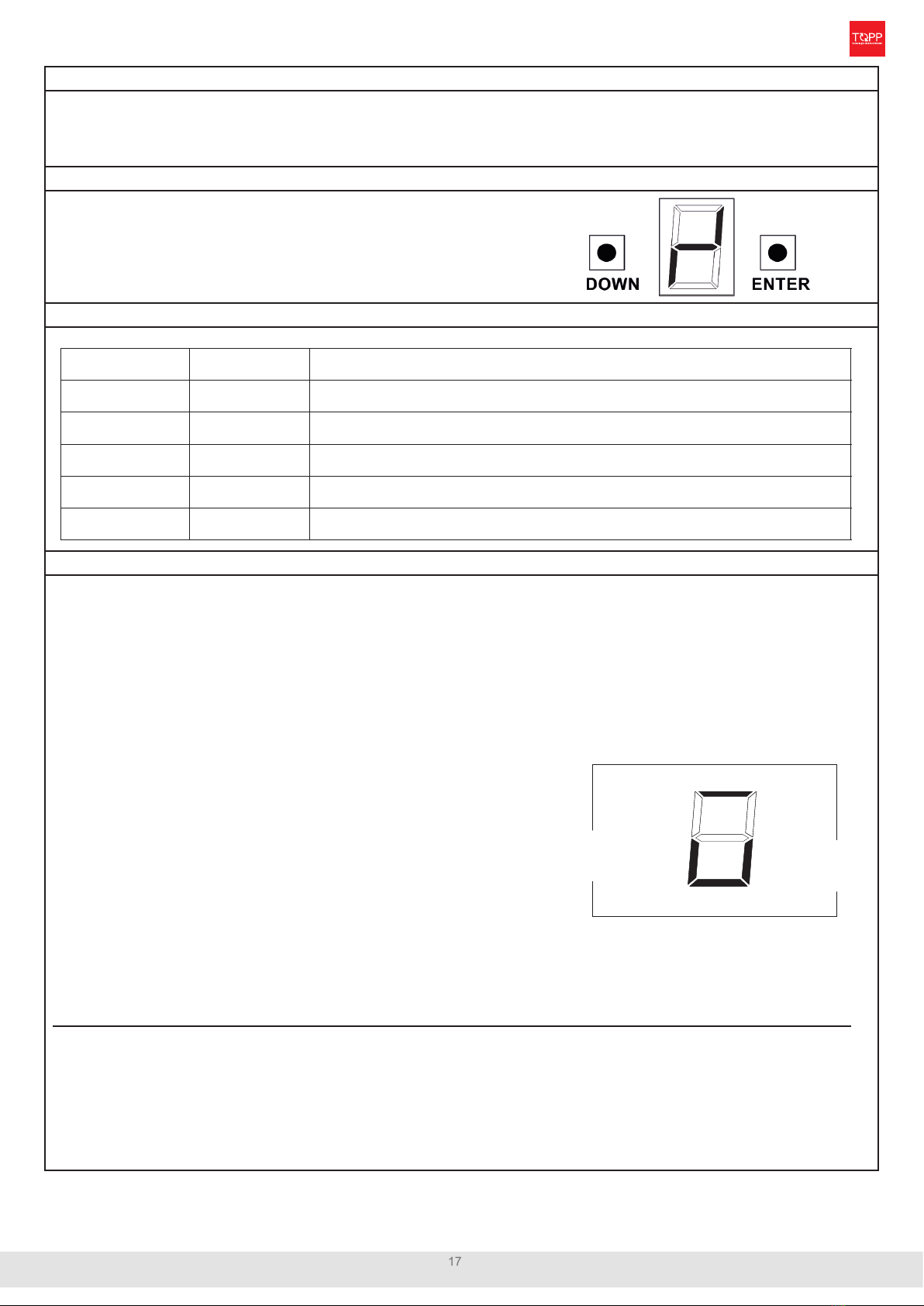

FIRST STARTUP
SELF LEARNING PAG 17
DOUBLE LEAF INSTALLATION
PAG 18
MESSAGE LIST
ERRORS
PAG 20-21
ENTE R
DOWN

3
S200 -AUTOMATION FOR SWING DOORS
The Automation S200 for hinged doors is designed and produced in accordance to the European standard EN16005.
It is designed to for indoor installation only. The automation is an electromechanical type servo-assisted by a spring that
ensures the closure in case of lack of electric and battery power.
The mechanical and electronic technology guarantees safely the management and synchronization of swing doors with
single and double panel.
The automation can be used in the pull inward conguration with sliding or elbow arm, and in the push outward congura-
tion with normal arm.
The symmetrical feature of the automation facilitates the installation process.
The opening and closing movement of the door is regulated by the software of the electronic circuit board, which manages
the application of the forces and the continuity of movement in the di󰀨erent congurations.
The electronic board is a microprocessor type with keys directly on it for regulation of the operating parameters and con-
trol of accessories such as activation radar, safety radar, dial selector, digital switch, keys, etc.
In compliance with the European standard EN 16005, low energy and full energy operating modes.
instructions for installation

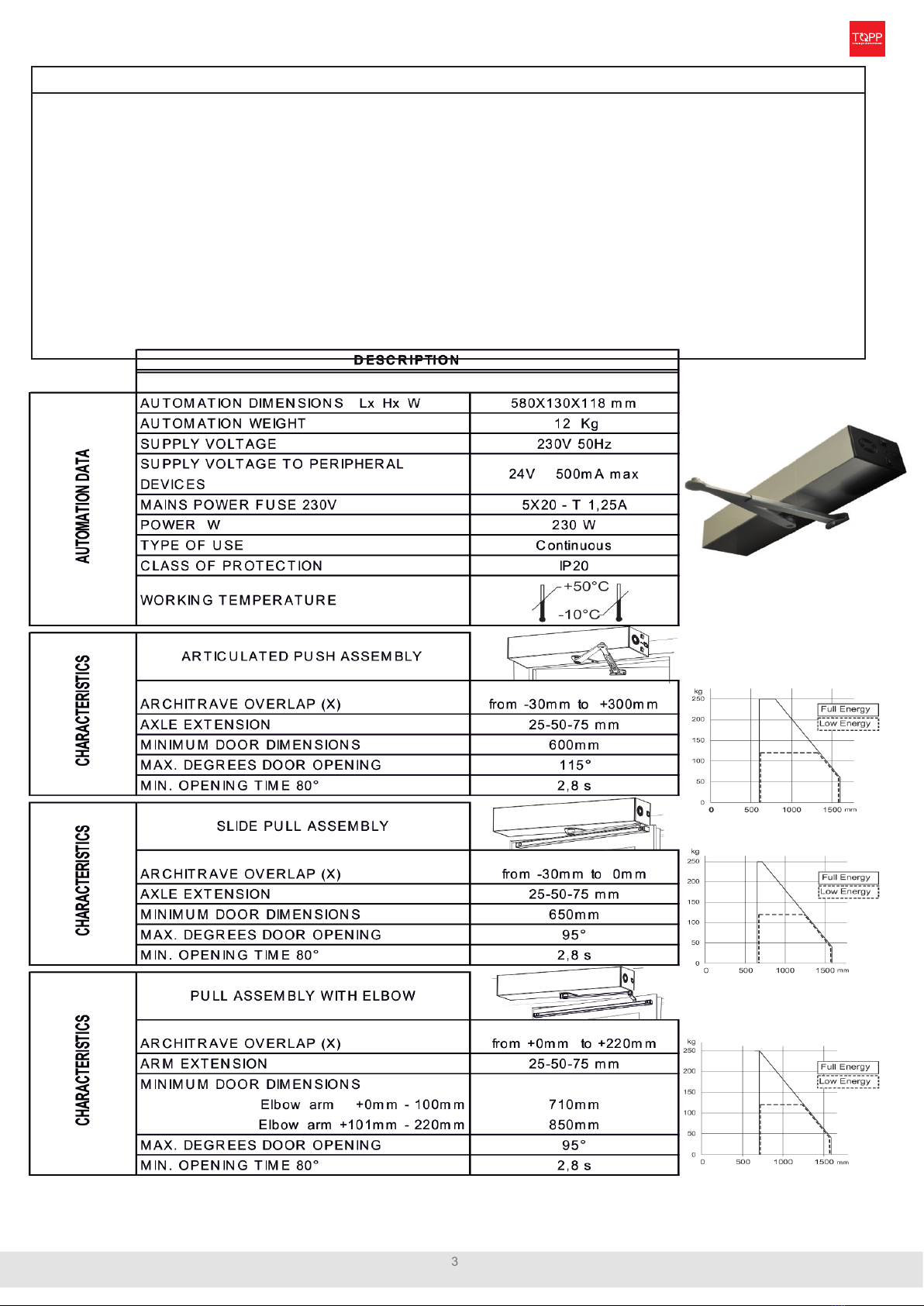

TECHNICAL DATA S200

4
GENERAL RECOMMENDATIONS
• This manual provides all instructions necessary for correct installation and maintenance of the automation. Topp srl is not liable for any damages to persons,
animals and property caused by failure to comply with these instructions.
• Before installing and using the automation the installer and user must read and thoroughly understand all parts of this manual.
• This manual is an integral part of the automation and must be kept by the installer, with all the enclosures, for future reference.
• The warranty is invalidated if use is made in any way not complying with the instructions and rules described in this manual, and if original parts, accessories,
replacements and control systems are not used.
• Topp srl reserves the right to improve and amend the manual and products described at any time and without notice.
• The information contained in this manual was written and checked with the maximum care; however, topp srl has no liability for any errors due to omissions or
errors in printing or transcription.
GENERAL SAFETY RULES
• The operators must be informed about the risks of accidents, the safety devices for the operators and the general accident-prevention rules contemplated by
the international directives and laws in force in the country of use of the automation. The operators’ conduct must always scrupulously comply with the accident
prevention rules in force in the country in which the automation is used.
• During handling and installation of the parts, the personnel shall be equipped with suitable personal protection equipment (PPE) so as to perform the works
required under safe conditions.
• To prevent injury and risks for the health of the workers, the maximum limits shall be applied for manual handling of loads, as provided in standard ISO 11228-1.
• Any unauthorized tampering or replacement of automation parts and any use of accessories or consumable materials di󰀨erent from the originals may cause a
risk of accidents and relieves the manufacturer from any civil and criminal liability.
• For correct operation of the automation we recommend performing routine maintenance as indicated in paragraph 7 of this manual. Any operations of routine and
special maintenance that require even partial disassembly of the automation must be carried out only after disconnecting power to the automation.
• Do not remove or alter the plates and labels applied by the manufacturer on the automation and its accessories.
• It is strictly prohibited to hinder movement of the door and work near the hinges or mechanical moving parts (such as articulated or sliding arms).
• The manufacturer has no liability for any damage caused by improper or unreasonable use of the automation.
• When handling electronic parts always wear grounded antistatic conductive armbands as any electrostatic charges could damage the electronic parts on the
boards.
• The electromechanical parts and electronic circuits necessary for control of the movement are protected by the aluminum casing.
• His device may be used by children at least 8 or older, and by persons with reduced physical, sensorial or mental faculties, or lacking experience, only under direct
supervision or after they have received adequate instructions relative to its safe use.
• Children should not play with the device.
PROPER AND IMPROPER USE
• Automation S200 is designed and produced exclusively to operate (open and close) hinged doors and is intended for use in the residential, public and industrial
sectors.
• It is strictly prohibited to use the automation for purposes other than those described, in order to guarantee the safety of the installer and user at all times and the
e󰀨ective function of the automation.
• Automation S200 in low energy operating mode can be installed in places where the door is used by disabled, elderly or fragile persons or persons with limited
motor capacity, after performing the risk analysis and considering that the risk for this type of user is low.
INSTALLER
• Installation of the automation must be made exclusively by qualied technical personnel in possession of the professional requisites contemplated by the legisla-
tion in force in the country of installation.
• The installer must be able to install the automation and start it, and to operate in the presence of electrical power inside electric cabinets and shunt boxes. He must
be qualied to make all the necessary adjustments of an electrical and mechanical nature.
• The use of parts, settings or processes not described in this document may cause electrical risks and/or hazards deriving from mechanical elements.
• The installer shall check for conformity to the directives and regulations in force regarding the safe use of motor-operated doors.
• After installing the automation, the installer shall perform an analysis of the risks and verify that the hinged door installation does not present risks in the points of
crushing or shearing and, if necessary, shall take adequate protective measures and apply the warning signs contemplated by the legislation in force to identify
hazardous areas.
• Every installation shall display the identication of the motorized system in a clearly visible place.
• The installer shall also provide the owner with all the information relative to automatic, manual and emergency operation of the automation, and shall deliver the
instructions for use to contained in this manual to the user.
• He installer is the only person liable for erroneous installation and failure to comply with the instructions in this manual. The installer shall therefore respond on an
exclusive basis to the user and/or third parties for all damages to persons and/or property caused by erroneous installation.
• Topp srl is not liable for the adequacy and strength of the doors to be motorized.
RISK ANALYSIS BY THE INSTALLER
IN ANY CASE, THE INSTALLER HAS SOLE LIABILITY FOR THE COMPLETE SAFETY OF THE HINGED DOOR AFTER ANALYZING THE RISKS, AS WELL
AS THE RESIDUAL RISKS. ALL IN RESPECT OF THE LEGISLATION IN FORCE IN THE COUNTRY IN WHICH IT IS INSTALLED.
• The installer must evaluate and secure the system from risk of crushing, cutting, impact, trapping on the moving angles of closure and residual risks relative a
door movement..
• The installer must evaluate and secure the system from risk of crushing and cutting between the levers or between the levers, the gliding guide and residual risks
relative a leaf movement..
USER
• The user must be able to use the automation under normal conditions and to perform simple operations of startup or reset of the automation after a possible
forced interruption, through the use of the devices that serve for the purpose (program selector, digital switch, key switch, control buttons, etc.)
• The user must not open the casing or perform any other operations reserved for maintenance personnel or specialized experts. In case of breakdown or malfunc-
tion of the door, the user shall only disconnect the circuit breaker and abstain from any other action or attempted repairs. use of the automation must be assigned
exclusively to users who comply with the instructions in this manual and in the manuals of the TOPP devices connected to it.
TECHNICAL ASSISTANCE
• For assistance, contact the installer or retailer..
RATING PLATE AND “CE” MARKING
• The “CE” marking certies the conformity of the machine to the essential health and safety requisites foreseen by the European product directives. It is formed of
an adhesive plate made from polyester, screen printed black, with the following dimensions: W=50mm - H=36mm. It should be applied by the installation techni-
cian in a clearly visible position on the outside of the automation unit.
RIGHTS RESERVED
• All information (text, drawings, diagrams, etc.) presented here is reserved. No part of this manual may be reproduced or disclosed in any way, with any means of
reproduction (photocopies, microlm or others) without the written authorization of the Manufacturer.
• All rights regarding this manual of “Instructions for installation and use” remain the property of the Manufacturer.
instructions for installation
GENERAL INFORMATION and SAFETY S200

5
* required only in case of FULL ENERGY mode
Verify the sensor conguration directly in the manufacturer’s manual
2) TURN THE AUTOMATION 180° AND CONNECT THE LOW ENERGY PLUG
1) DISCONNECT THE FULL ENERGY PLUG
ELECTRONIC BOARD DIP-SWITCHES SETTING
ONLY IN CASE OF LOW ENERGY INSTALLATION WITH ARTICULATED ARM AND DOOR WIDTH BELOW 800mm:
3) REDUCE THE SPRING TENSION
a) Loosen the grub screw in the electronic
board side (GLS) to trigger the anticlockwise
rotation of the spring
b) Screw back GLS
c) Loosen the grub screw in the motor side
GLM) to trigger the anti-clockwise rotation
of the spring
d) Screw back GLM
e) Repeat points a and b
SENSORS POSITION
instructions for installation
PRELIMINARY OPERATIONS S200
DISCONNECT
CONNECT
open
pushing
open
pulling
full energy
mode-
low energy
mode-

6
instructions for installation
11
22
33
44
ARTICULATED PUSHING ARM INSTALLATION S200
xing plate
lower end of the frame
Piastra ssaggio
Bordo inferiore architrave
L’automazione va ssata sul lato opposto al cardine.
La distanza «A» varia secondo il tipo di perno prescelto come da tabella
sottostante.
The automation must be xed on the opposite side of the hinge.
The distance «A» varies according to the type of the Axle extension used see table.
xing plate
lower end of the frame
The automation must be xed on the opposite side of the hinge.
The distance «A» varies according to the type of the Axle extension used
see table.
COMPONENTS
1- Cover, triangular plates
and 6 xing screws
2- Automation S200
3- Fixing plate
4- Automation tting nuts
5- Articulated arm *
6- Axle extension and
corresponding screw (optional) *
* Supplied separately
Automation positioning with left hinge
Attention to the arrow on the xing plate, the lower edge of the frame
and the axis of rotation of the door
Automation positioning with right hinge
Attention to the arrow on the xing plate, the lower edge of the frame
and the axis of rotation of the door

7instructions for installation
ARTICULATED PUSHING ARM INSTALLATION S200

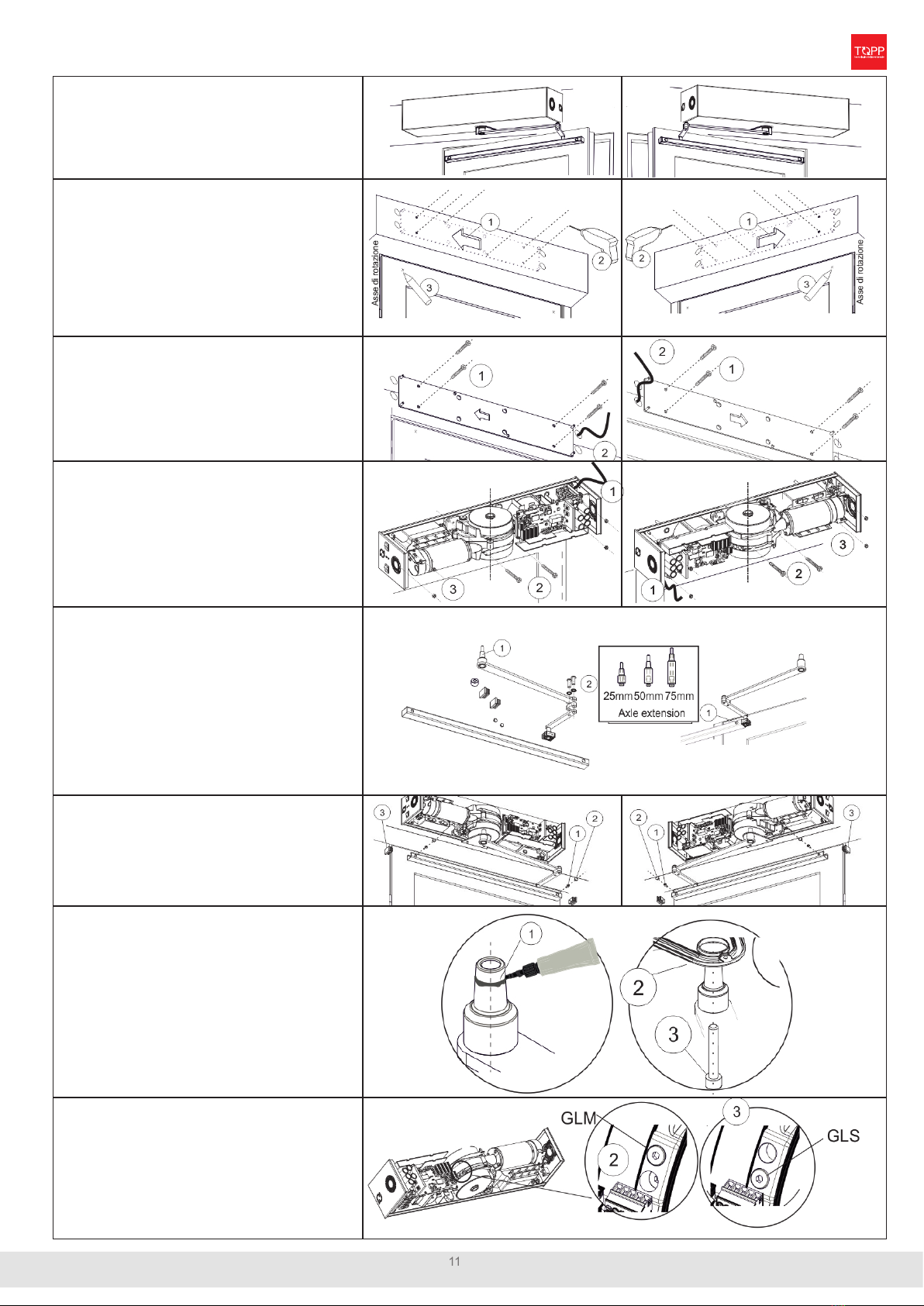

AUTOMATION INSTALLATION
S200 with articulated
pushing arm
DRILLING HOLES
1. Check the correct direction of the arrow on the
xing plate
2. With a suitable drill, make the 6 holes as per the
position specications and insert the 6 anchors in
the wall holes
3. Mark the 2 xing points for the arm bracket
PLATE FITTING
1. Fasten the mounting plate with the 4 xing screws
securely.
2. Prepare the input for the electrical wires
AUTOMATION FITTING
1. Pass the electric wires to the inside of the automa-
tion.
2. Fasten the automation and tighten the two screws
indicated.
3. Fit and tighten the four nuts to the plate installed
previously
ARM ASSEMBLY
1. Assemble the arm with the dowel as shown in the
gure
2. Assemble the axle extension , if any, of the motor
axis
(Before installation see the Additional instructions)
ARM ADJUSTMENT
1. Fasten the arm bracket with two appropriate
screws in the points previously pre-drilled and
loosen the two screws for the arm length adjust-
ment
2. Make sure the door is closed, position the extend-
able lever of the arm at a 90°angle from the door,
adjust the arm length and tighten the two adjust-
ment screws.
ARM FITTING
1. Apply the supplied glue to the upper part on the
outer conical surface of the pin, making a circum-
ference all around the pin
2. Insert the pivot pin of the arm in the housing on
the actuator, taking care to have previously tted
the triangular plate
3. Make sure the door is closed, insert the fastening
screws of the arm in the motor axis and tighten
with torque of 38Nm and screw.
REMOVAL OF SPRING PRELOADING
SCREWS
1. Keep the door locked closed manually
2. Unscrew the grub screw on the motor side (GLM)
and remove it from its seat
3. Slightly open the door and remove the grub screw
on the electronic board side (GLS)

8
S200
instructions for installation
11
22
33
44

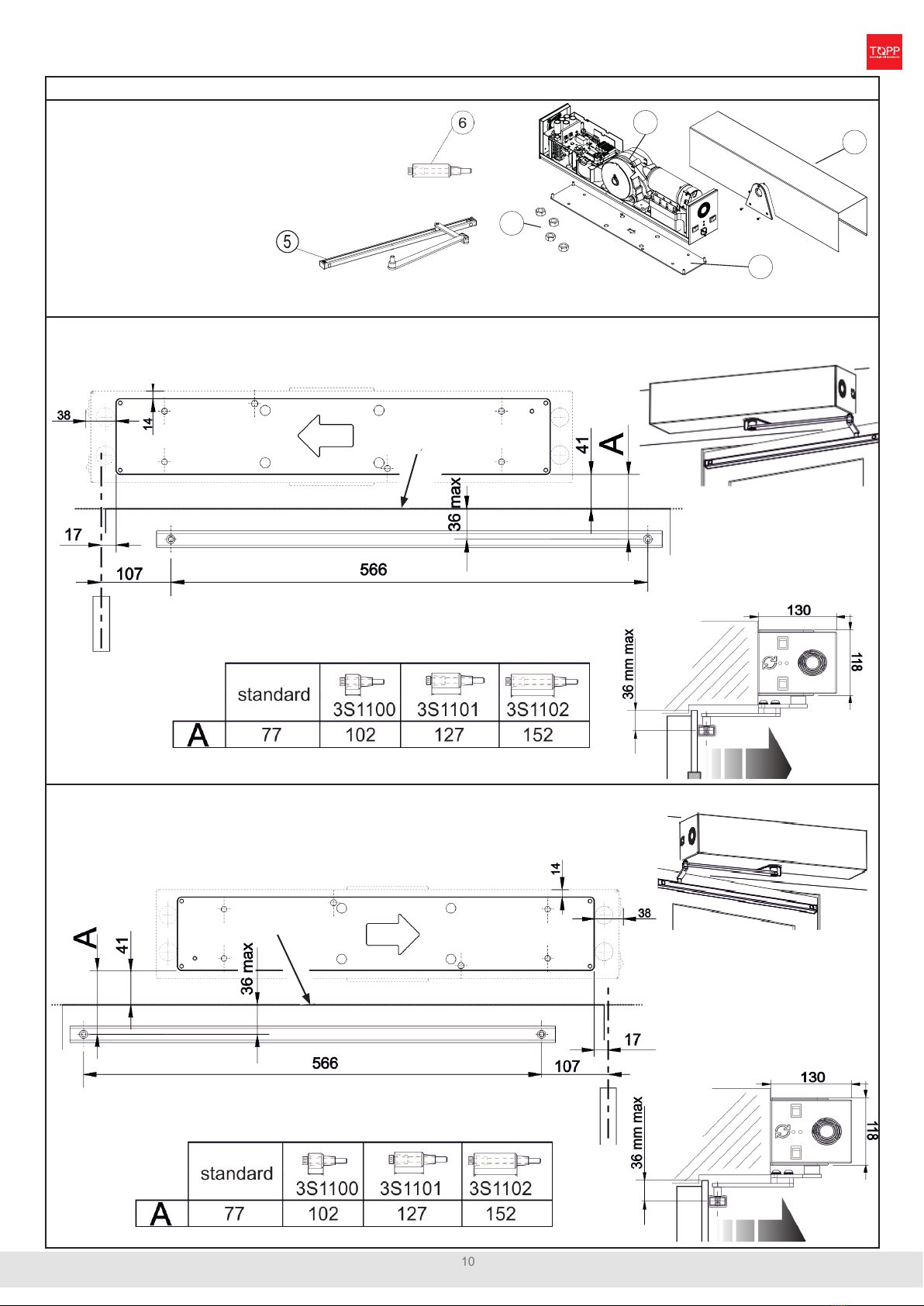

SLIDING PULLING ARM INSTALLATION
The automation must be xed on the side of the hinge.
The distance «A» varies according to the type of the Axle extension used see
table.
The automation must be xed on the side of the hinge.
The distance «A» varies according to the type of the Axle extension used see
table.
xing plate
Door edge
xing plate
Door edge
COMPONENTS
1- Cover, triangular plates
and 6 xing screws
2- Automation S200
3- Fixing plate
4- Automation tting nuts
5- Sliding arm *
6- Axle extension and
corresponding screw (optional) *
* Supplied separately
Automation positioning with left hinge
Attention to the arrow on the xing plate, the door edge
and the axis of rotation of the door
Automation positioning with right hinge
Attention to the arrow on the xing plate, the door edge
and the axis of rotation of the door

9
S200
AUTOMATION INSTALLATION
S200 with pulling sliding
arm

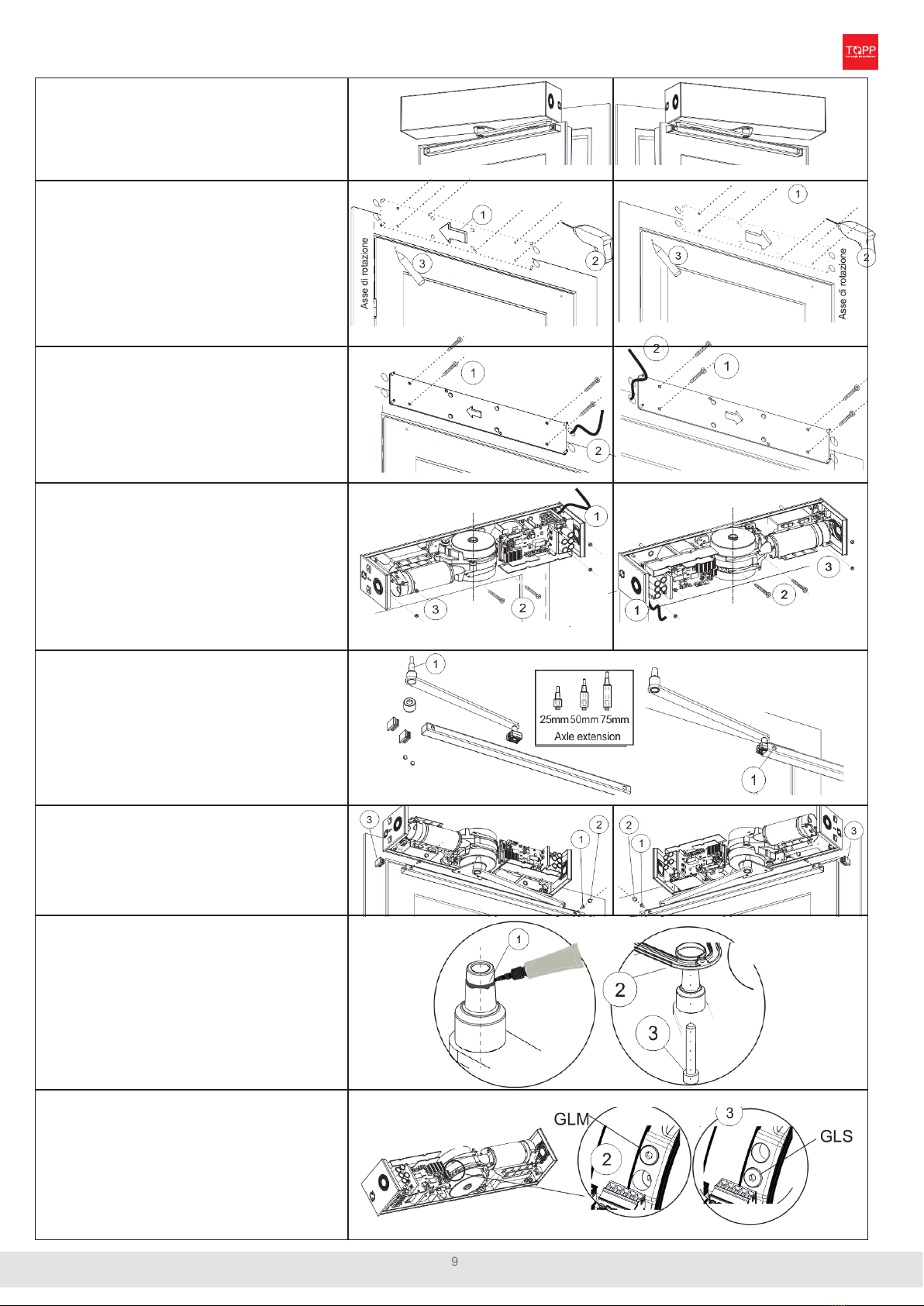

DRILLING HOLES
1. Check the correct direction of the arrow on the xing
plate
2. With a suitable drill, make the 6 holes as per the
position specications and insert the 6 anchors in the
wall holes
3. Mark the 2 xing points for for sliding guide
PLATE FITTING
1. Fasten the mounting plate with the 4 xing screws
securely.
2. Prepare the input for the electrical wires
AUTOMATION FITTING
1. Pass the electric wires to the inside of the automa-
tion.
2. Fasten the automation and tighten the two screws
indicated.
3. Fit and tighten the four nuts to the plate installed
previously
SLIDING GUIDE ASSEMBLY
1. Assemble the axle extension , if any, of the motor
axis
2. Grease the runner, then t the guide in the runner
taking care to leave the two larger holes on the
outside.
(Before installation see the Additional instructions)
SLIDING GUIDE FITTING
1. Make sure the door is closed and fasten the sliding
guide with two appropriate screws in the points previ-
ously pre-drilled.
2. Fit the caps in the front holes
3. Fit the lateral caps of the guide
ARM FITTING
1. Make sure the door is closed.
2. Apply the supplied glue to the upper part on the outer
conical surface of the pin, making a circumference all
around the pin
3. Insert the pivot pin of the arm in the housing on the
actuator, taking care to have previously tted the
triangular plate
4. Insert the fastening screws of the arm in the motor
axis and tighten with torque of 38Nm.
REMOVAL OF SPRING PRELOADING
SCREWS
1. Keep the door locked closed manually
2. Unscrew the grub screw on the motor side (GLM) and
remove it from its seat
3. Slightly open the door and remove the grub screw on
the electronic board side (GLS)
instructions for installation
SLIDING PULLING ARM INSTALLATION

10
S200
instructions for installation
11
22
33
44
SLIDING PULLING ARM INSTALLATION - ELBOW
xing plate
Door edge
xing plate
Door edge
The automation must be xed on the side of the hinge.
The distance «A» varies according to the type of the Axle exten-
sion used see table.
The automation must be xed on the side of the hinge.
The distance «A» varies according to the type of the Axle exten-
sion used see table.
COMPONENTS
1- Cover, triangular plates
and 6 xing screws
2- Automation S200
3- Fixing plate
4- Automation tting nuts
5- Sliding elbow arm *
6- Axle extension and
corresponding screw (optional) *
* Supplied separately
Automation positioning with left hinge
Attention to the arrow on the xing plate, the door edge
and the axis of rotation of the door
Automation positioning with right hinge
Attention to the arrow on the xing plate, the door edge
and the axis of rotation of the door

11
S200
AUTOMATION INSTALLATION
S200 with pulling sliding
elbow arm
DRILLING HOLES
1. Check the correct direction of the arrow on the xing
plate
2. With a suitable drill, make the 6 holes as per the
position specications and insert the 6 anchors in the
wall holes
3. Mark the 2 xing points for for sliding guide
PLATE FITTING
1. Fasten the mounting plate with the 4 xing screws
securely.
2. Prepare the input for the electrical wires
AUTOMATION FITTING
1. Pass the electric wires to the inside of the automa-
tion.
2. Fasten the automation and tighten the two screws
indicated.
3. Fit and tighten the four nuts to the plate installed
previously
SLIDING GUIDE ASSEMBLY
1. Assemble the axle extension , if any, of the motor
axis
2. Assemble the axle 90° elbow arm
3. Grease the runner, then t the guide in the runner
taking care to leave the two larger holes on the
outside.
(Before installation see the Additional instructions)
SLIDING GUIDE FITTING
1. Make sure the door is closed and fasten the sliding
fasten the sliding guide with two appropriate screws
in the points previously pre-drilled.
2. Fit the caps in the front holes
3. Fit the lateral caps of the guide
ARM FITTING
1. Make sure the door is closed.
1. Apply the supplied glue to the upper part on the
outer conical surface of the pin, making a circumfer-
ence all around the pin
2. Insert the pivot pin of the arm in the housing on the
actuator, taking care to have previously tted the
triangular plate
3. Insert the fastening screws of the arm in the motor
axis and tighten with torque of 38Nm.
REMOVAL OF SPRING PRELOADING
SCREWS
1. Keep the door locked closed manually
2. Unscrew the grub screw on the motor side (GLM)
and remove it from its seat
3. Slightly open the door and remove the grub screw on
the electronic board side (GLS)
instructions for installation
SLIDING PULLING ARM INSTALLATION - ELBOW

12
instructions for installation
ELECTRICAL CONNECTIONS S200
BEFORE MAKING THE ELECTRICAL CONNECTION OF THE AUTOMATION, CHECK THAT:
• The main power supply connected to the automation must comply with the requisites contemplated by the legislation in force in
the country of installation, and must have the technical characteristics indicated in tab.2- cap.2.5 and on the rating plate, as well
as the “CE” seal of approval.
• Electrical connection of the automation must be made exclusively by skilled, qualied technical personnel in possession of the
professional requisites contemplated by the legislation in force in the country of installation, who shall issue the client a declaration
of conformity of the connection and/or installation made.
• The main power supply connected to the automation shall be provided with an omnipolar magneto-thermal di󰀨erential 30ma switch
with aperture of at least 3 mm between the contacts. This device shall be installed in the power supply system in accordance with
the requisites contemplated in the legislation in force in the country of installation.
• The power line must be protected against earth leakage and the installation shall provide a grounding line longer than the power
line so that if pulled, the ground line is the last to go taut.
• Before making electrical connections make sure there is no power on the mains.
• The recommended power cables are as follows: H05VV-F 3X0.75, H05RN-F 3X0.75, self-extinguishing types for electrical con-
nections. For wiring of the analogue selector we recommend using a multipole 8 x 0.5 type LI-YY.
• The installer shall take care to secure the power cable stably inside the automation. The cable will be inserted in the main entry
hole of the automation with its sheath.
• Limit stripping of the primary sheath of the cable to the distance necessary for connection to the terminal
• Before making the electrical connection of the automation, check that the power cable is undamaged.
• The hole in the substratum for passage of the power cable shall be made without rough or sharp edges or points that could dam-
age the cable.
• In addition to the standard holes for cable entry, the side covers are predisposed to create another holes for cable entry.
• Connection to the power mains in the portion outside the automation shall be made on an independent channel, separate from the
connections to the control and safety devices.
• Any type of electrical material (plug, cable, clamps, etc.) used for connection must be suitable for the purpose, marked “CE” and
must comply with the requisites envisaged by the legislation in force in the country of installation. For wiring, use cable with double
insulation up to the immediate vicinity of the connectors.
• Whenever the operator is powered up with battery only, and whatever is the operation mode set, to perform a complete
power o󰀨, press and hold for 5 seconds near/reset button.
POWER SUPPLY CABLES CONNECTION
ENTRY OF ELECTRIC POWER CABLES ON THE
BOARD SIDE:
ENTRY OF ELECTRIC POWER CABLES ON THE MO-
TOR SIDE:
IF THE POWER CABLES ENTER FROM THE SIDE OF THE MOTOR, DRIVE THE AUXILIARY CABLES INSIDE
THE GROOVES/CHANNELS MADE FOR THIS PURPOSE
CHANNELS

13 instructions for installation
ELECTRICAL CONNECTIONS S200
PRE-WIRED ELECTRIC CONNECTIONS - ELECTRONIC BOARD
* not regulated

14
instructions for installation
ELECTRICAL CONNECTIONS S200
SAFETY SENSORS CONNECTION, IF THEY ARE PRESENT
CONNECTION OF IS6 TOPP SAFETY SENSOR
HOTRON SSS-5
CONNECTION OF OPTEX SAFETY SENSORS
OPTEX AO EDGE T
OPENING SAFETY SENSOR
CLOSING SAFETY SENSOR-
Modify these values if you want to reduce or enlarge the de- tection area (see sensor manual)
Congure as in gure-
OPENING SAFETY SENSOR
CLOSING SAFETY SENSOR

15 instructions for installation
ELECTRICAL CONNECTIONS S200

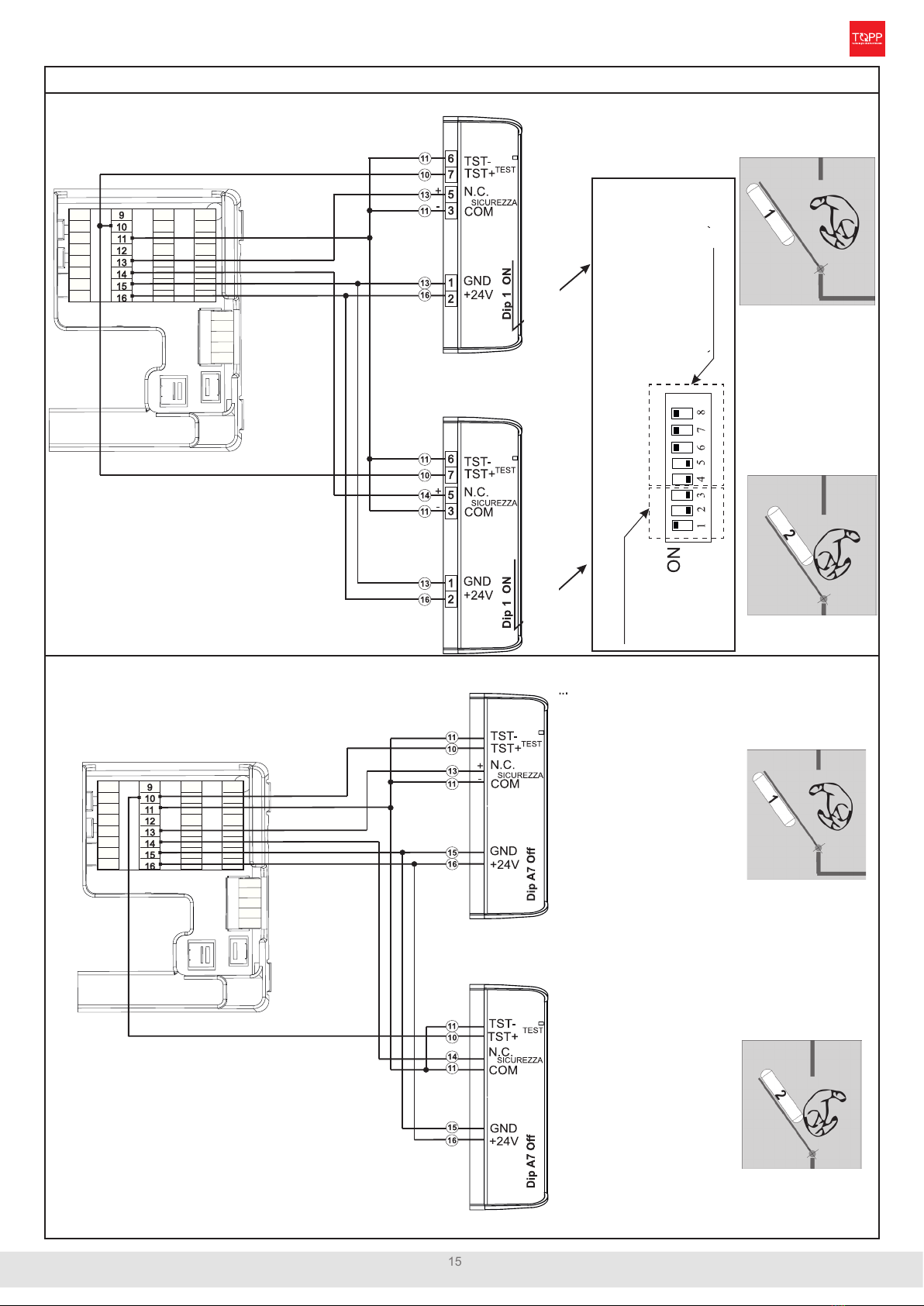

SUPPLEMENTARY SAFETY SENSORS CONNECTION, IF THEY ARE PRESENT
CONNECTION OF IS6 TOPP SUPPLEMENTARY SAFETY SENSOR-
HOTRON SSS-5
CONNECTION OF OPTEX SUPPLEMENTARY SAFETY SENSORS
OPTEX AO EDGE T
SUPPLEMENTARY OPENING SAFETY SENSOR
SUPPLEMENTARY CLOSING SAFETY SENSOR
Modify these values if you want to reduce or enlarge the detection area (see sensor manual-
Congure as in gure-
SUPPLEMENTARY OPENING SAFETY SENSOR-
SUPPLEMENTARY CLOSING SAFETY SENSOR

16
instructions for installation
1
1
7
7
1
1
8
8
1
1
9
9
1
1
2
2
2
2
0
0
1
1
3
3
2
2
1
1
1
1
4
4
2
2
2
2
1
1
5
5
2
2
3
3
2
2
4
4
GND
+24V
ATTIVAZIONE
N.O.
GND
+24V
COM
ATTIVAZIONE
N.O.
COM
RADAR INTERNO
ATTIVAZIONE
24
23
18
20
20
22
23
24
RADAR ESTERNO
ATTIVAZIONE
Parametro D= 0 oppure
D=2
D=4
Elettroserratura
+
-

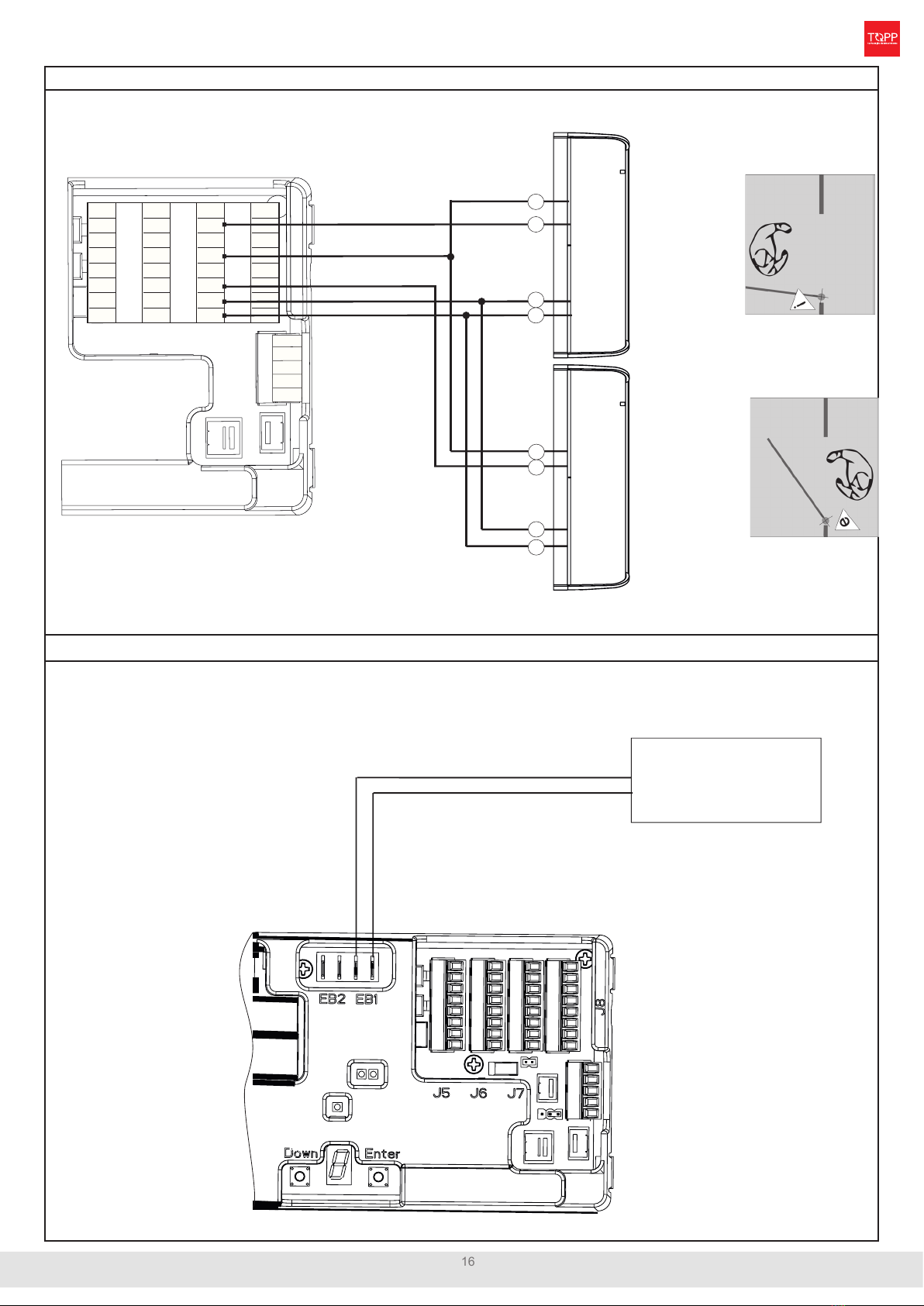

ACTIVATION SENSORS CONNECTION, IF THEY ARE PRESENT
CONNECTION OF ELECTRIC LOCK
If the electric lock is present, congure the parameters: 127,132,133.
See page 21 for programming
ELECTRICAL CONNECTIONS
S200
iINTERNAL ACTIVATION SENSOR-
EXTERNAL ACTIVATION SENSOR-
ELECTRIC LOCK

17 instructions for installation
Sensore Sicurezza
in chiusura
Sensore Sicurezza
Supplementare
in chiusura
Sensore Sicurezza
Supplementare
in apertura
Sensore Sicurezza
in apertura
SYSTEM CHECK-UP
Before performing the start-up operation check that the automation is correctly installed, the door is closed and that the
DIP switches, the plugs and the spring are correctly positioned as described on page 5.
If the installation includes the DS2S digital selector, follow the instructions for operation and start-up included with the
selector.
GIVE POWER TO THE AUTOMATION BY POSITIONING THE POWER SWITCH IN "ON"
The electronic board in its native state
shows on the display the following
ashing symbol:
CHECK THE CONFIGURATION OF THE MAIN PARAMETERS
If your installation di󰀨ers from those parameters, follow the programming instructions on page 21
START THE SELF LEARNING PROCESS
• Clear people or things o󰀨 of the safety sensors detection areas. There must be no obstacles in the door movement
area during the whole procedure.
• Start the self-learning procedure by pressing both keys <ENTER> and <DOWN> on the automation for 5 seconds.
The display shows the word “RESET” blinking.
• The automation acknowledges the presence of the safety sensors, controls that the door is closed and starts a
cycle by opening 70°.
• At this point, move the door manually to maximum opening position desired.
!!! PERFORM ONLY THE OPENING MOVEMENT OF THE DOOR: IN THE EVENT OF WRONG
POSITIONING,REPEAT THE PROCEDURE FROM THE BEGINNING !!!
Press the <ENTER> button on the board to conrm the maximum
opening point.
After 20 seconds, the door closes and goes back to normal operation.
If the self-learning procedure has been completed successfully, the
detected sensors are shown on the display (as in the example in the side)
to allow the installer to verify the correct acquisition of the sensors.
If an error occurs, check the error map on page 20.
In Full Energy it is essential that at least the two main safety sensors are installed, the lack of even one of the sensors
causes an error. The safety sensors are monitored and therefore must respond when the test signal is enabled. In
this way the electronics recognizes the sensors that respond to the test signal as present. If non-monitored sensors are
used, before performing the self-learning procedure, the installer must change the parameter 105 (for programming
see pages 21) of the sensor logics to disable the test.
For programming remote controls (up to 8):
1.Press and hold the <DOWN> key for 5 seconds, the display shows the word “RADIO” blinking on the 7-segment display.
2.If you are using the 4-channel Topp TS1S remote control, press the second button (closed function). To conrm that the remote control
has been memorized, the blinking word “RADIO” will no longer be displayed.
For removing: memorized remote controls
1.Press and hold the <DOWN> key for 5 seconds, the display shows the word “RADIO” blinking on the 7-segment display.
2.Press and hold the “DOWN” key for a further 5 seconds, all connected remote controls are cleared. To conrm that all programmed remo-
te controls have been removed, the blinking word “RADIO” will no longer be displayed.
A
b
C
d
E
2
3
1
2
1
FIRST STARTUP - SELF LEARNING S200
Radar logics: N.O. with the inside safety sensor in closure which commands door opening
VALUE
Door weight 75 Kg
Door width 800 mm
Architrave depth 0 mm
Safety sensors logic: N.C. with active high test
DESCRIPTION
-parameter 101
-parameter 102
-parameter 103
-parameter 104
-parameter 105
PARAMETER
Safety sensor in closing-
Safety sensor in opening-
Supplementary
Safety sensor
in opening-
Supplementary
Safety sensor
in closing-

18
instructions for installation
DOUBLE LEAF OPERATION
Perform the mechanical installation and the electric wiring assuming the two leaves would be independent, following page
6 in presence of articulated arm or page 8 sliding arm or page10 elbow arm.
The Double leaf operation has a MASTER and a SLAVE leaf. The MASTER leaf is the rst one to OPEN.
ADDITIONAL CONNECTIONS AND SPECIFIC PARAMETERS SETTING
• Connect the MASTER and SLAVE boards
by following the wiring diagram on the right
• Make sure the operators are installed cor-
rectly and the door leaves are in CLOSE
position
• Set parameter as 1 on MASTER and 2
on SLAVE
• Set independently for each wing the pa-
rameters 101,102,103,104,105 (related to
weight, width, wall depth, sensors logic for
activation and safety) as shown in page 21
• Following the instructions on page 17, per-
form the learning process of the MASTER
door leaf rst and the SLAVE door leaf
later; during the SLAVE door leaf learning
process, the MASTER one will automati-
cally move to OPEN position. +24V
Seriale B
GND massa
Seriale A
1
2
3
5
1 2 3 4 5 1 2 3 4 5
SCHEDA ELETTRONIC A MASTER SCHEDA ELETTRONIC A SLAVE
DOUBLE LEAF INSTALLATION S200
MASTER BOARD
SLAVE BOARD-
*
* view disabled button connection Servo Assisted Manual Opening page 29

19 instructions for installation
MAINTENANCE - PARTS REQUEST - DEMOLITION - NEAR S200
MAINTENANCE
A regular maintenance is required to ensure the correct operation of the automation, this maintenance activity may be
carried out either by TOPP, in accordance with a specic agreement made with the user, or by the installation technician
or by other competent and qual-ied technical personnel in possession of all legal requirements.
All works of maintenance, except functional alterations, must be carried out with the door closed and the power discon-
nected (including the emergency battery).
The recommended periodical routine maintenance should include at least the following activi-ties:
Every 3 months:
If present, check the battery charge level:
1) Turn on automation
2) Enter programming mode and congure parameter 110: with a value other than “0”
3) Exit programming and disconnect the 230V power supply to the automation.
In the event that the leaves do not open, the emergency batteries must be replaced.
Every six months:
• Check the door glide and eliminate any friction; make sure the hinges are in good condition and not worn;
• clean the radar and safety sensors with non-abrasive detergents;
• check that there are no blind spots in the vicinity of the moving doors which might not be detected by the radar and
safety sensors;
• check the stability of the automation and secure fastening of all the screws: actuator - arm;
• check the connections and electric wiring;
• power the automation and check the stability of the door, making sure that the movement of the panels is smooth
and friction-free; disconnect the power and check that the emergency batteries open the door completely on the
passageway;
• if worn, change the arm and other worn parts.
Every 24 months:
• replace the emergency battery system (remember to disconnect the power).
• The duration of the battery back is a󰀨ected by the environmental and functional conditions of the automation.
ACCESSORIES AND PARTS ON REQUEST
Always use original spare parts and accessories. Non-original parts could endanger safe and e󰀩cient operation of the
automation. Original spare parts and accessories must be ordered exclusively from the dealer or manufacturer, commu-
nicating the type, model, serial number and year of construction of the automation.
DEMOLITION
Demolition of the automation must be carried out in respect of the legislation in force on the subject of environmental
safeguards. The mandatory rst step is to proceed with di󰀨erentiation of the parts of the automation according to the dif-
ferent types of material.
The emergency battery must be removed from the device before disposal (remember to disconnect power) because the
battery pack contains hazardous substances that must be eliminated safely.
“NEAR” Function
It performs a re-alignment of the operator in case of upcoming errors
To activate the procedure press and hold for 2 seconds the “NEAR” button on the analog selector,
To activate the procedure use the dedicsted command on the DS2S digital selector,
To activate the procedure press and hold for 2 seconds the “CLOSE” buttin of the TS1S wireless function selector
OPERATOR RESTART IN CASE OF POWER CUT (NEAR)
Whenever the operator is switched o󰀨 (voluntarily or after a power cut), once it is restarted, a soft reset “NEAR” procedure
is automatically performed by following the setting of the parameter 117 (default value “0” ) the automation self-realigns
with the door in closed position.
If the automation was pre-set in CLOSE mode, the NEAR (re-alignment) will be performed only at the rst operation
(through impulse) or once the door mode will be changed from CLOSE. The re-alignment will follow the setting of pa-
rameter 117.
SAFETY CONCERNS: BRAKING
The system is equipped with a braking circuit that acts in case of
grave error on the board,
absence of power and
battery is low.
The buzzer sounds when there is an error in the system.

20
instructions for installation
LIST OF ERROR MESSAGES AND NOTICES S200
