Toro 22410 User manual

FormNo.3430-867RevA
LooseMaterialsBucket
CompactToolCarrier
ModelNo.22410—SerialNo.403154786andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3430-867*A

WARNING
CALIFORNIA
Proposition65Warning
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thebucketisaload-bearingattachmentintendedto
beusedonaT orotoolcarrier.Itisdesignedprimarily
formovingrock,dirt,sand,orothermaterials.Using
thisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.
Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,or
additionalinformation,contactanAuthorizedService
DealerorT oroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g240343
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Safety.......................................................................3
GeneralSafety...................................................3
SlopeSafety.......................................................3
BucketSafety.....................................................4
MaintenanceandStorageSafety........................4
SafetyandInstructionalDecals..........................4
ProductOverview.....................................................5
Specications....................................................5
MaximumMaterialDensityatCapacity...............5
Operation..................................................................6
InstallingandRemovingtheAttachment.............6
FillingtheBucket................................................6
TransportPosition..............................................6
Storage.....................................................................7
©2019—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Safety
DANGER
Theremaybeburiedutilitylinesinthework
area.Diggingintothemmaycauseashock
oranexplosion.
Havethepropertyorworkareamarkedfor
buriedlinesanddonotdiginmarkedareas.
Contactyourlocalmarkingserviceorutility
companytohavethepropertymarked(for
example,intheUS,call811orinAustralia,
call1100forthenationwidemarkingservice).
GeneralSafety
Alwaysfollowallsafetyinstructionstoavoidserious
injuryordeath.
•Donottransportanattachmentwiththearms
raised.Alwaystransporttheattachmentcloseto
theground;refertoTransportPosition(page6).
•Havethepropertyorworkareamarkedforburied
linesandotherobjects,anddonotdiginmarked
areas.
•ReadandunderstandthecontentofthisOperator’s
Manualbeforestartingtheengine.
•Useyourfullattentionwhileoperatingthe
machine.Donotengageinanyactivitythat
causesdistractions;otherwise,injuryorproperty
damagemayoccur.
•Neverallowchildrenoruntrainedpeopleto
operatethemachine.
•Keepyourhandsandfeetawayfromthemoving
componentsandattachments.
•Donotoperatethemachinewithouttheguards
andothersafetyprotectivedevicesinplaceand
workingonthemachine.
•Keepbystandersandpetsawayfromthemachine.
•Stopthemachine,shutofftheengine,andremove
thekeybeforeservicing,fueling,orunclogging
themachine.
Improperlyusingormaintainingthismachinecan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalways
payattentiontothesafety-alertsymbol,which
meansCaution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.
SlopeSafety
•Operatethemachineupanddownslopeswith
theheavyendofthemachineuphill.Weight
distributionchangeswithattachments.Anempty
load-bearingattachmentmakestherearofthe
machinetheheavyend,andafullload-bearing
attachmentmakesthefrontofthemachinethe
heavyend.Mostotherattachmentsmakethefront
ofmachinetheheavyend.
•Keeptheattachmentintheloweredposition
whenonslopes.Raisingtheattachmentona
slopeaffectsthestabilityofthemachine.
•Slopesareamajorfactorrelatedtolossofcontrol
andtip-overaccidents,whichcanresultinsevere
injuryordeath.Operatingthemachineonany
slopeoruneventerrainrequiresextracaution.
•Establishyourownproceduresandrulesfor
operatingonslopes.Theseproceduresmust
includesurveyingthesitetodeterminewhich
slopesaresafeformachineoperation.Always
usecommonsenseandgoodjudgmentwhen
performingthissurvey.
•Slowdownanduseextracareonhillsides.Ground
conditionscanaffectthestabilityofthemachine.
•Avoidstartingorstoppingonaslope.Ifthe
machinelosestraction,proceedslowly,straight
downtheslope.
•Avoidturningonslopes.Ifyoumustturn,turn
slowlyandkeeptheheavyendofthemachine
uphill.
•Keepallmovementsonslopesslowandgradual.
Donotmakesuddenchangesinspeedor
direction.
•Ifyoufeeluneasyoperatingthemachineona
slope,donotdoit.
•Watchforholes,ruts,orbumps,asuneventerrain
couldoverturnthemachine.Tallgrasscanhide
obstacles.
•Usecautionwhenoperatingonwetsurfaces.
Reducedtractioncouldcausesliding.
•Evaluatetheareatoensurethatthegroundis
stableenoughtosupportthemachine.
•Usecautionwhenoperatingthemachinenearthe
following:
–Drop-offs
–Ditches
–Embankments
–Bodiesofwater
Themachinecouldsuddenlyrolloverifatrack
goesovertheedgeortheedgecavesin.Maintain
asafedistancebetweenthemachineandany
hazard.
•Donotremoveoraddattachmentsonaslope.
•Donotparkthemachineonahillsideorslope.
3

BucketSafety
•Weargloves,eyeprotection,longpants,
substantialslip-resistantfootwear,andhearing
protectionduringoperationorwhileadjustingor
repairingthemachine.
•Alwayslowertheattachmentandshutoffthe
machineeachtimeyouleavetheoperating
position.
•Whenliftingtheattachment,keepitleveland
preventtheloadfromspillingbackward.
MaintenanceandStorage
Safety
•Checkfastenersatfrequentintervalsforproper
tightnesstoensurethattheequipmentisinsafe
operatingcondition.
•RefertotheOperator’sManualforimportant
detailsifyoustoretheattachmentforanextended
periodoftime
•Maintainorreplacesafetyandinstructionlabels,
asnecessary.
SafetyandInstructional
Decals
Safetydecalsandinstructionsare
easilyvisibletotheoperatorandare
locatednearanyareaofpotential
danger.Replaceanydecalthatis
damagedormissing.
decal99-9935
99-9935
1.Tippinghazard—readtheOperator’sManual;themaximum
loadratingis234kg(515lb).
decal133-8061
133-8061
4

ProductOverview
Specications
Note:Specicationsanddesignaresubjectto
changewithoutnotice.
Width122cm(48inches)
Length66cm(26inches)
Height46cm(18inches)
Weight79kg(175lb)
Capacity:
SAEstruckcapacity0.18m3(6.4ft3)
Heapedcapacity0.24m3(8.6ft3)
Maximumloadrating234kg(515lb)
Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineT oro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.
MaximumMaterialDensityat
Capacity
Thedensityofthematerialsmovedbythebucket
variesand,therefore,sodoestheamountofmaterial
thatthebucketcancarrybeforereachingthe
maximumloadrating.Thersttableliststhedensityof
materialthatcanbecarried,bothheapedandstruck
(i.e.,leveledoff),inthebucket.TheMaterialDensity
tablelistscommonmaterialsandtheirdensities.
MaximumDensityforCapacity
BucketCapacityMaximumDensity
Struck(leveled)bucket1200kg/m3(75lb/ft3)
Heapedbucket950kg/m3(60lb/ft3)
Note:Maximumdensity=Maximumloadrating/Capacity
MaterialDensity
MaterialDensity(Approximate)
Caliche1250kg/m3(78lb/ft3)
Clay:
Naturalbed1600kg/m3(104lb/ft3)
Dry1480kg/m3(93lb/ft3)
Wet1660kg/m3(104lb/ft3)
Withgravel,dry1420kg/m3(89lb/ft3)
Withgravel,wet1540kg/m3(96lb/ft3)
Coal:
Anthracite,broken1100kg/m3(69lb/ft3)
Bituminous,broken830kg/m3(52lb/ft3)
Earth:
Dry,packed1510kg/m3(94lb/ft3)
Wet,packed1600kg/m3(100lb/ft3)
Loam1250kg/m3(78lb/ft3)
Granite,brokenorlarge
crushed
1660kg/m3(104lb/ft3)
Gravel:
Dry1510kg/m3(94lb/ft3)
Pitrun(graveledsand)1930kg/m3(120lb/ft3)
Dry,13to51mm(1/2to2
inch)
1690kg/m3(106lb/ft3)
Wet,13to51mm(1/2to2
inch)
2020kg/m3(126lb/ft3)
Limestone,brokenorcrushed1540kg/m3(96lb/ft3)
Sand:
Dry1420kg/m3(89lb/ft3)
Wet1840kg/m3(115lb/ft3)
Withgravel,dry1720kg/m3(107lb/ft3)
Withgravel,wet2020kg/m3(126lb/ft3)
Sandstone,broken1510kg/m3(94lb/ft3)
Shale1250kg/m3(78lb/ft3)
Slag,broken1750kg/m3(109lb/ft3)
Stone,crushed1600kg/m3(100lb/ft3)
Topsoil950kg/m3(59lb/ft3)
5

Operation
Determinetheleftandrightsidesofthemachinefrom
thenormaloperatingposition.
InstallingandRemoving
theAttachment
RefertotheOperator’sManualforthetractionunitfor
theinstallationandremovalprocedure.
Important:Beforeinstallingtheattachment,
positionthemachineonalevelsurface,ensure
thatthemountplatesarefreeofanydirtordebris,
andensurethatthepinsrotatefreely.Ifthepins
donotrotatefreely,greasethem.
Note:Alwaysusethetractionunittoliftandmove
theattachment.
WARNING
Ifyoudonotfullyseatthequick-attach
pinsthroughtheattachmentmountplate,
theattachmentcouldfalloffthemachine,
crushingyouorbystanders.
Ensurethatthequick-attachpinsarefully
seatedintheattachmentmountplate.

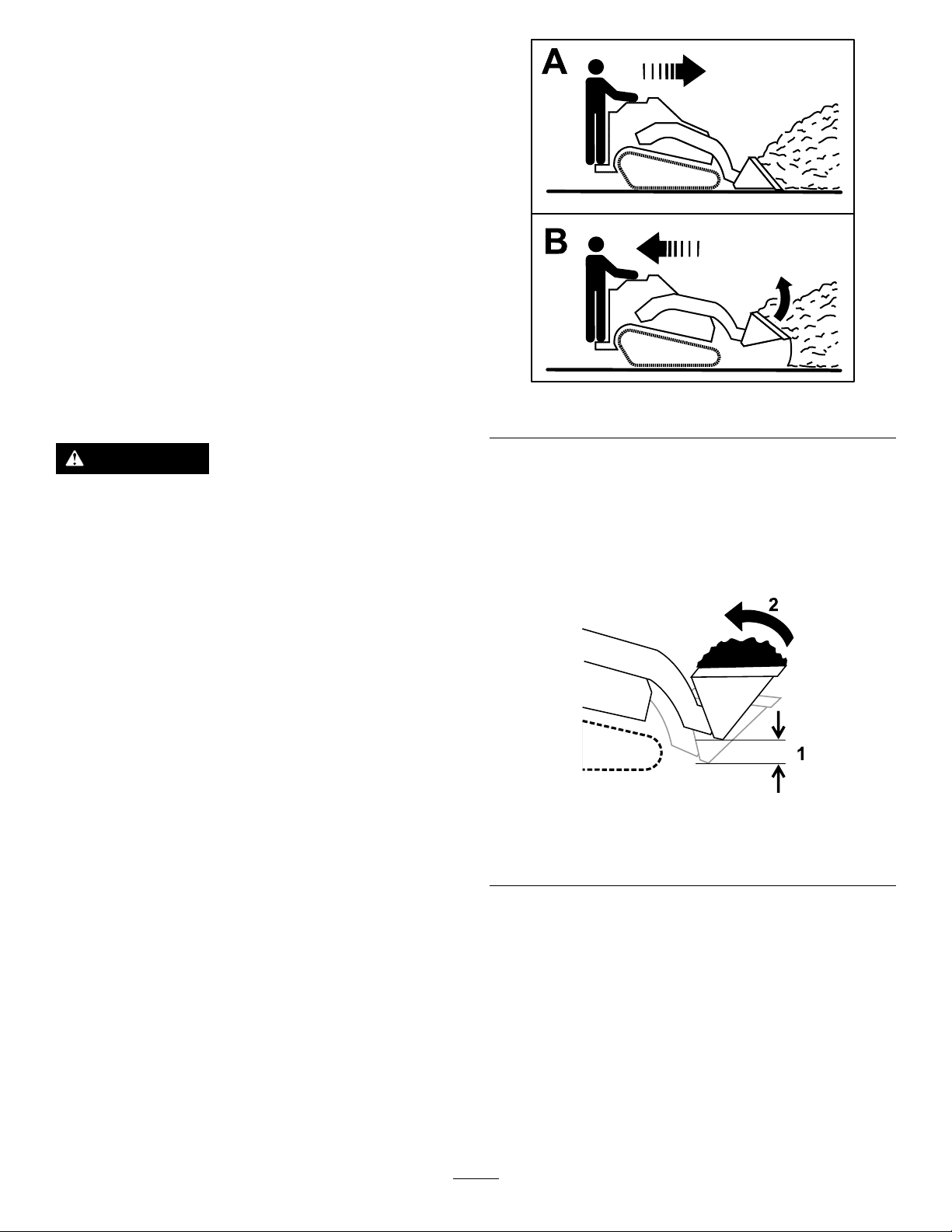

FillingtheBucket
1.Positionthebucketleveltotheground.
2.Driveforwardandinsertthebucketintothepile
ofmaterial.
3.Whenthebucketisfull,drivethemachinein
reverseandgentlytiltthebucketrearwardto
decreasetheliftingresistancewhenyouliftthe
load.
Important:Alwayscarryloadsclosetothe
ground;refertoTransportPosition(page6).
g266856
Figure3
TransportPosition
Whentransportingaload,keeptheattachmentas
closetothegroundaspossible,nomorethan15cm
(6inches)abovetheground.Tiltitrearwardtokeep
theloadlevel.
g240205
Figure4
1.Nomorethan15cm(6
inches)abovetheground
2.Tilttheloadrearward
6

Storage
1.Beforelong-termstorage,washtheattachment
withmilddetergentandwatertoremovedirtand
grime.
2.Paintallscratchedorbaremetalsurfaces.
Note:PaintisavailablefromyourAuthorized
ServiceDealer.
3.Storetheattachmentinaclean,drygarageor
storagearea.Coverittoprotectitandkeepit
clean.
7

CaliforniaProposition65WarningInformation
Whatisthiswarning?
Youmayseeaproductforsalethathasawarninglabellikethefollowing:
WARNING:CancerandReproductiveHarm—www.p65Warnings.ca.gov.
WhatisProp65?
Prop65appliestoanycompanyoperatinginCalifornia,sellingproductsinCalifornia,ormanufacturingproductsthatmaybesoldinorbroughtinto
California.ItmandatesthattheGovernorofCaliforniamaintainandpublishalistofchemicalsknowntocausecancer,birthdefects,and/orother
reproductiveharm.Thelist,whichisupdatedannually,includeshundredsofchemicalsfoundinmanyeverydayitems.ThepurposeofProp65isto
informthepublicaboutexposuretothesechemicals.
Prop65doesnotbanthesaleofproductscontainingthesechemicalsbutinsteadrequireswarningsonanyproduct,productpackaging,orliteraturewith
theproduct.Moreover,aProp65warningdoesnotmeanthataproductisinviolationofanyproductsafetystandardsorrequirements.Infact,the
CaliforniagovernmenthasclariedthataProp65warning“isnotthesameasaregulatorydecisionthataproductis‘safe’or‘unsafe.’”Manyofthese
chemicalshavebeenusedineverydayproductsforyearswithoutdocumentedharm.Formoreinformation,gotohttps://oag.ca.gov/prop65/faqs-view-all.
AProp65warningmeansthatacompanyhaseither(1)evaluatedtheexposureandhasconcludedthatitexceedsthe“nosignicantrisklevel”;or(2)
haschosentoprovideawarningbasedonitsunderstandingaboutthepresenceofalistedchemicalwithoutattemptingtoevaluatetheexposure.
Doesthislawapplyeverywhere?
Prop65warningsarerequiredunderCalifornialawonly.ThesewarningsareseenthroughoutCaliforniainawiderangeofsettings,includingbutnot
limitedtorestaurants,grocerystores,hotels,schools,andhospitals,andonawidevarietyofproducts.Additionally,someonlineandmailorder
retailersprovideProp65warningsontheirwebsitesorincatalogs.
HowdotheCaliforniawarningscomparetofederallimits?
Prop65standardsareoftenmorestringentthanfederalandinternationalstandards.TherearevarioussubstancesthatrequireaProp65warning
atlevelsthatarefarlowerthanfederalactionlimits.Forexample,theProp65standardforwarningsforleadis0.5μg/day,whichiswellbelow
thefederalandinternationalstandards.
Whydon’tallsimilarproductscarrythewarning?
•ProductssoldinCaliforniarequireProp65labellingwhilesimilarproductssoldelsewheredonot.
•AcompanyinvolvedinaProp65lawsuitreachingasettlementmayberequiredtouseProp65warningsforitsproducts,butothercompanies
makingsimilarproductsmayhavenosuchrequirement.
•TheenforcementofProp65isinconsistent.
•CompaniesmayelectnottoprovidewarningsbecausetheyconcludethattheyarenotrequiredtodosounderProp65;alackofwarningsfora
productdoesnotmeanthattheproductisfreeoflistedchemicalsatsimilarlevels.
WhydoesToroincludethiswarning?
Torohaschosentoprovideconsumerswithasmuchinformationaspossiblesothattheycanmakeinformeddecisionsabouttheproductstheybuyand
use.T oroprovideswarningsincertaincasesbasedonitsknowledgeofthepresenceofoneormorelistedchemicalswithoutevaluatingthelevelof
exposure,asnotallthelistedchemicalsprovideexposurelimitrequirements.WhiletheexposurefromToroproductsmaybenegligibleorwellwithinthe
“nosignicantrisk”range,outofanabundanceofcaution,T orohaselectedtoprovidetheProp65warnings.Moreover,ifT orodoesnotprovidethese
warnings,itcouldbesuedbytheStateofCaliforniaorbyprivatepartiesseekingtoenforceProp65andsubjecttosubstantialpenalties.
RevA
