Toro MB-1600 User manual

FormNo.3440-413RevA
MB-1600MudBuggy
ModelNo.68038—SerialNo.405500000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3440-413*A

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.
Becauseinsomeareastherearelocal,state,or
federalregulationsrequiringthatasparkarresterbe
usedontheengineofthismachine,asparkarresteris
availableasanoption.Ifyourequireasparkarrester,
contactyourAuthorizedServiceDealer.GenuineToro
sparkarrestersareapprovedbytheUSDAForestry
Service.
Theenclosedengineowner'smanualissupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCaliforniaEmission
ControlRegulationofemissionsystems,maintenance,
andwarranty.Replacementsmaybeorderedthrough
theenginemanufacturer.
WARNING
CALIFORNIA
Proposition65Warning
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Batteryposts,terminals,andrelated
accessoriescontainleadandlead
compounds,chemicalsknownto
theStateofCaliforniatocause
cancerandreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thismachineisintendedtobeusedbyprofessional,
hiredoperatorsincommercialapplications.This
machineisastable,reliable,andproductivemachine
forcarryingandmovingmaterialsforanyjobsite.Itis
primarilydesignedtomoveconcrete,mortar,gravel,
dirt,ordebrisaroundjobsites.Usingthisproduct
forpurposesotherthanitsintendedusecouldprove
dangeroustoyouandbystanders.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.Toro.comforproductandaccessory
information,helpndingadealer,ortoregisteryour
product.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorT oroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g328431
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
©2020—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Safety.......................................................................4
GeneralSafety...................................................4
SafetyandInstructionalDecals..........................4
ProductOverview.....................................................8
Controls.............................................................8
Specications....................................................9
BeforeOperation.................................................10
BeforeOperationSafety...................................10
AddingFuel......................................................10
PerformingDailyMaintenance..........................12
DuringOperation.................................................12
DuringOperationSafety...................................12
StartingtheEngine...........................................13
ShuttingOfftheEngine.....................................13
OperatingtheMachine.....................................13
AfterOperation....................................................15
AfterOperationSafety......................................15
ParkingtheMachine.........................................15
MovingtheMachinewithoutEngine
Power............................................................15
TransportingtheMachine.................................15
LiftingtheMachine...........................................16
UsingtheQuick-ReleaseTireHubs..................16
Maintenance...........................................................18
RecommendedMaintenanceSchedule(s)...........18
Pre-MaintenanceProcedures..............................19
MaintenanceSafety..........................................19
RemovingtheCowl...........................................19
Lubrication..........................................................20
GreasingtheMachine.......................................20
EngineMaintenance...........................................21
CheckingtheEngine-OilLevel..........................21
ServicingtheAirCleaner..................................21
ChangingtheEngineOil...................................23
ReplacingtheSparkPlug.................................23
FuelSystemMaintenance...................................24
CleaningtheSedimentCup..............................24
ChangingtheFuelFilter....................................24
DrainingtheFuelT ank......................................26
DriveSystemMaintenance..................................26
AdjustingtheTransmissionReturntoNeutral
Position.........................................................26
CheckingtheTiresandLugNuts......................27
ControlsSystemMaintenance.............................27
BrakeMaintenance...........................................27
HydraulicSystemMaintenance...........................29
CheckingtheHydraulic-FluidLevel...................29
ReplacingtheHydraulicFilter...........................30
ChangingtheHydraulicFluid............................31
CheckingtheHydraulicLines...........................31
Cleaning..............................................................32
RemovingDebrisfromtheMachine..................32
Storage...................................................................32
Troubleshooting......................................................34
3

Safety
GeneralSafety
•Readandunderstandthecontentsofthis
Operator’sManualbeforestartingtheengine.
•Donotoperatethemachinewithoutallguards
andothersafetyprotectivedevicesinplaceand
functioningproperlyonthemachine.
•Parkthemachineonalevelsurface,lowerthe
hopper,shutofftheengine,andremovethekey
beforeleavingtheoperatingposition.
•Keepyourhandsandfeetawayfrommoving
parts.Ifpossible,donotmakeadjustmentswith
theenginerunning.
Improperlyusingormaintainingthemachinecan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafety-alertsymbol(Figure2),which
meansCaution,Warning,orDanger—personal
safetyinstruction.Failuretocomplywiththe
instructionmayresultinpersonalinjuryordeath.
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
125-4961
decal125-4961
125–4961
1.Reverse
decal125-4964
125–4964
1.ReadtheOperator’sManualforoilinformation.
decal125-4959
125–4959
1.Crushinghazard—neverplaceyourheadunderthedump
trailer.
125-4960
decal125-4960
125–4960
1.Forward
4

decal125-4962
125–4962
1.Engagetheparkingbrake2.Disengagetheparking
brake
decal125-4967
125-4967
1.Liftpoint
decal125-6694
125–6694
1.Tiedownlocation
5

decal127-2855
127–2855
1.Warning—readtheOperator’sManual;wearhearing
protection.
5.Tippinghazard—donotraisethedumptrailerwhilemoving;
moveforwardslowly;raisethedumptrailerslowly.
2.Warning—donotoperatethemachinewithoutpropertraining.6.Carbonmonoxidepoisonhazard—donotruntheengine
indoors.
3.Warning—stayawayfrommovingparts;keepallguardsand
shieldsinplace.
7.Explosionhazard—shutofftheengineandextinguishall
amesbeforerefueling.
4.Warning—keepbystandersawaywhileoperatingthe
machine;checkbehindyouwhenmovinginreverse.
decal130-2844
130-2844
1.Raisethepedaltolower
thehopper.
2.Lowerthepedaltoraise
thehopper.
decal125-4963
125-4963
1.Warning—donottouchhotsurfaces.
6

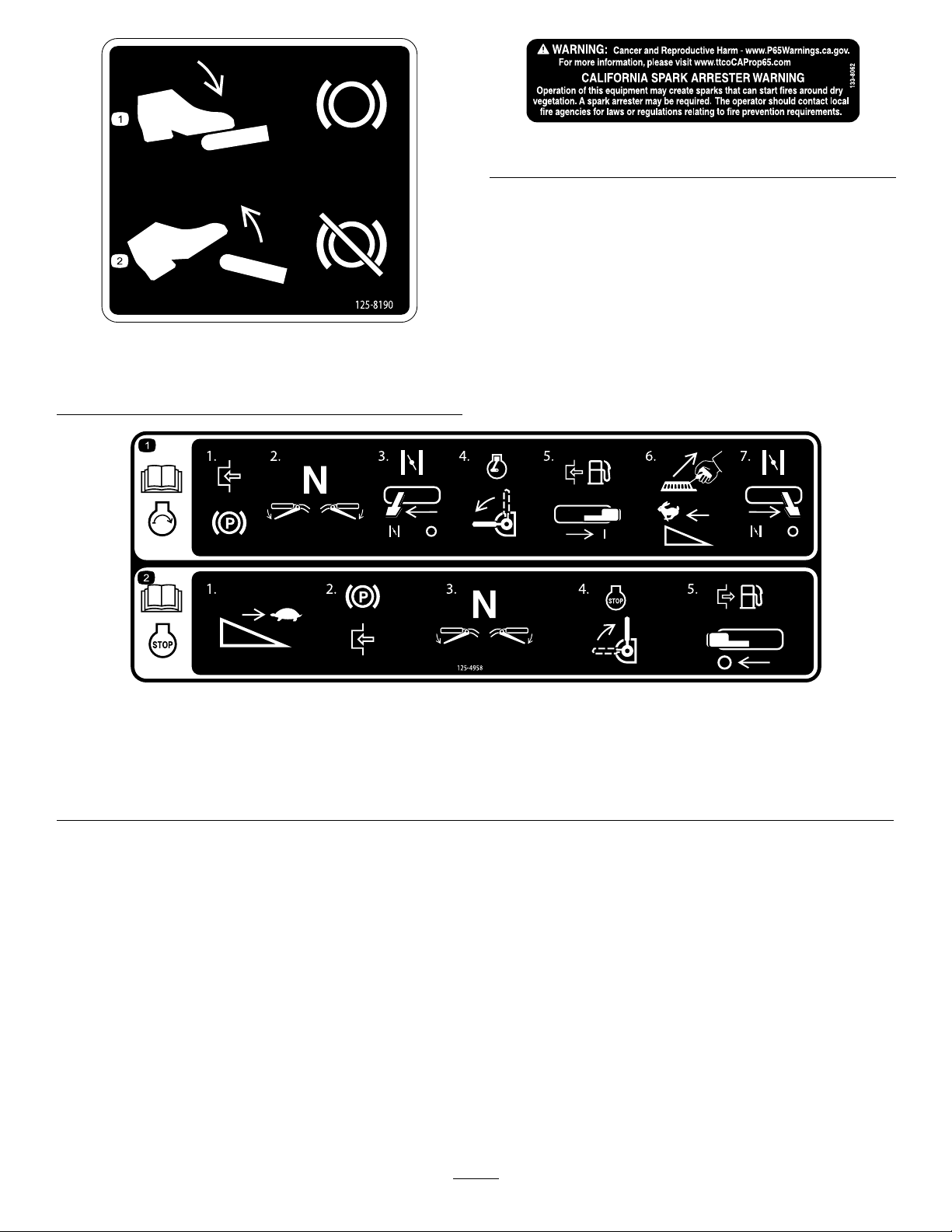

decal125-8190
125–8190
1.Pressdownonthepedal
toapplytheservicebrake
2.Releasethepedalto
releasetheservicebrake
decal133-8062
133-8062
decal125-4958
125–4958
1.ReadtheOperator’sManualforinformationonstartingthe
engine—1)Engagetheparkingbrake;2)Setthedriveto
neutral;3)Openthechoke;4)Turntheengineswitchon;5)
Engagethefuelswitch;6)Pulltherecoilstarterandsetthe
throttletofast;7)Closethechoke.
2.ReadtheOperator’sManualforinformationonshuttingoff
theengine—1)Setthethrottletoslow;2)Engagetheparking
brake;3)Setthedrivetoneutral;4)Turntheengineswitchto
stop;5)Disengagethefuelswitch.
7

ProductOverview
g328429
Figure3
1.Operatorplatform4.Drivetires7.Dumphandle/pedal10.Brakepedal
2.Steertires5.Handlebars8.Fueltank
3.Reverse-speed-control
lever
6.Forward-speed-control
lever
9.Parkingbrake
Controls
Becomefamiliarwithallthecontrols(Figure3)before
youstarttheengineandoperatethemachine.
BrakePedal
Applythefoot-operatedbrakepedaltostopthe
machine(Figure3).
Forward-Speed-ControlLever
Squeezetheforward-speed-controllever(Figure3)to
movethemachineforward.Themoreyousqueeze
thehandle,thefasterthemachinewilltravel.
Reverse-Speed-ControlLever
Squeezethereverse-speed-controllever(Figure3)to
reversethemovementofthemachine.Themoreyou
squeezethehandle,thefasterthemachinewilltravel.

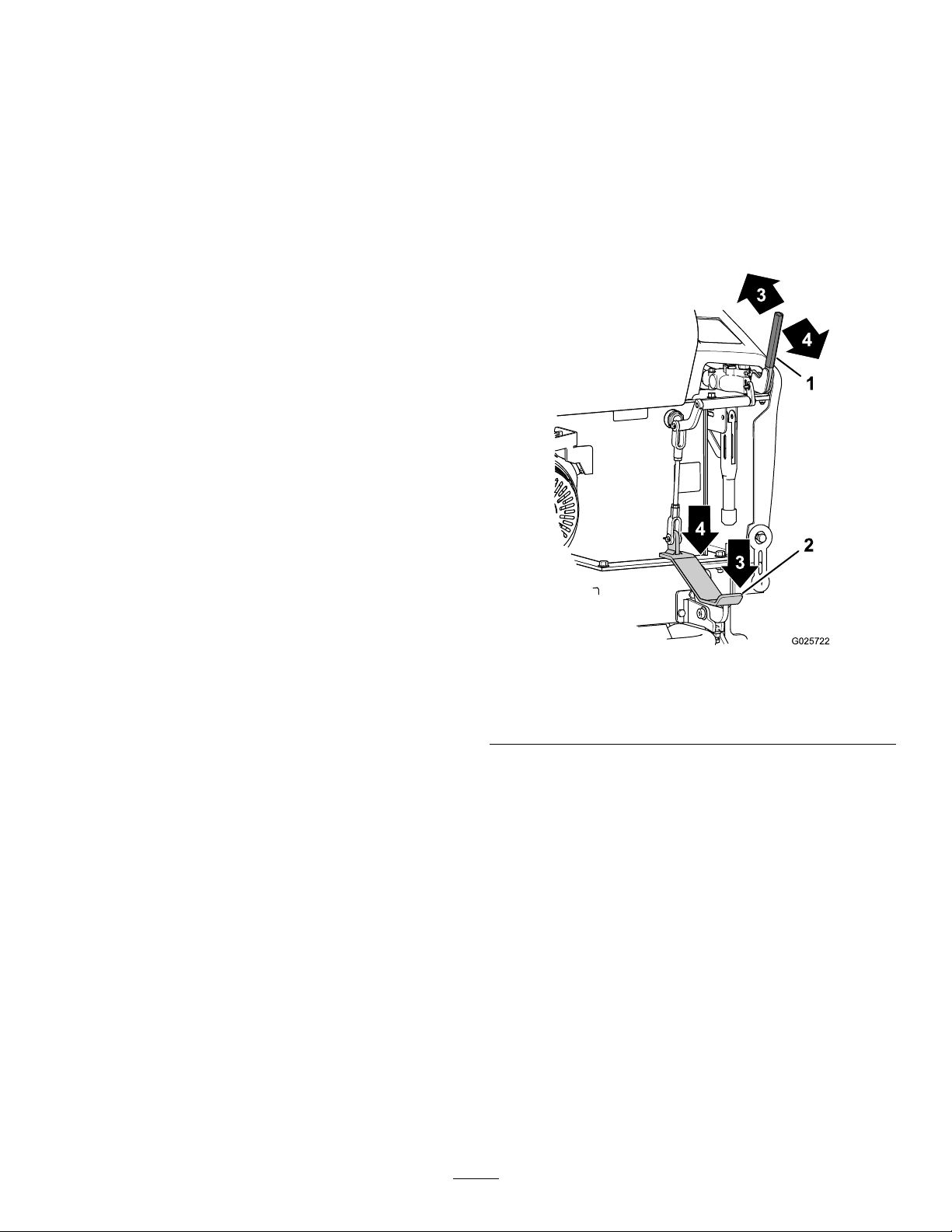

DumpHandle/Pedal
Pullthedumphandlebackwardand/orpressonthe
frontofthepedaltodumpthehopper(Figure3).Push
thedumphandleforwardand/orpressontherearof
thepedaltolowerthehopper.
ParkingBrakeLever
Toengagetheparkingbrake,pulluponthelever.
(Figure3).
Toreleasetheparkingbrake,pressthebuttononthe
endofthebrakehandleandlowerthelever.
FuelGauge
Thefuelgaugeispartofthefuel-tankcap,andthe
gaugeindicatestheamountoffuelinthefueltank
(Figure3).
Fuel-TankShutoffValve
Thefuel-tankshutoffvalveislocatedatthebottomof
thefueltank.Theshutoffvalveisusedtocontrolthe
owoffuelfromthetankwhenyouareperforming
maintenanceorstoringthemachine(Figure4).
g025707
Figure4
1.Forward2.Shutoff-valveleverforthe
fueltank(OFFposition)
8

EngineControls
OilAlertSystem
Theoilalertsystemisdesignedtopreventengine
damagecausedbyaninsufcientamountofoilin
thecrankcase.Beforetheoillevelinthecrankcase
canfallbelowasafelimit,theoilalertsystemwill
automaticallyshutofftheengine(theengineswitch
willremainintheONposition).Iftheenginestops
andwillnotrestart,checktheengine-oillevelbefore
troubleshootinginotherareas.
ChokeLever
Thechokelever(Figure5)isrequiredwhenstartinga
coldengine.Beforepullingontherecoilstarthandle,
movethechokelevertotheCLOSEDposition.Once
theengineisrunning,movethechokelevertothe
OPENposition.Donotusethechokeiftheengineis
alreadywarmeduportheairtemperatureishigh.
g020538
Figure5
1.Recoilstarter4.Throttlelever
2.Fuelshut-offvalve5.On/Offswitch
3.Chokelever
ThrottleLever
Thethrottlelever(Figure5)controlsthespeed(rpm)
oftheengine.Itislocatednexttothechokelever.
Itsetstheenginerpmandthereforecanincrease
anddecreasethespeedofthemachine.Forbest
performance,setthethrottlelevertotheFASTposition.
Fuel-ShutoffValve
Thefuel-shutoffvalve(Figure5)controlstheowof
fuelfromthefueltanktothecarburetor.Thevalve
islocatedunderneaththechokelever.Movethe
shutoffvalvetotheOnpositionbeforeattemptingto
starttheengine.Onceyouhavenishedusingthe
machineandyouhaveturnedtheengineoff,move
thefuel-shutoffvalvetotheOffposition.
On/OffSwitch
TheOn/Offswitch(Figure5)allowstheenginetostart
andalsostopstheengine.Thisswitchislocatedon
thefrontoftheengine.TheOn/Offswitchismarked
asfollows:
•l(On)—theignitionsystemison.
•O(Off)—theignitionsystemisoff.
Note:Tostartthemachine,youmustrstmovethis
controltotheONposition.Whenyouwanttoshutoff
theengine,movethisswitchtotheOFFposition.
RecoilStarterHandle
Tostarttheengine,pullontherecoilstarterhandle
(Figure5)quicklytoturntheengineover.Theengine
controlsdescribedinFigure5mustallbesetcorrectly
fortheenginetostart.
Specications
Note:Specicationsanddesignaresubjectto
changewithoutnotice.
Width(singlewheel)86cm(34inches)
Width(doublewheel)117cm(46inches)
Length268cm(105.5inches)
Height114.3cm(45inches)
Weight621kg(1370lb)
Hoppercapacity.45m3(16cu.ft.)
Maximumload1136kg(2500lb)
Maximumload(single
wheel)
850kg(1875lb)
Wheelbase107cm(42inches)
DischargeHeight16.5cm(6.5inches)
9

Operation
BeforeOperation
Important:Beforeoperating,checkthefueland
oillevel,andremovedebrisfromthemachine.
Also,ensurethattheareaisclearofpeopleand
debris.
BeforeOperationSafety
GeneralSafety
•Neverallowchildrenoruntrainedpeopletooperate
themachine.Localregulationsmayrestrictthe
ageoftheoperator.Theownerisresponsiblefor
trainingalloperatorsandmechanics.
•Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
•Inspecttheareawhereyouwillusethemachine
andremoveallobjectsthatcouldinterferewiththe
operationofthemachine.
•Knowandmarkthelocationsofallutilitylines.
•Checkthattheoperator'spresencecontrols,safety
switches,andshieldsareattachedandfunctioning
properly.Donotoperatethemachineunlessthey
arefunctioningproperly.
•Locatethepinchpointareasmarkedonthe
machineandkeephandsandfeetawayfrom
theseareas.
•Donotcarrypassengersonthemachineandkeep
bystandersandchildrenoutoftheoperatingarea.
•Ensurethattheareaisclearofbystandersbefore
operatingthemachine.Shutoffthemachineifa
bystanderentersthearea.
•Parkthemachineonalevelsurface,engagethe
parkingbrake,andshutofftheengine.Waitforall
movementtostopandallowthemachinetocool
beforeadjusting,servicing,cleaning,orstoring
themachine.
FuelSafety
•Useextremecareinhandlingfuel.Itisammable
anditsvaporsareexplosive.
•Extinguishallcigarettes,cigars,pipes,andother
sourcesofignition.
•Useonlyanapprovedcontainer.
•Donotremovethefuelcaporllthefueltank
whiletheengineisrunningorhot.
•Donotaddordrainfuelinanenclosedspace.
•Donotstorethemachineorfuelcontainerwhere
thereisanopename,spark,orpilotlight,such
asonawaterheaterorotherappliance.
•Ifyouspillfuel,donotattempttostarttheengine;
avoidcreatinganysourceofignitionuntilthefuel
vaporshavedissipated.
•Donotllcontainersinsideavehicleoronatruck
ortrailerbedwithaplasticliner.Alwaysplace
containersontheground,awayfromyourvehicle
beforelling.
•Removetheequipmentfromthetruckortrailer
andrefuelitwhileitisontheground.Ifthisisnot
possible,thenrefuelfromaportablecontainer
ratherthanafuel-dispensernozzle.
•Keepthefuel-dispensernozzleincontactwith
therimofthefueltankorcontaineropeningat
alltimesuntilfuelingiscomplete.Donotusea
nozzle–lock-opendevice.
AddingFuel
•Forbestresults,useonlyclean,fresh(lessthan
30daysold),unleadedgasolinewithanoctane
ratingof87orhigher((R+M)/2ratingmethod).
•ETHANOL:Gasolinewithupto10%ethanol
(gasohol)or15%MTBE(methyltertiarybutyl
ether)byvolumeisacceptable.Ethanoland
MTBEarenotthesame.Gasolinewith15%
ethanol(E15)byvolumeisnotapprovedforuse.
Neverusegasolinethatcontainsmorethan10%
ethanolbyvolume,suchasE15(contains15%
ethanol),E20(contains20%ethanol),orE85
(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/or
enginedamagewhichmaynotbecoveredunder
warranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuel
containersoverthewinterunlessyouuseafuel
stabilizer.
•Donotaddoiltogasoline.
10
