Toyota Frameless Mirror w/Compass& HomeLink User manual

Toyota Tacoma 2016 Frameless® EC Mirror w/ Compass and HomeLink®
Part Number: 00016-05463
Accessory Code: ME4000
Conflicts
Note: NONE
Item # Quantity Reqd. Description
1 1 Frameless® Mirror w/Compass
2 1 Wire Harness Cover
3 1 Main Power Wire Harness
Hardware Kit Contents
Item # Quantity Reqd. Description
1 2 Red T-Taps
2 2 Red Spade Connectors
3 11 Wire Ties
5 3 Foam Tape
6 3 Quick Reference Guides
Additional Items Required For Installation
Item # Quantity Reqd. Description
Recommended Tools
Service/Replacement Parts
Part Description Part Number
Frameless® Mirror w/Compass
& HomeLink® 00016-05463-01
Main Power Harness 00016-05463-02
General Applicability
Applicable
Recommended Sequence of Application
Item # Accessory
1
2
3
*Mandatory
Safety Tools
Safety Glasses
Special Tools
Installation Tools
Screw Gun/ 10MM Socket
Ratchet/Driver T20 Torx Bit/Driver
Needle Nose Pliers # 2 Philips Bit
Nylon Tool Side Cuts
Wire Crimping tool Torque Wrench
(Car Battery)
Dark Towel/Cloth VPC Aproved Cleaner
Southeast Toyota Distributors, LLC.
Page 1 of 24
REV.B.10.26.15
Doc. 14.129.00 Business Partner: J79 PIO / DIO 10/26/15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Care must be taken when installing this accessory to ensure damage does not occur to the vehicle.
The installation of this accessory should follow approved guidelines to ensure a quality
installation.
These guidelines can be found in the "Accessory Installation Practices" document.
This document covers such items as:
• Vehicle Protection (use of covers and blankets, cleaning chemicals, etc.).
• Safety (eye protection, rechecking torque procedure, etc.).
• Vehicle Disassembly/Reassembly (panel removal, part storage, etc.).
• Electrical Component Disassembly/Reassembly (battery disconnection, connector removal, etc.).
Figure 1
1. Disconnect the negative battery cable.
Isolate the cable with protection in place.
See Figure 1.
Wait at least 90 seconds after
disconnecting the cable from the
negative (-) battery terminal to
disable the SRS system.
Southeast Toyota Distributors, LLC.
Page 2 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 2
2. Turn the visor holder 45° clockwise to
disengage the 2 claws as shown in the
illustration. Remove the visor holder. See
Figure 2.
Figure 3
3. Using a nylon tool, disengage the 4 clips.
Disconnect the connector. Remove map
light assembly. See figure 3.
Southeast Toyota Distributors, LLC.
Page 3 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 4a
4. Using a screwdriver with its tip wrapped in
protective tape, disengage the 3 claws to
open the cover. Remove the bolt. See
figure 4a and 4b.
Text in Illustration
*a Protective Tape
Figure 4b
Figure 5
5. Disengage the clip and 2 guides to remove
the front pillar garnish LH. See Figure 5.
Southeast Toyota Distributors, LLC.
Page 4 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 6
6. Disengage the 10 claws and 2 guides to
remove the front door scuff plate LH. See
figure 6.
Figure 7a
7. Remove the clip. Disengage the 2 clips and
guide to remove the cowl side trim board
LH. See figure 7a and 7b.
Figure 7b
Southeast Toyota Distributors, LLC.
Page 5 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 8a
8. Remove the bolt <A>. Remove the 2
screws <E>. Disengage the 11 clips and 4
claws. Disconnect the connectors to
remove the instrument panel lower finish
panel sub-assembly. Disengage the claw
and 3 guides to disconnect the hood lock
control lever sub-assembly. See figure 8a
and 8b.
Figure 8b
Figure 9a
9. Using a T20 "TORX" socket wrench,
remove the screw and inner rear view
mirror assembly. See figure 9a and
9b.
Replacing the factory EC mirror with
the Frameless® EC Mirror w/ Compass
& HomeLink®
Remove the inner rear view mirror cover.
Disconnect the connector. Using a T20
"TORX" socket wrench, remove the screw
and inner rear view mirror assembly. See
figure 9a and 9b.
Figure 9b
Southeast Toyota Distributors, LLC.
Page 6 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 10

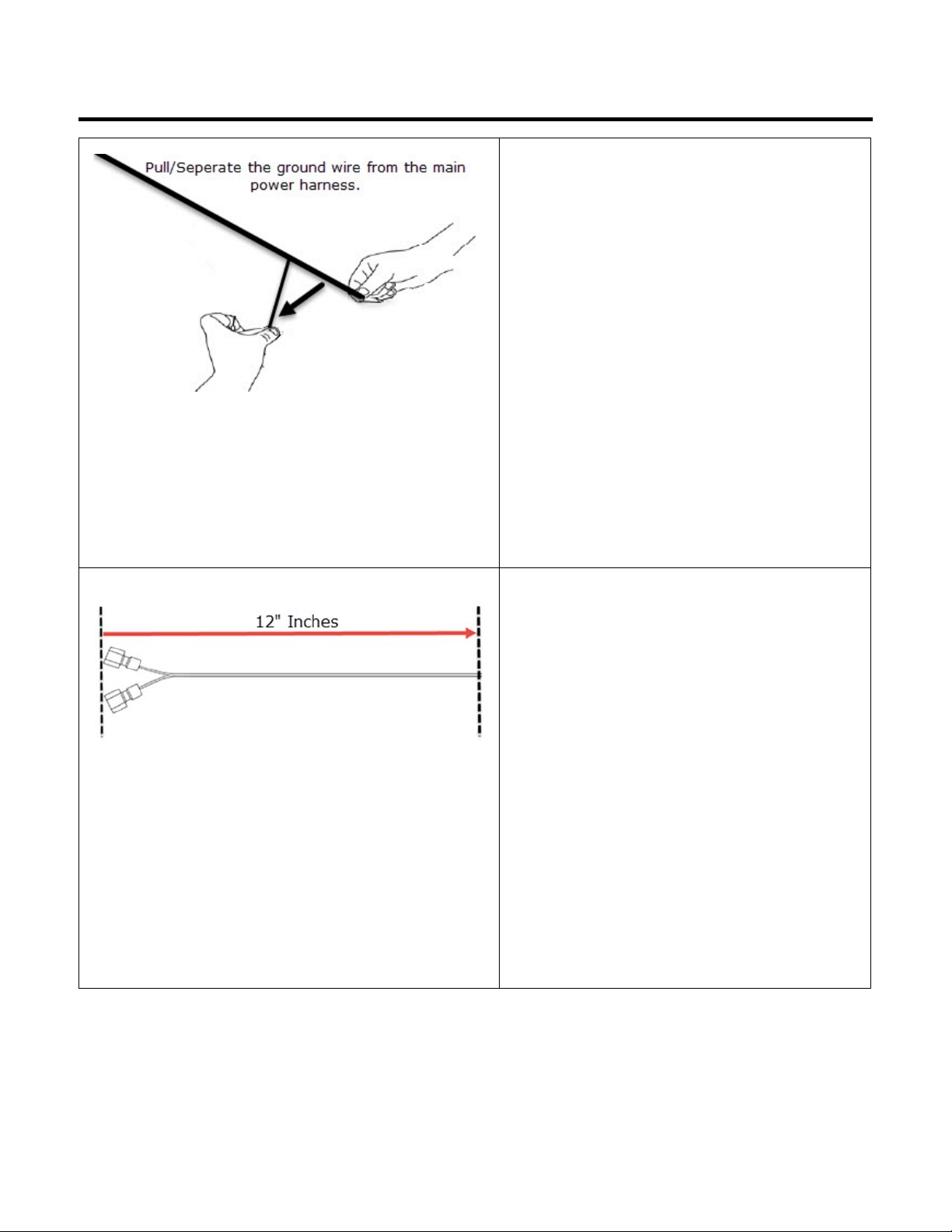

10. Pull/Separate the ground wire from the
main power harness approximately 14
inches. See figure 10.
Figure 11
11.
Using side cuts, trim the two power
wires back 12 inches from the end of the
spade connectors. DO NOT trim the
ground wire. See figure 11.
Southeast Toyota Distributors, LLC.
Page 7 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 11

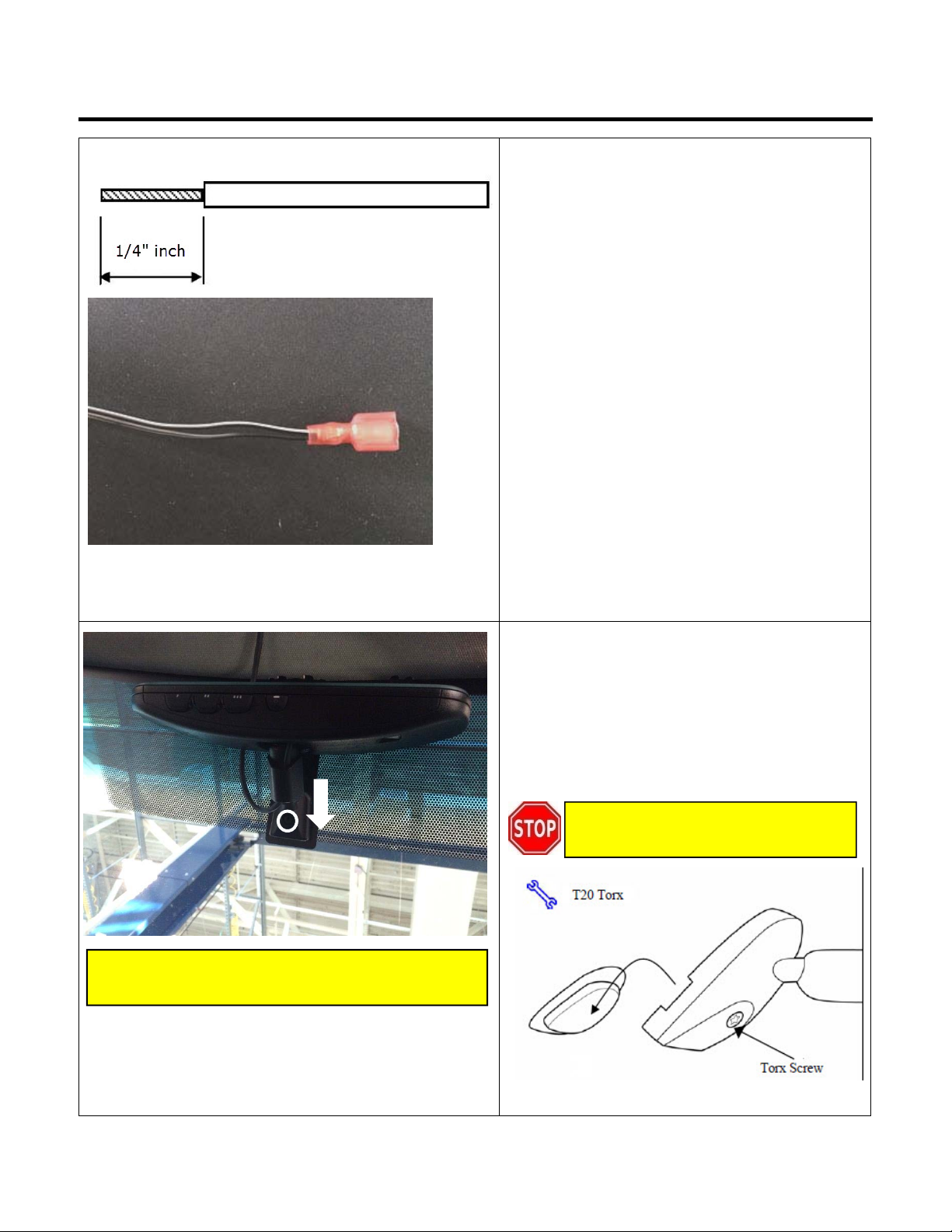

12. Strip the main power harness main power
wires back 1/4 inch. Make sure to not
damage the wire strands. Twist the two
stripped ends together. Using the new
spade connector provided, connect the
black and black/white tracer wires to one
connector. Make sure the wires and spade
connector have made a good connection.
See figure 12.
Figure 13a
13. Mount the Frameless® EC Mirror
w/Compass in reverse of original factory
mirror removal. Slide and attach the
rearview mirror assembly and tighten
mirror set screw with a T20 torx bit or
driver. DO NOT over tighten screw. See
figure 13a and 13b.
Figure 13b
Do not use power tools to tighten
screw. Hands tighten only.
Note: Remove fingerprints, smudges, dirt, etc.
from mirror and windshield with glass cleaner.
Southeast Toyota Distributors, LLC.
Page 8 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 14

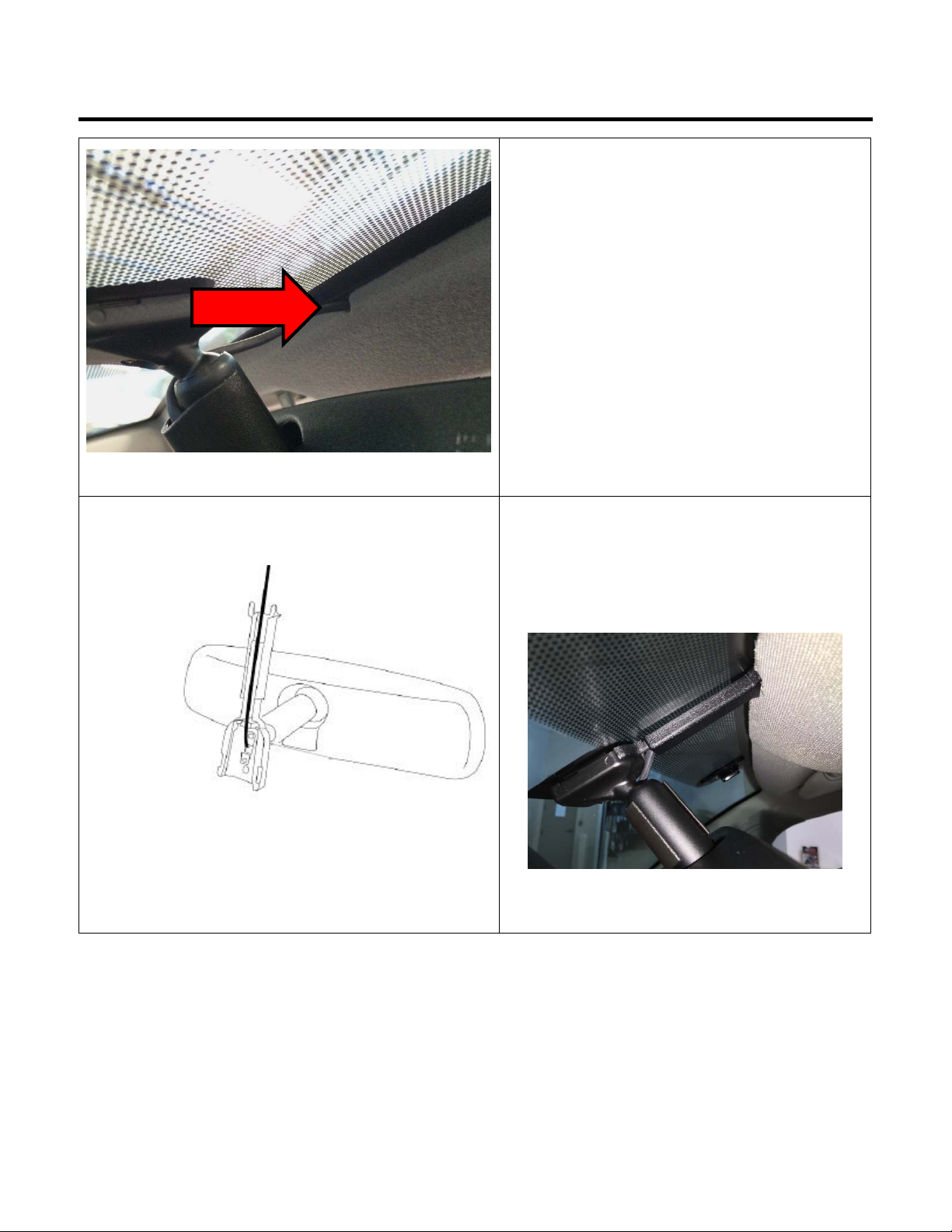

14. Route the mirror harness to overhead
console opening using the precut notches
on the front of the headliner. See figure 14.
Figure 15a
15. Install the wire harness cover over the wire
harness. Seat the bottom of the cover
securely to base of the mirror. Extend the
top of the cover fully into headliner. See
figure 15a and 15b.
Figure 15b
Southeast Toyota Distributors, LLC.
Page 9 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 16

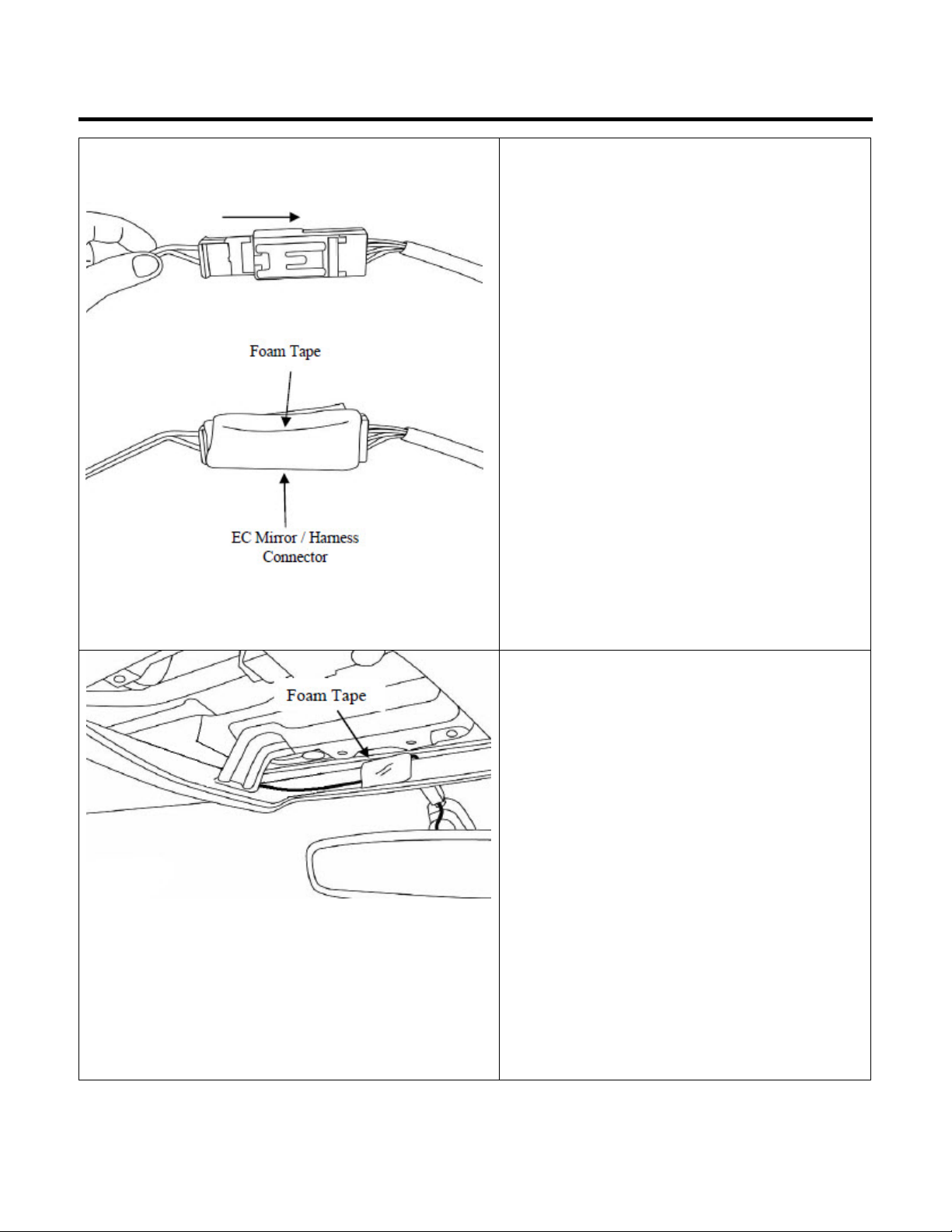

16. Connect the mirror harness to the mirror
main power harness. Make sure both
connectors are fully engaged. Wrap foam
tape around conectors. See figure 16.
Figure 17
17. Secure the harness to the front center of the
headliner with one (1) piece of foam tape.
See figure 17.
Southeast Toyota Distributors, LLC.
Page 10 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 18
18. Route mirror main power harness along
front edge of headliner towards the LH
vehicle A-Pillar. See figure 18.
Figure 19
19. Route the mirror harness down to the
bottom of the Front LH pillar. Route the
harness through the factory harness clips
attached to the vehicle. Wire tie the harness
to the vehicle harness as shown. See figure
19.
Sunroof Models: DO NOT wire
tie harness to factory drain tube.
Southeast Toyota Distributors, LLC.
Page 11 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 20
20. Route the mirror harness down to the LH
kick panel. Follow the factory harness. See
figure 20.
Southeast Toyota Distributors, LLC.
Page 12 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 21a

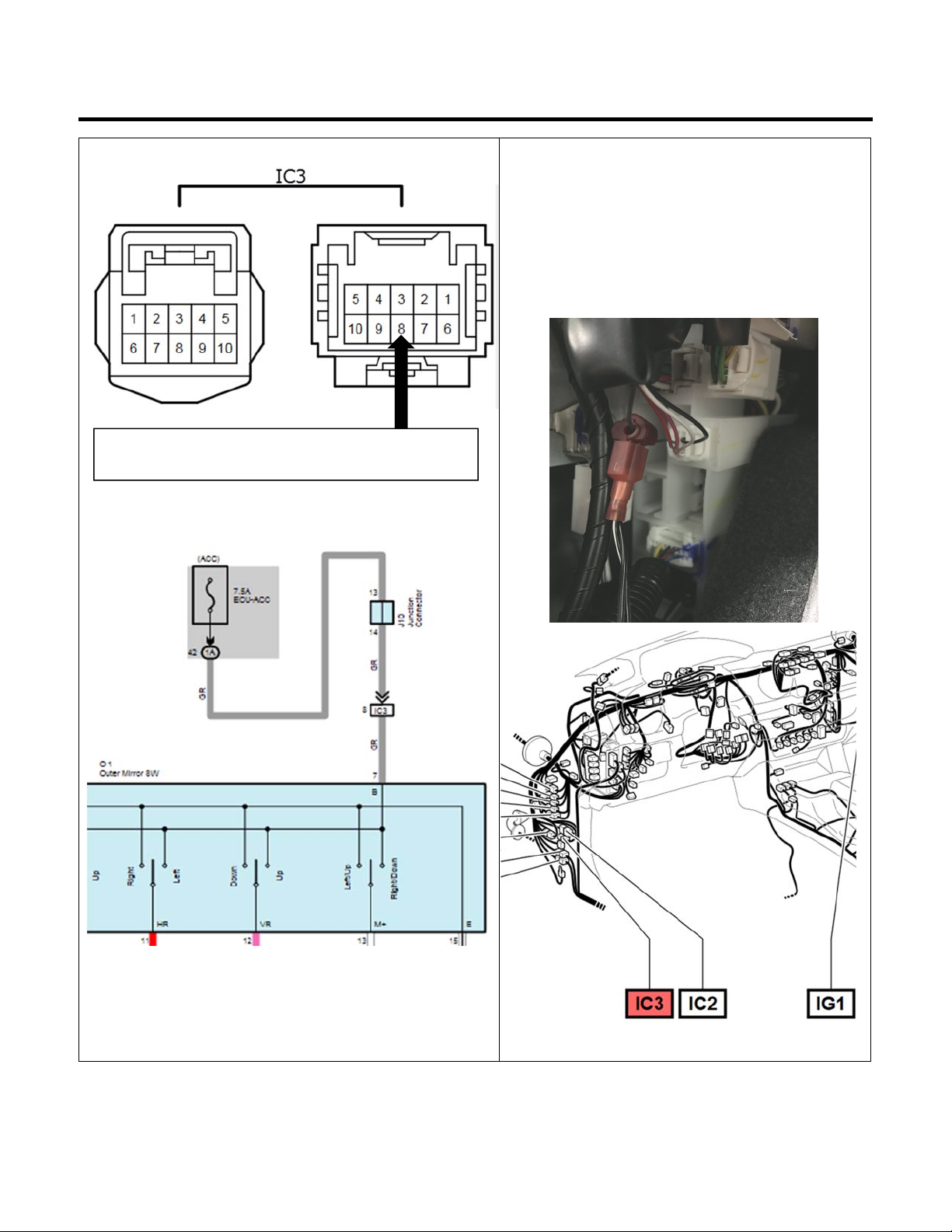

21. Locate vehicle white connector IC3 in the
LH kick panel. Disconnect connector. T-
Tap the main power harness power wires to
Pin 8 grey wire in white connector IC3. See
figure 21a and figure 21b.
Figure 21b
T-Tap the main power harness power wires to Pin 8
grey wire in white connector IC3.
Figure 21b
Southeast Toyota Distributors, LLC.
Page 13 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 22a

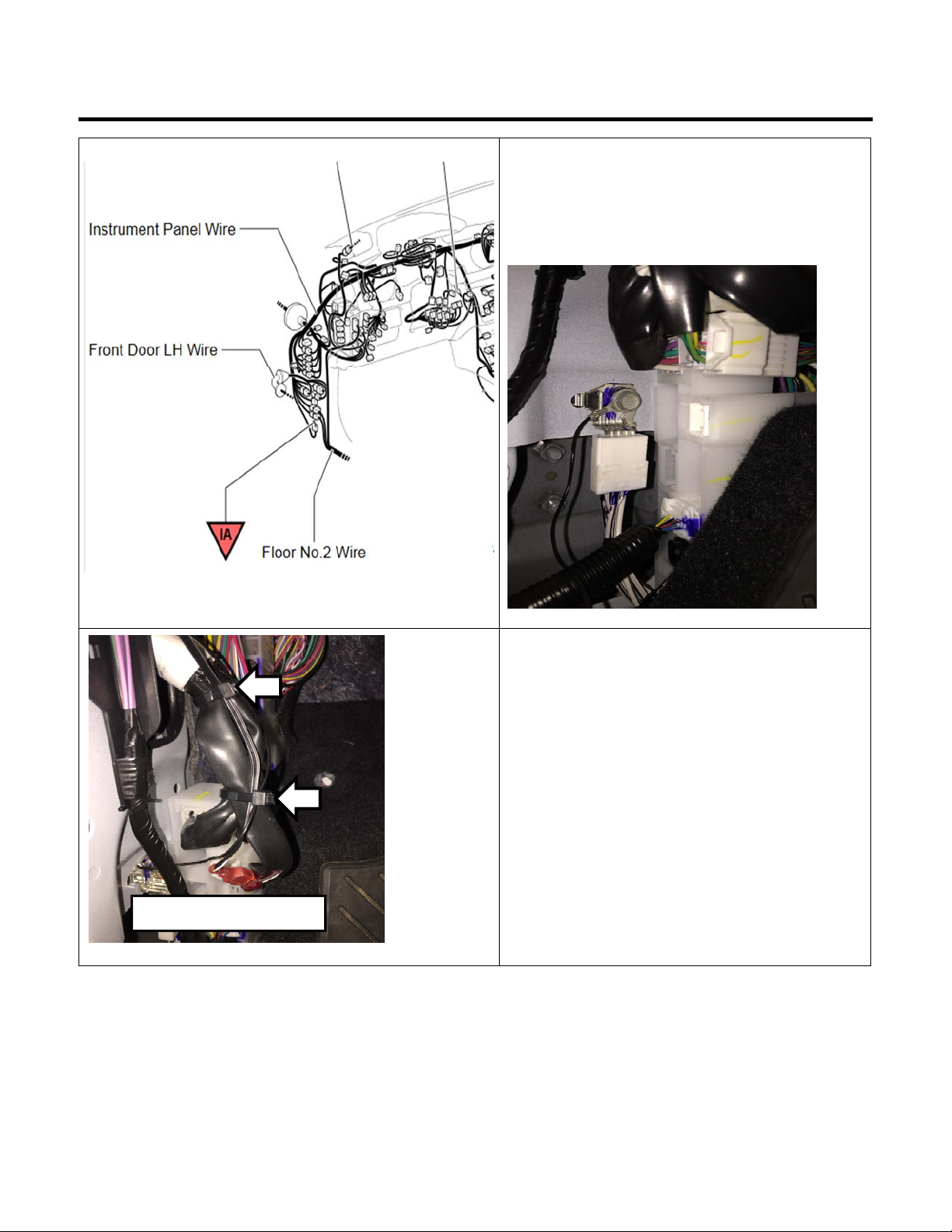

22. Using the ring eyelet connect the main
power harness ground wire to factory
ground location IA. See figure 22a and
22b.
Figure 22b
Figure 23
23. Using wire ties, surcure the mirror main
power harness wires to the vehicle harness
as shown. See figure 23.
Wire Tie
Southeast Toyota Distributors, LLC.
Page 14 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 24

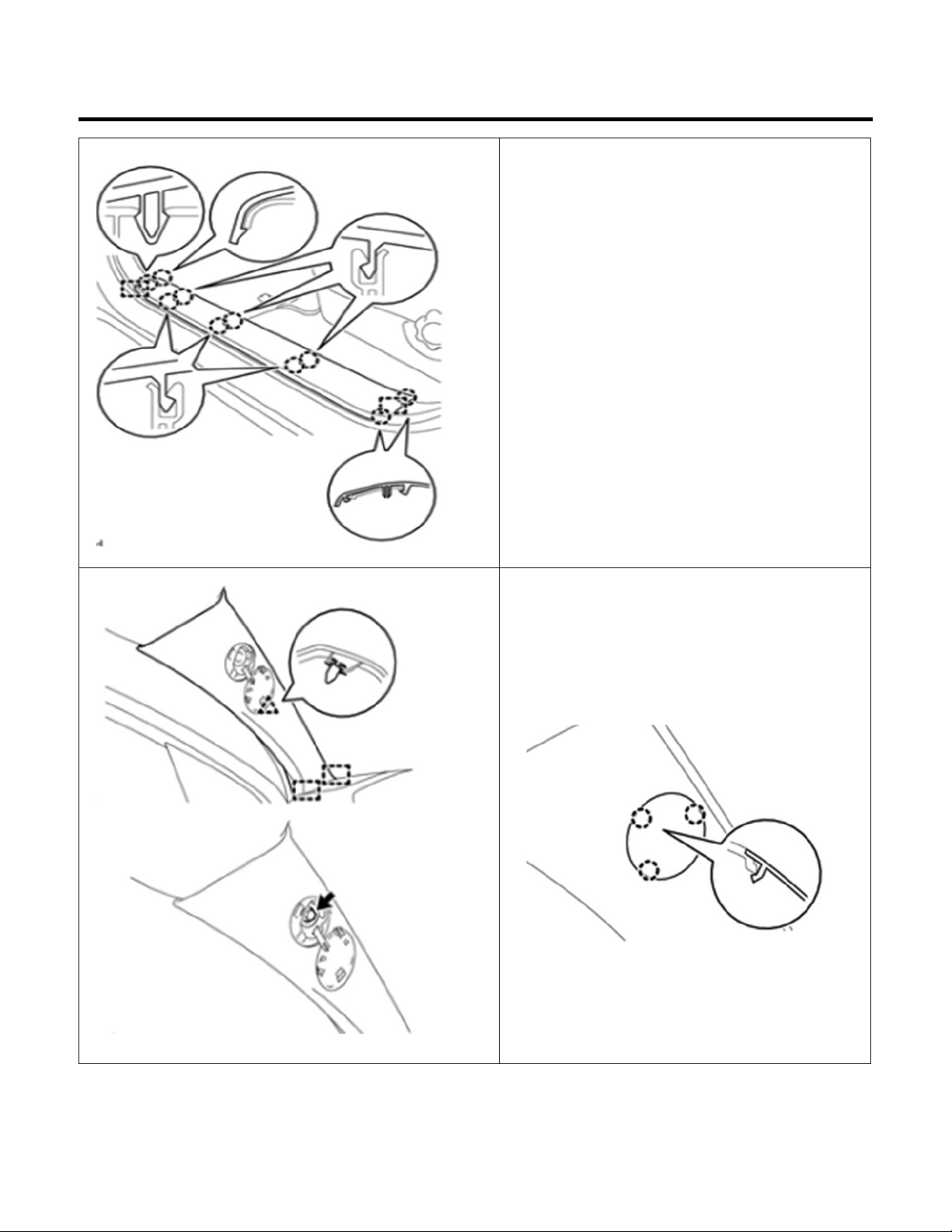

24. Install the hood lock control lever sub-
assembly. See figure 24.
Figure 25
25. Connect the connectors. Engage the 4
claws and 11 clips to install the instrument
panel lower finish panel sub-assembly.
Install the 2 screws <E>. Install the bolt
<A>. See figure 25.
Figure 26a
26. Engage the guide and 2 clips to install the
cowl side trim board LH. Install the clip.
See figure 26a and 26b.
Figure 26b
Southeast Toyota Distributors, LLC.
Page 15 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 27
27. Disengage the 10 claws and 2 guides to
remove the front door scuff plate LH. See
figure 27.
Figure 28a
28. Engage the 2 guides and clip to install the
front pillar garnish LH. Install the bolt.
Engage the 3 claws to close the cover. See
figure 28a and 28b.
Figure 28b
Southeast Toyota Distributors, LLC.
Page 16 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 29
29. Engage the 2 claws to install the visor
holder LH. See figure 29.
Figure 30
30. Connect the connector. Engage the 4 clips
and install the map light assembly. See
figure 30.
Southeast Toyota Distributors, LLC.
Page 17 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 31
31. Place owner’s cards in the glove box. See
figure 31.
Figure 32
32. Connect the negative battery cable.
Torque: 48in.*lbf
Southeast Toyota Distributors, LLC.
Page 18 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
33. Compass Zone Setting.
(a) With display turned ON, push the
mirror power button for 3 seconds or until
a number is displayed in the display
window.
(b) Refer to the Zone Map and toggle
button until correct zone is displayed. See
figure 33.
(c) Release button.
(d) The display will return to normal
compass mode (showing either a "C" or a
directional heading) within 10 seconds of
no switch activity.
34. Calibrate Compass.
(a) If a "C" is displayed in window, drive
the vehicle in one circle at less than 5 mph.
(b) Correct compass heading should now
be displayed.
NOTE: Correct compass zone must be
selected prior to compass calibration to ensure
accurate calibration. If the vehicle is driven in
a new zone, repeat zone selection procedure.
Figure 33
Southeast Toyota Distributors, LLC.
Page 19 of 24
REV.B.10.26.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Checklist - these points MUST be checked to
Ensure a quality installation.
Check: After Installation
Vehicle should be in a fairly well lit area.
Turn ignition (ACC power) to ON.
Auto-dimming feature:
Cover the forward-looking light sensor
(located on the back of the mirror).
Mirror clears:
Remove cover from photocell.
Compass Feature:
Look at the mirror compass display.
Operation Instruction Cards
.
HomeLink Feature:
Look at the mirror’s (3) HomeLink buttons.
Press the mirror’s (3) HomeLink buttons.
Overhead Console:
Check dome light.
Check the Sunroof if applicable.
Look For:
Verify green LED is on. If it is not ON
press ON / OFF button - confirm LED is
ON.
Verify mirror darkens.
Mirror returns to clear state.
Correct compass heading should now be
displayed. If a "C" is displayed in
window, calibrate the compass.
Place in the vehicle glove box.
Verify all (3) buttons are illuminated
when the vehicle ignition is ON.
HomeLink icon will appear in mirror.
Press button again to stop the icon from
flashing.
Verify the dome light functions properly.
Verify the sunroof functions properly.
Southeast Toyota Distributors, LLC.
Page 20 of 24
REV.B.10.26.15
