Toyota Tacoma 2015 Frameless® EC Mirror w/ Compass & HomeLink®
Part Number: 00016-00463
Accessory Code: ME4000
Conflicts
Note: None
Kit Contents
Item # Quantity Reqd. Description
1 1 Frameless® Mirror w/Compass
& HomeLink®
2 1 Wire Harness Cover
5 1 Main Power Wire Harness
Hardware Bag Contents
Item # Quantity Reqd. Description
1 2 Red T-Taps
2 2 Red Spade Connectors
3 10 Wire Ties
4 3 Foam Tapes
5 2 Quick Reference Guides
Additional Items Required For Installation
Item # Quantity Reqd. Description
Recommended Tools
Safety Tools
Safety Glasses
Special Tools
Installation Tools
Needle Nose Pliers 10mm Socket
Screw Gun Torque Wrench-48inch lbs
(Car Battery)
T20 Torx Bit/Driver Ratchet/Driver
#2 Phillips Bit
Nylon Tool
Wire crimping tool
Side cuts
Dark Towel/ Cloth
Special Chemicals
Color Applicability/Trim Level
Part Description Part Number
Frameless® EC Mirror w/Compass
and HomeLink®
00016-00463-01
Main Power Wire Harness 00016-00463-02
General Applicability
All 2015 Tacoma Models
Recommended Sequence of Application
Item # Accessory
1
2
3
*Mandatory
Southeast Toyota Distributors, LLC
Page 1 of 15
Rev.C.01.30.15
Doc. 14.126.00 Business Partner: J25 PIO / DIO Rev. A 02/02/15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Care must be taken when installing this accessory to ensure damage does not occur to the vehicle.
The installation of this accessory should follow approved guidelines to ensure a quality
installation.
These guidelines can be found in the "Accessory Installation Practices" document.
This document covers such items as:
• Vehicle Protection (use of covers and blankets, cleaning chemicals, etc.).
• Safety (eye protection, rechecking torque procedure, etc.).
•Vehicle Disassembly/Reassembly (panel removal, part storage, etc.).
• Electrical Component Disassembly/Reassembly (battery disconnection, connector removal, etc.).
Figure 1
1. Disconnect the negative battery cable.
See Figure 1.
Southeast Toyota Distributors, LLC
Page 2 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 2
2. Remove the screw. Disengage the 2 clips
and 3 claws. Disconnect the connectors and
remove the roof console box assembly. See
figure 2.
Figure 3
3. Using a T20 "TORX" socket wrench,
remove the screw and inner rear view
mirror assembly. See figure 3.
Southeast Toyota Distributors, LLC
Page 3 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

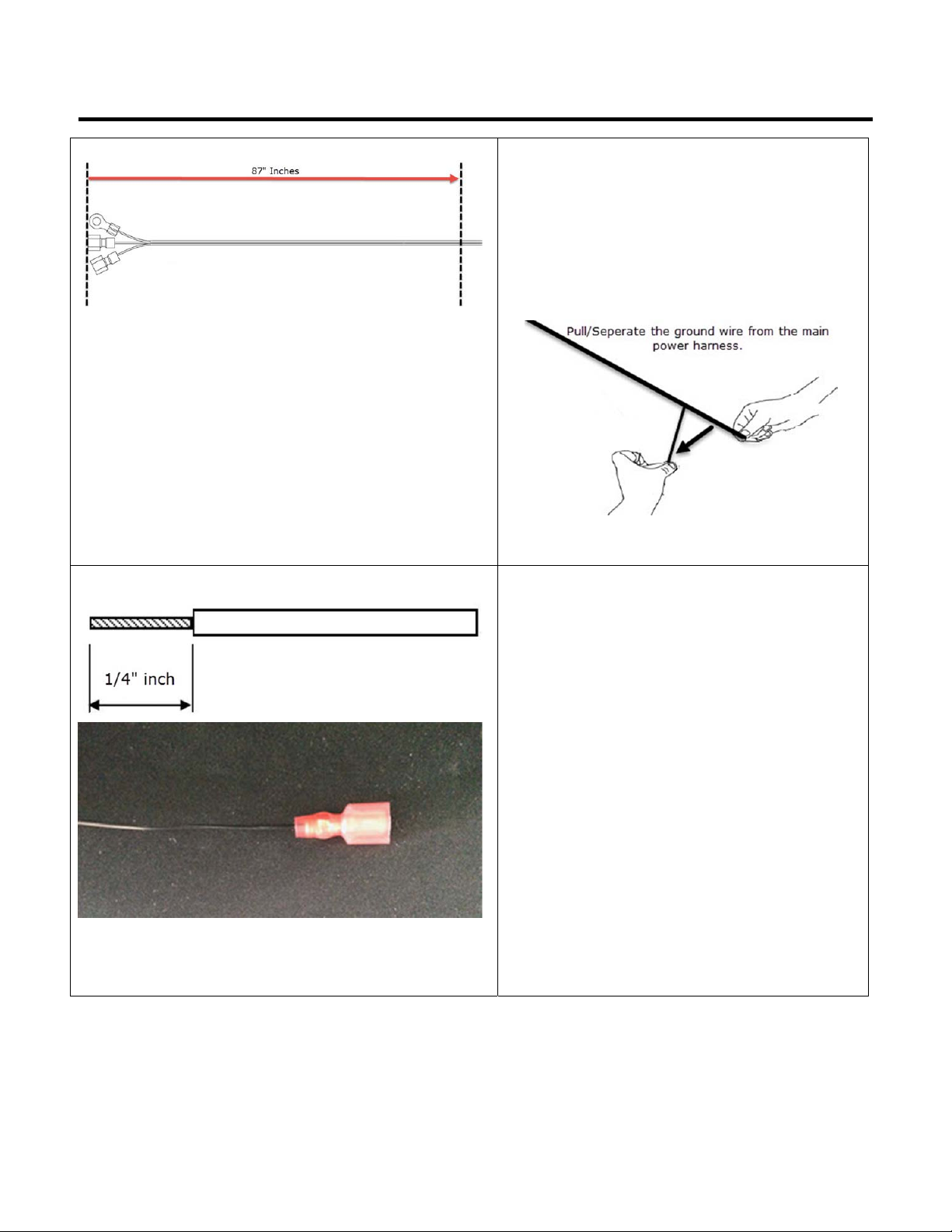

Figure 4a
4. Using side cuts, trim the original harness
back 87 inches from the end of the spade
connectors and ring terminal. Pull/Separate
the ground wire from the main power
harness approximately 6 inches. See figure
4a and 4b.
Figure 4b
Figure 5
5. Strip the main power harness ground wire
back 1/4 inch. Make sure to not damage the
wire strands. Using the new spade
connector provided, connect the black
ground wire. Make sure the wire and spade
connector have made a good connection
and crimp. See figure 5.
Southeast Toyota Distributors, LLC
Page 4 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

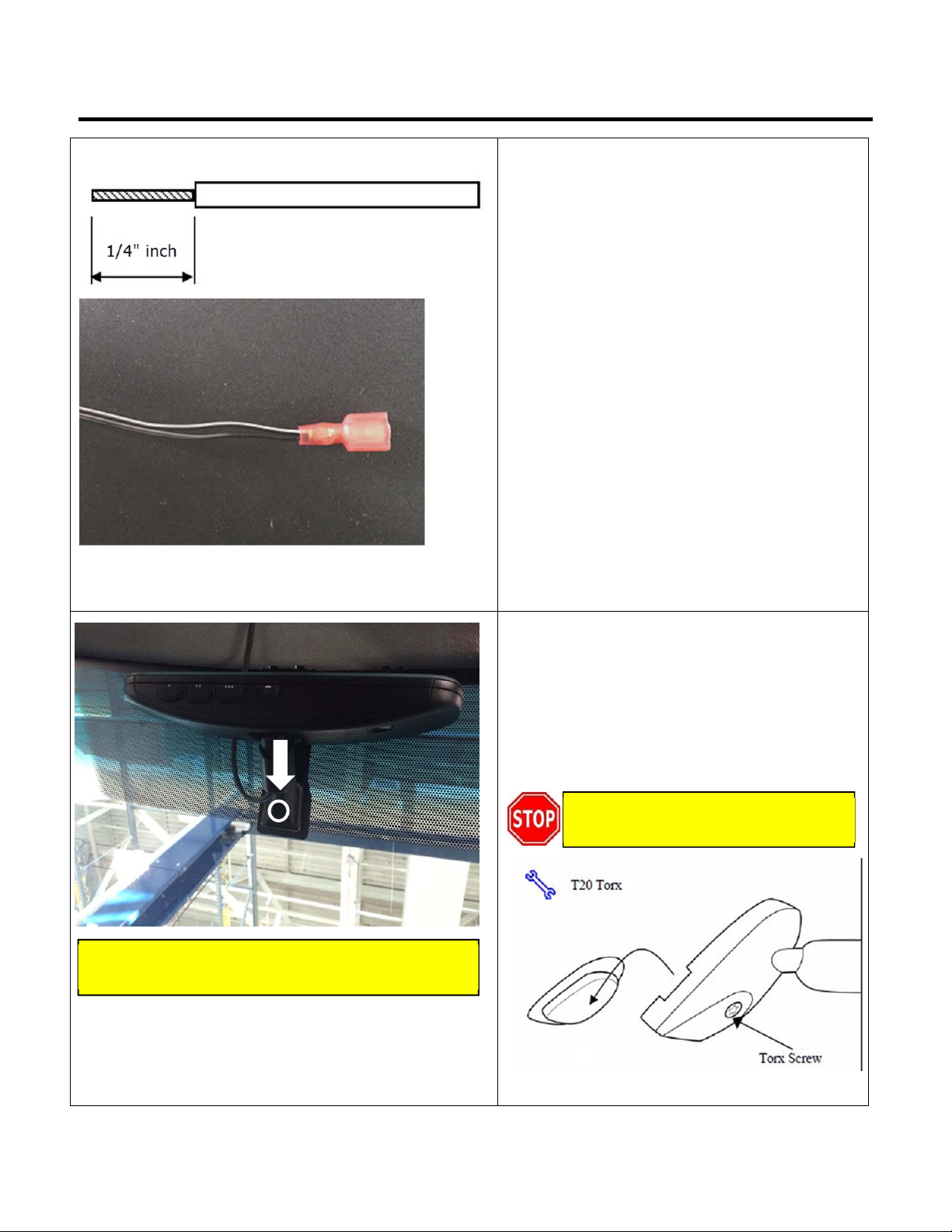

Figure 6
6. Strip the main power harness power wires
back 1/4 inch. Make sure to not damage the
wire strands. Twist the two stripped ends
together. Using the new spade connector
provided, connect the black and black/white
tracer wires to one connector. Make sure
the wires and spade connector have made a
good connection. See figure 6.
Figure 7a
7. Mount the Frameless® EC Mirror
w/Compass & HomeLink® in reverse of
original factory mirror removal. Slide
and attach the rearview mirror assembly
and tighten mirror set screw with a T20
torx bit or driver. DO NOT over tighten
screw. See figure 7a and 7b.
Figure 7b
Do not use power tools to tighten
screw. Hands tighten only.
Note: Remove fingerprints, smudges, dirt, etc.
from mirror and windshield with glass cleaner.
Southeast Toyota Distributors, LLC
Page 5 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

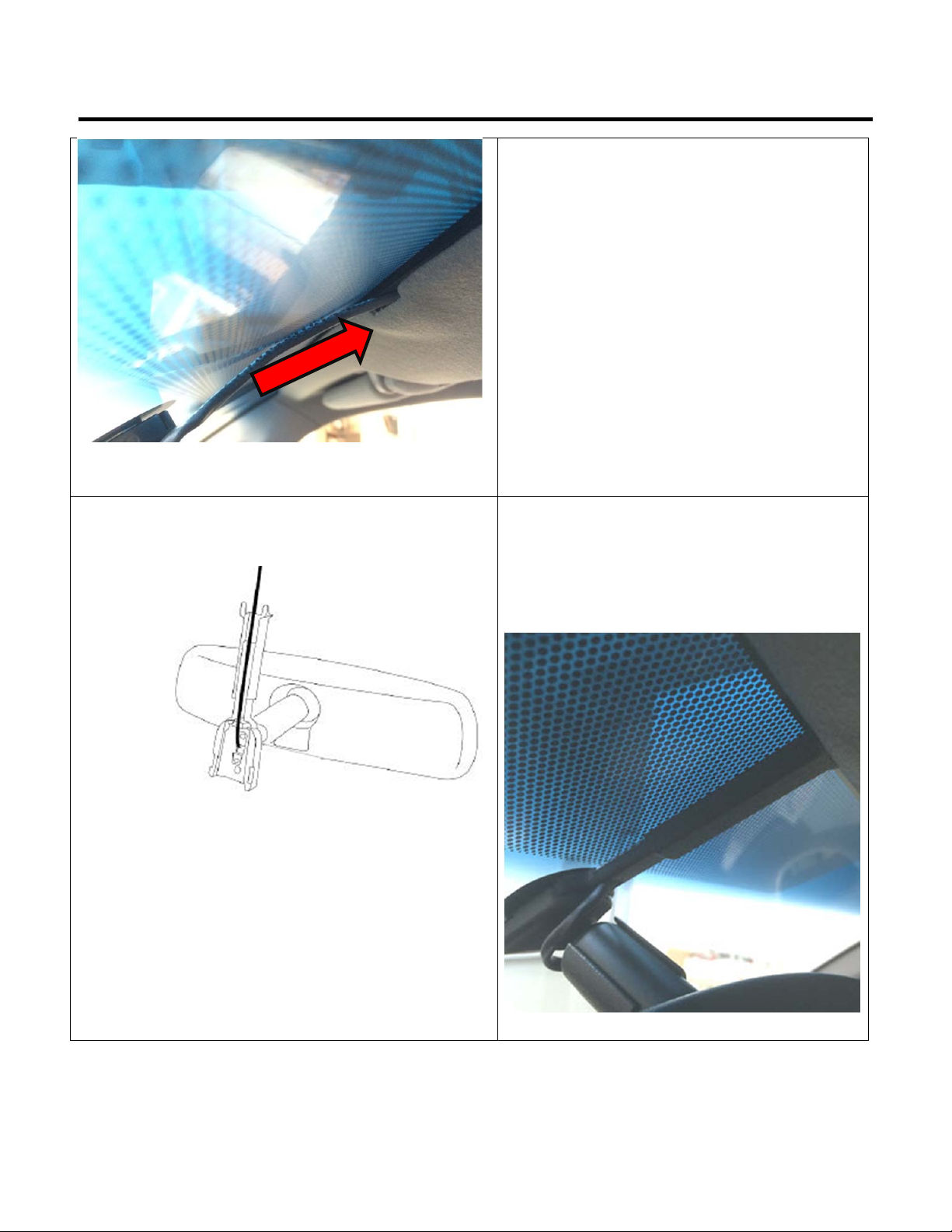

Figure 8
8. Route the mirror harness to overhead
console opening using the precut notches
on the front of the headliner. See figure 8.
Figure 9a
9. Install the wire harness cover over the wire
harness. Seat the bottom of the cover
securely to base of the mirror. Extend the
top of the cover fully into headliner. See
figure 9a and 9b.
Figure 9b
Southeast Toyota Distributors, LLC
Page 6 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

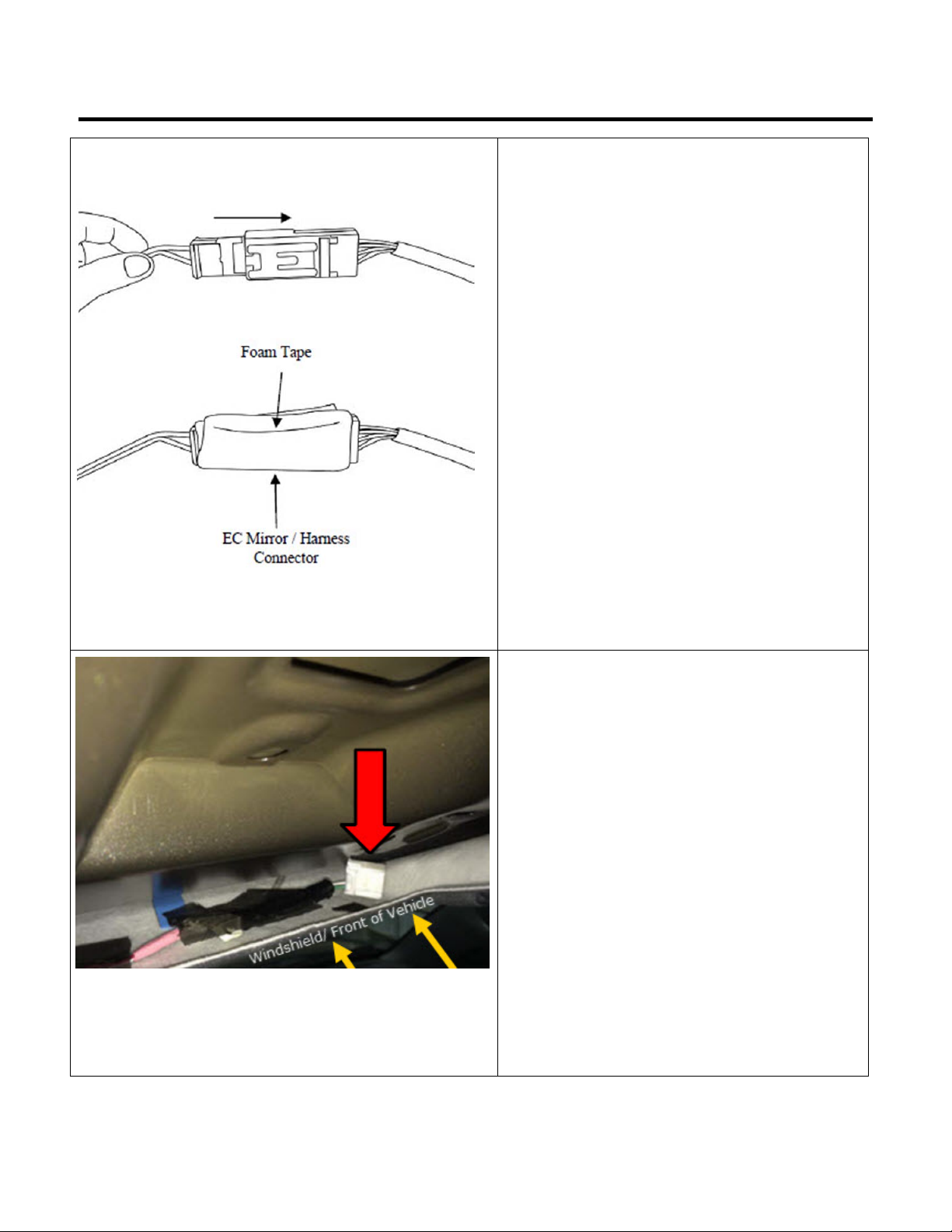

Figure 10
10. Connect the mirror harness to the mirror
main power harness. Make sure both
connectors are fully engaged. Wrap foam
tape around conectors. See figure 10.
Figure 11
11. Locate roof connector I8. Carefully
remove it from the headliner. See figure
11.
Southeast Toyota Distributors, LLC
Page 7 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 12a
12. Pull the factory tape back. T-Tap the main
power harness power wires to Pin 1 light
green wire in connector I8. See figure 12a
and figure 12b. T-Tap the main power
harness ground wire to Pin 2 white/black
wire in connector I8. See figure 12a and
figure 12b.
Figure 12b
T-Tap the main power
harness ground wire to
Pin 2 white/black wire
in connector I8.
T-Tap the main power
harness power wires to
Pin 1 light green wire in
connector I8.
Southeast Toyota Distributors, LLC
Page 8 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

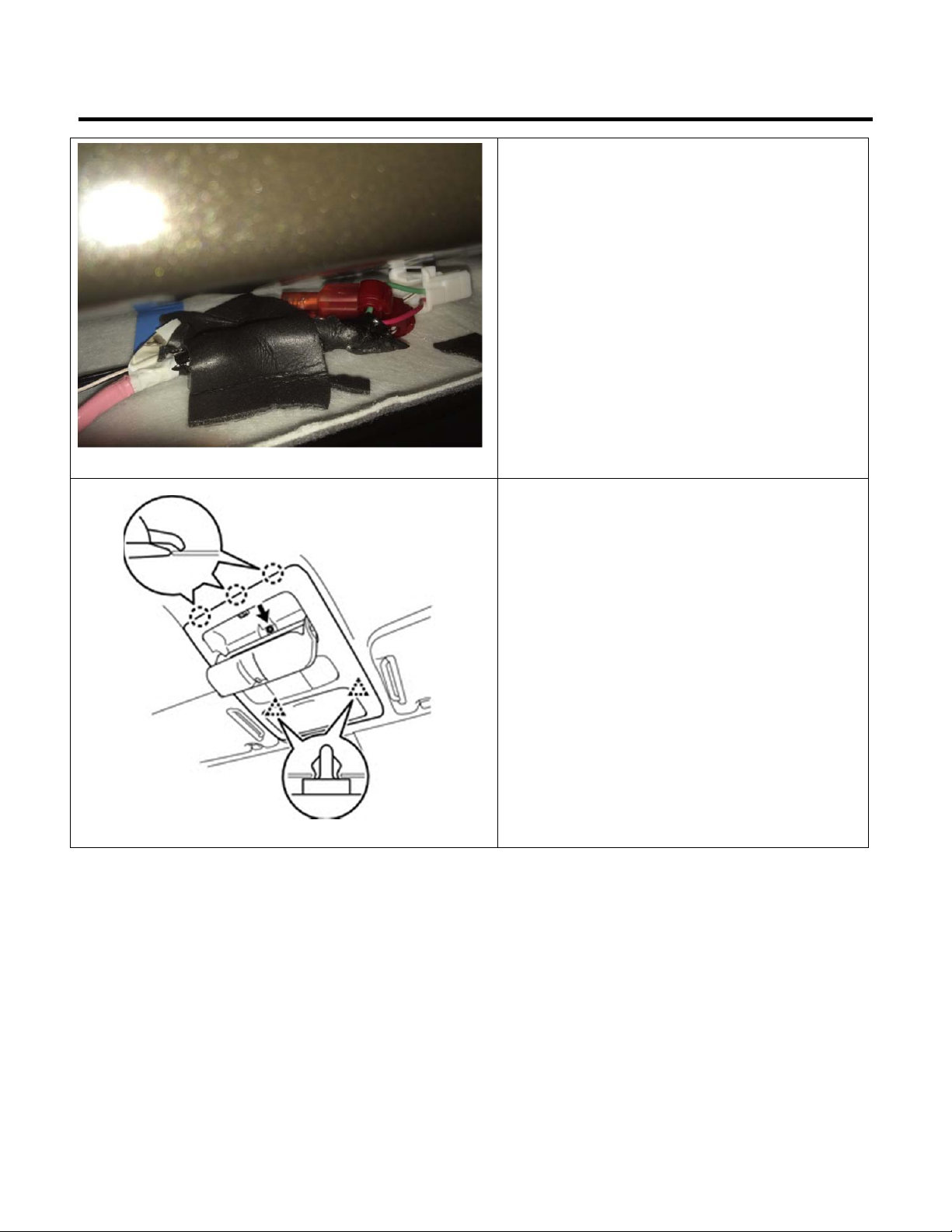

Figure 13
13. Secure the harness to the front center of the
headliner with one (1) piece of foam tape.
See figure 13.
Figure 14
14. Connect the connectors. Install the
overhead console. Engage the 2 clips and 3
claws. Install the screw. See figure 14.
Southeast Toyota Distributors, LLC
Page 9 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Figure 15
15. Place owner’s cards in the glove box. See
figure 15.
Figure 16
16. Connect the negative battery cable. See
figure 16.
Torque: 48in.*lbf
Southeast Toyota Distributors, LLC
Page 10 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

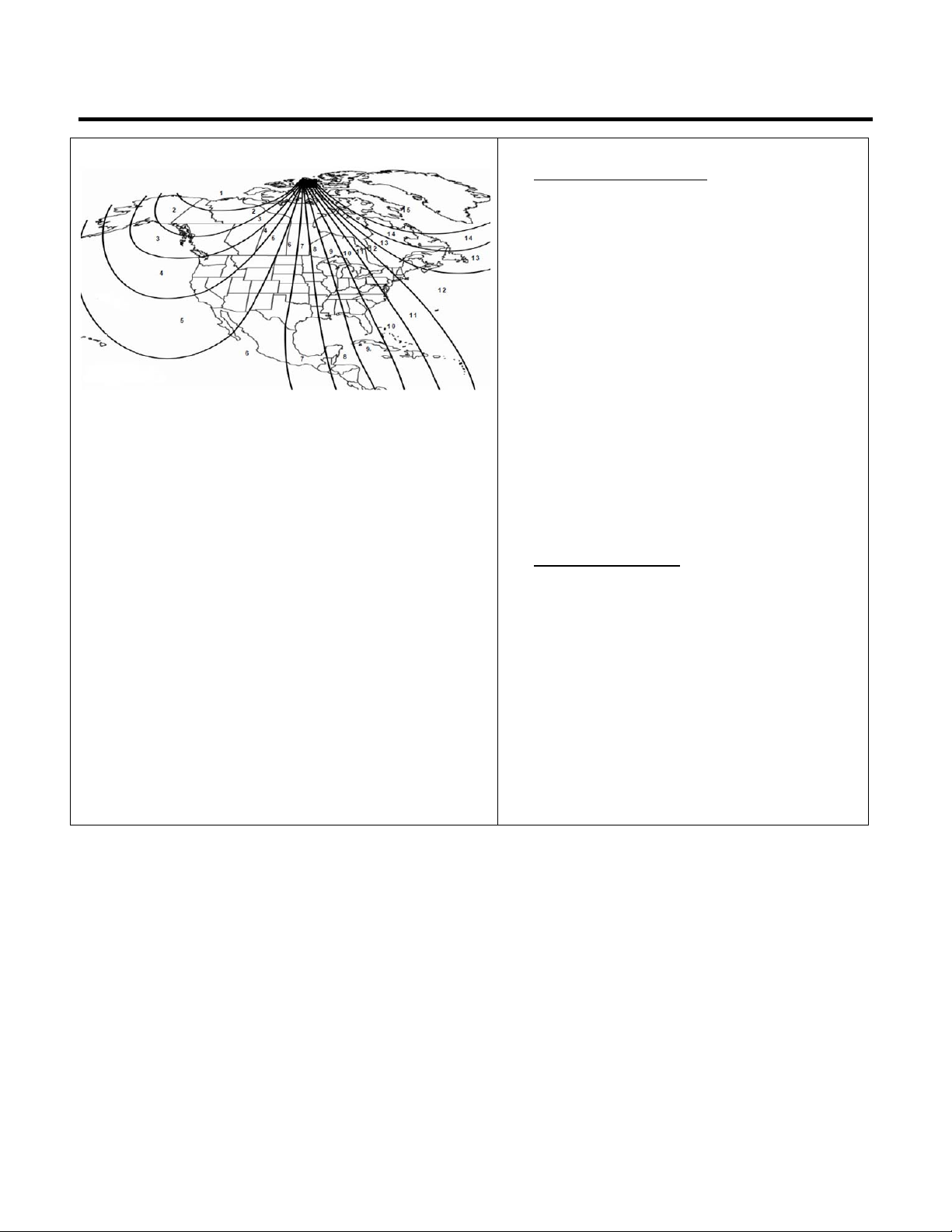

Figure 17
17. Compass Zone Setting.
(a) With display turned ON, push the
mirror power button for 3 seconds or until
a number is displayed in the display
window.
(b) Refer to the Zone Map and toggle
button until correct zone is displayed. See
figure 17.
(c) Release button.
(d) The display will return to normal
compass mode (showing either a "C" or a
directional heading) within 10 seconds of
no switch activity.
18. Calibrate Compass.
(a) If a "C" is displayed in window, drive
the vehicle in one circle at less than 5 mph.
(b) Correct compass heading should now
be displayed.
NOTE: Correct compass zone must be
selected prior to compass calibration to ensure
accurate calibration. If the vehicle is driven in
a new zone, repeat zone selection procedure.
Southeast Toyota Distributors, LLC
Page 11 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Checklist - these points MUST be checked to
Ensure a quality installation.
Check: After Installation
Vehicle should be in a fairly well lit area.
Turn ignition (ACC power) to ON.
Auto-dimming feature:
Cover the forward-looking light sensor
(located on the back of the mirror).
Mirror clears:
Remove cover from photocell.
Compass Feature:
Look at the mirror compass display.
Operation Instruction Cards
.
HomeLink Feature:
Look at the mirror’s (3) HomeLink buttons.
Press the mirror’s (3) HomeLink buttons.
Overhead Console:
Check dome light.
Check the Sunroof if applicable.
Look For:
Verify green LED is on. If it is not ON
press ON / OFF button - confirm LED is
ON.
Verify mirror darkens.
Mirror returns to clear state.
Correct compass heading should now be
displayed. If a "C" is displayed in window,
calibrate the compass.
Place in the vehicle glove box.
Verify all (3) buttons are illuminated
when the vehicle ignition is ON.
HomeLink icon will appear in mirror.
Press button again to stop the icon from
flashing.
Verify the dome light functions properly by
switch and when opening doors.
Verify the sunroof functions properly.
Southeast Toyota Distributors, LLC
Page 12 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

B
B
HomeLink Module
SET P/N 00016-
Frameless® EC Mirror w/Compass
and HomeLink®
SET P/N 00016-00463-01

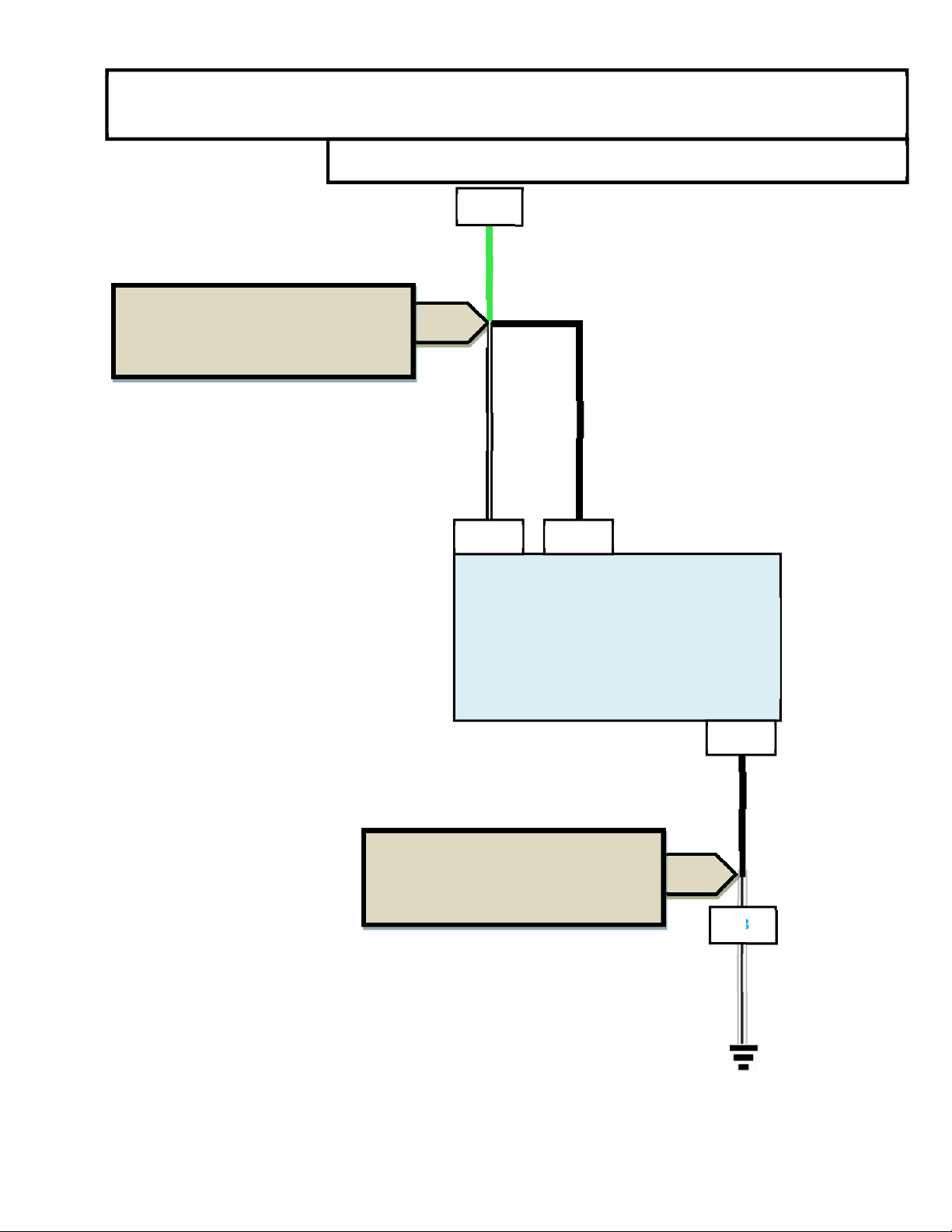

Block Diagram
Frameless® EC Mirror w/Compass & HomeLink®
Applies to SET P/N 00016-00463 2015 Tacoma
1
T-Tap the main power harness
power wires to Pin 1 light green wire
in connector I8.
I8 1
10A Fuse
IG1 NO.2
I82
T-Tap the main power harness
ground wire to Pin 2 white/black
wire in connector I8.
IMH1 6
IMH12
IMH1
LG
B‐W
W‐B
Southeast Toyota Distributors, LLC
Page 13 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®
Checking the Harness Pin outs:
Connector IMH1: Frameless® EC Mirror w/Compass Power
Harness Connector
Connector view is from the front (pin side)
If feedback from the harness on any of the pins does not match the results shown
in the Proper Operation field below, check the connection to the vehicle wiring
and re-test.
Pin Wire Color Test Reference Proper Operation
1 Black w/White Trace Pin 1 to ground Approx. 12 VDC with switch in ON position
Approx. 0 VDC with switch in OFF position
2 Black Pin 2 to ground Always Continuity
6 Black Pin 3 to ground Approx. 12 VDC with switch in ON position
Approx. 0 VDC with switch in OFF position
Pin Wire Color Circuit
1 Black w/White Trace Ignition
2 Ground Ground
6 Black Battery
Southeast Toyota Distributors, LLC
Page 14 of 15
Rev.C.01.30.15

Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink®

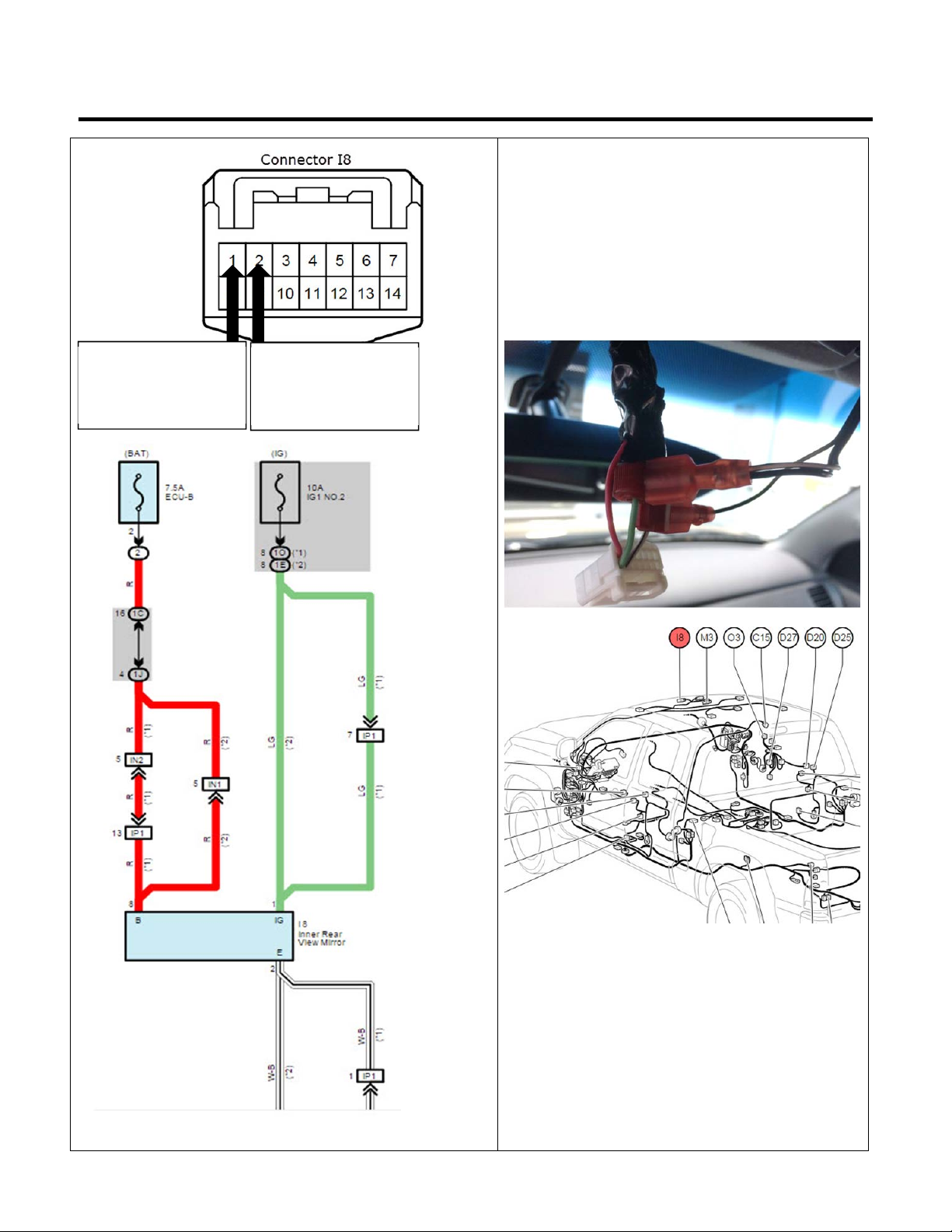

Vehicle Connector I8 Circuit
