Toyotomi AC-20 User manual

MODEL
AC-20
English
AIR PURIFIER
INSTRUCTION MANUAL
Thank you for purchasing our product.
■Before using this product, be sure to read this Instruction Manual to ensure proper usage. Please
keep this manual for later reference.
■Improper use of this product may result in a malfunction, failure, unexpected accident, or create a
potential hazard.
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ a

SAFETY PRECAUTIONS
NAME OF COMPONENT PARTS
PREPARATION BEFORE USE
1HOW TO INSTALL THE HEPA FILTER
2HOW TO INSTALL AIR PURIFIER
OPERATION PROCEDURE
ROUTINE MAINTENANCE
TROUBLESHOOTING
SPECIFICATIONS
CONTENTS
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1~3
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5~6
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 7
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8~11
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 12
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 13
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ b

1
English
SAFETY PRECAUTIONS (Please read carefully and follow all instructions.)
䢇Items shown here are labeled “ Warning!” and “ Caution!”
Be sure to follow the warnings and cautions as they explain important details regarding safety.
Improper use can cause death or serious personal injury.
WARNING
CAUTION
Caution Must be
performed.
Remove the power plug
from the electric outlet.
Do not
disassemble.
WARNING
CAUTION
夝Be sure to remove the power plug from the electrical outlet when performing
maintenance. Do not remove or insert the plug with wet hands.
●Failure to heed this warning may result in electric shock or burns.
夝No other current than AC 220V/230V is allowed to be used.
●When used on anything other than 220V/230V mains, fire or electric shock may
occur.
夝No damaged power cord, plug, or loose plug connection is allowed to be used.
●An electric shock, short, or inflammation may otherwise be caused.
夝Remove all dust and dirt from the power plug and insert it
completely into the outlet to ensure proper contact.
●Dust and dirt on the plug or incomplete insertion creates the
danger of electrical shock and fire.
Improper use can cause personal injury or physical damage.
䢇Be sure to follow the advice in the instruction manual in order to use this unit properly.
夝Only authorized technicians should disassemble, repair, or modify this product.
●Ignition or malfunction may occur, causing injury.
夝Do not damage, break, modify, forcibly bend, yank, twist, or
bundle the power cord.
●A fire or electric shock may result if the cord is pinched or
modified, or something heavy is placed on it.
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 1

2
CAUTION
夝If the Air Purifier is not used for a long time, remove the power plug from the
outlet.
●Caked-on dust may cause heat or ignition.
夝 Do not expose the product to flammable substances or Heavy smoke or incense.
●This may cause a fire.
夝Do not use the unit where the atmosphere contains oil.
●This may cause a crack.
夝The Air Purifier is not allowed to be used in such a
moist place as a bathroom.
●An electric shock or malfunction may occur.
夝Do not expose the unit to vapor or mist from
something like a humidifier or electric shock or failure
may result. (Use the unit so that the main unit is not
exposed to vapor or mist from a humidifier.)
SAFETY PRECAUTIONS (Please read carefully and follow all instructions.)
夝When unplugging the power plug, grip the plug and not the
cord.
● Do not pull the cord or the wire inside the cord will be damaged
resulting in heat or ignition.
夝When using with another combustion appliance, ventilation is necessary.
●The unit cannot add oxygen or remove carbon monoxide. Toxic substances (such as
carbon monoxide)contained in tobacco cannot be removed.
夝Do not expose your body to the air current from the exhaust ports.
●Such air current may harm human health, especially infants, the elderly, and the sick.
夝Care must be taken not to put your finger or any
foreign material into the Suction Grille or the Air
Outlet.
●An electric shock or trouble may occur.
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 2

3
CAUTION
夝Do not wipe the unit with benzene or paint thinner.
Also, do not spray insecticides on the unit.
●Cracking, electrical shock and / or fire may occur as a
result.
夝Do not use the unit with the intake and exhaust
ports blocked or obstructed; doing so will result in
deformation and/or failure.
夝Do not use the unit in places with greasy dirt or
excessive moisture such as a kitchen or a factory.
●Doing so may cause a failure or degradation of
cleaning ability.
夝The appliance is not to be used by children or persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction.
夝Do not install the Air Purifier on an unstable floor,
shelf or wall.
●There is a fear of the Air Purifier falling down.
夝Do not use the unit on or around a space-heating
appliance or where it may be exposed to heat.
This may cause a failure or deformation.
English
SAFETY PRECAUTIONS (Please read carefully and follow all instructions.)
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 3

4
high lowlow
AC - 20
Front Panel
Indication Lamp
Intake Air Opening
Air Outlet
Opening
Operation Switch
Prefilter
FILTER UNIT INSIDE OF THE MAIN UNIT
Prefilter Antivirus Filter Washable Filter
䢇Select a desired operation mode pressing the operation switch. (For detail, refer to page 7.)
Front Face (Wave) Rear Face (Mesh)
Intake Air
Opening
Intake Air
Opening
Carrying Handle
Power Supply Coad
Power Plug
Operation Switch
OPERATION PANEL
NAME OF COMPONENT PARTS
MAIN UNIT
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 4

5
PREPARATION BEFORE USE
1 HOW TO INSTALL THE FILTER (Be sure to assemble the filter before using the Air Purifier.)
1
1Pull the front panel toward you and remove it while grasping the
intake air opening at the bottom of the main unit.
3Remove the Prefilter from the main unit.
2
2Remove the Antivirus Filter from the main unit.
4Remove the washable filter in the bag from the main unit.
NOTE: Take the washable filter out of the plastic bag, before use, and set it on the main unit.
If it is installed packed in the plastic bag, it cannot produce the purifying effect.
When handling the washable filter, the deodorizing ingredient (black powder) may stick to
hands if you touch the deodorizing section (black mesh face) on the filter or when inserting
hands in the bag. This is normal because abundant amount of black powder is used to assist
the deodorizing performance sufficiently and apply the deodorizing ingredient
homogeneously.
English
Front Panel
Prefilter
●Front face and rear face of the washable filter are specified. If they are inverted at the installation,
sufficient performance cannot be achieved.
●When installing the washable filter, has its mesh face oriented toward the inside of product.
●Life of washable filter is about 10 years, provided it is cleaned once every year. The life may be
reduced depending on the cleaning cycle, operating time and place of installation.
●The life may be reduced significantly when the filter has been contaminated by inhaling oil mist or
carbides (soot, etc).
NOTE
4
3
Prefilter
Antivirus Filter
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 5

6
䢇How to effectively install the Air Purifier
Install the Air Purifier in a high place (on a table) when cleaning relatively small-sized dust such as
Heavy smoke. Install the unit in a low place (on the floor) when cleaning large-sized dust such as
pollen.
2 HOW TO INSTALL AIR PURIFIER (Choose a place where indoor air circulates well.)
PREPARATION BEFORE USE
䢇When installing it on the floor or on a table
Place it on the floor or table approximately 30 cm away from
the surrounding walls.

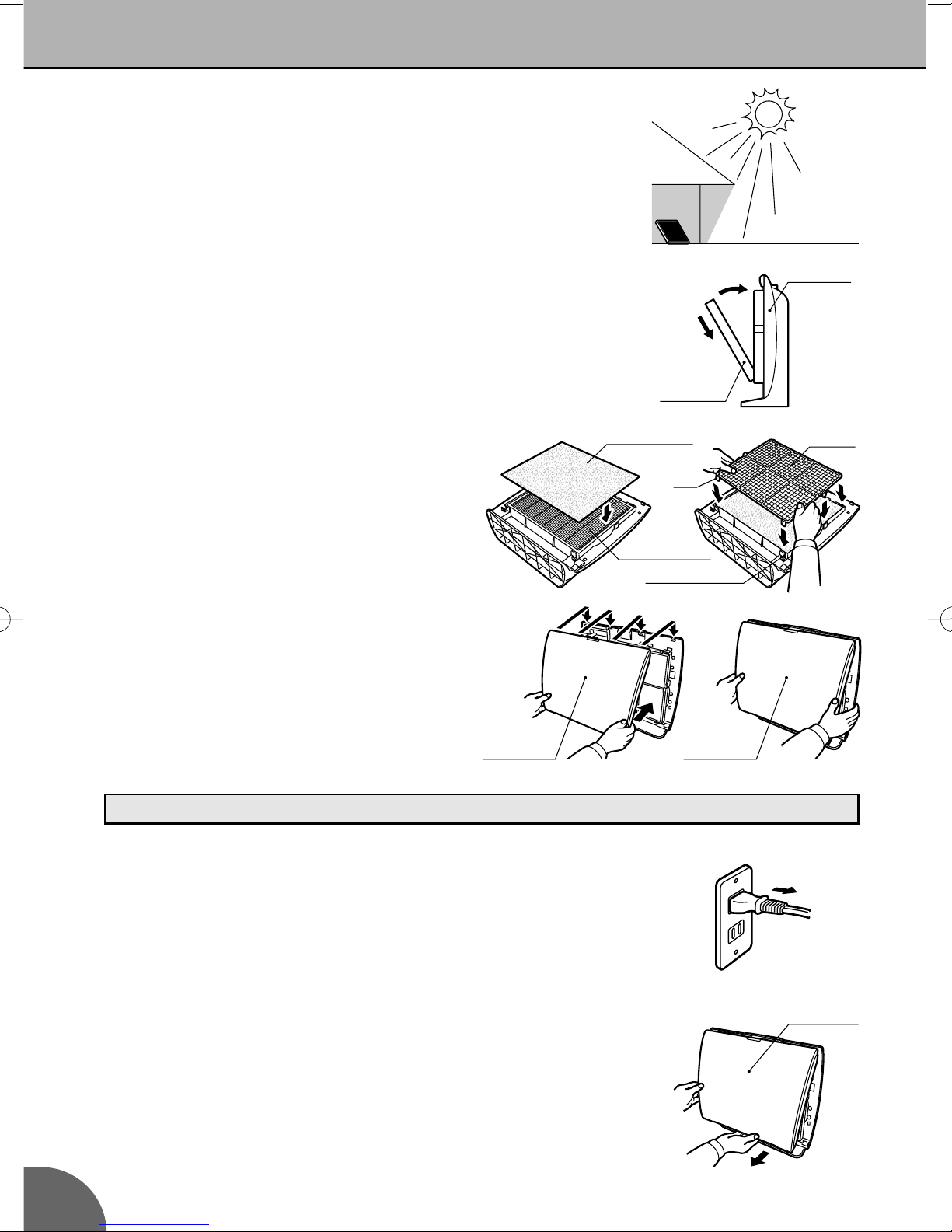

8Hooking the nails (4 places) at the upper part of front panel on
the fitting sections on the main unit, install the front panel
grasping both sides at the bottom of product.
Pront Panel
Nail
Fitting section
of main unit
Pront Panel
7Aligning the nails (6 places) of prefilter with the slits (6 places) on
the main unit, install the prefilter.
5
Washable Filter
Main unit
5Take the washable filter out of the bag, and install it on the main
unit having the waved face oriented toward the front of main unit
and the mesh face to the inside.
It should better to insert first the bottom face of washable filter
and then its upper face.
6Take the Antivirus Filter out of the plastic bag.
Lay down the main unit and install the Antivirus Filter on the
main unit.
8
7
6
Prefilter
Nail
Slit on main unit
Antivirus Filter
Washable Filter
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 6

English
7
OPERATION PROCEDURE
1
1Insert the Power Pulg completely into the outlet to ensure proper contact.
2To start operation, press the power switch to ON.
The Air Blower Speed Lamp will light.
3
3In order to switch the air blower speed, select “High” or “Low” with the Air Blower Speed Switch.
The air blower speed lamp will also be activated.
4In order to stop operation, press the power switch to switch the unit off.
The Air Blower Speed Lamp will go out.
2
4
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 7

8
BEFORE MAINTENANCE
MAINTENANCE OF THE MAIN UNIT
䢇When cleaning the main unit, wipe it with a soft cloth soaked in dishwashing detergent and dry
with a soft cloth.
夝Do not use paint thinner, benzene or alcohol to avoid the degradation or discoloration of the body.
Wiping the unit with benzen or paint thinner may resuit in Cracking or Electrical Shock.
ROUTINE MAINTENANCE
夝Only authorized technicians should disassemble, repair, or
modify this product.
●Ignition or malfunction may occur, causing injury.
CAUTION
夝Don’t wash the washable filter with washing machine. Don’t
dry it with drying machine.
●Otherwise, it could damage the filter.
夝Don’t use detergent when washing the washable filter. Don’t
scrub or squeeze during washing.
●Otherwise, it could damage the filter.
夝Sufficiently dry the washable filter. Don’t install it when it is
damp.
●It could cause trouble, fuming or ignition.
1Use a vacuum cleaner, or the like, to remove dust on and around the air intake opening on the front
panel.
2
2When it is heavily soiled, remove the front panel and wash it immersing in warm water or water or
warm water dissolving neutral detergent. Then dry it sufficiently at a shaded area.
Finish up by rubbing it with a dry cloth. (Avoid scrubbing strongly with a dry cloth to prevent
scratches.)
1
Cleaning of front panel
夝Be sure to remove the power plug from the electrical outlet
when performing maintenance. Do not remove or insert the
plug with wet hands.
●Failure to heed this warning may result in electric shock or burns.
WARNING
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 8

9

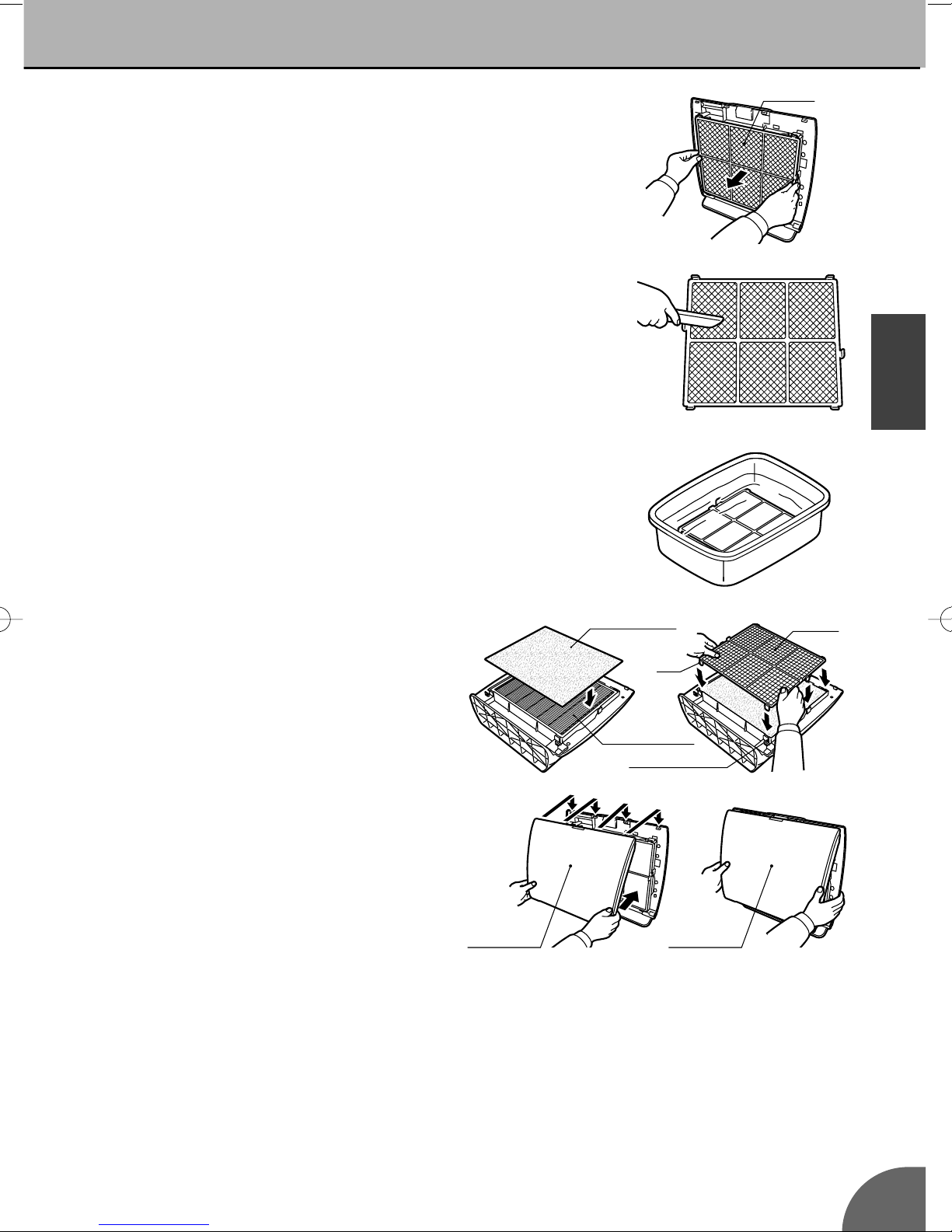

1
1Removing the front panel in the same way as at the cleaning of
prefilter, remove the prefilter, the antivirus filter and the washable
filter from the main unit.
2Remove dust from the waved face of washable filter with
vacuum cleaner.
3Wash the filter placing in a polyvinyl bag, or the like, filled with
warm water at 40˚C or under, and leaving it alone overnight
(approx. 6 hours).
• Use a plastic bag with sufficient allowance in size (45 L or
larger).
• When washing it by leaving in water, select a place such as
kitchen, bathroom or outdoors where there is no problem of
water leakage of splash.
4Cleanse it sufficiently in a plastic bag filled with clean water or
warm water at 40˚C or under.
• Unless it is cleansed sufficiently, smell may persist on it.
2
3
4
ROUTINE MAINTENANCE
Washable Filter
Washable Filter
MAINTENANCE OF WASHABLE FILTER
Cleaning of washable filter
●When it is felt that the deodorizing effect has decreased, maintain the filter.
●It should be washed about once a year.
NOTE
English
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 9

10
5After washing by immersing in water, dry it sufficiently for a full
day (approx. 24 hours) at an airy place under shade.
• Drying speed varies depending on seasons. If it is felt damp
still, dry it once more.
• Wet filter becomes heavy. Protect the washable filter from
undue stress when drying it.
6Having the waved face of washable filter oriented toward the
front of main unit and the mesh face to the inside, install the filter
on the main unit. It should better to insert first the bottom face of
washable filter and then its upper face.
7Install the pre-filter by aligning its nails (6 places)
with the slits (6 places) on the main unit after
installing the antivirus filter.
8Hooking the nails (4 places) at the upper part of
front panel on the fitting sections on the main
unit, install the front panel pressing at both sides
of lower part of product.
5
6
7
8
1Stop the operation, and pull out the power plug from the
electrical outlet.
2Holding the intake air opening at the bottom of main unit, pull
and remove the front panel to this side.
ROUTINE MAINTENANCE
Cleaning of pre-filter
1
2
Front PanelFront Panel
Front Panel
Washable
Filter
Main unit
Antivirus Filter
Washable Filter
Prefilter
Nail
Slit on main unit
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 10

11
ROUTINE MAINTENANCE
3Holding the knobs at both sides of prefilter, pull and remove it to
this side. Remove the antivirus filter.
4Remove dust attached to the prefilter with vacuum cleaner.
5When it is heavily soiled, wash it immersing in warm water or
water or warm water dissolving neutral detergent. Then dry it
sufficiently at a shaded area.
6Aligning the nails on the prefilter (6 places) to the
slits (6 places) on the main unit, install the
prefilter after installing the antivirus filter.
3
4
5
6
Prefilter
Attaching the nails (4 places) at the upper part of
front panel to the fitting sections on the main
unit, install the front panel pressing at both sides
of lower part of product.
Front PanelFront Panel
7
7
English
Antivirus Filter
Washable Filter
Prefilter
Nail
Slit on main unit
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 11

12
TROUBLESHOOTING
Does not
operate.
●Is there a power outage?
●Is the power plug plugged in firmly?
●Has the breaker or a fuse shorted out?
Since the following cases may not indicate a serious problem, check each of them before asking
for repair service.
PROBLEM CHECK ITEMS
Does not
remove
odors.
Does not
remove
●Is washable filter dirty?
●Is the washable filter installed?
●Is the washable filter installed backwards?
Audible
Cracking
Sound
●A crackling sound is often emitted when tiny fibers are
taken in and does not indicate a failure. (If this sound is
emitted continuously, please contact your dealer.)
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 12

13
SPECIFICATIONS
AC230V, 50 Hz
High
31 W
2.0 m3/ min.
17 m2
2.0 m
412 ×126 ×395 mm
3.4 kg
Washable Filter, Prefilter, Antivirus Filter
Power source
Air flow rate adjustment
Power consumption
Air flow rate
Applicable floor space
Cord length
Exterior dimensions
Product weight
Accessories
Low
21 W
1.0 m3/ min.
English
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 13

5-17, Momozono-cho, Mizuho-ku, Nagoya, Japan
Rev. 10/07
Printed in Japan
7309000605
TOYOTOMI CO., LTD.
AC-20 [AC-V20-GR] (GB) 10.6.17 1:21 PM ページ 14
