Toyotomi GAN-A28IVL User manual

User’s Manual
Οδηγίες Χρήσης
Manuale d’instruzioni
Wall Mounted Room Air Conditioners
Kλιατιστικό τοίχου
Condizionatore split
Model names/Μοντέλα/Modello
GAN/GAG-A28IVL
GAN/GAG-A35IVL
GAN/GAG-A53IVL
GAN/GAG-A70IVL
For the proper use of this product, kindly read carefully this manual and keep it for
future reference.
Για τη σωστή του χρήση παρακαλούε διαβάστε το εγχειρίδιο χρήση προσεκτικά,
πριν θέσετε τη ονάδα σε λειτουργία και κρατήστε το σε καλή κατάσταση για
ελλοντική αναφορά.
Per un corretto funzionamento, leggere attentamente questo manuale prima
usare il condizionatore e conservarlo per una futura consultazione.

2GB
CONTENTS
Operation and Maintenance
Safety Precautions _____________________________________________________ 3-5
Name of Parts ___________________________________________________________ 6
Operation of Remote controller__________________________________________ 7-12
Emergency Operation ___________________________________________________ 13
Care and Cleaning ___________________________________________________ 14-15
Troubleshooting_____________________________________________________ 16-18
Operation Tips ______________________________________________________ 19-20
Installation Service
Notices for Installation ________________________________________________ 21-23
Installation Drawing_____________________________________________________ 24
Installation of Indoor Unit _____________________________________________ 25-27
Installation of Outdoor Unit____________________________________________ 28-29
Check after Installation and Operation Test __________________________________ 30
Never attempt.
The physical product may dier from the drawing in this manual for dierent display.
If there are some dierences between them, please refer to the physical product as the
standard.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure they are away from the appliance.
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
Be sure to follow this instruction

3GB
Safety Precautions
Please read the following notices before operation
WARNING
If there’s abnormal pheno-
menon (like smell of burning),
please cut o the power im-
mediately and then contact
with authorized maintenance
center.
The special circuit must be
adopted for power supply to
avoid re.
Before cleaning the air condi-
tioner, please cut o the power.
Power supply should adopt the
special circuit with the protec-
tion of air switch and the capac-
ity must be sucient.
Pease do not turn on or turn o
the air conditioner frequently.
Y-type connection is adopted
for the power supply of this air
conditioner.If the power cord is
damaged, it must be replaced
by the manufacture, mainte-
nance center or a similarly qual-
ied person to avoid a hazard.
When the voltage is too high,
electric elements can be dam-
aged easily; if the voltage too
low, the compressor will vibrate
ercely, which may damage the
cooling system or compressor
and electric components can’t
operate.
Otherwise, it will cause electric
shock or injury.
cut o power
Do not use octopus multipur-
pose socket or mobile wiring
board for wire connection.
Please cut o the power supply
when the air conditioner won’t
be used for an extended period
of time.
Do not damage the power cord
or use unspecied power cord.
Otherwise, it may cause re due
to overheating of power cord.
Otherwise, it will accumulate
dust and it may cause overheat-
ing, re and other accidents.
Do not operate the air condi-
tioner with wet hands.
Do not cut o or damage the
power cord or signal control
wire. If the power cord or signal
control wire of air conditioner
is damaged,please replace it by
the professional with specied
power cord.
Otherwise, it may cause electric
shock.
If this abnormal status is kept on,
air conditioner may be damaged
or even cause electric shock or
 r e .

4GB
Safety Precautions

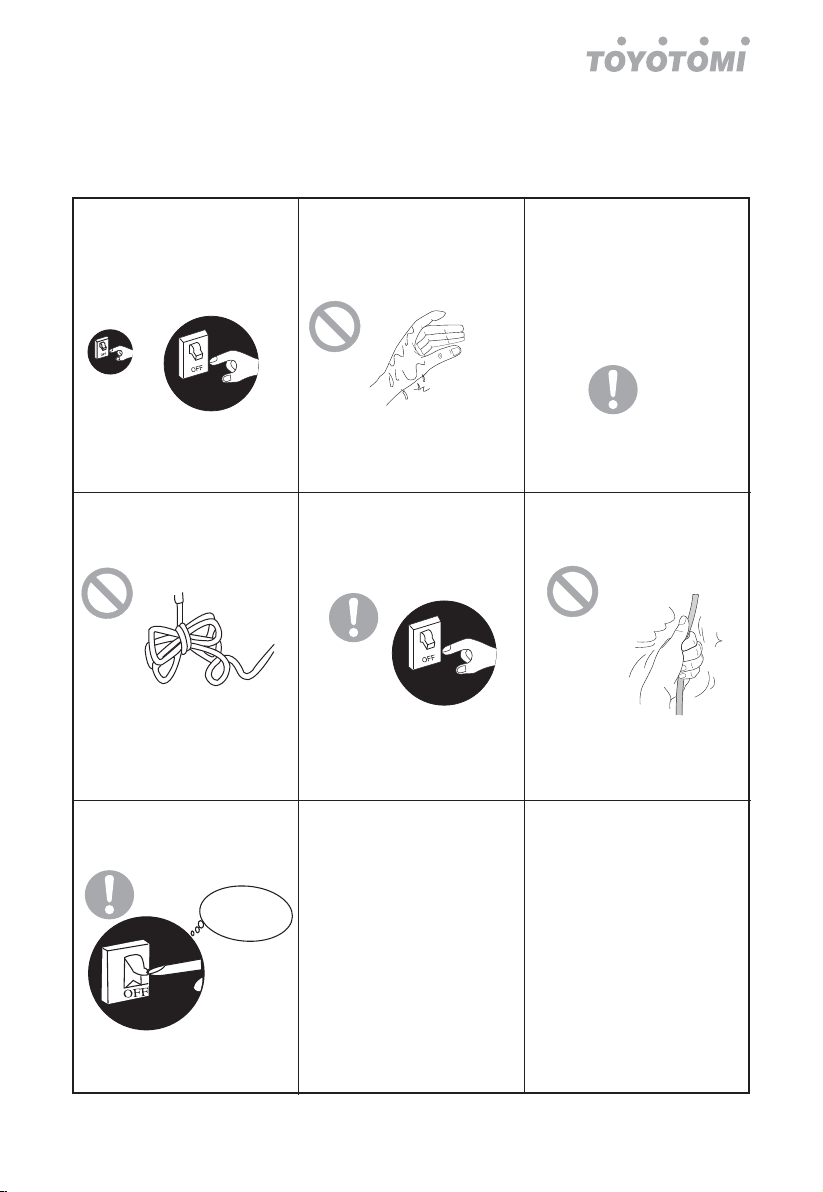

Always ensure eective
earthing.
Do not keep windows and
doors open for a long time
during operation.
Install the outdoor unit
rmly enough.
Do not step on the top of the
outdoor unit or place heavy
things on it.
Do not attempt to repair the
air conditioner by yourself.
Do not block the air inlet or
outlet.
Keep combustible materials
away from the units at least
1m.
For safety,be sure to turn o
the circuit beaker before per-
forming any maintenance or
cleaning or when the product
is not used for an extended
period of time.
Select the most appropriate
temperature.
No earthing may cause
electric shock.
It will result in insucient
performance
It may cause falling of the unit
and injury to the person.
It may cause damage or injury
Incorrect repairs may cause
electric shock or re. Please
contact the local authorized
service center.
It will result in insucient per-
formance and cause malfunc-
tions.
It may cause re or explosion.
Accumulated dust may cause re
or electric shock.
It can save electric energy.
Keep room
about
5° cooler than
outside.

5GB
Safety Precautions
Do not cut o or damage the power cords or
control cords. If they are damaged, please
contact the dealer or qualied service per-
sonnel.
Do not insert your hands or objects into
the air in let or outlet.
Do not expose yourself to cold air directly
for a long time.
Do not splash water on the air conditioner. Do not place a burner near the air conditioner.
Do not use the unit for any other purpose,
such as preserving food or drying clothes.
Do not expose animals or plants directly to
the air ow.
It may cause an accident.
It’s not good for your health.
It may cause electric shock or malfunction.
It will cause CO toxi-
cosis due to incom-
plete burning.
It may have a detrimental eect on them.
To change the airow direction, adjust the
vertical and horizontal air ow direction by
using the remote controller.
Vertical Louver Horizontal Louver

6GB

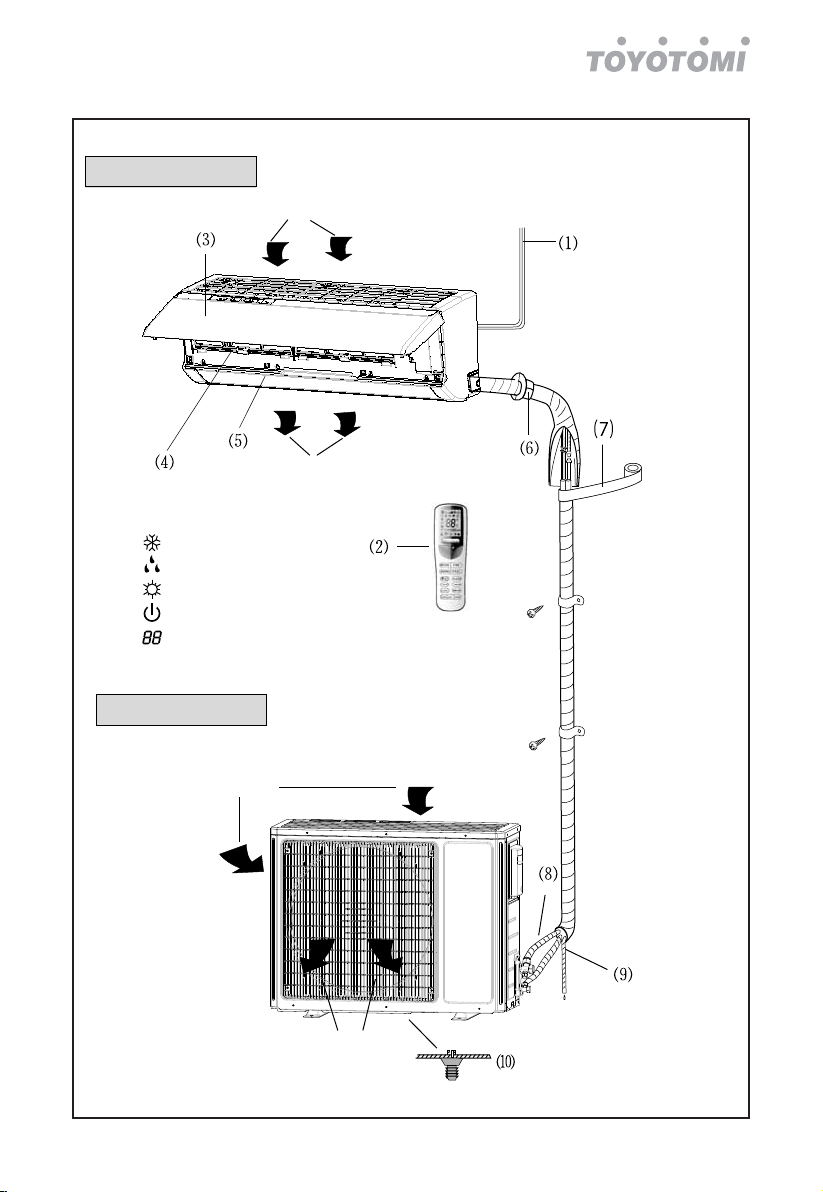

Name of Parts
Indoor unit
Air in
Air in
Air out
Air out
The icons displayed:
Cool
Dry
Heat
Power
Set temp.
1. Power cord
2. Remote controller
3. Front panel
4. Filter
5. Horizontal louver
6. Wall pipe
7. Binding tape
8. Connection Pipe
9. Drain hose
10. Drain connecter
Outdoor unit

7GB
Operation of Remote Controller
ON/OFF
Press it to start or stop operation.
SWING
Press it set swing angle.
TIMER ON
Press it to set auto-on timer.
-
Press it to decrease temperature setting.
I FEEL
(Page 10)
CLOCK
Press it set clock.
+
Press it to increase temperature setting.
Press it to set HE ALTH or AIR function.
TIMER OFF
Press it to set auto-o timer.
MODE
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).
SLEEP
(Page 11)
TURBO
(Page 11)
FAN
Press it to set fan speed.
TEMP
(Page 11)
LIGHT
Press it to turn on/o the light.
X-FAN
(Page 11)
1
6
11
2
7
12
3
8
13
4
9
14
5
10
15
16

8GB

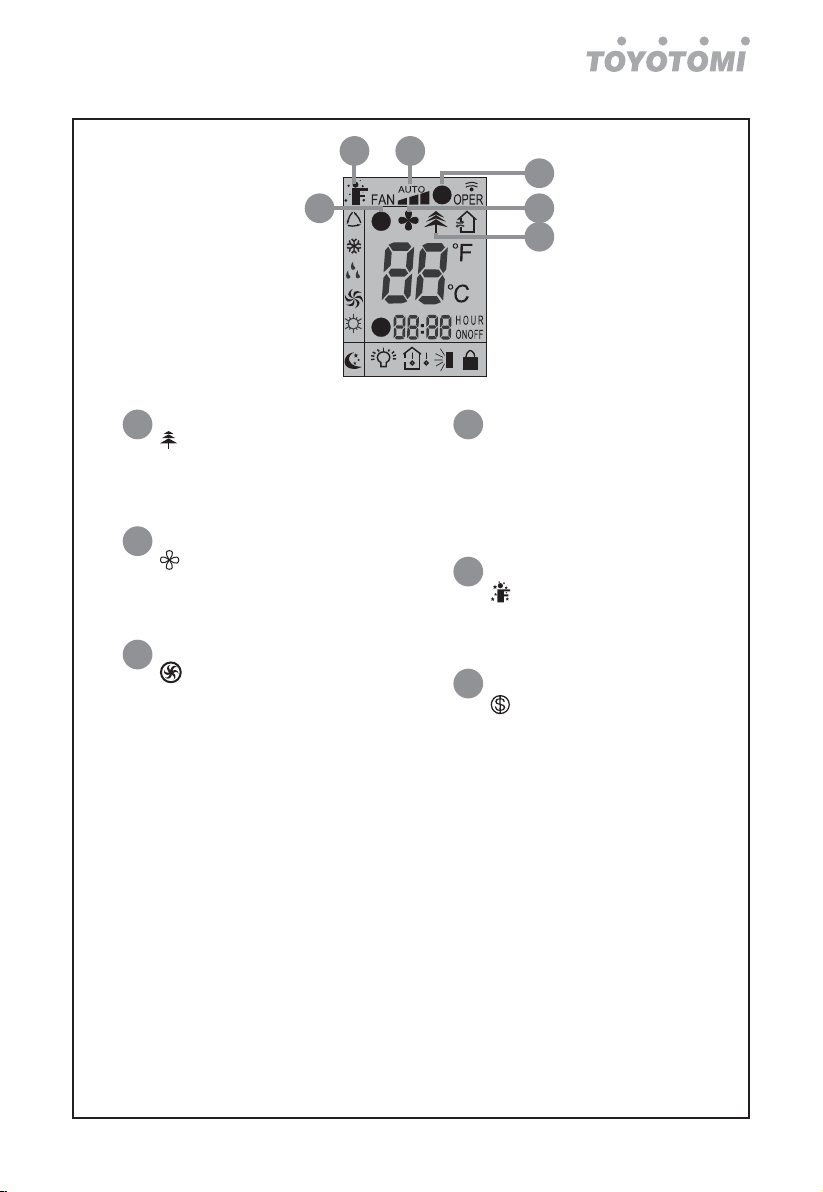

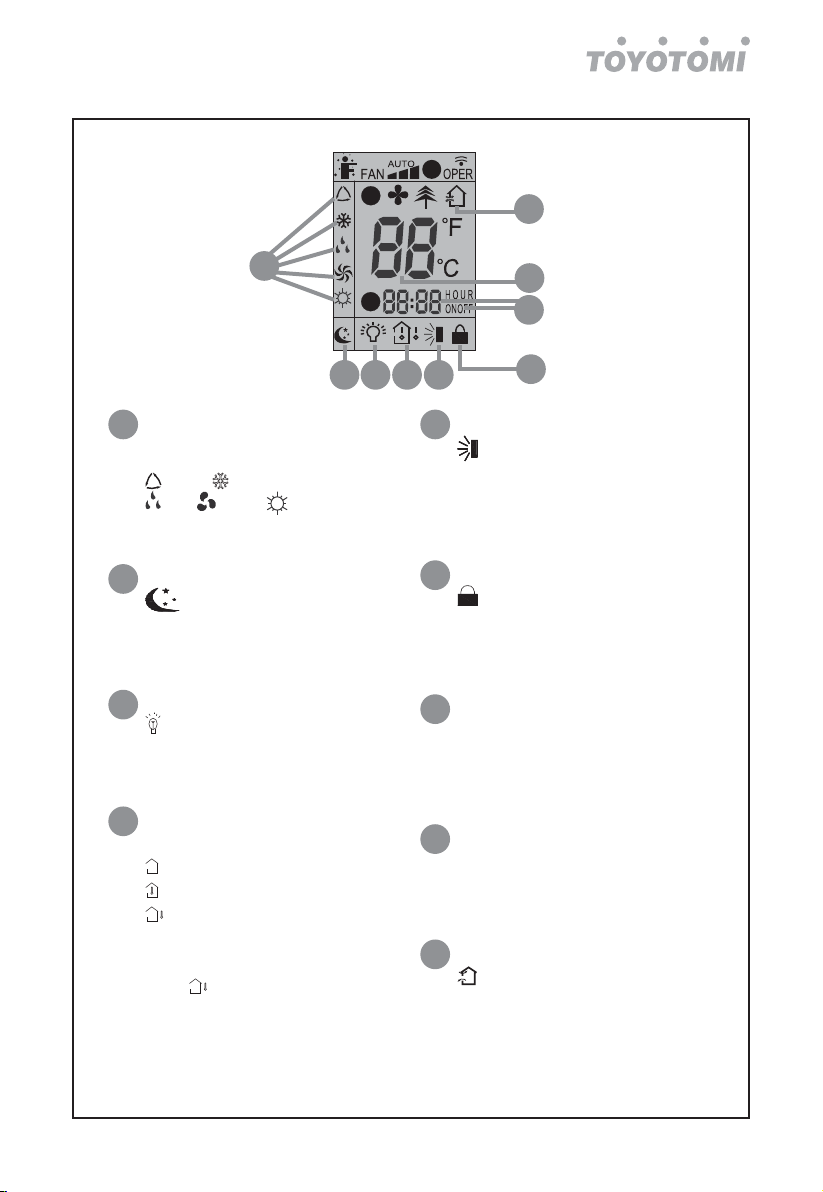

Operation of Remote Controller
17
22
23
25
24
18 19 20 21
MODE icon
If MODE button is pressed,
current operation mode icon
AUTO, COOL,
DRY, FAN or HEAT
only for heat pumpmodels) will show.
Up & down swing icon
is displayed when pressing
the up & down swing down button.
Press this button again to clear the
display.
LOCK icon
is displayed by pressing“+”
and“-”buttons simultaneously. Press
them again to clear the display.
SET TIME display
After pressing TIMER button,ON or
OFF will blink.This area will show
the set time.
DIGITAL display
This area will show the set temperature.
In SAVE mode,”SE”will be displayed.
AIR icon
is displayed when pressing the
AIR button. Press this button again
to clear the display.
Note: This function is not applicable
to partial of models.
This function is not available for this model.
LIGHT icon
is displayed by pressing the
LIGHT button. Press LIGHT button
again to clear the display.
TEMP icon:
Pressing TEMP button,
(set temperature),
(indoor ambient temperature)
(outdoor ambient temperature)
and blank is displayed circularly.
NOTE: function is applicable to
partial of models.
This function is not available for this model
SLEEP icon
is displayed by pressing
the SLEEP button. Press this
button again to clear the display.
17 21
22
23
24
25
19
20
18

9GB
Operation of Remote Controller
HEALTH icon
is displayed when pressing the
HEALTH button. Press this button
again to clear the display.
FAN SPEED display
Press FAN button to select the
desired fan speed setting(AUTOLow-
Med-High).Your selection will
be displayed in the LCD windows,
except the AUTO fan speed.
I FEEL icon
is displayed when pressing
the I FEEL button. Press this
button again to clear the display.
8C Heating icon:
is displayed when Pressing
“TEMP” and “CLOCK”simultaneously
in Heat mode
NOTE: This function is applicable to
partial of models.
This function is not available
for this model
X-FAN icon
is displayed when pressing the
X-FAN button. Press this button
again to clear the display.
TURBO icon
is displayed when pressing the
TU RBO button. Press this button
again to clear the display.
26 29
30
31
27
28
2930
26
2731
28

10 GB
Operation of Remote Controller
Remote Controller Description
ON/OFF:
Press this button to turn on the unit . Press this button again to turn o the unit.
Press this button to decrease set temperature. Holding it down above 2 seconds rapidly de-
creases set temperature. In AUTO mode, set temperature is not adjustable.
+
Press this button to increase set temperature. Holding it down above 2 seconds rapidly in-
creases set temperature. In AUTO mode, set temperature is not adjustable.
MODE
Each time you press this button, a mode is selected in a sequence that goes from AUTO, COOL,
DRY, FAN, and HEAT *, as the following:
*Note: Only for models with heating function.
After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not
be displayed on the LCD, and the unit will automatically select the suitable operation
mode in accordance with the room temperature to make indoor room comfortable.
FAN
This button is used for setting Fan Speed in the sequence that goes from AUTO,
, to then back to Auto.
Auto
Low speed Medium speed High speed
SWING
Press this button to set up & down swing angle, which circularly changes as below:
OFF
This remote controller is universal. If any command , or is sent out,
the unit will carry out the command as
indicates the guide louver swings as:
I FEEL:
Press this button to turn on I FEEL function. The unit automatically adjust temperature
according to the sensed temperature. Press this button again to cancel I FEEL function.
/
Press this button to achieve the on and o of healthy and scavenging functions in
operation status. Press this button for the rst time to start scavenging function;
LCD displays . Press the button for the second time to start healthy and scavenging
functions simultaneously; LCD displays and . Press this button for the third
time to quit healthy and scavenging functions simultaneously.Press the button for the
fourth time to start healthy function; LCD display . Press this button again to repeat
the operation above.
1
2
3
4
5
6
7
8

11 GB
Operation of Remote Controller
SLEEP:
Press this button to go into the SLEEP operation mode. Press it again to cancel this function.
This function is available in COOL , HEAT (Only for models with heating function) to maintain
the most comfortable temperature for you.
TEMP:
Press this button, you can see indoor set temperature, indoor ambient temperature
on indoor unit’s display. The setting on remote controller is selected circularly as below:
When selecting with remote controller or no display, temperature indicator on indoor
unit displays set temperature; When selecting with remote controller, temperature indica-
tor on indoor unit displays indoor ambient temperature; 3s later or within 3s it receives other
remote control signal that will return to display the setting temperature.
Caution:
This model hasn’t outdoor ambient temperature display function. While remote controller can
operate and indoor unit displays set temperature.
It’s defaulted to display set temperature when turning on the unit.
• Only for the models with temperature indicator on indoor unit.
TIMER ON :
Press this button to initiate the auto-ON timer. To cancel the auto-timer program, simply
press this button again.
After press of this button, disappears and “ ON “ blinks. 00:00 is displayed for ON time set-
ting. Within 5 seconds, press + or - button to adjust the time value. Every press of either button
changes the time setting by 1 minute. Holding down either button rapidly changes the time
setting by 1 minute and then 10 minutes. Within 5 Seconds after setting, press TIMER ON but-
ton to conrm.
CLOCK :
Press CLOCK button, blinking. Within 5 seconds, pressing + or - button adjusts the present
time. Holding down either button above 2 seconds increases or decreases the time by 1 min-
ute every 0.5 second and then by 10 minutes every 0.5 second. During blinking after setting,
press CLOCK button again to conrm the setting, and then will be constantly displayed.
TIMER OFF :
Press this button to initiate the auto-o timer. To cancel the auto-timer program, simply press
the button again.TIMER OFF setting is the same as TIMER ON.
TURBO:
Press this button to activate / deactivate the Turbo function which enables the unit to reach
the preset temperature in the shortest time. In COOL mode, the unit will blow strong cooling
air at super high fan speed. In HEAT mode, the unit will blow strong heating air at super high
fan speed.
LIGHT:
Press LIGHT button to turn on the display’s light and press this button again to turn o the
display‘s light. If the light is turned on, is displayed. If the light is turned o, disappears.
9
10
11
12
13
14
15

12 GB
Operation of Remote Controller
X-FAN:
Pressing X-FAN button in COOL or DRY mode,the icon is displayed and the indoor fan will
continue operation for 2 minutes in order to dry the indoor unit even though you have turned
o the unit.
After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO,FAN or HEAT mode.
Combination of“+” and “-” buttons: About lock
Press“+ “ and “-”buttons simultaneously to lock or unlock the keypad. If the remote controller
is locked, is displayed. In this case, pressing any button, blinks three times.
Combination of “MODE “ and“-”buttons : About switch between Fahrenheit and centigrade
At unit OFF, press“MODE”and “ - “ buttons simultaneously to switch between ℃and ℉.
Combination of“ TEMP“ and “CLOCK”buttons: About Energy-saving Function
Press“TEMP”and“CLOCK”simultaneously in COOL mode to start energy-saving function.
Nixie tube on the remote controller displays“SE”. Repeat the operation to quit the function.
Combination of“ TEMP“ and “CLOCK”buttons : About 8℃Heating Function
Press “TEMP” and “CLOCK” simultaneously in HEAT mode to start 8℃Heating Function. Nixie
tube on the remote controller displays and a selected temperature of“ 8℃”. (46 ℉if Fahren-
heit is adopted). Repeat the operation to quit the function.
About Back-lighting Function
The unit lights for 4s when energizing for the rst time, and 3s for later press.
Replacement of Batteries
1. Remove the battery cover plate from the rear of the remote controller.
(As shown in the gure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
Notes:
• When replacing the batteries, do not use old or dierent
types of batteries, otherwise, it may cause malfunction.
• If the remote controller will not be used for a long time,
please remove batteries to prevent batteries from leaking.
• The operation should be performed in its receiving range.
• It should be kept 1m away from the TV set or stereo sound
sets.
• If the remote controller does not operate normally, please
take the batteries out and reinsert them after 30 seconds.If it
still can’t operate properly, replace the batteries.
17
16
18
19
20
21
Sketch map for
replacing batteries

13 GB

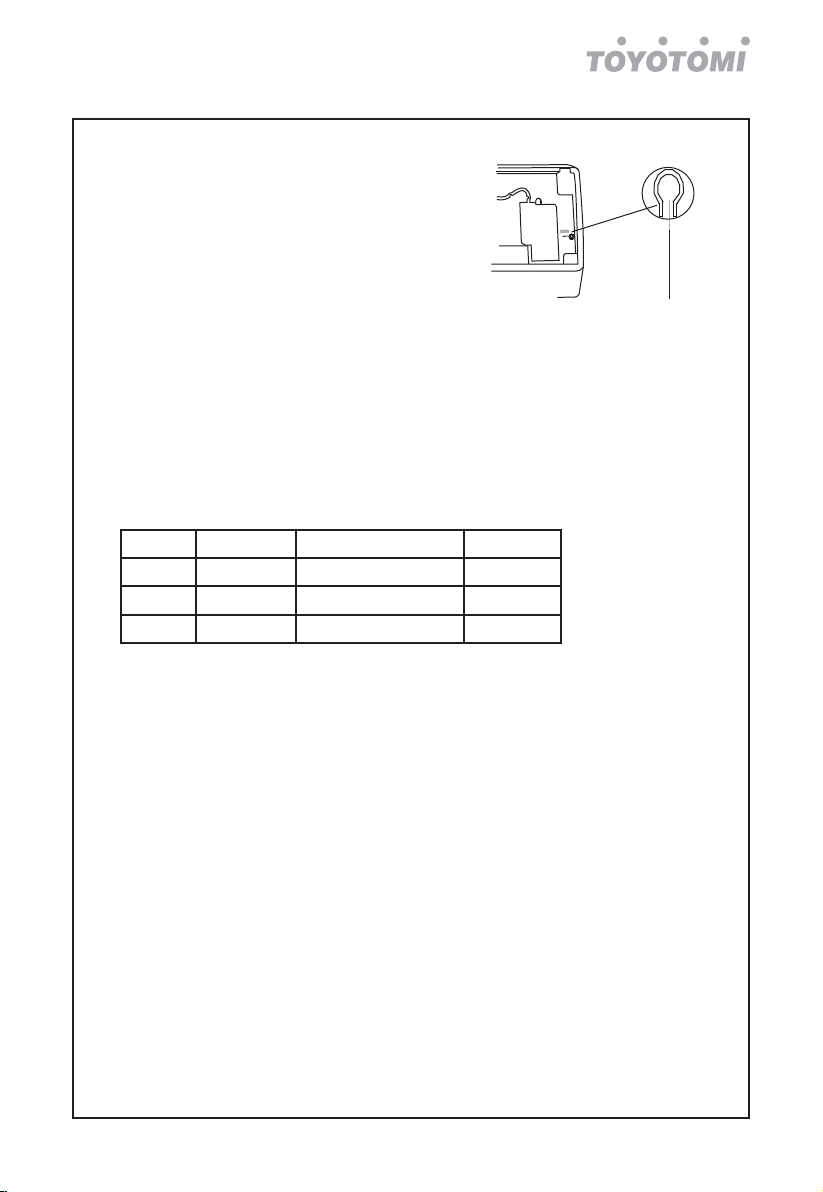

Emergency Operation
Emergency Operation
When the remote controller is lost
or damaged, please use the manual switch
on the main unit. In that case, the unit will
operate in AUTO mode and the temperature
setting or fan speed can not be changed.
The manual switch can be operated as below:
• Turn on the unit: Press AUTO/STOP button to enter
AUTO mode.
The microcomputer will select the mode (COOL, HEAT,
FAN) automatically according to the room temperature
for reaching comfortable eect.
• Turn o the unit: Press the AUTO/STOP button to
switch o the unit.
• The operation mode is seen in the following table.
Mode Model Temperature setting Airow rate
AUTO COOLING 25℃(COOL, FAN) AUTO
AUTO HEAT PUMP 25℃(COOL, FAN) AUTO
AUTO HEAT PUMP 20℃(HEAT) AUTO
• This switch is to be applied when the remote controller
is missing.
Manual switch

14 GB
Care and Cleaning
Caution
• Disconnect the power supply before cleaning and maintenance.
• Do not splash water on the units for cleaning, as electric shocks may occur.
• Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner (not with
volatile liquid such as thinner or gasoline).
Cleaning the Front Panel
Remove the front panel. Dip a piece of cloth into the water colder than 45℃and dry it . Then
wipe the dirty part of front panel.
Note: Do not immerse the front panel into water so as to protect microcomputer components
and circuit diagram on the front panel.
Cleaning the Air Filter (every 3 months)
Note: Do not to touch the n of indoor unit during cleaning to avoid personal injury.
1. Take down the air lter
Lift up the front panel.
Pull the air lter downwards to take it o,
as shown in Fig.(a,b).
2. Clean the air lter
Use a vacuum cleaner to remove dust.
If the lter are dirty, wash them with warm water
and a mild detergent.
Dry the lters in the shade.
Note: Never use water above 45℃to clean the air
lter or it can cause deformation or discoloration.
3. Reinstall the air lter
Reinstall the air lter Reinstall the lters along
the direction of arrowhead.
Close the panel.
(Fig.a)
(Fig.b)

15 GB
Care and Cleaning
Check before Use
1. Be sure that nothing obstructs the air outlet and inlet.
2. Check if the batteries of remote controller are replaced.
3. Check if the installation stand of the outdoor unit is damaged.
If damaged, consult the technicians.
Maintenance after Use
1. Switch o the power supply.
2. Clean the lter and bodies of indoor and outdoor units.
3. Clear obstructions from the outdoor unit.
4. Repaint the rubiginous place on the outdoor unit to prevent it from spreading.

16 GB
Troubleshooting
Caution
The air conditioner is not user serviceable. Incorrect repair may cause electric shock or re so
please contact an authorized service center for professional repair Following checks prior to con-
tact may save your time and money.
The unit does not operate
Odours are emitted
“Water owing”noise
Mist is emitted in COOL mode
Cracking noise
• The unit does not operate if it is turned on im-
mediately after it is turned o.This is to protect
the unit. You should wait about 3 minutes.
• Some odours may be emitted from the indoor
unit. This is the result of room smells (such as
furniture, tobacco, ect.) which have been tak-
en into the air conditioner.
• Consult authorized service center for cleaning
if the odours still exist.
• The swishing noise like water owing is the
refrigerant owing inside the unit.
• During cooling operation, a thin mist may be
seen emitted from the indoor unit due to high
room temperature and humidity.
After a period of time, the mist will disappear
with the decrease of room temperature and
humidity.
• This is the sound of friction caused by expan-
sion and/or contraction of panel or other parts
due to the change of temperature.
Phenomenon Troubleshooting
Waiting

17 GB
Troubleshooting
The unit can not be started up
Cooling/Heating eect is poor
Remote controller is not available
Water leakage of indoor unit
Water leakage of outdoor unit
Noise from indoor unit
• Is the power cut o?
• Is the power plug loose? ( if applicable )
• Is the circuit protection device tripped o?
• Is voltage higher or lower?
(Tested by professionals)
• Is the TIMER correctly used?
• Is temperature setting appropriate?
• Is the inlet or outlet blocked?
• Is the lter dirty?
• Is the window or the door open?
• Is low fan speed set?
• Are there heat sources in the room?
• Check if there is magnetic or electrical interfer-
ence near the unit that may aecting opera-
tion of the controller. In this case, pull the plug
out and reinsert it.
• Is the remote controller within its operating
range or obstructed? Check the condition of
the batteries and replace them if necessary.
• Check if the remote controller is damaged.
• The humidity is high.
• Condensing water overows.
• Drain hose is loose.
• During cooling operation, water condensate
is generated around the pipes and connection
joints.
• During defrosting operation,the thaw water
ows out.
• During heating operation,the water on the heat
exchanger drips out.
• The noise emitted when the fan or compressor
relay is switching on or o.
• When the defrosting operation is started or
stopped, there is a sound of refrigerant owing
in the reverse direction.
Phenomenon Troubleshooting
Breaking o

18 GB
Troubleshooting
Phenomenon Troubleshooting
Indoor unit can not blow air:
Moisture on air outlet :
C5:Malfunction of connector jumper:
F1: Malfunction of indoor ambient temperature
sensor
F2: Malfunction of evaporator temperature
sensor
• There is harsh sound during operation.
• Strong odours are emitted during operation.
• Water is leaking from the unit.
• The air switch or protection switch often trips.
• Water or other liquid is splashed into the unit.
• Power cord and power plug is overheating.
Stop operation
and cut o the power supply.
Defrosting or oil teturn mode
H6: Indoor fan block
If any one of the following situations occurs, immediately stop all operations,
cut o the power supply, and contact the authorized personnel
• In HEAT mode, when the temperature of in-
door heat exchanger is very low, air ow is
stopped in order to prevent cold air. (Within
2minutes)
• In HEAT mode, when the outdoor temperature
is low or humidity is high, frost will be formed
on the outdoor heat exchanger. The unit will
defrost automatically and indoor unit will stop
blowing air for 3-12minutes.
• During defrosting operation, water or vapour
may be emitted.
• In DRY mode, the indoor fan will stop blowing
air for 3-12 minutes in order to avoid condens-
ing water being vaporised again.
• If the unit operates at high humidity for a long
time, moisture will be generated on the air
outlet grill and then drip o.
• Check if the connector jumper contacts prop-
erly. If the PCB is to be replaced, please take o
the old for the new PCB.
• Check if indoor room temperature sensor is
connected properly.
• Check if the evaporator temperature is con-
nected properly.
• It is normal.
• The indicating lamp in heat mode will wink
0.5s and light 10s.
• Check if the terminal of the indoor motor is
connected properly.
• Replace the fan motro or the inddor board if
disabled.

19 GB
Operation Tips
Cooling Operation
Principle:
Air conditioners absorb heat in the room and transmit it to the outdoor unit, so that the room
temperature is decreased. The cooling capacity will increase or decrease according to outdoor
ambient temperature.
Antifreezing Function:
If the unit is operating in COOL mode and in low ambient temperature, frost may be formed on
the heat exchanger. When indoor heat exchanger temperature decreases below zero, compres-
sor will stop operation to protect the unit.
Heating Operation
Principle:
Air conditioners absorb heat from outdoors and transmit it to the indoor unit, increasing room
temperature. The heating capacity will decrease at low ambient temperature.
Defrosting:
When outdoor temperature is low but humidity is high, frost may form on the outdoor unit dur-
ing extended operation, aecting heating eciency. The air conditioner may stop operation
during auto defrosting operation.
During auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
During defrosting, the indoor indicator ashes and the outdoor unit may emit vapor.
This is not malfunction.
After defrosting is nished, the heating operation will recover automatically.
Anti-cold Air Function:
In HEAT mode, the indoor fan will not operate in order to prevent cold air blowing out
(within 2 minutes) if indoor heat exchanger doesn’t reach a certain temperature under the
following three states:
1. Heating operation starts; 2. After Auto Defrosting is nished; 3.Heating at low temperature.
Rest Heat Blow
In the following situations, the indoor unit may still run for some time,
to blow out the rest heat of the indoor unit.
1. In HEAT mode, the temperature reaches the setting value, the compressor stops and the in-
door fan still run for 60s.
2. In HEAT mode, if you turn o the unit, the compressor stops and the indoor fan still run for 10s.

20 GB
Operation Tips
Operating Temperature Range
Indoor side DB/WB(oC) Outdoor side DB/WB(oC)
Maximum cooling 32/23 43/—
Maximum heating 27/--- 24/18
The operating temperature range (outdoor temperature) for cooling only unit is 10℃~ 43℃
for heat pump unit is -15℃~48℃.
Tips for energy saving:
* Do not overcool or overheat.
Setting temperature at a moderate level helps energy saving.
* Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors is favorable for cooling (heating).
* Clean air lters once per two weeks.
Clogged air lters lead to inecient operation and energy waste.
Tip for relative humidity:
Condensate water is likely to form at the air outlet if cooling or drying for a long time when the
relative humidity is more than 80% ( with doors and windows open).
