TPC Laguna 2.0 User manual

! ! !
1!
www.tpcdental.com!

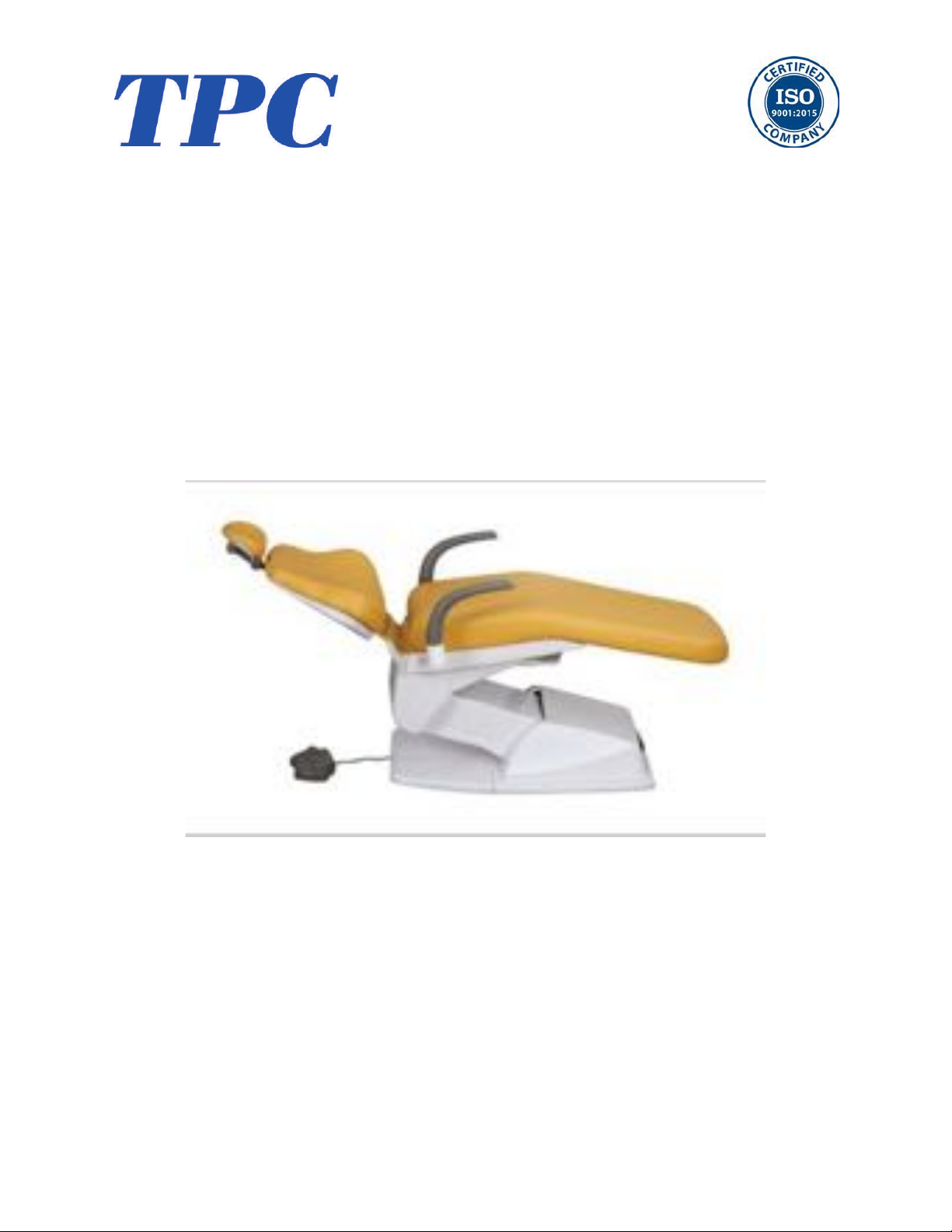

Laguna&2.0&
Electromechanical&
Patient&Chair&
!
Installation,!Operation!&!User!Manual!!
TPC
851 S. Lawson St.
City Of Industry, CA 91748
P626-810-4337 Fax [phone]

! ! !
2!
www.tpcdental.com!
Table&on&Contents:&&&&&&&&&Page&
GENERAL'INFORMATION''''''& 3&
&Installation&and&coordination&&&&&5&
& Installing&dental&chair&upholstery&& & & 7&
Overview&of&controls&&&&&&&11&
Calibrating&Chair&Motors&& & & & & 13&
CLEANING'&'DISINFECTING'GUIDE''''14&
Warranty''''''''''& 15&
TROUBLE'SHOOTING'GUIDE'''''16&
&
&
&
&
&
&
&
&

! ! !
3!
www.tpcdental.com!
GENERAL'INFORMATION'
!
!!!!!!!!!!!!!!
!
!!!!!!!
!
!
! !
!
!
!!!!!
!
!
The$dental$chair$is$marked$
with$a$product$identification$
label$including$manufacture,$
serial$number$and$date$of$
manufacture.$This$label$is$
located$on$the$back$of$the$
dental$chair.$$
!
The$dental$chair$is$marked$with$a$
Risk$Class$symbol.$This$label$is$
located$on$the$front$of$the$dental$
chair$base$next$to$the$main$
power$switch.$$
The$dental$chair$is$marked$with$a$
main$electrical$grounding$point$
symbol.$This$label$is$located$on$
the$front$$left$side$of$the$dental$
chair$steel$base$frame,$under$the$
plastic$cover.$$

! ! !
4!
www.tpcdental.com!
!
!
!
!
!
!
Transportation&/&Storage&Information&
• Do!not!store!the!dental!chair!in!temperatures!exceeding!130!degrees.!!
• Do!not!store!the!dental!chair!on!its!side.!Always!store!upright!on!pallet.!
• Do!not!stack!more!than!5!packaged!chairs!at!a!time!on!top!of!each!other.!!
• Use!approved!pallet!jack!or!forklift!to!move!the!dental!chair.!!
• Do!not!attempt!to!move!stacked!dental!chairs.!!
• Only!store!the!dental!chair!in!dry!cool!place.!!
!
!
!
!
!
!
!
!
!
The$dental$chair$is$marked$with$a$
main$electrical$grounding$point$
symbol.$This$label$is$located$on$
the$front$$left$side$of$the$dental$
chair$steel$base$frame,$under$the$
plastic$cover.$$
The$fuse$is$a$15-amp$Fuse,5x20mm$$
The$dental$chair$is$marked$with$a$
fuse$label$symbol.$This$label$is$
located$under$the$pump$cover$on$
the$front$left$side$of$the$chair$
frame.$$
!

! ! !
5!
www.tpcdental.com!
Laguna&2.0&Installation&Instructions&
!" #$%&'$()*$(+,-.)/0(0&'$1.(21&%()*$(3-.$(&2()*$(4$5)-,(0*-/1"(
6,/4$()*$(3-07(0&'$1(.)1-/8*)(3-07()&(1$%&'$(21&%()*$(0*-/1(
3-.$"((
( ( ( (
(
9" #$%&'$()*$(:(.*/++/58(3&,).()*-)(.$0;1$()*$(0*-/1()&()*$(+-,,$)"((
(
(
(
<" #$%&'$()*$(,/2)(*-54,$.(21&%()*$(+-,,$)"(=5.)-,,(&5()*$()*1$-4$4(
*;3(&5($-0*(./4$(&2()*$(0*-/1"(>*$.$(-1$(8&/58()&(3$(;.$4(-.(-(
,/2)(+&/5)"(?&@5&)(;.$()*$(0*-/1(-1%1$.)(-.(,/2)(+&/5)."((
( ( ( (

! ! !
6!
www.tpcdental.com!

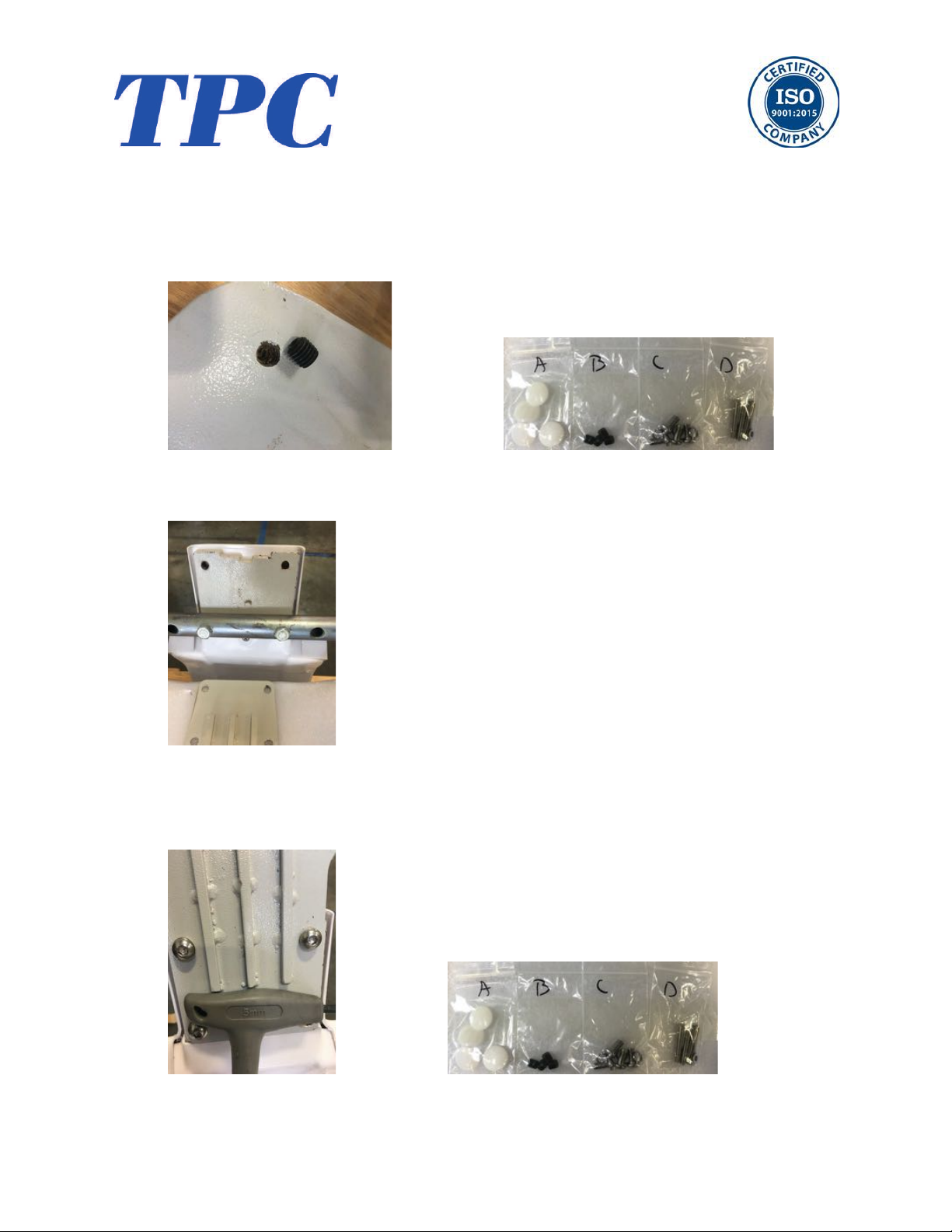

:" A2)$1()*$(0*-/1(/.(+,-0$4(/5()*$(/5.)-,,-)/&5(,&0-)/&5B(=5.)-,,()*$(
,$'$,/58(,;8.(/50,;4$4(/5(C3-8(DE(/5()*$(*&,$.()*-)(F$1$(;.$4()&(
.$0;1$()*$(0*-/1()&()*$(+-,,$)"(>*$.$(F/,,(3$(;.$4()&(,$'$,()*$(
0*-/1(3-.$(/5()*$($'$5)()*$(2,&&1(/.(5&)(,$'$,"((
( ( (
G" #$%&'$()*$(,/2)(*-54,$.(21&%()*$(3-071$.)(%&;5)(3H(1$%&'/58(
)*$()F&(!:%%(3&,)."((
(
(
I" 6$0;1$()*$(3-071$.)()&(%&;5)/58(*;3(;./58()*$(C:E(G%%(A,,$5(
.01$F.(-54(/50,;4$4(,&07(F-.*$1."(CD-8(JE(
( ( (
(

! ! !
7!
www.tpcdental.com!
Installing&Dental&Chair&Upholstery&
(
!" K,-0$()*$(3-071$.)(0;.*/&5(-8-/5.)()*$(3-071$.)(%&;5)/58(
31-07$)"(A,/85()*$(:(%&;5)/58()-3.(F/)*()*$(.,&).(/5()*$(3-07(&2(
)*$(;+*&,.)$1H"((
((((((((( ((
(
9" L50$(-,,(:()-3.(-1$(-,/85$4(F/)*()*$(3-071$.)(0;.*/&5(.,&).B(
6,/4$()*$(3-071$.)(4&F5()&(.$0;1$(/5(+,-0$"(M$1/2H(-,,(:(0&15$1.(
-1$(.$0;1$4"(
(
(
(

! ! !
8!
www.tpcdental.com!
<" K,-0$()*$(3-071$.)(0&'$1(&'$1()*$(3-071$.)(31-07$)"(6$0;1$(/5(
+,-0$(;./58()*$(:(A,,$5(.01$F.(-54(F-.*$1.(/5(D-8(C?E"(>=KN(O&;(
0-5(;.$(-5(A,,$5(F1$50*()&(-,/85()*$(,&F$1(*&,$.(.&()*$(A,,$5(
8&$.(/5(.)1-/8*)"(L50$(-,,(:(A,,$5(.01$F.(-1$(/5.)-,,$4B()/8*)$5(
)*$%()&(.$0;1$()*$(0&'$1(/5(+,-0$"((
(
(
(
:" =5.)-,,()*$(:(1;33$1(0-+.(/5(3-8(CAE()&(0&'$1()*$(A,,$5(.01$F.(
&5()*$(3-071$.)(0&'$1"((
( (
(
(

! ! !
9!
www.tpcdental.com!
(

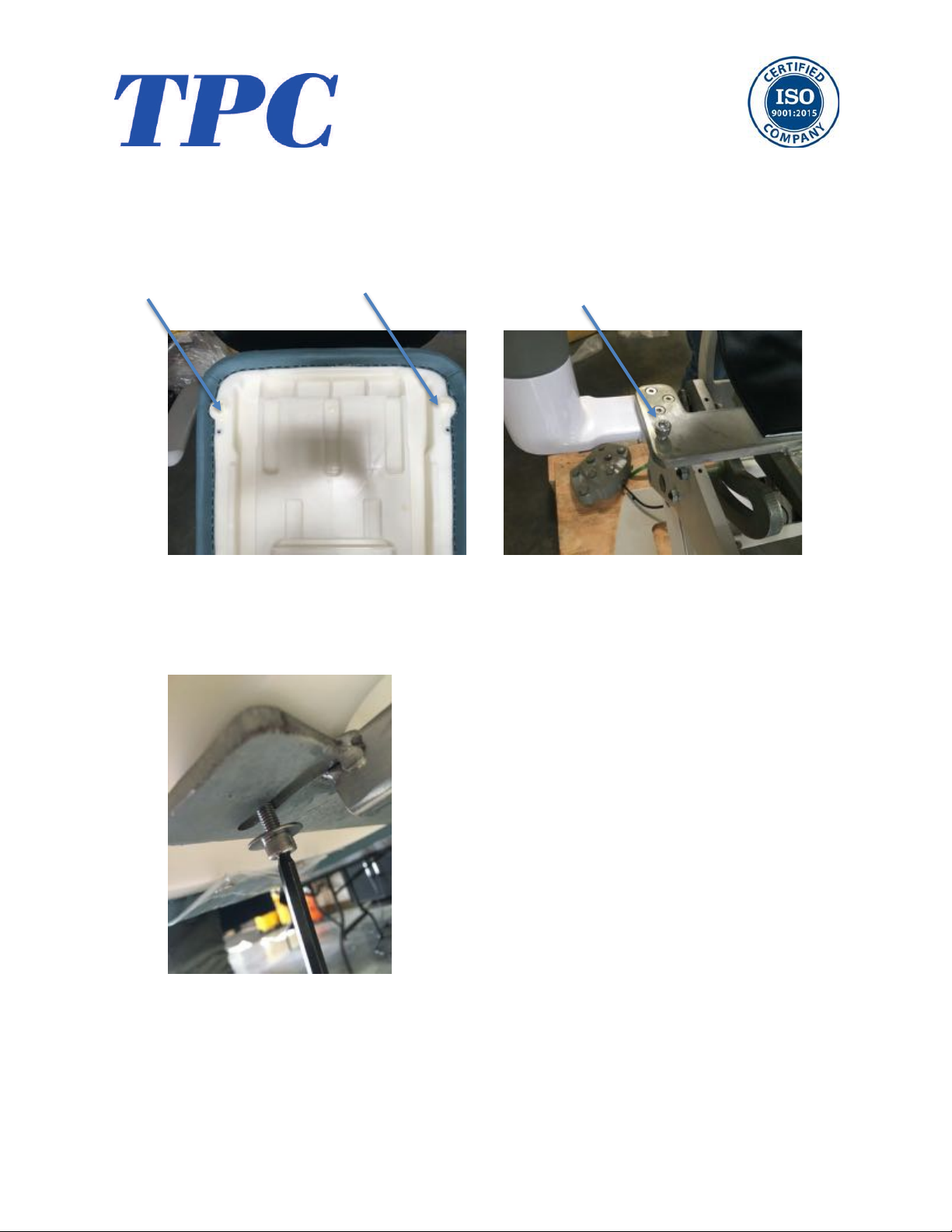

G" K,-0$()*$(.$-)(0;.*/&5(&5()*$(.$-)(21-%$"(A,/85()*$()F&(A,,$5(
3&,).(F/)*()*$(0;)&;)(5&)0*$.(/5()*$(;+*&,.)$1H"(O&;(%-H(-4P;.)(
)*$(+&./)/&5(&2()*$(A,,$5(.01$F(/2()*$(;+*&,.)$1H(/.(,&&.$"((
(
( ( (
I" A,/85()*$(.$-)(0;.*/&5(%&;5)/58(*&,$.(F/)*()*$(.$-)(21-%$"(
6$0;1$()*$(.$-)(0;.*/&5()&()*$(.$-)(21-%$(;./58()*$(9(CGQQE(
A,,$5(.01$F.(-54(F-.*$1."((
(
(
(
(
(

! ! !
10!
www.tpcdental.com!
R" K,-0$()*$(+,-.)/0(0&'$1(&'$1()*$(*$-41$.)(0;.*/&5"((
( (
S" A))-0*()*$(*$-41$.)(0;.*/&5()&()*$(*$-41$.)(.)$%(;./58(<(
C9"GQQE(A,,$5(.01$F."((
(
(
(
(
(
(
(

! ! !
11!
www.tpcdental.com!
Overview'of'foot'control'operations''
1. Seat Height Adjustments
- To!raise,!press!down!on!upper!area!of!the!foot!control.!
- To!lower,!press!down!on!the!lower!area!of!the!foot!control.!
!
2. Backrest Adjustments
- To!raise,!press!down!on!right!side!of!the!foot!control.!
- To!recline,!press!down!on!left!side!of!foot!control.!
!
3. Preset Operation
- Manually!move!the!chair!to!the!desired!position.!Press!and!hold!the!pre-set!switch!(#1,!or!
#2)!on!the!foot!control!to!program.!After!5!seconds!you!will!hear!a!confirmation!beep.!!
!
4. Automatic Return
Momentarily press 0 switch on foot control to activate chair to return to normal position.
5. LP Last position
By pressing the (LP) last position button the chair backrest will travel to the last position.
!
!
!
!
!
!
Chair!Base!up!!
Preset!1!
Preset!2!
Chair!Base!Down!
Back!Up!
Back!Down
Down!
Auto!Return!!
Last!position!(backrest)!

! ! !
12!
www.tpcdental.com!
$
Safety$Plate!
A safety plate is provided in the cantilever cover to stop motion of chair when object is accidentally
caught underneath.
7.$$Armrest$Rotation!
Either armrest can be rotated outward by grasping the end portion of armrest, pulling upward and
turning.
8.$$Headrest$Adjustments$
Height!of!headrest!can!be!adjusted!simply!by!pulling!headrest!up!or!down!due!to!friction!mount!
incorporated!in!backrest.!!Angle!of!articulating!headrest!can!be!changed!by!releasing!slide!bar!on!
headrest!stem$

! ! !
13!
www.tpcdental.com!
Calibrating&Chair&Motors&
1. To!recalibrate!the!chair!motors,!travel!back!to!factory!default.!Perform!the!following!
procedure.!!
• Remove!the!pump!cover!from!the!base!of!the!chair!to!gain!access!to!the!main!PCB!
board.!!
• Locate!the!switch!labeled!(S1).!!
• Press!and!hold!the!switch!for!12!seconds.!The!chair!will!automatically!recalibrate!
the!motors.!Once!complete,!the!chair!base!and!backrest!will!be!lowered!completely.!
Press!(S1)!again!to!exit!recalibration!mode,!Lift!base!and!backrest!to!verify!you!have!
full!travel!from!each!of!the!motors.!!
!
!
Main&Power&Switch&and&fuse&location
&
(S1)!
When!the!main!power!switch!it!illuminated!the!power!is!
“ON”.!If!the!switch!is!not!illuminating!and!is!in!the!UP!
position!/!On,!Check!the!two!15!Amp!fuses!to!the!right!of!
the!switch.!Disconnect!the!main!power!cord!when!checking!
the!fuses.!These!fuses!are!15Amp!250v!5X20mm!glass!
fuses.!!

! ! !
14!
www.tpcdental.com!
Laguna 2.0 Patient Chair – Care and Maintenance
No maintenance is required except normal care and cleaning.
Clean vinyl upholstery and plastic components with mild soap and water.
Barrier covers should be used on chairs for asepsis.
Surface disinfecting chemical will eventually cause some discoloring of upholstery.
Suggested Disinfectant Application
Clean dirt and stains with mild soap and water.
Moisten an applicator with disinfectant; mildly wipe the material with the disinfectant.
Do not allow the disinfectant to soak in or dry on the surface; wipe off with soap and water.
PLEASE KEEP LIQUIDS AWAY FROM ELECTRICAL CONNECTIONS!
Most electrical control switches ARE NOT hermetically sealed.
When a switch gets wet, it can self-activate, or perhaps short out and damage other system
components. Keep switches dry. Avoid costly equipment damage or failure. Avoid downtime by
following these guidelines:
Please DO NOT spray disinfectants directly AT OR INTO electrical switches and controls.
Simply spray these solutions onto a cloth and wipe down the control surfaces. Be careful not to
saturate the cloth.
• Any action not recommended by the manufacture may cause risk of injury or shock!
FOR ADDITIONAL INFORMATION CONTACT YOUR TPC DEALER

! ! !
15!
www.tpcdental.com!
TPC 5 YEAR LIMITED WARRANTY
Warranty Information
All of our products sold are guaranteed to be free from defects in workmanship and materials for
a 1 year from date of purchase, unless otherwise stated. TPC will repair or replace any defective
part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the
TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee
does not cover damage resulting from improper installation, misuse or accidents incurred in
shipping and handling. All claims against the freight carrier must be initiated at the time the
damaged items are received. The claim is the responsibility of the customer. We are improving
our products on a continuous basis. We reserve the right to make modifications without the need
for prior notification and are not obliged to modify previously manufactured items. Main drive
motors parts are covered under the 5 year warranty. Main chair PCB, transformer are also covered
under a 5 year warranty. Major cast components are covered under the TPC limited 5 year
warranty. Upholstery, arm rests and any plastic components are covered under a 1 year warranty.
Only authorized service technicians should attempt to service TPC equipment. Service performed
by any unauthorized technicians may result in a voided warranty.
Laguna 2.0 Chair Limitations
• Don’t exceed the maximum weight capacity of 600 lbs or damage may occur.
• Don’t let more than one patient sit in the chair at one time.
• Don’t stand on the dental chair.
• Don’t operate the dental chair around any flammable liquids.
• Don’t exceed the maximum mode of operation time “3 min”.
• Keep liquids away from electrical components.

! ! !
16!
www.tpcdental.com!
Laguna 2.0 Chair Troubleshooting
Problem
Cause
Solution
Dental Chair does not move
up or down. Chair makes no
sound.
No power
Blown fuse
Power switch off
Blown transformer
Check power source
Check fuse
Check power switch
Check transformer voltage
24-vac
Dental Chair will not move,
but makes a beep sound when
controls are pressed
Safety switch plate engaged
Check safety plate for
obstructions
Chair makes noise when
motor is running. Squealing
Damage to drive extension
Check drive extension for
damage. Replace motor if
needed.
Dental Chair does not go low
or high enough
Motor travel has been
adjusted.
Recalibrate the chair motors.
Refer to page 13 of manual.
Unable to program preset
position 1, 2 and 3
Move the chair to the desired
position. Press and hold the
preset 1 or 2. If a secondary
beep is not head after 10
seconds, The PCB board
maybe damaged.
Damaged to Main PCB if
preset memory will not
program.
My chair is on but there is no
control out of the touch pad
Touch pad is not connected
Touch pad is burnt out
Connect touch pad
Replace touch pad
My head rest does not stay in
the position that I put it in
Set screws in backrest are
loose.
Tighten set screws
Chair arm rest moves very
Easley.
Screw is loose that holds
assembly together
Tighten screw
!
