Travis industries 864 trv User manual





864 TRV

GreenSmart™

Fireplace

Listed by

AS 4553-2008

GMK10026

IAPMO-R&T OCEANA

•

Built-In Direct Vent Fireplace

•

Natural Gas or Propane

•

Residential or Mobile Home

WARNING: If the information in these instructions is not followed exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

•

DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.

•

DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.

•

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

•

DO NOT MODIFY THIS APPLIANCE.

•

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the gas

supplier.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA

only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion

kit is supplied with the appliance.

Installation Manual

Installer: After installation give this manual to the home-

owner and explain operation of this heater.

Dragon Wholesaling Pty. Ltd.

Unit 2, 16 Lexington Drive

Bella Vista NSW

Australia 2153

2 Introduction

Overview

This manual details the installation requirements

for the 864 TRV GS fireplace. For operating and

maintenance instructions, refer to the 864 TRV GS

Owner's Manual (part # 100-01227).

Table of Contents 3

Introduction

Overview ............................................................................. 2

Error! Reference source not found.................................. 2

Safety Precautions

Safety Precautions .............................................................. 4

Features and Specifications

Features.............................................................................. 6

Installation Options.............................................................. 6

Heating Specifications......................................................... 6

Dimensions ......................................................................... 6

Installation

Packing List......................................................................... 7

Additional Items Required ................................................... 7

Installation Overview ........................................................... 7

Recommended Installation Procedure ................................ 7

Converting the Fireplace to Top Vent Configuration ........... 9

Fireplace Placement Requirements .................................... 11

Clearances ......................................................................11

Raised Fireplaces............................................................11

Min . F r a m i n g Dims. - Rea r V e n t C onfigurat ion ...........................12

Min. Framing Dims. - Top Vent Configuration .................13

Nailing Brackets ..............................................................14

Corner Installations - Rear Vent Configuration ................15

Corner Installations - Top Vent Configuration..................16

Gas Line Requirements ...................................................... 17

Fuel .................................................................................17

Gas Line Connection .......................................................17

Gas Inlet Pressure...........................................................17

Gas Line Location............................................................17

Electrical Connection (required) .......................................... 19

Optional Wall Switch or Thermostat Installation .................. 20

Vent Requirements ............................................................. 21

Vent Clearances..............................................................21

Altitude Considerations....................................................21

Approved Vent.................................................................22

Vent Installation...............................................................22

Approved Vent Configurations ............................................ 23

Restrictor Position ...........................................................23

Exhaust Restrictor Adjustment ........................................23

Intake Restrictor Adjustment ...........................................24

Diffuser Plate Adjustment ................................................25

Rear Vent Config. W Horizontal Term. (no vertical rise) ..... 26

Rear Vent Config. W Horizontal Term. (w vertical rise)....... 27

Rear Vent Configuration with Vertical Termination.............. 28

Top Vent Configuration with Horizontal Termination ........... 29

Top Vent Configuration with Vertical Termination ............... 30

Termination Requirements .................................................. 31

Installation (continued)

Hearth Requirements.......................................................... 32

Facing Requirements.......................................................... 33

Drywall Installation ..........................................................33

Facing Overview .............................................................34

Optional Faceplates – Sizing Chart.................................34

Thin Facing Installation ...................................................35

Thick Facing Installation..................................................37

Thick Facing Installation with FPX Arched Faces............38

Mantel Requirements.......................................................... 40

Install Example - Build-Out (Dog-House) w Hor. Term. ...... 41

Install Example - Build-In w Hor. Term................................ 42

Finalizing the Installation

Steps for Finalizing the Installation ..................................... 43

Air Shutter Adjustment ....................................................44

Glass Frame Removal and Installation ............................... 45

Log Set Installation ............................................................. 47

LP Conversion Instructions ................................................. 54

Optional Equipment

Fireback Installation............................................................ 57

Grill Installation ................................................................... 58

Index

Index................................................................................... 60

4 Safety Precautions

Safety Warnings:

•Failure to follow all of the requirements may result in property damage, bodily injury, or even death.

•This unit must be installed by a qualified installer to prevent the possibility of an explosion.

•This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow

ANSI Z223.1 and NFPA 54(88).

•A manufactured home (USA only) or mobile home OEM installation must conform with the

Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a

standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS

A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This

appliance may be installed in Manufactured Housing only after the home is site located.

•All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn

from outside the living-area structure. The venting must not be connected to a chimney flue serving a

separate solid-fuel burning appliance.

•Notify your insurance company before hooking up this fireplace.

•The room heater should be inspected before use and at least annually by a qualified service person.

More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

•The instructions in this manual must be strictly adhered to. Do not use makeshift methods or

compromise in the installation. Improper installation will void the warranty and safety listing.

•This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will

void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about

the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.

•Contact your local building officials to obtain a permit and information on any installation restrictions

or inspection requirements in your area.

•If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call

your dealer and arrange for proper servicing.

•It is imperative that control compartments, screens, or circulating air passageways of the heater be

kept clean and free of obstructions. These areas provide the air necessary for safe operation.

•Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call

your dealer for a full explanation of your heater and what to expect.

•Do not store or use gasoline or other flammable liquids in the vicinity of this heater.

•Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.

•Do not place clothing or other flammable items on or near the heater. Because this heater can be

controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed

on or near it.

•Light the heater using the built-in piezo igniter. Do not use matches or any other external device to

light your heater.

•Never remove, replace, modify or substitute any part of the heater unless instructions are given in this

manual. All other work must be done by a trained technician. Don't modify or replace orifices.

•The viewing glass should be opened only for conducting service.

•Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5

Safety Warnings (continued):

•Allow the heater to cool before carrying out any maintenance or cleaning.

•Operate the heater according to the instructions included in this manual.

•If the main burners do not start correctly turn the gas off and call your dealer for service.

•This unit is not for use with solid fuel.

•Do not place anything inside the firebox (except the included fiber logs).

•If the fiber logs become damaged, replace with Travis Industries log set.

•Do not throw this manual away. This manual has important operating and maintenance instructions

that you will need at a later time. Always follow the instructions in this manual.

•Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature

heater. Young children should be supervised when they are in the same room as the heater.

•Due to the high temperature, the heater should be located out of traffic and away from furniture and

draperies.

•Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.

The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to

shut off.

•Travis Industries, Inc. grants no warranty, implied or stated, for the installation or

maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Features and Specifications

Installation Options

•Residential or Mobile Home

•Straight or Corner Placement

•Flush or Recessed Face

•Raised or Floor Placement

•Internal or External Chase

•Horizontal or Vertical Vent

•Bedroom Approved

Heating Specifications

Natural Gas Propane

Approximate Heating Capacity (in square feet)* 1,400 1,400

Approximate Heating Capacity (in square meters)* 129 129

Maximum BTU Input Per Hour 31,000 31,000

Maximum Megajoules (MJ) Input Per Hour 32.6 32.6

* Heating capacity will vary with floor plan, insulation, and outside temperature.

Dimensions

* Includes the required

1/2" (13mm) clearance.





30-3/4"

781mm

Back of Fireplace

38-1/4"

972mm

36-3/4"

933mm

41"

1041mm

19-3/4"*

502mm*

38-3/8"

975mm

29-1/4"*

743mm*

Weight: 205 Lbs. (93 Kg)

37"

940mm

35-1/4"

895mm

7-1/4"

184mm

1"

25mm

Top Vent Configuration

8" (203mm) Ø Vent

Rear Vent Configuration

8" (203mm) Ø Vent

Installation (for qualified installers only) 7

Packing List

•Propane Conversion Kit

•Log Set

•Firestop (sku 93006094)

•On/Off Switch, Cover Plate, and Wire

•4 AA Batteries, 1 9Volt Battery

Additional Items Required

•Direct Vent

•Gas Line Equipment (shutoff valve, pipe, etc.)

•Electrical Equipment (min. 14 gauge, grounded line)

Installation Overview

•All requirements below must be met.





See the section

"Approved Vent

Configurations"

See the section

"Electrical Connection"

See the section

"Mantel Requirements"

Insulation must not fill

the 1/2" (13mm)

clearance around the

back and sides of the

fireplace.

See the section

"Vent Requirements"

See the section "Minimum

Framing Dimensions"

Drywall

Top Vent

Configuration Rear Vent

Configuration

See the section

"Gas Line Installation"

1" Min.

25mm

Side

Wall









See "Optional Non-

Combustible Facing"

Drywall

See "Optional Non-

Combustible Hearth"

Nailing Brackets

Required  Travis

Firestop (sku

93006094)

Recommended Installation Procedure

•Frame the opening for the fireplace. Make sure to allow for vent installation.

•This fireplace is designed to accommodate 1/2" (13mm) or 5/8" (16mm) drywall (see "Nailing

Brackets" on page 14 for details). Secure the fireplace to the framing.

•Install the vent, gas line and electrical hook-up.

•Install the drywall.

•Install the hearth (if applicable).

•Install the facing (if applicable).

•Install the mantel (if applicable).

•Finalize the installation (see page 43) and install the grill or face.

8 Installation (for qualified installers only)

Massachusetts Requirements

NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.

Requirements for the Commonwealth of Massachusetts

For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in

part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent

termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and

porches, the following requirements shall be satisfied:

Installation of Carbon Monoxide Detectors

At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall

observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the

gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard

wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served

by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the

services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.

In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired

carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall

have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day

period, a battery operated carbon monoxide detector with an alarm shall be installed.

Approved Carbon Monoxide Detectors

Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be

ANSI/UL 2034 listed and IAS certified.

Signage

A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or

equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP

CLEAR OF ALL OBSTRUCTIONS”.

Inspection

The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the

provisions of 248 CMR 5.08(2)(a)1 through 4.

Exemptions

The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54

as adopted by the Board; and

• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the

dwelling, building or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS

Gas Equipment Venting System Provided

When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or

venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment

and the venting system shall include:

• Detailed instructions for the installation of the venting system design or the venting system components; and

• A complete parts list for the venting system design or venting system.

Gas Equipment Venting System NOT Provided

When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts

for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the

manufacturer:

• The referenced “special venting system” instructions shall be included with the appliance or equipment installation

instructions; and

• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a

parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting

instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or

equipment at the completion of the installation.

See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 9

Top Vent or Rear Vent Configuration

This appliance is shipped in the rear vent configuration. To change to the top vent configuration, follow

the directions below.

NOTE: the vent configuration affects several aspects of installation (framing, maximum vent rise,

maximum vent run). Make sure the vent configuration is correct prior to installation. You may wish to

configure the diffuser when changing the vent configuration.

Converting the

Fireplace to Top

Vent

Configuration

Remove and discard all of

the insulation found near

the flue assembly (make

sure to remove every

piece).



Remove the 4 screws

securing the intake cover

plate. Remove it and place it

aside.



Remove the 4 screws

securing the cover plate.

Remove it and place it

aside.



Remove the 4 screws

securing the cover plate (with

hole).

This part may be discarded.

Top of Fireplace

Back of Fireplace



10 Installation (for qualified installers only)

Converting the

Fireplace to Top

Vent (continued)

Remove the 12 screws

securing the flue assembly.

Attach the intake cover

plate with the screws

removed earlier.

Attach the cover plate with

the screws removed earlier.

NOTE: flatten the four legs

before insaling the cover

plate.

Rotate the flue

assembly so the

flue points

upwards. Secure

using the twelve

screws removed

earlier.

NOTE: Use a magnetic-

tipped nutdriver on these

screws - take care to prevent

the screws from falling into

the fireplace.

DO NOT OVER-

TIGHTEN THE

SCREWS.

Installation (for qualified installers only) 11

Fireplace Placement Requirements

•The fireplace requires a 1/2" (13mm) clearance from the angled sides and back of the fireplace to the

framing members. No material (insulation, framing, etc.) may be placed into this area.

•Fireplace must be installed on a level surface capable of supporting the fireplace and vent

•Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)

•This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance

produces when determining a location.

Clearances

•When installed, walls in front of the fireplace must be a minimum 1" (25mm) to the side of the

fireplace.

•Due to the high temperature, the heater should be located out of traffic and away from furniture and

draperies.

•Fireplace must be placed so the vents below and above the glass do not become blocked.

Raised Fireplaces

•The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace

(205 Lbs. 93 Kg) and vent.

12 Installation (for qualified installers only)

Minimum Framing Dimensions - Rear Vent Configuration











Route the

electrical line to

a position to the

left rear of the

fireplace.

Vent Clearances 8" (203mm) dia. Vent:

1" (25mm) to the sides, 1" (25mm)

below, and 3" (76mm) above the vent to

combustibles.

Included Firestop (required)

Part # 93006094

Center of Rear Vent











30-3/4"

781mm

38"

965mm

41-1/4"

1048mm

38-1/2"

978mm

20"

508mm

HINT: place the fireplace so the center

line is at least 5" (127mm) from both

vertical framing members at the rear (this

allows the vent to pass through the

framing without modfications)

25-3/4"

654mm

The on/off switch/thermostat wire (if

used) should be routed to a location

near the right front of the fireplace.

Minimum enclosure height = 38-1/2" (978mm)

Installation (for qualified installers only) 13

Minimum Framing Dimensions - Top Vent Configuration

Route the electrical line to

a position to the left rear

of the fireplace.

41-1/4"

1048mm

38-1/2"

978mm

20" (508mm)

The on/off switch/thermostat wire (if

used) should be routed to a location

near the right front of the fireplace.

Minimum enclosure height = 38-1/2" (978mm)

14 Installation (for qualified installers only)

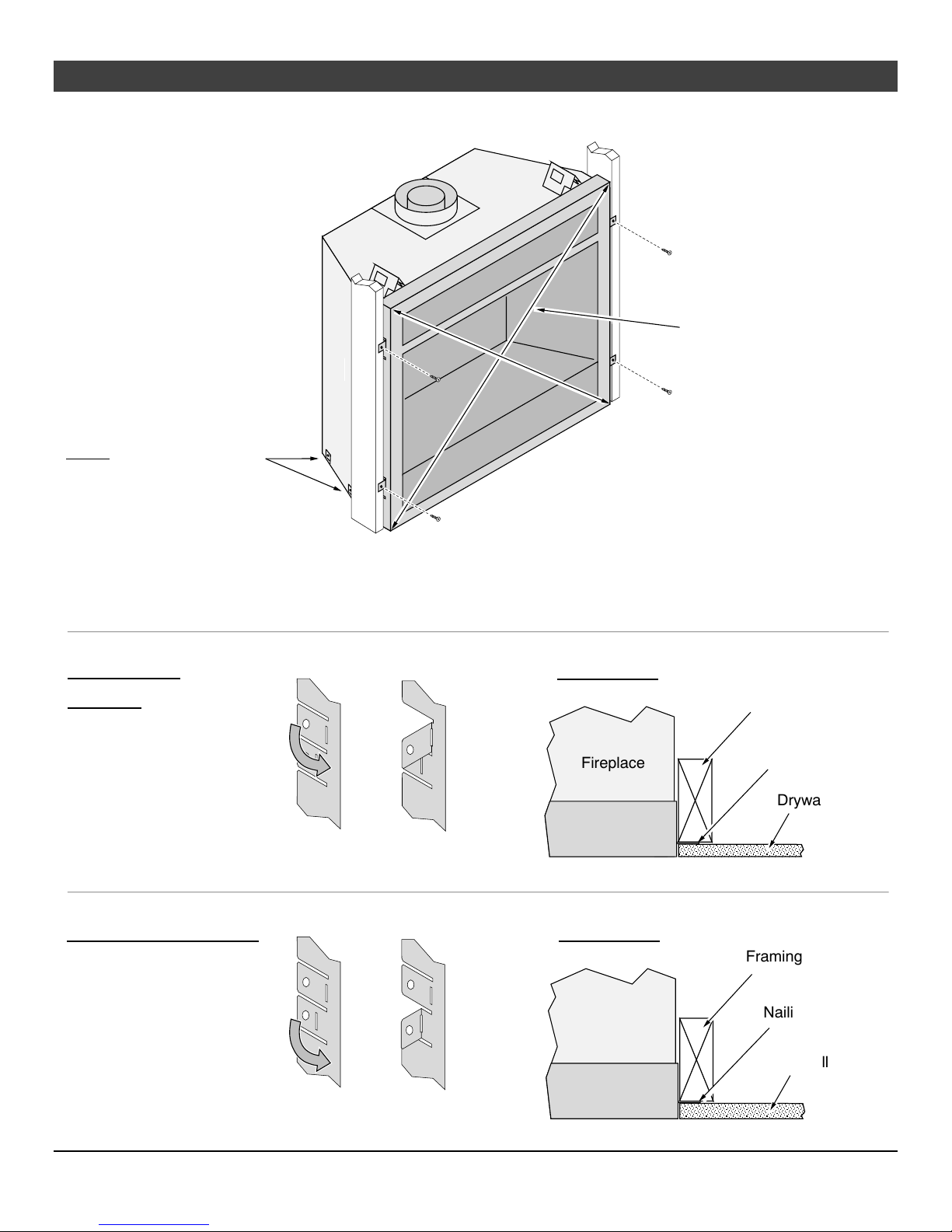

Nailing Brackets

NOTE: Additional nailing

brackets are provided along

the base of the fireplace.

Use these brackets if not

using the front brackets.

For installations using

5/8'' (16mm) drywall fold

the shorter tab out 90°F

(32.2°C). Use a

screwdriver if necessary.

For installations using 1/2''

(13mm) facing fold the larger

tab out 90°F (32.2°C). Use a

screwdriver if necessary.



Fireplace

Drywall

Framing

Nailing Bracket

TOP VIEW

1/2''(13mm)

Drywall

5/8''(16mm) Drywall

There are four nailing brackets

on the front of the fireplace.

Follow the directions below to

prepare the nailing brackets.

Once in place, nail or screw the

nailing brackets to the framing.



Fireplace

Drywall

Framing

Nailing Bracket

TOP VIEW

Make sure the fireplace is

square and plumb when

placed in the framing.

Measured corner-to-

corner, the fireplace

should be square (approx.

54-7/8'' (1394mm) for each

dimension). Use shims to

insure the fireplace is

square.

Installation (for qualified installers only) 15

Corner Installations - Rear Vent Configuration

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all

clearances still apply).



7-1/2" (91mm)

Approximate

(varies due to vent

installation)









48" Min.

1219mm

Minimum 1/2" (13mm) Clearance

NOTE:

Most installations use:

6" (152mm) Section for

2 X 6 Walls (51mm X 152mm)

4" (102mm) Section for

2x4 Walls (21mm X 102mm)

(Travis # 98900166)



Minimum 1" (25mm) Clearance



Travis Firestop

(sku 93006094)

16 Installation (for qualified installers only)

Corner Installations - Top Vent Configuration

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all

clearances still apply).



15-1/2"

394mm







48" Min.

1219mm

Minimum 1/2" (13mm) Clearance



Installation (for qualified installers only) 17

Gas Line Requirements

MASSACHUSETTS INSTALLATIONS - WARNING:

THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE

COMMONWEALTH OF MASSACHUSETTS.

OTHER MASSACHUSETTS CODE REQUIREMENTS:

•Flexible connector must not be longer than 36 inches.

•Shutoff valve must be a “T” handle gas cock.

•Only direct vent sealed combustion products are approved for bedrooms or bathrooms.

•Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.

•A carbon monoxide (CO) detector is required in the same room as the appliance.

•The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and

the requirements listed below.

•The fireplace and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures

under 1/2 psig (3.5 kPA), isolate the gas supply piping by closing the manual shutoff valve.

•Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.

Fuel

•This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of

the gas control valve to make sure the correct fuel is used.

Gas Line Connection

•Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a

licensed plumber/gasfitter).

Gas Inlet Pressure Standard Input Pressure

Natural Gas 7" W.C. (1.74 kPA)

Propane 13" W.C. (2.73 kPA)

•If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately

adjusted, and the total gas load for the residence does not exceed the amount supplied.

•The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should

supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an

improper pressure.

18 Installation (for qualified installers only)

Gas Line Location

The gas inlet is located 3" (76mm)

above the base of the fireplace.

6-1/4"

159mm

10-3/4"

273mm

Right Side Gas Inlet (preferred)

Left Side Gas Inlet

A 2" (51mm) high by 3" (76mm) wide

opening is located behind the gas inlet

cover plate. It is 1-3/8" (35mm) above the

base of the fireplace.

A 2" (51mm) high by 3" (76mm) wide opening is located

behind the gas inlet cover plate. It is 2" (51mm) above the

base of the fireplace.

You may remove this cover plate to install the gas line. The

cover plate has a 7/8" (22mm) diameter hole (covered with a

push plug) in line with the gas inlet on the gas control valve.

By rotating the plate 180° F (82.2° C) the hole may be re-

located. You may also secure the plate in a customized

location using the self-drilling screws.

You may remove this cover plate to install

the gas line. The cover plate has a 7/8"

(22mm) diameter hole (covered with a

push plug). By rotating the plate 180° F

(82.2° C) the hole may be re-located. You

may also secure the plate in a customized

location using the self-drilling screws.

A 12" (305mm) flex tube and shutoff valve is

included with the fireplace. The shutoff

valve accepts a 1/2" (13mm) MPT.

A 12" (305mm) flex tube and shutoff valve is

included with the fireplace. You may wish to

use a 24" (610mm) flex tube. The shutoff

valve accepts a 1/2" (13mm) MPT.

6-1/4"

159mm

10-3/4"

273mm

Installation (for qualified installers only) 19

Electrical Connection (required)

•The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified

installer and must meet all local codes.

•Make sure the household breaker is shut off prior to working on any electrical lines.

•The appliance, when installed, must be electrically grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1.

•The electrical line must be a min. 14 gauge, and supply 240 Volts at 50 Hz (2 Amps)

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

abcd

20 Installation (for qualified installers only)

Optional Wall Switch or Thermostat Installation

Do not connect 110-240 VAC to the gas control valve or wiring system of this fireplace. The switch

must be installed by a qualified installer.

This fireplace includes an optional wall switch (with wire)

to operate the fireplace burner without accessing the

internal on/off switch. A thermostat may be used instead.

Route the wire from inside the fireplace, through the

grommet on either side of the fireplace near the gas inlet

(see at right) to the switch. The wall switch (or thermostat)

may bypass the fireplace on/off switch or be installed in

parallel or series configuration (see below).

Caution: Label all wires prior to disconnection when

servicing controls. Wiring errors can cause

improper and dangerous operation.

Note: When using a GreenSmart™ remote, use the

receiver for on/off operation (do not use a wall

switch or thermostat).

Warning: Make sure all wiring is secure and does not

contact hot or moving components.

OPTIONAL WALL SWITCH

(included with fireplace)

Place "WARNING"

label on switch cover.

Parallel Connection Series Connection

On / Off Switch

ON On / Off Switch

OFF On / Off Switch

ON On / Off Switch

OFF

Thermostat / External

Switch ON Heater is ON Heater is ON Thermostat /

External Switch ON Heater is ON Heater is OFF

Thermostat / External

Switch OFF Heater is ON Heater is OFF Thermostat /

External Switch OFF Heater is OFF Heater is OFF

To wire the heater in parallel, follow the directions below: To wire the heater in series, follow the directions below:

Thermostat

(or External Switch) Wires

ab

c

On / Off Switch

a

On / Off Switch

c

b

Thermostat

(or External Switch) Wires

Travis Industries 864 TRV User manual

Popular Indoor Fireplace manuals by other brands
