Travis industries Lopi northfield User manual

Featuring the Burner

• Direct Vent Freestanding Stove

• Natural Gas or Propane

• Vent Horizontally or Vertically

• Standard Residential

• Mobile Home Approved

Tested and Listed by

Omni-Test Laboratories, Inc.

Portland, Oregon

Report # 028–S–50d-5

ANSIZ21.88,

WARNING: If the information in these instructions is not followed exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the gas

supplier.

This appliance may be installed in an aftermarket permanently

located, manufactured home (USA only) or mobile home, where

not prohibited by local codes.

This appliance is only for use with the type(s) of gas indicated on

the rating plate. A conversion kit is supplied with the appliance.

Northfield

Owner’s Manual

Installer: After installation give this manual to the home-owner

and explain operation of this heater.

www.travisproducts.com

4800 Harbour Pointe Blvd. SW

Mukilteo, WA 98275

2Introduction

Introduction

We welcome you as a new owner of a Lopi Northfield stove. In purchasing a Northfield you have

joined the growing ranks of concerned individuals whose selection of an energy system reflects both

a concern for the environment and aesthetics. The Northfield is one of the finest home heaters the

world over. This manual will explain the installation, operation, and maintenance of this stove.

Please familiarize yourself with the Owner's Manual before operating your heater and save the

manual for future reference. Included are helpful hints and suggestions that will make the operation

and maintenance of your new stove an easier and more enjoyable experience. We offer our

continual support and guidance to help you achieve the maximum benefit and enjoyment from your

heater.

Important Information

No other Northfield Stove has the same serial number

as yours. The serial number is on the listing plate

chained to the gas control valve.

This serial number will be needed in case you require

service of any type.

Model: Lopi Northfield GS

Serial Number:

Purchase Date:

Purchased From:

Mail your Warranty Card Today,

and Save Your Bill of Sale.

To receive full warranty coverage,

you will need to show evidence of

the date you purchased your

heater. Do not mail your Bill of Sale

to us.

We suggest that you attach your Bill

of Sale to this page so that you will

have all the information you need in

one place should the need for

service or information occur.

Listing Details

This appliance was listed by OMNI Test Labs to ANSI Z21.88 - report # 028-S-50d-5.

The listing label is attached to the appliance near the gas control valve. A copy is

shown on page 43.

IAS (ICBO) Approval

This appliance was listed by OMNI Test Labs - IAS # TL130.

Massachusetts Approval

This manual has been submitted to the Massachusetts Board of State Examiners of

Plumbers and Gas Fitters

National Fireplace Institute

Table of Contents 3

Introduction

Introduction & Important Information...................2

Safety Precautions

Safety Precautions..............................................4

Features & Specifications

Features..............................................................6

Installation Options .............................................6

Heating Specifications......................................... 6

Dimensions.........................................................6

Installation

Installation Warning.............................................7

Switch Box Installation........................................7

Packing List......................................................... 8

Additional Items Required for Installation............ 8

Installation Overview...........................................8

Installation Hints..................................................8

Stove Clearances................................................ 9

Mobile Home Requirements................................9

Top to Rear Vent Modification.............................10

Heater Placement Requirements........................ 12

Floor Protection Requirements ...........................12

Electrical Requirements......................................12

Optional Wall Switch or Thermostat Installation..13

Gas Line Installation............................................14

Vent Requirements .............................................15

Approved Vent Configurations ............................16

Intake Restrictor............................................ 16

Intake Damper Plates.................................... 16

Exhaust Restrictor.........................................17

Exhaust Restrictor Extender Plate................. 17

Diffuser.......................................................... 17

Vent Termination Requirements .........................24

Class A Chimney Conversion..............................25

Interior Masonry Chimney Conversion................ 26

Finalizing the Installation

Leak Test............................................................ 27

Pilot Adjustment (if necessary)............................27

Air Shutter Adjustment (if necessary).................. 28

Check Flame....................................................... 28

Face and Glass Removal....................................29

Log Installation....................................................31

Operation

Before You Begin................................................35

Location of Controls............................................ 35

Starting the Stove for the First Time ...................36

Turning the Stove On and Off.............................36

Comfort Control...................................................36

Adjusting the Flame Height.................................36

Accent Light........................................................37

Adjusting the Optional Blower Speed.................. 37

Continuous Pilot / GreenSmart™ Pilot Switch.....37

Normal Operating Sounds...................................38

Normal Operating Odors.....................................38

Maintenance

Maintaining Your Stove’s Appearance................39

Battery Replacement...........................................39

Accent Light Replacement..................................40

Yearly Service Procedure ...................................40

Troubleshooting Table ........................................ 41

Wiring Diagram ................................................... 42

Replacement Parts List....................................... 42

Safety Label

Safety Label........................................................43

Warranty

Warranty ............................................................. 40

Optional Equipment

LP Conversion Kit............................................... 45

GreenSmart™ Remote Control Installation.........48

Index

Index................................................................... 60

4Safety Precautions

• IF YOU SMELL GAS:

* Do not light any appliance

* Extinguish any open flame

* Do not touch any electrical switch or plug or unplug anything

* Open windows and vacate building

* Call gas supplier from neighbor's house, if not reached, call fire department

• This unit must be installed by a qualified installer to prevent the possibility of

an explosion. Your dealer will know the requirements in your area and can

inform you of those people considered qualified. The room heater should be

inspected before use and at least annually by a qualified service person. More

frequent cleaning may be required due to excessive lint from carpeting,

bedding material, etc.

• The instructions in this manual must be strictly adhered to. Do not use makeshift

methods or compromise in the installation. Improper installation will void the

warranty and safety listing.

This heater is either approved for natural gas (NG) or for propane (LP). Burning

the incorrect fuel will void the warranty and safety listing and may cause an

extreme safety hazard. Direct questions about the type of fuel used to your dealer.

Check for a label on the flame adjust knob on the gas control valve (this is the best

place to check). You may also check for a label on the gas control valve body.

Ok

• Contact your local building

officials to obtain a permit

and information on any

installation restrictions or

inspection requirements in

your area. Notify your

insurance company of this

heater as well.

• If the flame becomes sooty,

dark orange in color, or

extremely tall, do not

operate the heater. Call

your dealer and arrange for

proper servicing.

• It is imperative that control

compartments, screens, or

circulating air passageways

of the heater be kept clean

and free of obstructions.

These areas provide the air

necessary for safe

operation. ?• Do not operate the heater if

it is not operating properly in

any fashion or if you are

uncertain. Call your dealer

for a full explanation of your

heater and what to expect.

Gas

• Do not store or use gasoline

or other flammable liquids in

the vicinity of this heater.





• Do not use this appliance if

any part has been under

water. Immediately call a

qualified service technician

to inspect the appliance and

to replace any part of the

control system and any gas

control which has been

under water.

Safety Precautions 5

• Do not place clothing or

other flammable items on or

near the heater. Because

this heater can be controlled

by a thermostat there is a

possibility of the heater

turning on and igniting any

items placed on or near it.





• Light the heater using the

built-in igniter. Do not use

matches or any other

external device to light your

heater.

• Allow the heater to cool

before carrying out any

maintenance or cleaning.

• The viewing glass should be

opened only for lighting the

pilot or conducting service.

• Any safety screen or guard

removed for servicing must

be replaced prior to

operating the heater.

• Do not operate with the

glass removed or damaged.

• Never remove, replace,

modify or substitute any part

of the heater unless

instructions are given in this

manual. All other work must

be done by a trained

technician. Don't modify or

replace orifices.

• Operate the heater

according to the instructions

included in this manual.

• If the main burners do not

start correctly turn the gas

off at the gas control valve

and call your dealer for

service.

• Instruct everyone in the

house how to shut gas off to

the appliance and at the gas

main shutoff valve. The gas

main shutoff valve is usually

next to the gas meter or

propane tank and requires a

wrench to shut off.





• This unit is not for use with

solid fuel

• Do not place anything inside

the firebox (except the

included fiber logs).

• If the fiber logs become

damaged, replace with

Travis Industries log set.

This

Manual

• Do not throw this manual

away. This manual has

important operating and

maintenance instructions

that you will need at a later

time. Always follow the

instructions in this manual.

• Children and adults should

be alerted to the hazards of

high surface temperature

and should stay away to

avoid burns or clothing

ignition. Young children

should be supervised when

they are in the same room

as the heater.

• Plug the heater into a 120V

grounded electrical outlet.

Do not remove the

grounding plug.

• Don’t route the electrical

cord in front of, over, or

under the heater

• Travis Industries, Inc.

grants no warranty,

implied or stated, for the

installation or

maintenance of your

heater, and assumes no

responsibility of any

consequential damage(s).

6Specifications

Features:

- Ember Fyre™ Burner for "Wood Fire" Look

- Works During Power Outages (battery backup system)

- High Efficiency

- Includes Decorative Fireback

- Optional Thermostat or Remote Control

- Optional Blower for Quicker Heat Distribution

- Convenient Operating Controls

- Variable-Rate Heat Output

- Accent Light

Installation Options:

- Freestanding Stove

- Horizontal or Vertical Vent

- Residential or Mobile Home

- Straight or Corner Placement

- Bedroom Approved

Heating Specifications:

Approximate Heating Capacity (in square feet)* ...........500 - 850 with Blower, 500 to 650 Without

Maximum Input (in BTU’s)..............................................................................22,000

• Heating capacity will vary depending on the home’s floor plan, degree of insulation, and the outside temperature.

Dimensions & Weight:

NOTE:

Measure side, corner, and back

clearances from the stove top.

26-1/4"

667mm

The flue collar protrudes 1"

(25mm) above the stove top

11-1/4"

286mm

21-1/4"

540mm

The flue collar protrudes 3-1/2"

(89mm) behind the stove top

14-1/2"

368mm

15-7/8"

403mm

Weight 130 Lbs. (59 Kg)

20-1/2"

521mm

Electrical Specifications (including optional blower)

Electrical Rating.............................................................120 Volts, 1.5 Amps, 60 Hz (180 watt)

Fuel:

This heater is shipped in natural gas (NG) configuration but may be converted to propane (LP) using

the included LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel.

Installation (for qualified installers only) 7

Installation Warnings:

! Failure to follow all of the requirements may result in property damage, bodily injury, or even

death.

! This heater must be installed by a qualified installer who has gone through a training program for

the installation of direct vent gas appliances.

! This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow

ANSI Z223.1 and NFPA 54(88), in Canada follow B-149.

! In Manufactured or Mobile Homes must conform with: In USA, Manufactured Home Construction

and Safety Standard, Title 24 CFR, Part 3280; In Canada, CSA Z240.4 and Gas-Equipped

Recreational Vehicles and Mobile Housing. This appliance may be installed in Manufactured

Housing only after the home is site located.

! This stove is designed to operate on natural gas or propane (LP).

! All exhaust gases must be vented outside the structure of the living-area. Combustion air is

drawn from outside the living-area structure.

! Notify your insurance company before hooking up this stove.

! The requirements listed below are divided into sections. All requirements must be met

simultaneously. The order of installation is not rigid – the qualified installer should follow the

procedure best suited for the installation.

Switch Box Installation

The switch box is shipped detached on this stove. Attach it following the directions below.

b

a

c

d

a) Loosen the three screws used to secure the switch box.

b) Loosen the three screws holding the wire cover. Remove the wire cover and place it aside.

c) Slide the switch box into place and secure with the three screws.

d) Slide the wire cover into place, making sure it does not pinch any wires. Secure with the

three screws.

8Installation (for qualified installers only)

Packing List

• Propane Conversion Kit

• Log Set

• Touch-Up Paint

• Batteries (4 AA and 1 9v)

• Rear Vent Flue Cover

• Intake Damper Plates (2)

• Exhaust Restrictor Extender Plate

Additional Items Required

• Vent (see “Venting Requirements” for details)

• Gas Line Equipment (shutoff valve, pipe, etc.)

Installation Overview



See "Vent

Requirements"

See "Floor

Protection

Requirements"

See "Gas Line

Installation"



See

"Clearances"















Installation (for qualified installers only) 9

Installation Hints:

Recommended Optional Equipment Installation Order:

-- GreenSmart Remote

-- Blower

-- LP Conversion and other optional equipment

Install the logs last - they are fragile.

When determining the location of the stove, locate the wall studs (for horizontal penetrations) and ceiling

trusses (for vertical penetrations). You may wish to adjust the stove position slightly to ensure the vent

does not intersect with a framing member.

Fumes and smoke from the paint curing and oil burning off the steel may occur the first time you start this

heater. This is normal. We recommend you open windows to vent the room.

Stove Clearances

NOTE: If using the rear vent configuration, you will require approximately

8-1/2” to the rear of the stove for the vent adapter and thimble. See page

18 for details.

3-1/2" Min.

89mm

Straight Installations Corner Installations

With this clearance, the vent is

centered 10-3/4" (273mm)

from the wall.



With this clearance the top vent is

centered 8-3/8" (213mm) from the

back wall, 14-1/4" (362mm) from

the side wall.

5" Min.

127mm

(See note above

regarding rear vent

configurations)

1" Min.

25mm

45°

Mobile Home Requirements

• When the stove is installed in a mobile home, it must be bolted to the floor and the appliance grounded

(use the optional blower with a grounded circuit or other suitable grounding method - current ANSI/NFPA

70 or CSA C22.1).

10 Installation (for qualified installers only)

Top to Rear Vent Modification

NOTE: If using the rear vent configuration, make sure to review vent

configuration before proceeding.

Remove the cast iron stove top and flue cover to access the vent components (see page 29)

Remove the outer flue

assembly, cover plate, and

gaskets. Place the screws

and components aside (for

all subsequent steps).

NOTE: Use a magnetic-tipped

nutdriver on these screws - take

care to prevent the screws from

falling into the intake channel.

Remove the

diffuser.



Before (Stock - Position # 1)

After (Position # 2)

DIFFUSER SIDE VIEW





Bend the round portion of the

diffuser so it is bent (position # 2).

Replace the

diffuser.

ADJUSTING THE DIFFUSER ON THE INNER FLUE ASSEMBLY

Rear vent configurations with no rise require the

diffuser to be bent to the # 2 position. It is easiest

to adjust this component with the inner flue

removed. See the directions below.

Bottom of inner

flue assembly

a

b

c

Remove the inner flue

assembly and exhaust cover

plate.

Inner Flue

Assembly

Exhaust Cover Plate

Installation (for qualified installers only) 11

Top to Rear Vent Modification (continued)

Install the inner flue

assembly and exhaust cover

plate. Make sure the

attached gaskets are in

place and form an air-tight

seal.

NOTE: Install the flue

assembly with the diffuser

to the bottom.

Install the outer flue

assembly, cover plate, and

gaskets. Make sure the

gaskets are correctly

positioned and form an air-

tight seal.

The flue cover with a cutout may be discarded. Use the

flue cover designed for rear vent applications.

12 Installation (for qualified installers only)

Heater Placement Requirements

•Heater must be installed on a level surface capable of supporting the heater and vent

•Due to the high temperature, the heater should be located out of traffic and away from furniture and

draperies.

•When placed in a location where the floor to ceiling height is under 7 feet, the installation is

considered an alcove and must meet the following requirements:

-The alcove floor to ceiling height must be at least 38-1/8” (968mm) tall

-The alcove must not be more than 24” (610mm) deep before the ceiling returns to 7’ (2134mm)

-The alcove must be at least 28-1/4” (718mm) wide

•The heater must not be placed so the vents below or above the door, along the sides of heater, or

along the back of the heater can become blocked.

• This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance

produces when determining a location.

Floor Protection Requirements

•When the stove is installed directly on

carpeting, vinyl or other combustible material

other than wood flooring or a high pressure

laminate wood floor, the stove must be installed

on a metal or wood protection panel extending

the full width and depth of the heater (Minimum

21-1/4” wide by 15-7/8” deep).

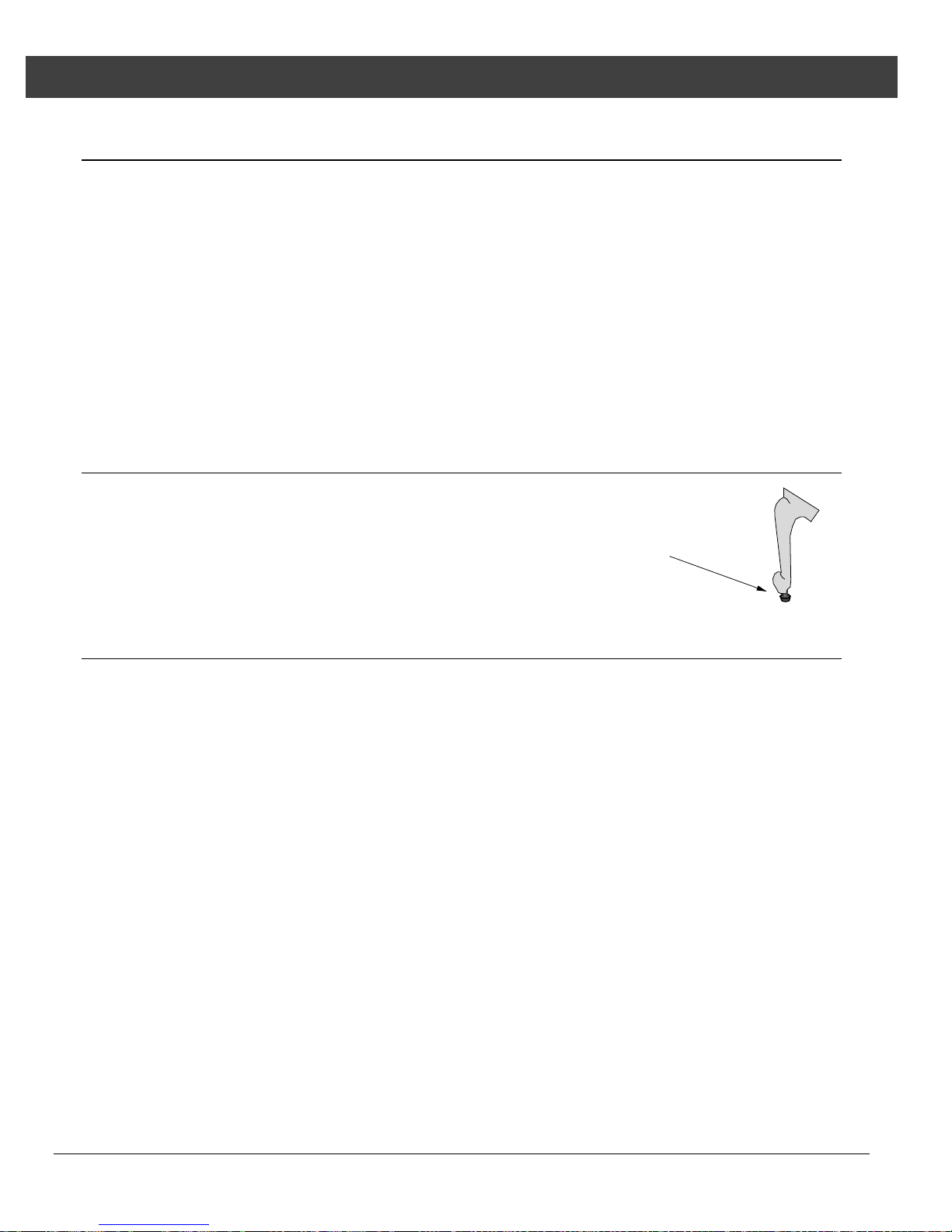

Make sure these rubber tipped

bolts on each leg contact the floor

(they dampen any noise that may

transmit through the hearth). Do

not adjust with weight on the legs,

the rubber tips may tear.

Electrical Requirements

•Plug the stove into a grounded receptacle supplying a minimum 1.5 amps (120 Volts, 60 Hz, 180

watts).

Installation (for qualified installers only) 13

Optional Wall Switch or Thermostat Installation

Do not connect 110-120 VAC to the gas control valve or wiring system of this stove. The switch must

be installed by a qualified installer.

This stove may be installed with an optional wall switch or thermostat. The thermostat (or on/off switch)

wires will interrupt the burner circuit (see item “a” below).

1. If you wish to bypass the switch, connect the thermostat (on/off switch) wires directly to the green and

white wires (see “b” below).

2. If you wish keep the switch (series) – re-align the wires as shown in item “c” below. NOTE: The on/off

switch must be in the “ON” position for the thermostat (or on/off switch) to operate.

COMFORT

CONTROL

AA

BATTERY

TRAY MAIN

BURNER

Red Red

Black

White

Green

Black

Red

Blue

Red

Blue

Black

POWER SUPPLY

ON / OFF

a

b

Burner Circuit Wires

Bypass

White

Green

Thermostat or

On/Off Switch White

Green Thermostat or

On/Off Switch

Series

c

14 Installation (for qualified installers only)

Gas Line Installation

! The gas line must be installed in accordance with all local codes, if any; if not, follow current ANSI

Z223.1 or NFPA 54 in the USA and the current CGA B149 in Canada.

! The heater and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPA). For pressures

under 1/2 psig (3.45 kPA), isolate the gas supply piping by closing the manual shutoff valve.

• This heater is designed for natural gas but can be converted to propane. Check the sticker on top of

the gas control valve to verify the correct fuel is used (see page 4).

• Leak test all gas line joints and the gas control valve prior to and after starting the heater.

• The location of the gas inlet is shown below

• A manual shutoff valve is required for installation (it must be located within 3’ of the heater).

T-Handle gas cocks are required in Massachusetts in compliance with code 248CMR.

• This stove is shipped with a 16” long, 3/8” diameter flex gas line attached to an elbow on the gas

control valve (see illustration below for location). The flex accepts a 3/8” flare fitting.

6-1/4"

159mm

5-3/4"

146mm

7"

178mm

Centerline

Gas Inlet Pressure

• With the heater off, the inlet pressure must meet the requirements listed in the table below

• If the pressure is not sufficient, make sure the piping used is large enough and the total gas load for

the residence does not exceed the amount supplied.

• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank)

should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the

regulator is at an improper pressure.

Standard Input Pressure

Natural Gas 7” W.C. (1.74 Kpa)

Propane 13” W.C. (3.23 Kpa)

Installation (for qualified installers only) 15

Vent Requirements

•The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a

chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use its own

separate vent system.

In addition to the requirements listed here, follow the requirements provided with the vent.

When the vent passes through a wall a wall thimble is required. When the vent passes through a ceiling a support

box or firestop is required. When the vent passes through the roof, a roof flashing and storm collar are required.

Follow the instructions provided with the vent for installing these items. NOTE: Wall thimbles may have different

dimensions than what is required by this heater.

•The vent must maintain the required 1" clearance to combustible materials to prevent a fire. Do not fill air spaces with

insulation.

Altitude

Considerations

•Failure to adjust the air shutter

properly may lead to improper

combustion which can create a

safety hazard. Consult your

dealer or installer if you

suspect an improperly adjusted

air shutter.

•This heater has been tested at

altitudes ranging from sea level

to 6,000 feet (1,800 M). In this

testing we have found that the

heater, with its standard orifice,

burns correctly with just an air

shutter adjustment.

Approved Caps

Always use the high-wind cap

(the sconce cap is not

approved for this stove).

Use a firestop whenever

passing through a ceiling

Vertical Termination

NOTE: always use the "high-

wind" version (if applicable)

Use a roof flashing and storm collar

whenever passing through the roof

Use a support box

on exposed vent

Vertical Vent

Requirements

Use a thimble when

passing through a wall

Horizontal Termination

Maintain a minimum 1"(25mm)

clearance from vent to any combustible.

Minimum

Framing for wall

thimble

Horizontal Vent

Requirements

Maintain a minimum 1"(25mm)

clearance from vent to any

combustible

Approved Vent

Use Simpson Dura-Vent Direct-Vent Pro (or GS)*.

* Other vent may be approved with this stove. Check with the vent manufacturer for details.

Vent Diameter is determined by vent configuration. Rear vent configurations with no rise use 8” (203mm) diameter

vent, all other vent configurations use 6-5/8” (168mm). See Approved Vent Configurations on page 16 for details.

Installation instructions for Simpson Dura-Vent may be found at www.duravent.com

Vent Installation

• Slide the vent sections together and turn 1/4 turn until the sections lock in place.

• Screws are not required to secure the vent. However, three screws may be used to secure vent

sections together if desired.

• High temperature sealant is recommended at the appliance starter section connection (use high-

temperature silicone or Mill-Pac®).

• If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it

does not, apply high temperature sealant to the joints of the affected sections.

•Horizontal sections require a 1/4" rise every 12" of travel

•Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

16 Installation (for qualified installers only)

Approved Vent Configurations

Overview

This appliance has several components used to control the flow of intake air and exhaust gases.

Depending upon vent configuration, you may be required to adjust the intake restrictor, exhaust restrictor,

diffuser and/or install the intake dampers and extender plate. Refer to the vent configuration (pages 18 to

23) to determine the correct restrictor, damper, extender, and diffuser settings.

Intake Restrictor

NOTE: Refer to the vent configuration (pages 18 to 23) to determine the correct restrictor position.

To Adjust the Restrictor:

1

2

3

4

5

NOTE:

Position #1 is the fully open position

Determine a restrictor position (see the charts under

"Approved Vent Configurations")

Remove the screw.

Rotate the adjustment plate counter-clockwise until the

correct index hole is over the screw hole.

Insert the screw into the correct index hole and tighten.

Use touch-up paint to conceal any exposed steel near the

restrictor.

This restrictor is in

Position #5.

Rotate the adjustment

plate to change the

restrictor position.

2

3

4

5

6

1

Index Holes

Pivot Point

Adjustment

Plate

Screw

Intake Damper Plates

NOTE: Refer to the vent configuration (pages 18 to 23) to determine if these plates must be installed.

•Two intake damper plates are included in the owner’s pack. They are installed behind the burner in

certain vent configurations. See page 45 for details on removing the burner.

Remove the four screws above

the air inlets inside the firebox.

Attach the damper plates to the back wall of

the firebox with the screws removed earlier.

Intake Damper Plates (2)

(found in the owner's pack)

Installation (for qualified installers only) 17

Exhaust Restrictor

NOTE: Refer to the vent configuration (pages 18 to 23) to determine the correct restrictor position.

Loosen these two screws

on the exhaust restrictor.

Slide the restrictor to the correct

restrictor position (see the illustration

below). The screw location indicates

restrictor position. In this example, the

restrictor is set in position # 3. Tighten

the screws to secure the restrictor.

(closed) # 5

# 4

# 3

# 2

(open - stock position) # 1

Back Wall of Firebox

Firebox Roof

Exhaust Restrictor Extender Plate

NOTE: Refer to the vent configuration (pages 18 to 23) to determine if the extender must be installed.

Exhaust Restrictor Extender Plate

(found in the owner's pack)

Remove these two screws

on the exhaust restrictor.

Back Wall of Firebox

Firebox Roof

Use the screws to attach

the extender to the

exhaust restrictor.

Diffuser

NOTE: Refer to the vent configuration (pages 18 to 23) to determine if the diffuser must be adjusted.

•The diffuser is best accessed while converting the appliance to rear vent (see page 10).

Remove the

diffuser.



Before (Stock - Position # 1)

After (Position # 2)

DIFFUSER SIDE VIEW



Bend the round portion of the

diffuser so it is bent (position # 2).

Replace the

diffuser.

The diffuser is found on the inner flue assembly

(see Top to Rear Vent Configuration for details).

Bottom of inner

flue assembly

a

b

c

18 Installation (for qualified installers only)

Rear Vent Configurations with Horizontal Termination and No Rise

• Use 8” Diameter Vent with a 6-5/8” to 8” adapter (increaser). We recommend using the minimum

vent kit from Travis Industries (SKU 96200311). This kit contains the following components used to

vent the stove through a typical exterior wall:

-- 6-5/8” to 8” Adapter (Black)

-- Thimble (2 pieces)

-- Thimble Cover (Black)

-- Pipe Section (3.9”)

-- High-Wind Horizontal Cap

• Place the 6-5/8” to 8” adapter directly onto stove (see illustration below).

• Maximum Horizontal Run of 4’.

• Horizontal sections require a ¼” (6mm) rise every 12” (305mm) of travel.

• Maximum of one (1) 45° elbow may be used between horizontal sections.

• Diffuser must be set to closed (#2) position.

• Intake and exhaust restrictor must be set to the #1 (stock) position.

• Do not install the intake damper plate or exhaust restrictor extender plates.



6-5/8" to 8" Adapter

High Wind Horizontal Cap

Required (58DVA-HC)

Typical 8-1/2" (216mm)

Min. 12" (305mm)

Grade

Thimble w Cover

Max. 4' (1.2M)

Corner Installations

Typical Flue Center

5-3/8" (137mm)

Minimum 9"

(229mm) Minimum 52"

(1321mm)

Installation (for qualified installers only) 19

Rear Vent Configurations with Horizontal Termination and 1’ Min. Rise

• Use 6-5/8” Diameter Vent

• Horizontal sections require a ¼” (6mm) rise every 12” (305mm) of travel.

• Maximum of one (1) 45° or 90° horizontal elbow may be used (see illustration).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor

positions. NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may

vary slightly, especially when the termination is near a demarcation line.

• Diffuser set to open (stock) position).

• Do not install the intake damper plate or exhaust restrictor extender plates.







5 feet (1.5m)

10 feet (3m)

0 feet

5 feet (1.5m)

0 feet

10 feet (3m)

0 feet

5 feet (1.5m)

10 feet (3m)

15 feet (4.5m)

20 feet (6m)

24 ' max (7.3m)

Min. 1' (03m) Vertical Section Required

12 feet max (3.6m) Exhaust Restrictor Position #5

Intake Restrictor Position #6

Exhaust Restrictor Position #4

Intake Restrictor Position #5

Exhaust Restrictor Position #3

Intake Restrictor Position #3

12 feet max (3.6m)

Horizontal elbows are elbows placed between

two horizontal sections of pipe. One 45° or 90°

horizontal elbow is allowed for this configuration.

Horizontal Elbow

20 Installation (for qualified installers only)

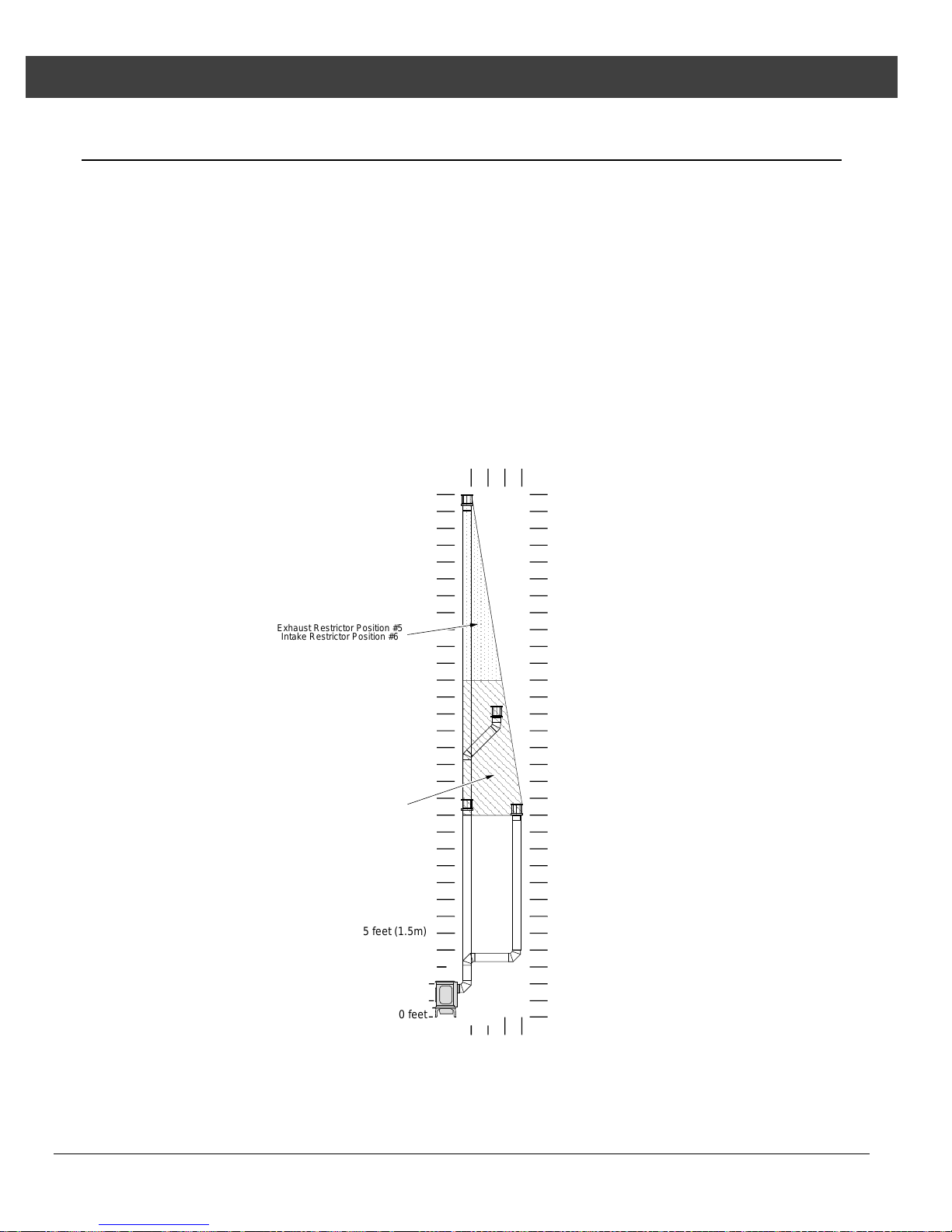

Rear Vent Configurations with Vertical Termination

• Use 6-5/8” Diameter Vent

• Horizontal sections require a ¼” (6mm) rise every 12” (305mm) of travel.

• A maximum of three (3) elbows may be used (e.g.: one 90° and two 45° or three 90°).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor

positions. NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may

vary slightly, especially when the termination is near a demarcation line.

• Diffuser set to open (stock) position).

• Install the intake damper plate.

• Install the exhaust restrictor extender plate.



0 feet

Exhaust Restrictor Position #5

Intake Restrictor Position #6

5 feet (1.5m)

10 feet (3m)

15 feet (4.5m)

20 feet (6m)

25 feet (7.5m)

30 feet (9m)

5 feet (1.5m)

0 feet

3' max. (1m)

10 feet (3m)

15 feet (4.5m)

20 feet (6m)

25 feet (7.5m)

30 feet (9m)

0 feet

31' max (9.3m)

3' max. (1m)

31' max (9.3m)

Exhaust Restrictor Position #3

Intake Restrictor Position #4
