2011 ARC-X OWNER’S MANUAL

Table of Contents
Brand Overview 6
Frame Features 8
Geometry 10
Maintenance Schedule 12
Bike Setup
ūCable Setup 14
Warranty 16
Contact Information 17

6
OVERVIEW
Overview
Warning: Make sure you review and understand the warnings, instructions and content of this manual and
accompanying manuals for your bicycle.
Warning: Technological advances have made bicycles and bicycle components more complex and the pace of
innovation is increasing. It is impossible for this manual or accompanying manuals to provide all the information
required to properly repair and maintain your bicycle. In order to help minimize the changes of injury, it is critical for you
to have work performed by an authorized Yeti dealer.
This manual contains many “Warnings” and
“Cautions” concerning the consequences of failure
to maintain or inspect your bicycle. The combination
of the safety alert symbol and the word “Warning”
indicates a potentially hazardous situation in which,
if not avoided, could result in serious injury or death.
The combination of the safety alert symbol and the
word “Caution” indicates a potentially hazardous
situation in which, if not avoided, may result in minor
injuries or damage to your bicycle or a component
of your bicycle. Be sure to read and understand all
“Warnings” and “Cautions”.
Congratulations on your purchase of a new
Yeti bicycle.We are confident your new bicycle will
exceed your expectations for value, performance and
ride quality. Each frameset and component has
been custom specified and designed to enhance your
riding experience. Whether you are a beginner
cyclist or a seasoned-pro, Yeti bicycles will provide
endless hours of two-wheeled fun.
GENERAL INFORMATION
This model-specific manual is designed to be
used in conjunction with the general Yeti Owner’s
Manual and the manuals supplied by the suspension
manufacturers. If you did not receive the Yeti
Owner’s Manual or the manual provided by the
suspension manufacturer, download the materials
off the Internet, or contact you dealer.
Bicycling can be a hazardous activity
even under the best of circumstances. Proper
maintenance of your bicycle is your responsibility
and when done properly helps reduce the risk of
injury and damage to your bicycle. This manual
outlines basic setup and maintenance
recommendations of your new Yeti. Because it is
impossible to anticipate every situation or condition
that may occur during the assembly, setup and
maintenance of your bicycle, Yeti recommends that
all service and repairs be

8
Frame Features
FEATURES

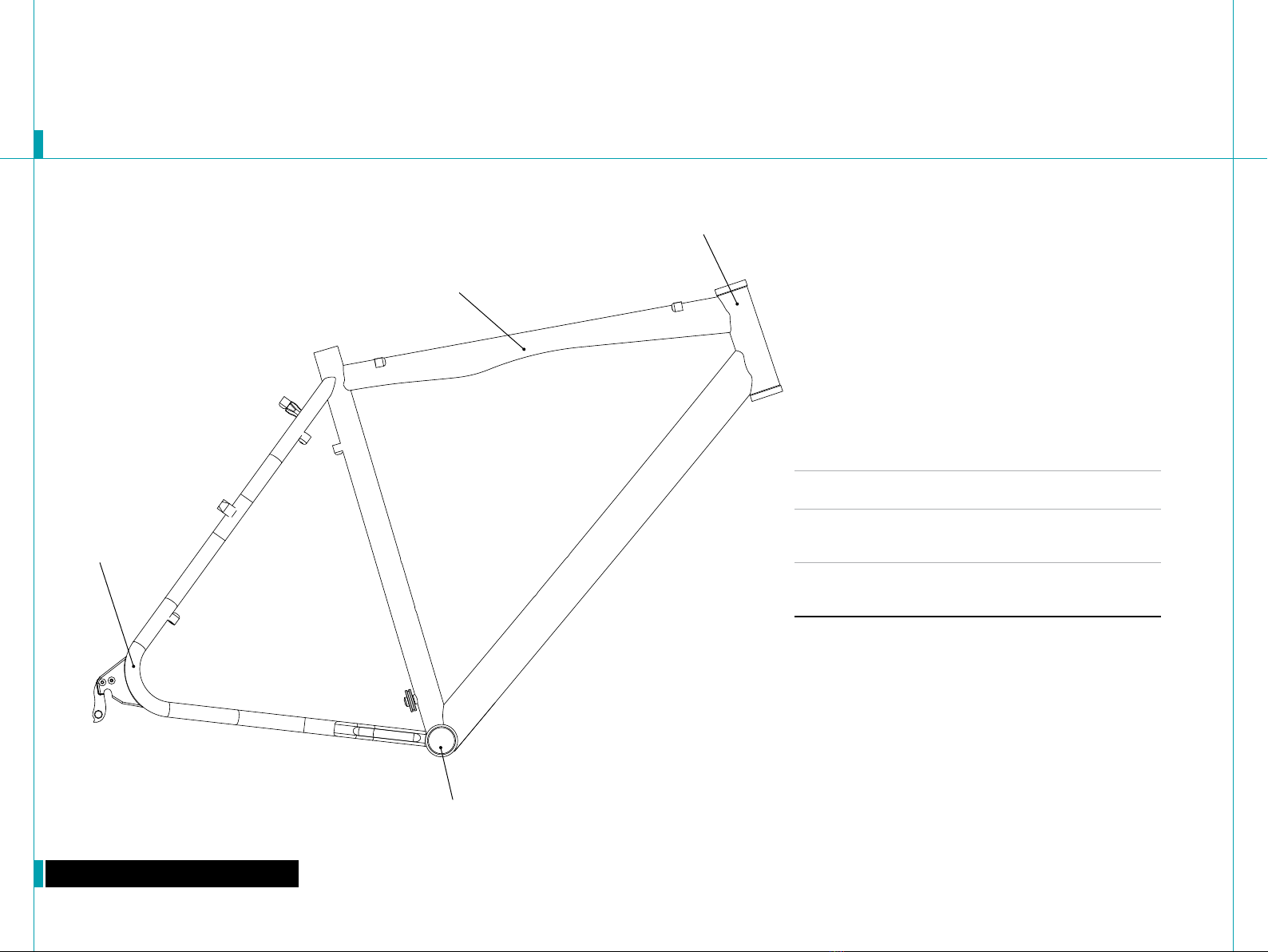

1. PURE TUBING
Yeti pure tubing is custom butted and tapered 7005 aluminum.
This makes the frame lightweight and strong without the use of
gussets. Unique shape provides added strength at the head tube
junctions.
2. BOTTOM BRACKET
68mm shell.
3. LOOPSTAYS
Circular loops stays provide a singular loop for the rear triangle
providing added stiffness and a sleek aesthetics.
4.. TOPTUBE
Ergonomic top tube allows for easy shouldering for cyclo-cross
riding
1
2
3
4

10
Geometry

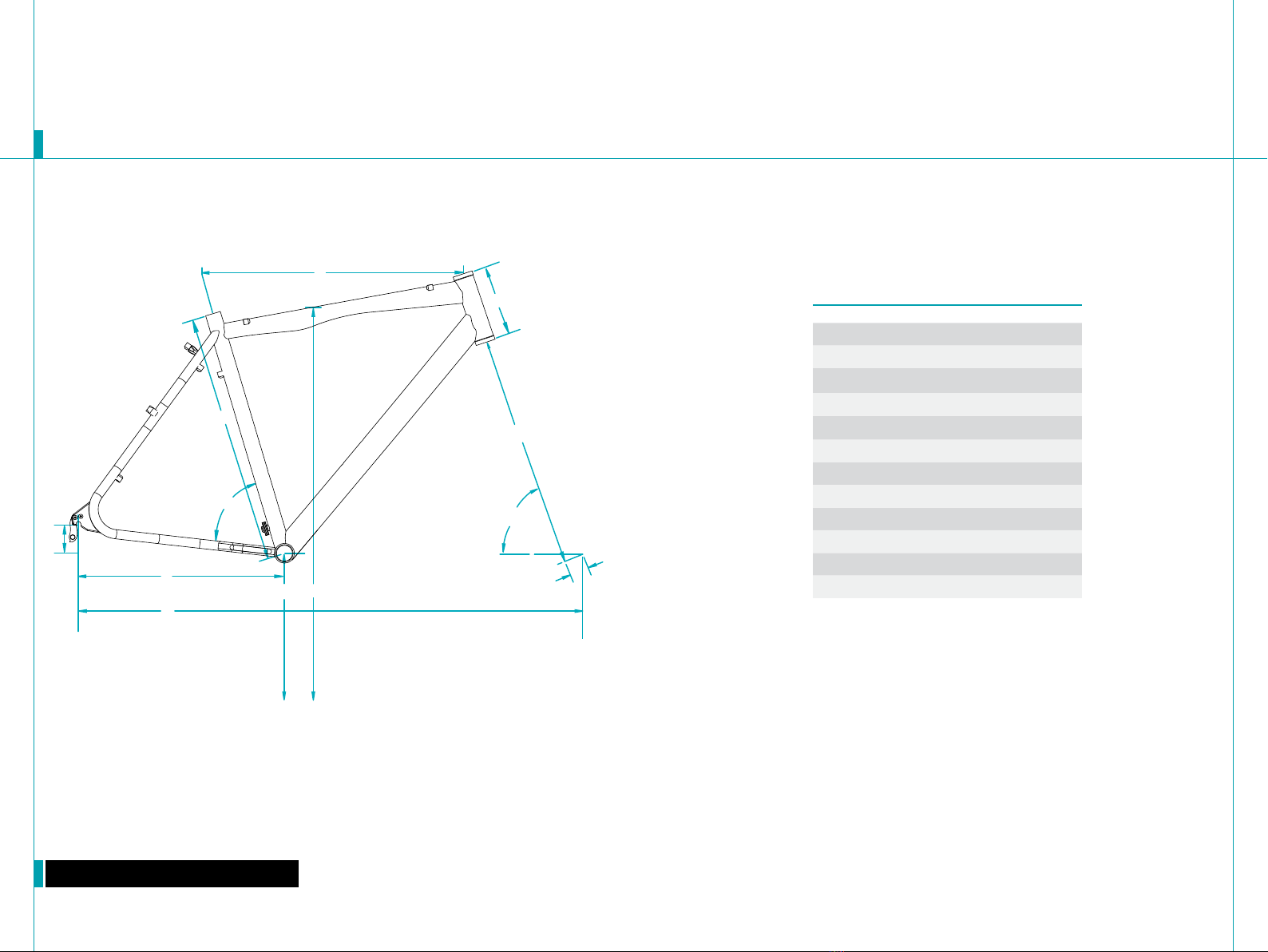

GEOMETRY
C
K
F
E
G H
I
B
A
D
J
L
GEOMETRY ARC-X
SM MD LG XL
A19.3 20.5 22 23.6
B20.7 21.3 22 23.4
C71 71.5 72 72.5
D74 73.5 73 72.5
E16.9 16.9 16.9 16.9
F39.7 40 40.4 41.3
G11.3 11.3 11.3 11.3
H30.3 31.5 32.7 33.9
I4.7 5.9 6.7 7.5
J15.75 15.75 15.75 15.75
K1.8 1.8 1.8 1.8
L2.4 2.4 2.4 2.4
*All measurements are in inches.

12
Maintenance
MAINTENANCE
MAINTENANCE Following these guidelines will help maintain the performance of your bicycle and prevent
more serious problems from arising. It is important to remember that service intervals can vary depending
on climate, trail conditions, and riding frequency.
Caution: The torque specications listed should be used as a guide when performing maintenance. Technological
advances have made bicycles and bicycle components more complex, and the pace of innovation is increasing.
Because of these advances, Yeti recommends that you refer to the torque specications of the manufacture’s component
you are adjusting. In order to help minimize the chances of injury, do not perform any maintenance that you are not
condent can be completed within your abilities.
MAINTENANCE? Not sure how to work on your own bike?
Contact your authorized Yeti dealer or visit www.parktool.com
and check out the repair help section. This section contains
detailed instruction on many of the service items listed in the
maintenance schedule.
TORQUE We have attached a brief list of torque specifications for bolts and components that may need to
be tightened while performing basic maintenance. This is just a guide. For specific torque specifications,
please contact the component manufacturer directly.
TORQUE SPECS
Pivot Bolts 125 -150
Derailleur Hanger Bolts 30 -45
Handlebar Binder Bolt 150 -180
Stem Binder Bolt 175 -260
Seatpost Binder Bolt 150 -180
Saddle Clamp Bolts 175 -250
Rear Derailleur 70 -86
Front Derailleur Clamp 45 -60
Chainring Bolts 88 -132
ACTION WEEKLY MONTHLY 3 MONTHS ANNUALLY
Clean and lube chain x
Check tire pressure x
Clean bike of mud and debris (never
spray water directly into frame or
components)
x
Check brake function x
Check shock pressure, if applicable x
Check for loose bolts and tighten, if
necessary
x
Check headset and tighten / loosen, if
necessary
x
Thoroughly clean pivot points with a
rag (do not lubricate)
x
Replace brake pads, if necessary x
Check tires for wear x
Check spoke tension and retention, if
necessary
x
Check chain for worn, damaged, or
loose links, replace chain if necessary
x
Complete tune-up performed by an
authorized Yeti dealer
x

14
Cable Setup
SETUP HOUSING
Caution: The failure to properly route shifter housing can cause malfunction of the shift mechanism and unexpected
shifting of gears.
REAR DERAILLEUR Take a piece of shifter housing and fit it from the
rear shifter across the head tube into the outermost cable stop on
the driveside of the top tube. The rear derailleur cable then runs along the
top tube to the next cable stop located by the seat tube. Now fit a piece of
housing from that derailleur cable stop to the one located on the inside of
your driveside seatstay. Another piece of housing should now be fitted from
the final cable stop on the seatstay to your rear derailleur. Now attach your
rear derailleur cable and adjust.
Tip: You want your housing to run into the rear derailleur in as straight of a
line as possible.
FRONT DERAILLEUR The second piece of rear derailleur housing
runs into the outermost cable stop on the non-driveside of the
top tube. The front derailleur cable then runs along the top tube to the
outermost cable stop located on the non-driveside by the seat tube. Now fit
a piece of housing from that derailleur cable stop into the cable stop located
on the back of the seat tube. (Note: You should route the housing between
the two seatstays above the bridge.) Now run your cable around the pulley
wheel, located just above the bottom bracket of your frame. To finish, attach
the cable to the derailleur and adjust for appropriate tension.
REAR BRAKE The rear brake loops across the head tube and fits into
the middle cable stop located above the front derailleur cable stop.
The rear brake cable runs along the top tube and into the middle cable stop
located on the non-driveside of the frame at the seat tube. Now fit a piece
of brake housing from the brake cable stop into the cable stop located on
the bridge connecting the seatstays. Now run your brake cable to the rear
brake caliper and adjust.
HOUSING END CAPS Yeti recommends using metal end caps
to maintain the integrity of the housing. The metal caps do not
allow the cable to pull through as do the plastic versions. Do
not mix up the shift and brake housing because it will result
in a loss in performance.
1
2
3

16
Warranty
WARRANTY
YETI LIMITED (2) TWO YEAR FRAME WARRANTY (applies to 303 DH, 303 RDH, 25TH 303 DH, AS-R 7 > 160MM
Fork, DH-9, AS-X, 4X, DJ, SX)
Yeti Cycles will repair or replace, at its option, any frame it determines to be defective materials and / or
workmanship. The (2) two year limited warranty is conditioned upon the bicycle being ridden under normal
conditions and having been properly maintained. This warranty does not apply to the components attached
to the frameset such as suspension components, wheels, drive train, brakes, seatpost, handlebar and stem.
This warranty applies only to the original owner and is non-transferable. This warranty is void if the bicycle
was not properly assembled by an authorized Yeti dealer.
YETI LIMITED (5) FIVE YEAR FRAME WARRANTY (applies to AS-R 5 Carbon, AS-R 5 Alloy, AS-R Carbon, AS-R
Alloy, AS-R-sl(c), AS-R, AS-R 7 w/160MM Fork, 575, ARC, ARC-X, Big Top 29’R, FRO, Kokopelli)
Yeti Cycles will repair or replace, at its option, any frame it determines to be defective materials and / or
workmanship. The (5) five year limited warranty is conditioned upon the bicycle being ridden under normal
conditions and having been properly maintained. This warranty does not apply to the components attached
to the frameset such as suspension components, wheels, drive train, brakes, seatpost, handlebar and stem.
This warranty applies only to the original owner and is non-transferable. This warranty is void if the bicycle
was not properly assembled by an authorized Yeti dealer.
ADDITIONAL CONDITIONS
These limited warranties do not apply to normal wear and tear, nor to claimed defects, malfunction or
failures that result from abuse, neglect, improper assembly, improper maintenance, alteration, collision,
crash or misuse. The original owner shall pay all labor charges connected with the repair or removal of all
components. Under no circumstances does this limited warranty include of the cost of travel or shipment to
and from an authorized Yeti dealer. In order to exercise your rights under these limited warranties, the bicycle
or frameset must be presented to an authorized Yeti dealer, together with proof of purchase.
ūThe above warranties have been in effect since January 2000. All Yeti frames sold prior to that date
had a limited (1) one year warranty on the frameset.
ūNo Fault Replacement Policy
ūYeti Cycles will make replacement parts available at a minimum charge to the original owner in the
event of a crash or any other non-warranty situation. Yeti Cycles does this at its sole discretion and
reserves the right to refuse this offer.
ūIf you have a warranty concern, please contact your authorized Yeti dealer.
NO FAULT REPLACEMENT POLICY
Yeti Cycles will make replacement parts available at a minimum charge to the original owner in the event of a
crash or any other non-warranty situation. Yeti Cycles does this at its sole discretion and reserve the right to
refuse this offer. If you have a warranty concern, please contact you authorized Yeti dealer.
PRODUCT LIFE CYCLE
Every Yeti frameset has a useful product life cycle. The length of that useful product life cycle will vary
depending on the construction and materials of the frameset, maintenance and care the frameset receives,
and the amount and type of use the frameset is subjected to over its life. Yeti recommends that an authorized
Yeti dealer should inspect the frame for stress annually. Frame stress could cause potential failure and the
signs are usually apparent in the form of cracks, fracture lines, deformation, dents and other visual indicators
of abnormality. These safety checks for frame stress are important to prevent accidents, injury to the cyclist
and product failure of a Yeti frameset.
DISCLAIMER
Yeti Cycles is not responsible for any damages to you or others arising from riding, transporting or other
use of your bicycle. In the event that your frame breaks or malfunctions, Yeti Cycles shall have no liability or
obligation beyond the repair or replacement of your frame pursuant to the terms outline in this warranty.
CONTACT INFO
Yeti Cycles
600 Corporate Circle, Unit D
Golden, CO 80401
(p) 303-278-6909
(f) 303-278-6906
WWW.YETICYCLES.COM
BUSINESS HOURS
Monday-Friday
8AM-11:30AM, 1:00PM-5:30PM
(Mountain Time)
