TriBrer AOF500 User manual

USER'S GUIDE
PON Optical power meter
EnglishEnglish

1
WARNINGWARNING
You arecautioned that changes ormodifications not espressly
approved in thisdocument could void yout authority to operate this
equipment.
To reducethe risk offire or electricshock,do not expose this
apparatus to rainor moisture.
To avoidelectrical shock, do notopen the cabinet. Referservicing
to qualified personnel only.
NOTENOTE
As the laser isharmful to the eyes,do not attempt todisassemble
the cabinet.
Precautions for Use
Avoiding condensation problems
As much as possible,avoid sudden temperature changes.Do not
attempt to use the drive immediatelyafter moving it from a cold to a
warm location, to raisingthe room temperaturesuddenly, as
condensation may form within the drive.If the temperaturechanges
suddenly while usingthe drive,
Stop using it andtake out batteries forat least an hour.
Storage
When long timeno use,must take out the batteries to avoid
destroying the device.
Use batteries
At the same time,can not use differentstyle or different capacitance
batteries.
And only chargethe rechargeable batteries.
Wavelength:635-650nmWavelength:635-650nm
VISIBLE LASER RADIATIONVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT ORSCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
Wavelength:800-1700nmWavelength:800-1700nm
INVISIBLE LASER RADIATIONINVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT ORSCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
CLASS I LASER PRODUCTCLASS I LASER PRODUCT

User's Guide
Packet
2
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
USER'S GUIDE
Optical power meter
Host
Standard
EnglishEnglish
5V Chargering
Optional

PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
13
4
2
7
Description
5
6
USB
11
12
13
3-OLT/Video (1490/1550nm) connector
2-VFL/OPM connector
1-ONT (1310nm) connector
4-Display screen
5-F/P mode (PASS, WRNG, FAIL)/ main menu button
6-VFL controlling button
7-Up button
8-Threshold selection menu and calibration menu button
9-Reference setting button
10-Down button
11-USB and data communication interface
12-Power and backlight button
13-Unit selection button
14-Data storage / recall button
8
9
10
14
3

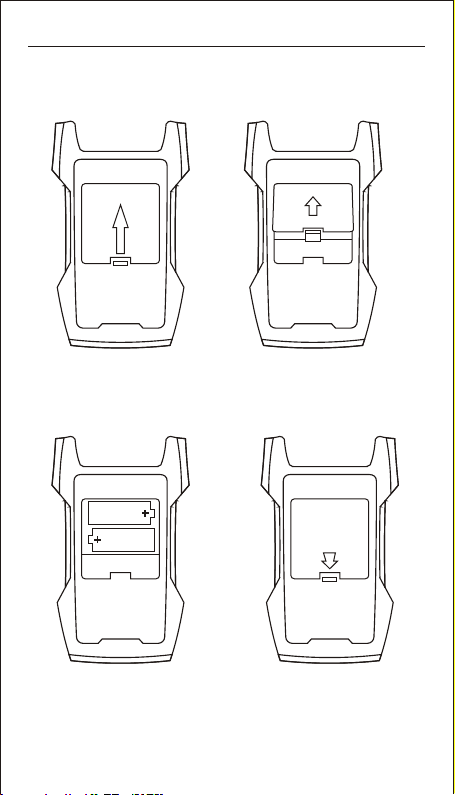

1.Pull the battery
cover lock
2.Raise the battry
cover
3.Installing the battery
correctly
4.Push the battery
cover and lock
Installing the battery
4

PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
5
On/Off and Permanent On
Press the Power key toturn on the device with auto power
off. After 10minutes no key pressed,it will autopower off.
Press Power key for 2seconds when turn on the device, the
auto power offwill be cancelled,and the LCD willshow
.
Also press itfor more than 2 seconds toshut the device.

REF/
Enter
F/P
Mode
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
6
Function selection
F/P
Mode
REF/
Enter
According to different configuration,OPM or VFLas
optional part can bebuilt in the PON meter WithoutOPM or
VFL, it willshow "NO".
After booting, the metershows function selectionmenu.
Press Up buttonor Down button to switch functions.Then
press button to entercorresponding interface. If
you want toselect functions again, only need topress
button for twoseconds or more, and you can
return to function selectionmenu.

7
Connection diagram of
PON network onlinetesting
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
Fiber
Optical Splitter
ONT OLT
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
Fiber
Optical Splitter
ONT OLT
Testing configuration diagram ofOLT
port sending optical power averagely
Testing configuration diagram ofONT
Port sending opticalpower averagely

8
PON optical powermeter
After entering PONpower meter function, it will show
a testing interface onthe screen. PON power meter can
measure uplink signal1310nm, downlink data signal
1490nm and downlinkvideo signal 1550nmin the PON
network at thesame time.
HI and LOW mean theresult is out of the testing range.

9
PON optical powermeter - quickjudgement
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
F/P
Mode
F/P
Mode
Quick judgment modeis a comparison between actual
measured data andpre-setting threshold. Then device can
judge whether the the
communication requirement ornot . ( Threshold setting is
described in detailin the chapters followed.)
Press button
quickly network meets
to open orclose the alarm
function ( PASS, WRNG, FAIL)OnLCD there arewarning
words beside theresult And the LED of eachwavelength will
turn on:
RED LED: FAIL
ORANGE LED: WRNG
GREEN LED: PASS

10
PON optical powermeter - referencesetting
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB
REF/
Enter
REF/
Enter
Setting reference isusually used before measuring the
real . It canwipe off theattenuation value which is
not counted inthe actual loss. Or it can be used incomparing
with the pre-settingstandard power.
Button is usedto setting or checking out the
reference value. Short pressit, the screen will show "REF"
and a pre-settingdBm value. Long press it for two seconds
or more, thedevice will save the current measured value as
a new referencevalue. At the same time, "REF" sign will flash
three times onthe display screen. After that, it will show
network
the
dB value, andthree wavelengths will be set simultaneously.

11
PON optical powermeter - thresholdand
offset (calibration) setting
PON Optical Power Meter
>2s PERM
VFL
F/P
Mode
ReCall
Save REF/
Enter
Threshold
dBm/dB Threshold
Threshold
The threshold isset to quickly detect whether the result
is in rangeor not, and to confirm whether the network can
be used ornot. The offset value is set to calibrate theregular
attenuation or deviation
Short press button, it willenter into threshold
setting menu. Pressagain, it will enter into calibrationmenu.
between standard valueand
measured value

REF/
Enter
12
PON optical powermeter - thresholdsetting
Wavelengths be set
Upper limit (Over this power can not communicate)
Lower limit (Below this power can not communicate)
Lower limit warning (Close to non-communication)
REF/
Enter
Threshold
REF/
Enter
REF/
Enter
After entering threshold settingmenu, the cursor will default stay
on the thresholdnumber. Firstly, youshould choose the threshold
number which youneed to set ormodify through pressing
button. The device can set 10 groups of thres hold information.
Whenstart quick judgment mode,it will show thecurrent referring
threshold number onthe top of the display screen, in the form of"Tx".
When finish choosingthreshold number,you can set corresponding
parameters through Upbutton, Down button and button.
Each channel hasthree parameters. Forexample, 1310nm includes
parameters as followed:
When the cursormove to the corresponding parameter,press
button, it canshift to each data. Press Up button or Down
button to modify. Then press button until thewhole data
change to cursor, which means modifying successfully.After finishing
setting, press button to backto the testing interface.

13
PON optical powermeter - offset(calibration)setting
The followings will causethe test result differenct:
1.Different standard
2.Not use standard accessories.(Lablevel 0 dB adapter, 0 dB
patch cord)
3.Dirty of connector
4.More than 1 yearno calibration
User can do easycalibration as the followingsteps:
Press the " " key to thecalibration menu as thepicture.
1.Press the " " key to movethe cursor.
2.Press the key to increase thevalue
3.Press the key to decrease thevalue
4.Press again the key to save andexit.
Please note the adjustablerange of each wavelengthisfrom -5.0 to
+5.0, if the differenceis out of therange, we suggest usersend back
to manufacturer to docompletely calibration.
Threshold
REF/
Enter
Threshold

ReCall
Save
14
PON optical powermeter - datastorage
ReCall
Save
The measured data storageis used to record the important
measured data, which can be used to analysis after measuring.
Under measurement interface, press button can
display the saved historicaldata. Press Up or Down button
can browse records andshow the data number on the top of
the screen. Pressthis button for two seconds under current
interface, the number willbe showed onthe upper left of the
screen and store the current measured data(bydBm value).
The device can store 100 records at most. The data number
will plus 1 automatically. Ifstores fully,the device will
overwrite the first recordautomatically. Successivelystore
data as above-mentioned.
Press button again, back to measurement
interface.

dBm/dB
15
PON optical powermeter- display unit
The measured datawill be display in dBm value and uW
value. Press button can switchdisplay unit.

16
Optical power meter
-28.56
-28.56
Threshold
REF/
Enter
ReCall
Save
Optical power meter mode is a superior optical power
meter with storage function. The dBm value and uWvalue
show simultaneously,operations as followed:
Press to witchthe measured wavelengths, calibration
wavelengths are: 850/1300/1310/1490/1550/1625nm
Short press can checkthe saved references of six
calibration wavelengths above-mentioned. Long press
this button can save current value asa reference.
Device can store 100 records. Short presscan check 10
records and press Up or Down button can turn pages.
Long press can save current data todevice. The data
number will plus 1automatically. Ifstores fully,the
device will overwrite thefirst record automatically.
Successively store data as above-mentioned.

VFL
17
VFL
Wavelength:635-650nmWavelength:635-650nm
VISIBLE LASER RADIATIONVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
Twinkle
VFL
Visual Fault Locator(VFL) is usedto seek thefailure point
in bare fiberand cables, including rupture, lager loss,
connector seeking andso on. Press button, the
laserwill flash or keepon bright. You can useVFL both inPON
power meter modeand optical power meter mode. Press
button can controllaser open, close and flash,
which will beshowed on the screen by "*" symbol.

18
Batteries detecting and charging
Four levels indicationof power detection
Represents the remaining80%---100% electricity
Represents the remaining40%---80% electricity
Represents the remaining20%---40% electricity
Represents the remainingelectricity less than 20%
After connecting the USB charger, a charging icon showson the
screen. If there arerechargeable batteries in the device, it starts
chargingthe rechargeable batteries. Forbidusing non-rechargeable
batteries to charge, orit might lead to leakage, even burning.
When the remaining electricity isless than 20%, you should promptly
shut down the device andrecharge it. Long time undervoltage will
shorten the lifetime of therechargeable batteries. When the charging is
finished, the battery remaining indicator willstop flashing. The batteries
has finished the fast rechargeand can be used directly. If you do not stop
recharging at this time,the device will continue the trickle charge state,
using small current to supplynatural discharge. But this processis not
more than 24 hours.The device can still be used while charging.
