TriBrer OTDR AOR-50 User manual

Optical Time Domain Reflectometer
USER'S GUIDE

As the laseris harmful to the eyes, do not attempt to disassemble the cabinet.
Precautions for Use
1
Wavelength:635-650nmWavelength:635-650nm
VISIBLE LASER RADIATIONVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
Wavelength:800-1700nmWavelength:800-1700nm
INVISIBLE LASER RADIATIONINVISIBLE LASER RADIATION
SEMICONDUCTOR LASERSEMICONDUCTOR LASER
AVOD EYE OR SKIN EXPOSUREAVOD EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATIONTO DIRECT OR SCATTERED RADIATION
CLASS I LASER PRODUCTCLASS I LASER PRODUCT
You arecautioned that changesor modifications notespressly
approved in thisdocument could voidyout authority to operate this
equipment.
To reduce the risk of fire or electric shock,do not expose this
apparatus to rainor moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Use batteries
At the same time, can not use different style or different capacitance batteries. And only charge the rechargeable batteries.
Avoiding condensation problems
As much aspossible, avoid suddentemperature changes. Donot attempt touse the driveimmediately after movingit
from a coldto a warm location, to raising the room temperature suddenly, ascondensation may formwith in thedrive. If the
temperature changes suddenlywhile using thedrive,
Stop using itand take outbatteries for atleast an hour.
Storage
When long timeno use,must takeout the batteriesto avoid destroyingthe device.
NOTENOTE
WARNINGWARNING

2
Standard
Host(with TF card) Carrying bag
Lithium battery
USB cable
Power adapter

3
45 6 789
10
11
12
13
14
15
16
17
18
19
1
2
3
20
21 22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

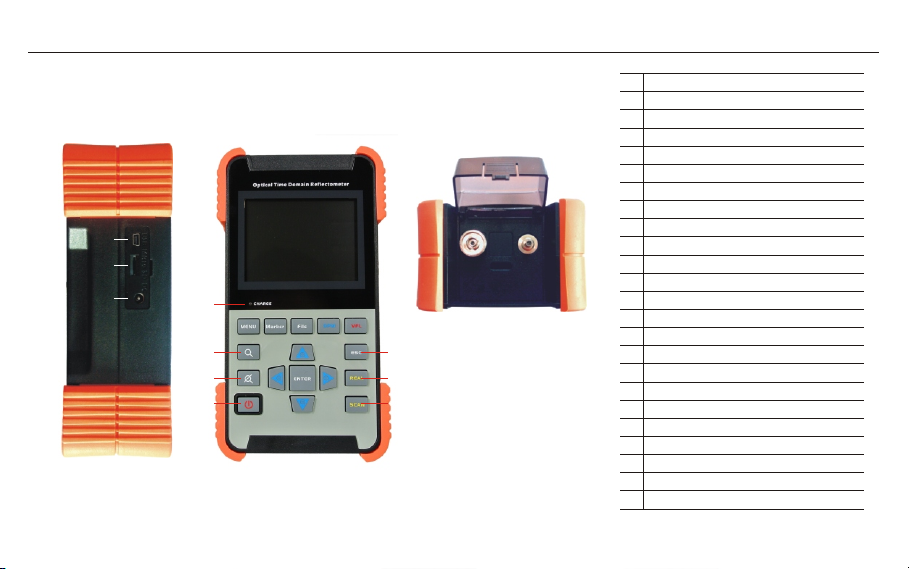

Up button
Right button
Down button
Left button
Menu button
Cancel button
VFL optic fiberconnector
LCD
Power button
Full screen button
Zoom control button
VFL control button
OTDR optic fiberconnector
File operation button
Cursor select button
Power adapter socket
Charge indicator
USB interface
TF(micro SD) cardslot
Real-time measurement button
Average measurement button
Confirming button
OPM fast enterbutton
Anti-dust cover
Description

4

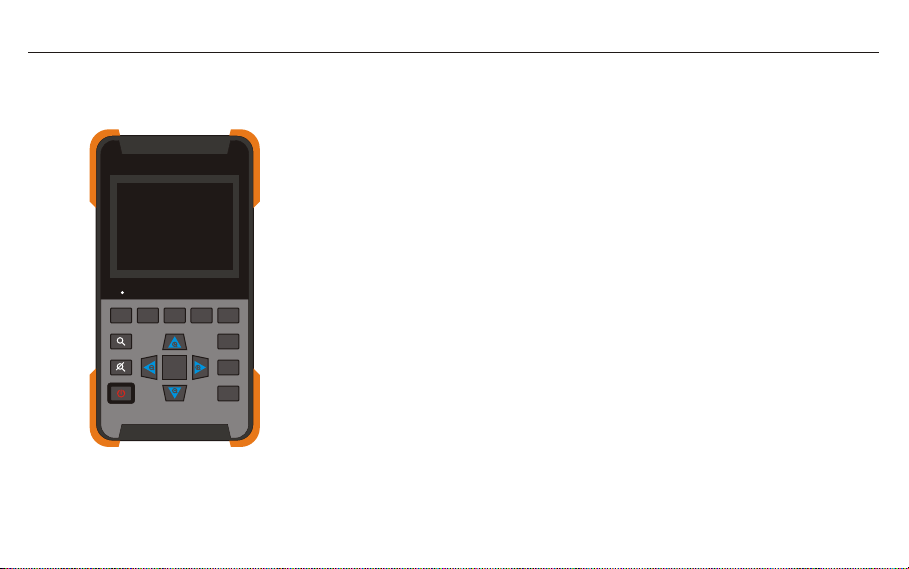

CHARGE
Optical Time Domain ReflectometerOptical Time Domain Reflectometer
MENU Marker File OPM
ESC
REAL
SCAN
ENTER
VFL
A-B: ---.---Km --.--dB --.--dB/Km Km/divA-B: ---.---Km --.--dB --.--dB/Km Km/div
File Info:
2012-01-01 WED 21:25
*
No. Distance Loss Reflection dB/Km C.Loss
SCAN

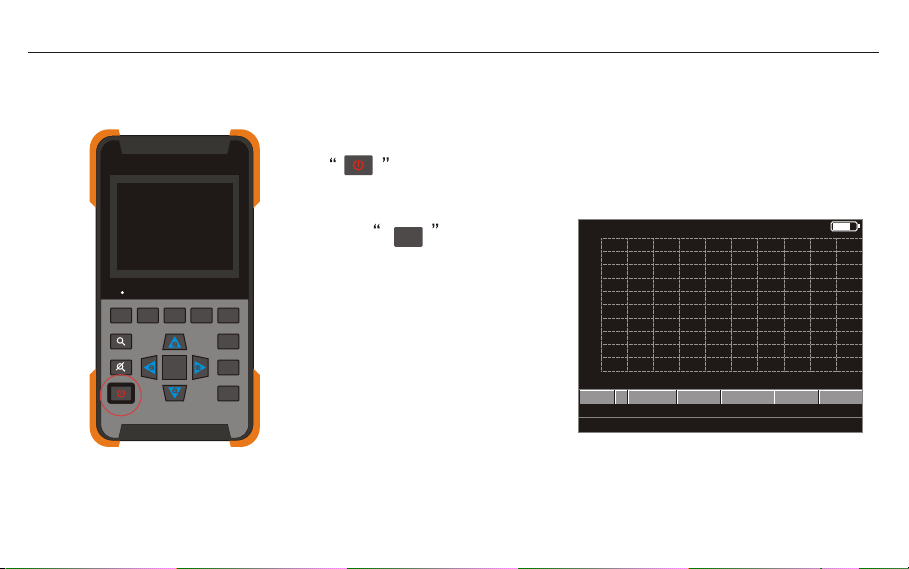

On/off
Button is usedto turn on/off the device. Keeppressing it for2 seconds
to turn on device. Short press it again to turn off the device.
Press button to
start measuring. But usershould modify
measurement setting byreal
requirement before teststart.

5

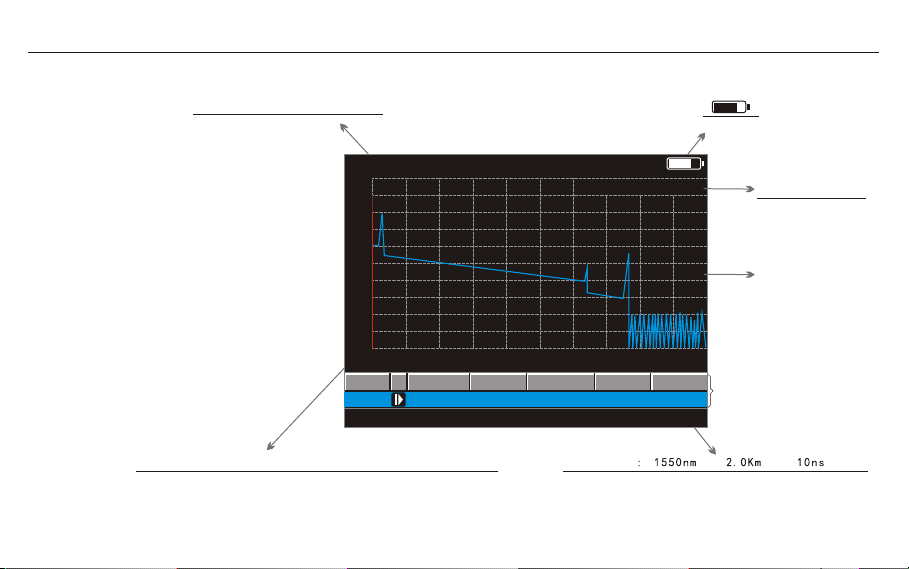

Measurement Interface
2012-01-01 WED 21:25
A-B: 000.000Km 00.00dB 00.00dB/Km 0.200Km/div
Date and time Power
The distance and
Attenuation between
A and B cursor
Every horizontal
grid is 0.2Km
Events list
Measure info
Measurement setting info
A-B: 000.000Km 00.00dB 00.00dB/Km 0.200Km/divA-B: 000.000Km 00.00dB 00.00dB/Km 0.200Km/div
Measure Info: 1550nm 2.0Km 10ns
2012-01-01 WED 21:25
No. Distance Loss Reflection dB/Km C.Loss
0.00
4.00
8.00
12.00
16.00
20.00
24.00
28.00
32.00
36.00
40.00
1/3 0.000 0.00 -28.00 --.-- 0.00
A:0.000Km
B:0.000Km
174622_0001.sor 174622_0001.sor
File name
Waveform region
There are 10x10grids in waveform region.
Horizontal grids meandistance, vertical grids
mean dB value. As shown infigure,
each horizontal gridrepresents 0.2km, each
vertical grid represents 4dB.

6
Real-time and averagemeasurement
Real-time measurement canquickly judge basicfaults of opticalfiber. Press
button to start real-timemeasuring. During measuring,you can change
range, zoom inor zoom out. Press button again or button to
stop. The devicewill not analysesevent after real-timemeasurement in default.
Unless you turn on RT analyse in System settings, the device will analyse events
according to thelast refreshed waveform.
Average measurement canjudge the linecondition more accurate.It can geta
better SNR andfits high requirementcircuit. Press button to start. Usercan
set measurement timefrom 5 secondto 180 second.The device analysesevents and
generates event listautomatically. Press button during measuring,device
will stop measuring,analyses events andgenerates event listautomatically.
CHARGE
Optical Time Domain ReflectometerOptical Time Domain Reflectometer
MENU Marker File OPM
ESC
REAL
SCAN
ENTER
VFL
REAL
REAL
SCAN
escesc
escesc

7
Press key ENTER tolocate the corresponding event.
Event List
No. Dis. Loss Ref. dB/Km C.Loss
1/6
2/6
3/6
4/6
5/6
6/6
0.000
0.940
4.301
5.589
18.712
39.809
0.00
0.08
0.12
-0.05
-.--
-.--
-51.74
-51.74
-54.67
-41.03
-46.02
-.--
0.24
0.28
0.22
0.21
-.--
-.--
0.26
0.00
1.18
4.07
9.41
-.--
No. Dis. Loss Ref. dB/Km C.Loss
1/3 0.000 0.00 -28.00 --.-- 0.00
Event list on maininterface
Event List
Optic fiber start
Reflection event
Attenuation event
Gain event
optic fiber ending
Mix event
ESC
ENTER
Event list
After measurement or open a waveform in memory, there is
event list onthe bottom ofwaveform interface. Press
button to showthe whole eventlist. Six typesof events as
followed:
Press Up orDown button toselect an eventwhich needs tobe
located by cursoron the waveform. Then press button
to return to waveform interface. The cursor will stay on the
position of theselected event. Press button to returnto
waveform interface.
ENTER

8
The device supports userto change measurementrange during real-time
measurement. Start Real-time measuringfunction and pressUp or Downbutton to
increase or decreasethe range. Andit also supports tochange the cursorposition
and zoom in/outwaveform in realtime, which means you can zoom in partial
waveform while measuring to judge the network fault.
Real-time measurement tips
CHARGE
Optical Time Domain ReflectometerOptical Time Domain Reflectometer
MENU Marker File OPM
ESC
REAL
SCAN
ENTER
VFL

Marker
A-B: 000.000Km 00.00dB 00.00dB/Km 0.200Km/divA-B: 000.000Km 00.00dB 00.00dB/Km 0.200Km/div
Measure Info: 1550nm 2.0Km 10ns
2012-01-01 WED 21:25
*
No. Distance Loss Reflection dB/Km C.Loss
0.00
4.00
8.00
12.00
16.00
20.00
24.00
28.00
32.00
36.00
40.00
1/3 0.000 0.00 -28.00 --.-- 0.00
A:0.000Km
B:0.583Km
9
Cusor selection andwaveform zoom in/out
This device hastwo cursors, A and B.
Default distance is0m, activated cursor
turned to bright red. Press
button switch toanother cursor. Press Left
or Right buttonto move cursor. Press Upor
Down button toprevious or next event. You
can calculate thedistance and attenuation
between two cursors.
Keep pressing , then pressand Up/Down buttonto zoom in or out
waveform vertically. Keep pressing , then pressLeft/Right button tozoom in
or out horizontally. Press button to return to full screen display. Notice:the
focus of zoomingis the locationof the activated cursor.
CHARGE
Optical Time Domain ReflectometerOptical Time Domain Reflectometer
MENU Marker File OPM
ESC
REAL
SCAN
ENTER
VFL

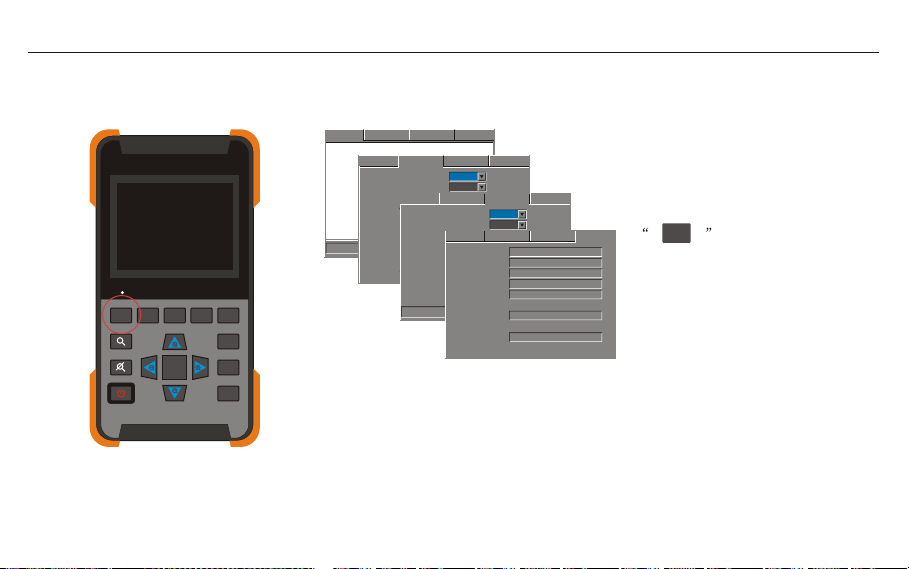

Press key MENU to switch the menu tag.
File
Open...
Format SD Card...
Measure Settings About System Settings
MENU
10
There are fourpages of menu
which used toconfigure parameters.
Under waveform interface, press
button to switchthe
four menus cyclically.
The four menusare:
1. File menu
2. Measure settingsmenu
3. System settingsmenu
4. About
Menu
System Settings
Wavelength
Scan Mode
Range
Pulse Width
nm
Km
ns
1550
Manual
80
10000
Average Time
Splice Loss
Reflection Threshold
End Threshold
Refractive Rate
Scatter Coefficient
s
dB
dB
dB
dB
120
0.05
65.0
2.0
1.46832
52.1
File About
System Settings
Measure Settings

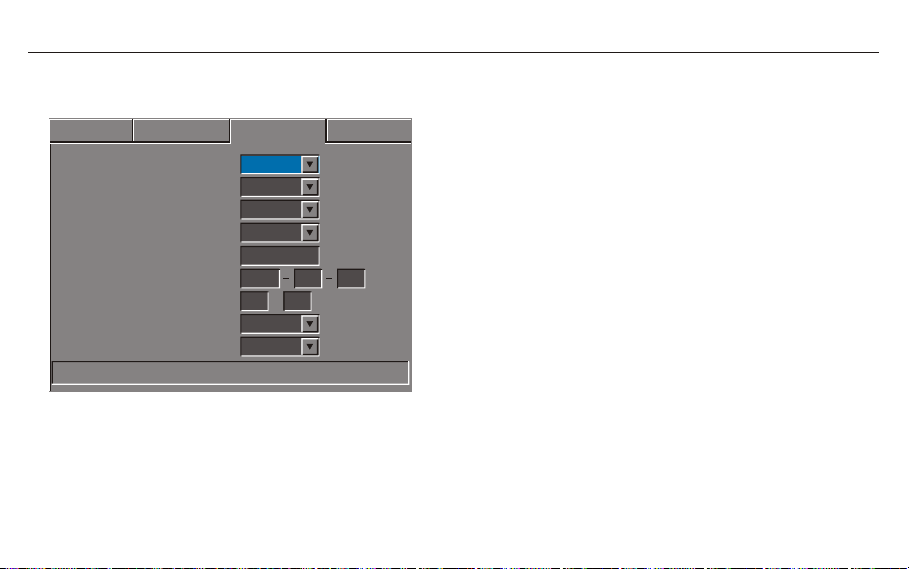

Press key ENTER to edit settings.
Auto Power Off
Auto Name
Language/
brightness
Date
Time
Length Unit
Factory Settings
10min
On
English
60
Metric
No
:
2013
21 57
11 02
File Measure Settings System Settings About
CHARGE
Optical Time Domain ReflectometerOptical Time Domain Reflectometer
MENU Marker File OPM
ESC
REAL
SCAN
ENTER
VFL
Measure Settings System Settings
Firmware Version:
Firmware Version:
Firmware Version:
Language:
About
TEN1A20V35_MAIN_V1.2
TEN1A20V35_ANALOG_V0.3
TEN1A20V35_TFT_V1.1
SEN1A20V35_MAIN_V1.2.0
FEN1A20V35_MAIN_V1.x.0
English
Firmware Version: A4B75978
File

11
Press key MENU to switch to the menu tag.
File Measure Settings System Settings About
Format SD Card...
Open...
File Measure Settings System Settings About
20140615
20140617
20140618
20140622
2014-06-15
2014-06-17
2014-06-18
2014-06-22
20140619 2014-06-19
Warnning
Are you sure to format the SD card?
OK Cancel
ENTER

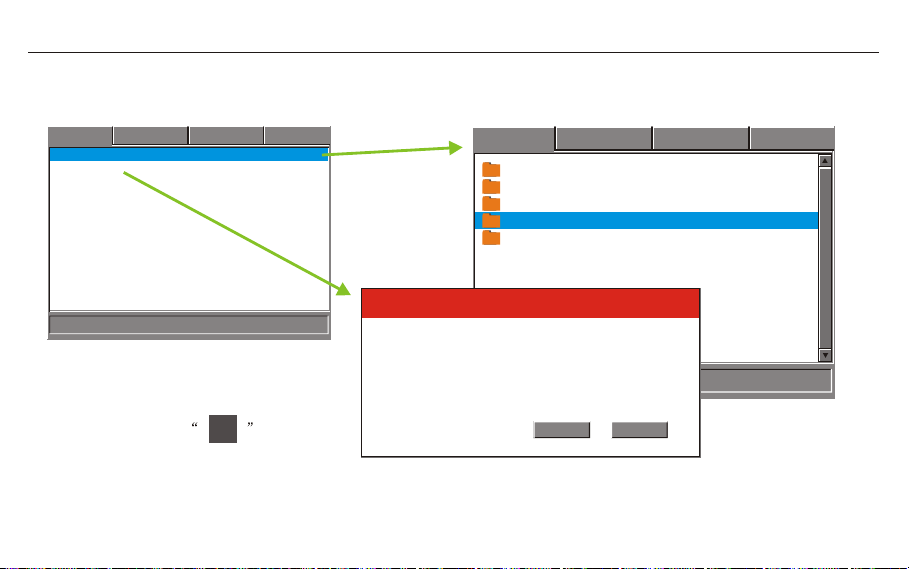

Menu-File menu
Enter File menu,there are twooptions,
"open" and "formatting SD card". Select
one option andpress button to
enter the corresponding operation.
Attention: formatting SD cardoperation will delete all files andcannot recover, please becautious.

Menu-File menu
Select "open" option,there are folders.The folder
name is thedate of thefile saved, whichis generated
automatically by system.Files measured inthe same
day will bestored in thesame folder. Folder canonly
be delete, butnot rename. Andmust delete allfiles
before delete thefolder.
Press Up orDown button toselect a folderand
press button to opendelete tip. Thenpress
button to finishdeleting, or press
or button to cancel.
ENTER
ESC

File Info: 1550nm 370m 10ns
File Measure settings System settings About
.
..
133210_0001.sor
133210_0003.sor
133210_0004.sor
2014-06-18
2014-06-18
2014-06-18
2014-06-18133210_0002.sor
Menu-File menu
Select one folderto display allfiles inside. Press
Up or Downbutton to selectone file andpress
button to displayit in maininterface. The
file information at the bottom is the file's main
measurement setting.
Press button can deleteor rename thefile.
Filename can makeup of 23digits, alphabets and
special symbols atmost. The lastfour numbers_xxxx is
generated by "Automatic naming"function.Shut down
this function willnot generate.
ENTER
13
File Measure Settings System Settings About
.
..
133210_0001.sor
133210_0003.sor
133210_0004.sor
2014-06-18
2014-06-18
2014-06-18
2014-06-18133210_0002.sor Delete...
Rename...
File Info 1550nm 370m 10ns

Save
File Name:
Caps back Save
abcdefg
hijklmn
opqrstu
vwxyz.
123
456
789
0
_#
140950
14
Rename
File Name:
Caps back Save
abcdefg
hijklmn
opqrstu
vwxyz.
123
456
789
0
_#
140950
File
Menu-File menu
When finish measuringan optic fiber, press
button to enter storage interface.
Default filename ishour/minute/second of firsttime
storage. Press Up/Down/Left/Rightbutton to select
alphabets, digits andsymbols on softkeyboard. You
can input 23alphabets at most.If "Automatic
naming" is enabled,the filename willautomatically
generated with fourdigits. Without shuttingdown
the device, thefollowing stored file'sname will
automatically plus 1.The file format is.SOR.
On file recallinginterface, press Right buttoncan
Modify filename, asthe same operationsabove.

15
File Measure Settings System Settings About
Wavelength
Scan Mode
Range
Pulse Width
Average Time
Splice Loss
Reflection Threshold
End Threshold
Refractive Rate
Scatter Coefficient
nm
Km
ns
s
dB
dB
dB
dB
1550
Manual
40
1000
120
0.05
65.0
2.0
1.46832
52.1
Menu-Measure settings
Measure settings menu isused to set relativemeasurement data, which
the judgment of eventslist is based on.Wrong setting mightleads to wrong or
missing events.
Wavelength---wavelength of laser.
Scan mode---manual and automode. Under auto mode,it will match the
distance, range and pulsewidth.
Range---match with the lengthof measured optic fiber, usually over onelevel.
Pulse width---set the pulsewidth of output laser. Usually,small pulse width can
measure close event, largepulse width can measureremote distance, but
enlarge event's blind area.
Average time--- can setbetween 5 second and180 second as average
measurement time.
Splice loss---treat asan event whenthe loss is higher than setting value.
Reflection threshold---treat asan event whenthe reflection is higher than setting value.
End threshold---treat asthe end of optic fiber whenthe loss ishigher than setting value.
Refractive rate---represent theaverage refractive index ofentire optic fiber.
Scatter coefficient--- the intrinsicvalue of Rayleigh Scattering.

16
Press key ENTER toedit settings.
File Measure Settings System Settings About
Auto Power Off
Auto Name
Optical Dectector
Brightness
Date
Time
Length Unit
Factory Settings
10min
On
On
60
Metric
No
:
2013
21 57
11 02
Menu-System settings
System settings menuis used toset the device'sbasic functions.
Auto Power Off---set time ofautomatic off orcancel this function.
Auto Name---name automatically when file is saving, can cancel this
function.
Optical Detector ---detect whether thereis signal inoptic fiber or
not before measuring.
RT Analyse ---set whether analysesevents after real-timemeasuring
or not.
Brightness--- adjust brightnessof LCD.
Date--- set year, month, day.
Time ---set hour, minute.
Length unit ---default is metricunits.
Factory settings --- is used in resetting to default , and has no effect
on The settime and storeddata.
RT Analyse Off

Measure Settings System Settings
Firmware Version:
Firmware Version:
Firmware Version:
Language:
About
TEN1A20V35_MAIN_V1.2
TEN1A20V35_ANALOG_V0.3
TEN1A20V35_TFT_V1.1
SEN1A20V35_MAIN_V1.2.0
FEN1A20V35_MAIN_V1.x.0
English
Firmware Version: A4B75978
File
17
Menu- About
This menu isversion details aboutdevice's configuration of
hardware and software.CPU number isused to generate upgrading
code, which shouldinform distributor or factory before software
upgrading.

18
Optical Power Meter
Press key Downto change
the wavelength.
Power
Press key Enterto start or
to stop measure.
1310
On
nm
dBm
mw
OPM
OPM function
Press button on device with OPM function to enter
OPM measurement interface. Press button to start
measuring. Press button to changethe wavelength. The
meter's six calibrationwavelengths are: 850nm,1300nm, 1310nm,
1490nm, 1550nm, 1625nm.
Press button to quitOPM function.
000.00
+00.00
ENTER
ESC
