TRIUMPH BOARD VC1 Parts list manual

TRIUMPH BOARD
Video Conferencing System VC1
Quick Installation Card
Package Contents
1. Main System
2. Camera
3. Microphone
4. Remote Control
5. Power Adapter
6. Power Cords (US, EU, UK)
7. VGA Cable
8. Mini Din 8 pin MIC Cable
9. HDMI Cable
10. Camera Cable
11. RJ-45 Cable
12. Warranty Card
13. Quick Installation Guide
14. AAA Batteries
15. Back Panel Label
Layer 1 Layer 2 Layer 3 Layer 4
Accessory Pack Cables Camera, Microphone Main System
Remote and Adapter
4. 5. 6. 7.
8. 9. 10. 11.
12. 13. 14. 15.
TRIUMPH BOARD
Video Conferencing System VC1
Quick Installation Card
Package Contents
1. Main System
2. Camera
3. Microphone
4. Remote Control
5. Power Adapter
6. Power Cords (US, EU, UK)
7. VGACable
8. MiniDin 8 pin MIC Cable
9. HDMICable
10.Camera Cable
11. RJ-45 Cable
12. Warranty Card
13. Quick Installation Guide
14. AAA Batteries
15. Back Panel Label
Layer1 Layer2 Layer3 Layer4
AccessoryPack Cables Camera,Microphone Main System
Remoteand Adapter
4. 5. 6. 7.
8. 9. 10. 11.
12. 13. 14. 15.
67 8 9 10 11 14
1.
2.
3.
POWER
6 7 8 9 10 11 14
1.
2.
3.
POWER

Power adapter
Powercord
Wall outlet
RJ-45cable
RJ-45walljack
cable

o tor
cable
cable cable
5
udocable
5to
Rcable
Pprojector
otor
aera cable
aera
aptop ektop


Connection Diagram
VGA cable
MIC cableHDMI cable
HDMI monitor MIC
Camera
Camera cable
3,5mm to
RCA cable
Wall outlet
Power adapter
USB
VGA cable VGA cable
LCD/DLP projector
Laptop Desktop
RJ-45 wall jack
RJ-45 cable
Power cord
3.5mm
Audio cable
LCD

Setup Wizard
When using TRIUMH BOARD Video Conferencing System VC1 for the first time, the Installation Wizard
will guide you throught the setup of your Video Conferencing System VC1 system step by step. After
completing the wizard setup, you may start using your Video Conferencing System VC1.
Note: Please press the „VC1“button on the upper right side of your Remote Control in order to control
your Video Conferencing System VC1.
1. Connect your Video Conferencing System
VC1, well and turn on the power. After your Video
Conferencing System VC1 system finishes starting,
the user will see the Installation Wizard screen show up.
2. Language: Select the language of your Video
Conferencing System VC1.
3. Press to expand the drop-down list. Then, use
or button to move the selection and press to
make the selection. After selecting, press to move
to “Next” option and press to go to the next step.
4. Follow the instructions and complete your settings.
5. Click “Go to Main Menu” to complete the Installation
Wizard setup and go to home menu.
6. Please press on the remote to start making a call.
Put back panel label on main system

Network Quick Setup Guide
Default IP address: 192.168.0.1.
Please change your Video Conferencing System VC1’s IP address at the start.
There are three possible setup scenarios for most video conferencing users, depending on whether yours is:
1. Public IP Configuration (Outside of Firewall).
2. Private IP Configuration (Behind Firewall with Port Forwarding). Please refer to the following table “Video Conferencing
System VC1 H.323 Related Port Usage for Firewall Setup” for your firewall Port forwarding setup.
3. H.460 Gatekeeper with Firewall Traversal. Please refer to the following table “Video Conferencing System VC1 H.323
Related Port Usage for Firewall Setup “for your firewall Port forwarding setup.
Video Conferencing System VC1,
H.323 Related Port Usage for Firewall Setup
(Please set the following ports in port forwarding in your firewall before you start installing your Video Conferencing System VC1)
Port Function Type
1719 Gatekeeper UDP
1720 H.323 Call setup TCP
30000 ~ 30019 TCP and UDP
80 HTTP Interface (WebTool) TCP
23 Telnet TCP
5060 SIP TCP and UDP
Signaling and control for audio, call, video, and
data/FECC
InternetVC1

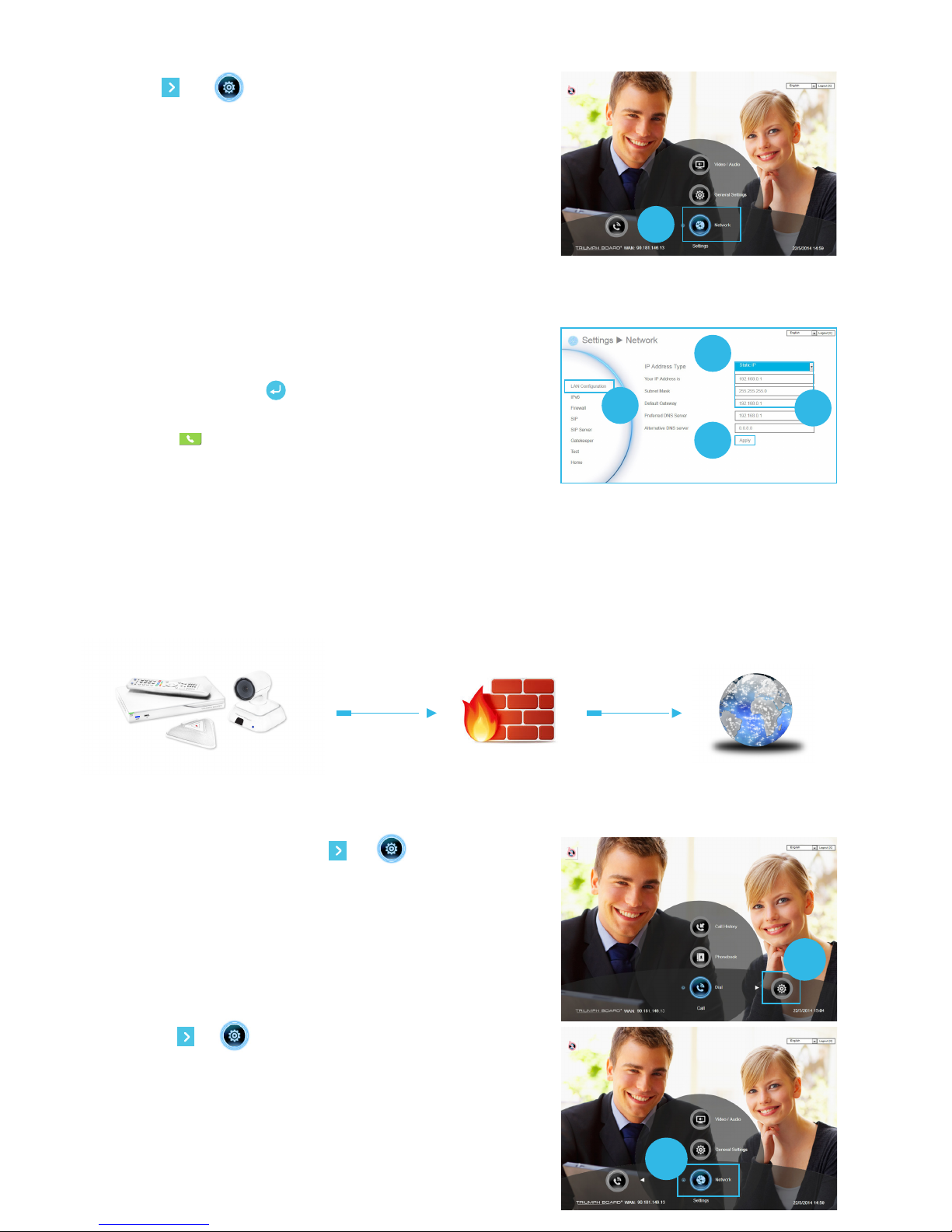

1. Using the remote press “Home”-> -> “Setting”.
Scenario 1 – Public IP Configuration
(Outside of Firewall)
Your Video Conferencing System VC1 is connecting directly to the internet.
1

InternetVC1 Firewall
2. Press -> “Network”.
3. Press “LAN Configuration”.
4. And In the drop-down list “IP Address Type”, choose “Static IP”.
5. Manually input the “IP address”, “Subnet Mask” and “Default Gateway”.
6. Select “Apply” and press (Enter).
7. Press “Home” on the remote to return to the home menu.
8. Press the (Call) button on the remote and you are
ready to make your first call.

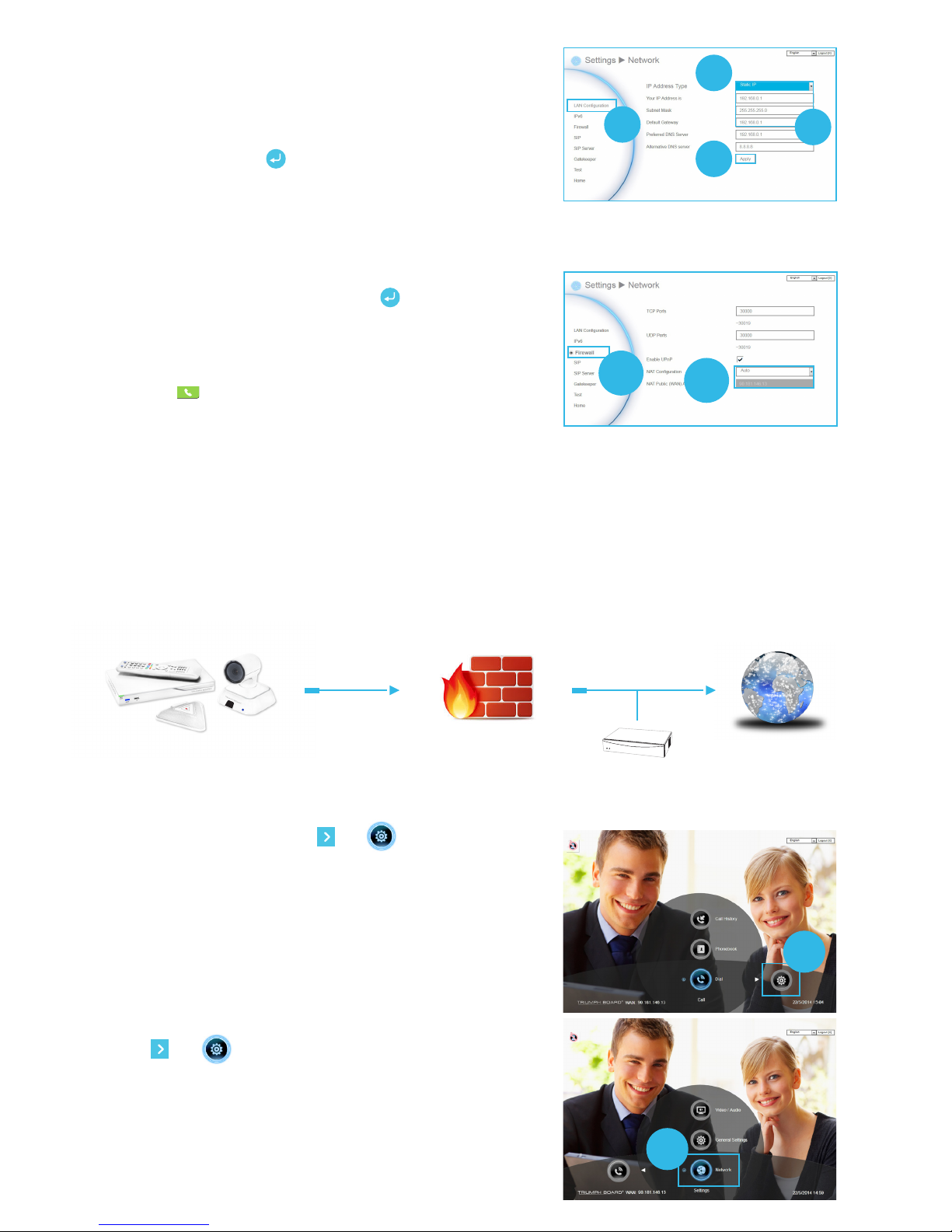

Scenario 2 –Private IP Configuration
(Behind Firewall with Port Forwarding)
Your Video Conferencing System VC1 is connecting to the internet through a firewall.
1. Using the remote press “Home”-> -> “Setting”.
2. Press -> -> “Network”.
2
4
5
6
3
1
2

3. Press “LAN Configuration”.
4. And In the drop-down list “IP Address Type”, choose “Static IP”.
5. Manually input the “IP address”, “Subnet Mask” and “Default Gateway”.
6. Select “Apply” and press (Enter).
7. Press (Back) on the remote to return to previous menu. (If you have
H.323 ALG enabled, skip to step 10).
8. In the same page, go to “Firewall” and press (Enter).
9. Select “ON” in the NAT check box and enter the IP address in the “NAT
Public (WAN) address” field.
10. Press the “Home” button on the remote to return the home menu.
11. Press the Call button on the remote and you are ready to make
your first call.
1. Using the remote press “Home”-> -> “Setting”.
2. Press -> “Network”.
Scenario 3 – H.460 Gatekeeper with Firewall Traversal
Your Video Conferencing System VC1 is connecting to the internet through a firewall and you have a Gatekeeper
outside the firewall.
InternetVC1 Firewall
Gatekeeper
9
4
5
6
3
8
1
2

3. Press “LAN Configuration (IPv4)”.
4. And In the drop-down list “IP Address Type”, choose “Static IP”.
5. Manually input the “IP address”, “Subnet Mask” and “Default Gateway”.
6. Select “Apply” and press (Enter).
7. In the same page, go to “Gatekeeper” and press (Enter).
8. Enter the IP address of your Gatekeeper in the “Gatekeeper IP Address”
field and enable the “Connect to Gatekeeper” check box.
9. Enable the “Enable H.460 firewall Traversal” option.
10. Press the “Home” button on the remote to return the home menu.
11. Press the (Call) button on the remote and you are ready to make
your first call.
Troubleshooting
1. Make sure you have changed your default IP address. The default IP address is 192.168.0.1, in order not to conflict with
other devices in the same LAN, please change your IP address at the start.
2. Video conference call is established but no video or voice.
- If you are connecting to the TRIUMPH BOARD Video Conferencing System VC1 with a firewall, make sure that you have
set up the port forwarding correctly. If there is no H.323 ALG firewall, please configure the NAT and the WAN IP address for
the TRIUMPH BOARD Video Conferencing System VC1.
- We suggest having a fixed public IP address for the TRIUMPH BOARD Video Conferencing System VC1. With a dynamic
public IP address, it will change after a certain period which depends on your local ISP.
- There is a routing issue if you installed two TRIUMPH BOARD Video Conferencing System VC1 sharing one public IP
address.
3. Unable to connect to other Video Conferencing systems.
- Check to see if you are dialing the correct IP address.
- Ensure the power status of the device from the other site is on.
- Verify if the firewall blocks the inbound trac from the other site.
- Verify if the other site rejected your Video Conferencing call.
4. Unable to see the OSD.
- Check to see if your cable is connected correctly.
- Make sure your system and display are securely-connected and then reboot your system. (Your display should be
switched on before you reboot your system).
4
5
6
3
9
10
8

5. Cannot open WebTool by IE 9 and IE 10.
- Cannot open WebTool by IE 9 and IE 10
- Click (Tools) in IE.
- Select “F12 developer tools”.
- Change Document Mode to Internet Explorer 9 standards.
- Disable intranet sites in Compatibility View. Go to “Tools”
-> “Compatibility view settings”.
- Unclick the checkbox “Display intranet sites in
Compatibility View” and then click “Close”.
For more information, please visit and download the TRIUMPH BOARD Video Conferencing System VC1 user manual at our website http://www.triumphboard.com
