Trotec SP500 User manual

www.troteclaser.com
Operation Manual
SP 500

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 2 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
TROTEC PRODUKTIONS UND VERTRIEBS GMBH
Linzer Straße 156
A –4600 Wels
AUSTRIA
Tel.: ++43/7242/239-7000
Fax: ++43/7242/239-7380
E-Mail: [e-mail]
www.troteclaser.com
Released December 2014
Copyright
This documentation with all illustrations is intellectual property of Trotec Produktions- u. Vertriebs
GmbH.
The entire documentation is given to the user for personal use only. This documentation must not be
reproduced or made available to others without our written permission. Any breach of law will be pros-
ecuted.
Trotec Produktions- u. Vertriebs GmbH cannot be held responsible for any direct or
indirect damages, which result from using or working with the products electric cir-
cuits or software described herein. The apparatus must be used only by trained and
skilled personnel. Before use the manual should be read and followed carefully.
Furthermore Trotec Produktions- u. Vertriebs GmbH reserves the right to change or
alter any product described herein without prior notice.
In case of failure, please check the device first. If unsuccessful, please note all data of
the device (year of manufacture, software version, etc.) and call us from a telephone
next to the switched on device.
For queries or technical problems please contact your dealer or Trotec Produktions- u.
Vertriebs GmbH directly at the above address.

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 3 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Contents
1Manufacturing label ......................................................................................................................... 5
2Product Components....................................................................................................................... 6
3Preface............................................................................................................................................... 7
How to use the operation manual............................................................................................... 7
Product Tracking......................................................................................................................... 8
4Technical Data.................................................................................................................................. 9
General Description.................................................................................................................... 9
Intended Use .............................................................................................................................. 9
Dimensions............................................................................................................................... 10
Technical Specification............................................................................................................. 11
Electrical Connection................................................................................................................ 13
4.5.1 Electrical connection for laser system............................................................................ 13
4.5.2 Electrical connection for water cooling unit (optional).................................................... 13
Materials ................................................................................................................................... 14
1 For your Safety ................................................................................................................................. 15
5For your Safety............................................................................................................................... 15
Safety Indication ....................................................................................................................... 15
5.1.1 Intended user group ....................................................................................................... 15
5.1.2 Operating instructions / Safety equipment ..................................................................... 15
General Safety Instructions ...................................................................................................... 16
5.2.1 General.......................................................................................................................... 16
5.2.2 Laser Safety ................................................................................................................... 19
5.2.3 Transport Safety............................................................................................................. 21
Secondary Risks....................................................................................................................... 22
5.3.1 General........................................................................................................................... 22
5.3.2 Crushing hazard............................................................................................................. 22
Signage..................................................................................................................................... 23
2 Transport - Storage –Setup............................................................................................................ 24
6Transport –Storage - Setup.......................................................................................................... 25
Forklift transport........................................................................................................................ 25
Lifting points.............................................................................................................................. 25
Shipping conditions................................................................................................................... 26
Unloading, inspection and damage reporting........................................................................... 26
Storage conditions.................................................................................................................... 26
Storage Location....................................................................................................................... 26
Installation Site ......................................................................................................................... 27
Space Requirements................................................................................................................ 27
Necessary Feed Lines.............................................................................................................. 27
Setup......................................................................................................................................... 28
7Connections.................................................................................................................................... 29
8Machine view .................................................................................................................................. 30
9Operation......................................................................................................................................... 31

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 4 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Key pad –Overview.................................................................................................................. 31
Key pad –Description............................................................................................................... 32
Workpiece Removal Door......................................................................................................... 36
Pass-through opening (optional) .............................................................................................. 36
Exhaust System........................................................................................................................ 37
Tables....................................................................................................................................... 38
9.6.1 Base Frame (with/without lamellas) ............................................................................... 38
9.6.2 Engraving Table (Standard table) .................................................................................. 38
9.6.3 Vacuum Table ................................................................................................................ 39
9.6.4 Cutting Table.................................................................................................................. 39
Lenses ...................................................................................................................................... 40
Start of Operation ..................................................................................................................... 41
3 Maintenance...................................................................................................................................... 43
Cleaning optics on the Laser Head .......................................................................................... 43
Cleaning the Mirrors ................................................................................................................. 44
Maintenance plan ..................................................................................................................... 45
10 Appendix ......................................................................................................................................... 46
EC –Declaration of Conformity................................................................................................ 46
Acceptance report..................................................................................................................... 47
Training Verification Form......................................................................................................... 48
Response Form........................................................................................................................ 49
How to create a Service File..................................................................................................... 50

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 5 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
1 Manufacturing label
You find the manufacturing label with the CE-sign on the rear side of the machine.
Enter the serial number, model and year of manufacture from the manufacturing label here.
This information is important for troubleshooting problems with the product and for ordering re-
placement parts.

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 6 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
2 Product Components
Machine
Lenses
2,0“
Nozzles
ø 5mm
Operating instructions
Please read!
ø 2mm
DVD
(per order)
Table base frame
RS232 cable (per order)
Cleaning kit
Allen wrench kit
7-part
2 exhaust hoses
Broom with
holder
Bypass jumper for
Pass-through
USB cable
Exhaust connection cable
Focusing tool
Engraving table
(standard table)
Power cord
Exhaust valve

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 7 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
3 Preface
How to use the operation manual
This operation manual is intended to simplify the following for you:
Learning about the machine, and
Utilizing the machine’s capabilities according to its intended use.
The operating manual contains important notes on how to operate the machine:
Safely,
Properly, and
Economically
Following the operating instructions helps you to:
Avoid hazards and risks,
Minimize repair costs and downtimes, and
Increase the reliability and service life of your machine.

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 8 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Product Tracking
We have a legal duty to track our products after delivery to our customers.
In particular, this relates to:
Recurring faults in functions
Anything that is unclear, e.g. in operation, maintenance or instructions
Any accidents that occur
Other unusual observations
Recommendations for improvement, requests
This information serves as a basis for potential corrections and/or changes to the product, and it is
therefore of great interest to us.
We request that you inform us of any such events and offer us your recommendations. This is the only
way that we can improve our products as necessary, and to make them as safe and reliable as possi-
ble.
Please use the response forms included in the Appendices for this purpose.

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 9 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
4 Technical Data
General Description
The SP 500 consists of a machine and a base frame.
All electronic components are integrated in the base frame.
All necessary connections are made on the back side of the SP 500.
Controls for the SP 500 are located on the keypad.
The SP 500 is equipped with an interlock safety system. When the interlock is activated, only setup
tasks can be performed on the SP 500.
The machine has a manual table changing system that enables use of the optimal table for specific
jobs. This system ensures faster and safer table changes.
Intended Use
The Trotec SP 500 is designed for engraving and cutting of the materials listed in this document.

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 10 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Dimensions
Weight –depends on product model ............... 550 to 600 kg
(1210 to 1320 lbs)
Item
Description
Dimension
Units
A
Length
1920 (79.59)
mm (inch)
B
Width
1240 (48.82)
mm (inch)
C
Height, closed without
base frame
780 (30.71)
mm (inch)
D
Height, closed with
base frame
1140 (44.88)
mm (inch)
E
Height, open
2100 (82.68)
mm (inch)

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 11 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Technical Specification
4.4.1.1.1.1.1 • Mechanics
4.4.1.1.1.1.2 Working area
4.4.1.1.1.1.3 1245 x 710 mm (49 x 28 in) or optional 1245 mm (40 in) x ∞ (with pass-through)
4.4.1.1.1.1.4 Loading area
4.4.1.1.1.1.5 1420 x 820 mm (56 x 32 in) or optional 1420 mm (56 in) x ∞ (with pass-through)
4.4.1.1.1.1.6 Max. height of work piece
4.4.1.1.1.1.7 112 mm (4.4 in) slat cutting table, 95 mm (3.7) aluminum cutting grid table and
acrylic cutting grid table, 98 mm (3.7) vacuum table; at removed table 300mm(12
in) at an area 1245 x 610mm (49 x 24 in) (flatness at removed tables cannot be
guaranteed)
4.4.1.1.1.1.8 Work piece table
4.4.1.1.1.1.9 Multifunctional table concept: slat, aluminum, acrylic cutting grid table or vacuum
table –one table included as standard; also available: honeycomb cutting tab-
letop, aluminum cutting grid tabletop or acrylic cutting grid Tabletop; electronic,
programmable z-axis with servo motor
Speed of motion system
254 cm/sec. (100 in/sec)
Acceleration
19m/s² (748 in/sec²)
Motor
Brushless DC servomotor
Encoder
Increment measuring system
Optical elements
lens and all mirrors air-flushed and therefore protected from soiling (preinstalled
air pump)
Lens
2.0" (standard); 2.5“, 5.0" (optional), 2.5“ clearance lense (optional) –gives 12,5
mm (0,5 in) more clearance than standard lenses, 3.75” rotary lens –additional
clearance especially for rotary jobs
Accuracy of motion system
+/- 0,1 mm (0.004 in)
(on the whole working area)
Addressable accuracy
0,0046 mm (0.0002 in)
Repeatability
<± 0,015 mm (0.0006 in)
Accuracy to size of parts
According to material an process
Maximum material load
25 kgs (55 lbs) area load over the whole working area
Exhaust
Travelling exhaust; table exhaust (with cutting- and vacuum table)
4.4.1.1.1.1.10 • Options
4.4.1.1.1.1.11
Pass-through (back)
height/width: 70 x 1420 mm (2.7 x 56.0 in)
maximum material height 63mm (2.5 in)
Rotary attachment
Cones and roller version; max length of work piece: 104 cm (41 in) (roller) / 84
cm (33 in) (cones); diameter: 15 cm (0,59 in) (roller) / 25 cm (10 in) (cones)
JobControl®Vision
Registration mark and compensation system;
max. working area: 1245 x 710 mm (49 x 28 in)
Gas-Kit (for compressed air re-
spectively process gas)
For control of compressed air and process gas (free of mechanical dust, water
and oil) max. flow rate 150 l/min (40 gpm) with max. 10 bar (145 psi) max. limit 4
bar on working head push fitting connection with out diameter) connection on the
machine with hose out diameter of 6mm (0.23 in)

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 12 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
TroCAM Basic / Advanced
CAD / CAM software for perfect cutting results; inclusively nesting-function, lead-
in/lead-out, tool paths
4.4.1.1.1.1.12 Extraction System lead /follow-
up time
4.4.1.1.1.1.13 Lead- and follow-up time fully adjustable
4.4.1.1.1.1.14 • Control System
4.4.1.1.1.1.15
Software
JobControl Expert
Laser power
Adjustable 0 –100%
Interface hardware
USB, RS-232 (RS-232 mandatory for TroCAM and CCD-camera)
Interface software
ASCII, HPGL, AD-Logic System
4.4.1.1.1.1.16 • Laser features and power
levels
4.4.1.1.1.1.17
Laser features and power lev-
els
Sealed-off CO2laser
With 40 –200 watts, air –or water cooled (depending on model)
Wavelength
10,6µm
4.4.1.1.1.1.18 • Dimensions
4.4.1.1.1.1.19
Width x depth x height
1920 x 1240 x x1140 (780 without base frame) mm or
75.5 x 48.8 x 45.0 (30.7 without base frame) inches
Weight
520 - 580 kgs / 1100 - 1300 lbs (depending on laser power)
Ambient conditions
Mandatory ambient temperature +15° to +25° C or 59° to 77° F
Humidity 40% to max.. 70%, not condensing
Dust free environment (2nd degree according to IEC 60947-1)
4.4.1.1.1.1.20 • Laser Safety
4.4.1.1.1.1.21
Laser class
CDRH laser safety; CE tested
Laser class 2 (Laser class 4 with pass-through)
Interlock
Duplicate interlock safety system
Loading lid
Front side loading lid
4.4.1.1.1.1.22 • Exhaust (Minimum requirements)
Volume
Min. 640 m³/h at 8500 pa
4.4.1.1.1.1.23 • Electrical Equipment
4.4.1.1.1.1.24
Power consumption
Up to 5,6 kW
Up to incl. 120 W Laser power
1x230V (L+N+PE) 50/60Hz
200 W Laser power
3x230V (3xL+N+PE) 50/60Hz

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 13 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Electrical Connection
4.5.1 Electrical connection for laser system
Laser
Power
60Wac
60Wwc
75Wac
85Wac
95Wac
Voltage
208/230V
208/230V
208/230V
208/230V
208/230V
Fuse
16A slow
16A slow
16A slow
16A slow
16A slow
Frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Phases
1
L,N,
Ground
(PE)
1
L ,N ,
Ground
(PE)
1
L , N,
Ground
(PE)
1
L , N,
Ground
(PE)
1
L , N,
Ground
(PE)
Power con-
sumption
2100W
1600W
2100W
2800W
2800W
Laser
Power
105Wac
120Wac
120Wwc
200Wwc
200Wwc US
Voltage
208/230V
208/230V
208/230V
400V
208/230V
Fuse
16A slow
16A slow
16A slow
16A slow
20A slow
Frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Phases
1
L,N,
Ground
(PE)
1
L ,N ,
Ground
(PE)
1
L , N,
Ground
(PE)
3
L1,L2,L3,N,
Ground
(PE)
L –L: 400V
L - N: 230V
3
L1,L2,L3,
Ground
(PE)
L –L:
208/230V
Power con-
sumption
3100W
3100W
3100W
4500W
4500W
4.5.2 Electrical connection for water cooling unit (optional)
EU
US
Laser power
60W
120W
200W
60W
120W
200W
Voltage
1x230V
1x230V
1x230V
1x115V
1x115V
1x230V
Frequency
50/60Hz
50/60Hz
50Hz
60Hz
60Hz
50/60Hz
Phases
L, N,
Ground
L, N,
Ground
L, N,
Ground
L, N,
Ground
L, N,
Ground
L, N,
Ground
Power consumption
900W
1800W
3000W
900W
1800W
3000W

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 14 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Materials
CAUTION
Caution when processing conductive materials (carbon fibers,…)! Conductive dust or par-
ticles in the ambient air might damage electrical components and lead to short circuits.
Bear in mind that those defects are NOT warranted
Material
Engraving
Cutting
Marking
Acrylic
●
●
Painted metal
●
Delrin
●
●
Stainless steel (with Thermark)
●
Anodized aluminum
●
Veneer
●
●
Handicrafts
●
●
Glass
●
Wood
●
●
Gum rubber
●
●
Ceramic
●

Cork
●
●
Plastics
●
●
Laser rubber
●
●
Leather
●
●
MDF
●
●
Melamine
●
●
Micro porous rubber
●
●
Paper
●
●
Polyester
●
●
Stone
●
PC (Polycarbonate)
●
●
Other materials only with written approval by Trotec.
The following materials are not recommended for processing:
Polyurethane PUR, Polyvinyl chloride PVC, Polyvinyl butyral PVB, Polytetrafluorethylene
PTFE and materials containing epoxy or phenolic resins
CAUTION
Trotec assumes no responsibility for any consequences of laser processing in any appli-
cation such as medical or pharmaceutical applications

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 15 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
1 For your Safety
5 For your Safety
Safety Indication
Operating personnel must read and understand the operating instructions, and especially the “Safety”
chapter, before operating the equipment. We recommend that the operator create internal instructional
documentation for equipment safety and operation and to acknowledge receipt of these instruc-
tions/operating manual and participation in training/education in writing (see documents in the Appen-
dices).
5.1.1 Intended user group
The machine may only be operated by authorized persons.
Authorities must be clearly defined and observed, so that no unclear competencies result under the
aspect of safety. This applies in particular to work performed on the electrical equipment that may only
be performed by specially trained professionals.
Activity
Intended group of users
Control/operation
Trained personnel
Other activities
(e.g. error correction, maintenance)
Specially trained personnel or
hired tradesmen
5.1.2 Operating instructions / Safety equipment

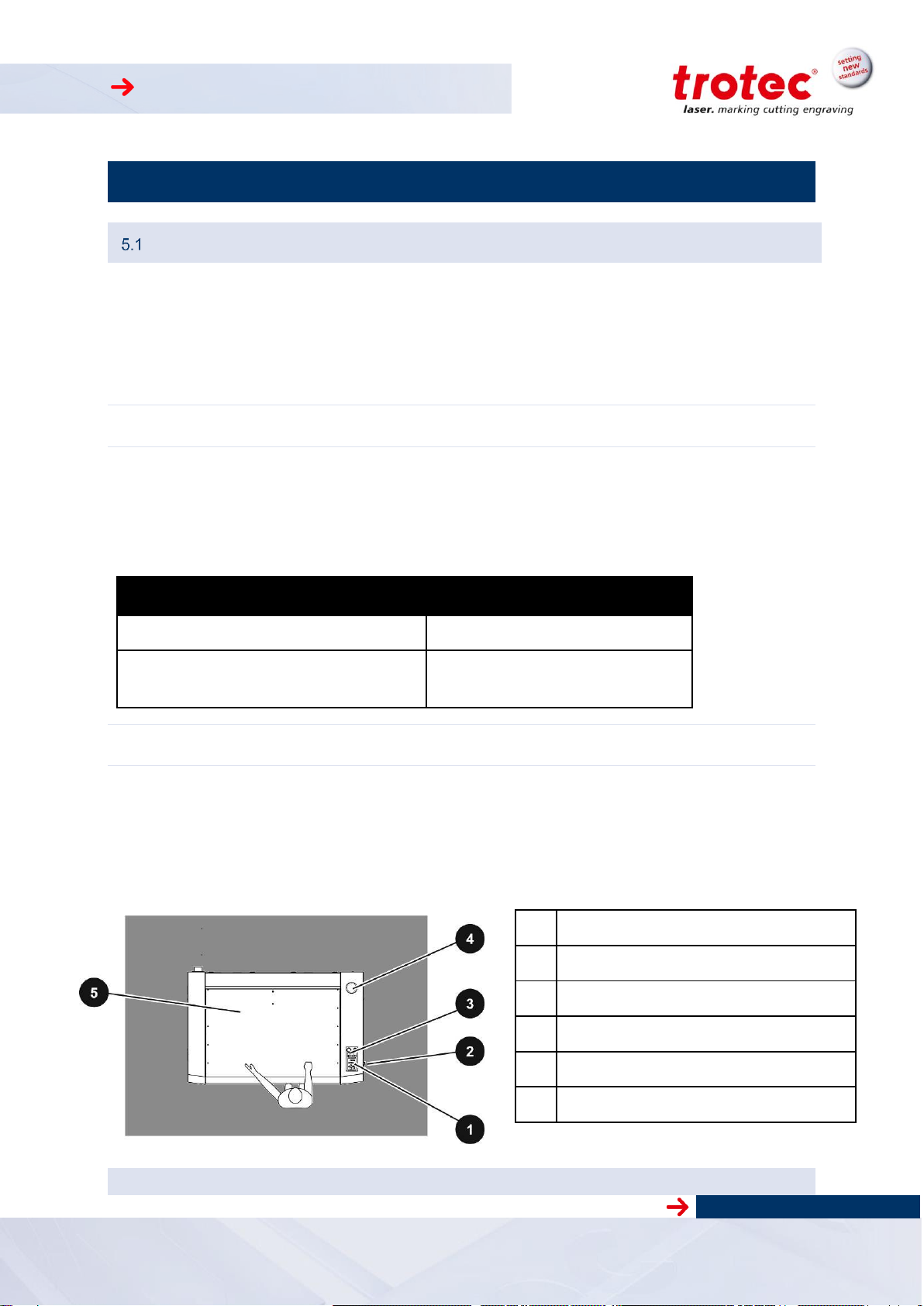

The safety zone is defined by the operator. Instructions and guidelines must be observed and fol-
lowed!
Top view
No.
Description
1
EMERGENCY-OFF pushbutton
2
ON-OFF switch
3
Key switch
4
Warning lamp (option for pass-through)
5
Safety cover

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 16 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
General Safety Instructions
5.2.1 General
Hazard due to improper use of the machine!
Improper use may lead to hazards and bodily injury and damage to assets.
Prohibit or prevent improper use.
Hazard due to disregard of safety instructions!
Improper activities at the machine may lead to death, bodily injury and/or damage
to the machine.
Before startup read and observe the operating manual and safety
instructions!
Hazard due to faulty behavior by untrained persons!
Improper activities at the machine may lead to death, bodily injury and/or damage
to the machine.
Inform personnel about machine functions and potential risks and
record this in the training record.
Observe legal regulations related to operation of machines and acci-
dent prevention regulations.
Hazard due to poor lighting, poor housekeeping and moisture!
Shadows, reflections and poor housekeeping increase the risk of an accident.
Light the work area well, and always keep it clean and dry.
Hazard due to missing, defective or bypassed safety equipment or machine
parts!
Nonfunctioning or missing safety equipment or machine parts may lead to death,
bodily injury and/or damage to the machine.
Carefully check safety equipment and machine parts for proper op-
eration.
In case of a functional fault or defect, immediately take prescribed
actions to correct the problem.
Hazard due to operator error (especially in setup mode)!
Adjustment and control with insufficient knowledge of the machine may lead to
death, bodily injury and/or damage to the machine.
Before startup read and observe the operating manual and safety
instructions!
Hazard due to unsupervices operation of the machine!
Unsuperviced operation may lead to fire resulting in death, bodily injury and/or
damage to the machine.
Never operate the machine without supervision!

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 17 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Hazard due to reckless actions!
Reckless actions may lead to death, bodily injury and/or damage to the machine.
Make sure that no personnel remain in the hazardous area or at the
machine.
Do not leave any foreign objects in the machine (tools, etc.).
Hazard due to operator error by unauthorized persons!
Adjustment and control of the machine by persons with inadequate knowledge of
machine operation may lead to death, bodily injury and/or damage to the machine.
Never inadvertently actuate the machine.
Turn the main switch off when the machine is not being used.
Hazard during faulty work process!
Deviations in machine processing and work results may be an indication of hazard-
ous conditions (jammed product, loose guides, etc.).
Observe machine movements for proper operation and check
workresults on a regular basis.
In case of deviations, initiate prescribed actions.
Hazard due to premature actuation!
Premature actuation of the machine may lead to death, bodily injury and/or dam-
age to the machine.
Do not reach into hazardous areas until you have turned off the
main switch and placed a service sign on it.
Hazard due to inadequate cleaning or functional checks!
Inadequate cleaning or functional checks result in machine damage.
Accumulation of dirt could impair mechanical functions.
Regularly check machine and connection lines for damage and
wear. In case of damage, immediately initiate prescribed actions.
Keep machine, handles and switches free of oil, grease, dirt and
moisture.
Hazard due to unsuitable tools!
The use of improper tools could result in a risk of bodily damage and/or damage to
the machine. Poor housekeeping leads to elevated accident risk.
Use proper tools for maintenance jobs.
Hazard due to missing machine signage!
The risk of machine operator error results from making incorrect assumptions.
Replace missing machine signage.
Hazard due to fault that cannot be corrected!
A fault that cannot be corrected may lead to injury and/or damage to the machine.
Turn off the machine and call customer service!

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 18 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Hazard due to improper disposal (waste, production materials)!
Improper disposal of waste materials can lead to environmental damage.
Recycle recyclable materials in separated and clean state. Dispose
of waste in accordance with applicable legal regulations.
Hazard due to inferior replacement parts or parts from other companies!
The use of inferior replacement parts or parts from other companies impairs ma-
chine safety and invalidates the supplied Conformity Declaration (CE).
Replace wear parts or damaged machine, safety or electrical com-
ponents with original replacement parts. Only use the accessories
or auxiliary devices identified in the operating manual.
Hazard due to unsuitable work clothing or lack of protective equipment!
Risk of injury due to catching on machine parts, falling loads, inhalation of dust parti-
cles and noise.
Wear suitable work clothing.
Wear safety glasses.
Wear ear protection (mandatory for noise levels >85 dB(A))

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 19 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
5.2.2 Laser Safety
There are versions of the machine for:
- Safety class 2
- Safety class 4 (With pass through option)
Class 2
The accessible laser radiation of Class 2 laser systems does not pose any hazard
for the skin. Any short-term radiation of the eyes also poses no risk due to the low
level output. In the event of longer, more intensive radiation, the eye is protected
by the natural lid reflex.
The SP 500 uses a Class 2 laser pointer. In order to prevent irritation of the eyes
during operation, the operator should not look directly at the laser source.
Diffuse reflections of the pilot laser are entirely harmless.
Class 4
Class 4 lasers pose the risk of direct radiation and indirect stray radiation and may
cause damage to both the skin and eyes.
Class 4 lasers also pose a fire and explosion hazard if used improperly and the ra-
diation strikes any flammable material.
The operator is responsible to take all necessary protective measures to entirely
rule out the possible ignition or explosion of materials by the laser beam.
Class 4 lasers should be operated according to the following precautionary
measures among others:
The operator is obliged to appoint a trained Laser Protection Officer responsi-
ble for compliance with the relevant regulations.
The danger zone must be identified by installing warning lights and warning
signs outside the area.
The danger zone must be secured against unauthorised access.
The operator of a Class 4 laser system should always wear laser protection
glasses suitable for the wave length and output of the laser within the danger
zone.
An additional emission warning light should also be installed in a position visi-
ble to the operator to warn them of any emerging laser radiation.
Compliance with the points above does not absolve the operator from meeting the
relevant standards and guidelines for the operation of a Class 4 laser system.

SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH 20 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com
Hazard due to laser radiation without protective measures!
Lack of protective measures can result in:
- Burns on the cornea of the eyes,
- Skin burns, and
- Fire hazard for clothing
Never operate machine without protective equipment
Unapproved modification or disassembly of the laser is prohibited
Never manipulate the laser unit
Do not bypass the interlock system
Hazard in processing unapproved material!
Processing of materials not listed and approved in this operating manual is prohibited.
Processing medical technology and pharmaceutical products!
Trotec assumes no responsibility for any consequences or the suitability of laser
processing for any applications, especially those in the medical technology or
pharmaceutical fields.
Hazard when working with the cutting table!
If not all of the partition plates are used in the cutting table, there is a risk of fire due to
reflection of the laser beam.
Insert anti-reflective material beneath the partition plates.
