Trotec BX50 MID User manual

TRT-BA-BX50MID-BX50MIDF-BX50MIDC-TC2019-46-001-EN
BX50 MID / BX50 MID F / BX50 MID C
EN
OPERATING MANUAL
ENERGY CONSUMPTION
MEASURING DEVICE

2 EN
energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................3
Transport and storage...........................................................5
Operation ...............................................................................5
Maintenance and repair ........................................................6
Errors and faults....................................................................6
Disposal .................................................................................6
Overview of the MID measuring devices used .....................6
Declaration of conformity .....................................................6
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
BX50 MID
https://hub.trotec.com/?id=43926
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• The device is supplied with a warning sign. Prior to initial
start-up, make sure to paste the corresponding warning
sign in your local language over the one present at the rear
of the device as described in chapter Operation.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Do not immerse the device in water. Do not allow liquids to
penetrate into the device.
• Protect the device from permanent direct sunlight.
• Do not cover the device! With a higher power input the
device will warm up. Covering the device may cause
overheating and consequently may cause a fire!

EN 3
energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device.
• Check the device for potential damage before each
application. Do not use any defective devices.
• Do not connect several devices by plugging one into
another.
• Only operate the device in dry surroundings.
• Please note that the device is only de-energized when the
plug has been disconnected from the mains.
• Observe the storage and operating conditions as given in
the Technical data chapter.
Intended use
Only use the device for measurements on circuits directly
connected to the low-voltage grid via a plug connection, e. g.
household appliances, portable electrical appliances etc., whilst
adhering to the technical data.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Improper use
The device is not suitable for use with any type of extension
cables. The device may not be used in potentially explosive
atmospheres, when wet or very humid.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.
Information about the device
Device description
The device BX50 MID measures the energy demand of a
connected terminal device. The device is MID-calibrated and
cannot be manipulated.
The following values can be indicated on the display's value:
• Total energy consumption (kWh, non-resettable)
• Energy consumption (kWh, resettable)
• Current mains voltage(V)
• Current amperage(A)
• Current power consumption of the connected device(W)
• Power factor
• Current mains frequency(Hz)
• Highest previously measured power consumption in watts
(resettable)
The device comes with display illumination in order to enhance
the legibility.

4 EN
energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C

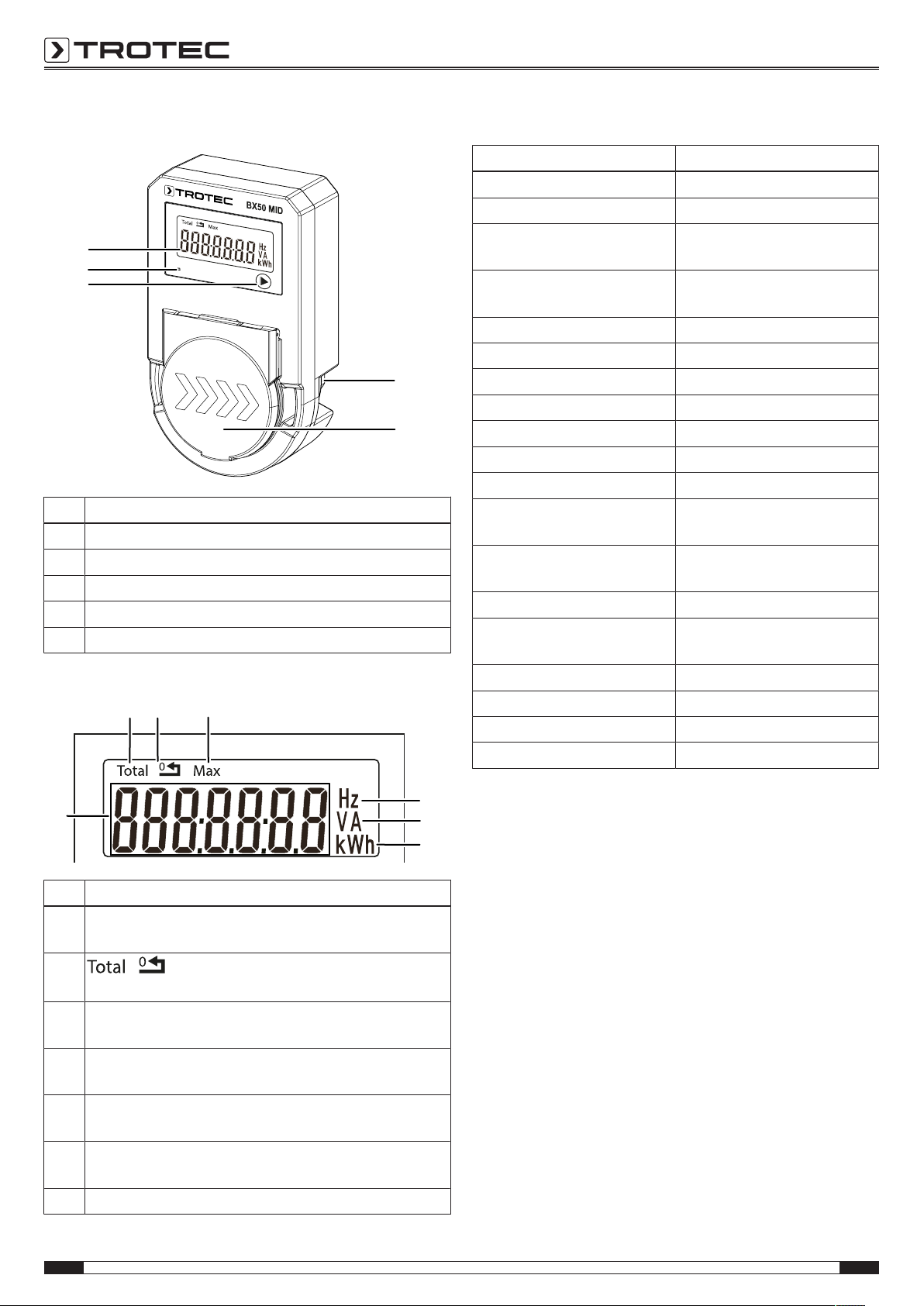

Device depiction
1
2
3
4
5
No. Designation
1 Socket connection
2 Connection for the terminal device (plug adapter)
3 Menu button
4 LED pulse frequency
5 Display
Display
567
9
10
11
8
No. Designation
5Total indication– indicates the total consumption which
cannot be reset
6 indication– indicates the total consumption
which can be reset
7Max indication– the highest measured consumption is
displayed
8Hz indication– unit of the indicated alternating current
frequency
9VA indication– unit of the indicated voltage
(V)/amperage(A)
10 W/kWh indication– unit of the indicated power
consumption
11 Measured value display
Technical data
Parameter Value
Model BX50 MID
Weight (packaging excluded) approx. 155 g
Dimensions
(lengthx widthx height)
approx. 119x 68x 77mm
(with plug)
Display LCD with background
illumination
Power supply 230VAC , 50/60Hz
Power consumption 10VA
Power loss <2W
Measuring range 0.25 to 5(16)A
Basic current(lb) 5A
Starting current 0.004lb
Accuracy class 1
Indicator resolution 0 to999999.9kWh
0 to999999.9W
Accuracy Class B EN50470-1:2006
Class B EN50470-3:2006
Operating conditions -25°C to 55°C
Storage conditions -40°C to 70°C,
<95%RH (non-condensing)
Measuring category CAT II
Pulse frequency(LED) 1000impulses/kWh
Type of protection IP54
MID certification yes
Information on calibrating the device
The device has a MIDDeclaration of Conformity which replaces
the initial calibration by a calibration authority. The validity of
this declaration expires 8years after placing on the market.
Afterwards the user of the measuring device is obliged to have
the device recalibrated. Further information can be obtained
from your national calibration authority.
Note
If you are in the position as measuring instrument
operator or if you have been assigned by the
measuring instrument operator to record measured
values, you shall, depending on the intended purpose,
register the usage of new or renewed measuring
devices to your responsible calibration authority
within6hours after initial operation. In this case,
please contact your national verification authority.
To manage the MIDdevices used, you will find a
ready-made form in the appendix or under:
https://hub.trotec.com/?id=43926

EN 5
energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C
Scope of delivery
• 1 x Energy cost measuring device BX50 MID
• 1 x Quick guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
When transporting the device, ensure dry conditions and and
protect the device from external influences e.g. by using a
suitable bag.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• The storage temperature is the same as the range given in
the Technical data chapter.
Operation
Switching the device on
1. Plug the device into a properly fused socket.
2. Connect the terminal device to the plug adapter(2).
ðThe device is switched on.
Changing the display mode
The following values can be indicated on the display(4) one
after the other:
• Total energy consumption (kWh, non-resettable)
• Energy consumption (kWh, resettable)
• Current voltage(V)
• Current amperage(A)
• Current power consumption of the connected device(W)
• Power factor
• Current mains frequency(Hz)
• Highest previously measured power consumption in watts
(resettable)
1. Press the menu button(3) until the desired display mode is
set.
Internal memory
The device is equipped with an internal memory that stores the
total energy consumption even when the device is not
connected to the mains. The saved total energy consumption
cannot be manipulated and can therefore neither be deleted nor
changed.
Switching on the display illumination
1. Press the menu button(3) for approx. 2seconds in any
display mode.
ðThe display illumination will be switched on.
It automatically switches off after approx.20s.
Resetting the energy consumption
üThe display illumination is switched on.
üThe resettable energy consumption is indicated on the
display.
1. Press the menu button(3) for approx. 3seconds.
ðThe measured value display(11) is set to zero.
ðThe resettable energy consumption will be recounted.
Resetting the highest previously measured power
consumption
üThe display illumination is switched on.
üThe highest previously measured power consumption is
indicated on the display (Max indication).
1. Press the menu button(3) for approx. 3seconds.
ðThe measured value display(11) is set to zero.
ðThe highest previously measured power consumption
will be recounted.
Taking the device out of operation
1. Disconnect the electrical consumer from the plug
adapter(2).
2. Completely disconnect the deviceBX50 from the mains.
3. Store the deviceBX50 according to the Storage chapter.

6 EN
energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C
Maintenance and repair
Cleaning
Clean the device with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Do not use any
sprays, solvents, alcohol-based cleaning agents or abrasive
cleaners, but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Fault Remedy
The device display
indicates unusual
characters or values.
Disconnect the device from the
mains and reconnect it after a brief
period of time. Please contact the
Trotec customer service if the
problem persists.
The device does not
respond to the push of a
button.
You may have pressed the menu
key(3) too hard. Vary the pressure
to determine the appropriate
pressure level. If necessary, briefly
stroke the menu button to activate
it. Please contact the Trotec
customer service if the problem
persists.
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website https://de.trotec.com/shop/.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Overview of the MID measuring devices used
In accordance with user display as per §32MessEG via
www.eichamt.de
No. Manufacturer Type
designation
Year in which
the measuring
device has
been
designated
Address of person
using the measuring
device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Declaration of conformity
The device has a factory calibration which replaces the initial
calibration by a calibration authority. This is certified by a
MIDDeclaration of Conformity according to
EUDirective2014/32/EU. The validity of this declaration expires
8years after placing on the market. Afterwards the user of the
measuring device is obliged to have the device recalibrated. The
year of initial calibration is indicated on the device after
theCEmark. Example:
M19
0120
M19: The device was manufactured and first calibrated in2019.
If the device is also placed on the market in2019, the
calibration validity ends at the end of2027. If the device is not
placed on the market until2020, the calibration validity ends at
the end of2028.
0120: Number of the accredited calibration laboratory. Here:
SGS
The following page shows the original declaration of conformity
certifying compliance with the relevant regulation.

EN 7
energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C
Declaration of conformity (translation of the original)
In accordance with the European Measuring Instruments Directive 2014/32/EU, Annex II, Part 4
Herewith, we declare that the measuring device designated below complies with all provisions of the EU
Measuring Instruments Directive as amended in 2014/32/EU.
Measuring device type Energy consumption measuring device
Machine no. / designation BX50 MID, BX50 MID F, BX50 MID C
Year of manufacture as of 07/2020
Notified body Notified body No. 0120: SGS United Kingdom Limited,
Unit 202B Worte Parkway, Weston-super-Mare, BS22 6WA, UK,
has performed the examination in accordance with 2014/32/EU, Module B and issued
the following certificate: 0120/SGS0449 of 23/04/2020.
Relevant EU directives Measuring Instruments Directive 2014/32/EU as amended on 26/02/2014
Directive on the restriction of the use of certain hazardous substances in electrical and
electronic equipment 2011/65/EU as amended on 23 November 2012
Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU
Directive 2014/30/EU on electromagnetic compatibility of 26 February 2014
Directive 2012/19/EU on waste electrical and electronic equipment
Applied harmonised standards EN 50470-1:2006
EN 50470-3:2006
EN 61326-1:2013
EN 61000-3-2:2014
EN 61000-3-3:2013
Other standards and technical
specifications applied
EN 55011:2016+A1:2017
EN 61000-4-2:2009
EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2014+A1:2017
EN 61000-4-6:2014/AC:2015-06
EN 61000-4-11:2004+A1:2017
IEC 62321-2:2013
IEC 62321-3-1:2013
IEC 62321-4:2013
IEC 62321-5:2013
IEC 62321-6:2013
IEC 62321-7:2013
IEC 62321-7-2:2013
IEC 62321-8:2013
Regulation (EG) No. 1907/2006 (REACH)
Manufacturer and name of the
authorised representative of the
technical documentation
Trotec GmbH
Grebbener Strasse 7
DE52525 Heinsberg
Place and date of issue:
Heinsberg, 01/07/2020
Detlef von der Lieck, Managing Director

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
