True TSID-48-4-L User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TSID-48-4-L
TSID-48-4-L
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSID-48-4-L 4 17
482
148
5/8
1236
321/8
816
42
1067
1/3115/60/1 8.2 5-15P 9
2.74
405
184
†Depth does not include 5/8
" (16 mm) for rear door handles.
3/07
True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs
in an attractive self-service display.
Cabinet is NSF-7 certified to hold
open food product.
Oversized, factory balanced,
refrigeration system holds 38°F to
40°F (3.3°C to 4.4°C). Gravity coil
refrigeration system provides high
humidity environment for exceptional
preservation of meats and deli
products.
“Low-E”, double pane thermal glass
front and rear self-closing doors
provide maximum insulation value for
greater efficiency and energy savings.
Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless steel floor with coved
corners.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Case is equipped with front and rear
light sources for maximum product
display. Fluorescent lamps are low
UV emitting to enhance product
appearance and increase shelf life.
Automatic defrost system; time-
initiated, time-terminated.
Display Case:
Low-Height Single Duty Deli Case
®
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

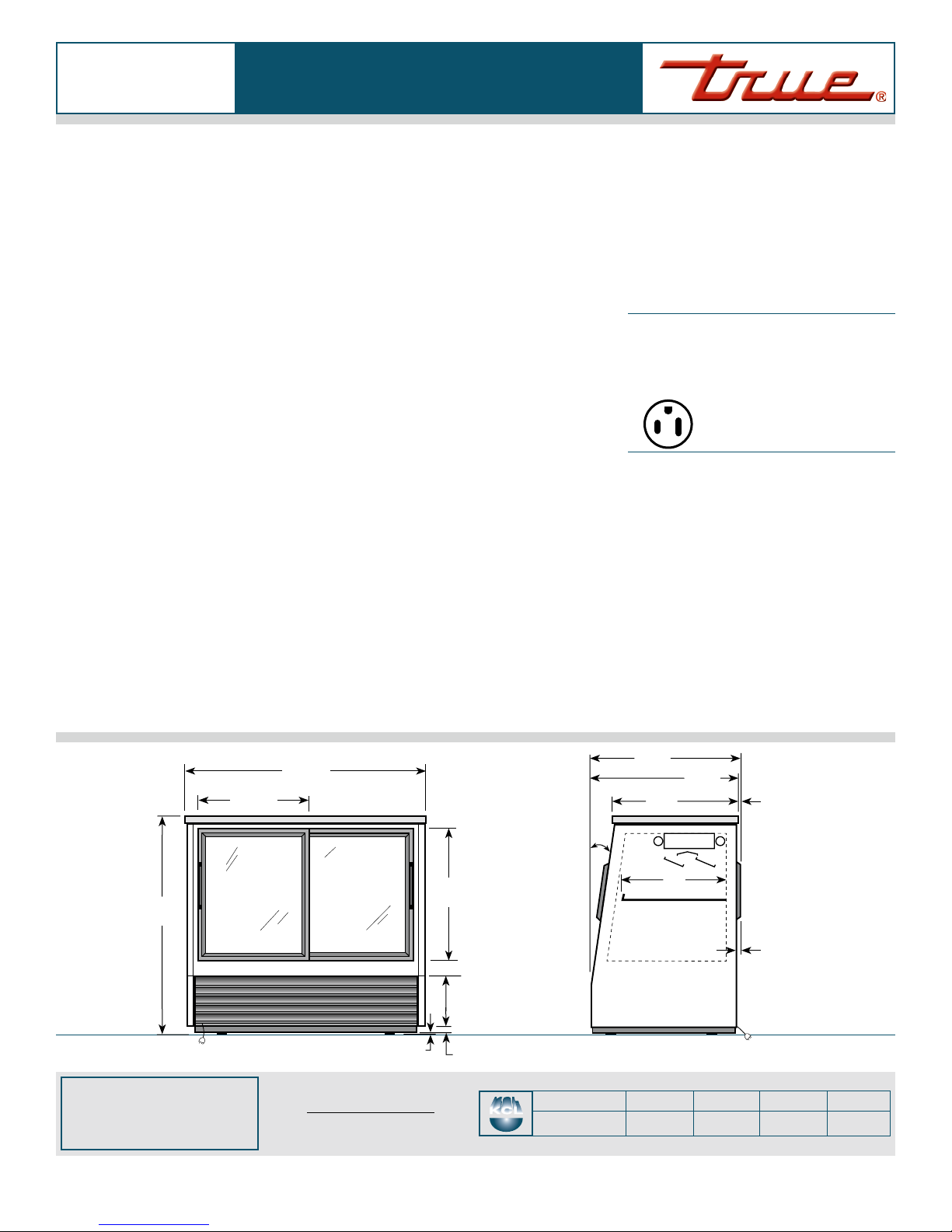

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TSID-48-4-L
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
and lower utility costs in an attractive
self-service display case that brilliantly
displays deli meats and cheeses.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Gravity coil refrigeration system
provides high humidty environment
for exceptional preservation of meats
and deli products.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 38°F to 40°F (3.3°C to
4.4°C).
• Automatic defrost system; time-
initiated, time-terminated.
• Condensing unit located behind grill in
back of unit. Entire system slides out
for easy cleaning and maintanance.
CABINET CONSTRUCTION
• Exterior - non-peel or chip laminated
vinyl; white sides with black front and
back grills.
• Stainless steel counter top provides
surface for equipment such as registers
and point-of-purchase novelties.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless steel floor with coved corner.
• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.
• Frame rail fitted with leg levelers.
DOORS
• Front and rear door assemblies
feature “Low-E”, double pane thermal
glass. The latest in energy efficient
technology.
• Each door fitted with 12" (305 mm)
long handle.
• Self-closing doors. Sliding doors ride
on stainless steel V-Channel with
stainless steel bearings for smooth,
even, positive closure. Doors fit within
plastic channel frame.
• Front glass slanted 12° to minimize
reflection from overhead lighting
enhances your product presentation.
SHELVING
• One (1) adjustable, heavy duty PVC
coated wire shelf 433/4"L x 22"D
(1112 mm x 559 mm). Four (4) chrome
plated shelf clips included per shelf.
• Aluminum shelf support pilasters.
Shelves are adjustable on 1/2" (13 mm)
increments.
LIGHTING
• Case is equipped with front and rear
light sources for maximum product
display. Fluorescent lamps are low
UV emitting to enhance product
appearance and increase shelf life.
• Cabinet lighting utilizes electronic
ballast and T-8 bulbs for brighter
illumination, longer bulb life and
increased energy efficiency. Lamps are
safety shielded.
MODEL FEATURES
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• NSF-7 compliant for open food
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm) diameter castors.
❒4" (102 mm) diameter castors.
❒Ratchet lock (requires 2).
❒Additional shelves.
❒Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant.),
consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION RIGHT VIEW
Display Case:
Low-Height Single Duty Deli Case
325/8"
(829 mm)
257/8"
(658 mm)
4115/16"
(1066 mm)
91/32"
(230 mm)
3/16"
(5 mm)
489/16"
(1234 mm)
TSID-48-4-L TFQY51E TFQZ51S TFQZ51P TFQZ513
321/16"
(815 mm)
13/16"
(21 mm)
251/8"
(639 mm)
221/2"
(572 mm)
12°
9/16"
(15 mm)
11/16"
(18 mm)
22"
(559 mm)
