True TCGDZ-50 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TCGDZ-50
TCGDZ-50
† Depth does not include 3/4" (18 mm) for door handles.
8/07
True’s combination dry/refrigerated
bakery display case combines
efficient, high volume merchandising
and exceptional refrigeration with
an elegant curved glass front for
sophisticated presentation of high
end desserts and pastries.
Self-contained, environmentally
friendly (CFC free) 134A refrigeration
system.
Refrigerated section features more
efficient low velocity, high volume
airflow design maintains 38°F to 40°F
(3.3°C to 4.4°C) without drying out
product. Ideally suited for delicate
bakery products.
Cabinet is NSF-7 certified to hold
open food product.
Insulated, double pane curved glass
front and side panels provide extra
large viewing area to maximize
bakery product presentation. Front
glass tilts forward for easy cleaning.
Six (6) adjustable, lighted,
cantilevered PVC coated shelves.
Fluorescent lamps are low UV
emitting to enhance product
appearance and increase shelf life.
Exterior front and sides standard with
white laminate panels, five additional
color options available at no charge.
Stainless steel top.
White aluminum interior sides and
top. High impact plastic floor with
coved corners.
Display Case:
Curved Glass Dual Zone “Dry”/ Refrigerated Bakery Display Case
®
R
Model Doors
Capacity
(Cu. Ft.)
(liters)
Shelves
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)Dry Ref LD†H
TCGDZ-50 2 13.5
383
13.5
383
650
7/8
1293
351/2
902
477/8
1217
1/3115/60/1 14.0 5-20P 9
2.74
625
284

STANDARD FEATURES
Model:
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D Back
PLAN VIEW
KCL
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
TCGDZ-50
DESIGN
• True’s combination dry and refrigerated bakery
display case combines efficient, high volume
merchandising and execeptional refrigeration
with an elegant curved glass front for
sophisticated presentation of high end desserts
and pastries.
REFRIGERATION SYSTEM (LEFT SIDE)
• Factory engineered, self-contained, capillary tube
system using environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced with higher
horsepower compressor and large condenser
maintains 38°F to 40°F (3.3C to 4.4°C), ideally
suited for bakery products.
• Forced-air refrigeration system; sealed, cast iron,
self-lubricating evaporator fan motor(s) and
larger fan blades give True bakery cases a more
efficient low velocity, high volume airflow design.
• Condensing unit located behind removable panel
in back of unit; slides out for easy cleaning and
maintenance.
CABINET CONSTRUCTION
• Exterior - white laminate front and side panels.
Color options available at no charge:
• All laminates (and stainless option) ship
separately from unit and is field installed.
Stainless steel top. Black front and rear grills
and trim. Template kit available at no charge for
field customization of laminate.
• Interior - NSF approved white aluminum sides
and top, high impact plastic floor with coved
corners.
• Insulation - entire cabinet structure is foamed-in-
place using high density, CFC free, polyurethane
insulation.
• Welded, heavy duty galvanized frame rail dipped
in rust inhibiting enamel paint for corrosion
protection inside and out.
• Frame rail fitted with leg levelers.
CURVED FRONT DISPLAY GLASS
• Insulated, double pane curved glass front and
side panels provide extra large viewing area to
maximize bakery product presentation. Exterior
pane is tempered for safety.
• Front glass tilts forward for easy cleaning.
REAR DOORS
• “Low-E”, double pane thermal glass inserts with
mitered plastic channel frames.
• Each door fitted with 12" (305 mm) long molded
plastic handle.
• Self-closing doors, efficient counter balanced
weight system for smooth, even, positive closure.
Sliding doors ride on stainless steel
V-channel with stainless steel bearings. Doors fit
within plastic channel frame.
SHELVING
• Six (6) adjustable, heavy duty PVC coated wire
shelves 197/8"L x 225/32"D (505 mm x 563 mm).
Shelving system is cantilevered and angle can be
adjusted to maximize presentation.
• Each shelf supports a maximum weight of
150 lbs. (69 kg).
PAN CAPACITY
• Cabinet holds a total of eight (8) 18"L x 26"D
(458 mm x 661 mm) display pans (4 per section)
or sixteen (16) 9"L x 26"D (229 mm x 661 mm)
display pans (8 per section). Pans supplied by
others.
LIGHTING
• Cabinet equipped with eight (8) light sources
for maximum product display; three (3) shelf
mounted and one (1) cabinet mounted per
section. Fluorescent lamps are low UV emitting
to enhance product appearance and increase
shelf life.
• Safety shielded lighting tubes assure longer,
brighter, shadow-free product illumination.
MODEL FEATURES
• Refrigerator evaporator is epoxy coated to
eliminate the potential of corrosion.
• 5 amp exterior scale receptacle.
• Recessed exterior light switch and thermostat
control.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/60/1 phase - 20 amp
dedicated outlet. Cord and plug set included.
RECOMENDED OPERATION CONDITIONS
• TCG refrigerated models are designed to operate
in an environment where temperature and
humidity do not exceed 75°F (24°C) and 55%
relative humidity.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒2
1/2" (64 mm) diameter castors.
❒Custom exterior laminates, contact factory for
details. See our website: www.truemfg.com for
the latest color offerings.
❒Stainless steel exterior (field installed).
❒Mirrored interior ends with laminate exterior.
❒Additional non-lighted shelves.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information.
115/60/1
NEMA-5-20R
Display Case:
Curved Glass Dual Zone
“Dry”/ Refrigerated Bakery Display Case
TCGDZ-50 TFD083E TFD083S TFD083P TFD0833 TFD083B
351/2 "
(902 mm)
403/16"
(1021 mm)

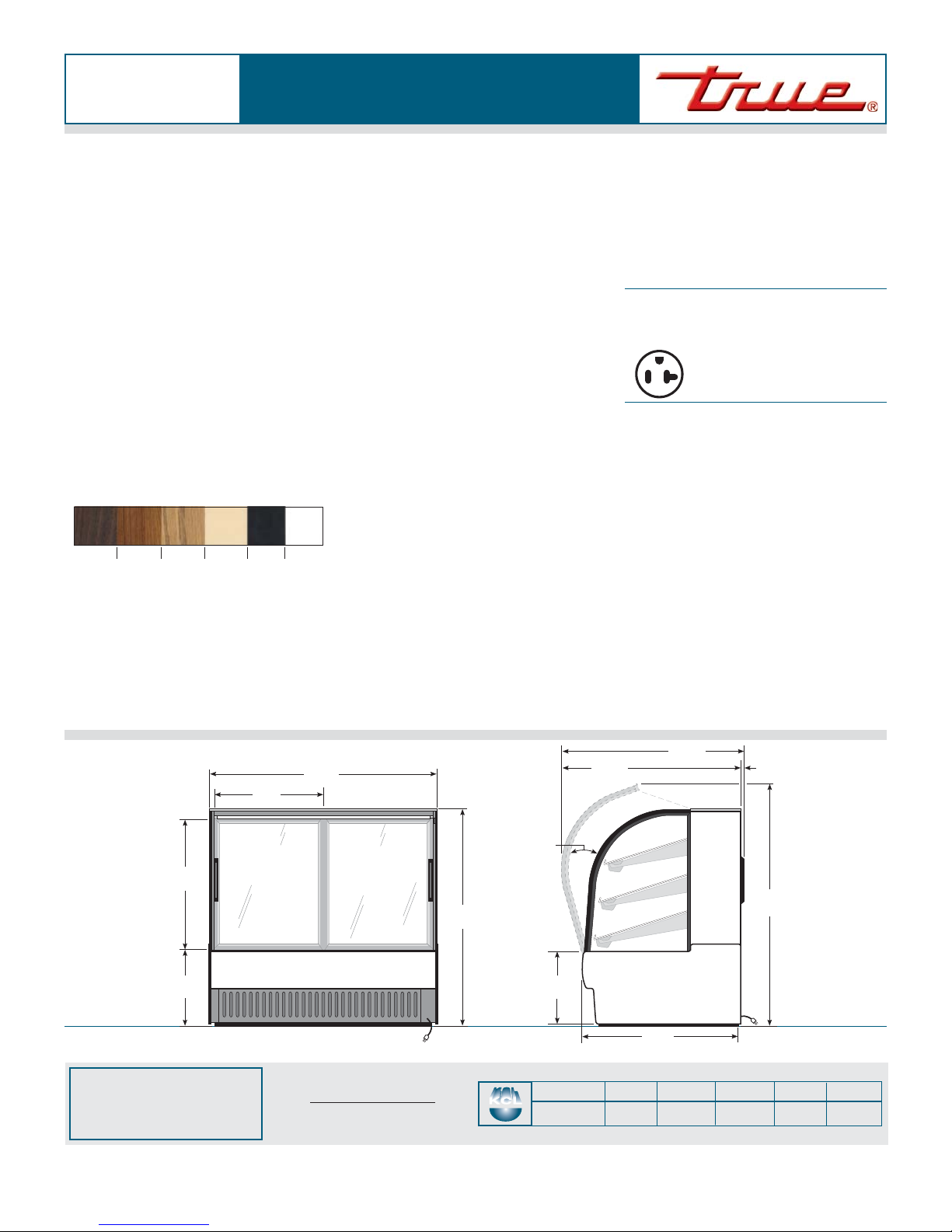

BACK VIEW RIGHT VIEW
537/32 "
(1352 mm)
4713/16"
(1215 mm)
233/8"
(594 mm)
1613/32 "
(417 mm)
Walnut Teak Oak Beige Black White
507/8"
(1293 mm)
283/8"
(721 mm)
18.33°
175/32"
(436 mm)
407/8"
(1039 mm) 11/16"
(18 mm)
