1GENERAL
Read the Operating Instructions carefully, before beginning any operation on
the autoclave!
1.1 Incoming Inspection
The autoclave should be unpacked and inspected for mechanical damage
upon receipt. Observe packing method and retain packing materials until the
unit has been inspected. Mechanical inspection involves checking for signs
of physical damage such as: scratched panel surfaces, broken knobs, etc.
If damage is apparent, contact your dealer or point of purchase, so that they
may notify the manufacturer and file a claim with the appropriate carrier.
All Tuttnauer products are carefully inspected prior to shipment and all
reasonable precautions are taken in preparing them for shipment to assure
safe arrival at their destination.
1.2 Warranty
We certify that this instrument is guaranteed to be free from defects in
material and workmanship for one year against faulty components and
assembly with the exception of the heaters.
The warranty does not include and does not replace routine treatment
and preventive maintenance to be performed according to instructions
in sec. 1 .1 (Preventive and Scheduled Maintenance).
Our obligation is limited to replacing the instrument or parts, after our
examination, if within one year after the date of shipment they prove to be
defective. This warranty does not apply to any instrument that has been
subjected to misuse, neglect, accident or improper installation or
application, nor shall it extend to products that have been repaired or altered
outside the factory without prior authorization from us.
The Autoclave should not be used in a manner not described in this
manual!
1.3 Warranty Statement
The warranty registration must be completed and returned to our service
departments; within fourteen (14) days of purchase or the warranty will be
void.
Our Technical Service Depts can be reached at:
+Tuttnauer Europe b.v., Hoeksteen 11, 4815 PR, Breda,
P.O. Box 7191, 4800 GD Breda, Netherlands. )+31/76-5423510,
0Fax: [phone], E-mail: [e-mail]

Page 6 of 77
Note:
If there is any difficulty with this instrument, and the solution is not
covered in this manual, contact our representative or us first. Do not
attempt to service this instrument yourself. Describe the difficulty as
clearly as possible so we may be able to diagnose the problem and provide
a prompt solution.
If the autoclave is equipped with a printer, send along a copy of the last
printout for our inspection. If replacement parts are needed, stipulate the
model and serial number of the machine.
No autoclaves will be accepted for repair without proper authorization from
us. All transportation charges must be paid both ways by the owner. This
warranty will be void if the unit is not purchased from an authorized full
service Tuttnauer dealer.

Page 7 of 77
2SAFETY INSTRUCTIONS
The autoclave has unique characteristics. Please read and understand the operation
instructions before first operation of the autoclave. The following issues may
require instructions guidance provided by the manufacturer: how to operate the
autoclave, the door safety mechanism, the dangers involved in circumventing
safety means, how to ensure that the door is closed, and how to select a correct
sterilization program.
Make sure that you know where the main power switch is, where the water cut-off
valve is and where the compressed air disconnection valve is located.
Autoclave maintenance is crucial for the correct and efficient function of the
device. We enclose a log booklet that includes maintenance recommendations,
with every device.
The weekly spore test is part of the preventive maintenance plan, along with the
annual validation of the sterilization processes that ensures appropriate
temperature dispersion within the chamber.
Never use the autoclave to sterilize corrosive products, such as: acids, bases and
phenols, volatile compounds or solutions such ethanol, methanol or chloroform
nor radioactive substances.
1. Never start using a new autoclave or a new steam generator, before the
safety, licensing and authorization department has approved it for use.
2. All autoclave users must receive training in proper usage from an
experienced employee. Every new employee must undergo a training
period under an experienced employee.
3. A written procedure must be established for autoclave operation,
including: daily safety tests, seal inspection and door hinge inspection,
smooth action of the closing mechanism, chamber cleaning, prevention of
clogging and preservation from corrosion, what is permitted and what is
prohibited for sterilization and choosing a sterilization program.
4. Liquids may be sterilized only with the “liquids”program. The container
must be covered but not sealed. Sealed bottles may only be sterilized using
a special program. The bottle must be either Pyrex or a Borosilicate glass
bottle.
5. When sterilizing plastic materials, make sure that the item can withstand
sterilization temperature. Plastic that melts in the chamber is liable to
cause a great deal of damage.
6. Individual glass bottles may be placed within an appropriate container that
will be placed on a tray. Never place glass bottles on the floor of the
autoclave. Never fill more than 2/3 of the bottle volume.
7. On closing the autoclave's door, make sure it is properly locked before
activating.
8. Before withdrawing trays, wear heat resistant gloves.
9. Before opening the door, verify that there is no pressure in the chamber.
10. Open the door slowly to allow steam to escape and wait 5 minutes before
you remove the load. When sterilizing liquids, wait 10 minutes.
11. Once a month, ensure that the safety valves are functioning, and once
annually a certified tester must conduct pressure chamber safety tests.

Page 8 of 77
12. Once annually, or more frequently, effective tests must be performed, i.e.,
calibration and validation.
13. Examine the condition of assemblies on a regular basis. Make sure there
are no leaks, breaks, blockages, whistles or strange noises.
14. It is required to conduct maintenance operations as instructed.
15. Immediately notify the person in charge of any deviation or risk for the
proper function of the device.

Page 9 of 77
3TECHNICAL DATA
3.1 Introduction
Model 2840 ELC is a table-top sterilizer designed especially for the
sterilization of instruments, liquids, and other materials in hospital
laboratories, medical laboratories, research institutes, food laboratories and
pharmaceutical facilities.
A computerized control unit ensuring a fully automatic sterilization cycle
controls the autoclave.
The temperature and pressure are controlled through sensors placed inside
and outside the media container or bottles.
A special feature of the ELC series is the option of a fast cooling stage for
liquids. In this stage pressure in the chamber is increased by means of
compressed air to compensate the fast decreasing of pressure due to the
fast cooling. The fast cooling shortens the time required for safe handling
of bottles.
Five automatic sterilization programs are available, according to the
material to be sterilized.
The sterilizer has multiple built - in safety devices, which provides
adequate protection to ensure the safety of operating personnel.
On all models, a printer is an optional addition to the autoclave. The
printer prints the preset and actual parameters of the cycle (temperature,
time and pressure/vacuum).
The pressure scale, printer option and cooling method can be set up at any
time by a technician.
NOTE:
After operating the sterilizer, brown stains might appear on the bottom of
the chamber. These stains are a result of the heating elements that are
located at the lower external part of the chamber. The brown color is a
common phenomenon, can easily be removed, and will not have any effect
on the sterilized goods.
This manual is intended to give the user a general understanding of how
the autoclave works and indicates the best ways to operate and take care of
it in order to obtain optimum results and a trouble-free operation. After
reading this manual, operating the autoclave should be straightforward.
However, since the autoclave is built using high technology sensitive
components, no attempt should be made by the user or any other
unauthorized person to repair or recalibrate it.
Only technical personnel having proper qualifications, holding
technical documentation and adequate test instrumentation are
authorized to undertake repair or service.

Page 10 of 77
3.2 Storage Conditions
The packed or unpacked autoclave shall be retained in indoor
conditions!
3.3 Operating Conditions
This device is for indoor use only!
The sterilizer should be loaded only with autoclavable material!
The environment shall not exceed an ambient temperature of 40ºC and a
relative humidity of 85% respectively.
The operation altitude shall not be over 2000 meters (6561 feet) (ambient
pressure shall not be lower than 80 kPa (11.6 psi)).
The autoclave shall not be used in a manner not specified in this
manual!
Do not use the autoclave in the presence of dangerous gases.
Operate the autoclave only in the manner specified in the manual. If
the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
Caution!
Waste water should be brought into the public net in accordance with
the local rules or requirements i.e ONLY NON-HAZARDOUS
LIQUIDS SHALL BE DISPOSED IN PUBLIC SEWAGE!

Page 11 of 77
3.4 Specifications
Property Value
Chamber Dia. 280 mm (11”)
Depth 504 mm (19.8”)
Chamber volume 28.5 lit. (7.5 US gal)
External dimensions
Width
(A) 530 mm (20.8”)
Height
(B) 444 mm (17.4”)
Length
(C) 605 mm (23.8”)
Maximum
dimensions (door
open) D 950 mm (37”)
Distance between
supporting legs
F - front legs
F1 - rear legs
K 415 mm (16.3”)
F 315 mm (12.4”)
F1 400 mm (15.7”)
Overall Dimensions
Property
Value
Weight 55 kg (121.3 lb)
Overall Weight 67 kg (147.7 lb)
Weight per support area
(max. load) According to overall weight and floor
loading requirements
Shipping weight 60 kg (132 lb)

Page 12 of 77
Property
Value
Shipping
dimension
s
Width 63 cm (24.8”)
Height 71 cm (28.0”)
Length 80 cm (35.8”)
Volume
0.36 m3 (14.5 ft³)
Mineral-
free water
reservoir
Max. water
volume 5 lit. (1.1 US gal)
Min. water
volume 1.5 lit. (0.4 US gal)
Maximum dimensions
(door open) D 950 mm (36.6”)
Maximum load per item 0.5 kg (1.1 lb)
Maximum load per tray 2.0 kg (4.4 lb)
Maximum solid load 5.4 kg (12.0 lb)
Tray
dimension
s
Small
W 212 mm (8.3”)
H 21 mm (0.8”)
L 350 mm (13.7”)
Big
W —
H —
L —
Max. Allowable Working
pressure (MAWP) 2.8 bar (40 psi)
No. of trays 5
IMS cassettes (optional) 4 full & 4 half
3.5 Electrical Data
Specifications Value
Total Power 2200W
Voltage 208/230VAC / 1 ph
Amperage 10A
Protection against
electrical shock Class I (IEC 60601-1)
Mains supply fluctuation
+/
-
10%
Degree of protection by
enclosure IP31
Note:
In order to avoid any injury by electrical hazard, it is
recommended that a ground fault protection device be installed in
the electrical panel feeding the autoclave (local codes may make this
mandatory).

Page 13 of 77
3.6 Utilities
Specifications Value
Mineral free water See table in sec. 3.9.
Power supply * 1 phase, 208/230VAC ±10%, 60Hz
Recommended circuit
breaker 15A
* According to the local network.
Attention:
·A switch or circuit-breaker must be included in the building installation.
This switch or circuit-breaker shall be in close proximity to the
equipment, within easy reach of the operator; and marked as the
disconnecting device for the equipment.
·The electrical net must be protected with a current leakage safety relay.
·The electrical network must comply with local rules or regulations.
·Verify that there is an easy access to the main power switch, to the water
cut-off valve and to the current leakage safety relay.
3.7 Environment Emission Information
1. The peak sound level generated by the autoclave is 65dBa with
background noise of 48 dBa.
2. The total heat per hour transmitted by the autoclave is <200Wh.
3.8 Construction
The main parts of the autoclave are made of materials as indicated below:
·Chamber is built of stainless steel.
·Door is made of stainless steel.
·Trays are made of stainless steel.
·Water reservoir is made of hard plastic material.
·Door handle is made of hard plastic material, which is safe to touch
and thermo-insulated.
3.9 Loading Capacities
3.9.1 Erlenmeyer Flasks
Size 250 ml 300 ml 500 ml 1000 ml
Qty 8842
3.9.2 Medium Flasks (Schott)
Size 250 ml 500 ml 1000 ml
Qty 10 84

Page 14 of 77
3.10 Safety Features
This autoclave includes built-in safety features such as:
·Error message display.
·Temperature dependent door locking system according to European
standards.
·Electronic pressure and temperature measurement.
·Safety relief valve to avoid build-up of excessive pressure.
·Door switch enabling operation to be started only when the door is
closed.
·Water level safety device.
·Excess temperature protection.
3.11 Symbol Description
Caution! Consult accompanying documents
Caution! Hot surface.
Caution! Hot steam.
Protective earth (Ground)

Page 15 of 77
3.12 Water Quality
The distilled or mineral –free water supplied to the autoclave should have
the physical characteristics and maximum acceptable level of contaminants
indicated in the table below:
Physical Characteristics and Maximum acceptable contaminants levels in
steam for sterlizers
(According to EN 13060:2004).
Element
Condensate
–
allowable
content
Silicium oxide. SiO2≤0.1 mg/kg
Iron ≤0.1 mg/kg
Cadmium ≤0.005 mg/kg
Lead ≤0.05 mg/kg
Rest of metals except iron,
cadmium, lead ≤0.1 mg/kg
Chloride (Cl) ≤0.1 mg/kg
Phosphate (P2O5) ≤0.1 mg/kg
Conductivity (at 20°C) ≤3 μs/cm
pH value (degree of acidity) 5 to 7
Appearance
Colourless clean without
sediment
Hardness (ΣIons of alkaline
earth) ≤0.02 mmol/l
Compliance with the above data should be tested in accordance with
acknowledged analytical methods, by an authorized laboratory.
Attention:
We recommend testing the water quality once a month. The use of
water for autoclaves that does not comply with the table above may
have severe impact on the working life of the sterilizer and can
invalidate the manufacturer’s guarantee.

Page 16 of 77
3.13 Directives and Standards
Every autoclave meets the provisions of the following Directives and is
constructed in compliance with the following Standards:
3.13.1 Technical Directives
1. Pressure Equipment Directive 97/23/EC.
2. Council Directive for low voltage equipment 73/23/EEC.
3.13.2 Technical Standards
1. ASME code
2. EC-61010-1 & IEC-61010-2-040 - Safety requirements for
medical device.
3. EN 61326 –EMC Requirements .
3.13.3 Quality standards
The manufacturing plant meets the following quality standards:
1. EN ISO 9001:2008–Quality System
2. ISO 13485:2003 –Quality systems –Medical devices.

Page 17 of 77

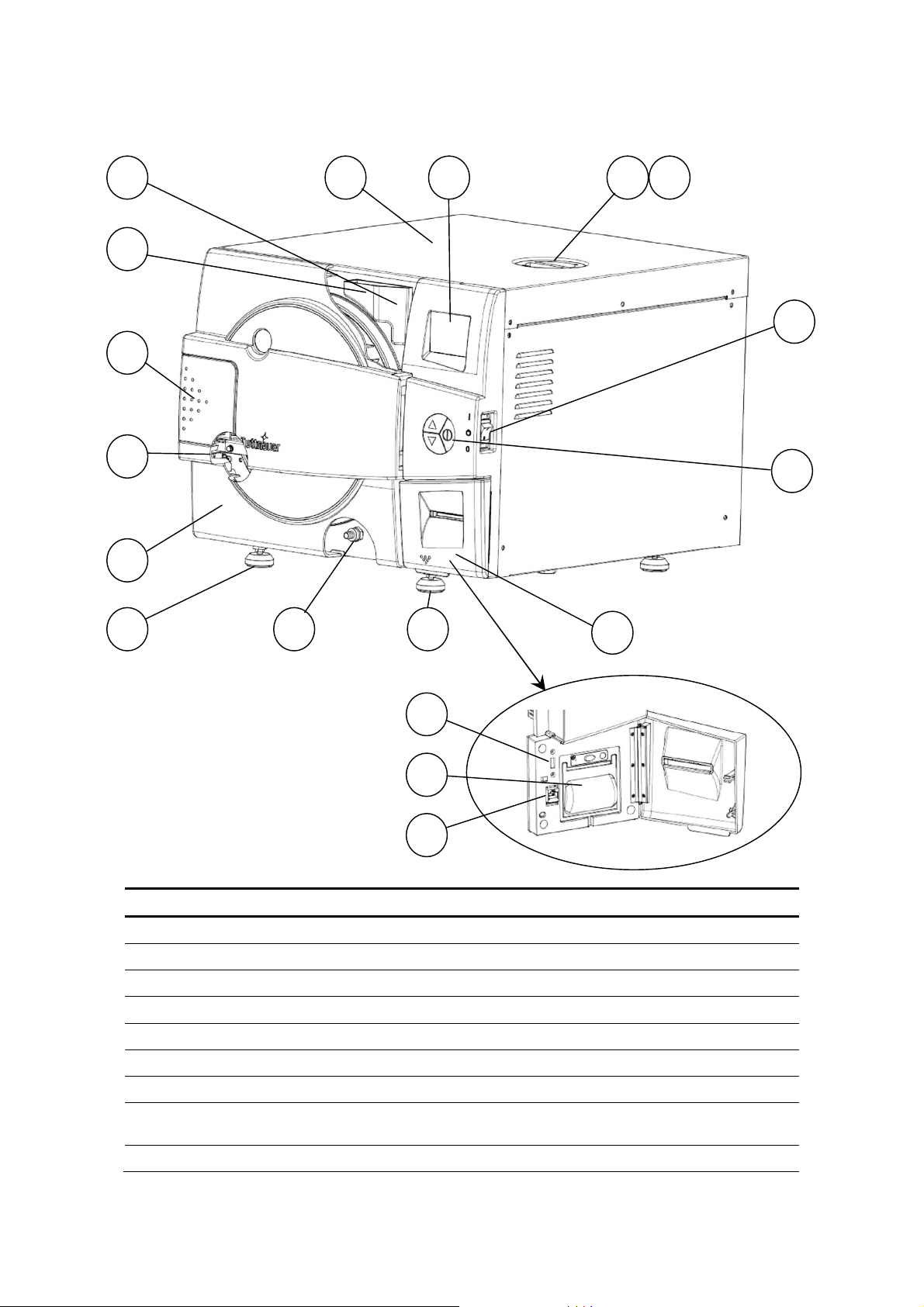

FRONT VIEW
No. Description No. Description
1 Main switch circuit breaker 9 Door cover
2 Operating keyboard 10 Door switch
3 Printer cover 11 Door closing device
4 RJ 45 connection 12 Water reservoir funnel
5 Printer (option) 13 Water level gauge
6 USB connection 14 Autoclave cover
7 Legs 15 Display
8
Mineral
-
free water reservoir drain
valve 16
Mineral-free water reservoir cover
17 Safety valve
15
7
14 17 16
9
78
12
13
11
10
5
2
6
4
3
1

Page 18 of 77
REAR VIEW
No. Description
1 Ventilation grills
2 Drain line water strainer
3 Main power electric cable socket
4 Mineral-free water reservoir cover
1
4
1
32

Page 19 of 77
4CONTROL PANEL
4.1 Control Panel Drawing
No.
Description
1 Display
2 Keypad: Up Button
3 Keypad: Start/Stop Button
4 Keypad: Down Button
5 Printer
3
5
1
2
4
