TUYA 96236 Instruction manual

Quick User Guide
Smart Wireless Doorbell
Support POE and Unlock
Before using the product,
please read the quick guide carefully and keep it for future reference

TUYA SMART HOME APP
1.App Download- TUYA Smart
Indicator light flashing ,the device is waiting to begin pairing.
Tuya Smart app Smart Life app
1.Getting Started
68.6mm
139.4mm
37.5mm
Indicator light always on ,the Wi-Fi is connected.

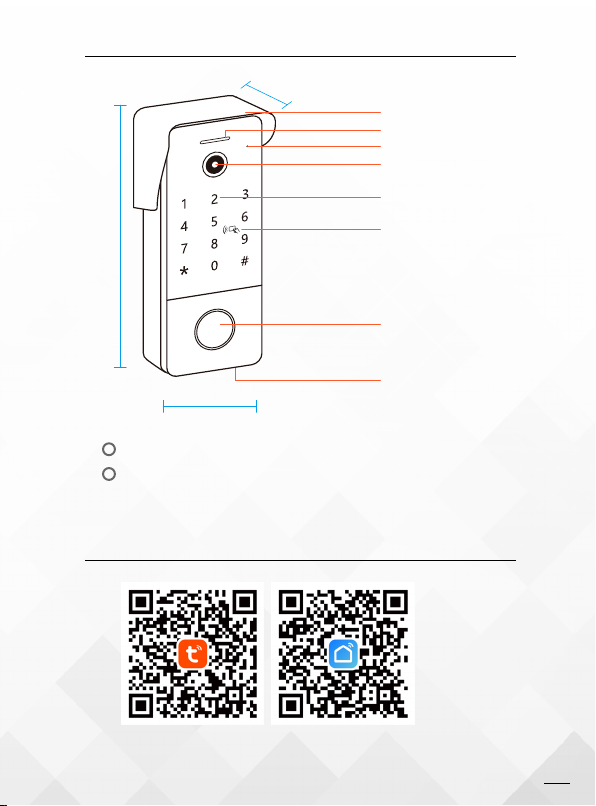

01
Microphone
Waterproof Cover
Night vision LEDs
1080P Camera
Key pad
RFID card
Call Button
SD Card Slot

2.User Register
New user register it according to guide steps,
already registered user just login the account
02
3.Add Device
Select device type: security&video Surveillance--Smart Doorbell

4.Connection

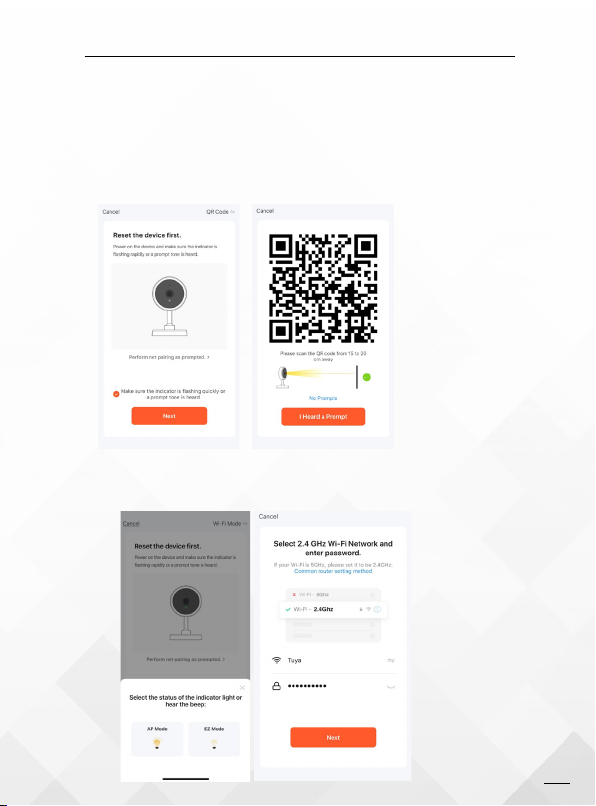

4.1 QR Code Connection (Recommend)
Select 2.4 GHz WIFI Network and enter password (5G is unavailable)
Use the smartphone to Scan QR-code from 10 to 15 cm away, and
waiting for device with a prompt beep, Click " I Heard a Prompt" to
connection till success. (make sure your phone and device are as
close to your router as possible)
4.2 WI-FI Mode
Select the status of the indicator light or hear the beep:
03

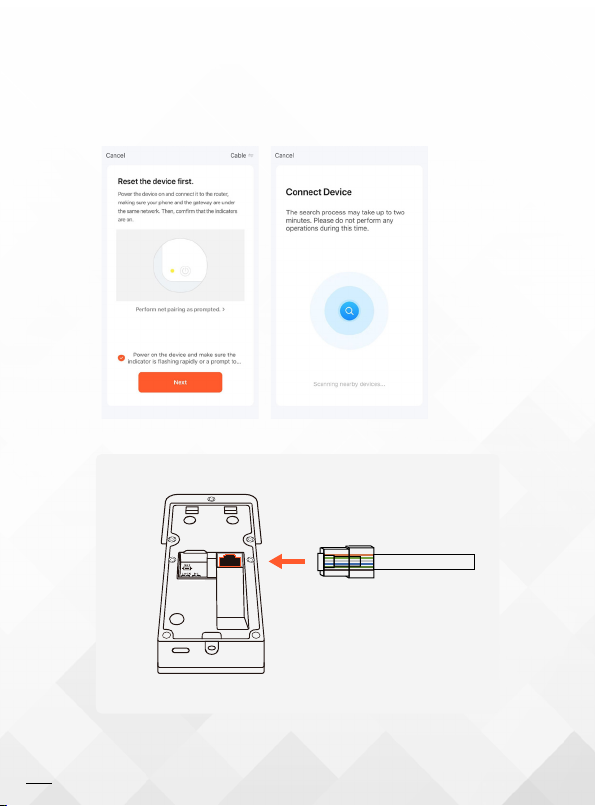

4.3 Cable Connection (Recommend)
use network cable to connect the WIFI router and
doorbell cable connector
04
RJ45
CAT5/6

NOTICE:
Fail To connection:
The Second user need to be long press the reset button in 1 min and waiting for the reboot;
(only quit the tuya app account or power off and on cannot connect successfully)
5.Device added successfully
6.The way of connection
2022-03-16 16:15:06
2 KB/S
05

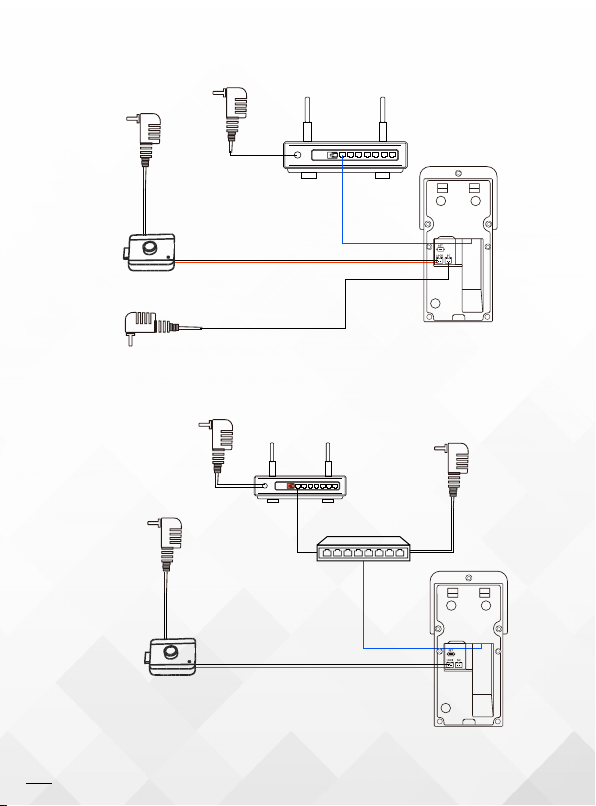

Option A:
POWER SUPPLY
ELECTRONIC LOCK (NO Type)
IP DOORBELL
LOCK
POWER SUPPLY

06
Option B:
POWER SUPPLY
ELECTRONIC LOCK (NO Type)
IP DOORBELL
WIFI ROUTER
LOCK
POWER SUPPLY
CAT5/6
CAT5/6
POWER SUPPLY
ELECTRONIC LOCK (NO Type)
IP DOORBELL
WIFI ROUTER
LOCK
POE SWITCH
Option C:

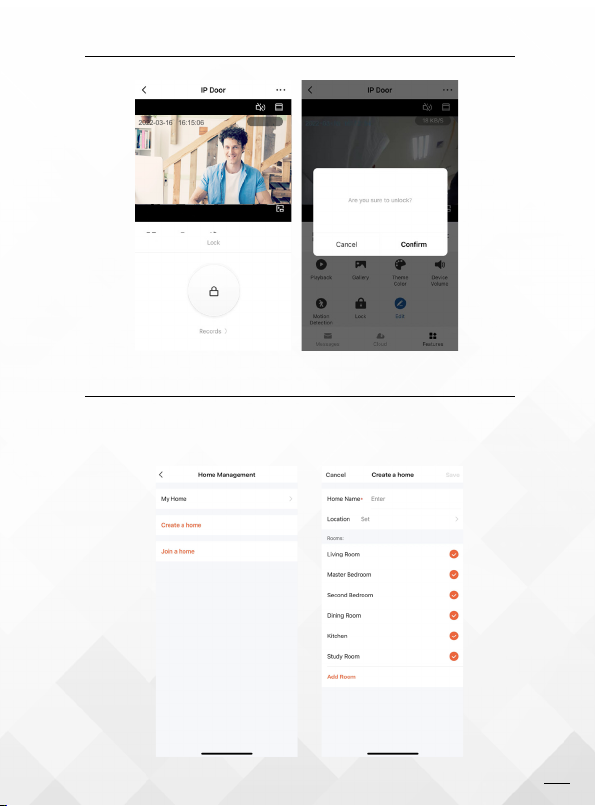

Step 1: Create a home (Setting a Home Name)
*Support up to 10 mobile phones to connect online at the same time
8.Device Sharing
7.Unlock the door
2022-03-16 16:15:06
2 KB/S
07

Step 2: Add member( Enter member's TUYA account)
Step 3: Choose the home and Add Device.
08

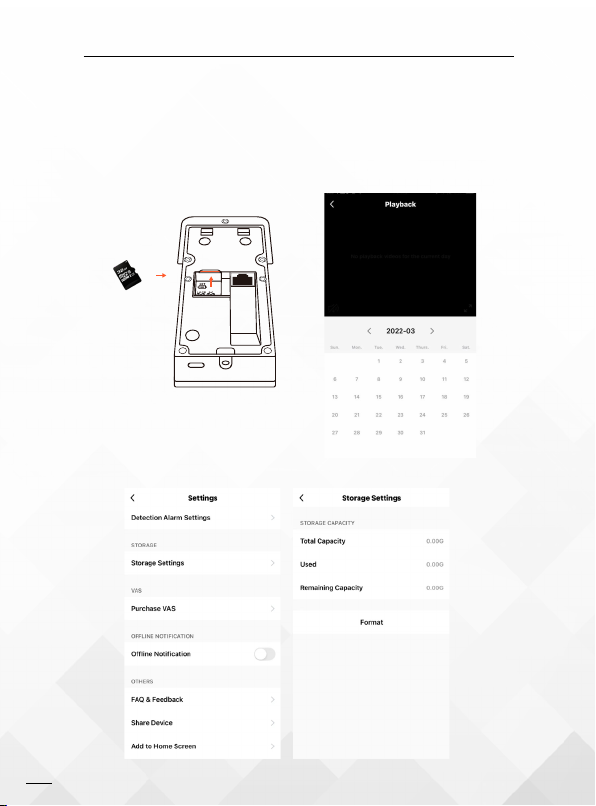

*Insert the SD Card can support PIR Motion detection feature
9.Motion detection
*Make sure to turn on push notifications on your smartphone
2022-03-16 16:15:06
2 KB/S

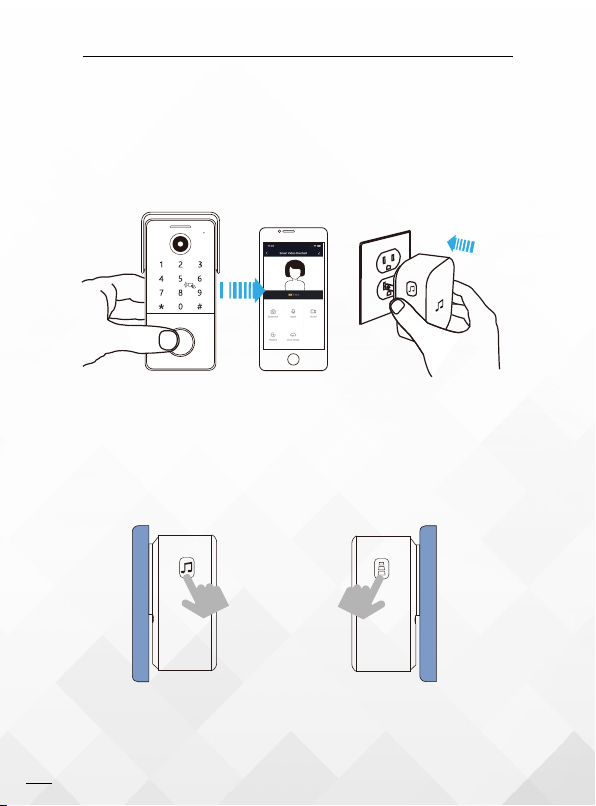

09
