TVILUM 517/0571 User manual

Canterbury 5+2 CHEST
Assembly Instructions - Please keep for future reference 509/4334
476/9086
517/0571
Dimensions
Width - 84.3cm
Depth - 41.9cm
Height - 144.5cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
71932 Version F Date 14/06/2016
25 Kg
55 lbs
max
5 Kg
11 lbs
9 Kg
20 lbs

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to lay out the parts before
starting.
• During assembly, do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the use
of power drivers for
inserting screws, as
this could damage
the unit. Only use hand screw
drivers.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Glue safety - Take care when using glue, please follow the advice below
• The provided tip-over restraint
must be installed in order to
optimize user safety.
Safety
1

Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800
EG EF
A 00489 Left drawer side
(34.5 x 14cm) x7
B 00488 Right drawer side
(34.5 x 14cm ) x7
C 02743 Drawer back
( 32.1 x 14cm) x2
D02744 Drawer back
(70.6 x 14cm) x5
P06056 Drawer bottom
(33.3 x 34.2cm) x2
R06057 Drawer bottom
(71.8 x 34.2cm) x5 S09783 Back panel
(142.1 x 76.4cm)
K 76425 Profile side
(41.5 x 2.5cm) x2
M 76426 Profile side
(41.5 x 2.5cm) x2
N 76315 Profile front
(83.5 x 2.5 cm) x2
FY Side panel L/R
(141.2 x 39 cm) x2
LA Top panel (84.3 x 41.9cm)
IA Bottom panel (84.3 x 41.9cm)
(25.6 x 35.2 cm)
EE Drawer front
(75.1 x 22.1cm) x5
O 76316 Base rail
(75.4 x 3.1 cm)
Drawer front, left
(37.4 x 22.1cm) Drawer front, right
(37.4 x 22.1cm)
Divider panel
G

3
Please check you have all the fittings listed below
Drawer fastener x28
Screw (ø4 x 13mm) x15
Handle x12
Cam x24
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
Dowel (ø5 x 30mm) x17
Panel clips x8
Machine screw (M4 x 23mm) x12
Flat head screw (ø3,5 x 15mm) x14
Strap x2
Wedges x4
Components - Fittings
Ruler - Use this ruler to help correctly identify the screws
Tools required
10401 11011
20203 20228 22601
25233 25440
26232
31687 33204
81040 94009
41435
94066
Flat head screw (ø6,3 x 27mm) x7
26033
Drawer runner x14
Machine screw (M4 x 15mm) x28
26221
Cam bolt x24
31513
63008
Floor glider x4
Stabilizer x1
Glue x1
Tape dots x1
Drawer support x14
17414
Flat head screw (ø5,8 x 9mm) x30
26020
10510
Drawer bottom support x5
Cross head screwdriver
(medium & large) Wooden block
Tape measure
Flathead screwdriver
(medium)
Ruler
Eye protection
(when using a
hammer or glue)
01 02 03 04 05 06 07 08 09 0 100 110 120 130 140 150
01 23 45 6
Hammer

5
Assembly Instructions

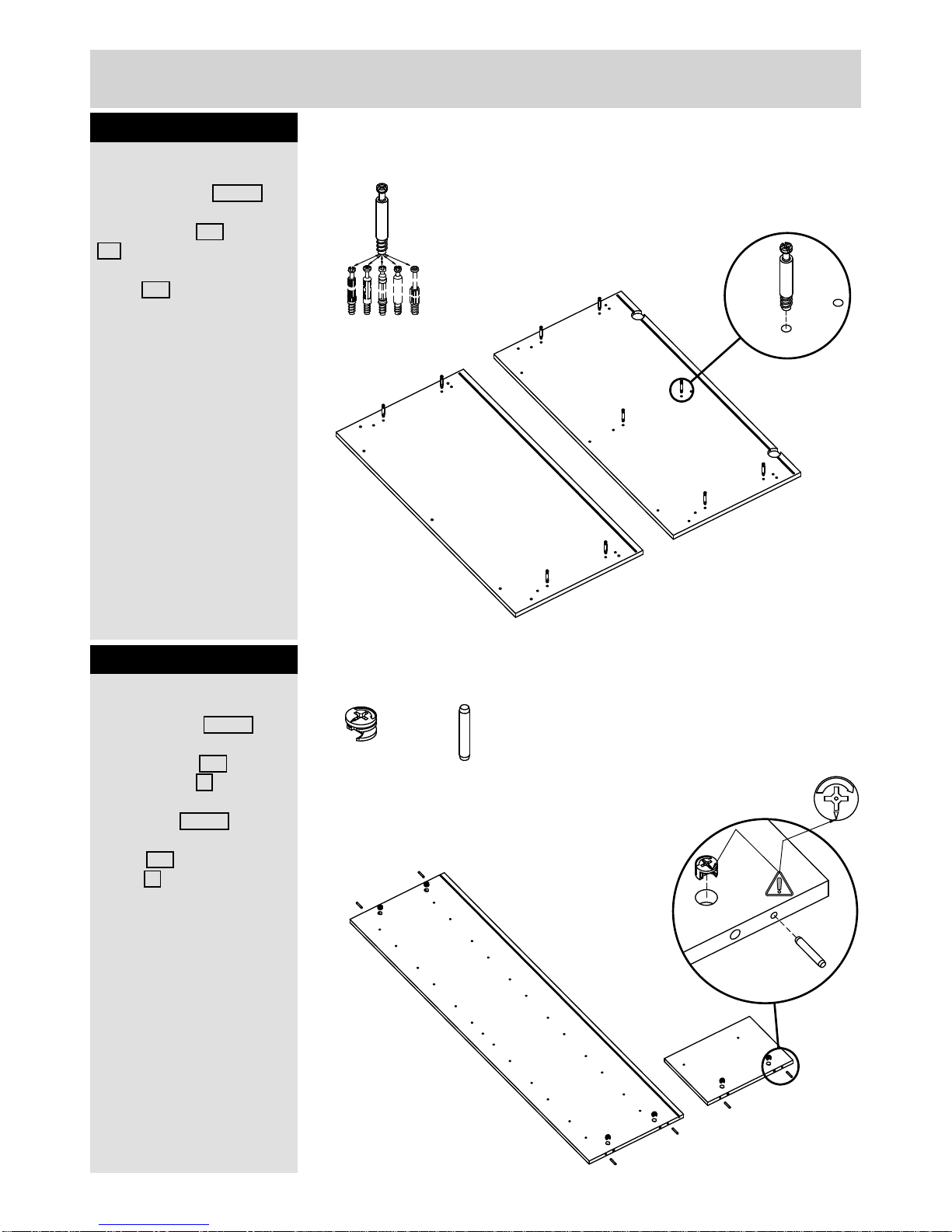

Step 1
Step 2
Insert dowles Dowel
# 20203 X10
Insert dowels 20203 into
outer holes on the ends
of side panel FY and
divider panel G .
Place cam 31687 into
the holes on top of side
panel FY and divider
panel G .
Arrow facing the edge of
the panel.
Fittings you will need for this step:
Fittings you will need for this step:
Cam bolt
# 31513 X10
Insert cam bolts
Insert cam bolts 31513
into the holes on top and
bottom panel LA and
IA . Also insert cam bolts
in center holes of the top
panel LA . See detail
drawing.
Cam bolt must be
screwed flush down.
Cam
# 31687 X10
(X2)
FY
LA
IA
G
4

6
Assembly Instructions
Step 3 Fittings you will need for this step:
Flat head screw
# 26020 X24 Flat head screw # 25233 X12 Drawer runner # 41435 X12
5
1
FY
3
5
8
10
12
FY
Front
Front
Front
Front

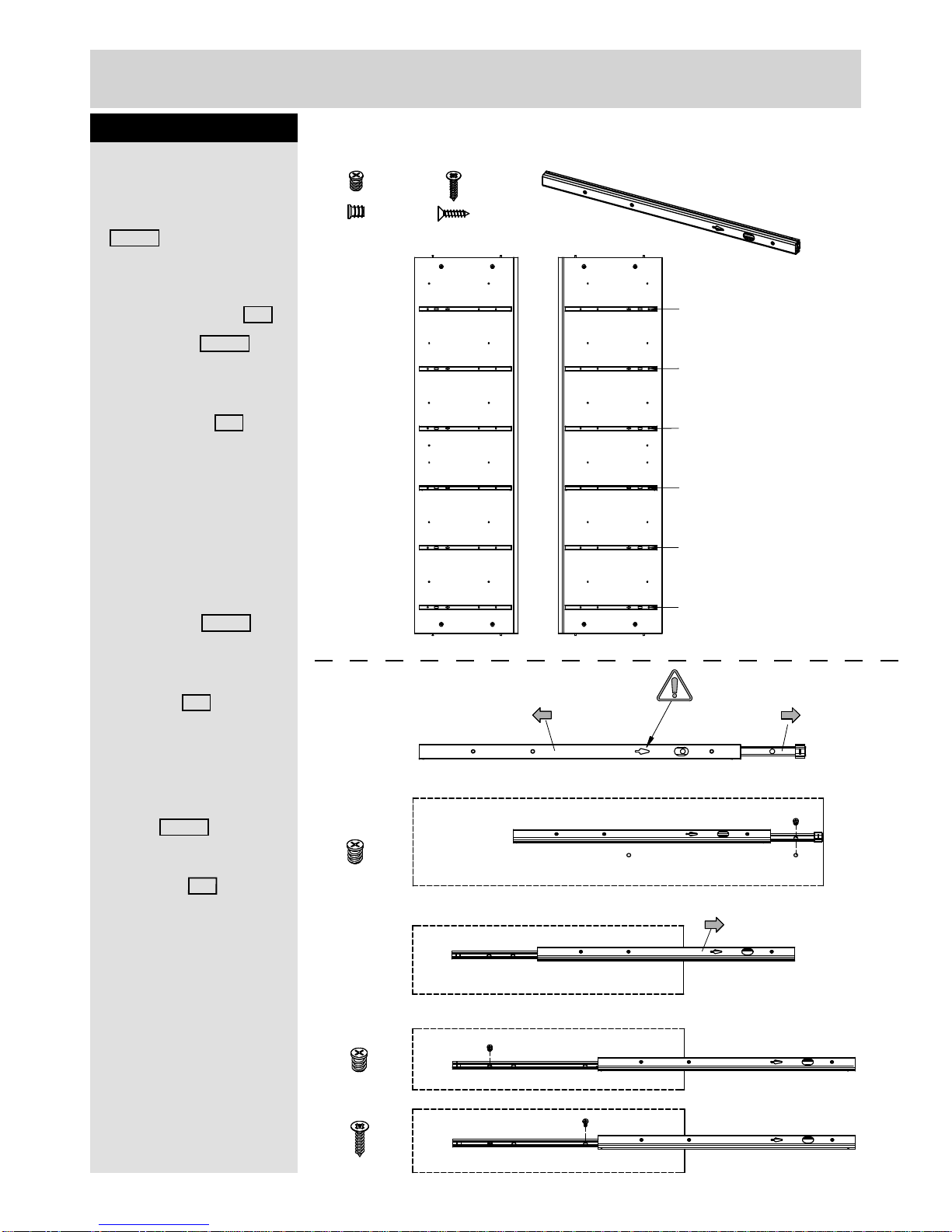

Place drawer runners
1.
Extend drawer glide
41435 .
2.
Attach drawer glide at the
front of side panel FY .
Place screw 26020
through the correct hole
at the front of the drawer
glide, into the holes on
the side panel FY .
Tighten screw but do not
overtighten.
3.
Open slide until holes
are visible at back of
drawer glide.
4.
Place screw 26020
through the correct holes
at the back of the drawer
glide, into the holes on
the panel FY .
Tighten screw but do not
overtighten.
5.
Attach the flat head
screw 25233 into the
correct holes of the
drawer glide, into the
side panel FY .
Tighten screw but do not
overtighten.
Repeat these 5steps for
the remaining runners.
x1
x1
x1
4.
1.
2.
3.
5.

Assembly Instructions
7
Step 4 Fittings you will need for this step:
Drawer runner
# # 41435 X2 Flat head screw
# 26020 X4 Flat head screw # 25233 X2
6
Front
Place drawer runners
1.
Extend drawer glide
41435 .
2.
Attach drawer glide at the
front of divider panel G .
Place screw 26020
through the correct hole
at the front of the drawer
glide, into the holes on
divider panel G.
Tighten screw but do not
overtighten.
3.
Open slide until holes
are visible at back of
drawer glide.
4.
Place screw 26020
through the correct holes
at the back of the drawer
glide, into the holes on
divider panel G .
Tighten screw but do not
overtighten.
5.
Attach the flat head
screw 25233 into the
correct holes of the
drawer glide, into divider
panel G.
Tighten screw but do not
overtighten.
Repeat these 5steps for
the remaining runner on
the other side of divider
panel G.
G

Assembly Instructions
7
Step 5
Attaching bottom panel
Place cam bolts from the
bottom panel IA into
the holes in the end of
side panels FY .
Make sure the finished
edge is facing toward
the front and that the
unfinished side is facing
toward the bottom of the
cabinet.
Tighten the cams.
7
19,4 cm
9,8 cm
FY
IA
FY
Front
Front

LA
G
Attaching back panel
Slide the back panel S
smoothly down into the
grooves in the side and
bottom panel FY + IA .
Assembly Instructions
Step 6
Step 7
FY
FY
IA
S

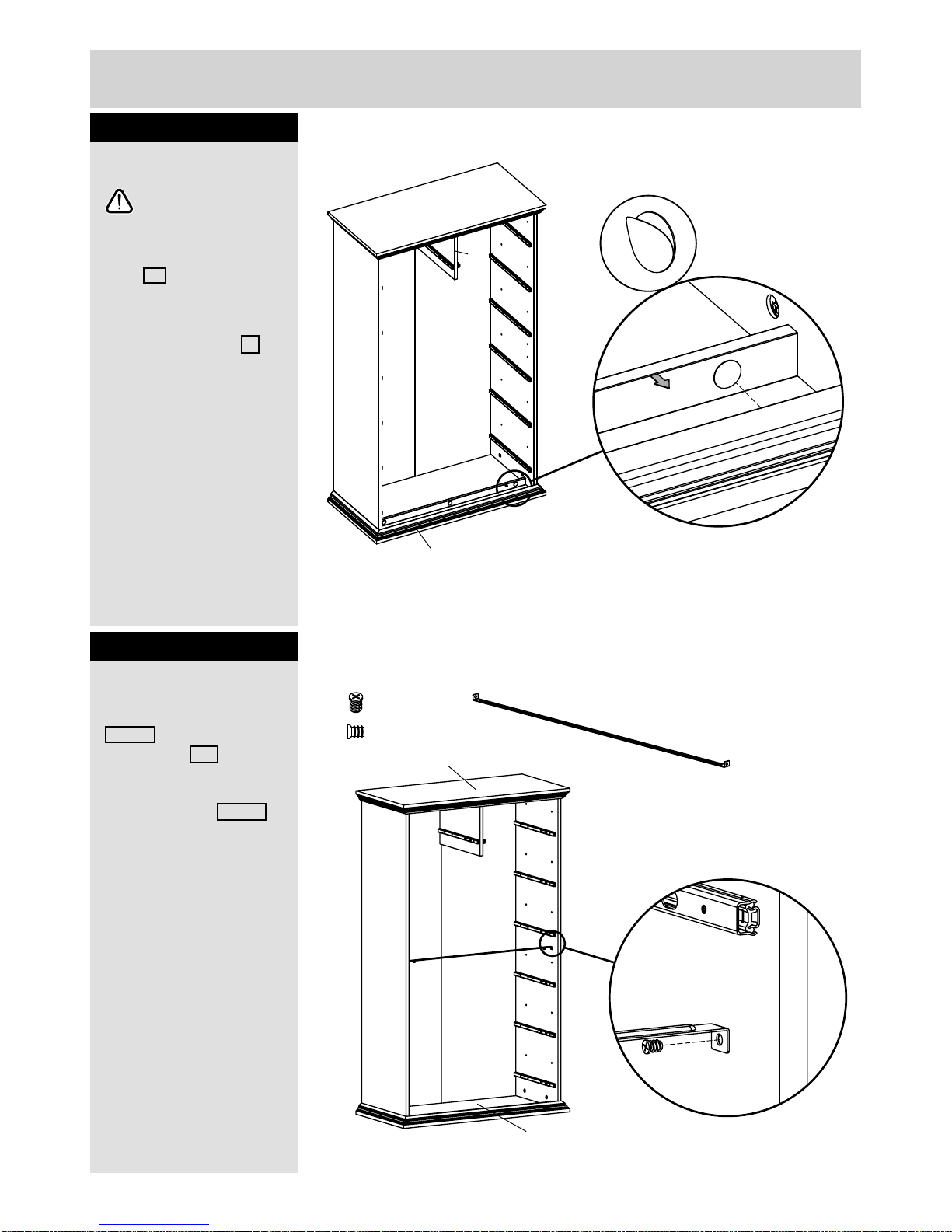

Attaching divider panel
Press down divider panel
Gtowards the top panel
LA . Make sure the
finished edge is facing
toward the front .
Tighten cams with a
screwdriver, as shown.
8
Unfinish face

Assembly Instructions
Step 8
Step 9

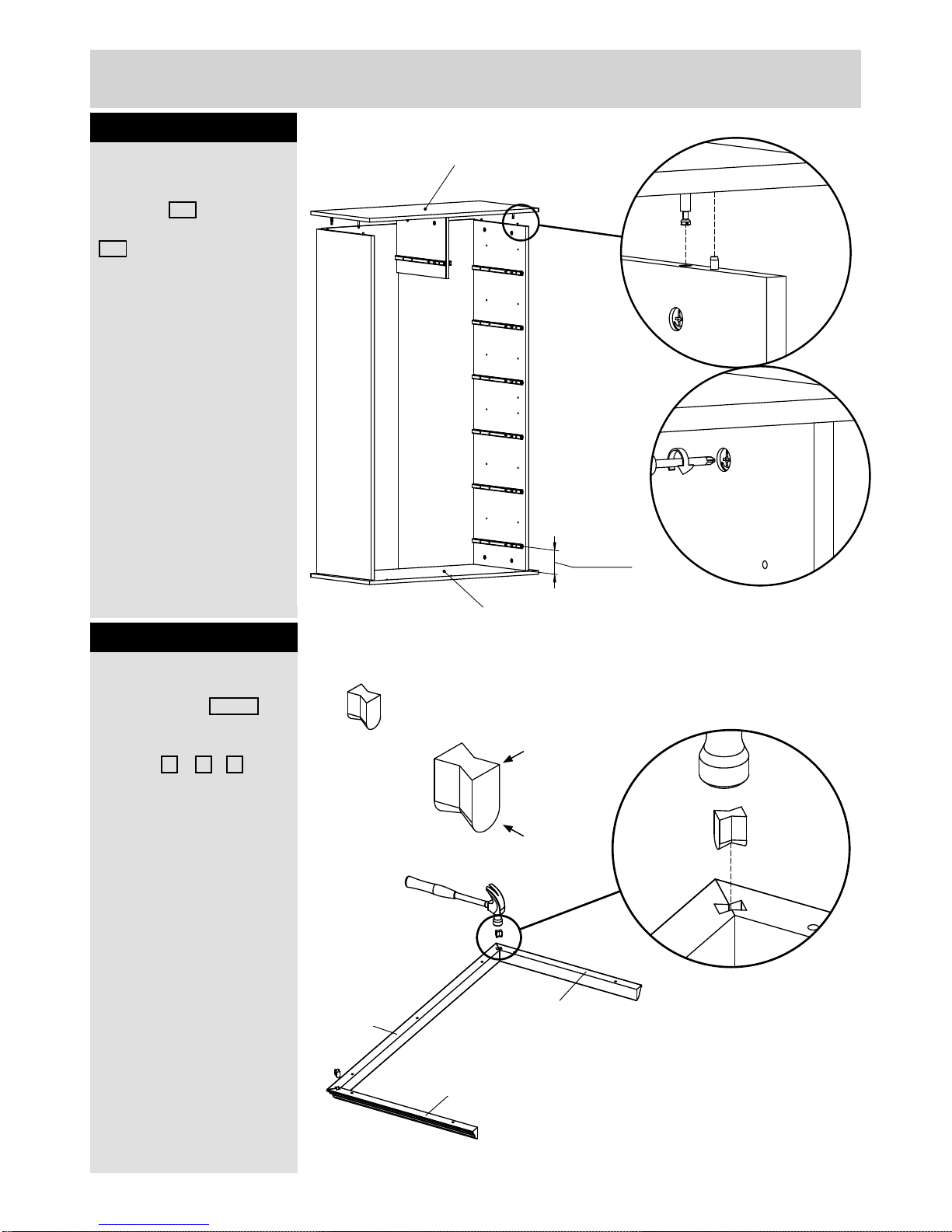

Gathering profiles
Insert wedges 33204
into slots on the angle
ends of side and front
profiles K + N+ M .
Use a hammer.
Fittings you will need for this step:
Wedges
# 33204 X4
M
K
Nx2
Attaching top panel
Place the cam bolts from
top panel LA into the
end holes on side panel
FY . Tighten cams.
Top
Bottom
9
9,8 cm
FY
IA
G
FY
LA
S

Insert dowels 20203
into outer holes on the
gathering profiles. Use
glue 22601 as shown.
Add one small drop of
glue per hole.
Assembly Instructions
Gathering profiles to
cabinet
Step 11
Step 10
Gathering profiles
Fittings you will need for this step:
Fittings you will need for this step:
Push the profile down
as it reaches the bottom
panel IA . Use flat head
screw 26033 to tighten.
Flat head screw
# 26033 X7
Glue
# 22601 X1
Dowel
# 20203 X7
10
max 9 mm
NM
K
GFY
FY IA
S
LA

Assembly Instructions
Gathering profiles to
cabinet
Step 12
Step 13 Fittings you will need for this step:
Add glue 22601 in holes
of the top panel LA .
Add one small drop of
glue per hole.
Place the gathering
profile as shown and
press down (dowels into
holes).
Fittings you will need for this step:
Tape dots
#17414 X1
Attaching tape dots
Attack the tape dots
17414 at the base rail
O .
O
Glue
# 22601 X1
11
IA
FY
S
FY
LA
G

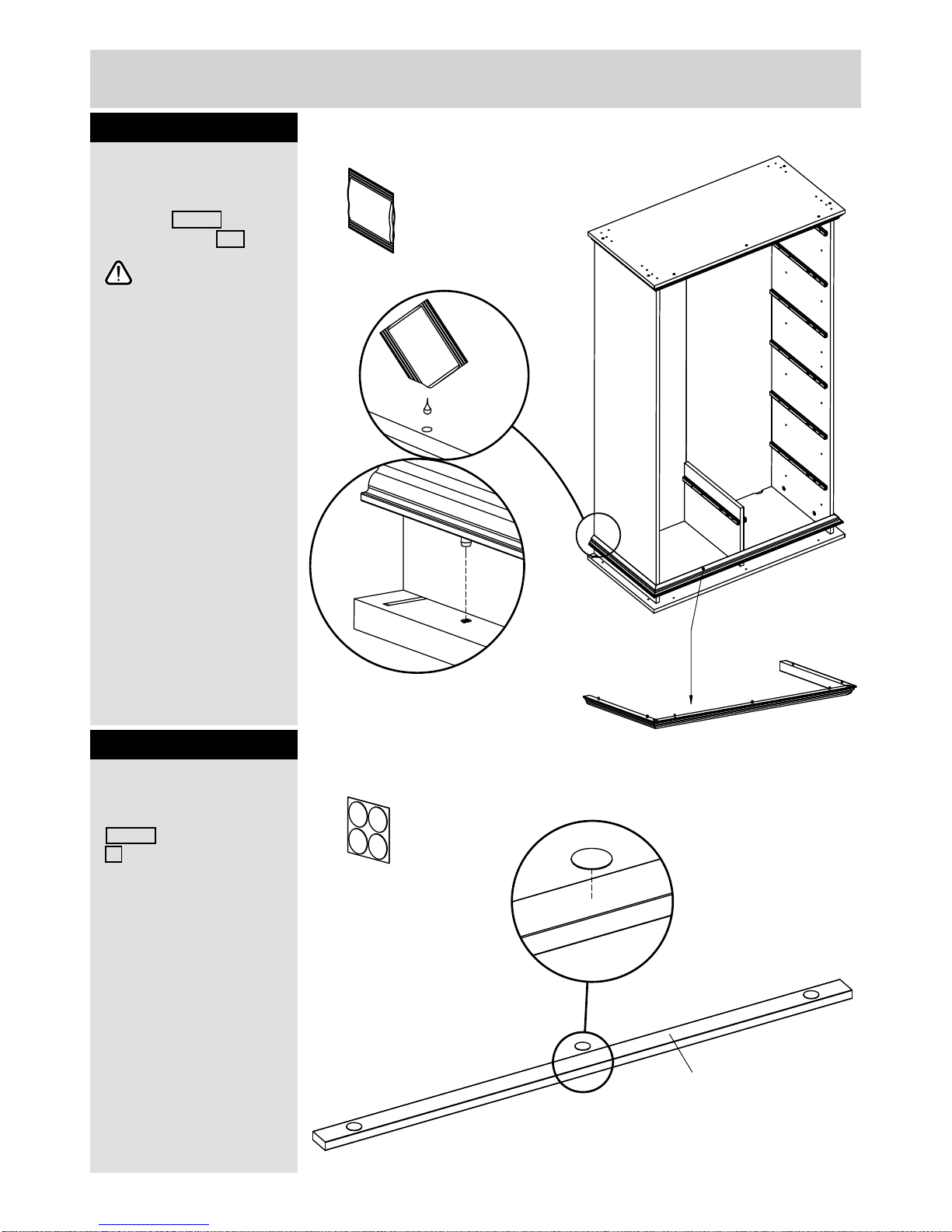

Assembly Instructions
Step 14
Attaching base rail
Turn cabinet around
standing on bottom
panel IA .
Take off paper from tape
dots.
Place the base rail OO
behind the gathering
profile (push forward as
shown with the arrow).
Step 15
FY S
S
O
FY
LA
G
IA
LA
Fittings you will need for this step:
Flat head screw
# 26020 X2 Stabilizer # 94066 X1
FY
FY
IA
Attaching stabilizer
Place the stabilizer
94066 between the two
side panels FY . See
the detail drawing, for
correct direction. Use the
flat head screw 26020
to tighten the stabilizer.
12

Assembly Instructions
Step 16 Fittings you will need for this step:
Panel clips
# 10401 X8
Step 17 Fittings you will need for this step:
Floor Glider
# 63008 X4
Attaching gliders
Place the floor gliders
63008 in the holes of
bottom panel IA .
Use a wodden block
between hammer and
floor glider.
Attaching back panels
Lay face down the
cabinet on the floor. To
stabilize the back panel,
use the panel clips
10401 . Press forward
the thin tabs between
the back panel and the
groove.
Then tighten with a
screwdriver.
Important:
The unit MUST
be square when
the panel clips is
attached.
13
FY
S
IA
FY
S
IA

Assembly Instructions

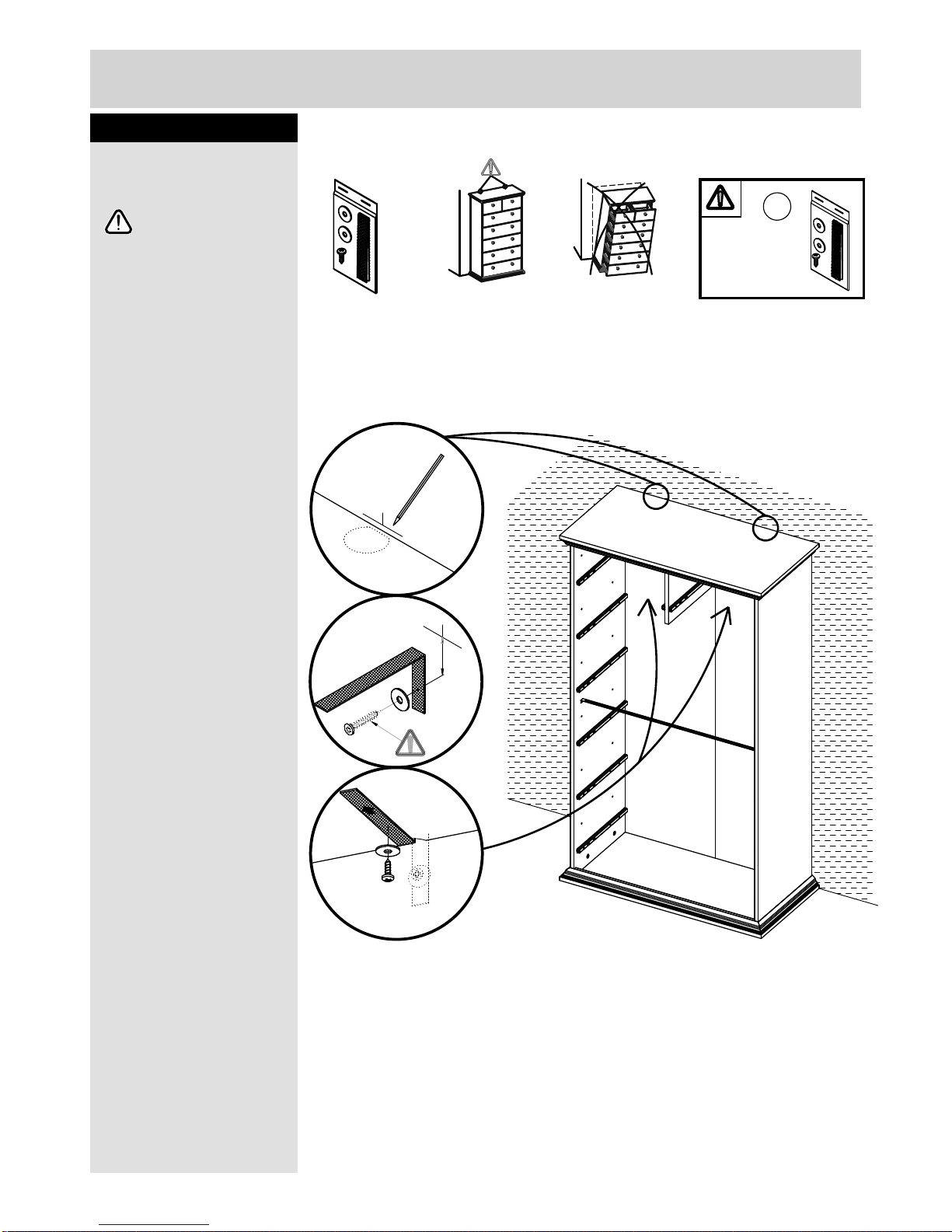

Step 18
Fix unit to wall with
strap
Fittings you will need for this step:
Strap
# 94009 X2
The screw supplied
together with the
anti-topple bracket
is to be used only
for fixing the
anti-topple bracket
to the furniture. In
addition to this you
will need to choose
a screw or fitting
which is suitable
for securing the
bracket to the kind
of wall you have.
If you are unsure
about what type
of screw to use
contact your local
hardware store.
94009
14
3cm
IA
LA
FY
FY

Assembly Instructions
Step 19
14
Fittings you will need for this step:
Cam
# 31687 X14 Cam bolt # 31513 X14
Attaching drawers
Attach cam 31687 into
the holes in left and
right drawer side A+ B.
Arrow facing the edge of
the panel.
Screw the cam bolt
31513 in the drawer
front EF + EG +EE .
Cam bolts must be
screwed down flush.
15
EF/EG
(x2)
B
(x2)
A
(x2)
EE
(x5)
A
(x2)
B
(x2)

15
Assembly Instructions
Step 20
Step 21
Fittings you will need for this step:
Screw
# 20228 X28
B
B
B
B
A
A
A
A
D
D
C
C
P
R
x5
x2
x5
x2
Attaching drawer
Align holes at back of
the drawer sides A+
Bwith the holes on the
drawer back Dand C.
Make sure the groove
is facing inside of the
drawer.
Tap drawer fasteners
20228 into place with a
hammer.
Attaching drawer
bottom
Press the drawer bottom
R and Psmoothly in
the grooves (finished
side up).
16

Assembly Instructions
Step 22
16
Step 23 Fittings you will need for this step:
Handle
# 81040 X12 Machine screw # 26232 X12 Drawer support # 11011 X14
x5
x2
EE
EF/EG
x5
x2
EE
EF/EG
Attaching drawer front
Attach the drawer front
EE and EF + EG by
placing dowels and cam
bolt in the correct holes.
See the detail drawing.
Tighten the cams.
B
B
B
B
A
A
A
A
D
D
C
C
P
P
R
R
Attaching the drawer
Attach the handle 81040
to the drawer front EE
and EF + EG . Use
machine screw 26232 to
tighten the handle.
Attach the drawer support
11011 into holes on left
and right drawer side A
+ B .
17

17
Assembly Instructions
Step 24
Attaching drawer
bottom support
Place the drawer bottom
support 10510 on back
side of the drawers. See
the detail drawing, for
correct direction. Use the
screw 25440 to tighten
the drawer bottom sup-
port.
Fittings you will need for this step:
Drawer bottom support
# 10510 X5
Step 25
Pulling out the rails
Pull out all the runners,
before placing drawers.
Screw
# 25440 X15
x5
R
D
A
LA
FY FY
S
IA
G
18

18
Assembly Instructions
Step 26 Fittings you will need for this step:
Machine screw
# 26221 X28
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Assembly is complete.
19
Attaching the drawers
1.
Place the drawer
between 2 rails.
See picture.
2.
Adjust front of drawer
up and down. Tight up
and fix drawer to the rail
useing machine screw
26221 from inside the
drawer in both sides.
3.
Adjust back of drawer
up and down. Tight up
and fix drawer to the rail
useing machine screw
26221 from inside the
drawer in both sides.
Repeat these step for each
of the remaining drawers.
EE
EG EF
EE
EE
EE
EE
x2
x2
3.
Drawer back
Drawer front
1.
2.
Drawer back
