U-Reach Carry HDD PRO118 User manual

V 2.0
PRO118
(1-1)
HDD Duplicator
User Guide
EN

2
Content
1Product Introduction
1. Features 3
2. Product Overview 4
2 Function Table
PRO118 Function Table 5
3 Function Introduction
1. Copy 7
2. Compare 7
3. Copy+Compare 7
4. Erase 8
4.1 Quick Erase 9
4.2 Full Erase 9
4.3 DoD Erase 9
4.4 DoD Erase Comp 10
5. Utility 10
5.1 Show Disk Info. 10
5.2 Update System 11
5.2.1 Update BIOS 11
5.2.2 Format HDD 11
5.3 System Info. 12
6. Setup 12
6.1 Copy Area 12
6.1.1 System and Files 12
6.1.2 All Partitions 13
6.1.3 Whole HDD 13
6.1.4 Percentage(%) 14
6.2 Skip Error 14
6.3 Language 14
6.4 Advanced Setup 14
6.4.1 Unknown Format 14
6.4.1.1 Copy unknown 15
6.4.1.2 Skip unknown 15
6.4.2 Erase Master 15
6.4.2.1 Disable 15
6.4.2.2 Enable 15
6.4.3 Erase Pattern 15
6.4.3.1 ONE Byte 15
6.4.3.2 Big Random Data 16
6.4.4 Wait HDD Time 16
6.4.5 Transfer Rate 17
6.4.6 Stop Motor Time 17
6.5 Restore Default 17
4 Specification
Specification 18

Product Introduction 1
3
1. Features
• High copy speed supports up to 110MB/second.
• Auto power control to protects your HDD.(HDD only
powered during operation.)
• Support 2.5" and 3.5" SATA HDD, IDE HDD and SSD.
• Support 3 different duplicator mode; quick copy (System
and files), All partitions and Whole HDD.
• Support FAT, NTFS, Linux(Ext2/Ext3/Ext4) and Mac(HFS/
HFS+/HFSX) quick copy mode copies only Data and
System area can highly increase the copy efficiency.
• Compatible with various file system formats including
3TB above advanced format HDD.
• Support DoD and advanced DoD standard erase
function.
• Auto detect and shows the bad sector quantity.
• Automatic power control to protect HDD from damage
during insertion/removal.
• Light weight for easy carry (350g).

1 Product Introduction
4
2. Product Overview
A. System Overview
Source port Target port
Backward
Red: Fail
Green: Pass
Yellow: Powering
Forward
Comfirm / OK
Cancel / Back
Port 1 (Source)
Port 2 (Target 1)
Port 3 (Target 2)
PRO218 (1-2)
PRO118 (1-1)
B. LCD Configuration

Function Table 2
5
PRO118 Function Table
Function Description
1. Copy To copy source HDD to multiple target HDDs. Refer to function 6.Setup for 3
different copy mode selection.
2. Compare To compare data bit by bit between source and copied HDDs.
3. Copy
+Compare
It makes copy first and then compare copied HDD with source HDD to ensure data
correctness.
4. Erase
4.1 Quick Erase
Erase HDD’s index table only, it takes short time to execute this function.
4.2 Full Erase
Erase the whole HDD content.
4.3 DoD erase
Erase HDDs three times complying with USA Department of Defense (DoD)
standard.
4.4 DoD EraseComp
Erase HDDs three times complying with n USA Department of Defense (DoD)
standard and bit by bit to check if data is completely erased.
5. Utility
5.1 Show Disk info
Shows HDD’s basic information such as HDD model name and capacity.
5.2 Update System
5.2.1 Update BIOS
To update the system firmware via the HDD.
5.2.2 Format HDD
To format the HDD with a 2GB FAT partition in order to
quickly save firmware in the HDD.
5.3 System Info
This function will show information of the duplicator system, including controller
model number and software version.

2 Function Table
6
6. Setup
6.1 Copy Area
Setup copy mode.
6.1.1 System and Files
Set to copy source HDD's data area only.
6.1.2 ALL partitions
Set to copy source HDD's all partitions.
6.1.3 Whole HDD
Set to copy the whole source HDD.
6.1.4 Percentage(%)
Set to copy the percentage range of the source.
6.2 Skip Error
Set to ignore error of source HDD while copying. (0 -100 Set to ignore error of
source HDD.)
6.3 Language
English / Japanese
6.4 Advanced
Setup
6.4.1 Unknown
Format
6.4.1.1 Copy unknown
Copy unknown area when the device can not
identify the format.
6.4.1.2 Skip unknown
Skip copy unknown area when the device can
not identify the format.
6.4.2 Erase
Master
6.4.2.1 Disable
Disable erase source HDD.
6.4.2.2 Enable
Enable erase source HDD.
6.4.3 Erase
Pattern
6.4.3.1 ONE Byte
A random character to be written into every
byte.
6.4.3.2 Big Random Data
A set of random character to be written into a
set of area.
6.4.4 Wait HDD Time
Auto start time after plugging HDD from 0~30 seconds.

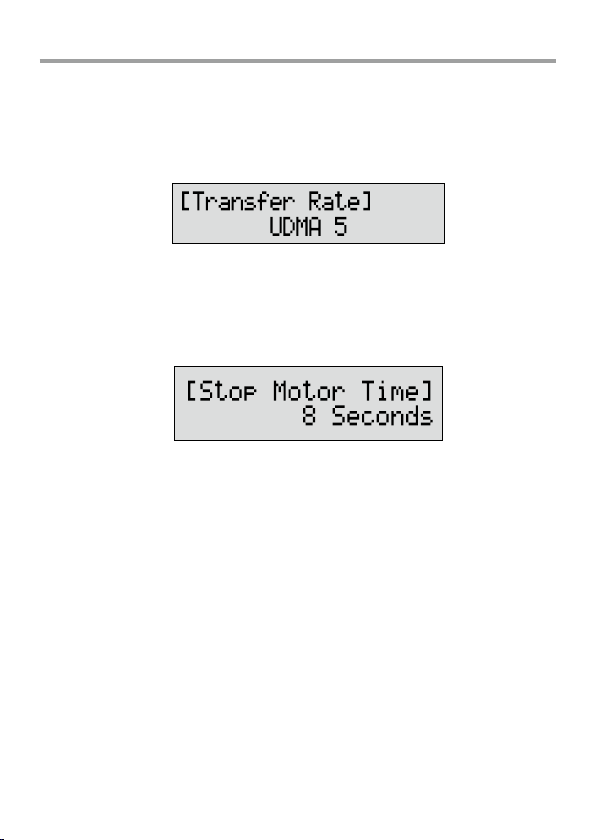

6.4.5 Transfer Rate
Select the proper transfer rate UDMA2-7. 7 is the fastest.
6.4.6 Stop Motor Time
Auto running time after stopping motor from 1~20 seconds.
6.5 Restore Default
Back to original manufacturer setting.

7
Function Introduction 3
1. Copy
It copies data from source HDD to target HDD. Please make sure you have
choose correct copy mode you like to use, about the three copy modes
please refer to function [6.1 Copy Area] for details.
2. Compare
It is used to check if the data on source HDD is identical to target HDD
after duplication.
3. Copy+Compare
It makes copy first and then compare copied HDD with source HDD to
ensure data correctness.
Before copy, there are two setups to be reminded:
a. Shows the quantity of bad sector in Source and Target HDDs.
Copy Process
(if there is any bad sector)
The default setting is "System and Files".

8
3 Function Introduction

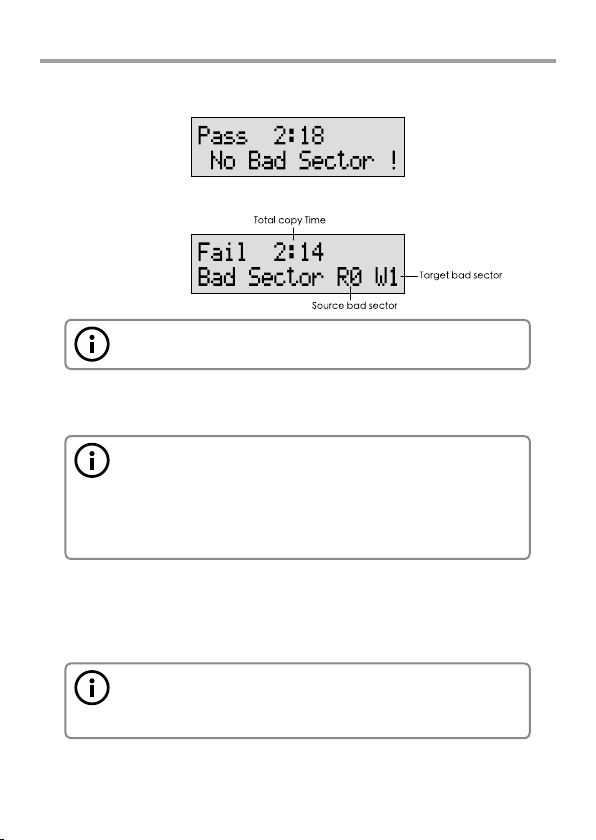

Copy result:
(Pass)
(Fail)
b. Select the suitable copy mode by function 6.1 Copy Area, the Default
setting is quick copy mode "System and Files".
4. Erase
Please choose the appropriate erase method when you like to dispose or
re-use the HDDs.
The default setting of error counter is 0. If you like to increase the accepted
error sectors of the HDD, you can use function 6.2 to setup "skip error".
The special features of quick copy System and Files:
• Using this copy mode, the system will analyze the source's copy data area
only, and only copy data and system file of the HDD.
There is no need to copy rest of empty space.
• This function only support FAT, NTFS and Linux (Ext2and Ext3 Ext4, GPT
and Dynamic HDD.)
• It is strongly suggested to use the same capacity of source and target HDD.
Function 6.3 Erase Master is to determine erase source HDD or not.
The default setting is "Disable erase source HDD".
The function can be stopped while processing by pressing [ESC] for about 3~4
seconds.

9
Function Introduction 3
4.1 Quick Erase
The function will ONLY erase the index of the HDD. It is the quickest way
to erase HDD. It will damage the data in HDD, please make sure you have
backup all important data before using this function.
4.2 Full Erase
The function will erase the whole sectors on the target HDD. It will take
longer time than quick erase. It will damage the data in HDD, please make
sure you have backup all important data before using this function.
4.3 DoD Erase
This is to comply with the U.S.A. Department of Defense (DoD 5220)
standard to fully erase the HDD three times bit by bit to rewrite HDD to
guarantee the data was deleted. It will damage the data in HDD, please
make sure you have backup all important data before using this function.
Steps of Erase:
①Showing how many HDD are ready, press to start.
②Erasing.
③Shows the result when finish.

10
3 Function Introduction
4.4 DoD Erase Comp
Besides DoD erase, this function will also execute compare function to
make sure the random bit was correctly written. This way of erase is to
erase HDD over each sector three times: the first time with zeros (0x00),
second time with 0xFF and the third time with random characters. There
is one final pass to compare random characters by reading. It will damage
the data in HDD, please make sure you have backup all important data
before using this function.
5. Utility
5.1 Show Disk Info.
This function will show HDD's basic information such as HDD capacity and
model number.
Steps of Show HDD Info.:
①Select function.
②Shows HDD information.

11
Function Introduction 3
5.2 Update System
You can follow the steps to update system firmware:
①Select Function 5.2.2
Format HDD
②Download the BIOS from PC to your HDD.
③Plug in HDD into duplicator, select function 5.2.1 to update BIOS.
The purpose of this is because 2GB FAt HDD Partition can speed up update
process.

12
3 Function Introduction
5.3 System Info.
This function shows information of the duplicator includes model name and
firmware version.
6. Setup
6.1 Copy Area
6.1.1 System and Files

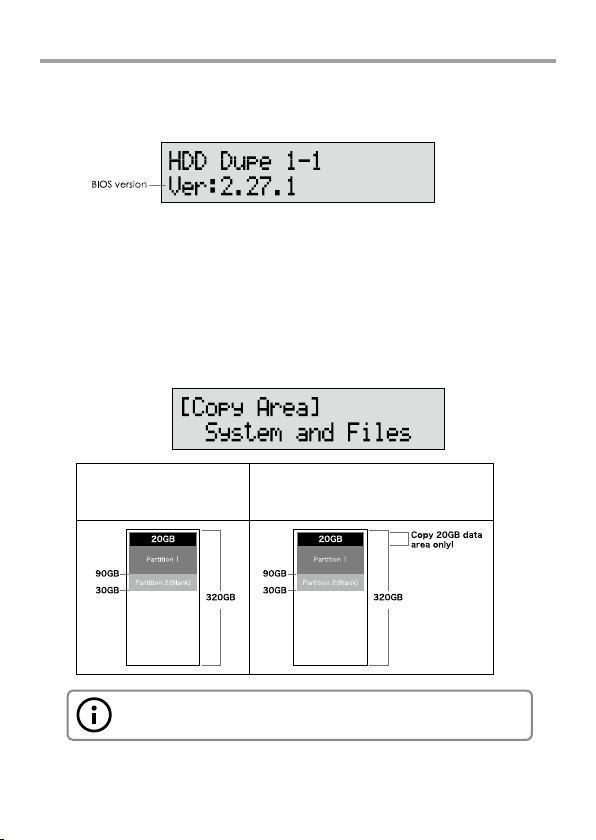

It will copy source HDD's System and Files instead of the whole HDD. The
system will analyze the source HDD and identify the data area to copy. As
long as the source HDD's data within the target HDD's space, the copy will
be processed.

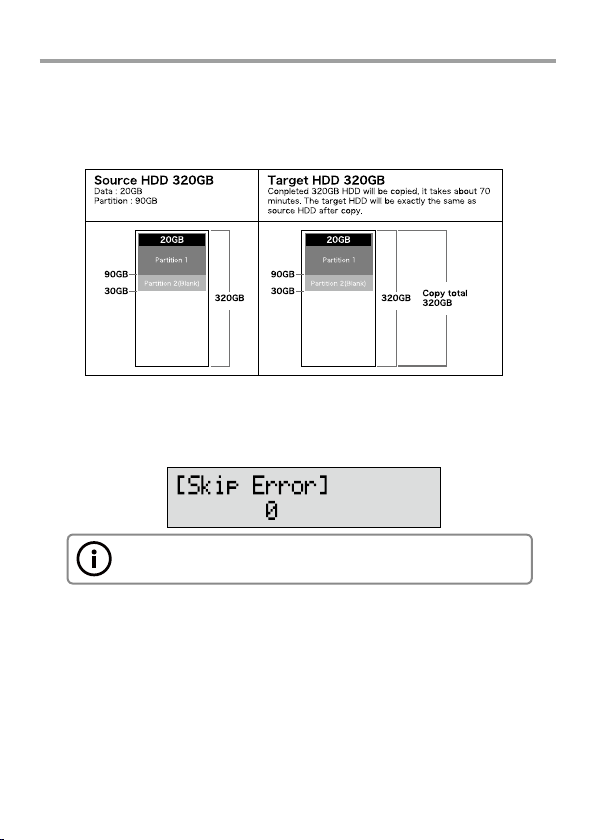

Tatget HDD 320GB
When choosing “System and Files Copy”, only 20G data will be
copied, and it just takes 6.2% time compared to “Whole HDD
Copy”. The target HDD will be exactly the same as source HDD
after copy.
Source HDD 320GB
Data : 20GB
Partition1 : 90GB
System and Files only supports FAT, NTFS, Linux(ext2/ext3/ext4) and
Mac(HFS/HFS+/HFSX) for quick copy.

13
Function Introduction 3
6.1.2 All Partitions
This mode will bit by bit copy all of the partitions no matter there is data
exist or not. The capacity of target HDD has to be bigger than the partition
required capacity.
Tatget HDD 320GB
When choosing “All Partitions Copy”, only 120G data will be
copied, and it just takes 37.5% time compared to “Whole HDD
Copy”. The Target HDD will be exactly the same as source HDD
after copy.
Source HDD 320GB
Data : 20GB
Partition1 : 90GB
After copy, the remaining space in the copied HDD can be used by PC for
further partitioning.
6.1.3 Whole HDD
It is to copy the whole source HDD, no matter of the content, format,
partition or empty space. This mode will take much more time to duplicate
the source HDD completely.

14
3 Function Introduction
6.1.4 Percentage(%)
This mode will copy the percentage selected of source HDD. Only copy
the selected area, other area or data will not be copied. Duplication time is
affected by "transfer rate of HDD".
6.2 Skip Error
This function sets the number of error you like to skip during copy process.
If the HDD is very critical for content correctness, it is strongly recommended
to keep the Skip Error to be "0".
6.3 Language
Select preferred language.
6.4 Advanced Setup
6.4.1 Unknown Format
This function allows you to select if you want to copy the unknown
formatarea.

15
Function Introduction 3
6.4.1.1 Copy Unknown
Copy all the unknown area if device can not identify the format during copy.
6.4.1.2 Skip Unknown
Skip the unknown area if device can not identify the format during copy.
6.4.2 Erase Master
It is set to allow erase source HDD or not. Please make sure this setting
before you execute erase function.
6.4.3 Erase Pattern
Select different erase method.
6.4.3.1 ONE Byte
A random character to be written into every byte.

16
3 Function Introduction
3737373737
3737373737
3737373737
3737373737
3737373737
3737373737
3737373737
3737373737
6.4.3.2 Big Random Data
A set of different random character to be written into a set of area.
This erase pattern method is safer for preventing from data recovered.
26A5C8781
BF51337E81
AA9641D3B
5CDA756B1
3BAFF21FF4
1FBAC4C99
7EDAF1237
7F51C59C3
6.4.4 Wait HDD Time
You can select auto-start time after plugging in HDD, able to set the waiting
time from 0 to 30 seconds.

17
Function Introduction 3
6.4.5 Transfer Rate
You can select the best transfer rate from UDMA 2 to UDMA7 for your
HDD duplication progress. If you are not confident on the HDD quality or
you find a high failure rate on copy or compare. It is recommended to slow
down the UDMA mode.
6.4.6 Stop Motor Time
When the system finishes executing functions, the motor won’t stop
running immediately. This function is used to set the time of motor stopping
after finishing function executing from 1 to 20 seconds.
6.5 Restore Default
Select and go back to the manufacturer's default setting.

18
Specification
Product Name Carry Mini HDD Dupe
Product Number PRO118
Targets 1:1
HDD Interface SATA, IDE(optional)
Display Monochrome LCD
Control Button 4 push buttons
Compatible HDD All major brand of 2.5”,3.5” SATA and IDE HDD and
SATA SSD
Duplication Mode 1. System and Files, 2. All Partitions,
3. Whole HDD, 4. Percentage
Support Format
Quick copy (System and Files): Supports FAT, NTFS,
Linux(Ext2 /Ext3/Ext4) and Mac(HFS/HFS+/HFSX)
All Partitions/Whole HDD/Percentage:
Supports all format.
Capacity 3TB above
Power Supply 12V, 5A
Temperature Storage -20˚C~85˚C
Working 5˚C~45˚C
Humidity Storage 5%~95%
Working 20%~80%
• The above information is for marketing reference only.
The actual specification may subject to change without notice.
