Ubiquiti airGateway User manual

Quick Start Guide

Hardware Overview
Top
RJ45
Connector
(Male)
LED
PoE
Port
LAN
Port
LED
Steady White Steady white indicates
booting/initializing/power on.
Steady Blue Steady blue indicates
device is working properly and an active
connection is detected.
Alternating Blue/White airGateway™is
busy, do not touch or unplug.

Bottom
Reset
Reset
Ext
Reset Used to reset the airGateway to
factory defaults.
Reset Ext Used to reset the airMAX®
device connected to the airGateway to
factory defaults. To reset the airMAX
device,press this button for about 8
seconds while the airMAX device is
powered on.

Installation
WARNING: Do not connect
non‑PoE devices (such as laptops)
to the POE port.
To install the airGateway, perform the
following steps:
1. Disconnect the Ethernet cables
from the Ethernet ports on the PoE
Adapter connected to your airMAX
device. Be sure to note which cable
was connected to the POE port and
which cable was connected to the
LAN port.

2. Connect the male RJ45 Connector of
the airGateway to the Ethernet port
labeled POE on the PoEAdapter.
3. Connect the Ethernet cable that was
disconnected from the POE port
in step 1 to the POE port on the
airGateway.

4. Connect the Ethernet cable that was
disconnected from the LAN port
in step 1 to the LAN port on the
airGateway.

Connecting via Wi‑Fi
To configure the airGateway, you must
access it via Wi‑Fi from a computer.
1. Connect to the wireless network
(SSID) named www.ubnt.com.
2. Launch your Web browser and type
https://192.168.1.1 in the address
field. Press enter (PC) or return (Mac).
Note: Your computer needs to
be on the 192.168.1.x subnet.
If you have DHCP enabled on
your Ethernet adapter, it should
receive an address automatically.
If not, you will need to set a static
IP address in the 192.168.1.2 -
192.168.1.254 range.

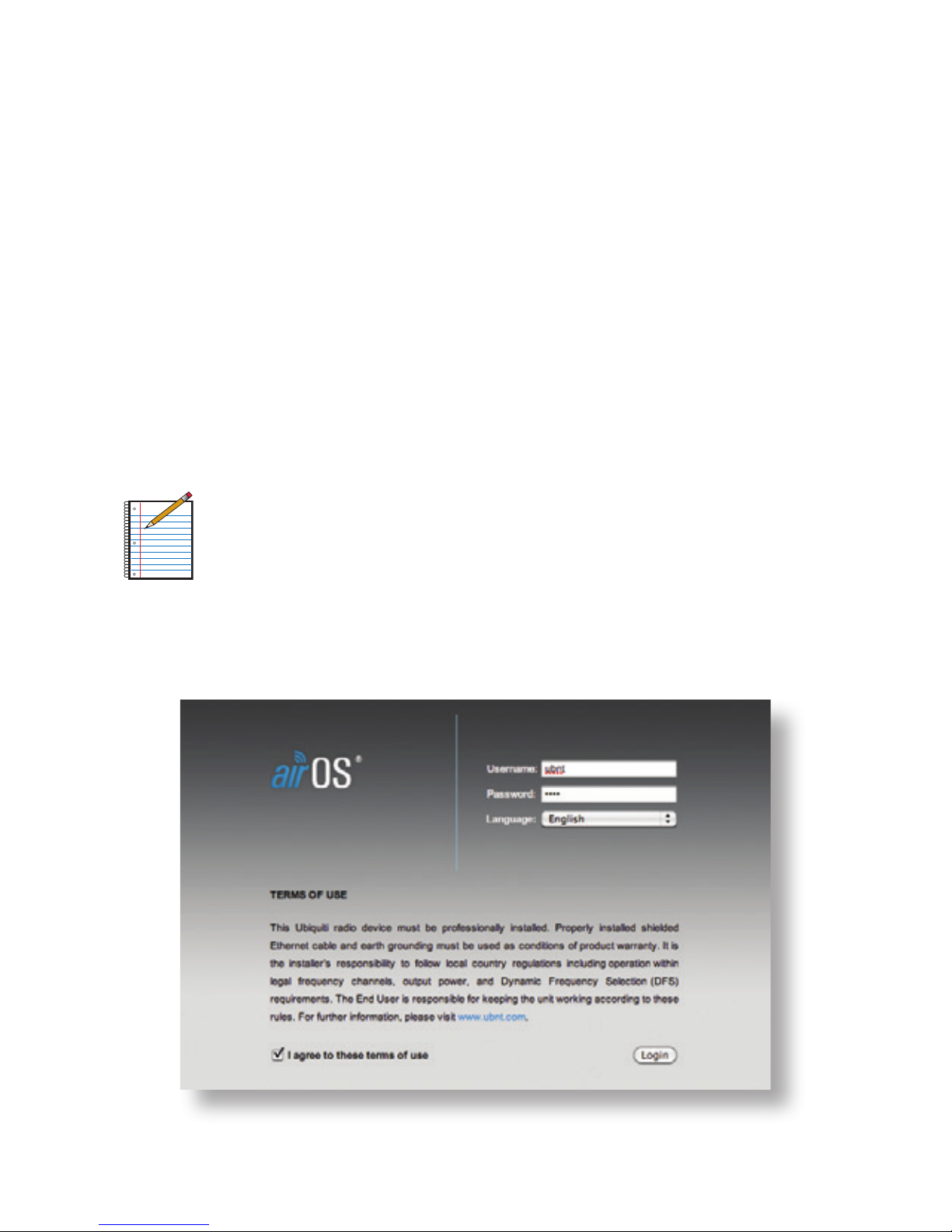

3. The airOS® login screen will appear.
Enter ubnt in the Username and
Password fields.
Upon initial login you must select
your Country, Language, and agree to
the Terms of Use to use the product.
Click Login and the airGateway Setup
Wizard will appear.
Note: U.S. product versions are
locked to the U.S. Country Code
to ensure compliance with FCC
regulations.

4. Change the default airGateway
administrator password. Enter a new
password in the New Password and
Verify Password fields and click Next.
5. Enter a name for your wireless
network (SSID) and a password
(passphrase) for your wireless
network. Click Next.

6. Verify your settings and click Finish or
click Previous to change the settings.
The airGateway is ready to use. Connect
wireless clients as described for the
appropriate operating system:
Windows 8
1. On the Start screen, mouse over
the lower right corner and click the
settings icon when it appears.
2. Click the wireless icon.
