Ubiquiti UniFi USG User manual

UniFi Security Gateway Power Adapter (12V, 1A) Power Cord
Screws (Qty. 2) Screw Anchors (Qty. 2)
Package Contents
UniFi Controller System Requirements
Microsoft Windows 8, Mac OS X, or Linux
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Console
Reset
Java Runtime Environment 1.6 (or above)
Web Browser: Mozilla Firefox, Google Chrome, Microsoft Edge, or Microsoft Internet
Explorer 11
UniFi Controller software v5.4 or higher (available at: ui.com/download/unifi)
Hardware Overview
Ports Panel
RJ45 serial console port for CLI management. Use a RJ45-to-DB9 serial console
cable to connect the Console port to your computer. Then configure using the
following settings:
Baud rate 115200
Data bits 8
Parity NONE
Stop bits 1
Flow control NONE
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

WAN 1 Port
LAN 1 Port
WAN 2 / LAN 2 Port
Resets to factory defaults. The UniFi Gateway should be powered on. Press and hold the
Reset button for about 10 seconds until the right LED on the WAN 2 / LAN 2 port starts
flashing and then becomes solidly lit. After a few seconds, the LED will turn off, and the
UniFi Gateway will automatically reboot.
Supports 10/100/1000 Ethernet WAN connections. Default setting is DHCP client.
Supports 10/100/1000 Ethernet LAN connections. Default setting is DHCP Server.
Server IP: 192.168.1.1/24
Supports 10/100/1000 Ethernet connections. Configure the port using the UniFi
Gateway configuration interface.
LEDs
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

System LED
Power LED
Speed/Link/Act LED
Click here for detailed descriptions.
Off Power Off
Green Power On
Off No Link
Amber Link Established at 10/100 Mbps
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Amber Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps
Green Flashing Link Activity at 1000 Mbps
Hardware Installation
Wall-Mounting (Optional)
1.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

4.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Connecting Power
1.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.
Network Connections
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

1.
2.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Software Installation
Download the latest version of the UniFi Controller software at: ui.com/download/unifi
From a management station connected to the same Layer-2 network, launch the
installer and follow the on-screen instructions.
Note: If you already have UniFi Controller v5.4 or higher installed, go to the
section, Adopting the UniFi Gateway.
After you have installed the software and run the UniFi Installation Wizard, a login
screen will appear for the UniFi Controller management interface. Enter the username
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

and password that you created and click Sign In.
You can manage your network and view network statistics using the UniFi Controller
management interface. For information on using the UniFi Controller software, refer to
the User Guide located on our website at: ui.com/download/unifi
Adopting the UniFi Gateway

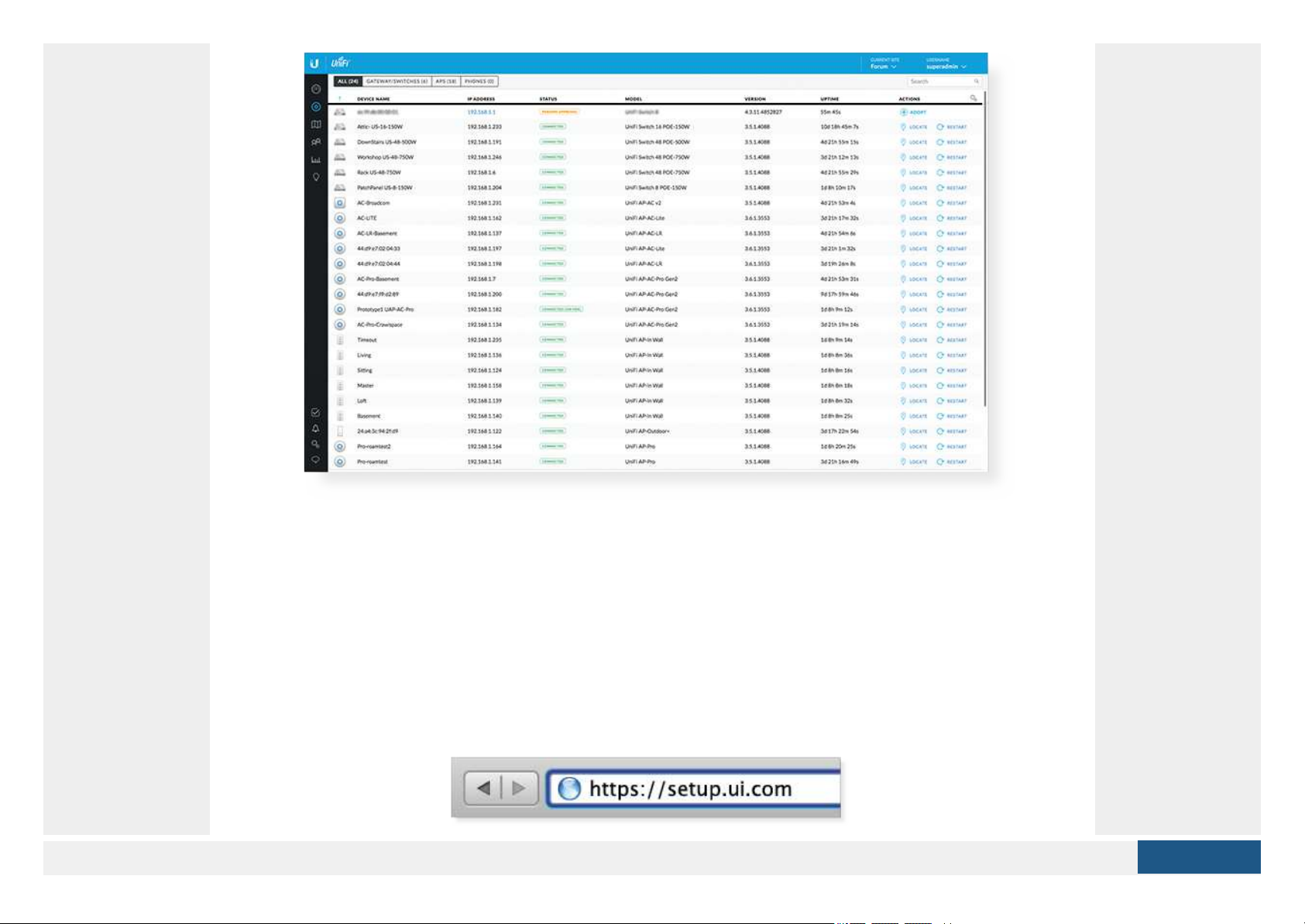

1. From the UniFi Controller dashboard, click Devices in the left menu bar.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2. Locate the UniFi Gateway in the list of devices under the Model column. Click Adopt.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3. The System LED on the UniFi Gateway will turn blue to confirm that it is successfully
adopted.
Optional WAN Port Configuration via Layer 3
By default, the WAN port is set to DHCP so it can be assigned network settings by the
service provider. To change the setting, connect a computer directly (or through a
switch) to the LAN 1 port of the UniFi Gateway.
1. From a web browser, go to https://setup.ui.com
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2. Enter your Username and Password. Click Sign In.
Note: If the UniFi Gateway has not been adopted by a UniFi Controller, the
login window will be skipped and the Setup window will appear.
3. In the Setup window, click Edit Configuration to configure the WAN port to DHCP,
Static IP, or PPPoE.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

For information on using the UniFi Controller software, refer to the User Guide located
on our website at: ui.com/download/unifi
Specifications
USG
Dimensions 135 x 135 x 28.3 mm
(5.32 x 5.32 x 1.11")
Weight 366 g (12.9 oz)
Networking Interfaces
Serial Console Port (1) RJ45 Serial Port
Data Ports (3) 10/100/1000 Ethernet Ports
Max. Power Consumption 7W
Power Supply 12VDC, 1A Power Adapter (Included)
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

USG
Supported Voltage Range 9 to 24VDC
LEDs
System Status
Serial Console Port Power
Data Ports Speed/Link/Activity
Layer 3 Forwarding Performance
Packet Size: 64 Bytes 1,000,000 pps
Packet Size: 512 Bytes or Larger 3 Gbps (Line Rate)
Processor Dual-Core 500 MHz, MIPS64 with Hardware
Acceleration for Packet Processing
System Memory 512 MB DDR2 RAM
On-Board Flash Storage 2 GB
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20
mm of clearance next to the ventilation holes for adequate airflow.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated
on the manufacturer’s label. Connection to a different power source than those specified may
result in improper operation, damage to the equipment or pose a fire hazard if the limitations are
not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only
by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground
wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never use
an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding
wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation
prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,
where applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
